Instrumentation
9
%*
[IS00700(O )01/96]
In your vehicle, the warning lights and gauges are grouped
together on the instrument panel. We call this grouping a
cluster. Your vehicle has one of the following clusters:
*
[IS00800(O )12/95]
n
Standard Cluster
*
[IS00900(O )12/95]
n
Sport Cluster
*
[IS01000(O )01/96]
If you are not sure which cluster your vehicle has, check the
diagrams on the following pages.
File:03cdiso.ex
Update:Thu Sep 12 10:58:17 1996

47
Controls and Features
%*
[CF00200(ALL)03/96]
The Climate Control Systems
[CF00300(ALL)12/95]
Your vehicle has one of the following:
[CF00400(ALL)12/95]
n
Heating Only System (Without Air Conditioning)
[CF00500(ALL)04/96]
n
Heating and Air Conditioning System
*
[CF00600(ALL)12/95]
If you are not sure which system your vehicle has, see the
diagrams on the following pages.
[CF00700(ALL)12/95]
Heating Only System
[CF00800(ALL)12/95]
The control for your heater system is located at the center of the
instrument panel below the radio. The heater will operate only
when the ignition key is turned to the ON position. Your heater
will heat and/or ventilate your vehicle interior depending on
the function selector knob position and temperature you select.
The function selector knob allows you to select heating or
ventilation and determine where the air will be directed. The
temperature control knob setting determines the temperature of
the air that flows into the vehicle.
[CF00900(O )05/96]
10-1/2 pica
art:0001181-C
The control for the heating only system
[CF01100(ALL)12/95]
To turn your heater system on, select any position except OFF.
This will turn the fan on and allow air flow into the vehicle. To
turn your heater off, select OFF. This will turn the fan off and
stop air flow from coming into the vehicle.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

Maintenance and Care
191
%*
[MC09600(ALL)01/96]
Engine Coolant
%*
[MC09700(ALL)01/96
]
Checking the Engine Coolant
*
[MC09800(ALL)05/96]
NOTE: Be sure to read and understandPrecautions When
Servicing Your Vehicleat the beginning of this chapter.
*
[MC09900(ALL)01/96]
RWARNING
The cooling fan is automatic and may come on at any
time. Always disconnect the negative terminal of the
battery before working near the fan.
[MC10000(ALL)12/95]
13-1/2 pica
art:0000336-D

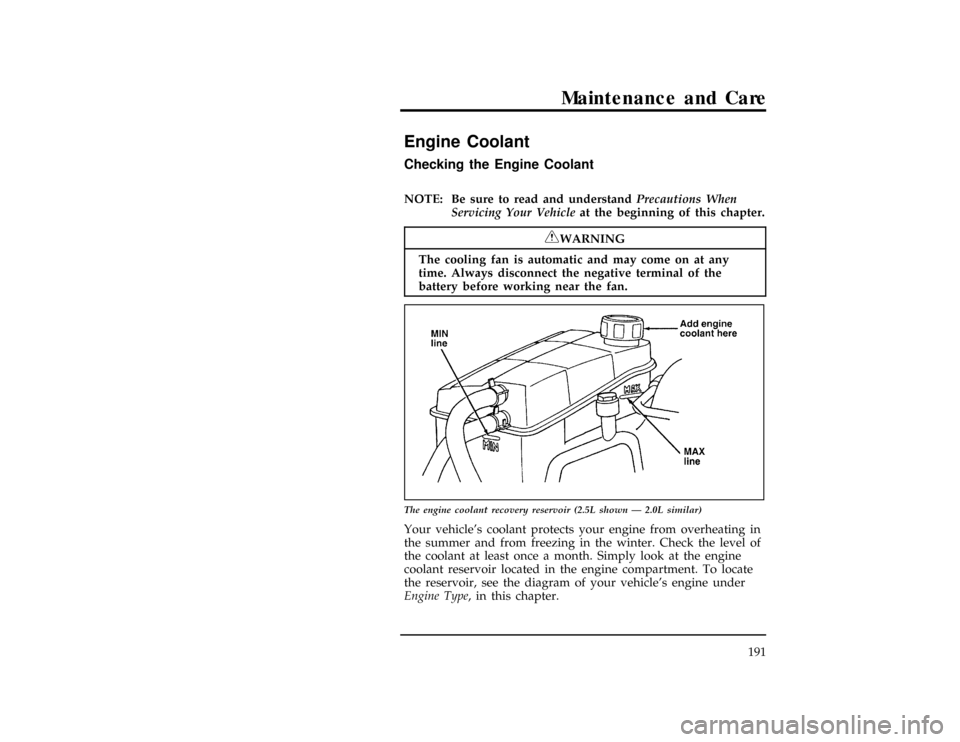

The engine coolant recovery reservoir (2.5L shown Ð 2.0L similar)
%*
[MC10100(ALL)12/95
]
Your vehicle's coolant protects your engine from overheating in
the summer and from freezing in the winter. Check the level of
the coolant at least once a month. Simply look at the engine
coolant reservoir located in the engine compartment. To locate
the reservoir, see the diagram of your vehicle's engine under
Engine Type, in this chapter.
File:11cdmco.ex
Update:Thu Sep 12 11:08:18 1996

204
%*
[MC19000(ALL)01/96
]
Tire Rotation
*
[MC19100(ALL)01/96]
Because your vehicle's front and rear tires perform different
jobs, they often wear differently. To make sure your tires wear
evenly and last longer, rotate them as indicated in the following
diagram.
*
[MC19200(ALL)01/96]
Do not include the spare tire as part of your rotation.
[MC19300(ALL)03/96]
For tire rotation intervals, see theMaintenance Schedulebooklet.
If you notice that the tires wear unevenly, have them checked.
[MC19400(ALL)12/95]
13-1/2 pica
art:0001224-A

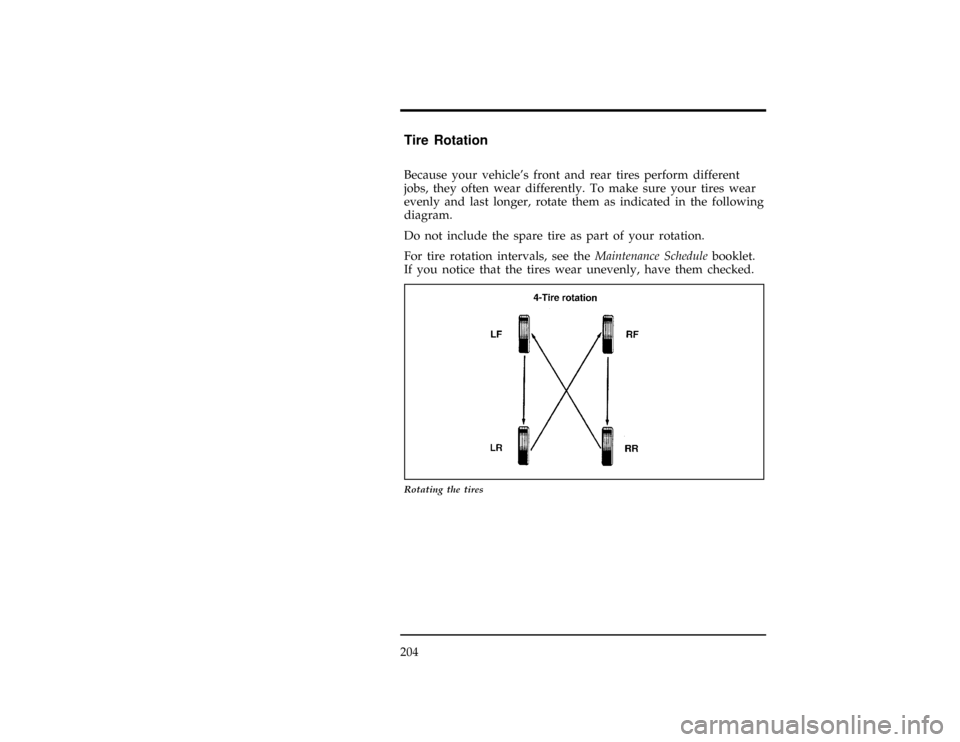

Rotating the tires
File:11cdmco.ex
Update:Thu Sep 12 11:08:18 1996
