1997 CHEVROLET CAVALIER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Manual Remote Control Mirror
The outside rearview mirror
should be adjusted
so you
can just see the side of
your vehicle when you are
sitting in a comfortable
driving position.
Power Remote Control Mirrors
(If Equipped)
The mirror control is
located on the driver’s door.
Rotate the control clockwise
or counterclockwise to
choose the mirror you
want to adjust.
Adjust the driver’s side outside mirror with the control
lever on the driver’s door.
To adjust your passenger’s side mirror, sit in the driver’s
seat and have a passenger adjust the mirror for you.
The mirror is a spring-loaded breakaway design. Then move the control in the direction you want the
mirror
to move. Adjust each mirror
so you can just see
the side
of your vehicle when you are sitting in a
comfortable driving position.
The mirror is a spring-loaded breakaway design.
2-47
..

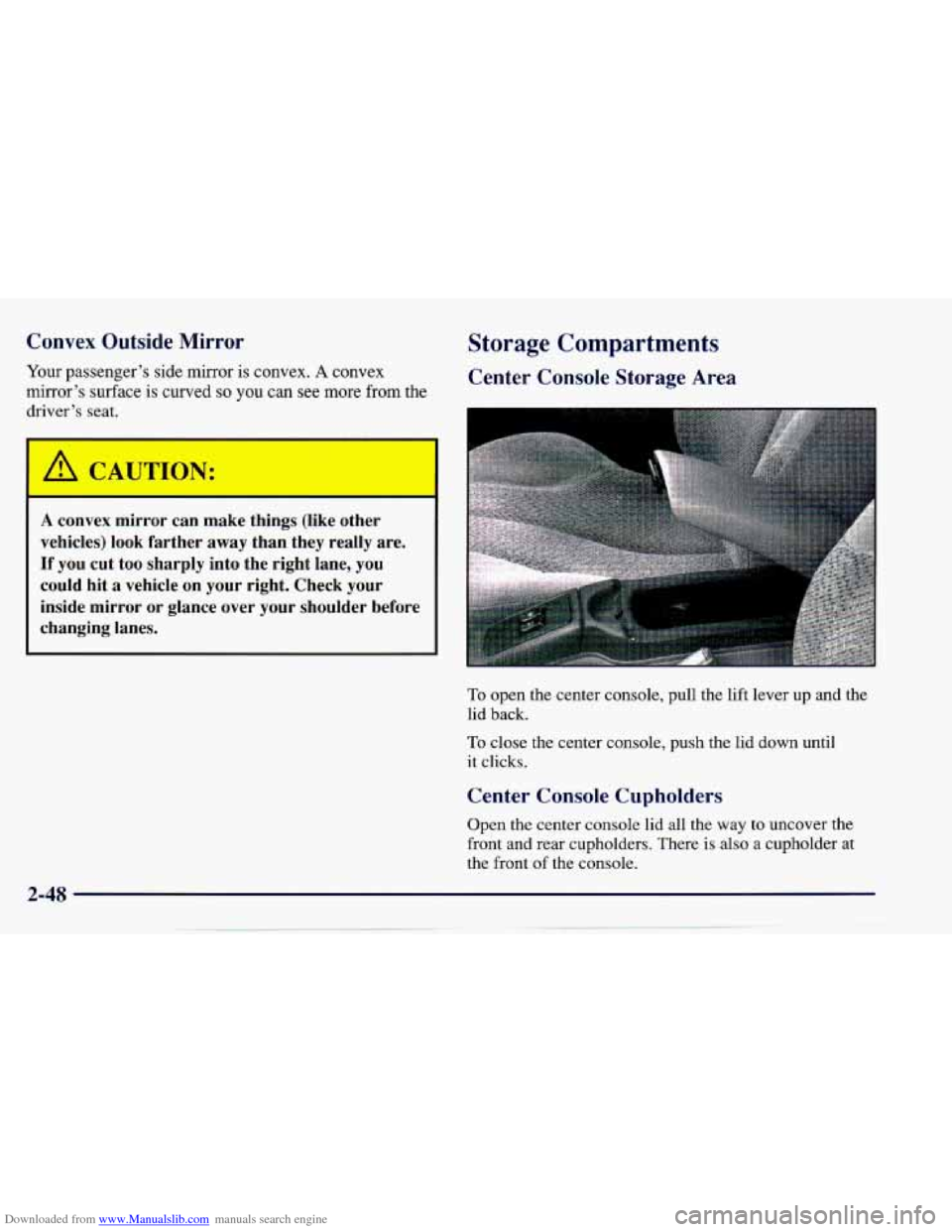

Downloaded from www.Manualslib.com manuals search engine Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved
so you can see more from the
driver’s seat.
Storage Compartments
Center Console Storage Area
A convex mirror can make things (like other
vehicles)
look farther away than they really are.
If you cut too sharply into the right lane, you
could hit
a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
To open the center console, pull the lift lever up and the
lid back.
To close the center console, push the lid down until
it clicks.
Center Console Cupholders
Open the center console lid all the way to uncover the
front
and rear cupholders. There is also a cupholder at
the
front of the console.

Downloaded from www.Manualslib.com manuals search engine Convenience Net (If Equipped)
Your vehicle may have a convenience net. You’ll see it
just inside the
back wall of the trunk. Put small loads, like grocery bags, behind the net.
It can help keep them
from falling over during sharp turns or quick starts and
stops. Unclip a corner of the convenience net to fit
larger objects behind the net, then re-clip
it to secure
them in place.
The net isn’t for larger, heavier loads. Store them in the
trunk as far forward
as you can.
You can unhook the net
so that it will lie flat when
you’re not using it.

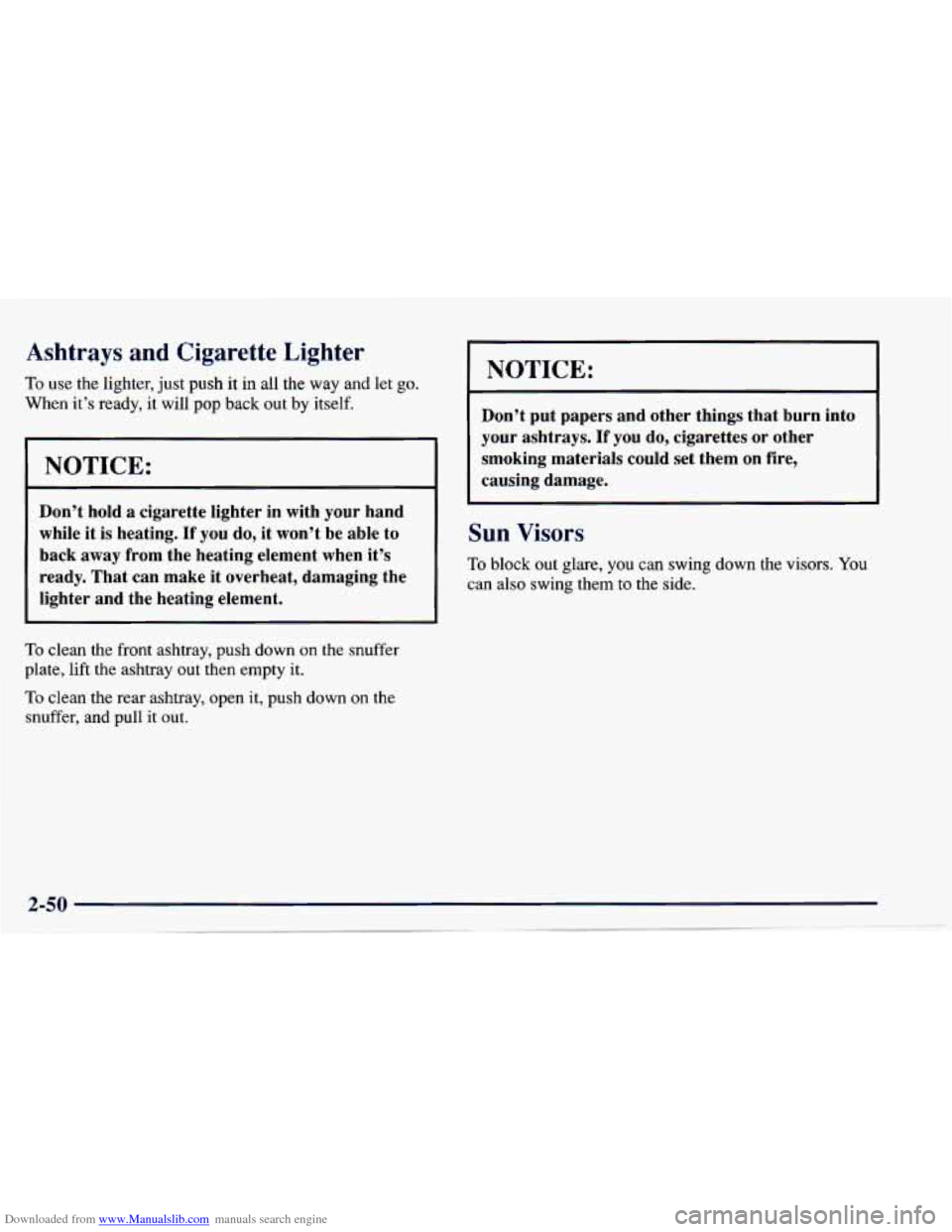

Downloaded from www.Manualslib.com manuals search engine Ashtrays and Cigarette Lighter
To use the lighter, just push it in all the way and let go.
When it’s ready, it will pop back out by itself.
I NOTICE: I
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
To clean the front ashtray, push down on the snuffer
plate, lift the ashtray out then empty it.
To clean the rear ashtray, open it, push down on the
snuffer, and pull
it out.
I NOTICE:
Don’t put papers and other things that burn into
your ashtrays. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
Sun Visors
To block out glare, you can swing down the visors. You
can also swing them to the side.

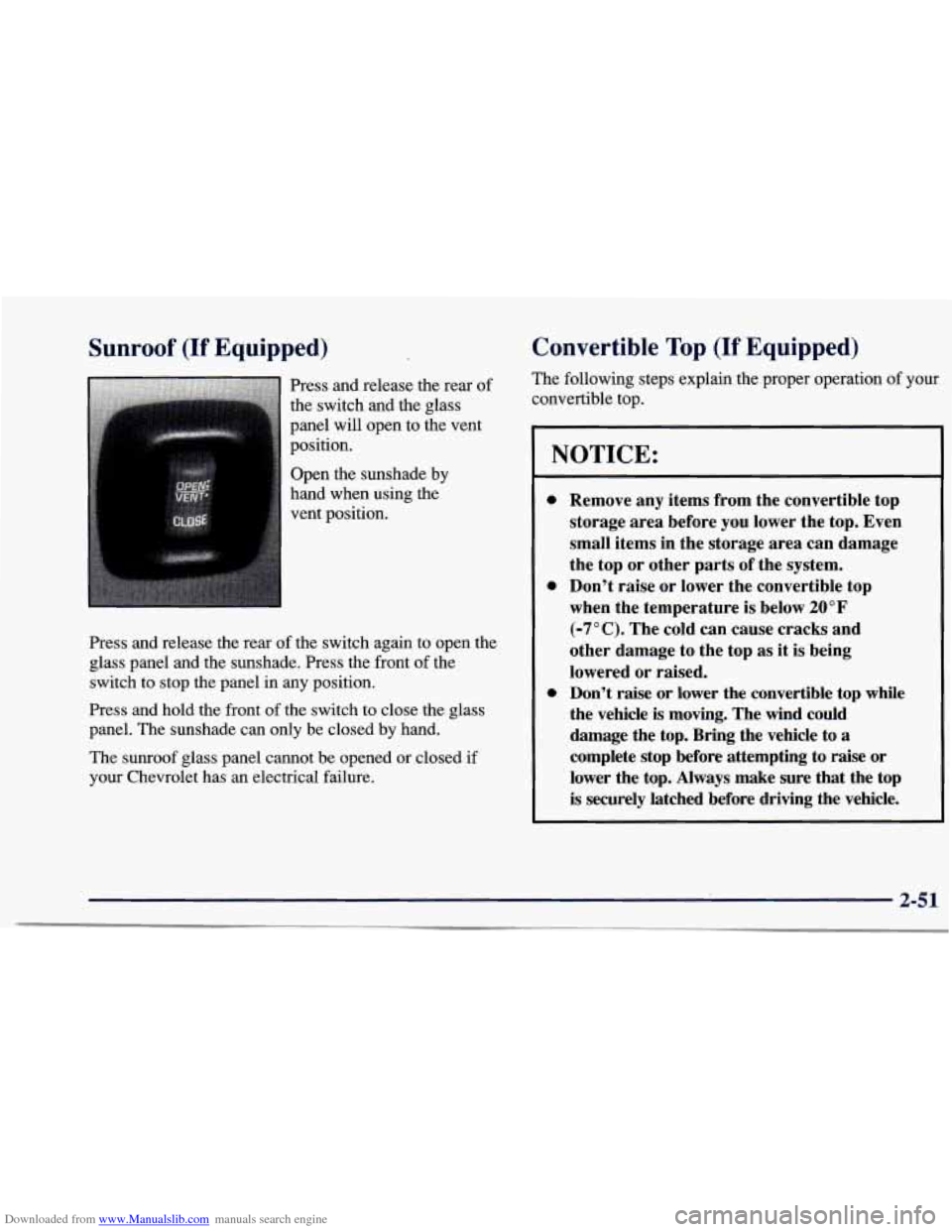

Downloaded from www.Manualslib.com manuals search engine Sunroof (If Equipped)
Press and release the rear of
the switch and the glass
panel will open to the vent
position.
Open the sunshade by
hand when using the
vent position.
Press and release the rear of the switch again to open the
glass panel and the sunshade. Press the front
of the
switch to stop the panel in any position.
Press and hold the front
of the switch to close the glass
panel. The sunshade can only be closed by hand.
The sunroof glass panel cannot be opened or closed
if
your Chevrolet has an electrical failure.
Convertible Top (If Equipped)
The following steps explain the proper operation of your
convertible top.
NOTICE:
0
0
0
Remove any items from the convertible top
storage area before you lower the top. Even
small items in the storage area can damage
the top or other parts of the system.
Don’t raise or lower the convertible top
when the temperature is below
20°F
(-7°C). The cold can cause cracks and
other damage to the top as it is being
lowered or raised.
Don’t raise
or lower the convertible top while
the vehicle is moving. The wind could
damage the top. Bring the vehicle to
a
complete stop before attempting to raise or
lower the top. Always make sure that the top
is securely latched before driving the vehicle.
2-51

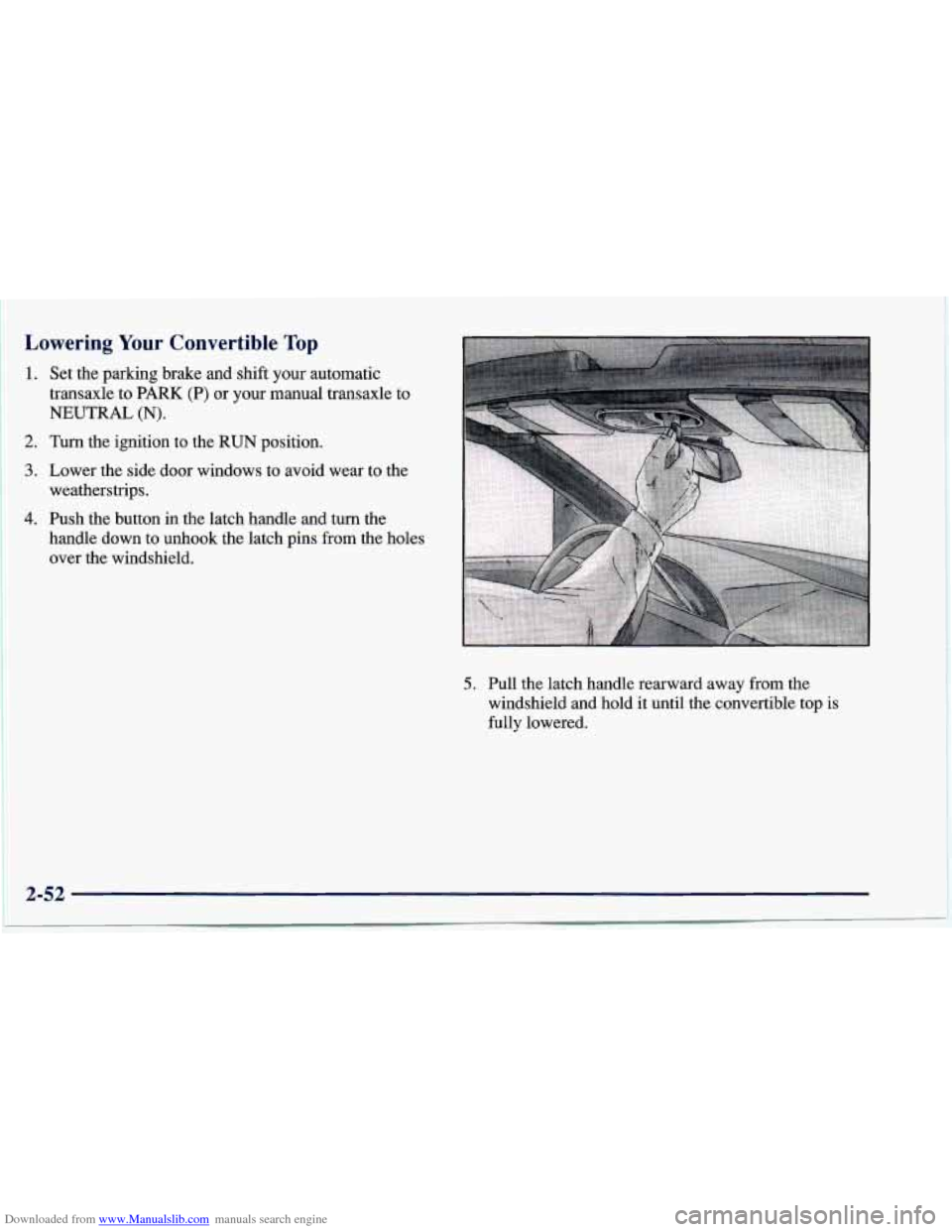

Downloaded from www.Manualslib.com manuals search engine Lowering Your Convertible Top
1.
2.
3.
4.
Set the parking brake and shift your automatic
transaxle to PARK (P)
or your manual transaxle to
NEUTRAL
(N).
Turn the ignition to the RUN position.
Lower the side door windows to avoid wear to the weatherstrips.
Push the button
in the latch handle and turn the
handle down to
unhook the latch pins from the holes
over the windshield.
5. Pull the latch handle rearward away from the windshield and hold it until the convertible top is
fully lowered.
2-52

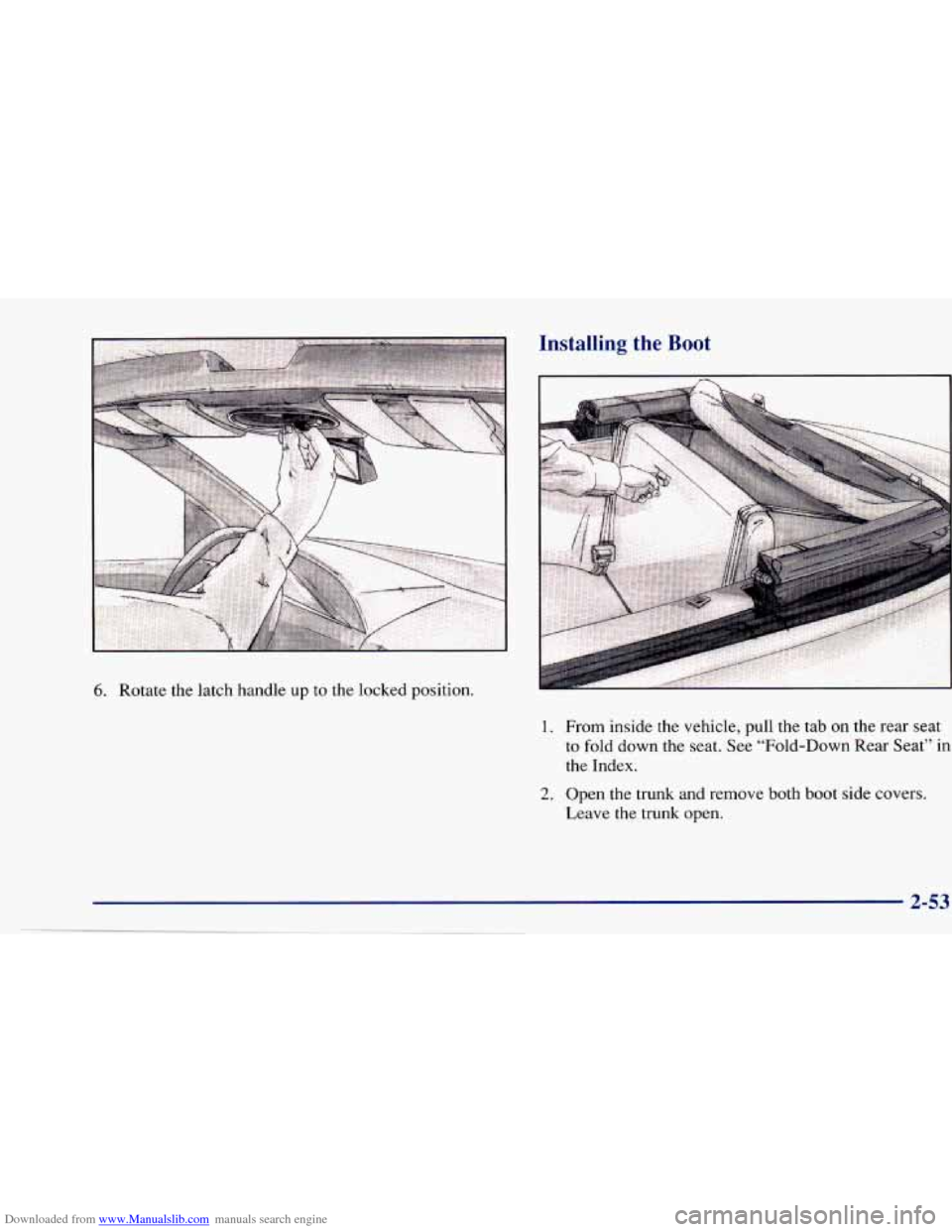

Downloaded from www.Manualslib.com manuals search engine 6. Rotate the latch handle up to the locked position.
Installing the Boot
I 1
1. From inside the vehicle, pull the tab on the rear seat
to fold down the seat. See “Fold-Down
Rear Seat” in
the Index.
2. Open the trunk and remove both boot side covers.
Leave the trunk open.

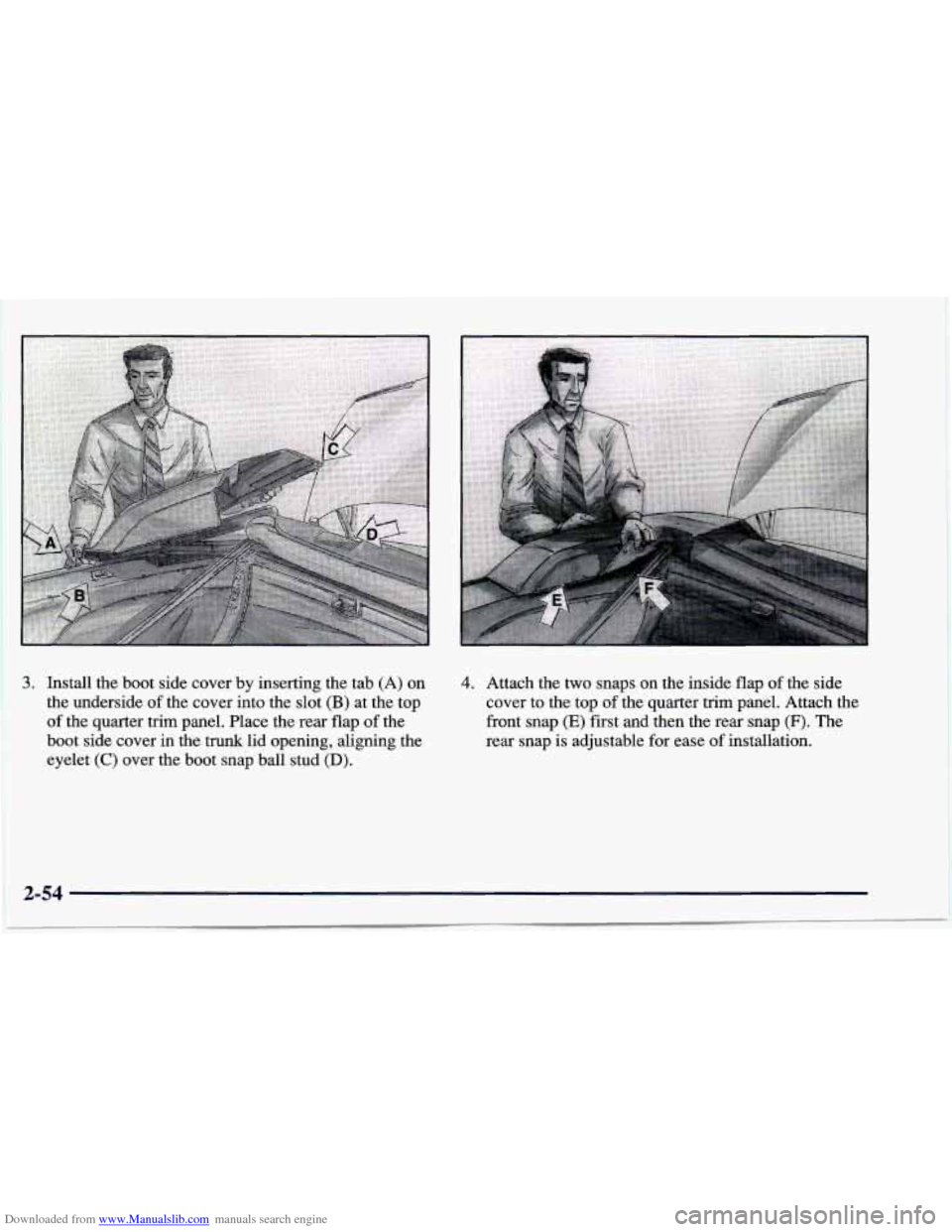

Downloaded from www.Manualslib.com manuals search engine 3. Install the boot side cover by inserting the tab (A) on
the underside of the cover into the slot
(B) at the top
of the quarter trim panel. Place the rear flap of the
boot side cover in the
trunk lid opening, aligning the
eyelet
(C) over the boot snap ball stud (D).
4. Attach the two snaps on the inside flap of the side
cover to the top of the quarter trim panel. Attach the
front snap
(E) first and then the rear snap (F). The
rear snap is adjustable for ease of installation.
2-54
