1996 PONTIAC BONNEVILLE Owners Manual

345 6
t

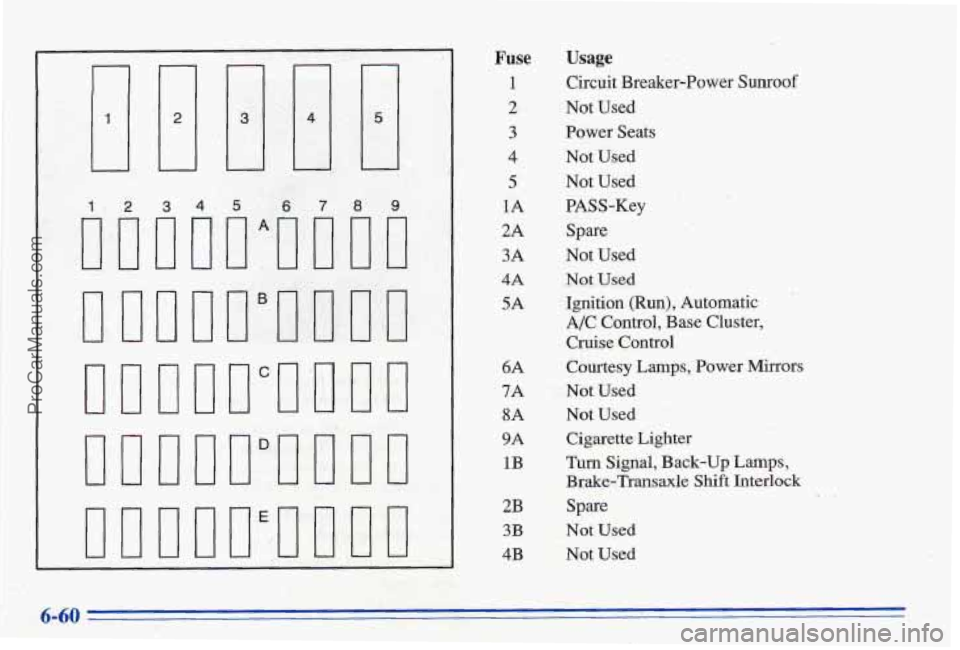

Fuse
1
2
3
4
5
1A
2A
3A
4A
5A
6A
7A
8A
9A
1B
2B
3B
4B
Usage
Circuit Breaker-Power Sunroof
Not Used Power Seats
Not Used
Not Used PASS-Key
Spare
Not Used
Not
Used
Ignition (Run), Automatic
AJC Control, Base Cluster,
Cruise Control
Courtesy Lamps, Power Mirrors
Not Used
Not Used Cigarette Lighter
Turn Signal, Back-up Lamps,
Brake-Transaxle Shift Interlock
Spare
Not Used
Not Used
6-60
ProCarManuals.com

Fuse
5B
6B
7B 8B
9B
1c
2c
3c
4,c
5c
6C
7c
8C
9c
1D
2D
3D
4D
Usage
Anti-Lock Brake System, Computer Command Ride,
Electronic Level Control
Brake and Hazard Lamps
Not Used
Interior
I Lighting
Electronic Level Control
Air Bag System
Spare
Not Used
Not Used
Cooling Fans, Trmsmle
Parking Lamps
Not Used
Not Used (Battery), Radio, Cluster
Ignition (Run/Crank), Chime, Cluster
Spare
Not Used Not Used
Fuse
5D
6D
7D 8D
9D
1E
2E
3E
4E
5E
6E
7E
8E
9E
Usage
Base A/C
Fog Lamps
Not Used Radio
Not Used Not Used
Air Bag System, PASS-Key
Not Used
Not Used
Rear Defog
Not Used
Not Used
Wipers, Washer
Not Used
I
Passenger% Side Fuse Block
Additional fuses are located in the relay center, on the
passenger's side, below the instrument panel.
You must
.. : i',
.- . '! i . -." remove the sound insulator on the right side of the
>. passenger foot well to replace these fbses.
Since replacing these fuses is difficult. We recommend
that you see your dealer
if you need me replaced.
ProCarManuals.com

Fuse
1
2
3
4
5
6
7
8
9
10
11
12
Usage
Door Locks
Trunk Release, RAC
Horns
Not Used
Miscellaneous Engines Controls
Fuel
Pump
Injectors
Powertrain Control Module
Not Used
' Not Used
AJC Programmer
Not Used
4
ProCarManuals.com

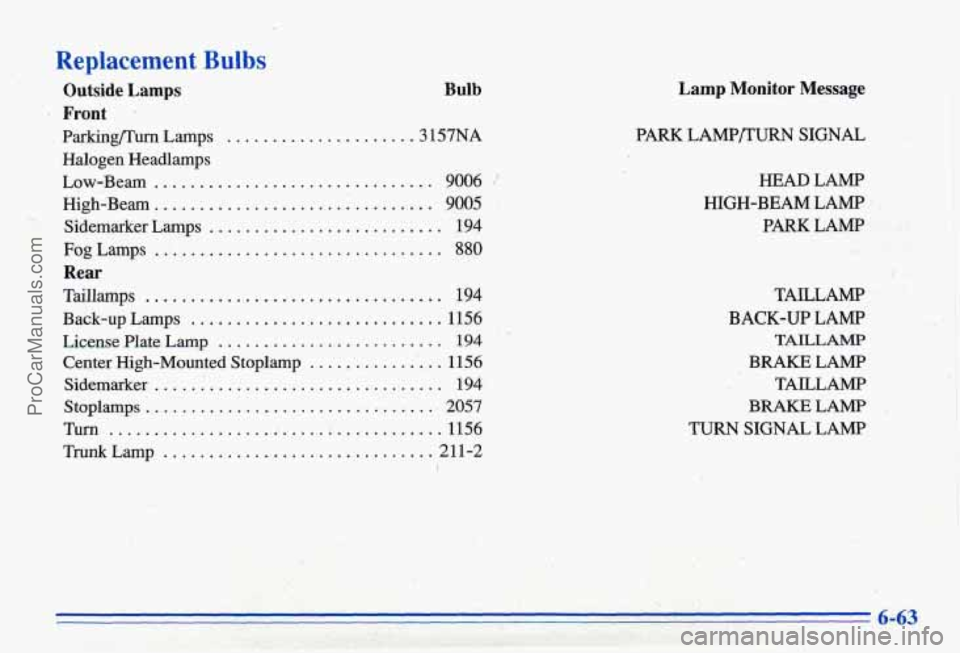

Bulb
Replacement Bulbs
Outside Lamps
Parking/Tum Lamps ....................... 3157NA
Halogen Headlamps Low-Beam
............................... 9006 ..
High-Beam ............................... 9005
Sidemarker Lamps ........................... 194
FogLamps ................................ 880
Rear
' Front .
Taillamps ................................. 194
Back-up Lamps
............................ 1156
License Plate
Lamp ......................... 194
Center High-Mounted S toplamp ................ 1 156
Sidemarker
................................ 194
Stoplamps ................................ 2057
T~rn ...................................... 1156
Trunk Lamp .............................. 21 1-2
Lamp Monitor Message
PARK LAMP/TURN SIGNAL
HEADLAMP
HIGH-BEAM LAMP PARKLAMP
TAILLAMP
BACK-UP LAMP
TAILLAMP
BRAKELAMP TAILLAMP
BRAKELA"
TURN SIGNAL LAMP
ProCarManuals.com

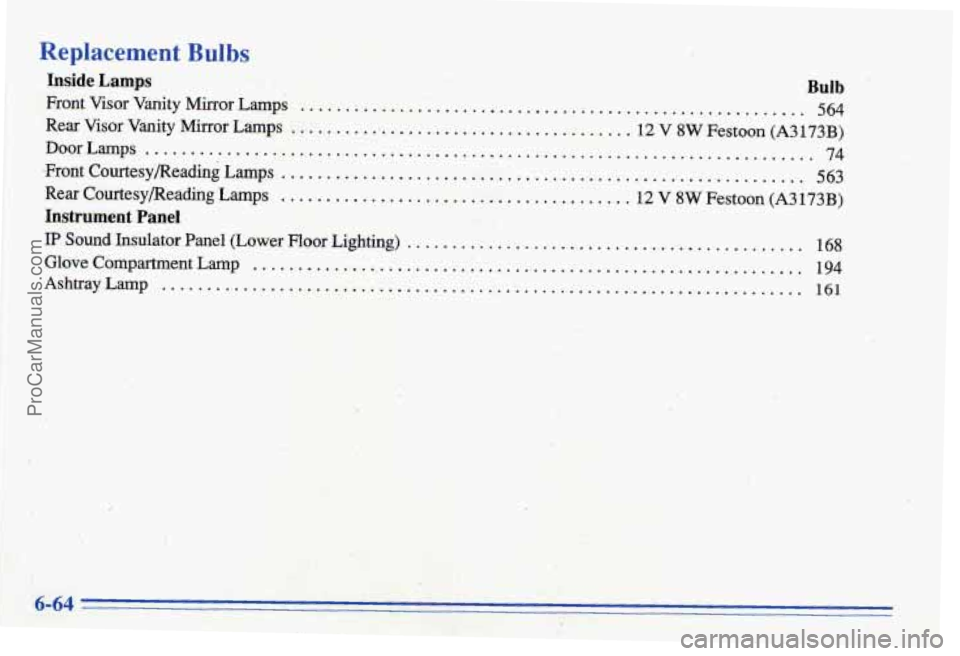

Redacement Bulbs 1
Inside Lamps Bulb
Front Visor Vanity Mirror Laps ......................................................... 564
Rear Visor Vanity Mirror Lamps ................................... ... 12 V 8W Festoon (A3 1733)
DoorLamps ........................................................................\
... 74
-Front Courtesy/Reading Lamps 563
Instrument Panel
IP Sound Insulator Panel (Lower Floor Lighting) 168
GloveCompartmentLamp
............................................................. 194
Ashtray Lamp .................... 161
..........................................................
Rear Courtesy/JXeading Lamps ....................................... 12 V 8W Festoon (A3173B)
............................................
...................................................
6-64 I
ProCarManuals.com

Capacities and Specifications
Automatic Transaxle AT (Overdrive)
Pan Removal and Replacement .... '. ......................................
After Complete Overhaul ................................................
When draining or replacing torque converter, more fluid may be needed.
CoolingSystem .......................................................
Enginecrankcase .....................................................
Oil change with filter change
FuelTank .........................................
Windshield Wiper Blades
Type ..............................................
..
..
...
...
6.5 quarts (6.1 L)
11 quarts (10.4 L)
13 quarts (12.3 L)
4.5 quarts (4.3 L)
..
..
............ 18 gallons (68 L)
....................... Pin
Length
............................................................ 22 inches (565 mm)
Tire Pressures
See Tire-Loading Information label on driver's door
WheelNutTorque ......................................... ;........ lOOlb-ft(140N~m)
Refrigerant (R=l34a), Air Conditioning .................... See refrigerant charge label under the hood.
ProCarManuals.com

~ Air Conditioning Refrigerants'
I, 1 .c , ;Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you're not sure, ask your Pontiac dealer.
Engine Specifications
VIN Engine Code ........................... K
Displacement ......................... 3.8 Liters
Horsepower
.......................... ,205-hp
3800 Series 11 Engine (L36)
Qpe ..................................... V6
Firing Order ........... I ........... 1-6-5-4-3-2
Thermostat Temperature
........... 195°F (91°C)
3800 Supercharged Engine (L67)
VIN Engine Code .......... '. ................ 1
Type .................................... V6
Displacement ........................ 3.8 Liters
Horsepower
.......................... .240-hp
Firing Order ...................... 1-6-5-4-3-2
Thermostat Temperature
.... ; ...... 195°F (91°C)
Normal Maintenance
Replacement Parts'
Air Cleaner Filter ............. AC Type A- 1096C
Engine
Oil Filter ................ AC Type PF-47
Transaxle Filter
............ GM Part No. 8651909
Sparkplugs
......... ; .......... AC Type 41-921
Gap:
0.060 inch (1.52 mm)
Vehicle Dimensions
Wheelbase ............ 110.8 inches (2 814.3 mm)
Tread Width
Front
................ 60.4 inches (1 534.2 mm)
Length .............. 201.9 inches (5 124.0 mm)
Width ................. 74.6 inches (1 893.2 mm)
Height ................. 55.7 inches (1 414.8 mm)
Rear ........... i ...... 60.3 inches (1 531.6 mm)
ProCarManuals.com

L36 Engine Accessory Belt
C
The L36 engine uses an engine accessory belt. This
diagram shows the features connected and the routing.
See “Maintenance Schedule”
in the Index for when to
check the belt.
A.
B.
C.
D.
E.
E
Power Steering
Alternator
Air Conditioning
Idle
Crank
Coolant
Pump
6-67
