1996 PONTIAC BONNEVILLE Owners Manual

I

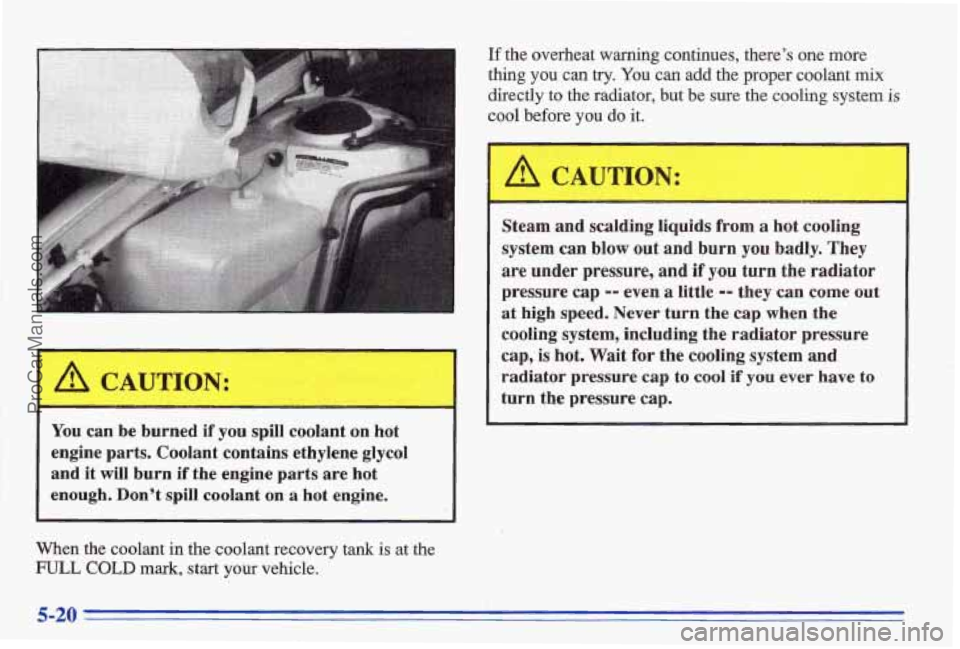

I A CAUTION:
If the overheat warning continues, there's one more
thing you can
try. You can add the proper coolant mix
dire'ctly to the radiator, but b'e sure the cooling system is
cool before you do it.
You can be burned if you spill coolant
on hot
engine parts. Coolant contains ethylene glycol
and it will burn
if the engine parts are hot
enough. Don't spill coolant
on a hot engine.
When the coolant
in the coolant recovery tank is at the
FULL COLD mark, start your vehicle. Steam
and scalding liquids from
a hot cooling
system can blow out and burn you badly. They
are under pressure, and if you turn the radiator
pressure cap
-- even a little -- they can come out
at high speed, Never turn the cap when the
cooling system, including the radiator pressure
cap, is
hot. Wait for the cooling system and
radiator pressure cap to cool
if you ever have to
turn the pressure cap.
5-20
ProCarManuals.com

How to Add Coolant to the Radiator
1. You can remove the radiator pressure cap when the
cooling system, including the radiator pressure cap
and upper radiator hose,
is no longer hot. Turn the
pressure cap slowly counterclockwise until it first stops. (Don’t press down while turning the
pressure cap.)
If you hear a
hiss, wait for that to stop. A hiss means
there is still some pressure left.
ProCarManuals.com

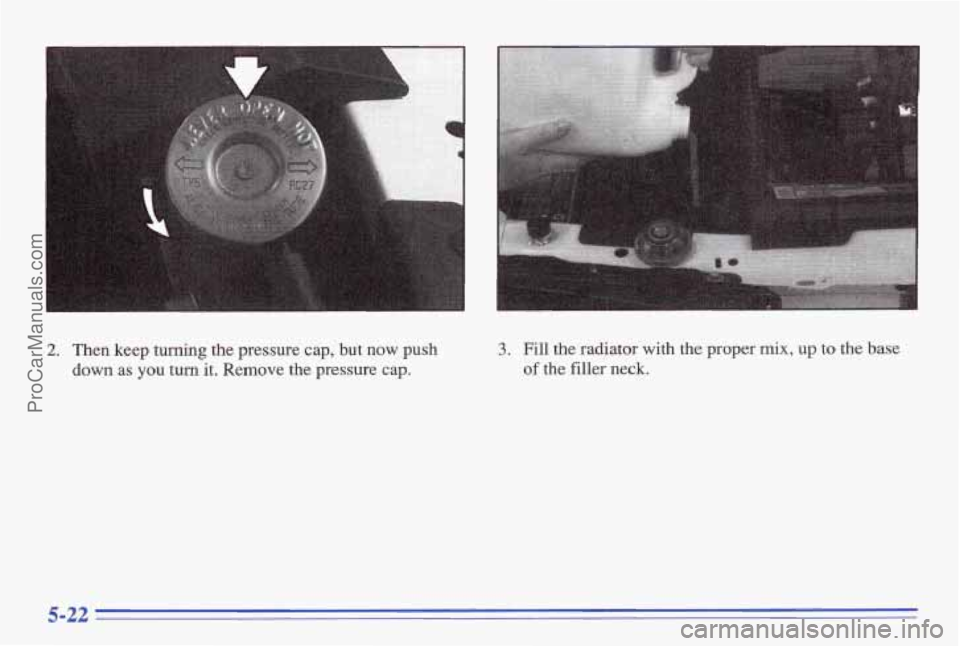

2. Then keep turning the pressure cap, but now push
down as you turn it. Remove the pressure cap.
3. Fill the radiator with the proper mix, up to the base
of the filler neck.
ProCarManuals.com

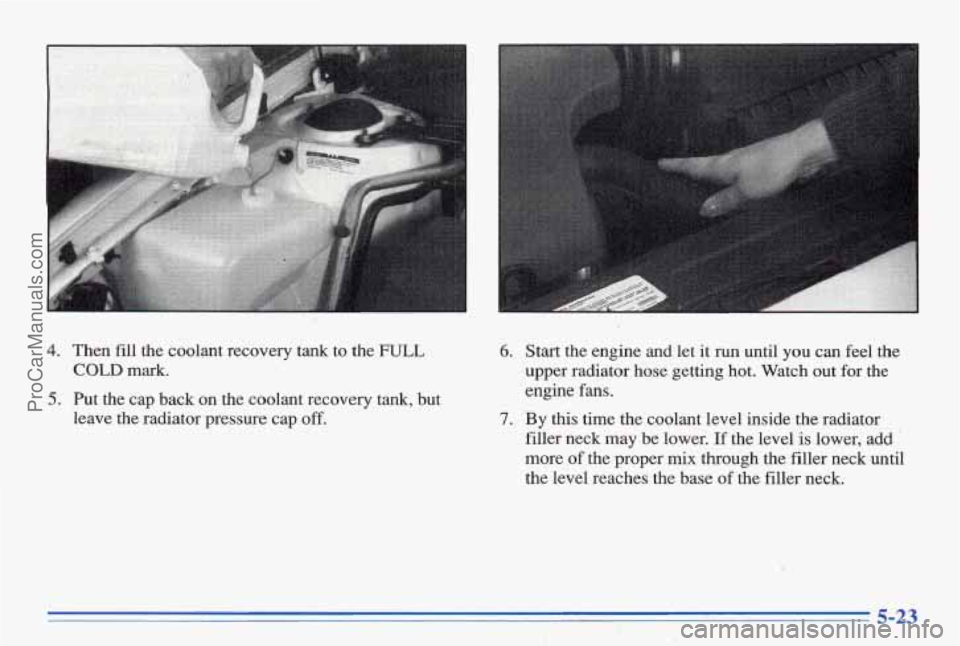

4. Then fill the coolant recovery tank to the FULL
COLD mark.
5. Put the cap back on the coolant recovery tank, but
leave the radiator pressure cap
off.
6. Start the engine and let it mn until you can feel the
upper radiator hose getting hot. Watch out for the
engine fans.
filler neck
may be lower. If the level is lower, add '
more of the proper mix through the filler neck until
the level reaches the base of the filler neck.
7. By this time the coolant level inside the radiator
ProCarManuals.com

5-24
ProCarManuals.com

Air Inflator System
Some vehicles have an air inflator for use in maintaining
proper air pressure for the tires. The air inflator is
located
in the trunk. The ON switch will work only with
the ignition on.
A CAUTION:
Inflating something too much can make it
explode, and you or others could be injured. Be
sure to read the inflator instructions, and inflate
any object only to its recommended pressure.
5-25
ProCarManuals.com

Changing a Flat Tire
If a tire goes flat, avoid fwther tire and wheel damage
by driving slowly to a level place, Turn on your hazard
warning flashers.
A CAUTION:
Changing a tire can cause an injury. The vehicle
can slip
off the jack and roll over you or other
people. You and they could be badly injured.
-Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. lbrn off the engine.
To b'e even more certain the vehicle won't move,
you can put blocks
at. the front and rear of the
tire farthest away from the one being changed.
That would
be the tire on the other side of the
vehicle, at the opposite end.
The following steps will tell you how to use the jack and
c;lhange a tire.
ProCarManuals.com

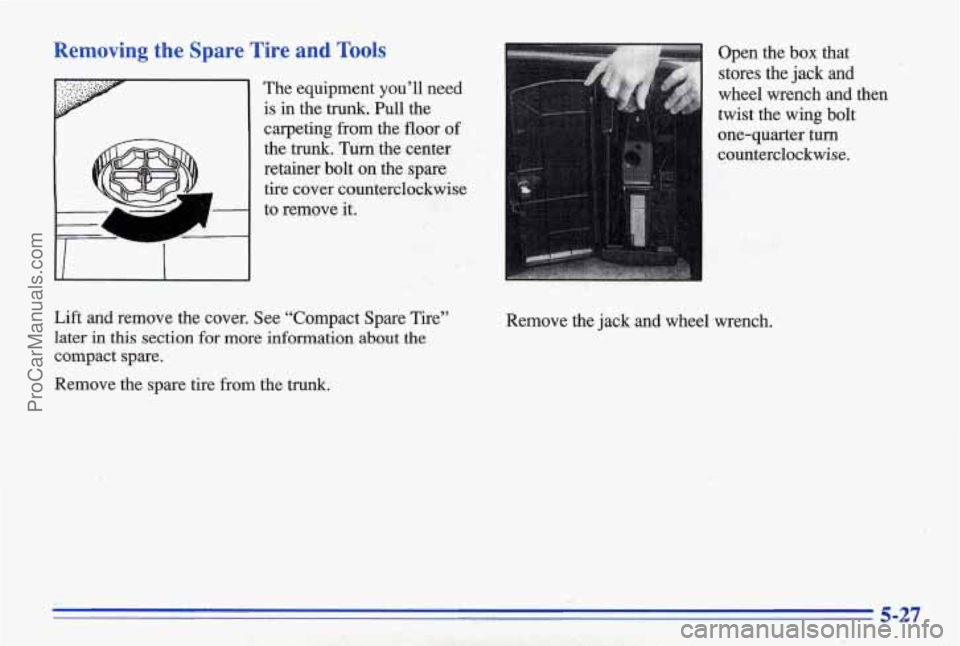

Removing the Spare Tire and Tools
The equipment you’ll ,need
is in the trunk. Pull the
camethg. ‘from the
floor of
theku&. Turn the center
retainer bolt
on the spare
tire cover counterclockwise
to remove it. Open the box that
stores the
jack and
wheel wrench
and then
twist the wing bolt
one-quarter
turn
counterclockwise.
Lift
and remove the cover. See “Compact Spare Tire”
later
in this section for more information about the
compact spare. Remove the
jack and wheel wrench.
Remove the spare tire from the trunk.
