1996 FORD WINDSTAR tow

182
[FV18860(ALL)11/93]
Whenever the second row bench seat is installed in the vehicle
and no one is using the outboard seating position (nearest the
sliding door), the lap/shoulder safety belt must be properly
stowed.
*
[FV18870(ALL)11/93]
The second row passenger side outboard seating position uses a
hook above the sliding/cargo door to stow the shoulder safety
belt when entering or exiting the vehicle or when it is not being
used.
[FV18875(ALL)12/93]
NOTE: When the belt is stowed using the hook, DO NOT use
the hanging belt as an assist when entering the
vehicle.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

Features
183
[FV18880(ALL)05/95]
27-1/2 pica
art:0050212-D

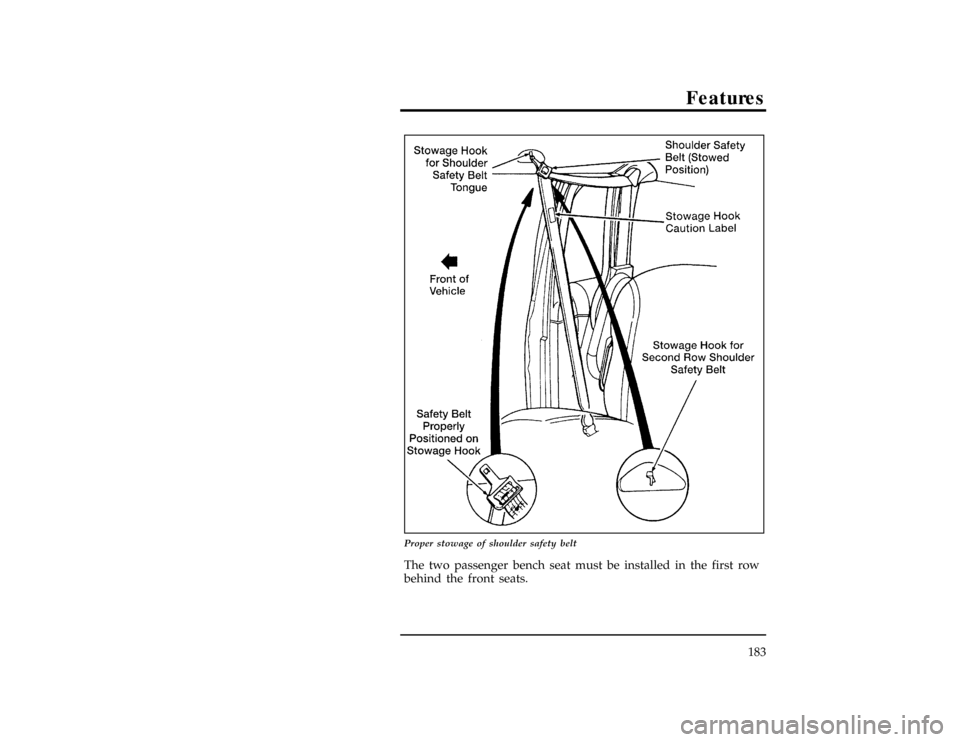

Proper stowage of shoulder safety belt
[FV18900(ALL)03/94]
The two passenger bench seat must be installed in the first row
behind the front seats.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

Features
185
%*
[FV21270(ALL)01/95]
Storage Compartments
*
[FV21280(ALL)09/93]
Underseat Storage Compartment (If equipped)
[FV21300(ALL)10/93]
The underseat storage compartment is located underneath the
front passenger seat. It can be opened by pulling up and toward
the instrument panel.
[FV21400(ALL)09/93]
17-1/2 pica
art:0050042-A

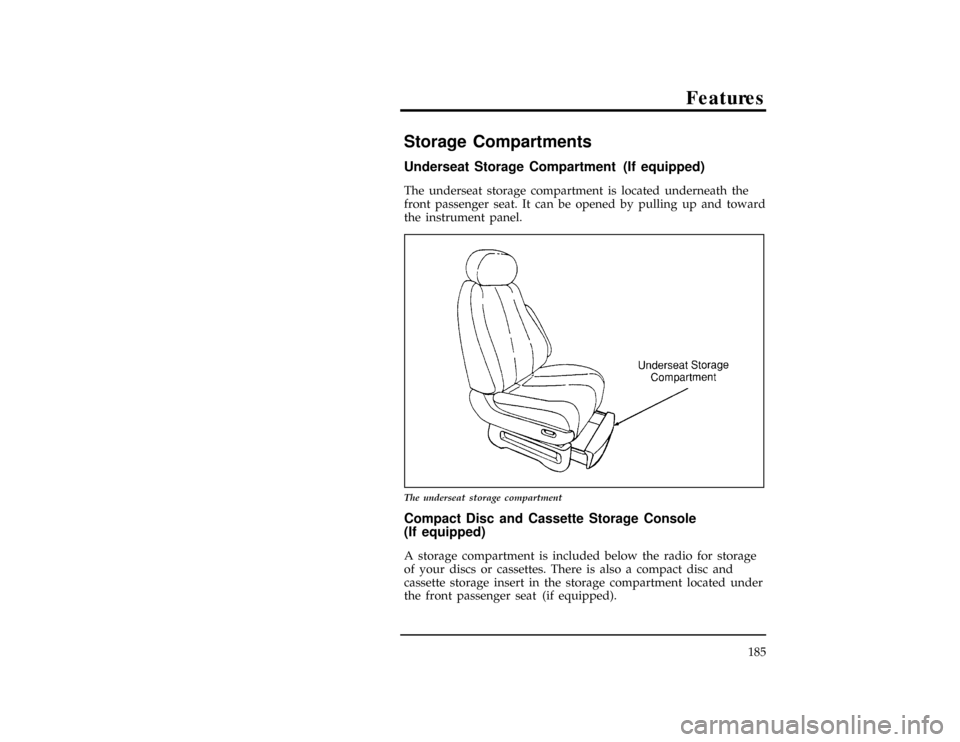

The underseat storage compartment
[FV21800(ALL)11/93]
Compact Disc and Cassette Storage Console
(If equipped)
[FV21900(ALL)08/94]
A storage compartment is included below the radio for storage
of your discs or cassettes. There is also a compact disc and
cassette storage insert in the storage compartment located under
the front passenger seat (if equipped).
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

186
[FV30000(ALL)09/93]
13-1/2 pica
art:0050014-A

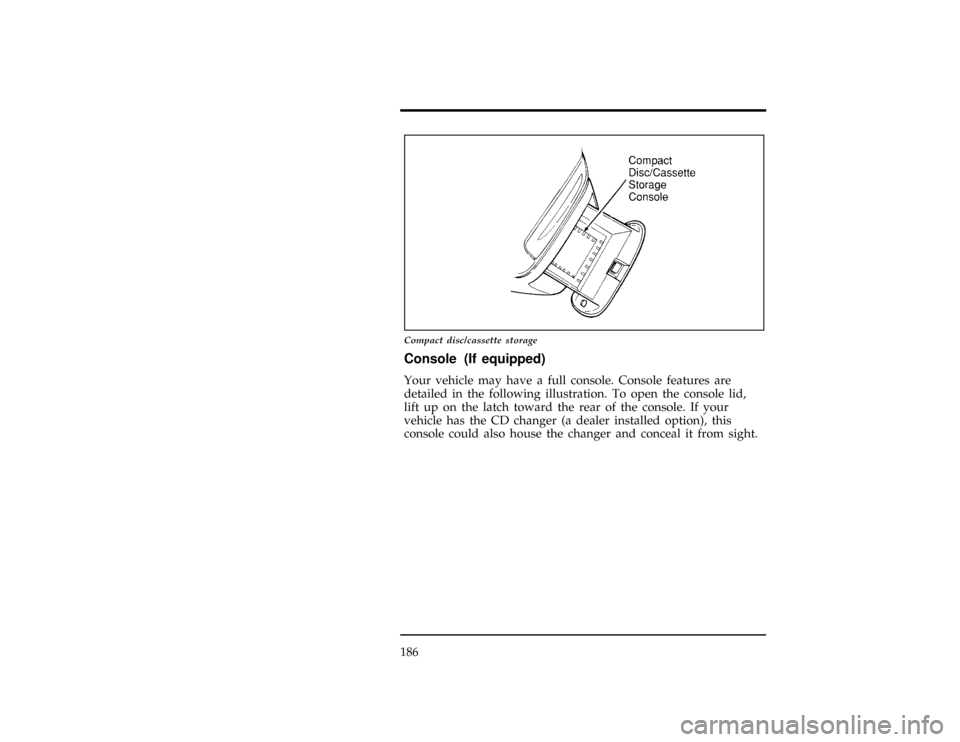

Compact disc/cassette storage
% [FV30120(ALL)12/93]
Console (If equipped)
[FV30140(ALL)03/94]
Your vehicle may have a full console. Console features are
detailed in the following illustration. To open the console lid,
lift up on the latch toward the rear of the console. If your
vehicle has the CD changer (a dealer installed option), this
console could also house the changer and conceal it from sight.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

Features
189
*
[FV31900(ALL)12/93]
NOTE: Be careful. The convex side view mirror on the right
makes objects appear smaller and farther away than
they actually are. Use the inside rearview mirror (or
look behind you) to determine the actual size and
distance of objects that appear in the convex mirror.
%*
[FV32000(ALL)09/93]
Dual Electric Remote Controlled Mirrors (If equipped)
[FV32100(ALL)10/93]
If you have power side view mirrors, you can adjust them in
any direction by using the mirror controls on the door panel.
[FV32150(ALL)11/93]
10-1/2 pica
art:0050031-A
The electric mirror controls
*
[FV32200(ALL)08/91]
To adjust the remote controlled side mirrors:
[FV32300(ALL)08/93]1.
Select the right or left mirror by sliding the selector lever
towards the right arrow or the left arrow.
*
[FV32400(ALL)01/93]2.
Move the control knob in the direction you want to move
the mirror.
[FV32500(ALL)08/93]3.
Return the selector lever to the middle position to keep the
mirror in place.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

218
[AS12027(ALL)04/95]3.
Load discs into disc magazine slots (numbered 1 through 10)
one at a time with labeled surfaces upward, starting with
bottom slot number 1 (Figure 3).
[AS12030(ALL)05/95]
10-1/2 pica
art:0050267-A[AS12033(ALL)04/95]4.
Insert loaded disc magazine into chamber unit with the
arrow on top of the disc magazine pointing toward the
changer (Figure 4).Make sure magazine is fully inserted
into changer.
[AS12036(ALL)05/95]
7-1/2 pica art:0050268-A[AS12039(ALL)05/95]
NOTE: To remove one or more compact disc(s) from the disc
magazine, push the corresponding lever(s) (numbered
1 to 10 on the side of the disc magazine) to the left.
Disc(s) will partially come out for easy removal.
File:wnass.ex
Update:Tue Mar 19 08:19:39 1996

Electronic Sound Systems
233
*
[AS36100(ALL)01/95]
To minimize these conditions, a stereo/mono blend circuit has
been incorporated into this system. This feature automatically
switches a weak stereo signal to a clearer monaural signal,
which improves the quality of reception.
*
[AS36200(ALL)01/95]
Several sources of static are normal conditions on AM
frequencies. These can be caused by power lines, electric fences,
traffic lights and thunderstorms.
*
[AS36300(ALL)01/95]
Another reception phenomenon isStrong Signal Capture and
Overload. This can occur when listening to a weak station and
when passing another broadcast tower. The close station may
capture the more distant station, although the displayed
frequency does not change. While passing the tower, the station
may switch back and forth a few times before returning to the
original station.
*
[AS36400(ALL)01/95]
When several broadcast towers are present (common in
metropolitan areas) several stations may overload the receiver,
resulting in considerable station changing, mixing and
distortion.
*
[AS36500(ALL)01/95]
Automatic gain control circuitry for both AM and FM bands has
been incorporated into this system to reduce strong signal
capture and overload.
%*
[AS36600(ALL)08/89]
All About Radio Frequencies
*
[AS36700(ALL)05/95]
The Federal Communications Commission (FCC) and the
Canadian Radio Telecommunications Commission (CRTC)
establish the frequencies AM and FM radio stations may use for
their broadcasts. The allowable frequencies are, AM: 530,
540...1600, 1610 kHz in 10 kHz steps; FM: 87.9, 88.1...107.7, 107.9
MHz in 0.2 MHz steps.
*
[AS36800(ALL)06/95]
Not all frequencies will be assigned to a given area. This radio
will tune to each of these frequencies using manual tune and no
fine tuning is necessary as radio stations may not use other
frequencies.
File:wnass.ex
Update:Tue Mar 19 08:19:39 1996

238
*
[DR03500(ALL)09/93]
To return the transaxle to the normal Overdrive operation, press
the OVERDRIVE ON/OFF button again. Use this button to
select Overdrive or Overdrive Off whenever you drive your
vehicle.
*
[DR03700(ALL)02/95]
The transaxle will be in the ªoverdrive onº mode when the
vehicle is started even if the O/D OFF mode was selected when
the vehicle was last shut off.
*
[DR03900(ALL)04/95]
NOTE: If the O/D OFF indicator light is flashing on and off
repeatedly when the vehicle is started, there is a
transaxle electronic system malfunction. Contact your
dealer as soon as possible.
*
[DR04000(ALL)01/93]
When to use 2 (Second)
[DR04100(ALL)03/94]
Use 2 (Second) when driving on slippery roads or to provide
additional engine braking on downgrades. This position
provides Second and First gear operation only.
*
[DR04200(ALL)12/93]
When to use 1 (First)
[DR04300(ALL)05/95]
Use 1 (First) to provide maximum engine braking on steep
downgrades. Upshifts from First can be made by manually
shifting to 2 (Second) orj(Overdrive). 1 (First) gear provides
only first gear operation. If you select First while driving at
higher speeds, the transaxle will shift to 2 (Second), and then
downshift to 1 (First) after the vehicle decelerates to the proper
speed.
*
[DR04400(ALL)06/92]
Parking
*
[DR04500(ALL)01/93]
Always come to a complete stop before you shift into P (Park).
This position locks the transaxle and prevents the front wheels
from turning. To securely latch the gearshift in the P (Park)
position, pull it toward you, push it completely
counterclockwise against the stop, and then push it toward the
instrument panel.
