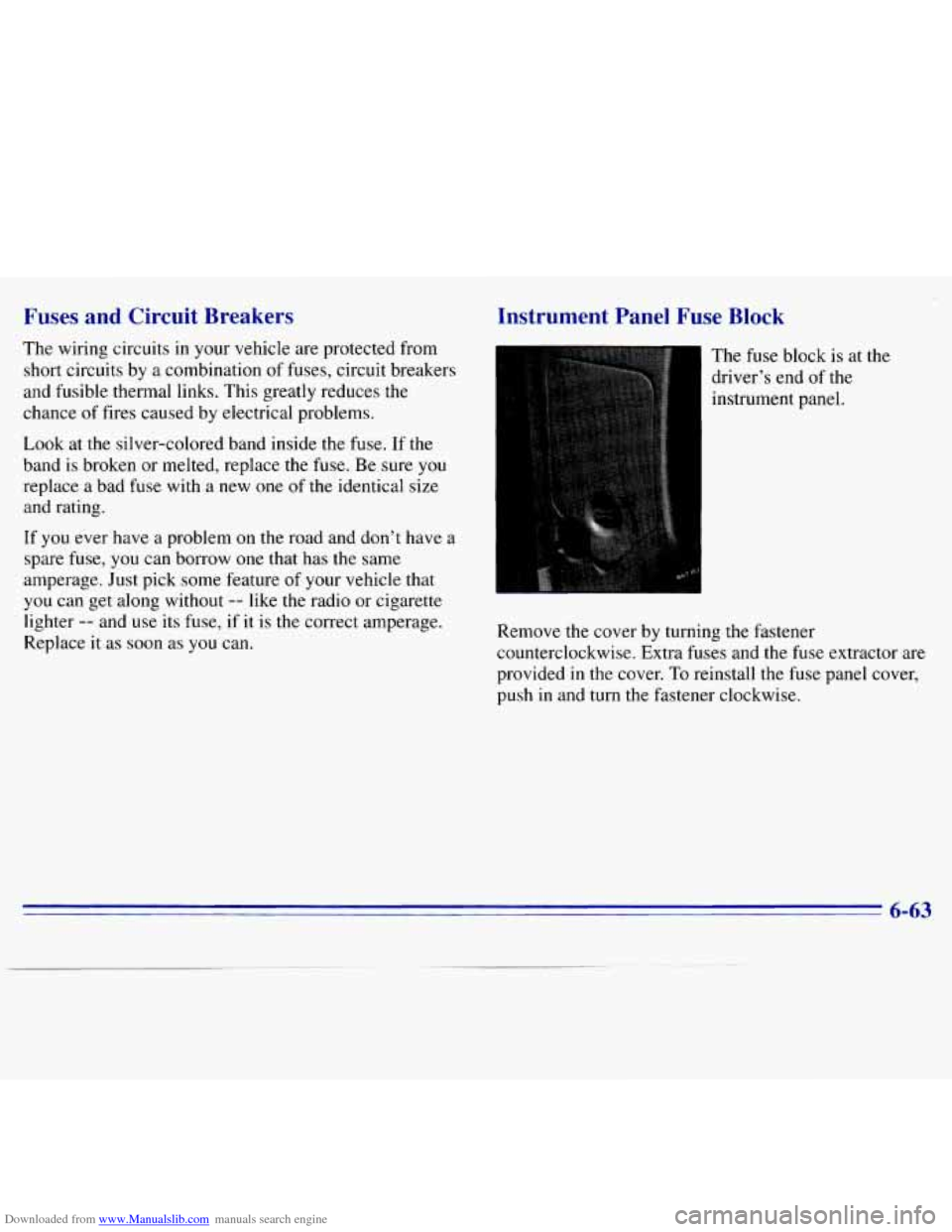

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination
of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of fires caused by electrical problems.
Look at
the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one
of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one that has the same
amperage. Just pick some feature of your vehicle that
you can get along without -- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as
you can.
Instrument Panel Fuse Block
The fuse block is at the
driver’s end
of the
instrument panel.
,
Remove the cover by turning the fastener
counterclockwise. Extra fuses and the fuse extractor are
provided in the cover.
To reinstall the fuse panel cover,
push in and turn the fastener clockwise.
6-63

Downloaded from www.Manualslib.com manuals search engine FuseKircuit Usage Breaker
A
B
1
Power Door Locks, Power Seat, Power
Seat Lumbar, Remote Keyless Entry
Power Windows
Stoplamps, Hazard Lamps, Chime,
Center High-Mounted Stoplamp Relay,
Center High-Mounted Stoplamp
3
4
5
6
FuseKircuit Usage
Breaker
2 Dome Lamps, Visor Vanity Mirror,
Cigarette Lighter, Inside Rearview
Mirror Lamp, Overhead Console
Lamps, Glove
Box Lamp, Horns, Horn
Relay, IP Courtesy Lamps, Power
Outside Rearview Mirror, Illuminated
Entry Module
Parking Lamps, License Plate Lamps,
Electric Shift Transfer Case Module,
Underhood Lamp, Ashtray Lamp,
Door Switch Lamp
Alternator Field, A/C Compressor
Relay, Cluster Chime Module, DRL
Relay Coil, Four-Wheel-Drive
Indicator Lamp, DRL Module,
Transfer Case Control Module Ignition, SIR Redundant Ignition,
RKE Ignition
Oxygen Sensor Heater, Exhaust Gas
Recirculation, Cam Sensor, CANN.
Purge, MAS
Blower Motor, Temperature Door
Motor,
HI Blower Relay Coil
6-64

Downloaded from www.Manualslib.com manuals search engine Fuse/Circuit Usage Breaker
7 Power Auxiliary Outlets, Assembly
Line Diagnostic Link
8
9
10
11
12
13
14
15
Not Used
PCMNCM Battery,
ABS Battery, Fuel
Pump (LN2)
PCM/VCM Ignition, Injectors, Crank
Sensor, Coil Driver Module
Radio, Inside Rearview Mirror
Map Lamp
DRAC, Anti-Lock Braking System,
Clock, Radio, Battery,
CD Player
VCM
IGN-3
A/C Compressor Battery Feed
Daytime Running Lamps,
Fog Lamps,
Fog Lamp Relay
Fuse/Circuit Usage Breaker
16
17
19
20 21
22
24 Turn
Signals and Back-up
Lamps, Brake-Transmission
Shift Interlock Solenoid
Windshield Washer, Windshield Wiper Motor
Electric Shift Transfer Case
Crank Signal, Air Bag System
Cluster Illumination,
Radio Illumination, Heater
Lamp, Four- Wheel-Drive
Illumination, Chime Module,
Fog Lamp Illumination
Air Bag System
PRNDL Power, 4L60E Automatic
Transmission
6-65

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Lamps
Sealed Beam Halogen Headlamps
Composite Low-Beam
Halogen Headlamps Composite High-Beam
Halogen Headlamps
Tail and Stoplamps
Quantity
2
2
2
2
Number
2El
9006 HB4
9005 HB3 3057
Capacities and Specifications
Type L4
Engine 2.2L
VIN Code 4
Firing Order 1-3-4-2
Horsepower
(T Series) 1 18 at 5,200 rpm
Horsepower
(S Series) 1 18 at 5,200 rpm
Thermostat Specification 195°F (91°C)
Spark
Plug Gap 0.045 inches
(0.1 14 cm)
Lamps
Front Sidemarker Lamps
Front Turn Signal Lamps
Center High-Mounted
Stoplamp
Underhood Lamp
Visor Vanity Mirror Lamps
“VORTEC” 4300
V6
X
1-6-5-4-3-2
180 at 4,400 rpm
170
at 4,400 rpm
195°F (91°C)
0.045 inches (0.114 cm)
Quantity
2
2
Number
194
3 157NA
577 93
74
“VORTEC” 4300
V6
W
1-6-5-4-3-2
190 at 4,400 rpm
180 at 4,400 rpm
195°F (91 “C)
0.045 inches (0.1 14 cm)
6-66

Downloaded from www.Manualslib.com manuals search engine Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are based on the latest information available at the time of printing,
and are subject
to change. If a part listed in this manual is not the same as the part used in your vehicle when it was
built,
or if you have any questions, please contact your GM truck dealer.
Engine
Thermostat
Oil Filter
Air Cleaner Filter
PCV Valve Automatic Transmission Filter Kit
Spark Plugs
Fuel Filter
Windshield Wiper Blades
2.2L
10 182377
PF47
A1163C
cv9ooc 24200796
4 1-928
GF48 1
Trico (20 inched5
1 cm)
“VORTEC” 4300
1255 1472
PF52
A1 163C
CV746C 24200796
4 1-932
GF48 1
Trico
(20 inched5 1 cm)
6-67

Downloaded from www.Manualslib.com manuals search engine Wheels and Tires
Wheel Nut Torque . . . . . . . . . . . . 95 lb-ft (130 N-m)
Tire Pressure . . . . . . See the Certificatiod‘Tire label.
See “Loading Your Vehicle”
in the Index.
Capacities (Approximate)
Cooling System Capacity*
Engine Transmission Quantity
2.2L Auto./Manual 1 1.5 quarts (1 1 .O L)
“VORTEC” 4300 Auto. 11.7quarts(11.1
L)
“VORTEC” 4300 Manual
11.9quarts(11.3L)
Crankcase Capacity*
Engine Quantity with Filter
2.2L 4.5 quarts (4.3 L)
“VORTEC” 4300 4.5 quarts (4.3 L)
Automatic Transmission Capacity*
Type Quantity (Drain and Refill)
4L60E 5.0 quarts (4.7 L)
*After refill, the level must be checked.
Differential Fluid
Axle Quantity
Rear 4.0 pints (1.9 L)
Front 2.6 pints (1.2 L)
Fuel Tank Capacity
Type Quantity
Standard Tank 19 gallons (72 L)
A/C Refrigerant Capacity
Type Quantity
R- 134a 30 oz. or 2 lbs. (0.9 kg)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your GM dealer.
6-68

Downloaded from www.Manualslib.com manuals search engine Vehicle Dimensions"
Wheelbase S/T10603
.............. 108.3 inches (275.1 cm)
S/T10803
.............. 117.9 inches (299.5 cm)
S/T10653
.............. 122.9 inches (312.2 cm)
Length
S/T 10603 .............. I 89.0 inches (480.1 cm)
S/T10803
.............. 204.9 inches (520.4 cm)
S/T10653
.............. 203.6 inches (517.1 cm)
Height
S10603/S10803
.......... 62.1 inches (157.7 cm)
SI0653
................ 62.2 inches (158.0 cm)
T10603/T10653..
........ 63.8 inches (162.1 cm)
T10803
................ 65.4 inches (166.1 cm)
Width
................... 67.9 inches (172.5 cm) Front
Tread
S Series
0.0 Wheel Offset ....... 54.5 inches (138.4 cm)
-6.4 Wheel Offset
....... 55.0 inches (139.6 cm)
T Series
15-inch Tires
.......... 57.3 inches (145.4 cm)
3 1
x 10.5 Tires ......... 61.2 inches (155.4 cm)
Rear Tread
S Series ................ 54.7 inches ( 138.8 cm)
T Series (15-inch Tires)
... 55.1 inches (139.9 cm)
T Series (3 1
x 10.5 Tires) . . 59.1 inches (150.0 cm)
*Figures reflect
base equipment only.
6-69
