1996 CHEVROLET S10 Owners Manual

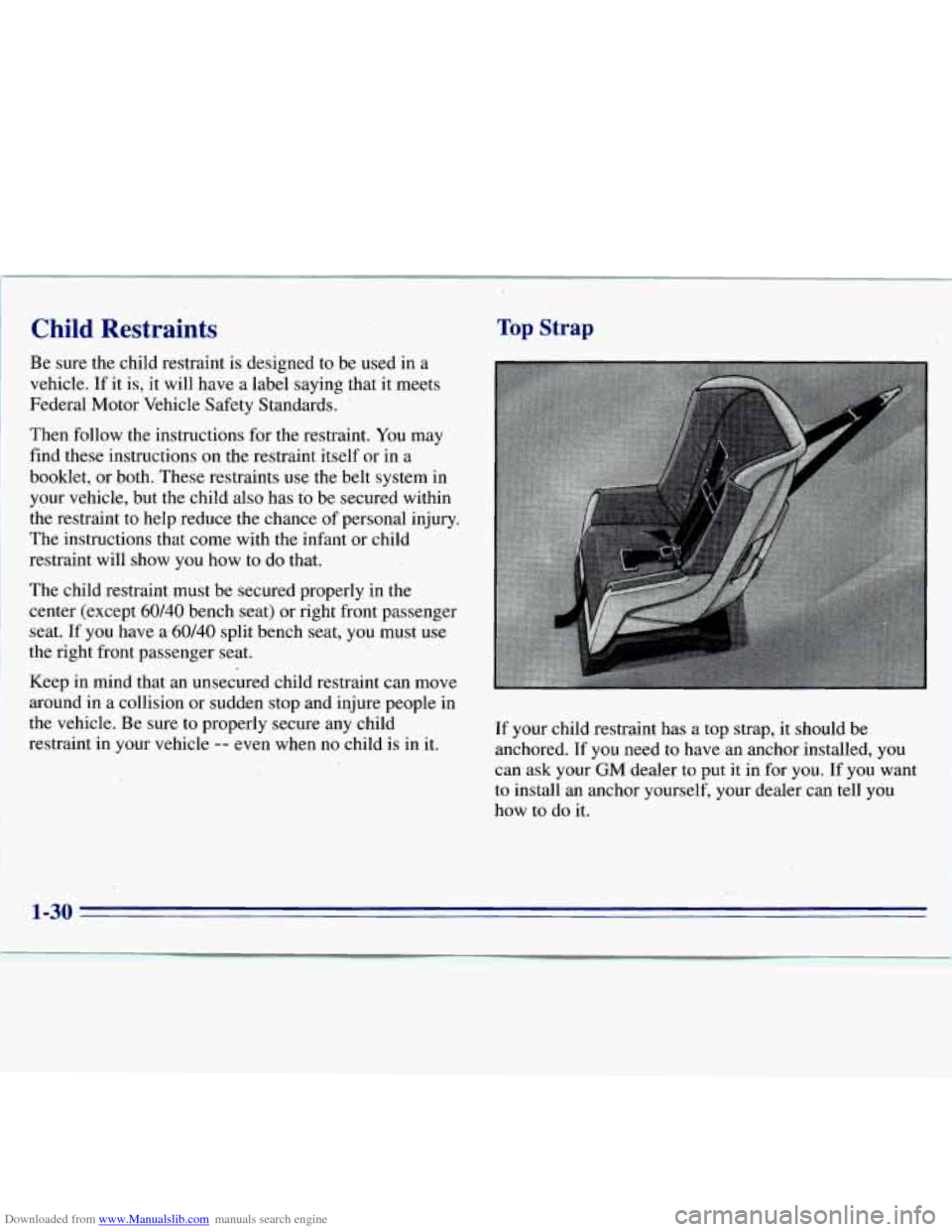

Downloaded from www.Manualslib.com manuals search engine Child Restraints
Be sure the child restraint is designed to be used in a
vehicle. If it is, it will have a label saying that it meets
Federal Motor Vehicle Safety Standards.
Then follow the instructions for the restraint. You may
find these instructions on the restraint itself or in a
booklet, or both. These restraintsuse the belt system in
your vehicle, but the child also has
to be secured within
the restraint to help reduce the chance of personal injury.
The instructions that come with the infant or child
restraint will show you how to do that.
The child restraint must be secured properly in the
center (except
60/40 bench seat) or right front passenger
seat.
If you have a 60/40 split bench seat, you must use
the right front passenger seat.
Keep in mind that an unsecured child restraint can move
around in a collision
or sudden stop and injure people in
the vehicle. Be sure to properly secure any child
restraint in your vehicle
-- even when no child is in it.
Top Strap
If your child restraint has a top strap, it should be
anchored. If you need to have an anchor installed, you
can ask your
GM dealer to put it in for you. If you want
to install an anchor yourself, your dealer can tell you
how
to do it.
,
1-30

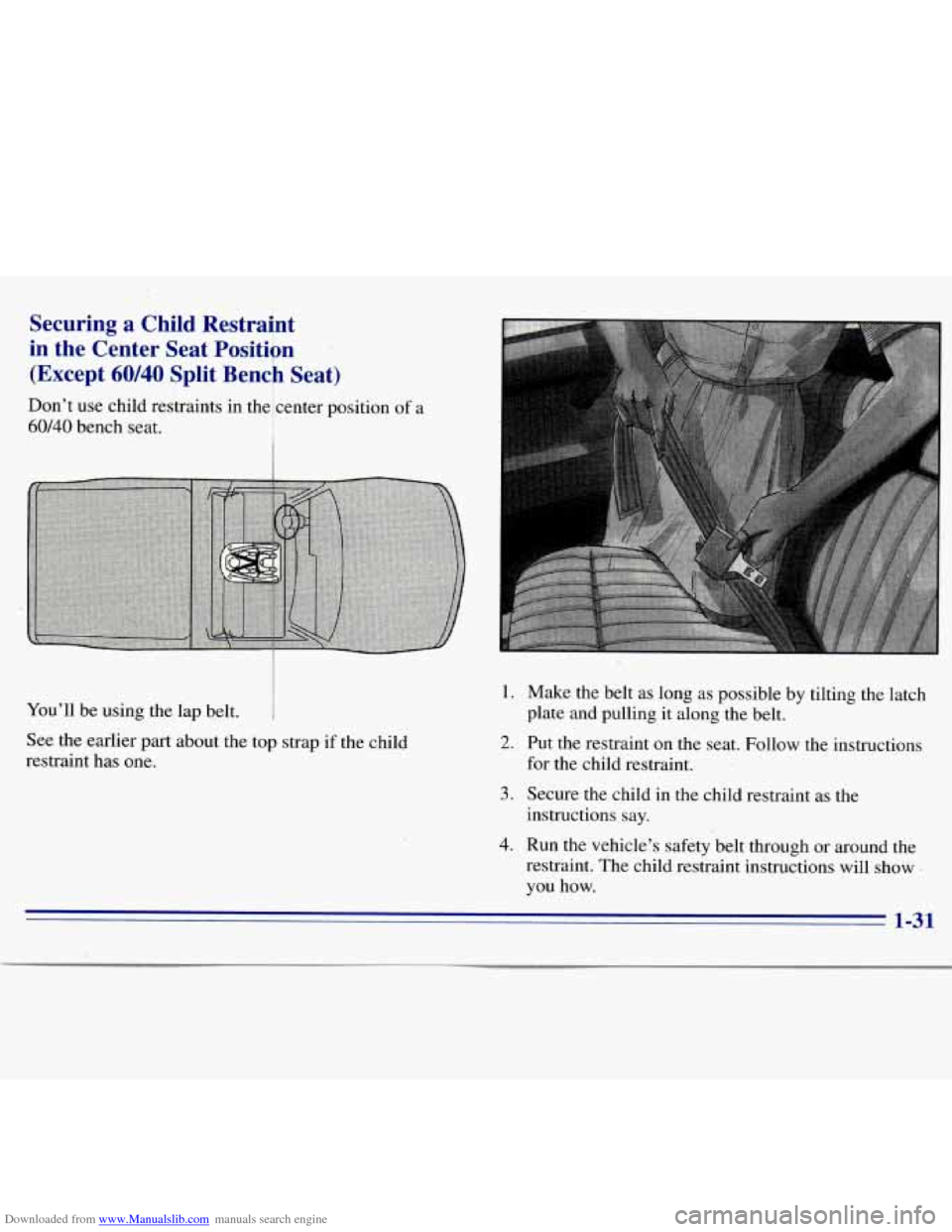

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint
in the Center Seat Position
‘
(Except 60/40 Split Bench Seat) j
Don’t use child restraints in theicenter position of a
60140 bench seat. 1 I
You’ll be using the lap belt.
See the earlier part about the top strap if the child
restraint has one.
,,
1. Make the belt as long as possible by tilting the latch
2. Put the restraint on the seat. Follow the instructions
plate
and pulling
it along the belt.
for the child restraint.
3. Secure the child in the child.restraint as the
4. Run the vehicle’s safety’belt through or around the
restraint. The child restraint instructions will show
you how.
instructions
say.
1-31

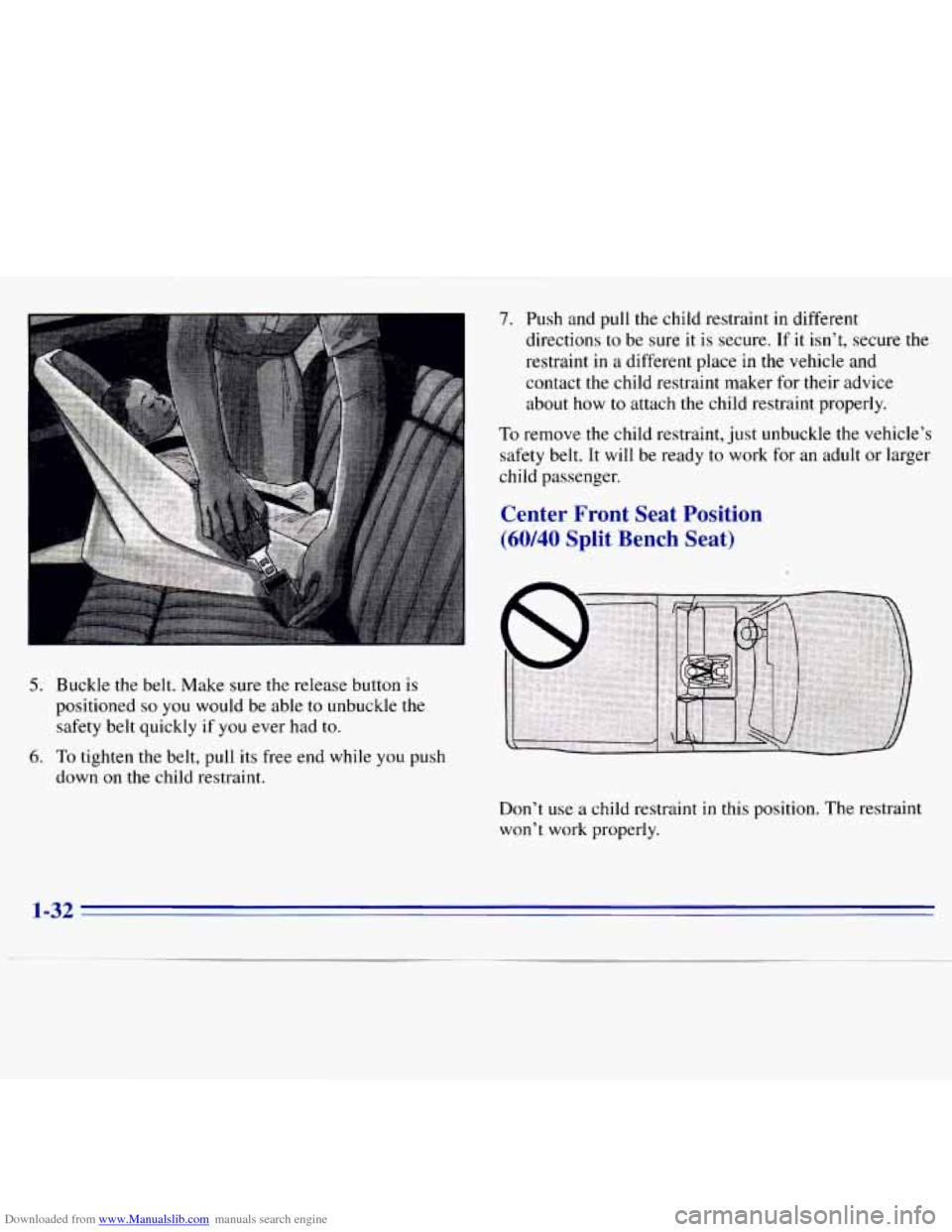

Downloaded from www.Manualslib.com manuals search engine 7. Push and pull the child restraint in different
directions to be sure it is secure. If it isn’t, secure
the
restraint in a different place in the vehicle and
contact
the child restraint maker for their advice
about how
to attach the child restraint properly.
To remove the child restraint, just unbuckle the vehicle’s
safety belt.
It will be ready to work for an adult or larger
child passenger.
Center Front Seat Position
(60/40 Split Bench Seat)
5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
6. To tighten the belt, pull its free end while you push
down
on the child restraint.
Don’t use a child restraint in
this position. The restraint
won’t work properly.
1-32

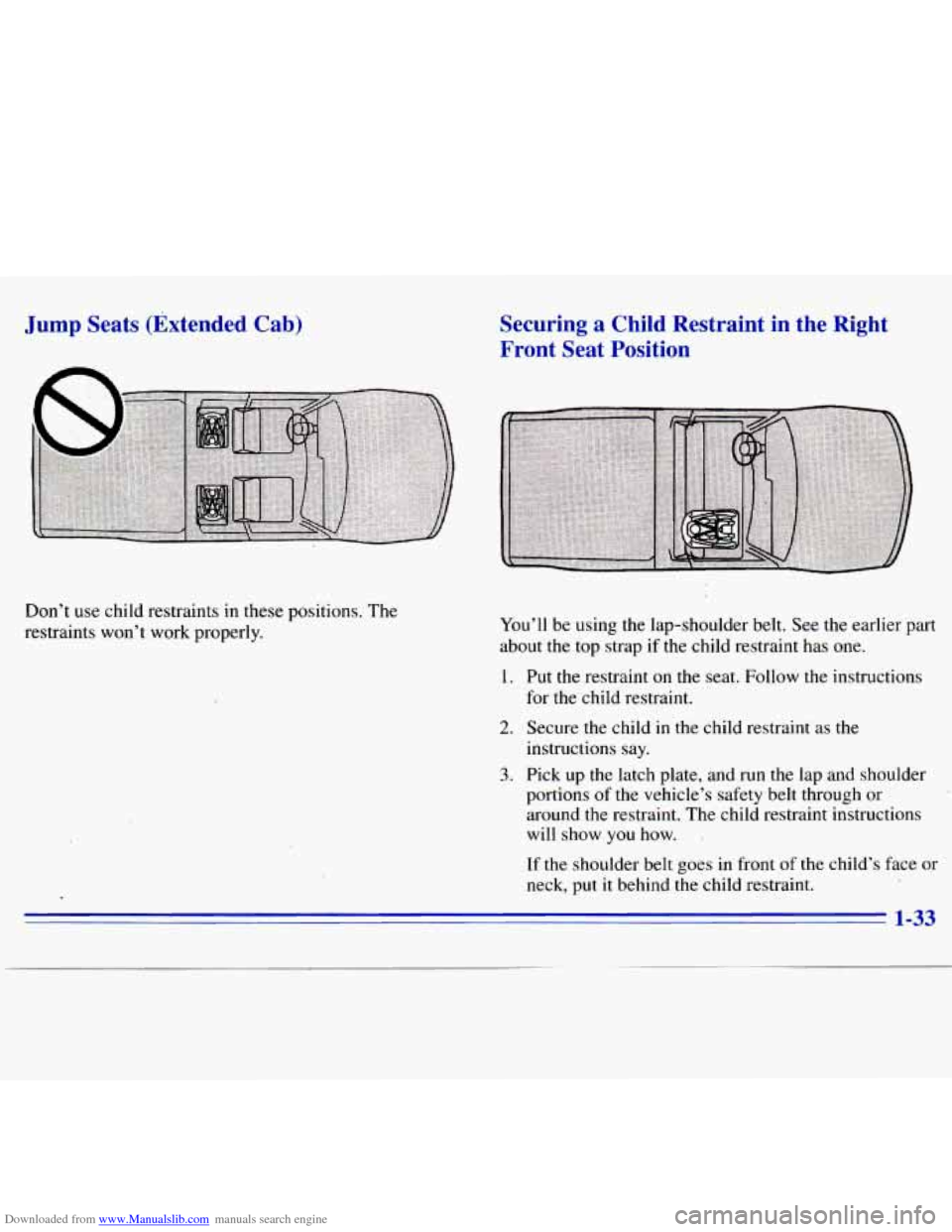

Downloaded from www.Manualslib.com manuals search engine Jump Seats (Extended Cab)
Don’t use child restraints in these positions. The
restraints won’t work properly.
Securing a Child Restraint in the Right
Front Seat Position
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has
one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around
the restraint. The child restraint instructions
will show
you how. .
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.

Downloaded from www.Manualslib.com manuals search engine I
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-34

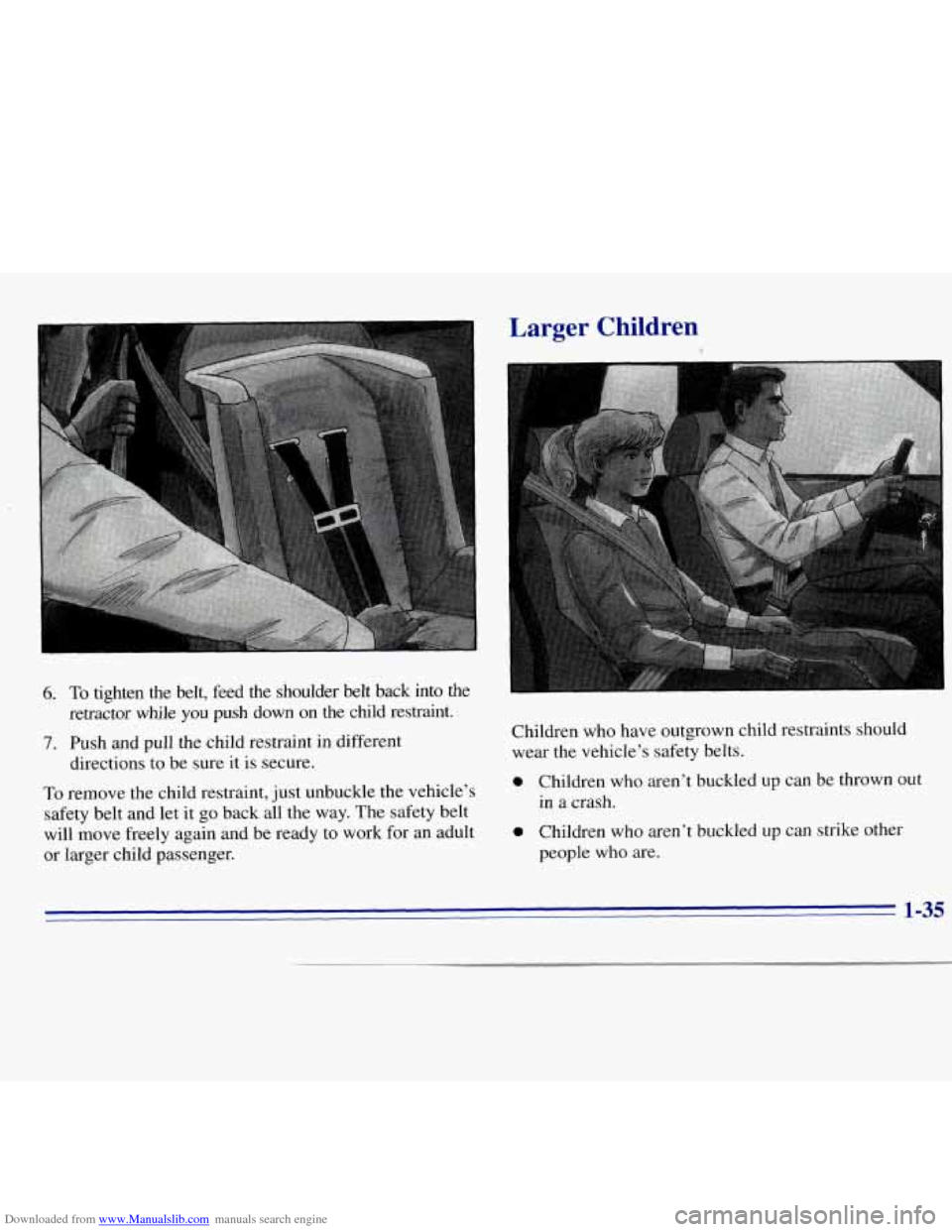

Downloaded from www.Manualslib.com manuals search engine 6. To tighten the belt, feed the shoulder belt back into the
retractor while
you push down on the child restraint.
7. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
directions
to be sure it is secure. Children who have
outgrown child restraints should
wear the vehicle’s safety belts.
0 Children who aren’t buckled up can be thrown out
in a crash.
0 Children who aren’t buckled up can strike other
people who are.
1-35

Downloaded from www.Manualslib.com manuals search engine I

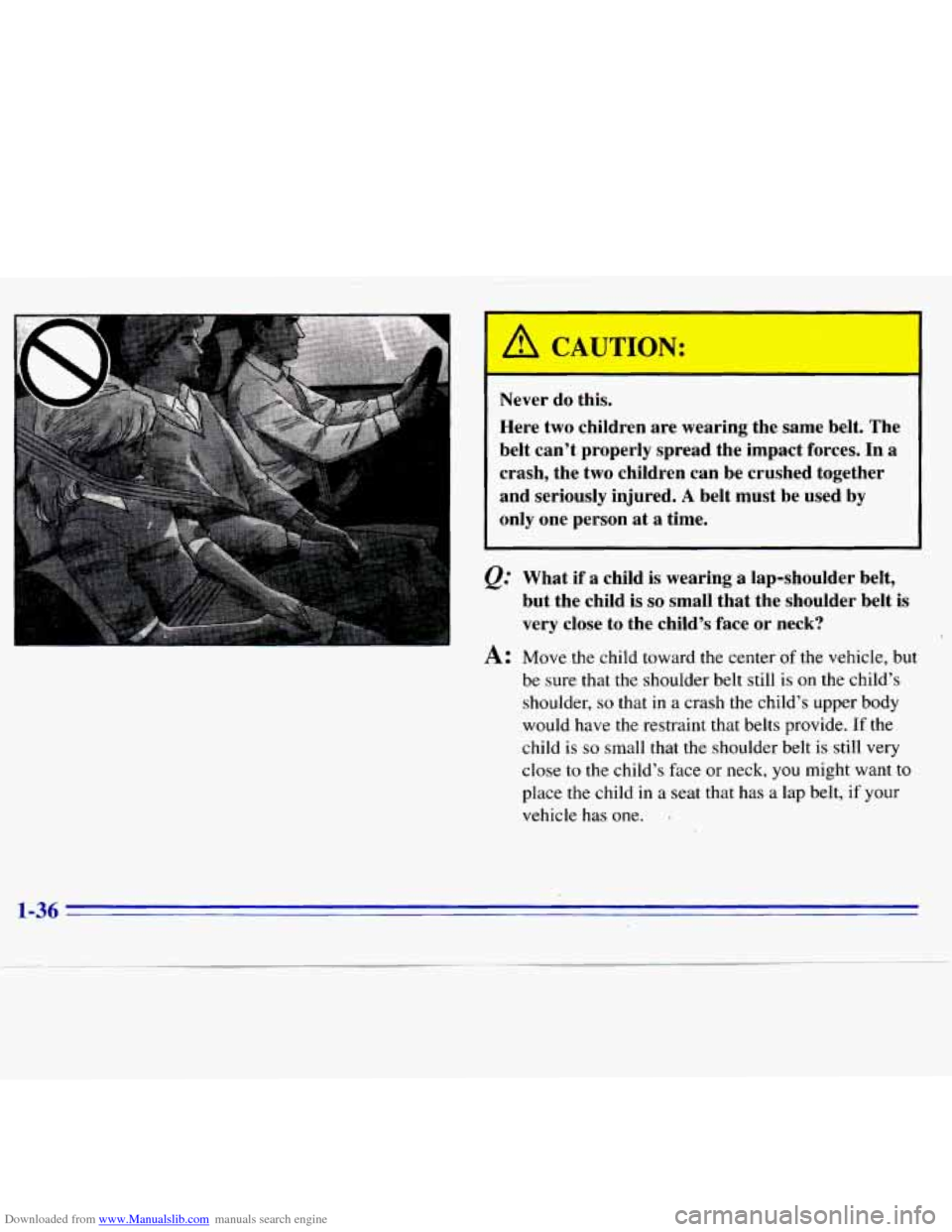

Never do this.
Here two children are wearing the same belt. The
belt can’t properly spread the impact forces.
In a
crash, the two children can be crushed together
and seriously injured.
A belt must be used by
only one person
at a time.
&= What if a child is wearing a lap-shoulder belt,
but the child
is so small that the shoulder belt is
very close to the child’s face or neck?
A: Move the child toward the center of the vehicle, but
be sure that
the shoulder belt still is on the child’s
shoulder, so that
in a crash the child’s upper body
would have the restraint that belts provide.
If the
child
is so small that the shoulder belt is still very
close to the child’s face or neck, you might want to
place the child in a seat that has a lap belt, if your
vehicle has one.
I
1-36

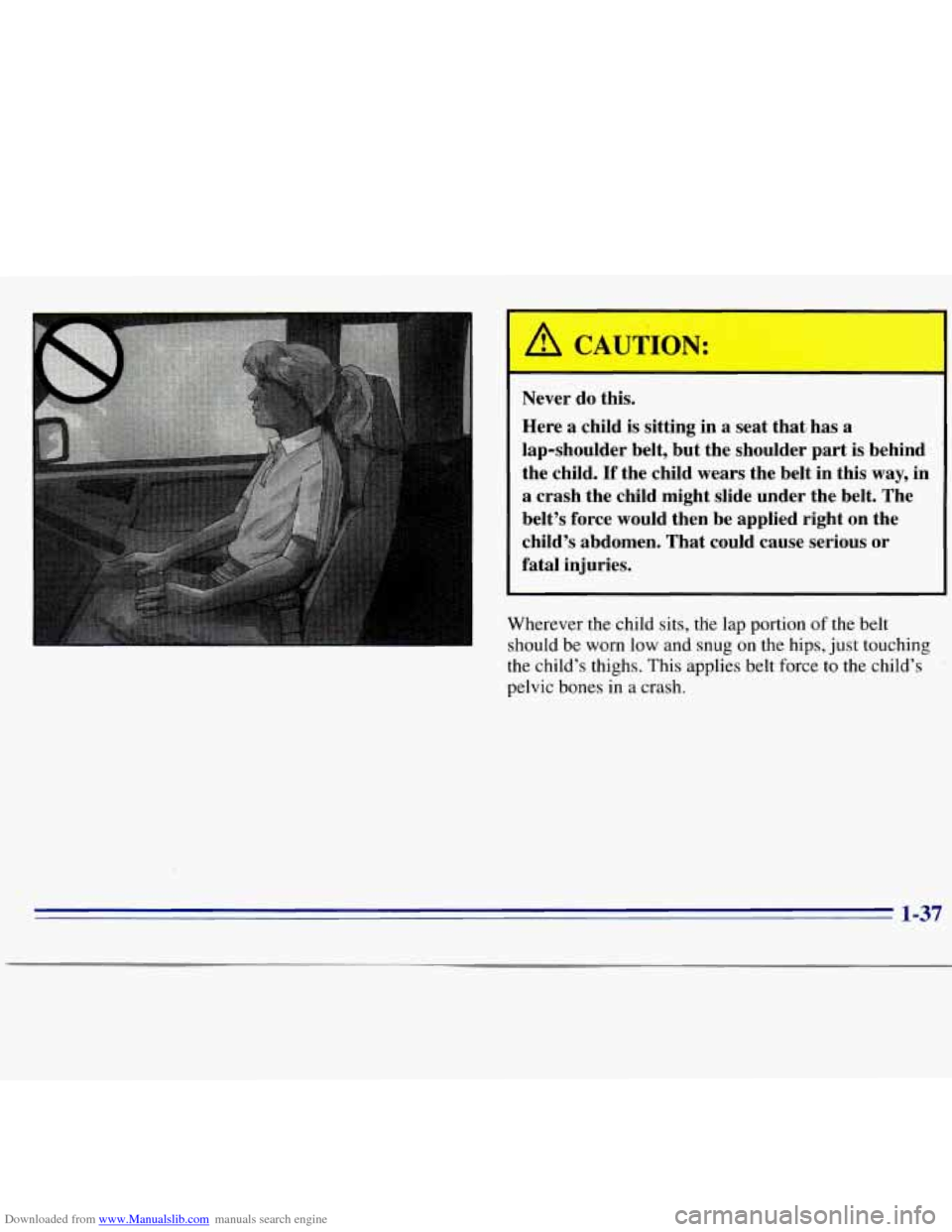

Downloaded from www.Manualslib.com manuals search engine Never do this.
Here
a child is sitting in a seat thatl has a
lap-shoulder belt, but the shoulder part is behind
the child.
If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then be applied right on the
child’s abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug
on the hips, just touching
the child’s thighs. This applies belt force
to the child’s
pelvic bones in
a crash.
1-37
