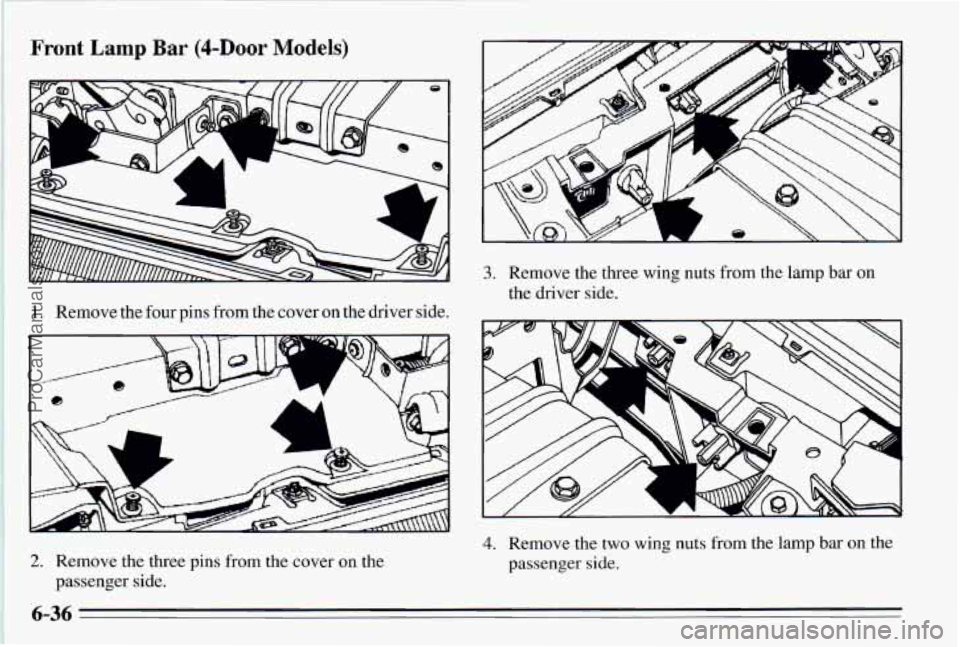

Front Lamp Ear (4-hor Models)
1. Remove the four pins from the cover on the driver side.
2. Remove the three pins from the cover on the
passenger side.
a
3. Remove the three wing nuts from the lamp bar on
the driver side.
4. Remove the two wing nuts from the lamp bar on the
passenger side.
6-36
ProCarManuals.com

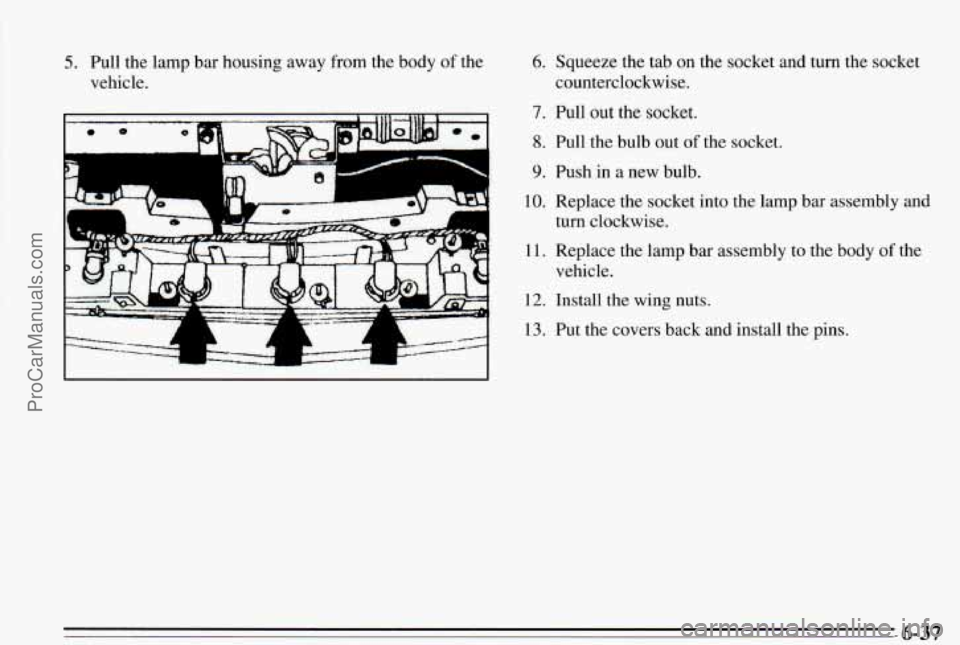

5. Pull the lamp bar housing away from the body of the
vehicle.
K uw
6. Squeeze the tab on the socket and turn the socket
counterclockwise.
7. Pull out the socket.
8. Pull the bulb out of the socket.
9. Push in a new bulb.
10. Replace the socket into the lamp bar assembly and
11. Replace the lamp
bar assembly to the body of the
turn clockwise.
vehicle.
12. Install the wing nuts.
13. Put the covers back and install the pins.
6-37 ProCarManuals.com

Front Sidemarker (&Door Models) Front Turn Signal (2-Door Models)
1.
2.
Remove the screws and
pull the sidemarker
housing forward.
Turn the socket
counterclockwise and
pull the socket out
of the
housing.
3.
4.
5.
6.
7.
Pull the bulb out of the socket.
fish
in a new bulb.
Replace the socket into the housing
and turn
clockwise.
Replace the housing to the vehicle.
Install the screws-
45 -3
L A
1. Remove the pins from the cover above the turn
signal lamps.
6-38 ProCarManuals.com

3.
4.
5.
6.
7.
Turn the socket
counterclockwise 1/6-tum until it feels
loose.
Pull out~the socket.
Pull the bulb out
of the socket.
Push
in a new bulb.
Replace the socket into the housing and
turn
clockwise until it snaps in place.
Replace the cover and pins.
Front Turn Signal (4-Door Models)
)I 1. Remove the screws and
3. Pull out the bulb socket.
2.
pull the turn signal
housing forward.
Turn the bulb socket counterclockwise until
it pops loose from the
housing.
4. Lift the plastic locking tab on the electrical
connector and pull the connector from the bulb
socket.
5. Snap the electrical connector into a new bulb socket.
6. Replace the bulb socket into the housing and turn
clockxvise.
7. Replace the housing to the vehicle.
8. Install the screws.
6-39 ProCarManuals.com

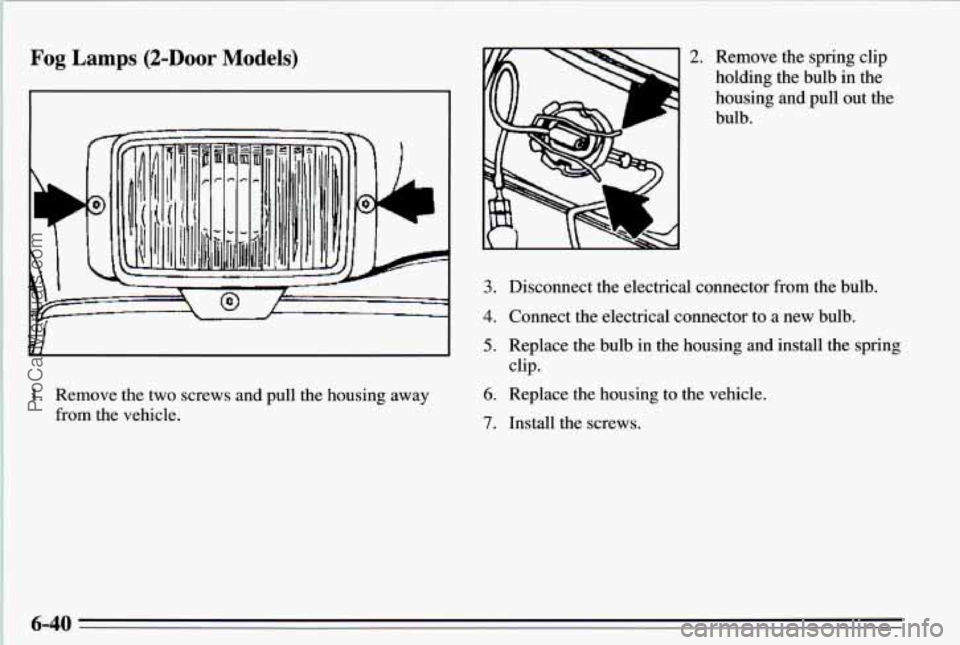

Fog Lamps (2-Door Models)
1. Remove the two screws and pull the
from the vehicle. housing
away
2. Remove the spring clip
holding the bulb in the
housing and pull out the
bulb.
3. Disconnect the electrical connector from the bulb.
4. Connect the electrical connector to a new bulb.
5. Replace the bulb in the housing and install the spring
clip.
6. Replace the housing to the vehicle.
7. Install the screws.
6-40
ProCarManuals.com

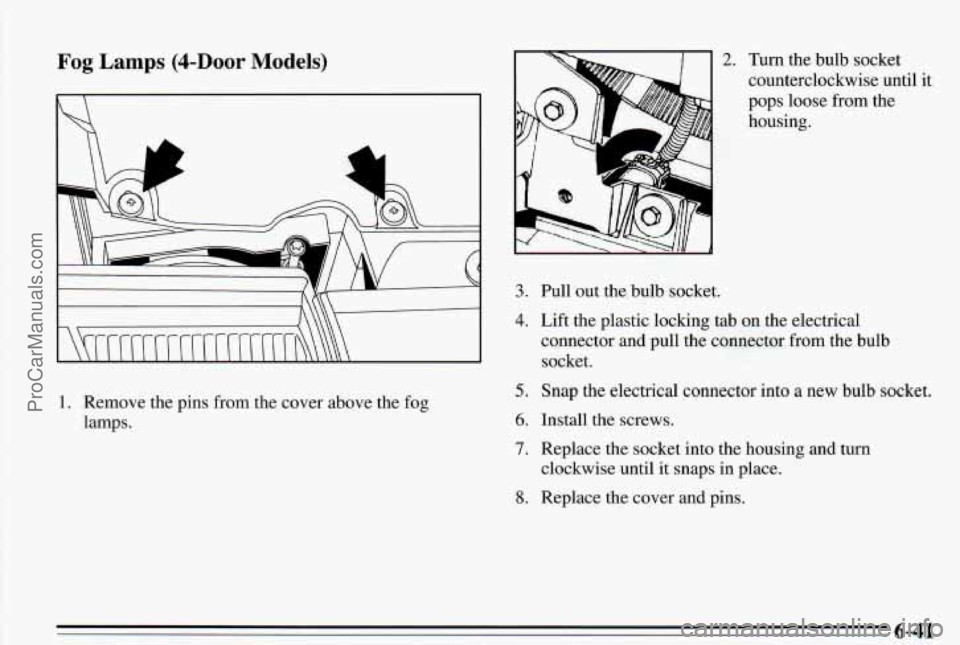

Fog Lamps (&Door Models)
1. Remove the pins from the cover above the fog
lamps.
3.
4.
5.
6.
7.
8.
2.
Pull out the bulb socket. Turn
the bulb socket
counterclockwise until
it
pops loose from the
housing.
Lift the plastic locking tab on the electrical
connector and pull the connector from the bulb
socket.
Snap the electrical connector into a new bulb socket.
Install the screws.
Replace the socket into the housing and turn
clockwise until it snaps in place.
Replace the cover and pins.
6-4 1 ProCarManuals.com

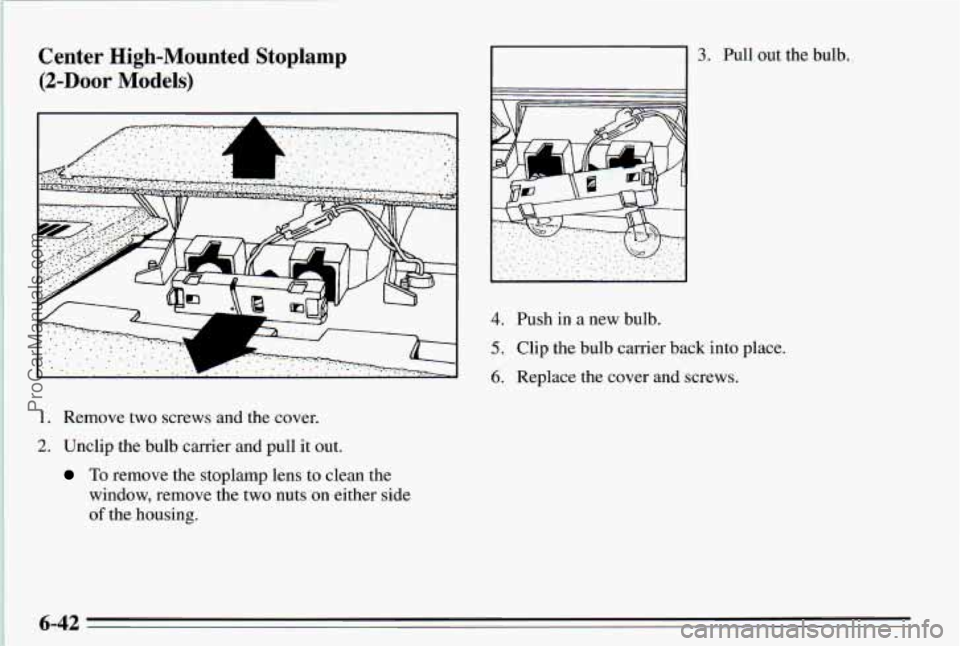

Center High-Mounted Stoplamp
(2-Door Models)
)I 3. Pull out the bulb.
4. Push in a new bulb.
5. Clip the bulb carrier back into place.
6. Replace the cover and screws.
1. Remove two screws and the cover.
2. Unclip the bulb carrier and pull it out.
To remove the stoplamp lens to clean the
window, remove the two nuts on either side
of the housing.
6-42
ProCarManuals.com

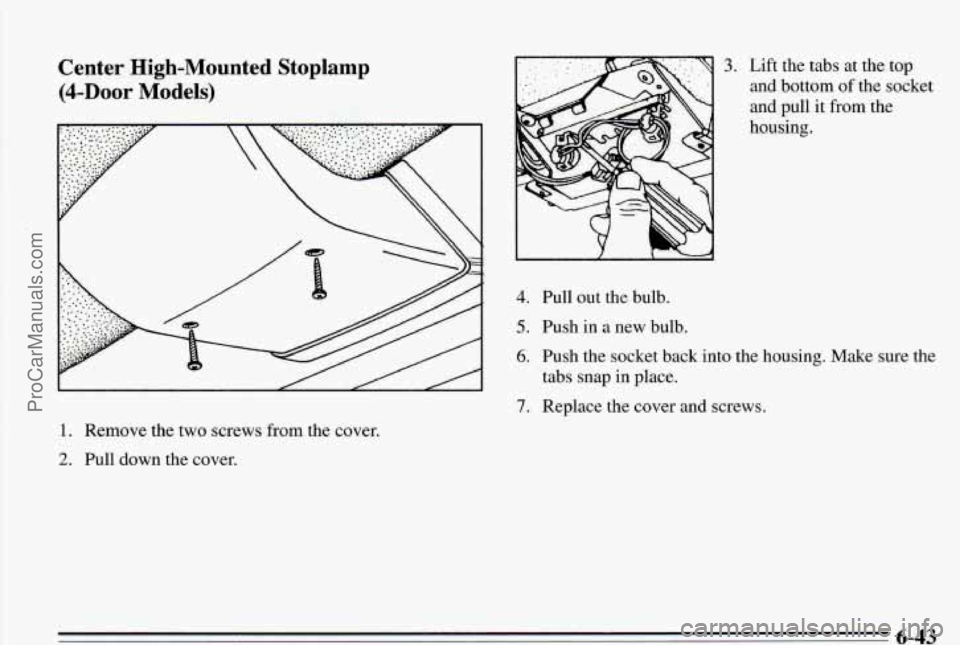

Center High-Mounted Stoplamp
(4-hor Models)
1. Remove the two screws from the cover.
2. PulI down the cover.
3. Lift the tabs at the top
and bottom of the socket
and pull it from the
housing.
4. Pull out the bulb.
5. Push in a new bulb.
6. Push the socket back into the housing. Make sure the
7. Replace the cover and screws.
tabs snap in place.
