Page 1945 of 2158

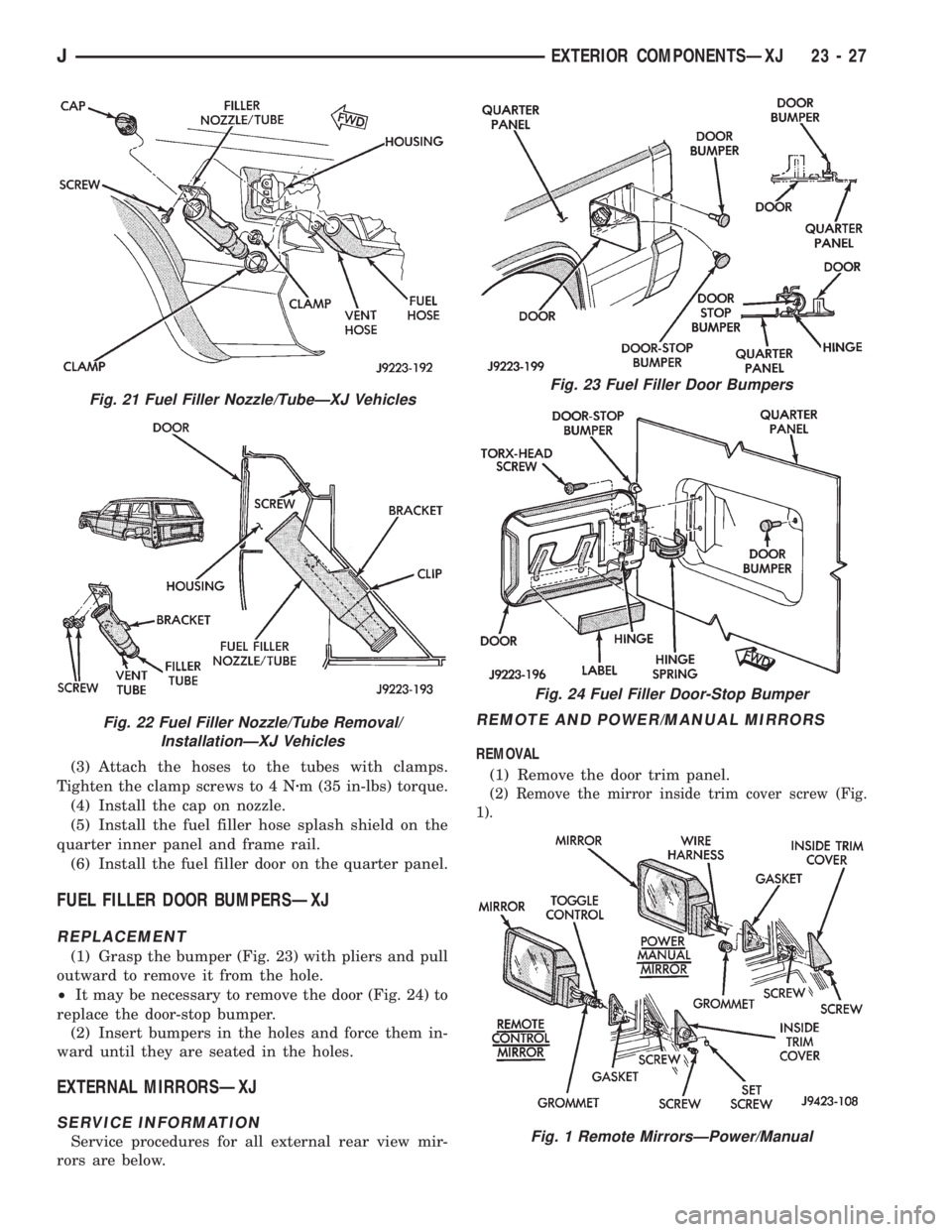

JEEP XJ 1995 Service And Repair Manual (3) Attach the hoses to the tubes with clamps. Tighten the clamp screws to 4 Nzm (35 in-lbs) torque. (4) Install the cap on nozzle. (5) Install the fuel filler hose splash shield on the quarter inner

Page 1946 of 2158

JEEP XJ 1995 Service And Repair Manual (3) For power/manual mirrors, remove the inside trim cover. (4) For remote control mirrors, loosen the toggle control setscrew (Fig. 2). (5) For remote control mirrors, remove the inside trim cover (F

Page 1947 of 2158

JEEP XJ 1995 Service And Repair Manual INSTALLATION (1) Install 3M 06379 double-sided tape, or an equivalent on skid strips. (2) Remove the backing from the double-sided tape, align each skid strip on the roof, and position it on the roof

Page 1948 of 2158

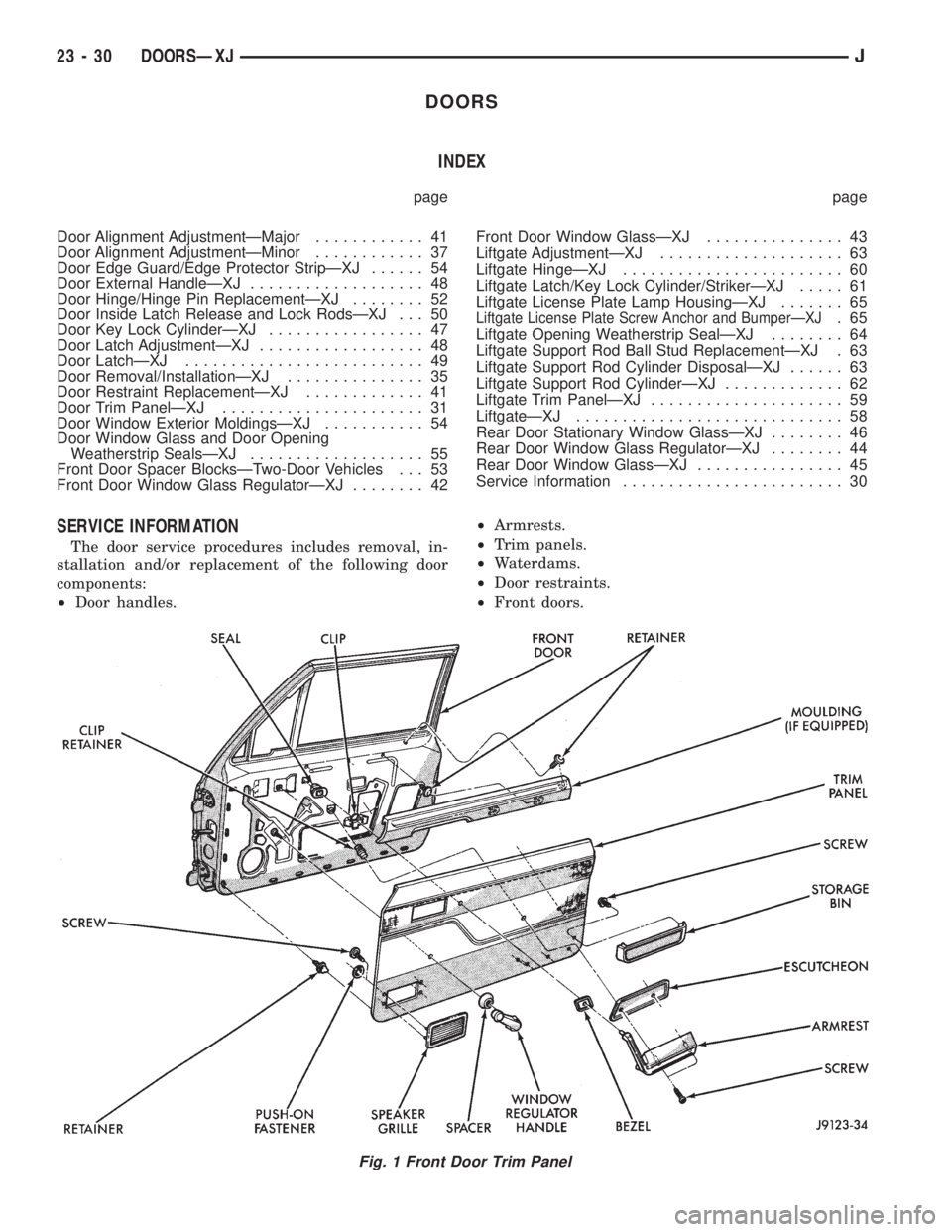

JEEP XJ 1995 Service And Repair Manual DOORS INDEX page page Door Alignment AdjustmentÐMajor............ 41 Door Alignment AdjustmentÐMinor............ 37 Door Edge Guard/Edge Protector StripÐXJ...... 54 Door External HandleÐXJ........

Page 1949 of 2158

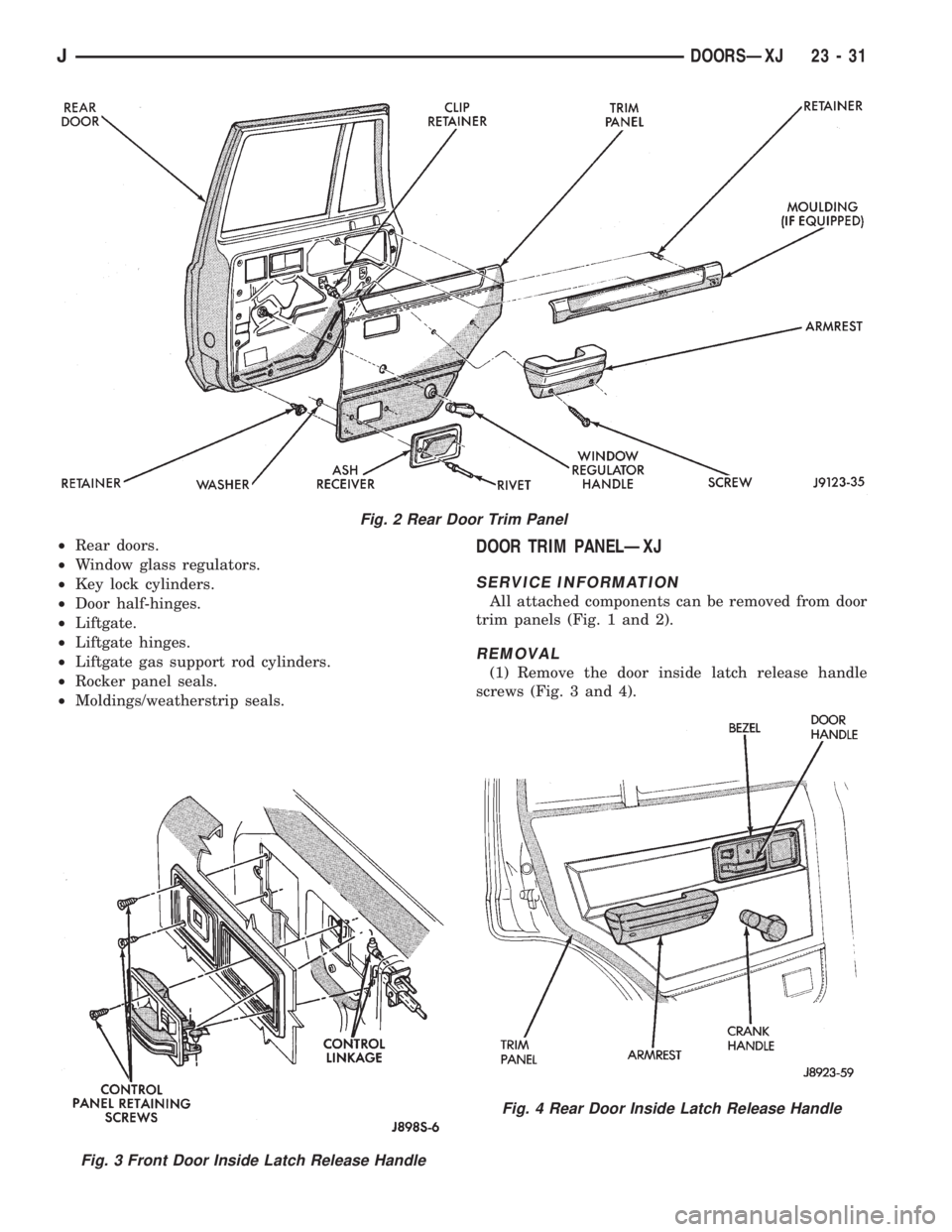

JEEP XJ 1995 Service And Repair Manual ²Rear doors. ²Window glass regulators. ²Key lock cylinders. ²Door half-hinges. ²Liftgate. ²Liftgate hinges. ²Liftgate gas support rod cylinders. ²Rocker panel seals. ²Moldings/weatherstrip se

Page 1950 of 2158

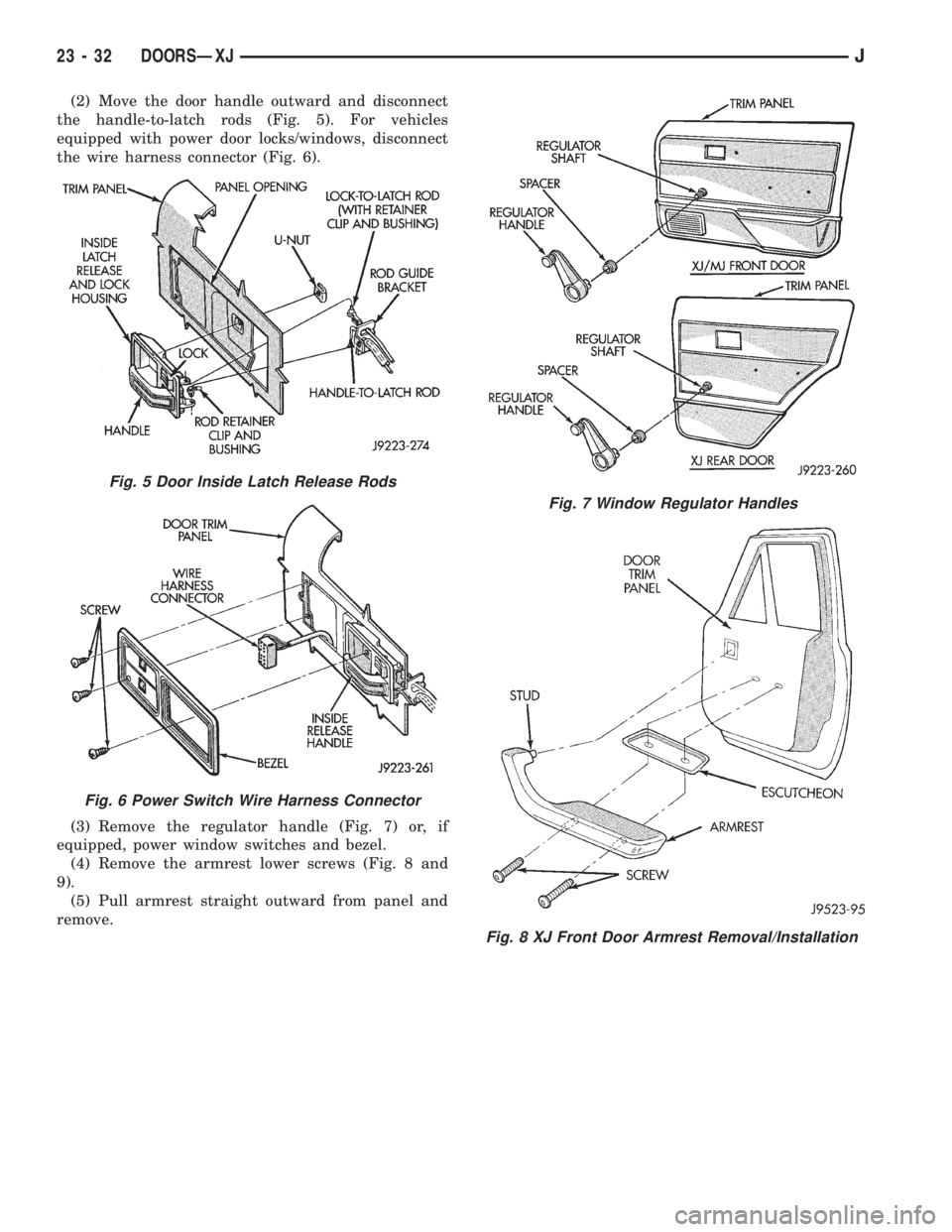

JEEP XJ 1995 Service And Repair Manual (2) Move the door handle outward and disconnect the handle-to-latch rods (Fig. 5). For vehicles equipped with power door locks/windows, disconnect the wire harness connector (Fig. 6). (3) Remove the r

Page 1951 of 2158

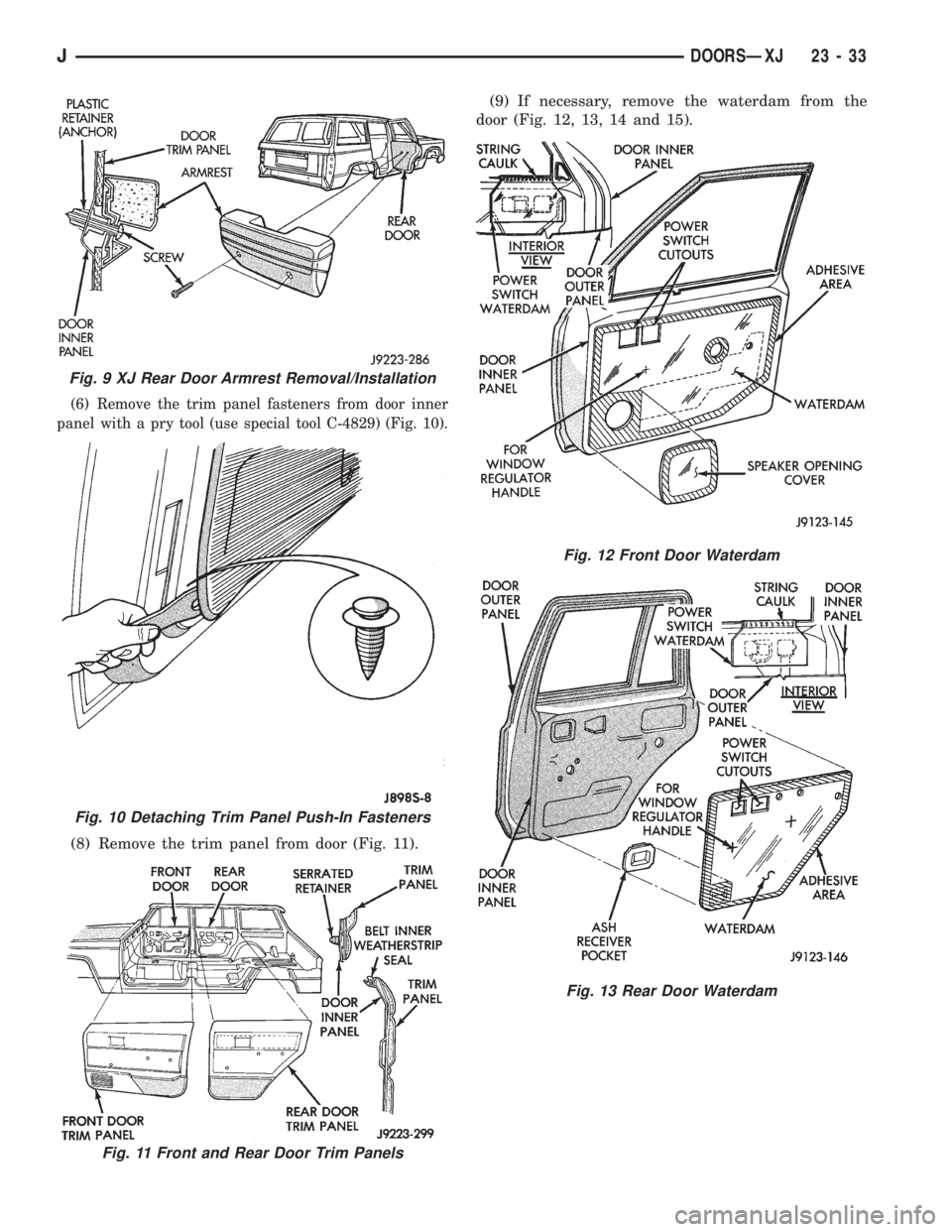

JEEP XJ 1995 Service And Repair Manual (6) Remove the trim panel fasteners from door inner panel with a pry tool (use special tool C-4829) (Fig. 10). (8) Remove the trim panel from door (Fig. 11).(9) If necessary, remove the waterdam from

Page 1952 of 2158

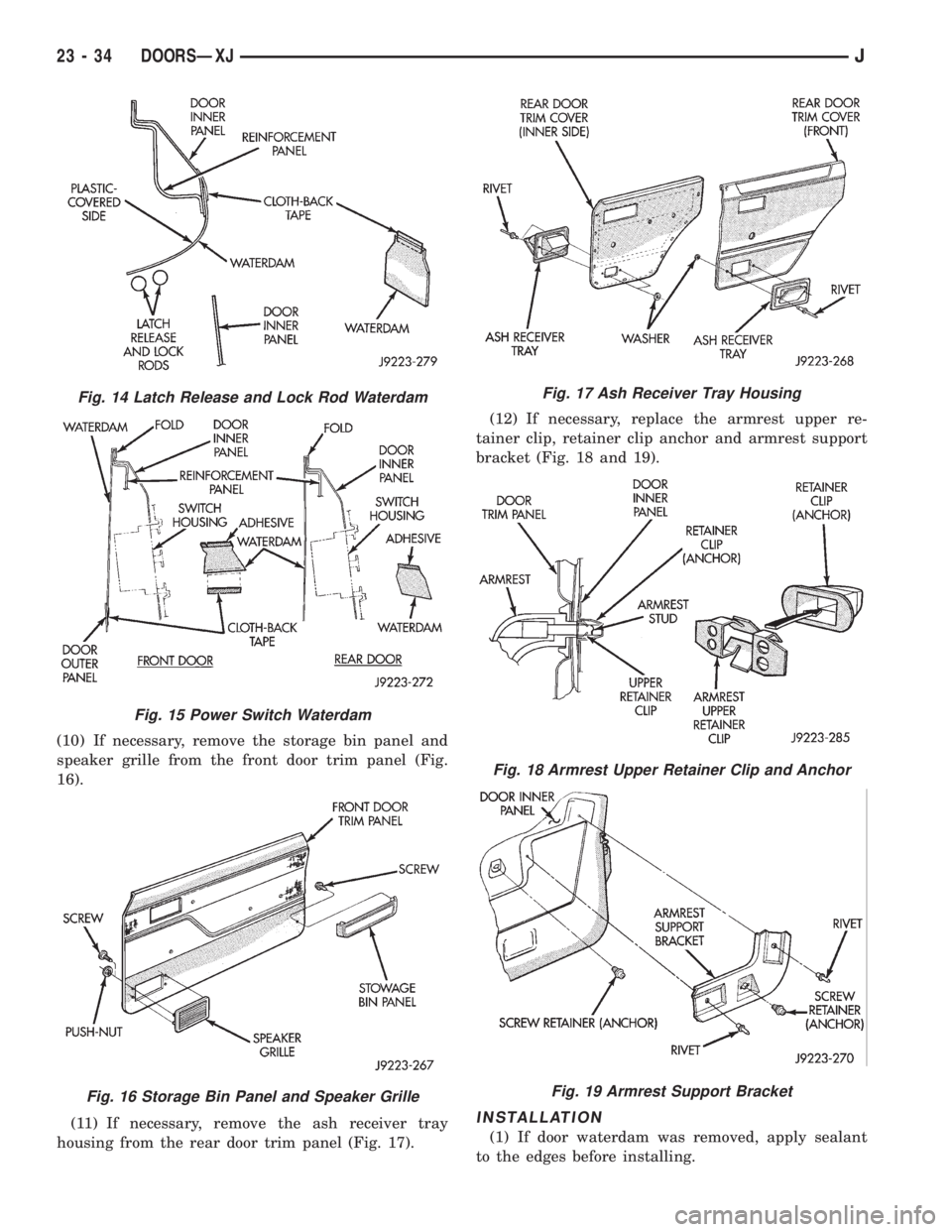

JEEP XJ 1995 Service And Repair Manual (10) If necessary, remove the storage bin panel and speaker grille from the front door trim panel (Fig. 16). (11) If necessary, remove the ash receiver tray housing from the rear door trim panel (Fig.
