1995 CHEVROLET CAVALIER Owners Manual

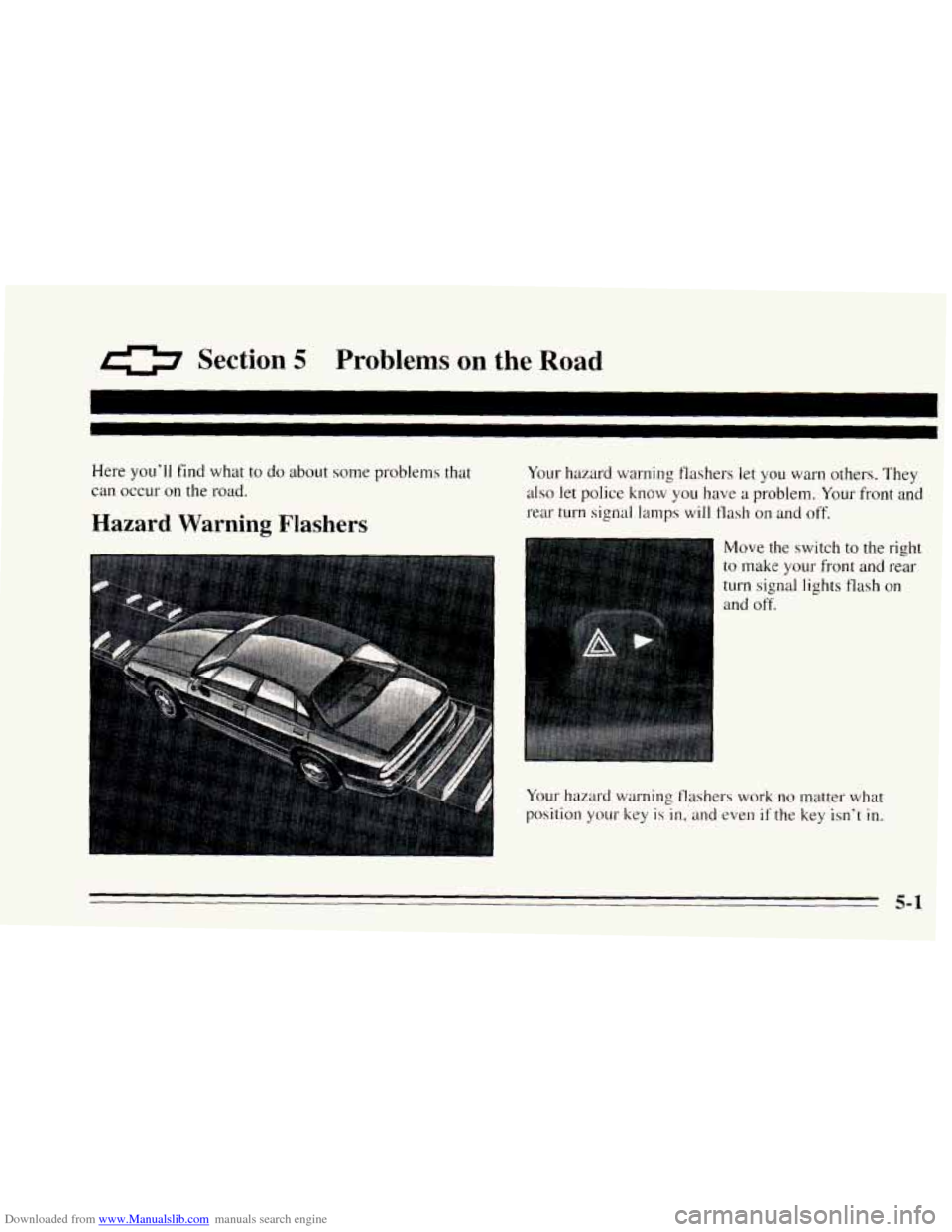

Downloaded from www.Manualslib.com manuals search engine 0 Section 5 Problems on the Road
Here you’ll find what to do about some problems that
can occur on the road.
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off.
Move the switch to the right
to make your front and rear
turn signal lights flash on
and off.
Your hazard warning flashers work
no matter what
position your
key is in, and even if the key isn’t in.
5-1

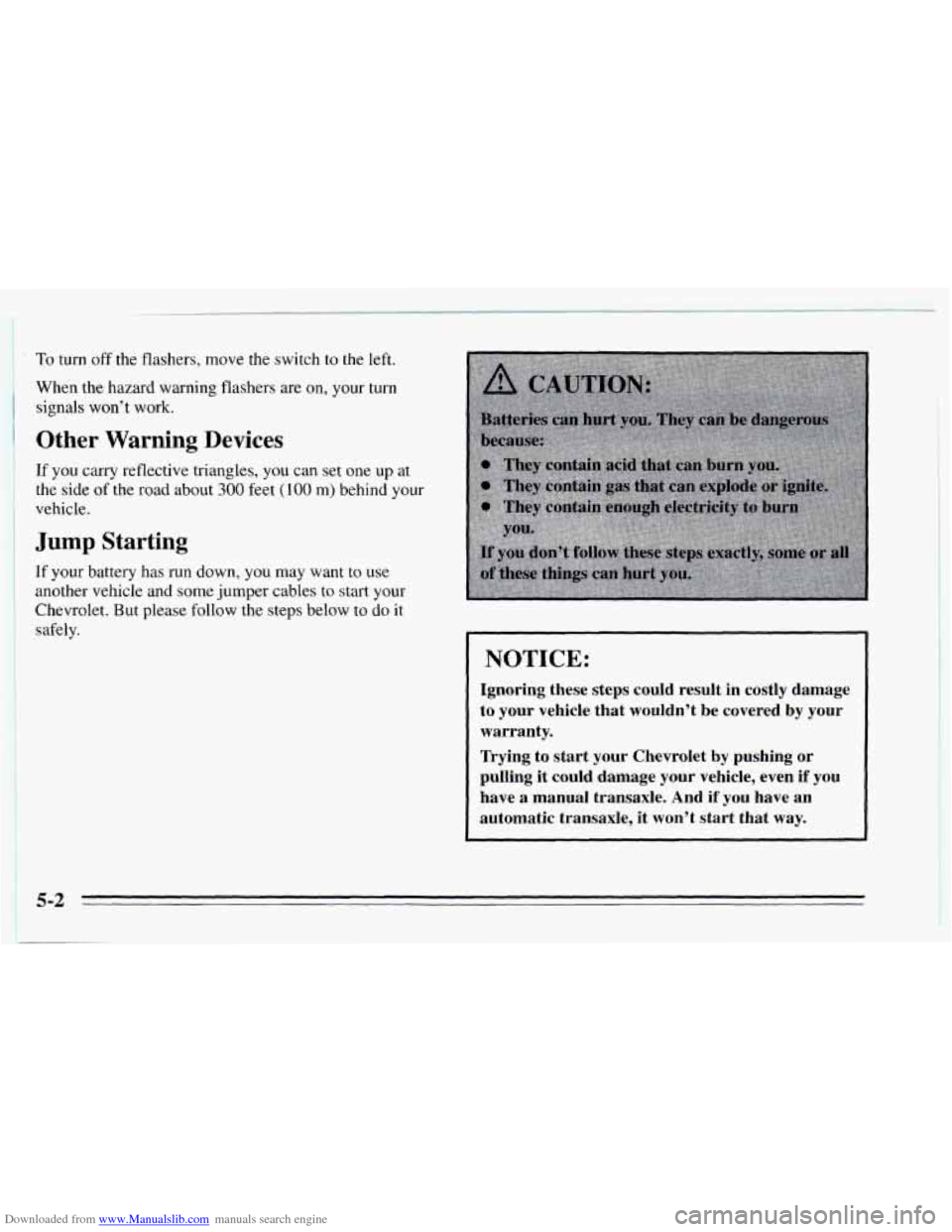

Downloaded from www.Manualslib.com manuals search engine ' ' To turn off the flashers, move the switch to the left.
When the hazard warning flashers are on, your turn
signals won't work.
1 Other Warning Devices
~ If you carry reflective triangles, you can set one up at
~ the side of the road about 300 feet (100 m) behind your
vehicle.
: Jump Starting
I
1 If your battery has run down, you may want to use
' another vehicle and some jumper cables to start your
i Chevrolet. But please follow the steps below to do it
safely.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn't be covered by your
warranty.
Trying to start your Chevrolet by pushing or
pulling
it could damage your vehicle, even if you
have a manual transaxle. And if you have an
automatic transaxle,
it won't start that way.
5-2

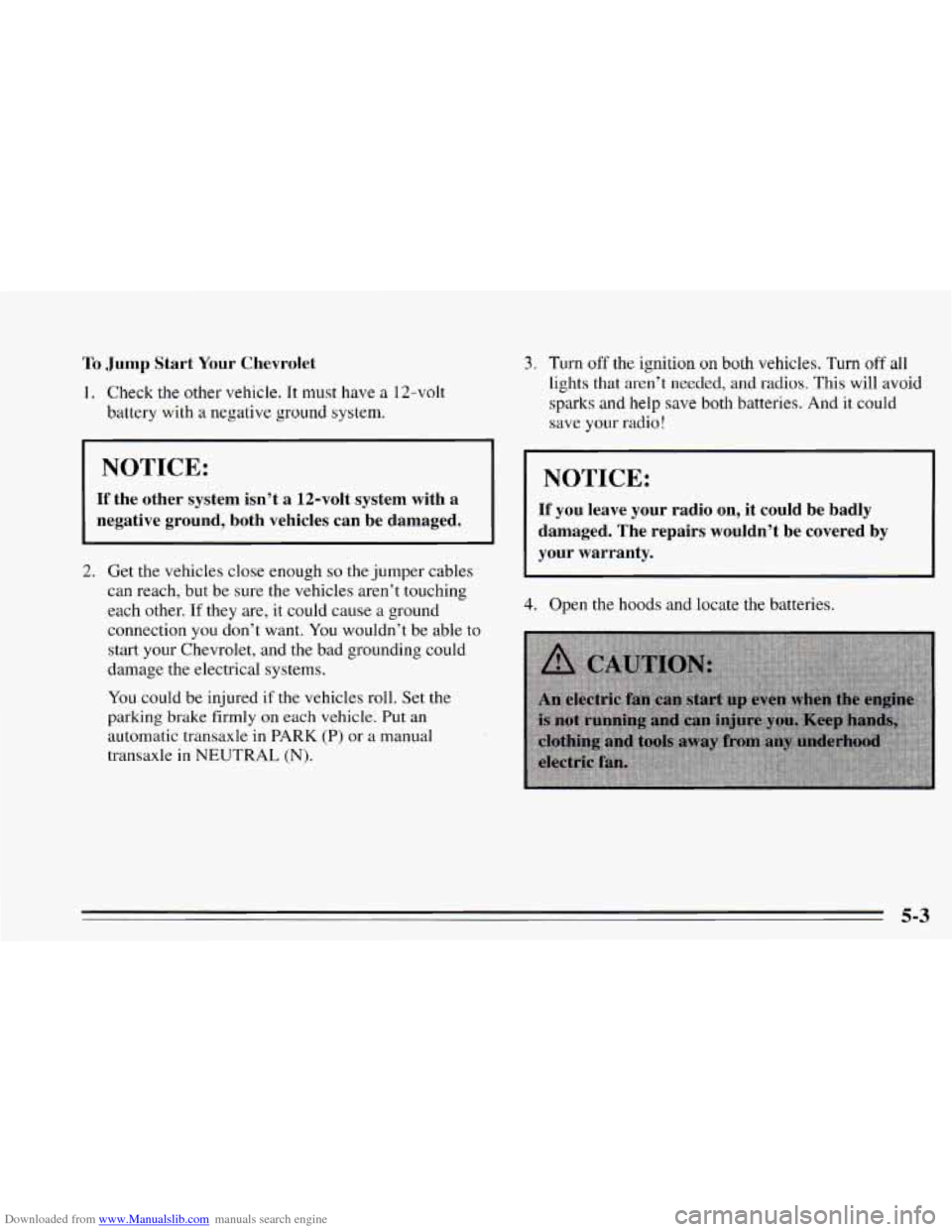

Downloaded from www.Manualslib.com manuals search engine To Jump Start Your Chevrolet
1. Check the other vehicle. It must have a 12-volt
battery with
a negative ground system.
3. Turn off the ignition on both vehicles. Turn off all
lights that aren’t needed, and radios. This will avoid
sparks and help save both batteries. And it could
save your radio!
NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your Chevrolet, and the bad grounding could
damage the electrical systems.
You could be injured if the vehicles roll. Set the
parking
brake firmly on each vehicle. Put an
automatic transaxle in PARK (P) or a manual
transaxle
in NEUTRAL (N).
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries.
5-3

Downloaded from www.Manualslib.com manuals search engine 5. Find the positive (+) and negative (-) terminals on
each battery.
6. Check that the jumper cables don’t have loose or
missing insulation. If they do, you could get a shock.
The vehicles could be damaged, too.
Before you connect the cables, here are some basic
things
you should know. Positive (+) will go to
positive
(+) and negative (-) will go to negative (-)
or a metal engine part. Don’t connect (+) to (-) or
you’ll get a short that would damage the battery and
maybe other parts, too.
5-4

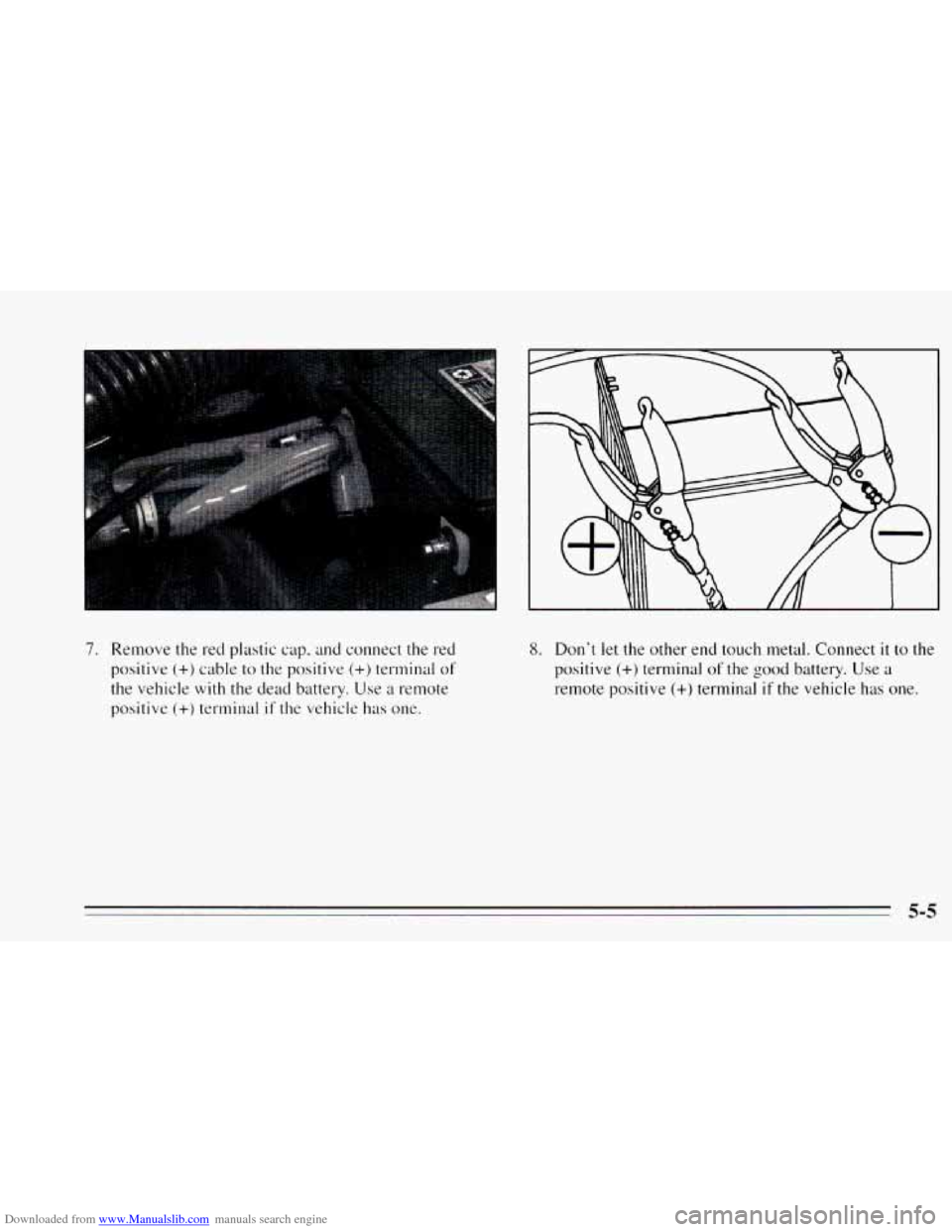

Downloaded from www.Manualslib.com manuals search engine 7. Remove the red plastic cap, and connect the red
positive
(+) cable to the positive (+) terminal of
the vehicle with the dead battery. Use a remote
positive
(+) terminal if the vehicle has one.
8. Don't let the other end touch metal. Connect It to the
positive
(+) terminal of the good battery. Use a
remote positive (+) terminal if the vehicle has one.
5-5

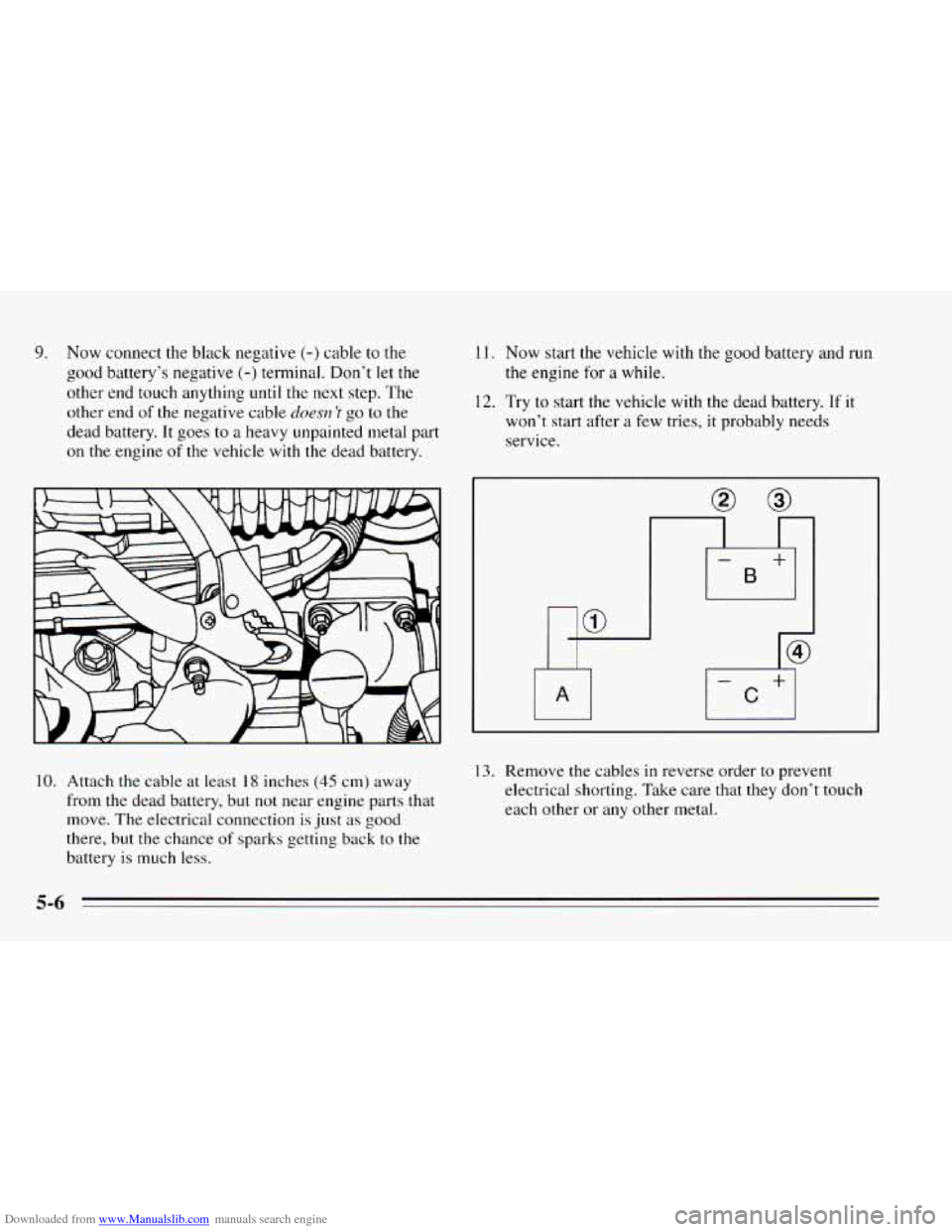

Downloaded from www.Manualslib.com manuals search engine 9. Now connect the black negative (-} cable to the
good battery’s negative (-) terminal. Don’t let the
other end touch anything until the next step. The
other end
of the negative cable doesrz ’t go to the
dead battery. It goes to
a heavy unpainted metal part
on the engine
of the vehicle with the dead battery.
11. Now start the vehicle with the good battery and run
the engine
for a while.
12. Try to start the vehicle with the dead battery. If it
won’t start after a few tries, it probably needs
service.
10. Attach the cable at least 18 inches (45 cm) away
from the dead battery, but not near engine parts that
move. The electrical connection is just
as good
there, but the chance of sparks getting back to the
battery
is much less.
13. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don’t touch
each other or any other metal.
5-6

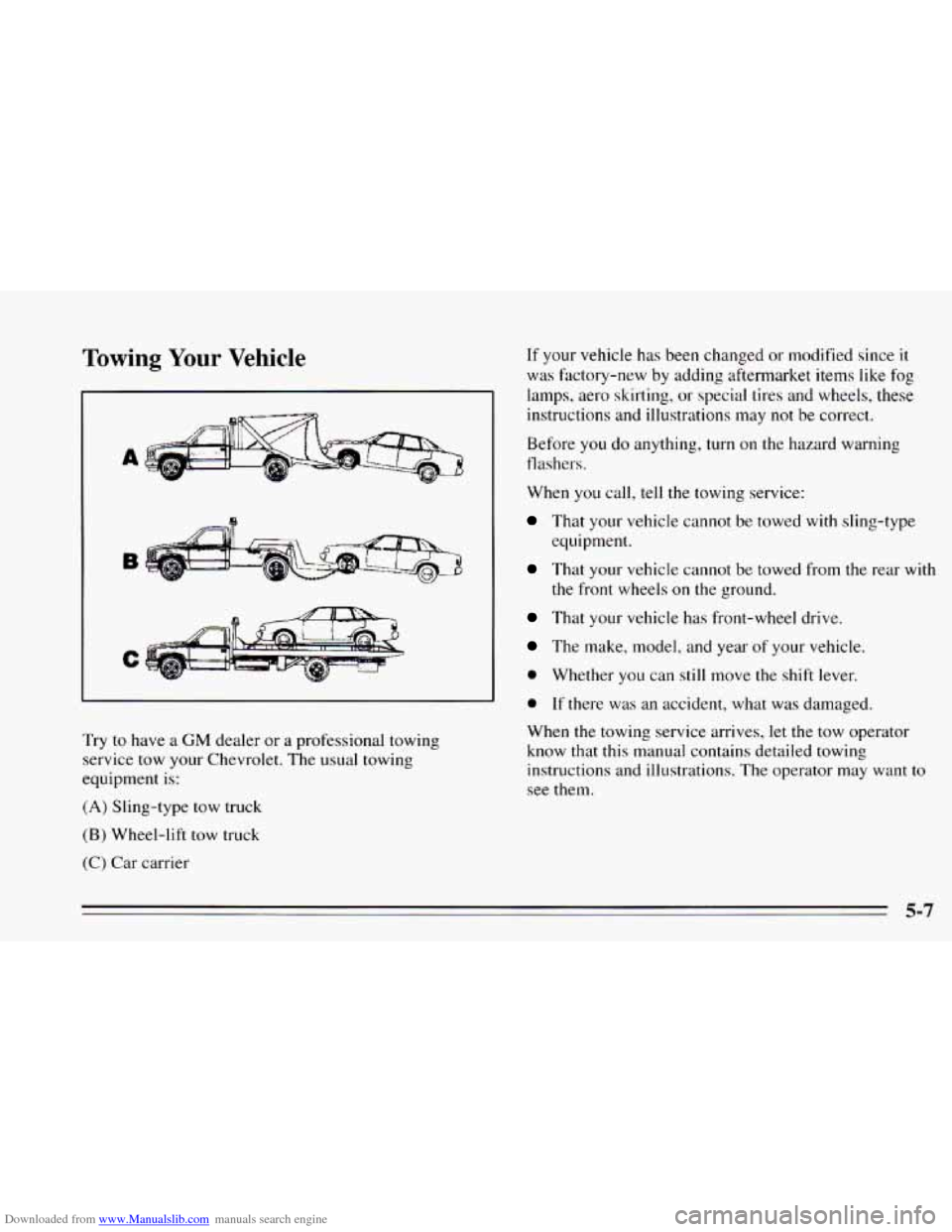

Downloaded from www.Manualslib.com manuals search engine Towing Your Vehicle
B
C
Try to have a GM dealer or a professional towing
service tow your Chevrolet. The usual towing
equipment
is:
(A) Sling-type tow truck
(B) Wheel-lift tow truck
(C) Car carrier
If your vehicle has been changed or modified since it
was factory-new by adding aftermarket items like fog
lamps, aero skirting, or special tires and wheels,
these
instructions and illustrations may not be correct.
Before
you do anything, turn on the hazard warning
flashers.
When you call, tell
the towing service:
That your vehicle cannot be towed with sling-type
equipment.
That your vehicle cannot be towed from the rear with
the front wheels on the ground.
That your vehicle has front-wheel drive.
The make, model, and year of your vehicle.
0 Whether you can still move the shift lever.
0 If there was an accident, what was damaged.
When the towing service arrives,
let the tow operator
know that
this manual contains detailed towing
instructions and illustrations. The operator may want
to
see them.
5-7

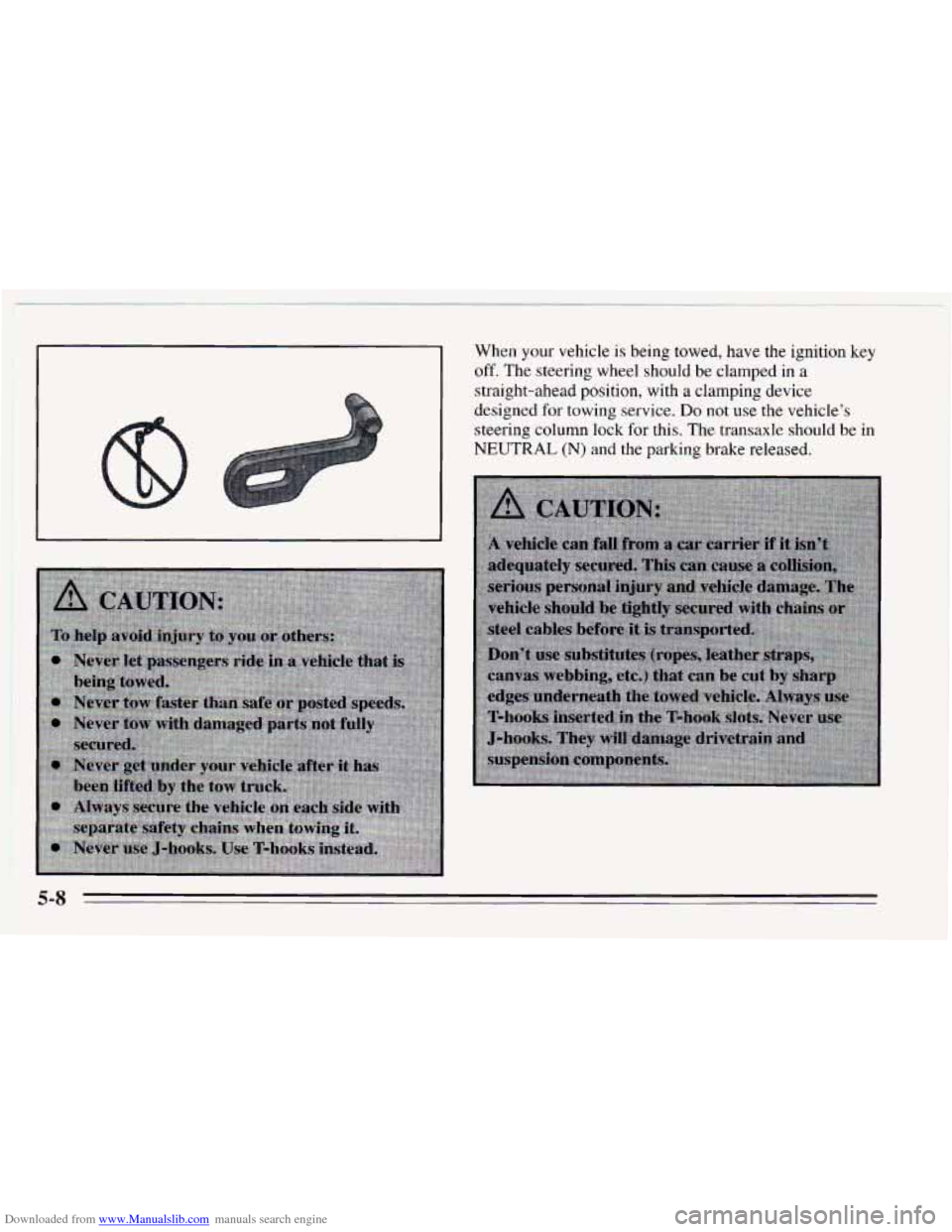

Downloaded from www.Manualslib.com manuals search engine When your vehicle is being towed, have the ignition key
off, The steering wheel should be clamped in a
straight-ahead position, with a clamping device
designed for towing service.
Do not use the vehicle’s
steering column lock
for this. The transaxle should be in
NEUTRAL (N) and the
parking brake released.
5-8
