1995 CHEVROLET CAVALIER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Illuminated EntryLExit System
When you open either front door, or open a rear door,
the lamps inside your vehicle will go
on. These lamps
will fade off after about
40 seconds, or when the ignition
is turned on.
If the ignition has been off for less than two minutes,
the lamps inside your vehicle will stay on for about
15 seconds to provide an illuminated exit when you
remove the key from the ignition.
After you exit the vehicle and all of the doors have been
closed,
the lamps will stay on for an additional four
seconds before fading
off.
Battery Rundown Protection
Your Chevrolet is equipped with a Battery Rundown
Protection feature designed
to protect your vehicle’s
battery.
When any interior lamp (trunk, reading, dome, glove
box, etc.) is left
on and the ignition is turned OFF, the
Battery Rundown Protection system will automatically
turn the lamp
off after 20 minutes. This will avoid
draining the battery. This system does not protect
against leaving on the headlamps.
To reactivate the interior lamps, either:
The ignition must be turned on,
The activated lamp switch must be turned off, then
on, OR
A door must be opened.
The Battery
Rundown Protection feature will also be
activated when any door is
left open.
If your vehicle is left with the ignition off for over
24 days, the battery power to the clock and audio
system will turn off to reduce the battery drain. When
the ignition is turned on again, battery power will be
resupplied. Under these conditions it will be necessary
to reset the clock and audio system settings.
2-41

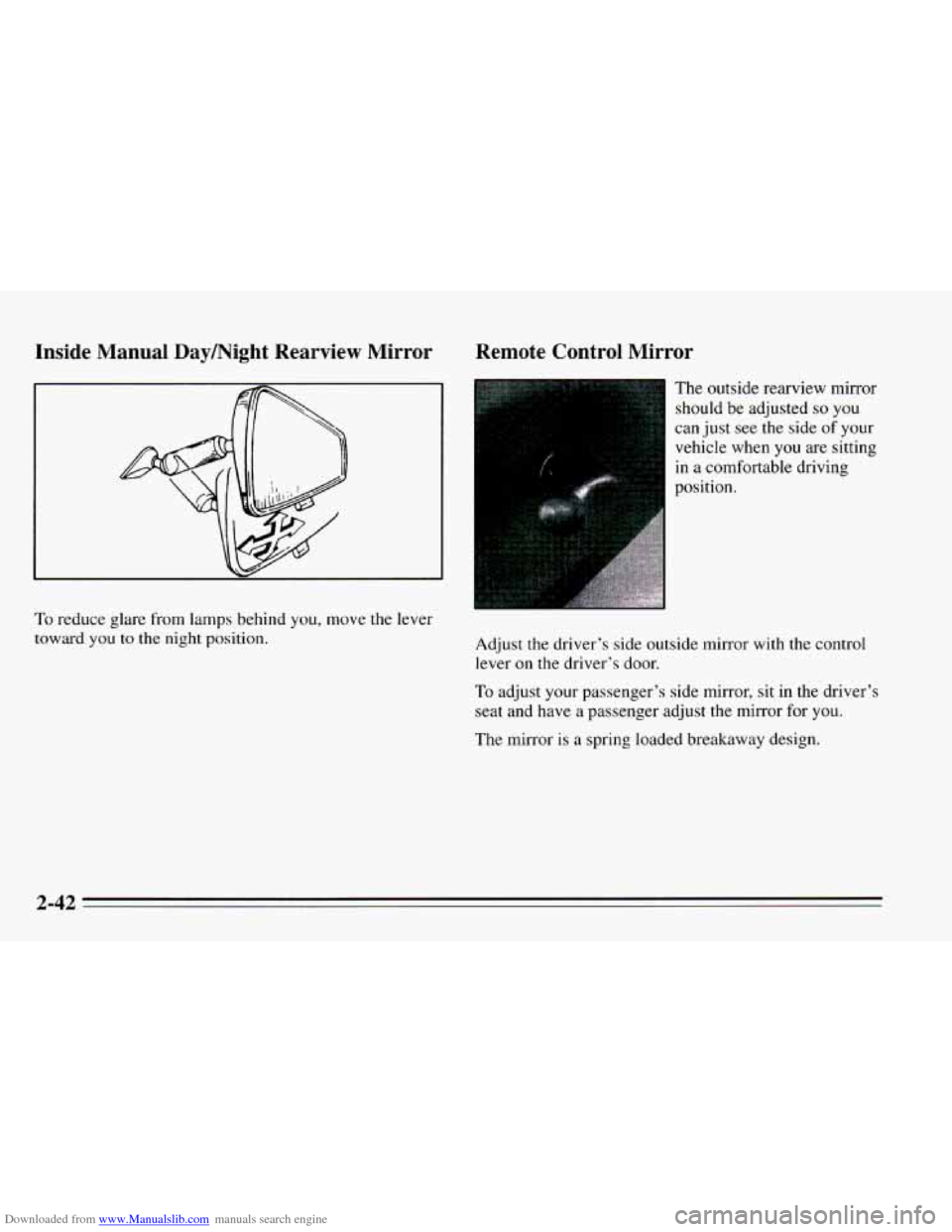

Downloaded from www.Manualslib.com manuals search engine Inside Manual Daymight Rearview Mirror
To reduce glare from lamps behind you, move the lever
toward you
to the night position.
Remote Control Mirror
The outside rearview mirror
should be adjusted
so you
can just see the side
of your
vehicle when
you are sitting
in a comfortable driving
position.
Adjust
the driver’s side outside mirror with the control
lever on
the driver’s door.
To adjust your passenger’s side mirror, sit in the driver’s
seat and have a passenger adjust the mirror for
you.
The mirror is a spring loaded breakaway design.
2-42

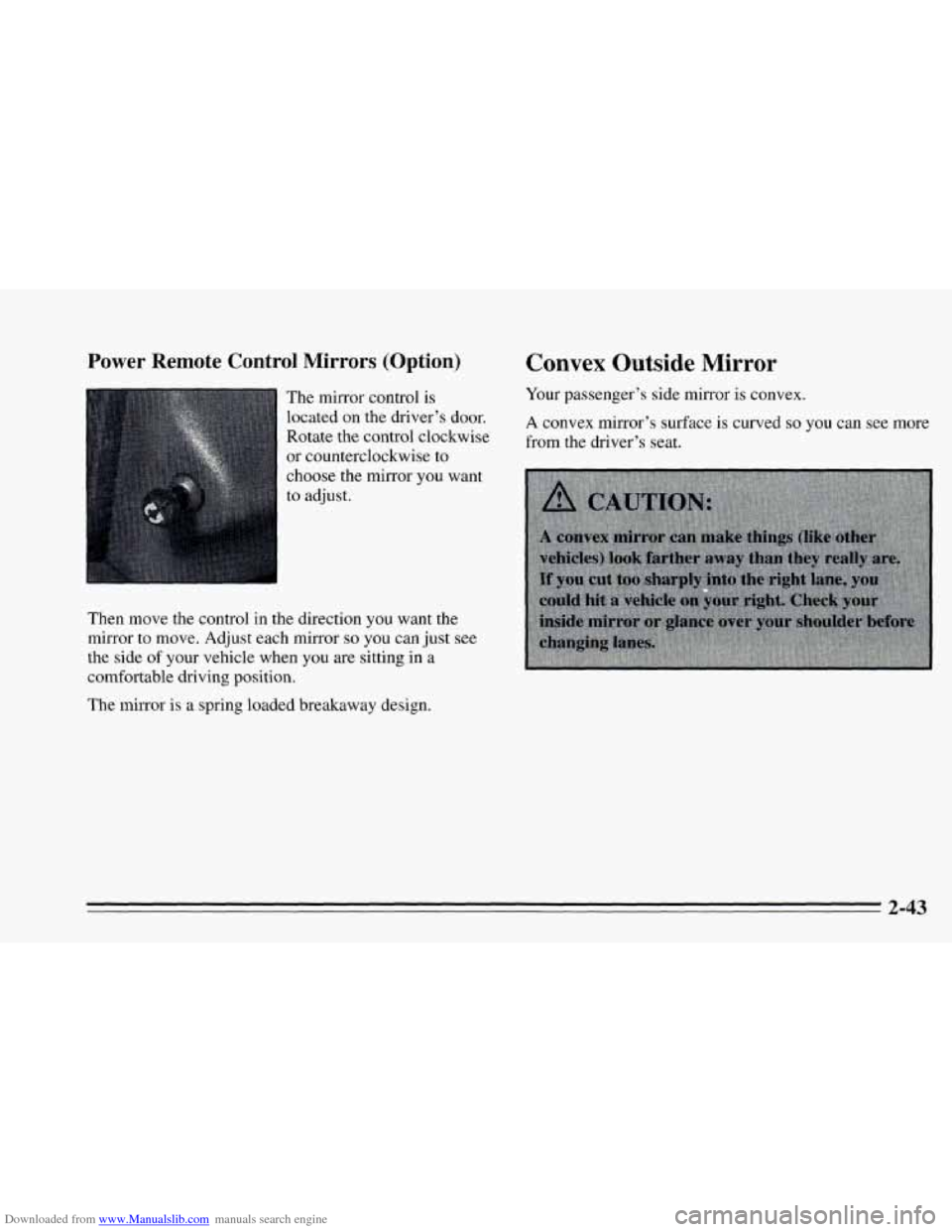

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirrors (Option) Convex Outside Mirror
The mirror control is Your passenger’s side mirror is convex.
located
On the driver’s A convex mirror’s surface is curved so you can see more
or counterclockwise to
Rotate the control clockwise
from the driver’s seat.
Then move the control in the direction you want the
mirror to move. Adjust each mirror
so you can just see
the side
of your vehicle when you are sitting in a
comfortable driving position.
The mirror is a spring loaded breakaway design.
2-43

Downloaded from www.Manualslib.com manuals search engine Convenience Net (Option) Sun Visors
To block out glare, you can swing down the visors. You
can
also swing them to the side.
Your vehicle may have
a convenience net. You’ll see it
just inside the back wall of the trunk. Put small loads,
like grocery bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and
stops. Unclip
a corner of the convenience net to fit
larger objects behind the net, then reclip it to secure
them
in place.
The net isn’t for larger, heavier loads. Store them
in the
trunk as far forward as you can.
You can unhook the net.
so that it will lie tlat when
you’re not using
it.
Ashtray and Lighter
To use the lighter, just push
it in all the way and let go.
When it’s ready, it will pop
back out by itself.
’ NOTICE:
1 Don’t hold a cigarette lighter in with your hand
, while it is heating. If you do, it won’t be able to
~ back away from the heating element when it’s
1 ready. That can make it overheat, damaging the
, lighter and the heating element.

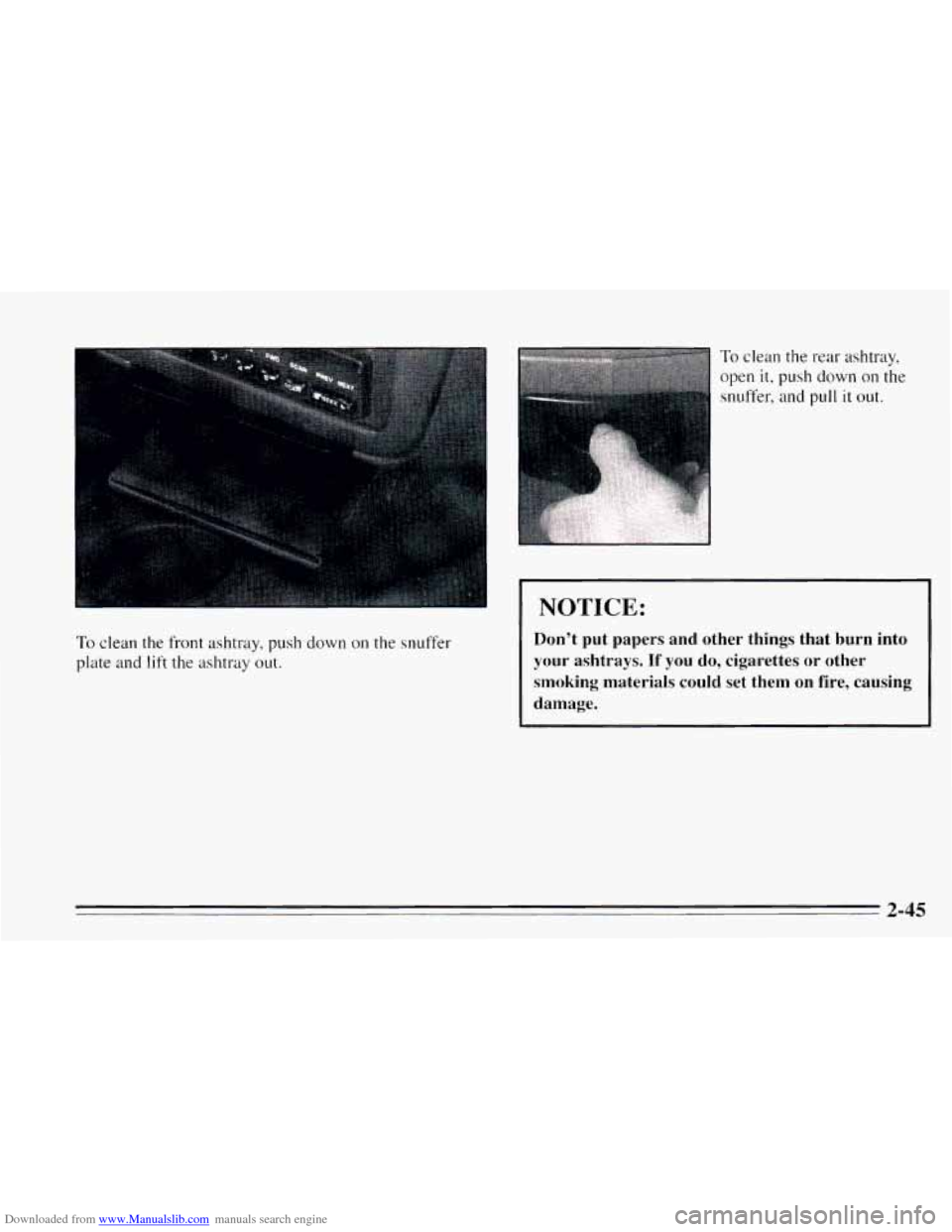

Downloaded from www.Manualslib.com manuals search engine To clean the front ashtray, push down on the snuffer
plate and
lift the ashtray out.
To clean the rear ashtray,
open
it, push down on the
snuffer, and pull
it out.
NOTICE:
Don’t put papers and other things that burn into
your ashtrays.
If you do, cigarettes or other
smoking materials could set them
on fire, causing
damage.
2-45

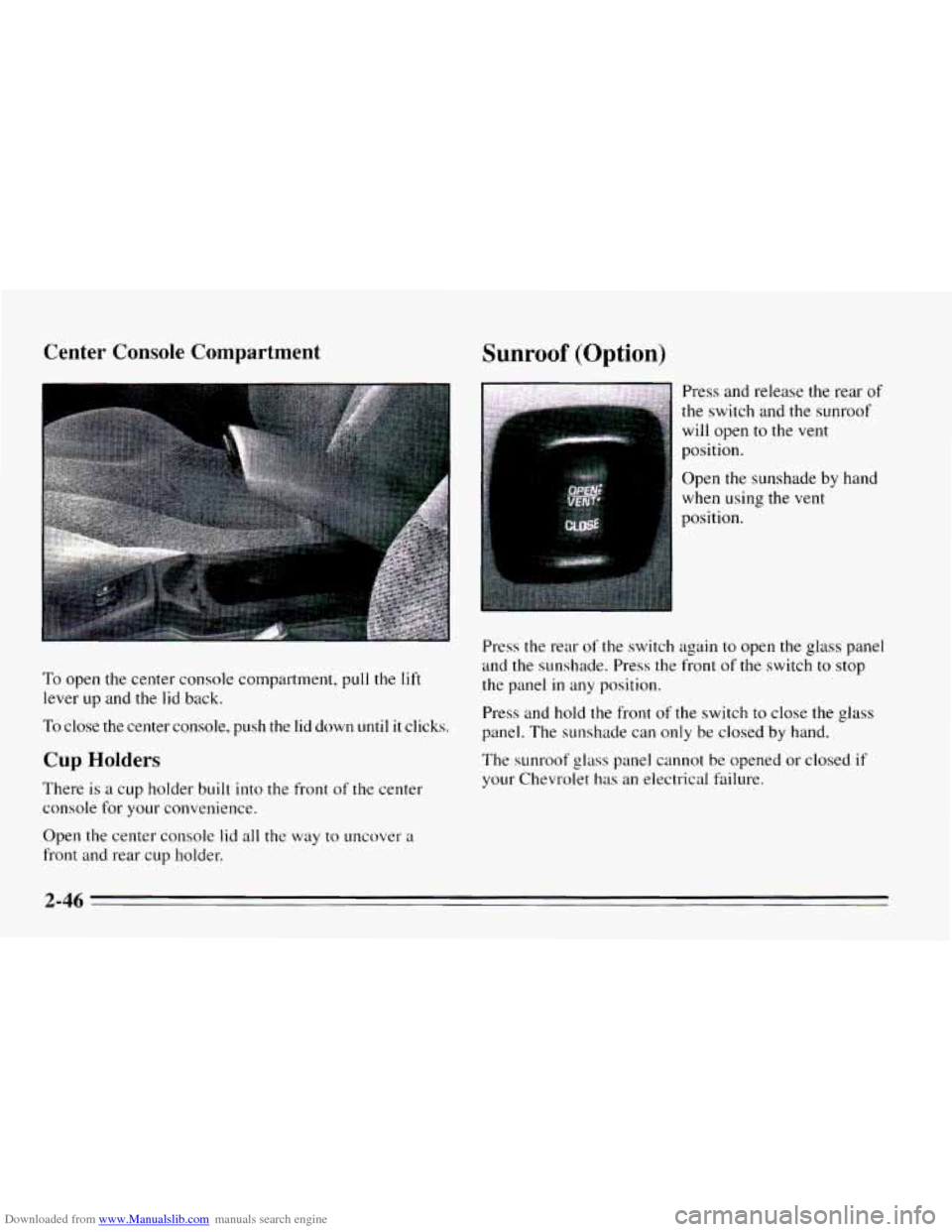

Downloaded from www.Manualslib.com manuals search engine Center Console Compartment
To open the center console compartment, pull the lift
lever up and the lid back.
To close the center console, push the lid down until it clicks.
Cup Holders
There is a cup holder built into the front of the center
console for your convenience.
Open the center console lid all the way to uncover
a
front and rear cup holder.
Sunroof (Option)
Press and release the rear of
the switch and the sunroof
will open
to the vent
position.
Open the sunshade by
hand
when using the vent
position.
Press the rear
of the switch again to open the glass panel
and the sunshade. Press the front of
the switch to stop
the panel
in any position.
Press and hold the front of the switch
to close the glass
panel. The sunshade can
only be closed by hand.
The sunroof
glass panel cannot be opened or closed if
your Chevrolet has an electrical failure.
2-46

Downloaded from www.Manualslib.com manuals search engine Convertible Top (Option)
The following steps explain the proper operation of your
convertible top.
NOTICE:
Remove any items from the convertible top
storage area before you lower the top. Even
small items in the storage area can damage
the top or other parts of the system.
Don’t raise or lower the convertible top
when the temperature is below
20°F
(-7°C). The cold can cause cracks and
other damage to the top as it is being
lowered or raised.
Don’t raise or lower the convertible top
while the vehicle is moving. The wind could
damage the top. Bring the vehicle to
a
complete stop before attempting to raise or
lower the top. Always make sure that the
top is securely latched before driving the
vehicle.
Lowering the Top
1. Set the parking brake and shift your automatic
transaxle
to PARK (P) or your manual transaxle to
NEUTRAL (N). Shut
off the engine.
2. Turn the ignition to the RUN position. Don’t start the
engine. Lower
the side door windows.
3. Push the button in the latch handle and turn the
handle down
to unhook the latch pins from the holes
over
the windshield.
2-47

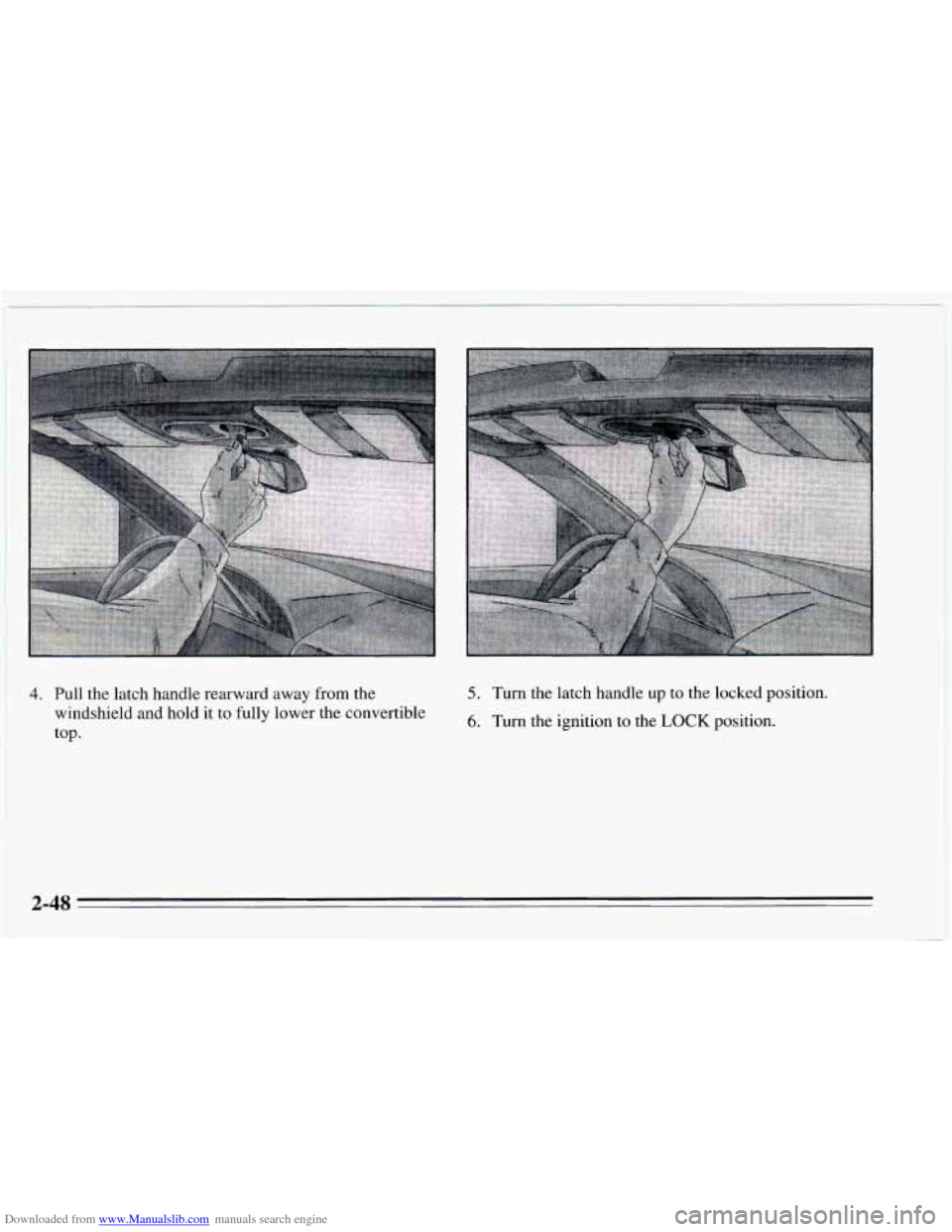

Downloaded from www.Manualslib.com manuals search engine 4. Pull the latch handle rearward away from the
windshield and hold it to fully lower the convertible
top. 5. Turn the latch handle up to the locked position.
6. Turn the ignition to the LOCK position.
2-48
