1994 PONTIAC FIREBIRD Owners Manual

Features and Controls
CHECK
GAUGES
Check Gages Light
This light will come on briefly when you
are starting the engine. If the light comes
on and stays on while you are driving,
check your gages to see
if they are in the
warning areas.
... 96
LOW
OIL
,ow Oil Light
!our vehicle is equipped with an oil level
nonitoring system. When you start your
ngine, the light will come on briefly. If
he light doesn’t come on, have it
epaired. If the light stays on after startine
‘our engine, your engine oil level may be
30 low. You may need to add oil. See
Engine Oil” in the Index.
I NOTICE:
The oil level monitoring system only
checks the oil level when you are
starting your engine. It does not keep
monitoring the level once your en- gine is running.
Also, the oil level
check only works when the engine
has been turned off long enough for
the oil to drain back into the oil pan.
ProCarManuals.com

9
!I LOW
COOLANT
Low Coolant Light (4% Engine)
This light should come on while you are
starting your engine.
If the light doesn’t
come on, have it repaired. The light also
comes on when the coolant in your
radiator
is low. You may need to add
coolant. See “Engine Coolant”
in the
NOTICE:
Driving with the “LOW COOLANT”
light on could cause
your Pontiac to
overheat. See “Engine Overheating”
in the Index. Your Pontiac could
be
damaged, and it wouldn’t be covered
by your warranty.
Convertible Top
The following procedures explain the
proper operation of your convertible top.
To Lower Your Convertible Top
NOTICE:
Don’t leave yoqxconvertible out with
the top down for any long periods
of time. The sun and the rain can
damage your seat material and other
things inside your vehicle.
97. .
ProCarManuals.com

Features and Controls
1. Park on a level surface. Set the
parking brake firmly, shift an
automatic transmission into
“P’ (Park:
or a manual transmission into
“R’
(Reverse). The ignition must be in the
“Acc” or “Run” position. Lower both
sun visors.
NOTICE:
Don‘t lower the top if it is damp or
wet. When the top is down, trapped
water can cause stains, mildew and
damage to the inside of your vehicle.
Be sure to dry
off the top before you
lower it.
NOTICE:
It is not recommended to lower the
top
if your vehicle is out in cold
weather,
0°F (-18°C) or lower.
... 98
)
I
..
I= 2.
NOTICE:
Before lowering the convertible top
into the storage qrea, be sure there
are no objects in
the way of the
folded, stored top. The weight
of a
stored top on items in the storage
area
will cause the convertible top
back glass to break.
Unlock the front of the convertible to;
by pushing on the smaller part of the
latch, then pulling down
on the larger
part
of the latch. Be sure the hook on
the latch that attaches into the hole at
the windshield releases.
-3
I
I
n
tl
p i~
-
fl
1. Be sure no one or nothing is on or
around the top. Push and hold the
bottom of the convertible top switch.
The switch is
on the left side of your
console. The top will automatically lower into the storage area.
nstalling the Boot Cover
ifter lowering the convertible top, you
nay want to install the boot cover. The
hree-piece boot cover
is stored in a bag
n the trunk.
ProCarManuals.com

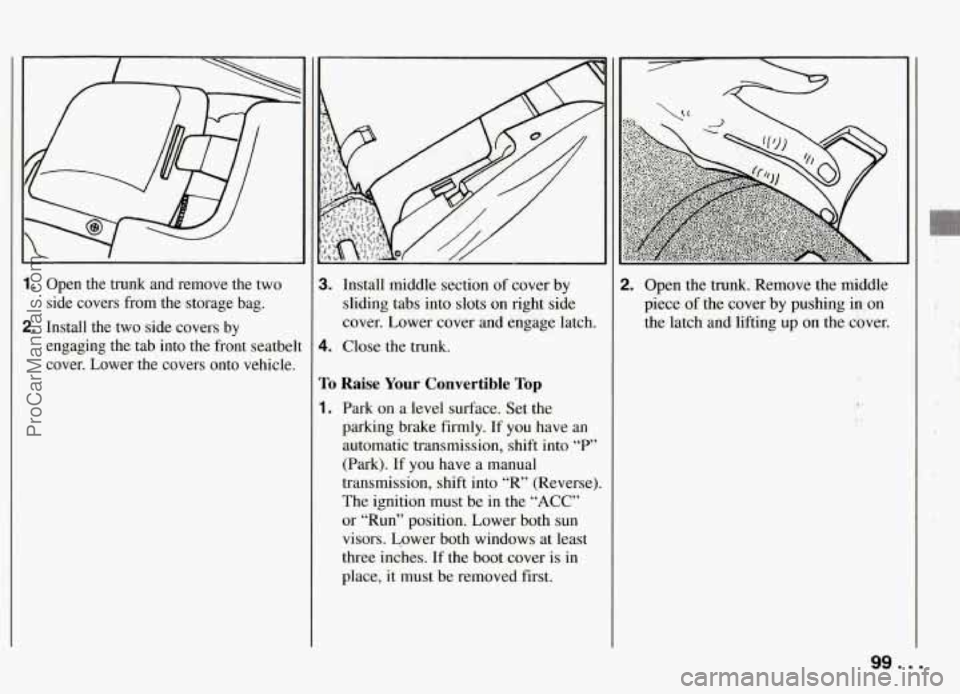

1.
2. Open the
trunk and remove the
two
side covers from the storage bag.
Install the two side covers by
engaging the tab into the front seatbelt
cover. Lower the covers onto vehicle. 3. Install middle section of cover by
sliding tabs into slots on right side
cover. Lower cover and engage latch.
4. Close the trunk.
To Raise Your Convertible Tap
1. Park on a level surface. Set the
parking brake firmly. If you have an
automatic transmission, shift into
“P”
(Park). If you have a manual
transmission, shift into
“R7 (Reverse).
The ignition must be in the “ACC”
or “Run” position. Lower both sun
visors. Lower both windows at least
three inches. If the boot cover is
in
place, it must be removed first.
2. Open the trunk. Remove the middle
piece
of the cover by pushing in on
the latch and lifting up on the cover.
1
99 ...
ProCarManuals.com

/
Features and Controls
B. Remove the two side pieces of the
boot cover by lifting
rear cover and
sliding them out
of their slots.
4. Store each piece of the cover in its
separate compartment
in the storage
bag. Store in the trunk and close the
trunk.
5. Push and hold the top of the
convertible top switch.
. . .loo
ProCarManuals.com

6. Pull down on the latches and align
hooks with holes. Push forward on the
larger
part of the latch until it clicks.
Do not force the latch. If it is hard to
lock, the top is not properly aligned.
f your vehicle suffers a power loss, such
1s a dead battery, you can still raise or
ower
the top manually by rotating the
ralve in the left side
of the trunk.
left side trim panel. Lift up the tab and
turn the valve clockwise to release the
hydraulic pressure. Turn the ignition key
to the
“LOCK” positon. You can now
raise or lower your top manually. Be sure
to close the valve after installing your top
so you can raise or lower it electronically
later.
101 ...
ProCarManuals.com

Notes
rn . .I02
ProCarManuals.com

Part 3
In this part you’ll find out how
o operate the comfort control
iystems and audio systems
Iffered with your Pontiac
. Be
ure to read about the particular
iystem supplied with your
lehicle
.
Comfort Controls & Audio
Systems
Comfort Controls ................................................ 104
Heater Controls
............................................... 104
Heating
...................................................... 104
Bi-Level Heating
.............................................. 105
Ventilation ................................................... 105
Defogging and Defrosting Windows
............................... 105
Air Conditioner Controls
........................................ 106
Cooling
...................................................... 106
Rear Window Defogger
......................................... 107 __
Flow-Through Ventilation System .................................
Audiosystems ..................................................
107
108
Settingtheclock
.............................................. 109
AMPM Stereo with Cassette Tape Player
........................... 109
AM/FM Stereo with Cassette Tape Player and Graphic Equalizer
........ 112
AM/FM Stereo with Compact Disc Player and Graphic Equalizer
........ 118
AM/FM
Stereo with Compact Disc Player
.......................... 115
Understanding Radio Reception
.................................. 121 .
Care of Your Cassette Tape Player .................................
Care of Your Compact Discs .....................................
FixedMastAntenna ............................................
122
123
123
103 ...
