1994 PONTIAC FIREBIRD Owners Manual

Service and Appearance Care
Replacement Bulbs
Ashtray" ......................................................... 194
Automatic Transmission Indicator
...................................... 73
Backup
......................................................... 1156
Center High-Mounted Stoplight
....................................... 921
Cluster
.......................................................... 161
Console
......................................................... 194
Dome
........................................................... 906
Doorcourtesy
..................................................... 74
Fog
............................................................. 885
Front Parking and Turn Signal
....................................... 2397
GloveBox
....................................................... 194
Headlight
..................................................... H-6545
Heater and
A/C Control .............................................. 37
Indicator Lights
.................................................. PC74
Interior Door Handle
................................................ 74
License
.......................................................... 194
Reading
....................................................... 212-2
Rearcourtesy
..................................................... 562
Sidemarker
....................................................... 194
TailOnly
........................................................ 194
Tail/Stop/Turn
................................................... 2057
Trunk
........................................................... 562
Turn Signal Indicators
.............................................. 161
*Manual transmission only
.
... 232
ProCarManuals.com

Capacities and Specifications
Engine
Type VINEngineCodeS
............................................... V6
VIN Engine Code
P ............................................... V8
Fuel Delivery
............................................. Fuel Injection
Valve Arrangement
............................................. In-Head
Piston Displacement VIN Engine Code
S .................................... .207 CID (3.4L)
VIN Engine Code P
..................................... 350 CID (5.7L)
VIN Engine Code
S ............................................. 9.0: 1
VIN Engine Code P ............................................ 10.5: 1
VINEngineCodeS ...................................... 1-2-345-6
VIN Engine Code
P .................................. 1-843-6-5-7-2
Compression Ratio
Firing Order
233. ..
ProCarManuals.com

Service and Appearance Care
Replacement Parts
Air Cleaner Filter .............................................. A1 163C
Battery
........................................................ 75-60
Engine Oil Filter
VINEngineCodeS
............................................. PF47
FuelFilter
...................................................... GF578
PCV Valve VIN Engine
Code P
............................................. PF25
VIN Engine Code
S .......................................... CV789C
VIN Engine Code P
.......................................... CV895C
VIN Engine Code
S .............................. oR43TSK (0.045" Gap)
VIN Engine Code P
............................. oR45LTSP (0.050" Gap)
Thermostat Temperature Specification
.......................... 180°F (82°C)
Radiatorcap
................................................... RC24
Spark Plug
Wheel Nuts
Wheel Nut Torque ....... ........ ......... 100 lb. ft. (140 Nom)
.. .234
ProCarManuals.com

tNot all air conditioning refrigerants are the same. If the air con\
ditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant is us\
ed. If you’re not sure, ask
your Pontiac dealer.
“Recheck fluid level after filling. See “Automatic Transmission Fluid” in the Index.
235. . .
ProCarManuals.com

Service and Appearance Care
Crankcase
VIN Engine Code S .................................... 4.0 qt. (3.8 L)**
Without Filter Change
................................ 4.0 qt. (3.8 L)**
With Filter Change ................................... 5.0 qt. (4.7 L)**
Fuel Tank ........................................... 15.5 gal. (58.7 L)
Five-Speed
........................................... 5.9 pt. (2.8 L)*
Six-Speed
............................................ 8.0 pt. (3.8 L)*
Rear Axle Lubricant
...................................... 3.5 pt. (1.7L)
VIN Engine Code
P
Manual
Transmission
Vehicle Dimensions
Tread Wheelbase
........................................... 101.1 I‘ (2 566 mm)
Front
.............................................. .60.7“ ( 1 542 mm)
Rear
.............................................. .60.6” (1 540 mm)
Length
............................................... 193.2“ (4 908 mm)
Firebird and Formula
................................. 195.6” (4 968 mm)
Trans Am .......................................... 197.0” (5 005 mm)
Width
............................................... 74.5” (1 893 mm)
Coupe
........................................... 52.0” (1 322 mm)
Convertible ....................................... .52.7” ( 1 340 mm)
Coupe
........................................... .51.7” (1 312 mm)
Convertible
....................................... .52.4“ (1 331 mm)
Height
Firebird and Formula
Trans Am
*Recheck fluid level after filling. See “ManualTransmission Fluid” in the Index.
**Recheck oil level after filling. See “Engine Oil” in the Index.
. . -236
ProCarManuals.com

Belt Routing - L32 (Code S) Engine
I
Belt Routing - LTl (Code P) Engine
237. . . ProCarManuals.com

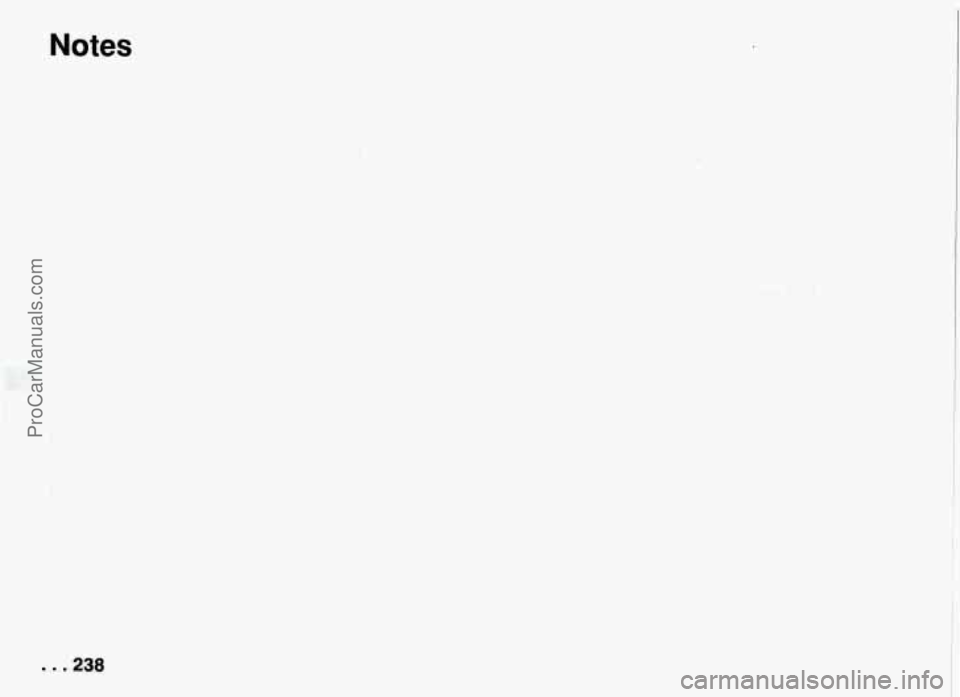

Notes
'Y
. . .238
ProCarManuals.com

I IMPORTANT
I
KEEP THE ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
This part covers the
maintenance required for your
Pontiac. Your vehicle needs
these services
to retain its
safety, dependability and
emission control performance.
Part 7
Maintenance Schedule
Section
Introduction: A Word about Maintenance ... . . 240
A.
B.
C.
D.
E.
..
Your Vehicle and the Environment ...... .......... 240
How This Part
Is Organized .......... ....... . . 240
Scheduled Maintenance Services .... ................. 242
Using
Your Maintenance Schedules ....................... 241
Selecting the Right Schedule
................ ..... 241
Schedule1
............................... . . 242
Schedule11
................................. . . 244
Explanation
of Scheduled Maintenance Services .......... 246
Owner Checksand Services ................................ 248
AtEachFuelFill
....................................... 248
At Least Once
a Month .................................. 248
At Least Twice a Year
................... ......... 248
At Least Once
a Year ............... .., . . 249
Recommended Fluids and Lubricants ... ................ 253
Maintenance Record ...................................... 255
Periodic Maintenance Inspections .... ... ..... 251
I-
I- -
Have you purchased the GM Protection Plan? The Plan
supplements
your new car warranties.
See
your GM dealer for details.
239. ..
