1994 PONTIAC FIREBIRD Owners Manual

Problems on the Road
I
taise the vehicle by rotating the wheel
wench clockwise. Raise the vehicle far
mough
off the ground so there is enough
'oom for the spare tire to fit.
. .I76
temove all the wheel nuts and take off
he flat tire.
ProCarManuals.com

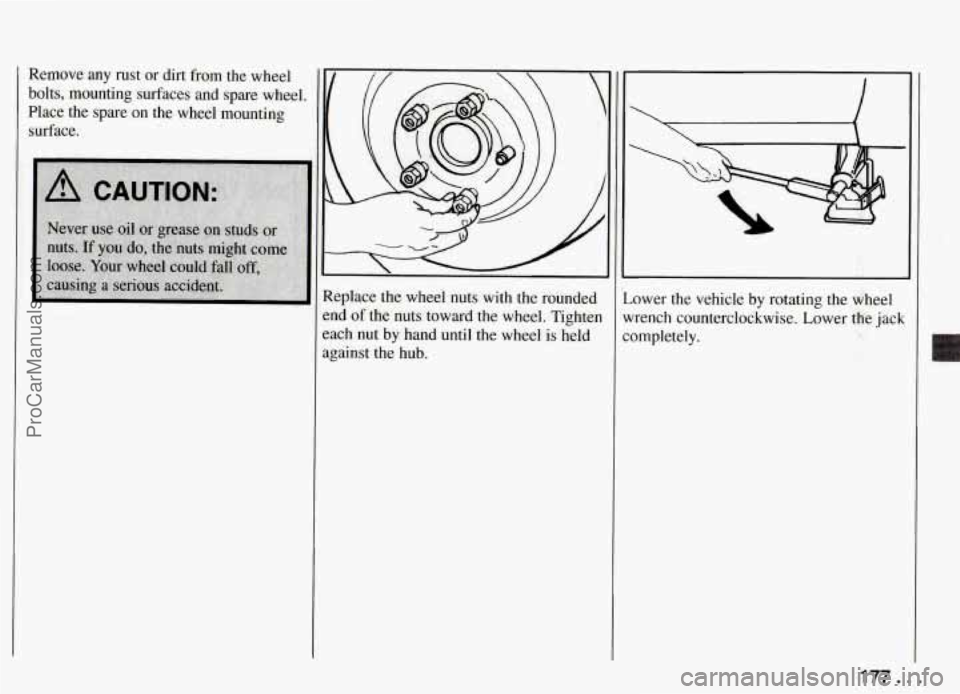

Remove: any rust or dirt from the wheel
bolts, mounting surfaces and spare wheel.
Place the spare on the wheel mounting
surface.
Replace the wheel nuts with the rounded
end
of the nuts toward the wheel. Tighten
each nut by hand until the wheel
is held
against the hub. Replace the wheel nuts with the rounded
end
of the nuts toward the wheel. Tighten
each nut by hand until the wheel
is held
against the hub.
,ewer the vehicle by rotating the wheel
vrench counterclockwise. Lower t&e jack
ompletely.
-4'
L:
-I .
177 ... ProCarManuals.com

Problems on the Road
m’t try to put a center cap on your
mpact spare tire. It won’t fit. Store the
nter cap
in the rear area until you have
: flat tire repaired or replaced.
righten the wheel nuts
firmly in a
:riss-cross sequence as shown.
NOTICE:
Center caps won’t fit on your
compact spare. If you try to put a
center cap on your compact spare,
you could damage the cover or the
spare.
. .I78
ProCarManuals.com

Replace the jack, wheel wrench and
flat tire using the storage instructions.
When
you replace the trim panel, be
sure
to tuck it under the weatherstrip.
1. Trim Panel
2. Bolt
3. Cover
4. Jack
5. Wing Nut
6. Adapter
7. Compact Spare Tire
8. Full-Size Tire
9. Carpet Flap
10. Tire Storage Bolt
11. Trunk Access Panel
(Convertible Only)
12. Knob
179 ...
ProCarManuals.com

Problems on the Road
Compact Spare Tire
Although the compact spare was fully
inflated when your vehicle was new, it
can lose air after a time. Check the
inflation pressure regularly. It should be
60 psi (420 kPa). After installing the
compact spare on your vehicle, you
should stop as soon as possible and make
sure your spare tire is correctly inflated.
The compact spare is made to perform
well at posted speed limits for distances
up to
3,000 miles (5 000 km), so you can
finish your trip and have your full-size
tire repaired or replaced where you want.
Of course, it’s best to replace your spare
with
a full-size tire as soon as you can.
Your spare will last longer and be in
good shape in case you need it again.
. . .I80
NOTICE:
If the compact spare is used as a rear
tire, do not drive faster than
50 mph
(80 km/h). Damage to the rear axle
may occur if the compact spare
is
driven faster than 50 mph (80 km/h).
This speed limitation does not apply
when the compact spare is used as a
front tire.
NOTICE:
Don’t take your compact spare
through an automatic car wash with
guide rails. The compact spare can
get caught on the rails. That can
damage the tire and wheel, and
maybe other parts of your vehicle.
Don’t use your compact spare on some
other vehicle.
And don’t mix your compact spare or
wheel with other wheels or tires. They
won’t fit. Keep your spare and its wheel
together.
NOTICE:
Tire chains won’t fit your compact
spare. Using them will damage your
vehicle and destroy the chains too.
Don’t use tire chains on your
compact spare.
H Zf You’re Stuck: Zn
Sand, Mud, Zce or
Snow
What you don’t want to do when your
vehicle is stuck is to spin your wheels.
The method known as “rocking” can hell
you get out when you’re stuck, but you
must use caution.
1
?
ProCarManuals.com

NOTICE:
Spinning your wheels can destroy
parts of your vehicle as well as the
tires.
If you spin the wheels too fast
while shifting your transmission back
and forth, you can destroy your trans-
mission.
Rocking your vehicle to get it out:
First, turn your steering wheel left and
right. That will clear the area around your
front wheels. If your vehicle has traction
control, you should
turn the system off.
(See “Traction Control System” in the
Index.) Then shift back and forth’ between
“R’ (Reverse) and a forward gear (or with
a manual transmission, between First or
Second gear and Reverse), spinning the
wheels as little as possible. Release the
accelerator pedal while you shift, and
press lightly on the accelerator pedal
when the transmission is in gear.
If that
doesn’t get you out after a few tries,
you
may need to be towed out. If you:do need
to be towed out, see “Towing
Yow
Vehicle” in the Index. .’
181 ...
ProCarManuals.com

Notes
, . .182
ProCarManuals.com

I I
Here you will find information
about the care of your Pontiac
.
This part begins with service and fuel information. and then
it
shows how to check important
fluid and lubricant levels
. There
is also technical information
about your vehicle. and a section devoted
to its
appearance care
.
Part b
Service 8t Appearance Care
Service .........................................................
Fuel ...........................................................
Checking Things under the Hood ....................................
HoodRelease ..................................................
184
185
188
188
Engineoil
.................................................... 191
Aircleaner
.................................................... 195
Automatic Transmission Fluid
..................................... 198
Manual Transmission Fluid
....................................... 200
Hydraulic Clutch
............................................... 201
RearAxle
..................................................... 201
Enginecoolant
................................................. 201
Power Steering fluid
............................................ 204
Windshield Washer Fluid
......................................... 205
Brake Master Cylinder
........................................... 206
Bulb Replacement
................................................ 209
Battery
....................................................... 208
LoadingYourVehicle
............................................. 213
Tires
........................................................... 215
Appearance Care
................................................. 221
Appearance Care and Maintenance Materials
.......................... 227
Vehicle Identification Number (VIN)
................................. 228
Service Parts Identification Label
.................................... 228
Add-on Electrical Equipment
....................................... 228
Fuses and Circuit Breakers
......................................... 228
ReplacementBulbs
............................................... 232
Capacities and Specifications
........................................ 233
183 ...
