Service and Appearance Care
Care of Safety Belts
Keep belts clean and dry.
A CAUTION:
Do not bleach or dye safety belts.
If you
do, it may severely weaken
them.
In a crash they might not be
able to provide adequate protection.
Clean safety belts only
with mild
soap and lukewarm water.
Glass
Glass should be cleaned often. GM Glass
Cleaner (GM Part
No. 1050427) or a
liquid household glass cleaner will
remove normal tobacco smoke and dust
films.
Don’t use abrasive cleaners on glass,
because they may cause scratches. Avoid
placing decals on the inside rear window,
since they may have
to be scraped off
later. If abrasive cleaners are used on the
inside of the rear window, an electric
defogger element may be damaged. Any
temporary license should not be attached
across the defogger grid.
Cleaning the Outside of the Windshield
and Wiper Blades
[f the windshield is not clear after using
the windshield washer, or if the wiper
blade chatters when running, wax or
other material may be on the blade or
windshield.
Clean the outside of the windshield with
GM Windshield Cleaner, Bon-Ami
Powder@ (GM Part
No. 1050011). The
windshield is clean if beads do not form
when you rinse it with water.
Clean the blade by wiping vigorously
with a cloth soaked in full strength
windshield washer solvent. Then rinse
the blade with water.
Wiper blades should be checked on a
regular basis and replaced when worn.
Cleaning Twin Lift-off Roof Panels
Special care is necessary when cleaning,
removing and/or storing the roof panels.
0
0
Flush with water to remove dust and
dirt, then dry the panels.
Clean the panels with GM Glass
Cleaner (GM Part
No. 1050427) or
a liquid household glass cleaner.
Leave the cleaner
on the panel for one minute, then wipe the panel with
a soft, lint-free cloth.
0 Don’t use abrasive cleaning materials.
Cleaning the Outside of Your
Pontiac
The paint finish on your vehicle provides
beauty, depth of color, gloss retention and
durability.
Washing Your Vehicle
The best way to preserve your vehicle’s
finish is to keep it clean by washing it
often with lukewarm or cold water.
Don’t wash your vehicle
in the direct
rays of-the sun. Don’t use strong soaps
or chemical detergents. Use .Tiquid hand,
dish or car washing (mild-detergent)
soaps. Don’t use cleaning agents that are
petroleum based, or contain acid or abrasives.
All cleaning agents should be
flushed promptly and not allowed to dry
on the surface, or they could stain. Dry the finish with a soft, clean chamois or
a 100% cotton towel to avoid surface
scratches and water spotting.
High pressure car washes may cause
water to enter your vehicle.
. . .224
ProCarManuals.com

Finish Care
Occasional waxing or mild polishing of
your Pontiac may be necessary to remove
residue from the paint finish.
You can get
GM approved cleaning products from
your dealer. (See “Appearance Care and
Maintenance Materials” in the Index.)
Your Pontiac has
a “basecoatjclearcoat”
paint finish. The clearcoat gives more depth and gloss to the colored
basecoat.Always use waxes and polishes
that are non-abrasive and made for a
basecoatklearcoat paint finish.
NOTICE:
Machine compounding or aggressive
polishing
on a basecoatjclearcoat
paint finish may dull the finish or
leave swirl marks.
Cleaning Your Convertible Top
NOTICE:
When using an automatic car wash,
set your heating or cooling system to
“VENT” with the fan speed set to
the second highest speed. This will
prevent high pressure water from
entering around your top.
Your convertible top should be cleaned
often. Use a mild soap, lukewarm water
and a soft brush. Don’t use any harsh
cleaners or bleaching agents on the top.
They can damage the material.
When the top is really dirty, use a mild
foam-type cleaner. Use a cloth or sponge
to remove the dirt.
Thoroughly rinse the top and dry
it before
lowering it.
A damp top causes wrinkles.
Aluminum Wheels (If So Equipped)
Your aluminum wheels have a protective
coating similar to the painted surface of
your vehicle. Don’t use strong soaps,
chemicals, chrome polish, abrasive
cleaners,
or abrasive cleaning brushes
on them because you could damage this coating. After
rinsing thoroughly, a wax
may be applied.
NOTICE:
If you have aluminum wheels, don’t
use an automatic car wash that has
hard silicon carbide cleaning brushes.
These brushes can take off the
protective coating.
Tires
Your Pontiac dealer has a GM White
Sidewall Tire Cleaner.
You can use a stiff
brush with the cleaner.
When applying a tire dressing always take
care to wipe
off any overspray or splash
from painted surfaces. Petroleum-based
products may damage the paint finish.
Weatherstrips
Silicone grease on weatherstrips will
make them last longer, seal better, and not
stick or squeak. Apply silicone grease
with a clean cloth at least every six
months. During
very cold, damp weather
more frequent application may be
required. (See “Recommended Fluids and
Lubricants’’ in the Index.)
I-
225. . .
ProCarManuals.com

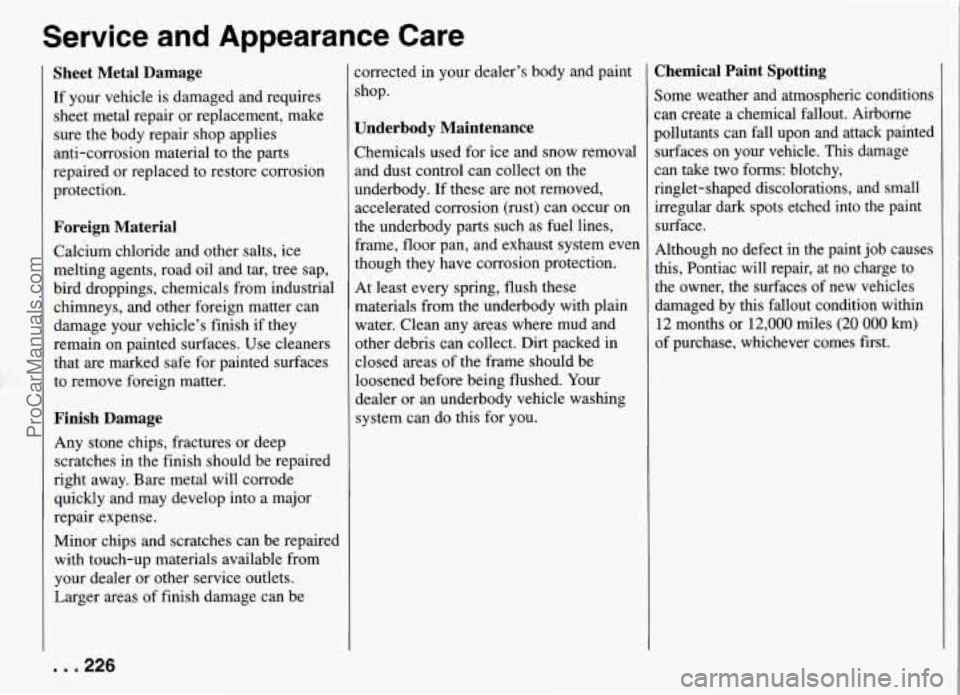

Service and Appearance Care
Sheet Metal Damage
If your vehicle is damaged and requires
sheet metal repair or replacement, make
sure the body repair shop applies
anti-corrosion material to the parts
repaired or replaced to restore corrosion
protection.
Foreign Material
Calc'ium chloride and other salts, ice
melting agents, road oil and tar, tree sap,
bird droppings, chemicals from industrial chimneys, and other foreign matter can
damage your vehicle's finish
if they
remain on painted surfaces. Use cleaners
that are marked safe for painted surfaces
to remove foreign matter.
Finish Damage
Any stone chips, fractures or deep
scratches in the finish should be repaired
right away. Bare metal will corrode
quickly and may develop into a major
repair expense.
Minor chips and scratches can be repaired
with touch-up materials available from
your dealer or other service outlets.
Larger areas of finish damage can be corrected
in your dealer's body and paint
shop.
Underbody Maintenance
Chemicals used for ice and snow removal
and dust control can collect on the
underbody. If these are not removed,
accelerated corrosion (rust) can occur on
the underbody parts such as fuel lines,
frame, floor pan, and exhaust system even
though they have corrosion protection.
At least every spring, flush these
materials from the underbody with plain
water. Clean any areas where mud and
other debris cah collect. Dirt packed in
closed areas
of the frame should be
loosened before being flushed. Your
dealer or an underbody vehicle washing
system can do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions
:an create a chemical fallout. Airborne
?ollutants can fall upon and attack painted
curfaces on your vehicle. This damage
:an take two forms: blotchy,
inglet-shaped discolorations, and small
irregular dark spots etched into the paint
surface.
Although no defect in the paint job causes
this, Pontiac will repair, at no charge to
the owner, the surfaces of new vehicles
jamaged by this fallout condition within
12 months or 12,000 miles (20
000 km)
of purchase, whichever comes first.
. . ,226
ProCarManuals.com

Appearance Care and Maintenance Materials
PART NUMBER USAGE DESCRIPTION
SIZE
1051516
16
02. (0.473 L) 10501 73
Also old waxes, polishes
Tar
and Road Oil Remover
16 02. (0.473 L)
10501 72 Windshield washing system and gas line
Washer
Solvent and Gas Liner De-lcer
32
02. (0.946 L)
Windshield cleaner
Bon-Ami Powder"
12
02. (0.340 kg)
105001
1 Exterior cleaner and polish
Magic Mirror Cleaner-Polish
16
02. (0.473 L)
1050201 Spot and stain removal
on cloth and fabric Spot Lifter*
8 02. (0.237 L) 1051 398 Exterior wash
Wash-Wax (Concentrated)
16
02. (0.473
L)
1052870 Vinyl, cloth, door trims, seats, carpet, tires, mats Multi-Purpo\
se Powdered Cleaner
6
Ib. (2.72 kg)
1050429 Glass cleaning and
spot cleaning on vinyls Glass
Cleaner
24 02. (0.680 L)
1050427 Spot and stain removal
on cloth and fabric Fabric
Cleaner*
16 02. (0.473 L)
1050244 Spot and stain removal
on leather
and vinyl
VinyVLeather Cleaner*
32 02. (0.946 L)
105021 4 Cleans white and black tires White Sidewall Tire Cleaner 16
02. (0.473
L)
10501 74 Removes
rust and corrosion on chrome and steel
Cleaner and Polish
*Not recommended for pigskin suede leather.
See your General Motors Dealer for these products. See the Index under "Recommended Fluids and Lubricants" for other produc\
ts.
ProCarManuals.com

Service and Appearance Care
L c
i
I
1
F
d
t!
7
1,
r
1
1
e
i
C

I
Vehicle Identification
Number
(VIN)
rhis is the' legal identifier for your
'ontiac. It appears on a plate in the front
:orner of the instrument panel, on the
lriver's side. You can see it if you look
hrough the windshield from outside your
rehicle. The
VIN also appears on the
Jehicle Certification and Service Parts
abels and the certificates of title and
egistration.
hgine Identification
?he eighth character in your VIN is the
:ngine code. This code will help you
.dentify your engine, specifications, and
*eplacement parts.
. .228
Service Parts
Identification Label
You'll find this label inside your console
storage compartment. It's very helpful if
you ever need to order parts.
On this
label is:
D your VIN,
the model designation,
paint information, and
a list of all production options and
special equipment.
Be sure that this label is not removed
From the vehcle.
Add-on Electrical
Equipment
NOTICE:
Don't add anything electrical to your
Pontiac unless you check with your
dealer first. Some electrical equip-
ment can damage your vehicle and
the damage wouldn't be covered
by your warranty. Some add-on
electrical equipment can keep other
components from working as they
should.
Your vehicle has an air bag system.
Before attempting to add anything
zlectrical to your Pontiac, see "Servicing
Your Air Bag-Equipped Pontiac" in the
Index.
ProCarManuals.com

I
P
a
it
fi
'I
C'
V
I Fuses and Circuit
Breakers
'he wiring circuits in your vehicle are
rotected from short circuits by
a
ombination of fuses, circuit breakers,
nd fusible thermal links in the wiring
self. This greatly reduces the chance of
ires caused by electrical problems.
'here are two fuse centers on your ehicle. One is in the left side of your
lstrument panel.
The other is in the engine compartment.
3pen the cover on either of the boxes to
:xpose the fuses.
>oak at the silver-colored band inside the
'use. If the band is broken or melted,
.eplace the fuse. Be sure you replace a
)ad fuse with a new
one of the correct
rize.
f you ever have a problem on the road
md don't have a spare fuse, you can
)orrow one. Just pick some feature
of
Jour vehicle that you can get along
without
- like the radio or cigarette
ighter
- and use its fuse, if it is the size
IOU need. Replace it as soon as you can.
Headlights
The headlight wiring is protected by a
circuit breaker. An electrical overload
will cause the lights to go
on and off, or in
some cases to remain
off. If this happens,
have your headlight wiring checked right
away.
Windshield Wipers
The windshield wiper motor is protected
by a circuit breaker and a fuse. If
the
motor overheats due to heavy snow, etc.,
the wiper will stop until the motor
cools. If the overload is caused by some
electrical problem and not snow, etc.,
be sure to get it fixed.
Power Windows and Other Power
Options
Circuit breakers protect the power
windows and other power accessories.
When the current load is too heavy,
the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed or goes away.
229. . .
ProCarManuals.com

Service and Appearance Care
Main Fuse Block
1 - Air Bag: SIR Components
2 - Backup Lights; Daytime Running (15
Amp.)
Lights Module (Canada); Turn
Flasher
(20 Amp.)
3 - HVAC Selector Switch (Heater/Ail
Conditioner); Rear Defogger
(25 Amp.)
4 - Powertrain Control Module;
Instrument Cluster; PASS-Key
II@
Decoder Module (10 Amp.)
5 - Powertrain Control Module;
PASS-Key
11s Decoder Module;
Fuel Pump Relay (15 Amp.)
;
6 - Brake LightKruise Release
Switch; Hazard Flasher
(20 Amp.)
7 - Power Door Locks; Power Mirrors;
Hatch Release (15 Amp.)
8
- Audio Alarm Module; Base@
Relay; Courtesy Lights: Console
Compartment, Glove Box, Dome,
Trunk, Rear Courtesy, Rearview
Mirror and Radio (15 Amp.)
9 - Audio Alarm Module; Daytime
Running Lights Module (Canada);
Diagnostic Energy Reserve
Module; Instrument Cluster; Remote Lock Control Module
( 10 Amp.)
10 - Exterior Lighting (20 Amp.)
11 - Cigarette Lighter; Horn Relay
12 - Power Seats; Rear Defogger
13 - Brightness Control (5 Amp.)
14 - Windshield Wipermasher
(25 Amp.)
15 - Power Windows, Convertible
Top Switch
(30 Amp. Circuit
Breaker)
Module
(3 Amp.)
(15 Amp.)
(25 Amp.)
(30 Amp. Circuit Breaker)
16 - Diagnostic Energy Reserve
17 - Radio; Steering Wheel Controls
. . ,230
ProCarManuals.com

C B
G H J
Underhood Electrical Center
Fuses
1 - Electronic Brake Control Module
(5 Amp.)
2
- Fog Lamps (20 Amp.)
3 - HeadIight Doors Module (15
4 - Headlight Doors Module (1 5
5 - Anti-Lock Brake System (5 Amp.)
6 - Coolant Fan Relays; EVAP Canister Purge Solenoid; Exhaust
Gas Recirculation; Low Coolant
Relay; Reverse Lockout Solenoid
(10 Amp.)
Amp.)
Amp.)
7 - Air
Injection Pump Assembly;
8 - Not Used
9 - Fuel Injectors (7.5 Amp.)
10 - Fuel Injectors (7.5 Amp.)
11 - VIN Engine Code S: Camshaft
Air
Pump Relay
(20 Amp.)
Position Sensor; Crankshaft Position Sensor; Electronic
Ignition Module
(10 Amp.)
VIN Engine Code P: Ignition
Coil; Ignition Coil Driver
(10 Amp.)
12 - Air Conditioning Compressor
Relay; Cruise Control Switches
and Module
(20 Amp.)
Relays
B - Air Conditioning Compressor
C - Anti-Lock Brake System
D - Primary Coolant Fan (Driver Side)
E - Air Pump
F - Secondary Coolant Fan
(Passenger Side)
G - Traction Control System
H - Fog Lamps
J - Not Used
231 . ..
ProCarManuals.com
