1994 JEEP CHEROKEE display

INTRODUCTION
CONTENTS
page page
DESIGNATIONS, LABELS/PLATES, CODES
AND DIMENSIONS..................... 1SPECIFICATIONS........................ 8
DESIGNATIONS, LABELS/PLATES, CODES AND DIMENSIONS
INDEX
page page
Engine and Transmission/Transfer Case Identification.3
International Vehicle Control and Display Symbols . 3
Major Component Identification............... 3
Tire Inflation Pressure Label................. 3
Vehicle Code Plate........................ 2Vehicle Designations....................... 1
Vehicle Dimension Data.................... 3
Vehicle Identification Number (VIN) Plate....... 1
Vehicle Load Data........................ 3
Vehicle Safety Certification Label............. 1
VEHICLE DESIGNATIONS
The Vehicle Designation Codes chart lists the vehi-
cle description(s) and the corresponding vehicle des-
ignation code for each type of Jeeptvehicle (Figs. 1,
2, and 3 ). The vehicle designation codes are different
from the Vehicle Identification Number (VIN) or
body-type/style codes.
VEHICLE SAFETY CERTIFICATION LABEL
A vehicle safety certification label (Fig. 4) is at-
tached to each Jeeptvehiclee. The label also lists
the:
²gross vehicle weight rating (GVWR) and the gross
front and rear axle weight ratings (GAWR's) based
on a minimum tire rim size and a maximum cold tire
inflation pressure;²month and year of vehicle manufacture;
²vehicle identification number (VIN);
²type of vehicle and
²month, day and hour (MDH) of final assembly.
The label is located on the driver's side door edge.
VEHICLE IDENTIFICATION NUMBER (VIN) PLATE
The vehicle identification number (VIN) plate is at-
tached to the top left side of the instrument panel at
the base of the windshield. Each VIN contains 17 al-
pha-numerical characters. Refer to the decoding
chart to determine the actual identification of a
Jeeptvehicle.
VEHICLE DESIGNATION CODES
Fig. 1 YJÐWrangler Multi-Purpose Vehicle (With
Hard Top)
JINTRODUCTION1

If there is not enough space left in the row for all
of the 6-digit SEC code (if used):
²the unused space will remain blank, and
²the code will be listed in the next row.
The last nine positions of row 7 will contain a 2-digit
code, when applicable, and a 6-digit gateline serial
number (same as the last 6 numbers of the VIN).
The last code imprinted on a vehicle code plate will
be followed by the imprinted word END. When two
vehicle code plates are required, the last available
spaces on the first plate will be imprinted with the
letters CTD (for continued).
When a second vehicle code plate is necessary, the
first four spaces on each row will not be used because
of the plate overlap.
ENGINE AND TRANSMISSION/TRANSFER CASE
IDENTIFICATION
When required, refer to Group 9ÐEngines for allengine identification data. Refer to Group 21ÐTrans-
missions for all transmission/transfer case identifica-
tion data.
MAJOR COMPONENT IDENTIFICATION
When required, refer to the applicable service infor-
mation group for major component identification data.
TIRE INFLATION PRESSURE LABEL
The tire inflation pressures label is located on the
glove box door inside panel (Fig. 6). The tires should
also be inspected for visible wear. Also, inspect the
tires for cracks, bulges and other road hazard dam-
age. Refer to Group 22ÐTires And Wheels.
VEHICLE DIMENSION DATA
The vehicle dimension data charts list the exterior
and interior dimensions for each type of Jeeptvehicle.
VEHICLE LOAD DATA
The Vehicle Load Data chart lists the following in-
formation:
²the gross vehicle weight rating (GVWR),
²the gross axle weight ratings (GAWR),
²the cargo weight, and
²the passenger weight for each Jeepttype/body
style.
INTERNATIONAL VEHICLE CONTROL AND DISPLAY
SYMBOLS
Most of the graphic symbols illustrated in the fol-
lowing chart are used to identify various instrument
controls and displays.
Fig. 5 Vehicle Code Plate
VEHICLE CODE DECODING
Fig. 6 Tire Inflation Pressures LabelÐTypical
JINTRODUCTION3

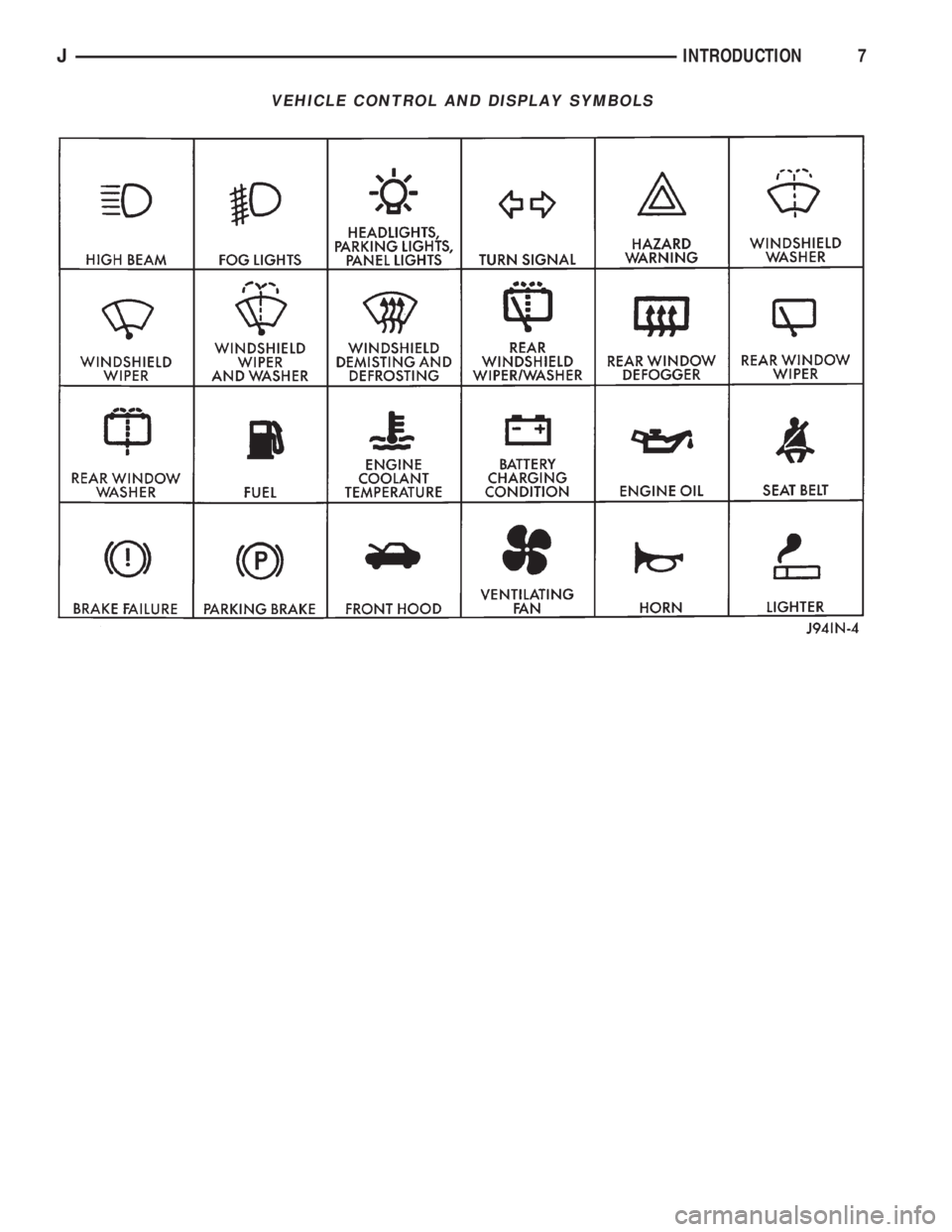

VEHICLE CONTROL AND DISPLAY SYMBOLS
JINTRODUCTION7

30RH/32RH AUTOMATIC TRANSMISSION . . . 21-66
30RH/32RH GENERAL SPECIFICATIONS . . . 21-322
30RH/32RH IN-VEHICLE SERVICE.........21-96
30RH/32RH PRESSURE TEST
SPECIFICATIONS....................21-323
30RH/32RH SNAP RING/THRUST
WASHER/THRUST PLATE
SPECIFICATIONS....................21-322
30RH/32RH TORQUE SPECIFICATIONS....21-323
30RH/32RH TRANSMISSION DIAGNOSIS . . . 21-69,
21-77,21-78,21-79,21-80,21-81,21-82,21-83,21-84,
21-85
30RH/32RH TRANSMISSION OVERHAUL . . . 21-112
30RH/32RH TRANSMISSION REMOVAL
AND INSTALLATION..................21-108
3-2 DOWNSHIFT, HYDRAULIC FLOW
DURING FULL THROTTLE..............21-92
3-2 DOWNSHIFT, HYDRAULIC FLOW
DURING PART THROTTLE..............21-91
4WD INDICATOR......................8E-22
4WD INDICATOR INOPERATIVE............8E-4
4WD INDICATOR LAMP..................8E-2
60-WAY CONNECTOR, POWERTRAIN
CONTROL MODULE (PCM).............14-38
ABBREVIATIONS, SYMBOLS, FUSES........8W-6
ABS BRAKE DIAGNOSIS...................5-3
ABS BRAKES, BRAKE BLEEDINGÐWITH.....5-14
ABS COMPONENT SERVICE...............5-47
ABS FAULT DIAGNOSIS................5-4,5-6
ABS OPERATION IN ANTILOCK BRAKING
MODE..............................5-43
ABS OPERATION IN NORMAL BRAKING
MODE..............................5-43
ABS SYSTEM OPERATION................5-39
ABS SYSTEM WIRING AND ELECTRICAL
CIRCUITS............................5-4
ABS WARNING LIGHT DISPLAY.............5-3
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; FUEL SYSTEM.............14-57
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; IGNITION SYSTEMS....8D-5,8D-27
ABSOLUTE PRESSURE (MAP) SENSORÐ
PCM INPUT, MANIFOLD...............14-21
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; FUEL SYSTEM........14-44
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; IGNITION
SYSTEMS..........................8D-14
ABSORBER, SHOCK; FRONT
SUSPENSION AND AXLE............2-12,2-14
ABSORBER, SHOCK; REAR SUSPENSION
AND AXLES........................3-3,3-5
A/C BLOWER MOTOR...................24-43
A/C CONDENSER......................24-42
A/C CONTROL PANEL...................24-41
A/C CONTROL PANEL REPLACEMENT,
HEATER ............................24-26
A/C OPERATION........................24-1
A/C PERFORMANCE TEST................24-8
A/C RECIRCULATING AIR DOOR
VACUUM MOTOR REPLACEMENT........24-31
ACCELERATION SENSOR INSTALLATION.....5-52
ACCELERATION SENSOR REMOVAL........5-52
ACCELERATION SWITCH.................5-41
ACCELERATION SWITCH OPERATION.......5-45
ACCELERATOR PEDAL..................14-16
ACCELERATOR PEDAL AND THROTTLE
CABLE........................14-16,14-54
ACCENT PAINT.......................23-202
ACCESSORY DRIVE BELT.................0-20
ACCESSORY DRIVE BELTS, ENGINE........7-31
ACCUMULATOR PISTONS AND SPRINGS . . 21-179
ACTUATOR MOTOR STALL TEST...........8P-6
ADAPTER HOUSING AND PARK LOCK
COMPONENT OVERHAUL.............21-120
ADAPTER HOUSING SEAL REPLACEMENT . . 21-182
ADD-A-TRUNK.......................23-199
ADJUSTER PLUG ASSEMBLY
REPLACEMENT......................19-27
ADJUSTMENT, BRAKELIGHT SWITCH.......5-66
ADJUSTMENT, DIFFERENTIAL SHIM
PACK MEASUREMENT..................2-42
ADJUSTMENT, DOOR LATCH
.............23-55
ADJUSTMENT, DRUM BRAKE
..............5-35
ADJUSTMENT, FOG LAMP BEAM
..........8L-12
ADJUSTMENT, FRONT BAND
.............21-99ADJUSTMENT, HEADLAMP BEAM..........8L-3
ADJUSTMENT, HOOD....................23-9
ADJUSTMENT, LIFTGATE................23-70
ADJUSTMENTÐMAJOR, DOOR
ALIGNMENT.........................23-47
ADJUSTMENTÐMINOR, DOOR
ALIGNMENT.........................23-46
ADJUSTMENT, PARK INTERLOCK CABLE . . . 21-186
ADJUSTMENT, PARKING BRAKE...........5-63
ADJUSTMENT, PRELIMINARY
INSPECTION.......................21-167
ADJUSTMENT PROCEDURES,
TRANSMISSION ASSEMBLY...........21-146
ADJUSTMENT, REAR BAND..............21-99
ADJUSTMENT, SHIFT CABLE............21-186
ADJUSTMENT, SHIFT LINKAGE....21-275,21-296
ADJUSTMENT, TAILGATE...............23-160
ADJUSTMENT, TRANSMISSION
ASSEMBLY..............21-15,21-51,21-255
ADJUSTMENT, TRANSMISSION
THROTTLE CABLE..............21-98,21-185
ADJUSTMENT, TRANSMISSION
THROTTLE VALVE CABLE..............21-70
ADJUSTMENT, VALVE BODY ASSEMBLY . . . 21-144
ADJUSTMENT, WHEEL SENSOR AIR GAP....5-49
ADJUSTMENT (XJ), PARK INTERLOCK
CABLE.............................21-97
ADJUSTMENT (XJ), SHIFT CABLE.........21-97
ADJUSTMENT (YJ), GEARSHIFT LINKAGE . . . 21-96
ADJUSTMENTS, ALIGNMENT
MEASUREMENTS......................2-6
ADJUSTMENTS IN VEHICLE, GEAR........19-37
ADJUSTMENTS ON BENCH, GEAR.........19-42
ADJUSTMENTS, SPECIFICATIONS AND
BAND..............................21-66
ADJUSTMENTS, STEERING GEAR.........19-22
AIR CLEANER..........................25-7
AIR CLEANER FILTER ELEMENT, ENGINE....0-16
AIR CLEANER HOUSING; EMISSION
CONTROL SYSTEMS...................25-8
AIR CLEANER HOUSING; FUEL SYSTEM....14-54
AIR CONDITIONER COMPRESSOR/HOSES/
FITTINGS............................0-21
AIR CONDITIONING CLUTCH RELAY.......14-54
AIR CONDITIONING CLUTCH RELAYÐ
PCM OUTPUT.......................14-24
AIR CONDITIONING CONTROLSÐPCM
INPUT.............................14-19
AIR CONDITIONING, DESCRIPTION........24-41
AIR CONDITIONING SCHEMATIC..........24-25
AIR CONDITIONING SYSTEM DIAGNOSIS . . . 24-12
AIR CONDITIONING SYSTEMÐXJ
VEHICLES..........................24-14
AIR CONDITIONING SYSTEMÐYJ
VEHICLES..........................24-15
AIR CONTROL (IAC) MOTOR, IDLE........14-56
AIR CONTROL (IAC) MOTORÐPCM
OUTPUT, IDLE.......................14-25
AIR CONTROL MOTOR TEST, IDLE........14-46
AIR DEFLECTOR, COWL WEATHERSTRIP
SEAL/CROSSMEMBER.................23-10
AIR DOOR VACUUM MOTOR, FRESH.......24-41
AIR DOOR VACUUM MOTOR
REPLACEMENT, A/C RECIRCULATING.....24-31
AIR EXHAUST GRILLEÐXJ VEHICLES......23-30
AIR FILTER; EMISSION CONTROL
SYSTEMS...........................25-9
AIR FILTER; FUEL SYSTEM..............14-54
AIR GAP ADJUSTMENT, WHEEL SENSOR....5-49
AIR GAP, REAR SPEED SENSOR............5-3
AIR INTAKE DUCT, FRESH...............24-41
AIR PRESSURE TEST...................21-73
AIR, PURGING COMPRESSOR OF.........24-17
AIR TEMPERATURE SENSOR, INTAKE......14-54
AIR TEMPERATURE SENSOR, INTAKE
MANIFOLD.....................8D-5,8D-27
AIR TEMPERATURE SENSORÐPCM
INPUT, INTAKE.......................14-20
AIR TEMPERATURE, SENSOR RESISTANCE
(OHMS)ÐCOOLANT TEMPERATURE
SENSOR/MANIF; FUEL SYSTEM
.........14-43
AIR TEMPERATURE SENSOR TEST,
INTAKE
............................14-43
AIR TEMPERATURE SENSOR TEST,
INTAKE MANIFOLD
...................8D-14
AIR VENTILATION, FRESH
...............24-39AIRFLOW DIAGRAM....................24-23
ALIGNMENT ADJUSTMENTÐMAJOR,
DOOR.............................23-47
ALIGNMENT ADJUSTMENTÐMINOR,
DOOR.............................23-46
ALIGNMENT, FRAME...................13-10
ALIGNMENT, FRONT WHEEL...............2-5
ALIGNMENT, HOOD...................23-138
ALIGNMENT MEASUREMENTS AND
ADJUSTMENTS........................2-6
ALIGNMENTÐMINOR, XJ DOOR..........23-46
ALIGNMENT, REAR AXLE..................3-8
ALIGNMENT SPECIFICATIONSÐXJ
VEHICLES............................2-9
ALIGNMENT SPECIFICATIONSÐYJ VEHICLES . . 2-9
ANALYSIS, BACKLASH AND CONTACT
PATTERN; FRONT SUSPENSION AND AXLE . 2-44
ANALYSIS, BACKLASH AND CONTACT
PATTERN; REAR SUSPENSION AND AXLES . 3-25
ANCHOR AND BUMPER, LIFTGATE
LICENSE PLATE SCREW...............23-72
ANGLE MEASUREMENT, UNIVERSAL
JOINT..............................16-4
ANTENNA, RADIO.......................8F-8
ANTENNA TESTS.......................8F-9
ANTILOCK BRAKE SYSTEM (ABS)...........5-1
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR LAMP.....................8E-2
ANTILOCK BRAKE SYSTEM OPERATION.....5-43
ANTILOCK BRAKING MODE, ABS
OPERATION..........................5-43
ANTI-LOCK INDICATOR..................8E-4
ANTILOCK MODE, VEHICLE RESPONSE.......5-3
APPLICATION CHARTS, GEARTRAIN
OPERATION........................21-159
APPLICATION, PAINT..................23-201
APPLICATION, TRANSMISSION...........21-66
APPLIQUE, RADIATOR GRILLE
...........23-134
APPLIQUEÐXJ VEHICLES, QUARTER
WINDOW
...........................23-29
APRONS, FENDER SPLASH
.............23-147
ARM AND PIVOT ASSEMBLY
REPLACEMENT, FRONT WIPER
...........8K-9
ARM, LOWER SUSPENSION
...............2-11
ARM, PITMAN
...................19-15,19-18
ARM REPLACEMENT, FRONT WIPER
........8K-8
ARM REPLACEMENT, REAR WIPER
........8K-12
ARM, UPPER SUSPENSION
...............2-11
ARMS, ROCKER
....................9-19,9-59
ASH RECEIVER TRAY LAMP, I/P
..........23-92
ASSEMBLY AND ADJUSTMENT
PROCEDURES, TRANSMISSION
........21-146
ASSEMBLY AND ADJUSTMENT,
TRANSMISSION
..........21-15,21-51,21-255
ASSEMBLY AND ADJUSTMENT, VALVE
BODY
.............................21-144
ASSEMBLY, CALIPER
....................5-29
ASSEMBLY, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE
................2-36
ASSEMBLY, DIFFERENTIAL; REAR
SUSPENSION AND AXLES
...............3-19
ASSEMBLY, FINAL; FRONT SUSPENSION
AND AXLE
...........................2-44
ASSEMBLY, FINAL; REAR SUSPENSION
AND AXLES
..........................3-26
ASSEMBLY, FUEL RAIL
..................14-56
ASSEMBLY, GEAR
......................19-41
ASSEMBLY, PRESSURE GAUGE AND
MANIFOLD
...........................24-2
ASSEMBLY REPLACEMENT, ADJUSTER
PLUG
..............................19-27
ASSEMBLY REPLACEMENT, CONNECTOR
AND TERMINAL
......................8W-5
ASSEMBLY REPLACEMENT, FRONT WIPER
ARM AND PIVOT
......................8K-9
ASSEMBLY REPLACEMENT, SOLENOID
AND LATCH
..........................8P-6
ASSEMBLY REPLACEMENTÐXJ VEHICLES,
DRIVE AXLE; FRONT SUSPENSION AND
AXLE
...............................2-21
ASSEMBLY REPLACEMENTÐXJ VEHICLES,
DRIVE AXLE; REAR SUSPENSION AND
AXLES
..........................3-11,3-30
JINDEX1
Description Group-Page Description Group-Page Description Group-Page

BODY SOLENOIDS, TRANSMISSION
VALVE ............................21-175
BODY STRIPES/DECALS...........23-25,23-153
BODY, THROTTLE.................14-29,14-59
BODY UNDERCOAT....................23-203
BOOSTER CHECK VALVE TEST, POWER......5-11
BOOSTER INSTALLATION, POWER
BRAKE..........................5-23,5-51
BOOSTER OPERATION, POWER BRAKE......5-22
BOOSTER, POWER BRAKE............5-22,5-40
BOOSTER REMOVAL, POWER BRAKE . . . 5-22,5-51
BOOSTER TEST, MASTER CYLINDER/
POWER.............................5-11
BOOSTER VACUUM TEST, POWER..........5-12
BORES, HONING CYLINDER................9-2
BOX, GLOVE.........................23-194
BRACKET, FUEL FILTER.................23-86
BRACKET, FUEL FILTER SHIELD...........13-17
BRACKET, I/P TWEETER SPEAKER/
COURTESY LAMP SUPPORT............23-95
BRACKET, MUFFLER/TAILPIPE HANGER.....13-16
BRACKET, REARVIEW MIRROR
RETAINING........................23-183
BRACKET REPLACEMENT, INTERIOR
REARVIEW MIRROR SUPPORT..........23-75
BRACKETS, CATALYTIC CONVERTER/
MUFFLER/TAILPIPE SUPPORT...........23-85
BRACKETSÐXJ VEHICLES, SPARE TIRE/
WHEEL HOLDDOWN AND FLOOR.......23-128
BRAKE ADJUSTMENT, DRUM..............5-35
BRAKE ADJUSTMENT PARKING............5-63
BRAKE BLEEDINGÐBRAKE FLUID AND
LEVELÐBRAKELINES AND HOSES........5-13
BRAKE BLEEDINGÐWITH ABS BRAKES.....5-14
BRAKE BLEEDINGÐWITH STANDARD
BRAKES.............................5-13
BRAKE BOOSTER INSTALLATION,
POWER.........................5-23,5-51
BRAKE BOOSTER OPERATION, POWER......5-22
BRAKE BOOSTER, POWER............5-22,5-40
BRAKE BOOSTER REMOVAL, POWER . . . 5-22,5-51
BRAKE CABLE TENSIONER REPLACEMENT
(XJ), PARKING........................5-61
BRAKE CHECK, PRELIMINARY..............5-7
BRAKE COMPONENTS, WHEEL.............5-1
BRAKE DIAGNOSIS, ABS..................5-3
BRAKE DIAGNOSIS, SERVICE..............5-7
BRAKE DRUM REFINISHING..............5-37
BRAKE FLUID CONTAMINATION............5-13
BRAKE FLUID, IMPORTANCE OF CLEAN.....5-48
BRAKE FLUID LEVEL....................5-13
BRAKE FLUID, RECOMMENDED........5-13,5-48
BRAKE FLUID TUBE RETAINER CLIP,
FUEL AND; BODY COMPONENTSÐXJ
VEHICLES..........................23-86
BRAKE FLUID TUBE RETAINER CLIP,
FUEL AND; FRAME AND BUMPERS......13-16
BRAKE FLUID/LUBRICANTS/CLEANING
SOLVENTS............................5-1
BRAKE FRONT CABLE REPLACEMENT
(YJ), PARKING........................5-62
BRAKE INDICATOR INOPERATIVE..........8E-4
BRAKE INDICATOR LAMP; INSTRUMENT
PANEL AND GAUGESÐXJ...............8E-2
BRAKE INDICATOR LAMP; INSTRUMENT
PANEL AND GAUGESÐYJ
..............8E-16
BRAKE LEVER INSTALLATION (XJ WITH
FULLCONSOLE), PARKING
..............5-60
BRAKE LEVER INSTALLATION (XJ WITH
MINICONSOLE), PARKING
...............5-58
BRAKE LEVER INSTALLATION (XJ
WITHOUT CONSOLE), PARKING
..........5-60
BRAKE LEVER REMOVAL (XJ WITH FULL
CONSOLE), PARKING
..................5-59
BRAKE LEVER REMOVAL (XJ WITH MINI
CONSOLE), PARKING
..................5-58
BRAKE LEVER REMOVAL (XJ WITHOUT
CONSOLE), PARKING
..................5-60
BRAKE OPERATION, PARKING
.............5-56
BRAKE OVERHAUL, SECOND
............21-232
BRAKE PACK REQUIREMENTS, AW-4
CLUTCH
...........................21-328
BRAKE PEDAL AND BRAKELIGHT
SWITCH
.............................5-65
BRAKE PEDAL INSTALLATION
.............5-66BRAKE PEDAL INSTALLATION (YJ),
PARKING............................5-61
BRAKE PEDAL REMOVAL.................5-65
BRAKE PEDAL REMOVAL (YJ), PARKING....5-61
BRAKE PEDAL SERVICE..................5-65
BRAKE PISTON AND TRANSMISSION
CASE OVERHAUL, FIRST-REVERSE......21-237
BRAKE PROBLEMS, DIAGNOSING
PARKING............................5-10
BRAKE PROBLEMS, DIAGNOSING
SERVICE.............................5-8
BRAKE REAR CABLE REPLACEMENT
(XJ), PARKING........................5-62
BRAKE REAR CABLE REPLACEMENT (YJ),
PARKING............................5-63
BRAKE ROTOR REFINISHING, DISC.........5-32
BRAKE ROTOR RUNOUT, DISC............5-31
BRAKE ROTOR THICKNESS, DISC..........5-31
BRAKE ROTOR THICKNESS VARIATION,
DISC...............................5-31
BRAKE SAFETY PRECAUTIONS.............5-2
BRAKE SERVO, SECOND COAST.........21-181
BRAKE SWITCH.......................14-54
BRAKE SWITCHÐPCM INPUT............14-20
BRAKE SYSTEM (ABS), ANTILOCK..........5-1
BRAKE SYSTEM (ABS) INDICATOR
LAMP, ANTI-LOCK.....................8E-2
BRAKE SYSTEM OPERATION, ANTILOCK.....5-43
BRAKE SYSTEM, POWER.................0-32
BRAKE TORQUE SPECIFICATIONS..........5-67
BRAKE WARNING LIGHT DISPLAY...........5-4
BRAKE WARNING LIGHTS.................5-1
BRAKELIGHT SWITCH ADJUSTMENT........5-66
BRAKELIGHT SWITCH, BRAKE PEDAL.......5-65
BRAKELIGHT SWITCH INSTALLATION.......5-66
BRAKELIGHT SWITCH REMOVAL...........5-66
BRAKELINE CHARTS....................5-15
BRAKELINES AND HOSES................5-15
BRAKELINING MATERIAL..................5-1
BRAKES, BRAKE BLEEDINGÐWITH ABS.....5-14
BRAKES, BRAKE BLEEDINGÐWITH
STANDARD..........................5-13
BRAKES, DISC.........................5-24
BRAKES, DRUM........................5-34
BRAKES, PARKING......................5-56
BRAKES, POWER........................5-1
BRAKESHOE INSTALLATION, DISC..........5-26
BRAKESHOE INSTALLATION, DRUM........5-34
BRAKESHOE REMOVAL, DISC.............5-25
BRAKESHOE REMOVAL, DRUM............5-34
BRAKING MODE, ABS OPERATION IN
ANTILOCK...........................5-43
BRAKING MODE, ABS OPERATION
IN NORMAL..........................5-43
BREAK-IN, ENGINE......................0-13
BRUSH GUARD........................23-3
BUCKET SEAT COMPONENTS, POWER....23-106
BUCKET SEAT CUSHION AND COVER......23-98
BUCKET SEAT PLATFORM AND TRACKS . . . 23-105
BUCKET SEATBACK COVER AND FRAME . . . 23-100
BUCKET SEATBACK RECONDITIONING.....23-102
BUCKET SEATS, FRONT.................23-97
BUFFING AND POLISHING..............23-203
BULB REPLACEMENT, BACK-UP/REAR
TURN SIGNAL/TAIL LAMP...............8L-9
BULB REPLACEMENT, FRONT PARK/
TURN SIGNAL LAMP
...................8L-8
BULB REPLACEMENT, HEADLAMP
..........8L-3
BULB REPLACEMENT, INSTRUMENT
CLUSTER
...........................8E-19
BULB REPLACEMENT, SIDE MARKER
LAMP
...............................8L-7
BULB REPLACEMENT, UNDERHOOD
LAMP
..............................8L-18
BULB REPLACEMENTÐYJ VEHICLES,
HARDTOP DOME/CARGO LAMP
.........8L-20
BULB/ELEMENT REPLACEMENT, FOG
LAMP
..............................8L-13
BUMPER, FRONT
..................13-3,13-14
BUMPER, LIFTGATE LICENSE PLATE
SCREW ANCHOR
.....................23-72
BUMPER, REAR
...................13-6,13-18
BUMPER, REAR JOUNCE
................13-18
BUMPERÐXJ VEHICLES, REAR
SEATBACK LATCH STRIKER
...........23-111BUMPERS AND FRAME ATTACHED
COMPONENTS, YJ....................13-14
BUMPERS, FUEL FILLER DOOR...........23-31
BUMPERS, XJ.........................13-3
BUSHING AND PISTON CLEARANCE, AW-
4 ................................21-326
BUSHING REPLACEMENT, AXLE.......2-11,2-32
BUSHING REPLACEMENT, LEAF SPRING
EYE; FRONT SUSPENSION AND AXLE.....2-15
BUSHING REPLACEMENT, LEAF SPRING
EYE; REAR SUSPENSION AND AXLES . . . 3-4,3-6
BUZZER SYSTEM, CHIME/WARNING........8A-1
CABLE, ACCELERATOR PEDAL AND
THROTTLE.....................14-16,14-54
CABLE ADJUSTMENT, PARK INTERLOCK . . . 21-186
CABLE ADJUSTMENT, SHIFT............21-186
CABLE ADJUSTMENT, TRANSMISSION
THROTTLE....................21-98,21-185
CABLE ADJUSTMENT, TRANSMISSION
THROTTLE VALVE....................21-70
CABLE ADJUSTMENT (XJ), PARK
INTERLOCK.........................21-97
CABLE ADJUSTMENT (XJ), SHIFT.........21-97
CABLE REPLACEMENT, HEATER
CONTROL..........................24-30
CABLE REPLACEMENT, LATCH
RELEASE...........................23-10
CABLE REPLACEMENT, SERVO............8H-9
CABLE REPLACEMENT, TRANSMISSION
THROTTLE.........................21-184
CABLE REPLACEMENT (XJ),
PARKING BRAKE REAR.................5-62
CABLE REPLACEMENT (YJ), PARKING
BRAKE FRONT........................5-62
CABLE REPLACEMENT (YJ), PARKING
BRAKE REAR.........................5-63
CABLE RESISTANCE, SPARK PLUG........8D-18
CABLE TENSIONER REPLACEMENT (XJ),
PARKING BRAKE......................5-61
CABLE, THROTTLE.....................14-16
CABLEÐCONSOLE SHIFT AUTOMATIC,
PARK-LOCK.........................19-45
CABLES, DISTRIBUTOR CAP AND ROTOR,
IGNITION............................0-18
CABLES, SPARK PLUG SECONDARY . . 8D-17,8D-29
CABLES, VENT DOOR CONTROL..........24-39
CALIBRATION VALUES, GAUGE...........8E-22
CALIPER ASSEMBLY....................5-29
CALIPER CLEANING AND INSPECTION......5-28
CALIPER DISASSEMBLY..................5-27
CALIPER INSTALLATION..................5-30
CALIPER OPERATION AND WEAR
COMPENSATION......................5-24
CALIPER REMOVAL.....................5-27
CAMSHAFT........................9-29,9-69
CAMSHAFT PIN REPLACEMENT........9-31,9-71
CAMSHAFT POSITION SENSOR; FUEL
SYSTEM............................14-54
CAMSHAFT POSITION SENSOR;
IGNITION SYSTEMS..............8D-1,8D-20
CAMSHAFT POSITION SENSORÐPCM
INPUT.............................14-20
CAMSHAFT POSITION SENSOR TEST;
FUEL SYSTEM.......................14-43
CAMSHAFT POSITION SENSOR TEST;
IGNITION SYSTEMS...................8D-8
CANADA ONLY, DAYTIME RUNNING
LIGHTS............................8L-16
CANISTER, EVAP...................25-4,25-9
CAP AND ROTOR, IGNITION CABLES,
DISTRIBUTOR........................0-18
CAP, DISTRIBUTOR.....................8D-9
CAP, FUEL TANK FILLER TUBE; EMISSION
CONTROL SYSTEMS...............25-4,25-9
CAP, FUEL TANK FILLER TUBE; FUEL
SYSTEM............................14-12
CAP, RADIATOR PRESSURE...............7-20
CAPACITIES, COOLING SYSTEM...........7-38
CAPACITIES, FLUID......................0-4
CAPACITIES, FUEL TANK...........14-12,14-62
CAPACITY TEST, FUEL PUMP..............14-7
CAR REPLACEMENT, PITMAN SHAFT
SEALSÐIN
.........................19-21
CARDAN (CV), DOUBLE
.................16-10
CARDAN, SINGLE
.......................16-9
CARDAN U-JOINT, AXLE SHAFT
............2-25
JINDEX3
Description Group-Page Description Group-Page Description Group-Page

COLD CRANKING TEST, STARTING
SYSTEM............................8A-9
COLLISION DAMAGE TORQUE.............13-1
COLORS, EXTERIOR BODY..............23-204
COLUMN GENERAL SERVICE, STEERING . . . 19-45
COLUMN, NON-TILT STEERING...........19-50
COLUMN REPLACEMENTÐXJ............19-46
COLUMN REPLACEMENTÐYJ............19-48
COLUMN, TILT STEERING...............19-59
COLUMNÐXJ, STEERING...............19-73
COLUMNÐYJ, STEERING...............19-73
COMBINATION VALVE................5-15,5-42
COMBINATION VALVE REPLACEMENTÐXJ . . . 5-55
COMBINATION VALVE REPLACEMENTÐYJ . . . 5-55
COMBUSTION PRESSURE LEAKAGE
TEST, CYLINDER.......................9-6
COMBUSTION PRESSURE LEAKAGE
TEST DIAGNOSIS, CYLINDER.............9-6
COMPASS REPAIR PROCEDURES..........8C-4
COMPENSATION, CALIPER OPERATION
AND WEAR..........................5-24
COMPRESSION PRESSURE TEST,
CYLINDER............................9-5
COMPRESSOR........................24-17
COMPRESSOR DIAGNOSIS..............24-13
COMPRESSOR ISOLATION...............24-17
COMPRESSOR OF AIR, PURGING.........24-17
COMPRESSOR OIL LEVEL................24-6
COMPRESSOR OVERHAUL...............24-17
COMPRESSOR VALVE PLATEÐLEAK
TESTS..............................24-8
COMPRESSOR/HOSES/FITTINGS, AIR-
CONDITIONER........................0-21
CONDENSERÐ4.0L ENGINES............24-32
CONDENSER, A/C......................24-42
CONDENSER/RECEIVER DRIERÐ2.5L
ENGINES...........................24-31
CONDITION, CHECKING FLUID LEVEL......21-96,
21-173
CONDITION, FLUID LEVEL...............21-69
CONDITIONING CLUTCH RELAY, AIR.......14-54
CONDITIONING CLUTCH RELAYÐPCM
OUTPUT, AIR........................14-24
CONDITIONING CONTROLSÐPCM INPUT,
AIR ...............................14-19
CONDITIONING SCHEMATIC, AIR..........24-25
CONDITIONING SYSTEM DIAGNOSIS,
AIR ...............................24-12
CONDITIONING SYSTEMÐXJ VEHICLES,
AIR ...............................24-14
CONDITIONING SYSTEMÐYJ VEHICLES,
AIR ...............................24-15
CONNECTING ROD BEARING FITTING
CHART..........................9-36,9-76
CONNECTING RODS, PISTONS........9-34,9-74
CONNECTIONS, STARTER RELAY..........8A-12
CONNECTOR AND TERMINAL ASSEMBLY
REPLACEMENT.......................8W-5
CONNECTORÐPCM INPUT, DATA LINK.....14-20
CONNECTORÐPCM OUTPUT, DATA LINK . . . 14-24
CONNECTOR PINS, RADIO................8F-3
CONNECTOR, POWERTRAIN CONTROL
MODULE (PCM) 60-WAY...............14-38
CONNECTOR REPLACEMENT.............8W-4
CONNECTORS.........................8W-3
CONSOLE, OVERHEAD...................8A-1
CONSOLE REPAIR PROCEDURES..........8C-6
CONSOLE SHIFT, DISASSEMBLYÐ
COLUMN OR
........................19-50
CONSOLEÐXJ VEHICLES, FULL FLOOR
. . . 23-125
CONSOLEÐXJ VEHICLES, MINI-FLOOR
....23-124
CONSOLEÐXJ VEHICLES, OVERHEAD
......8L-20
CONSOLES, FLOOR
...................23-197
CONSTRUCTION, XJ UNIBODY
.............13-1
CONTACT PATTERN ANALYSIS,
BACKLASH AND; FRONT SUSPENSION
AND AXLE
...........................2-44
CONTACT PATTERN ANALYSIS, BACKLASH
AND; REAR SUSPENSION AND AXLES
.....3-25
CONTAMINATION, BRAKE FLUID
...........5-13
CONTINUITY TESTS, IGNITION SWITCH
....8D-31
CONTROL AND DISPLAY SYMBOLS,
INTERNATIONAL VEHICLE
...........INTRO.-3
CONTROL AND DISPLAY SYMBOLS,
VEHICLE
.........................INTRO.-7CONTROL CABLE REPLACEMENT,
HEATER ............................24-30
CONTROL CABLES, VENT DOOR..........24-39
CONTROL CIRCUIT TESTS, STARTER......8A-11
CONTROL, FUEL PUMP ELECTRICAL........14-5
CONTROL (IAC) MOTOR, IDLE AIR........14-56
CONTROL (IAC) MOTORÐPCM OUTPUT,
IDLE AIR...........................14-25
CONTROL INFORMATION (VECI)
LABEL, VEHICLE WINDOW..............25-1
CONTROL MODULE, ELECTRICAL TESTS
AT POWERTRAIN.....................8H-6
CONTROL MODULE (PCM) 60-WAY
CONNECTOR, POWERTRAIN............14-38
CONTROL MODULE (PCM), POWERTRAIN;
EMISSION CONTROL SYSTEMS..........25-9
CONTROL MODULE (PCM), POWERTRAIN;
FUEL SYSTEM..................14-18,14-58
CONTROL MODULE (PCM), POWERTRAIN;
IGNITION SYSTEMS.........8D-6,8D-15,8D-28
CONTROL MODULE (TCM) SERVICE,
TRANSMISSION.....................21-173
CONTROL MOTOR TEST, IDLE AIR........14-46
CONTROL PANEL, A/C..................24-41
CONTROL PANEL REPLACEMENT,
HEATER ............................24-39
CONTROL PANEL REPLACEMENT,
HEATER AND A/C ....................24-26
CONTROLÐPCM INPUT, SPEED..........14-23
CONTROLÐPCM OUTPUT, SPEED.........14-27
CONTROL SERVO REPLACEMENT, SPEED....8H-9
CONTROL SWITCH REPLACEMENT,
SPEED..............................8H-9
CONTROL SWITCH REPLACEMENT,
WIPER.............................8K-15
CONTROL SWITCH TEST, STOP LAMP
SPEED..............................8H-7
CONTROL SWITCH (TURN SIGNAL
LEVER) TEST, SPEED..................8H-7
CONTROL SYSTEM ELECTRICAL TESTS,
VEHICLE SPEED......................8H-5
CONTROL SYSTEM, EVAP (EVAPORATION)....25-4
CONTROL SYSTEM, VEHICLE SPEED........8A-1
CONTROL SYSTEMÐXJ VEHICLES,
CLIMATE...........................24-22
CONTROL SYSTEMÐYJ VEHICLES,
CLIMATE...........................24-37
CONTROL THERMOSTAT, TEMPERATURE....24-35
CONTROL UNIT (ECU), ELECTRONIC........5-41
CONTROL UNIT (HCU), HYDRAULIC........5-39
CONTROL VALVE FITTING O-RING SEAL,
FLOW..............................19-12
CONTROLS AND COMPONENTS,
TRANSMISSION......................21-66
CONTROLS, EVAPORATIVE EMISSION.......25-4
CONTROLS, EXHAUST EMISSION..........25-7
CONTROLSÐPCM INPUT, AIR
CONDITIONING (A/C)..................14-19
CONTROLSÐXJ VEHICLES, BLOWER......24-14
CONVERSION FORMULAS AND
EQUIVALENT VALUES..............INTRO.-8
CONVERSION, TORQUE..............INTRO.-10
CONVERTER, CATALYTIC.............11-1,11-5
CONVERTER CLUTCH ENGAGED,
HYDRAULIC FLOW IN THIRD GEAR......21-90
CONVERTER CLUTCH RELAY.............14-60
CONVERTER CLUTCH RELAY TEST........14-45
CONVERTER CLUTCH RELAYÐPCM
OUTPUT............................14-27
CONVERTER HOUSING LEAK
DIAGNOSIS.........................21-73
CONVERTER INSTALLATION,
TRANSMISSION.....................21-109
CONVERTER INSTALLATION,
TRANSMISSION AND TORQUE.........21-190
CONVERTERÐPUMP SEALÐDRIVE
PLATE SERVICE.....................21-109
CONVERTER REMOVAL, TRANSMISSION . . . 21-108
CONVERTER REMOVAL, TRANSMISSION
AND TORQUE......................21-189
CONVERTER STALL TEST
................21-72
CONVERTER STALL TEST, TORQUE
.......21-169
CONVERTER STATOR CLUTCH
INSPECTION, TORQUE
................21-189
CONVERTER, TORQUE; TRANSMISSION
AND TRANSFER CASE
...........21-66,21-158CONVERTER/MUFFLER/TAILPIPE
SUPPORT BRACKETS, CATALYTIC........23-85
COOLANT.............................7-15
COOLANT RESERVE/OVERFLOW
SYSTEM............................7-19
COOLANT ROUTING, SYSTEM..............7-1
COOLANT TEMPERATURE GAUGE..........8E-1
COOLANT TEMPERATURE GAUGE
INOPERATIVE........................8E-3
COOLANT TEMPERATURE INDICATOR
INOPERATIVE........................8E-3
COOLANT TEMPERATURE INDICATOR
LAMP...............................8E-1
COOLANT TEMPERATURE SENSOR.........25-9
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL SYSTEM................14-55
COOLANT TEMPERATURE SENSOR,
ENGINE; IGNITION SYSTEMS
.......8D-4,8D-22
COOLANT TEMPERATURE SENSORÐ
PCM INPUT, ENGINE
..................14-21
COOLANT TEMPERATURE SENSOR TEST,
ENGINE; FUEL SYSTEM
................14-43
COOLANT TEMPERATURE SENSOR TEST,
ENGINE; IGNITION SYSTEMS
...........8D-12
COOLER FLOW TESTING, TRANSMISSION
. . 21-106
COOLER LINE FITTINGS, TRANSMISSION
. . 21-187
COOLER LINES AND FITTINGS,
SERVICING TRANSMISSION
...........21-106
COOLER REVERSE FLUSHING,
TRANSMISSION
.....................21-105
COOLER SERVICE, TRANSMISSION
.......21-187
COOLERS, TRANSMISSION OIL
............7-29
COOLING SYSTEM; COOLING SYSTEM
.......7-1
COOLING SYSTEM; LUBRICATION AND
MAINTENANCE
.......................0-16
COOLING SYSTEM CAPACITIES
............7-38
COOLING SYSTEM CLEANING/REVERSE
FLUSHING
...........................7-17
COOLING SYSTEM COMPONENTS
...........7-1
COOLING SYSTEM, DRAINING
.............7-16
COOLING SYSTEM FANS
.................7-26
COOLING SYSTEM FOR LEAKS, TESTING
....7-18
COOLING SYSTEM HOSES
................7-26
COOLING SYSTEM, REFILLING
............7-17
CORE AND HOUSING, HEATER
............24-40
CORE, HEATER
........................24-28
CORE HOUSING REPLACEMENT, HEATER
. . . 24-29
COVER AND DISC INSTALLATION,
CLUTCH
.............................6-10
COVER AND DISC REMOVAL, CLUTCH
......6-10
COVER AND FRAME, BUCKET SEATBACK
. . 23-100
COVER, BUCKET SEAT CUSHION
..........23-98
COVER, ENGINE CYLINDER HEAD
......9-18,9-59
COVER, FRAME CROSSMEMBER
..........13-14
COVER OIL SEAL REPLACEMENT,
TIMING CASE
....................9-26,9-67
COVER REPLACEMENT, PITMAN SHAFT
AND SIDE
..........................19-26
COVER, TIMING CASE
...............9-27,9-67
COVERÐXJ VEHICLES, REAR SEAT
CUSHION
..........................23-107
COVERÐXJ VEHICLES, REAR
SEATBACK
.........................23-111
COVERSÐXJ VEHICLES, B/C-PILLAR AND
LIFTGATE PILLAR TRIM
..............23-116
COWL GRILLE AND SCREEN
.......23-11,23-139
COWL WEATHERSTRIP SEAL
............23-139
COWL WEATHERSTRIP SEAL/
CROSSMEMBER AIR DEFLECTOR
........23-10
CRANKCASE VENTILATION SYSTEM;
EMISSION CONTROL SYSTEMS
..........25-5
CRANKCASE VENTILATION SYSTEM;
LUBRICATION AND MAINTENANCE
........0-17
CRANKING TEST, STARTING SYSTEM
COLD
...............................8A-9
CRANKSHAFT MAIN BEARINGS;
ENGINES
........................9-40,9-80
CRANKSHAFT POSITION SENSOR;
FUEL SYSTEM
.......................14-55
CRANKSHAFT POSITION SENSOR;
IGNITION SYSTEMS
..............8D-2,8D-21
JINDEX5
Description Group-Page Description Group-Page Description Group-Page

DIAGNOSTIC INSPECTIONS, STARTER
SYSTEM............................8A-9
DIAGNOSTIC PROCEDURES;
ELECTRICAL........................8A-15
DIAGNOSTIC PROCEDURES; OVERHEAD
CONSOLE...........................8C-1
DIAGNOSTIC SYSTEM, USING ON-
BOARD............................8A-19
DIAGNOSTIC TROUBLE CODE,
CHECKING FOR.......................8H-5
DIAGNOSTIC TROUBLE CODE (DTC),
GENERATOR........................8A-19
DIAGNOSTIC TROUBLE CODES, INDICATOR
(CHECK ENGINE) LAMP...............8A-19
DIAGNOSTICS, BATTERY/STARTING/
CHARGING SYSTEMS..................8A-1
DIAGNOSTICS CHART, BATTERY...........8A-7
DIAGNOSTICS (OBD), ON-BOARD;
COOLING SYSTEM.....................7-4
DIAGNOSTICS (OBD), ON-BOARD; FUEL
SYSTEM............................14-48
DIAGNOSTICS (OBD), ON-BOARD;
IGNITION SYSTEMS..................8D-19
DIAGNOSTICS/SERVICE PROCEDURES......8D-8
DIAGRAM, AIRFLOW...................24-23
DIAGRAM SHEETS AND INDEXES,
WIRING............................8W-1
DIAGRAMS, WIRING....................8A-1
DIAGRAMS YJ, WIRING................8W-73
DIFFERENTIAL AND PINION MEASUREMENT;
FRONT SUSPENSION AND AXLE..........2-38
DIFFERENTIAL AND PINION
MEASUREMENT; REAR SUSPENSION
AND AXLES..........................3-20
DIFFERENTIAL ASSEMBLY; FRONT
SUSPENSION AND AXLE................2-36
DIFFERENTIAL ASSEMBLY; REAR
SUSPENSION AND AXLES...............3-19
DIFFERENTIAL DISASSEMBLY; FRONT
SUSPENSION AND AXLE................2-34
DIFFERENTIAL DISASSEMBLY; REAR
SUSPENSION AND AXLES...............3-17
DIFFERENTIAL INSTALLATION; FRONT
SUSPENSION AND AXLE................2-43
DIFFERENTIAL INSTALLATION; REAR
SUSPENSION AND AXLES...............3-24
DIFFERENTIAL, LIMITED SLIP..............3-8
DIFFERENTIAL OVERHAUL................3-45
DIFFERENTIAL REMOVAL; FRONT
SUSPENSION AND AXLE................2-32
DIFFERENTIAL REMOVAL; REAR
SUSPENSION AND AXLES...............3-16
DIFFERENTIAL SERVICE..................3-33
DIFFERENTIAL SHIM PACK
MEASUREMENT AND ADJUSTMENT.......2-42
DIFFERENTIAL, TRAC-LOK................3-44
DIMENSION DATA, VEHICLE . . . INTRO.-3,INTRO.-4
DIMENSIONS, AW-4 VALVE BODY CHECK
BALL.............................21-328
DIMENSIONS, DESIGNATIONS, LABELS/
PLATES, CODES...................INTRO.-1
DIMMER SWITCH REPLACEMENT,
HEADLAMP..........................8L-6
DIRECT CLUTCH OVERHAUL............21-219
DISASSEMBLY........................19-59
DISASSEMBLY AND INSPECTION, VALVE
BODY.............................21-138
DISASSEMBLY AND OVERHAUL,
TRANSFER CASE..............21-277,21-297
DISASSEMBLY AND OVERHAUL,
TRANSMISSION; TRANSMISSION AND
TRANSFER CASE.................21-5,21-36
DISASSEMBLY, CALIPER.................5-27
DISASSEMBLYÐCOLUMN OR CONSOLE
SHIFT..............................19-50
DISASSEMBLY, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE................2-34
DISASSEMBLY, DIFFERENTIAL; REAR
SUSPENSION AND AXLES...............3-17
DISASSEMBLY, GEAR...................19-37
DISASSEMBLY INFORMATION, GEAR.......19-24
DISASSEMBLY, TRANSMISSION
....21-112,21-192
DISC AND PLATE THICKNESS, AW-4
CLUTCH
...........................21-325
DISC BRAKE ROTOR REFINISHING
.........5-32
DISC BRAKE ROTOR RUNOUT
.............5-31DISC BRAKE ROTOR THICKNESS..........5-31
DISC BRAKE ROTOR THICKNESS
VARIATION..........................5-31
DISC BRAKES..........................5-24
DISC BRAKESHOE INSTALLATION..........5-26
DISC BRAKESHOE REMOVAL..............5-25
DISC INSTALLATION, CLUTCH COVER.......6-10
DISC REMOVAL, CLUTCH COVER..........6-10
DISCHARGE, SYSTEM...................24-4
DISCONNECT AXLEÐYJ VEHICLES,
VACUUM............................2-26
DISCONNECT AXLE/SHIFT MOTOR
DIAGNOSIS..........................2-27
DISPLAY, ABS WARNING LIGHT............5-3
DISPLAY, BRAKE WARNING LIGHT..........5-4
DISPLAY SYMBOLS, INTERNATIONAL
VEHICLE CONTROL................INTRO.-3
DISPLAY SYMBOLS, VEHICLE CONTROL . INTRO.-7
DISPOSAL, LIFTGATE SUPPORT ROD
CYLINDER..........................23-70
DISTRIBUTOR........................8D-23
DISTRIBUTOR CAP.....................8D-9
DISTRIBUTOR CAP AND ROTOR, IGNITION
CABLES.............................0-18
DISTRIBUTOR ROTOR..................8D-10
DISTRIBUTORS........................8D-3
DOME LAMP REPLACEMENT.............8L-20
DOME/CARGO LAMP BULB
REPLACEMENTÐYJ VEHICLES,
HARDTOP..........................8L-20
DOME/COURTESY LAMP SERVICE
INFORMATION.......................8L-19
DOME/COURTESY LAMP TROUBLE
DIAGNOSIS.........................8L-19
DOOR ALIGNMENT ADJUSTMENTÐ
MAJOR............................23-47
DOOR ALIGNMENT ADJUSTMENTÐ
MINOR.............................23-46
DOOR ALIGNMENTÐMINOR, XJ..........23-46
DOOR ASSIST HANDLE, FULL-METAL.....23-175
DOOR BUMPERS, FUEL FILLER...........23-31
DOOR CONTROL CABLES, VENT..........24-39
DOOR EDGE GUARD/EDGE PROTECTOR
STRIP.............................23-61
DOOR EXTERNAL HANDLE...............23-55
DOOR FIXED WINDOW GLASS, REAR......23-53
DOOR, HALF-METAL SOFT TOP..........23-173
DOOR HINGE/HINGE PIN REPLACEMENT . . . 23-58
DOOR HINGES, FULL-METAL............23-179
DOOR INSIDE LATCH RELEASE AND
LOCK RODS.........................23-57
DOOR KEY LOCK CYLINDER.............23-54
DOOR KEY LOCK CYLINDER, FULL-METAL . 23-178
DOOR LATCH.........................23-56
DOOR LATCH ADJUSTMENT.............23-55
DOOR LATCH EXTERNAL RELEASE
HANDLE, FULL-METAL...............23-178
DOOR LATCH, FULL-METAL.............23-179
DOOR LATCH INSIDE RELEASE AND
LOCK HANDLE, FULL-METAL..........23-175
DOOR LATCH STRIKER, HALF-METAL.....23-175
DOOR LOCK SWITCH, PASSENGER.........8P-5
DOOR LOCKS, DIAGNOSING POWER . . . 8P-1,8P-9
DOOR LOCKS, POWER..................8P-10
DOOR LOCK/UNLOCK RELAY
REPLACEMENT......................8P-12
DOOR MIRROR (EXTERNAL), HALF METAL . . 23-158
DOOR MOTOR SWITCH REPLACEMENT,
BLOWER MOTOR/AIR.................24-39
DOOR OPENING WEATHERSTRIP SEALS,
DOOR WINDOW GLASS...............23-62
DOOR POWER LOCK SWITCHÐ2-DOOR
LEFT HAND DRIVE, DRIVERS............8P-2
DOOR POWER LOCK SWITCHÐ2-DOOR
RIGHT HAND DRIVE, DRIVERS...........8P-3
DOOR POWER LOCK SWITCHÐ4-DOOR,
DRIVERS............................8P-4
DOOR POWER WINDOW SWITCHÐ2-DOOR
LEFT HAND DRIVE, DRIVERS............8S-6
DOOR POWER WINDOW SWITCHÐ2-DOOR
RIGHT HAND DRIVE, DRIVERS...........8S-7
DOOR POWER WINDOW SWITCHÐ4-DOOR,
DRIVERS
............................8S-5
DOOR REMOVAL/INSTALLATION
..........23-40
DOOR RESTRAINT REPLACEMENT
........23-47
DOOR SERVICE, FULL-METAL
...........23-181DOOR SPACER BLOCKSÐTWO-DOOR
VEHICLES, FRONT....................23-60
DOOR TRIM PANEL....................23-35
DOOR TRIM PANEL, FULL-METAL........23-175
DOOR VACUUM MOTOR, FRESH AIR.......24-41
DOOR VACUUM MOTOR REPLACEMENT,
A/C RECIRCULATING AIR..............24-31
DOOR VACUUM MOTOR REPLACEMENT,
HEATER/DEFROSTER/INSTRUMENT
PANEL OUTLET......................24-30
DOOR VENT WINDOW, FRONT............23-50
DOOR VENT WINDOW GLASS, FULL-
METAL............................23-177
DOOR WATERDAM, FULL-METAL.........23-176
DOOR WEATHERSTRIP SEALS, FULL-
METAL............................23-180
DOOR WINDOW EXTERIOR MOULDINGS....23-61
DOOR WINDOW GLASS AND DOOR
OPENING WEATHERSTRIP SEALS........23-62
DOOR WINDOW GLASS, FRONT..........23-49
DOOR WINDOW GLASS, FULL-METAL.....23-178
DOOR WINDOW GLASS, REAR...........23-52
DOOR WINDOW GLASS REGULATOR,
FRONT.............................23-48
DOOR WINDOW GLASS REGULATOR,
FULL-METAL.......................23-177
DOOR WINDOW GLASS REGULATOR
HANDLE, FULL-METAL...............23-175
DOOR WINDOW GLASS REGULATOR,
REAR..............................23-51
DOOR WINDOW SWITCH, PASSENGER......8S-8
DOORS........................23-34,23-173
DOUBLE CARDAN (CV)..................16-10
DOWNSHIFT, HYDRAULIC FLOW DURING
FULL THROTTLE 3-2..................21-92
DOWNSHIFT, HYDRAULIC FLOW DURING
PART THROTTLE 3-2..................21-91
DRAG LINK......................19-14,19-17
DRAINING COOLING SYSTEM.............7-16
DRAW (IOD) DIAGNOSIS, IGNITION OFF.....8A-8
DRB SCAN TOOL; COOLING SYSTEM........7-5
DRB SCAN TOOL; EMISSION CONTROL
SYSTEMS...........................25-2
DRB SCAN TOOL; FUEL SYSTEM..........14-51
DRB SCAN TOOL; IGNITION SYSTEMS.....8D-10
DRIERÐ2.5L ENGINES, CONDENSER/
RECEIVER..........................24-31
DRIERÐ4.0L ENGINES, RECEIVER........24-32
DRIP RAIL MOULDINGÐXJ VEHICLES.....23-29
DRIVE AXLE ASSEMBLY REPLACEMENTÐXJ
VEHICLES; FRONT SUSPENSION AND
AXLE...............................2-21
DRIVE AXLE ASSEMBLY REPLACEMENTÐ
XJ VEHICLES; REAR SUSPENSION
AND AXLES......................3-11,3-30
DRIVE AXLE ASSEMBLY REPLACEMENTÐ
YJ VEHICLES; FRONT SUSPENSION
AND AXLE...........................2-21
DRIVE AXLE ASSEMBLY REPLACEMENTÐ
YJ VEHICLES; REAR SUSPENSION
AND AXLES..........................3-12
DRIVE AXLE, FRONT.....................2-3
DRIVE, BATTERY CLASSIFICATIONS AND
RATINGSÐLEFT HAND................8B-10
DRIVE, BATTERY CLASSIFICATIONS AND
RATINGSÐRIGHT HAND...............8B-10
DRIVE, BATTERY REPLACEMENTÐLEFT
HAND..............................8B-1
DRIVE, BATTERY REPLACEMENTÐ
RIGHT HAND.........................8B-2
DRIVE BELT, ACCESSORY................0-20
DRIVE BELT DIAGNOSIS, SERPENTINE......7-32
DRIVE, BELT SERVICEÐEXCEPT RIGHT
HAND...............................7-34
DRIVE, BELT SERVICEÐWITH RIGHT
HAND...............................7-35
DRIVE BELT TENSION...................7-38
DRIVE BELTS, ENGINE ACCESSORY........7-31
DRIVE, DRIVERS DOOR POWER LOCK
SWITCHÐ2-DOOR LEFT HAND
...........8P-2
DRIVE, DRIVERS DOOR POWER LOCK
SWITCHÐ2-DOOR RIGHT HAND
.........8P-3
DRIVE, DRIVERS DOOR POWER WINDOW
SWITCHÐ2-DOOR LEFT HAND
...........8S-6
DRIVE, DRIVERS DOOR POWER WINDOW
SWITCHÐ2-DOOR RIGHT HAND
.........8S-7
JINDEX7
Description Group-Page Description Group-Page Description Group-Page

INSTRUMENT PANEL ILLUMINATION
LAMPS............................8E-16
INSTRUMENT PANEL LAMPS..............8E-4
INSTRUMENT PANEL REPLACEMENT.......8E-8
INSTRUMENT PANEL SERVICE..........23-192
INSULATION PANEL, DASH PANEL........23-95
INSULATOR PANEL, DASH PANEL.........23-11
INSULATOR PANEL, HOOD..............23-138
INTAKE AIR TEMPERATURE SENSOR......14-54
INTAKE AIR TEMPERATURE SENSORÐ
PCM INPUT.........................14-20
INTAKE AIR TEMPERATURE SENSOR TEST . . . 14-43
INTAKE DUCT, FRESH AIR...............24-41
INTAKE MANIFOLD.....................14-57
INTAKE MANIFOLDÐ2.5L ENGINE..........11-8
INTAKE MANIFOLDÐ4.0L ENGINE..........11-9
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR.......................8D-5,8D-27
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR TEST.......................8D-14
INTAKE MANIFOLD LEAKAGE DIAGNOSIS.....9-5
INTERCHANGEABILITY, PARTS............21-66
INTERIOR COMPONENTS..........23-91,23-190
INTERIOR LAMPS......................8L-19
INTERIOR LAMPS, XJ..................8L-23
INTERIOR LAMPS, YJ..................8L-23
INTERIOR PAINT CODES, XJ............23-205
INTERIOR PAINT CODES, YJ............23-206
INTERIOR REARVIEW MIRROR...........23-74
INTERIOR REARVIEW MIRROR
SUPPORT BRACKET REPLACEMENT......23-75
INTERIOR TRIM PANELS AND SCUFF
PLATESÐXJ VEHICLES...............23-112
INTERLOCK CABLE ADJUSTMENT (XJ),
PARK........................21-97,21-186
INTERMEDIATE (COUPLING) SHAFT . . 19-21,19-43
INTERMITTENT WINDSHIELD WASHER,
DIAGNOSING........................8K-12
INTERMITTENT WIPER MODULE...........8K-5
INTERMITTENT WIPER WASHER..........8K-20
INTERNATIONAL VEHICLE CONTROL
AND DISPLAY SYMBOLS............INTRO.-3
IN-VEHICLE SERVICE, 30RH/32RH.........21-96
IN-VEHICLE SERVICE, AW-4.............21-173
ISOLATION, COMPRESSOR..............24-17
JACK STORAGEÐXJ VEHICLES..........23-127
JOINT ANGLE MEASUREMENT,
UNIVERSAL..........................16-4
JOINT REPLACEMENT, UNIVERSAL.........16-9
JOINTS, UNIVERSAL....................16-2
JOUNCE BUMPER, REAR................13-18
JUMP STARTING........................0-7
JUMP STARTING, HOISTING AND TOWING.....0-7
KEY LOCK CYLINDER, DOOR.............23-54
KEY LOCK CYLINDER, FULL-METAL
DOOR............................23-178
KEY LOCK CYLINDERS.............23-2,23-132
KEY WARNING SWITCH REPLACEMENT,
IGNITION............................8U-4
KEYLESS ENTRY.......................8P-8
KNOCK, LOW SPEED; FRONT
SUSPENSION AND AXLE................2-17
KNOCK, LOW SPEED; REAR SUSPENSION
AND AXLES...........................3-8
KNUCKLE AND BALL STUDS, STEERING.....2-30
LABEL, TIRE INFLATION PRESSURE.....INTRO.-3
LABEL, VEHICLE EMISSION CONTROL
INFORMATION (VECI)
..................25-1
LABEL, VEHICLE SAFETY CERTIFICATION
. INTRO.-1
LABELS/DECALS/PLATES
...........23-1,23-132
LABELS/PLATES, CODES AND
DIMENSIONS, DESIGNATIONS,
.......INTRO.-1
LAG TEST, TIME
......................21-169
LAMP, 4WD INDICATOR
..................8E-2
LAMP, ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
..........................8E-2
LAMP BEAM ADJUSTMENT, FOG
..........8L-12
LAMP, BRAKE INDICATOR; INSTRUMENT
PANEL AND GAUGESÐXJ
...............8E-2
LAMP, BRAKE INDICATOR; INSTRUMENT
PANEL AND GAUGESÐYJ
..............8E-16
LAMP BULB REPLACEMENT, BACK-UP/
REAR TURN SIGNAL/TAIL
...............8L-9
LAMP BULB REPLACEMENT, FRONT PARK/
TURN SIGNAL
........................8L-8LAMP BULB REPLACEMENT, SIDE
MARKER............................8L-7
LAMP BULB REPLACEMENT,
UNDERHOOD........................8L-18
LAMP BULB REPLACEMENTÐYJ
VEHICLES, HARDTOP DOME/CARGO.....8L-20
LAMP BULB/ELEMENT REPLACEMENT,
FOG ...............................8L-13
LAMP (CHECK ENGINE), MALFUNCTION
INDICATOR; INSTRUMENT PANEL
AND GAUGESÐXJ................8E-2,8E-4
LAMP (CHECK ENGINE), MALFUNCTION
INDICATOR; INSTRUMENT PANEL
AND GAUGESÐYJ...................8E-16
LAMP (CHMSL)ÐXJ, CENTER HIGH
MOUNTED STOP.....................8L-10
LAMP (CHMSL)ÐYJ, CENTER HIGH
MOUNTED STOP.....................8L-11
LAMP, COOLANT TEMPERATURE
INDICATOR..........................8E-1
LAMP FOR DIAGNOSTIC TROUBLE CODES,
INDICATOR (CHECK ENGINE)...........8A-19
LAMP HOUSING, LIFTGATE LICENSE
PLATE .............................23-72
LAMP, I/P ASH RECEIVER TRAY..........23-92
LAMP, LICENSE PLATE..................8L-10
LAMP, LOW FUEL WARNING..............8E-2
LAMPÐPCM OUTPUT, EMR..............14-24
LAMPÐPCM OUTPUT, GENERATOR.......14-25
LAMPÐPCM OUTPUT, MALFUNCTION
INDICATOR.........................14-26
LAMP REPLACEMENT, DOME.............8L-20
LAMP REPLACEMENT, FOG..............8L-15
LAMP REPLACEMENT, UNDERHOOD.......8L-18
LAMP, SEAT BELT REMINDER............8E-16
LAMP SERVICE INFORMATION, DOME/
COURTESY.........................8L-19
LAMP SERVICE INFORMATION, FOG.......8L-12
LAMP SERVICE INFORMATION,
UNDERHOOD........................8L-17
LAMP, SERVICE REMINDER INDICATOR
(SRI)...............................25-1
LAMP SPEED CONTROL SWITCH TEST,
STOP...............................8H-7
LAMP SUPPORT BRACKET, I/P TWEETER
SPEAKER/COURTESY.................23-95
LAMP SWITCH REPLACEMENT, FOG.......8L-14
LAMP TROUBLE DIAGNOSIS, DOME/
COURTESY.........................8L-19
LAMP TROUBLE DIAGNOSIS, FOG.........8L-12
LAMP, UPSHIFT INDICATOR;
INSTRUMENT PANELAND GAUGESÐXJ....8E-2
LAMP, UPSHIFT INDICATOR;
INSTRUMENT PANELAND GAUGESÐYJ . . . 8E-16
LAMPÐYJ RENEGADE VEHICLES, FOG....23-150
LAMP/REAR WIPER SWITCHES, REAR
DEFOGGER/FOG......................8E-21
LAMPS, EXTERIOR......................8L-1
LAMPS, INDICATOR....................8E-14
LAMPS INOPERATIVE, DIAGNOSISÐ
HAZARD.........................8J-1,8J-2
LAMPS, INSTRUMENT PANEL.............8E-4
LAMPS, INSTRUMENT PANEL
ILLUMINATION......................8E-16
LAMPS, INTERIOR.....................8L-19
LAMPS OUT, DIAGNOSINGÐALL..........8E-16
LAMPS, XJ EXTERIOR..................8L-23
LAMPSÐXJ, HAZARD...................8J-1
LAMPS, XJ INTERIOR..................8L-23
LAMPS, YJ EXTERIOR..................8L-23
LAMPSÐYJ, HAZARD...................8J-2
LAMPS, YJ INTERIOR..................8L-23
LATCH ADJUSTMENT, DOOR.............23-55
LATCH AND RELEASE HANDLE,
TAILGATE..........................23-160
LATCH ASSEMBLY REPLACEMENT,
SOLENOID...........................8P-6
LATCH, DOOR.........................23-56
LATCH EXTERNAL RELEASE HANDLE,
FULL-METAL DOOR..................23-178
LATCH, FULL-METAL DOOR
.............23-179
LATCH, HOOD SAFETY
.................23-139
LATCH INSIDE RELEASE AND LOCK
HANDLE, FULL-METAL DOOR
..........23-175
LATCH RELEASE AND LOCK RODS,
DOOR INSIDE
.......................23-57LATCH RELEASE CABLE REPLACEMENT....23-10
LATCH REPLACEMENT, HOOD............23-10
LATCH STRIKER AND BUMPERÐXJ
VEHICLES, REAR SEATBACK...........23-111
LATCH STRIKER, HALF-METAL DOOR.....23-175
LATCH STRIKER REPLACEMENT, HOOD....23-10
LATCH STRIKER REPLACEMENT, SAFETY . . . 23-10
LATCH STRIKER, TAILGATE.............23-161
LATCH/KEY LOCK CYLINDER/STRIKER,
LIFTGATE...........................23-68
LEAD CORRECTION CHART...............22-5
LEAF SPRING; FRONT SUSPENSION AND
AXLE...............................2-14
LEAF SPRING; REAR SUSPENSION AND
AXLES............................3-3,3-6
LEAF SPRING EYE BUSHING
REPLACEMENT; FRONT SUSPENSION
AND AXLE...........................2-15
LEAF SPRING EYE BUSHING
REPLACEMENT; REAR SUSPENSION
AND AXLES........................3-4,3-6
LEAK DETECTION AND REPAIR, FIXED
GLASS WATER................23-83,23-189
LEAK DIAGNOSIS, CONVERTER HOUSING . . . 21-73
LEAK DOWN TEST, FUEL PRESSURE........14-7
LEAK TEST, REFRIGERANT................24-8
LEAKAGE DIAGNOSIS, GEAR
..............19-8
LEAKAGE DIAGNOSIS, INTAKE
MANIFOLD
............................9-5
LEAKAGE DIAGNOSIS, PUMP
..............19-8
LEAKAGE TEST, CYLINDER COMBUSTION
PRESSURE
...........................9-6
LEAKAGE TEST DIAGNOSIS, CYLINDER
COMBUSTION PRESSURE
................9-6
LEAKS, REPAIRING
.....................22-3
LEAKS, TESTING COOLING SYSTEM FOR
....7-18
LEFT HAND DRIVE, DRIVERS DOOR
POWER LOCK SWITCHÐ2-DOOR
.........8P-2
LEFT HAND DRIVE, DRIVERS DOOR
POWER WINDOW SWITCHÐ2-DOOR
......8S-6
LETTERS, JEEP BODY CODE
...............5-2
LEVEL AND CONDITION, CHECKING
FLUID
.......................21-96,21-173
LEVEL AND CONDITION, FLUID
...........21-69
LEVEL, BRAKE FLUID
....................5-13
LEVELÐBRAKELINES AND HOSES,
BRAKE BLEEDINGÐBRAKE FLUID
........5-13
LEVEL, CLUTCH FLUID
...................6-14
LEVEL, COMPRESSOR OIL
................24-6
LEVEL, CORRECT FLUID
.................5-48
LEVEL, TRANSFER CASE FILL
...........21-294
LEVELS, OPERATING SOUND
...............5-3
LEVER INSTALLATION (XJ WITH FULL
CONSOLE), PARKING BRAKE
............5-60
LEVER INSTALLATION (XJ WITH MINI
CONSOLE), PARKING BRAKE
............5-58
LEVER INSTALLATION (XJ WITHOUT
CONSOLE), PARKING BRAKE
............5-60
LEVER POSITIONS, TRANSMISSION
RANGES AND SHIFT
.................21-157
LEVER REMOVAL (XJ WITH FULL
CONSOLE), PARKING BRAKE
............5-59
LEVER REMOVAL (XJ WITH MINI
CONSOLE), PARKING BRAKE
............5-58
LEVER REMOVAL (XJ WITHOUT
CONSOLE), PARKING BRAKE
............5-60
LICENSE PLATE LAMP
..................8L-10
LICENSE PLATE LAMP HOUSING,
LIFTGATE
...........................23-72
LICENSE PLATE SCREW ANCHOR
AND BUMPER, LIFTGATE
..............23-72
LIFTGATE ADJUSTMENT
.................23-70
LIFTGATE GLASS, HARD TOP
............23-162
LIFTGATE GLASS WEATHERSTRIP SEAL
REPLACEMENT
.....................23-163
LIFTGATE HINGE
.......................23-67
LIFTGATE LATCH/KEY LOCK CYLINDER/
STRIKER
...........................23-68
LIFTGATE LICENSE PLATE LAMP
HOUSING
...........................23-72
LIFTGATE LICENSE PLATE SCREW
ANCHOR AND BUMPER
...............23-72
JINDEX13
Description Group-Page Description Group-Page Description Group-Page
