1994 GMC SIERRA Owners Manual

NOTICE:
~ ~ ~~ ~~
Spinning your wheels can destroy parts of your vehicle as well\
as
the tires. If you spin the wheels too fast while shifting your back
and forth, you can destroy your
.
Rocking your vehicle to get it out:
First, turn your steering wheel left and right. That will clear the area around
your front wheels. Then shift back and forth between
“R’ (Reverse) and a
forward gear (or with a manual
, between First or Second gear and Reverse),
spinning the wheels as little as possible. Release the accelerator pedal while
you shift, and press lightly on the accelerator pedal when the\
is in gear. If
that doesn’t get you out after a few tries, you may need to be towed out. Or,
you can use your recovery hooks,
if your vehicle has them. If you do need
to be towed out, see “Towing Your Vehicle” in the Index.
Using the Recovery Hooks
If you ever get stuck in sand, mud, ice or snow, your vehicle may be
equipped with recovery hooks. The recovery hooks are provided at the front
of your vehicle. You may need to use them
if you’re stuck off-road and
need to be pulled to some place where you can continue drivin\
g.
5-41
ProCarManuals.com

NOTICE:
I
Never use the recovery hooks to tow the vehicle. Your vehicle \
could be damaged and it would not be covered by warranty.
5-42
ProCarManuals.com

Service & Appearance Care
Section
Here you will find information about the care of your vehicle . This section
begins with service and fuel information. and then it shows how to check
important fluid and lubricant levels
. There is also technical information
about your vehicle. and a section devoted to its appearance care
.
Service ................................................... 6-3
Fuel (Gasoline Engines)
...................................... 6-4
Diesel Fuel Requirements and Fuel System
...................... 6-5
Checking Things Under the Hood
............................. 6-15
HoodRelease
.......................................... 6-15
Cleaning Your Diesel Engine
.............................. 6-16
Noise Control System .................................... 6-16
Engine Oil (Except Diesel)
................................ 6-17
Engine Oil (Diesel Engines)
............................... 6-24
iri
Air Cleaner ............................................ 6-29
Automatic Fluid ........................................ 6-30
ManualFluid
........................................... 6-33
Hydraulic Clutch
........................................ 6-34
RearAxle ............................................. 6-35
mnsfer Case
.......................................... 6-36
FrontAxle
............................................. 6-37
Engine Coolant
......................................... 6-38
Power Steering Fluid
.................................... 6-43
6-1
ProCarManuals.com

Checking Things Under the Hood (continued)
Windshield Washer Fluid
................................. 6-45
Brake Master Cylinder
................................... 6-46
Replacing Brake System Parts
................................ 6-49
Other Maintenance Items
.................................... 6-49
Windshield Wiper Blade Inserts
.............................. 6-50
FluidLeakCheck
.......................................... 6-51
Lubrication
............................................... 6-51
Battery .................................................. 6-52
Vehiclestorage
......................................... 6-52
Bulb Replacement
......................................... 6-53
Fuses and Circuit Breakers
.................................. 6-62
Exhaustsystem
........................................... 6-64
Loading Your Vehicle
...................................... 6-64
Tires .................................................... 6-71
Inflation-Tire Pressure
.................................. 6-71
Tire Inspection and Rotation
............................... 6-73
When it’s Time for New Tires
............................. 6-74
Buying New Tires
....................................... 6-76
Uniform Tire Quality Grading
............................. 6-77
Wheel Alignment and Tire Balance
......................... 6-78
Wheel Replacement
..................................... 6-78
Tire Chains
............................................ 6-79
Appearancecare
.......................................... 6-80
Cleaning the Inside of Your Vehicle
......................... 6-81
Cleaning the Outside
of Your Vehicle ....................... 6-84
Appearance Care Materials
.................................. 6-87
Vehicle Identification Number
................................ 6-88
Service Parts Identification
Label ............................. 6-90
Specifications Charts
..................................... 6-91
6-2
ProCarManuals.com

Service
Your GM dealer knows your vehicle best and wants you to be happy with it.
We hope you’ll go to your dealer for all your service needs. You’ll get
genuine
GM parts and GM-trained and supported service people.
We hope
you’ll want to keep your GM vehicle all GM. Genuine GM parts
have one of these marks:
Doing Your Own Service Work
If you want to do some of your own service work, you’ll want to get the
proper
GM Service Manual. It tells you much more about how to service
your vehicle than
this manual can. To order the proper service manual, see
“Service Publications”
in the Index.
You should keep a record with all parts receipts and list the mileage and the
date
of any service work you perform. See “Maintenance Record” in the
Index.
6-3
ProCarManuals.com

NOTICE:
If you try to do your own service work without knowing enough
about it, your vehicle could be damaged.
__ .
Maintenance Schedule
Section 7 of this manual, “Scheduled Maintenance Services”, explains the
maintenance your new vehicle needs, and when
it should be done. It also
has a form that you can use to record the maintenance work done on your
vehicle. Be sure
to read this information.
Fuel (Gasoline Engine)
If your vehicle has a diesel engine, see “Diesel Fuel Requirements and Fuel
System” in this Section. For vehicles with gasoline engines, please read this.
Use regular unleaded gasoline rated at
87 octane or higher. It should meet
specifications
ASTM D48 14 in the U.S. and CGSB 3.5-92 in Canada.
These fuels should have the proper additives, so you should not have to add
anything to the
fuel.
In the U.S. and Canada, it’s easy to be sure you get the right kind of
gasoline (unleaded). You’ll see “UNLEADED” right on the pump. And only
unleaded nozzles will fit into your vehicle’s filler neck.
Be sure
the posted octane is at least 87. If the octane is less than 87, you
may get a heavy knocking noise when
you drive. If it’s bad enough, it can
damage your engine.
If you’re using fuel rated at 87 octane or higher and you still hear heavy
knocking, your engine needs service. But don’t worry if
you hear a little
pinging noise
when you’re accelerating or driving up a hill. That’s normal
and
you don’t have to buy a higher octane fuel to get rid of pinging. It’s the
heavy, constant knock that means you have
a problem.
What about gasoline with blending materials that contain oxygen
(oxygenates), such as
MTBE or alcohol?
MTBE is “methyl tertiary-butyl ether.’’ Fuel that is no more than 15%
MTBE is fine for your vehicle.
Ethanol is ethyl or grain alcohol. Properly-blended fuel that is no more than
10% ethanol is fine for your vehicle.
Methanol is methyl or wood alcohol.
6-4
ProCarManuals.com

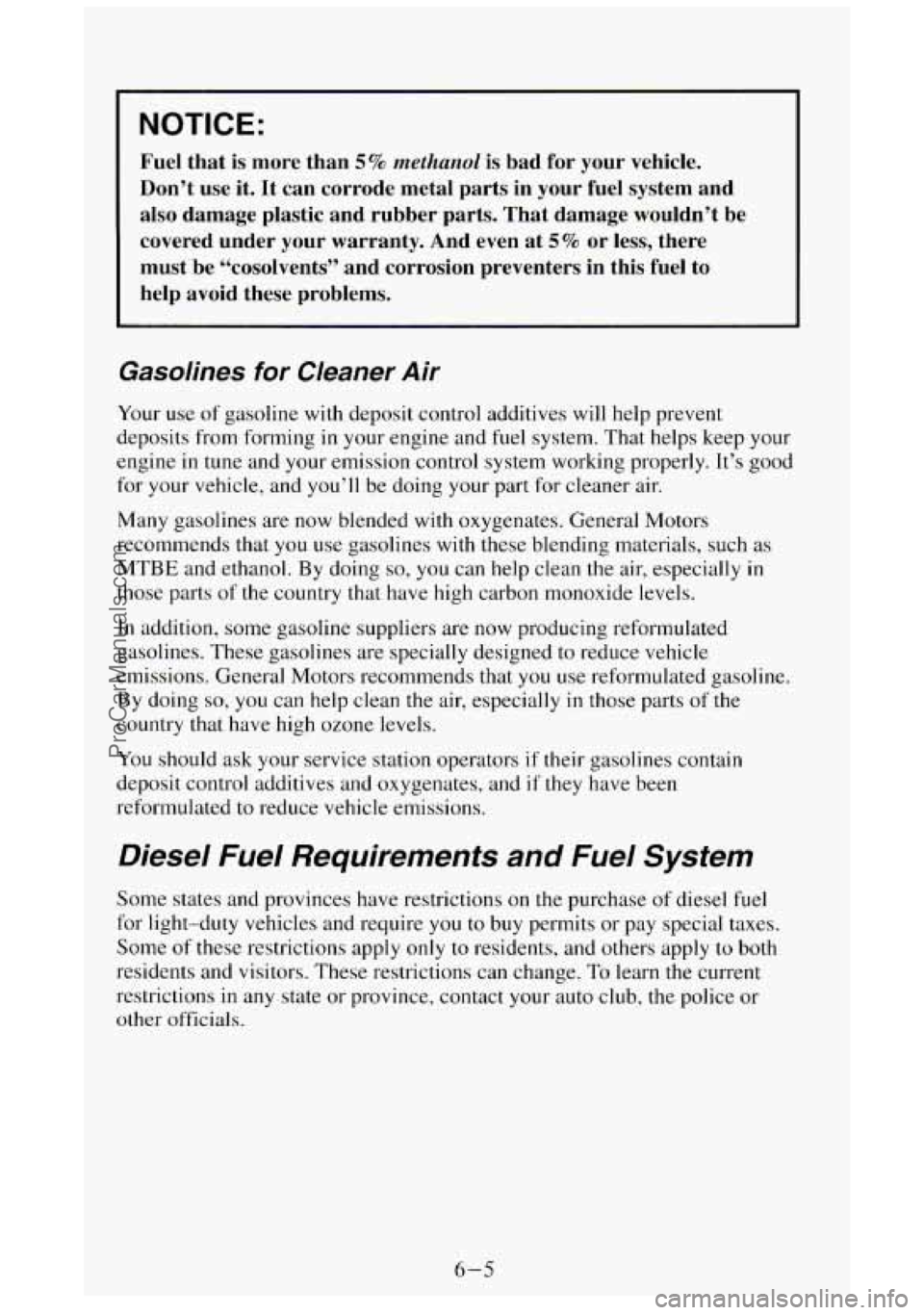

NOTICE:
Fuel that is more than 5 % methanol is bad for your vehicle.
Don’t use it. It can corrode metal parts in your fuel system and
also damage plastic and rubber parts. That damage wouldn’t be
covered under your warranty. And even at
5% or less, there
must be “co~olvent~” and corrosion preventers in this fuel to
help avoid these problems.
Gasolines for Cleaner Air
Your use of gasoline with deposit control additives will help prevent
deposits from forming in your engine and fuel system. That helps keep your
engine
in tune and your emission control system working properly. It’s good
for your vehicle, and you’ll be doing your part for cleaner air.
Many gasolines are now blended with oxygenates. General Motors
recommends that
you use gasolines with these blending materials, such as
MTBE and ethanol. By doing
so, you can help clean the air, especially in
those parts of the country that have high carbon monoxide levels.
In addition, some gasoline suppliers are now producing reformulated
gasolines. These gasolines
are specially designed to reduce vehicle
emissions. General Motors recommends that you use reformulated gasoline.
By doing
so, you can help clean the air, especially in those parts of the
country that have high ozone levels.
You should ask your service station operators if their gasolines contain
deposit control additives and oxygenates, and if they have been
reformulated to reduce vehicle emissions.
Diesel Fuel Requirements and Fuel System
Some states and provinces have restrictions on the purchase of diesel fuel
for light-duty vehicles and require you to buy permits or pay special taxes.
Some
of these restrictions apply only to residents, and others apply to both
residents and visitors. These restrictions can change.
To learn the current
restrictions in any state or province, contact your auto club, the police or
other officials.
6-5
ProCarManuals.com

Fuel Requirements
NOTICE:
Diesel fuel or fuel additives not recommended in this manual
could damage your fuel system and engine. Your warranty
wouldn’t cover this damage. And:
Diesel fuel that has been mixed with engine oil could damage
your engine and emission controls. Always check with your
service station operator to make sure his diesel fuel has not
been mixed with engine oil.
If you ever run out of diesel fuel, it can be difficult to restart
your engine. “Running Out of Fuel,” later in this section, tells
you how to get it started again.
To avoid all this, try never to
let your tank get empty.
What Fuel to Use
For best results, use number 2-D diesel fuel year-round (above and below
freezing conditions) as oil companies blend number
2-D fuel to address
climate differences. Number
1-D diesel fuel may be used in below freezing
weather, however, it will produce a power and
fuel economy loss. The use
of number
1-D diesel fuel in warm or hot climates may result in stalling,
poor starting when the engine
is hot and may damage the fuel injection
system.
Diesel fuel may foam when you fill your tank. This can cause the automatic
pump nozzle to shut off, even though your tank isn’t full. If this happens,
just wait for the foaming to stop and then continue to
fill your tank.
A CAUTION:
Heat coming from the engine may cause the fuel to expand and
force the fuel out of your tank. If something ignites the fuel,
a
fire could start and people could be burned. To help avoid this,
fill your fuel tank only until the automatic nozzle shuts
off.
Don’t try to “top it off.”
6-6
