1993 PONTIAC BONNEVILLE Owners Manual

Features & Controls

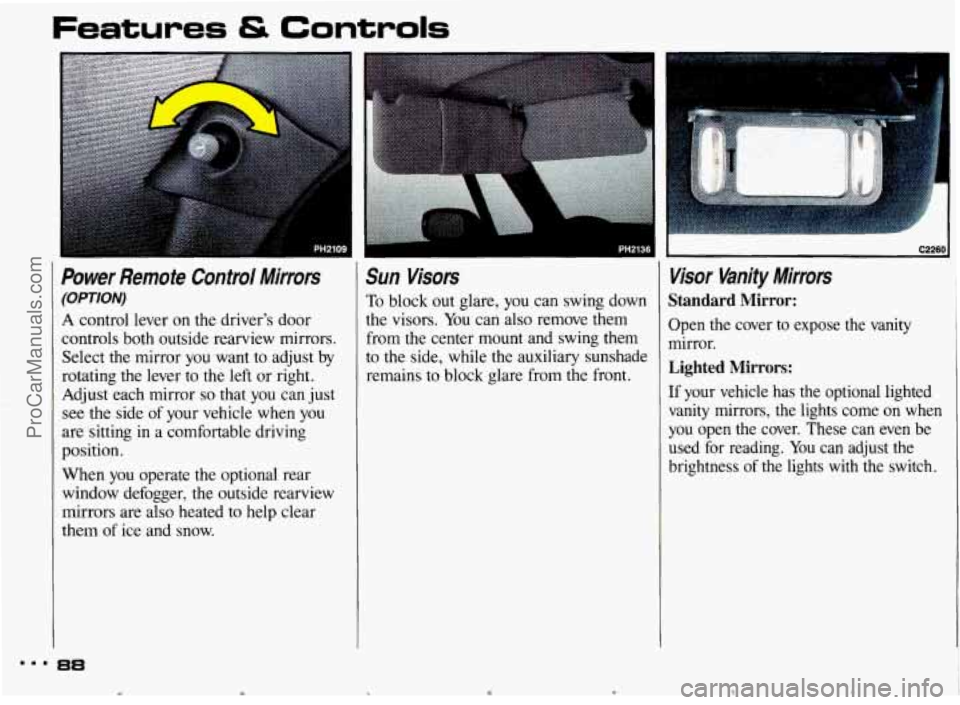

Power Remote Control Mirrors
(OPTION)
A control lever on the driver's door
controls both outside rearview mirrors.
Select the mirror you want to adjust
by
rotating the lever to the left or right.
Adjust each mirror
so that you can just
see the side of your vehicle
when you
are sitting
in a comfortable driving
position.
When you operate the optional rear
window defogger, the outside rearview
mirrors are also heated to help clear
them of ice and snow.
Sun Visors
To block out glare, you can swing down
the visors. You can also remove them
from the center mount and swing them
to the side, while the auxiliary sunshade
remains to block glare from the front.
laaria1 C2260
Visor Vanity Mirrors
Standard Mirror:
Open the cover to expose the vanity
mirror.
Lighted Mirrors:
If your vehicle has the optional lighted
vanity mirrors, the lights come
on when
you open the cover. These can even be
used for reading.
You can adjust the
brightness of the lights
with the switch.
m.. 88
e t ProCarManuals.com

r-

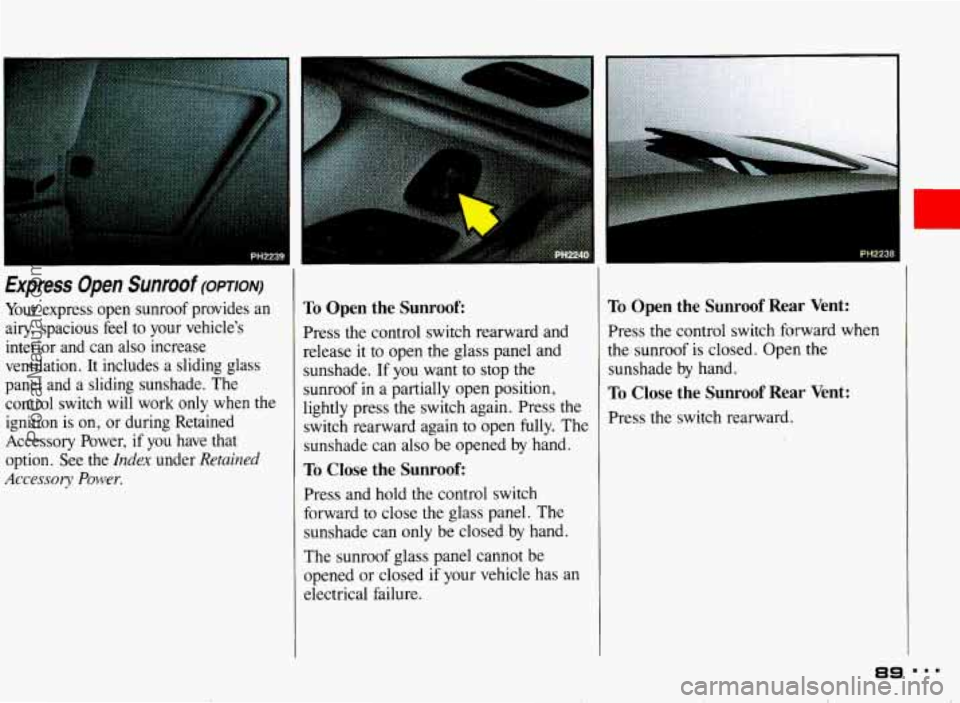

Express Open Sunroof (OPTION)
Your express open sunroof provides an
airy, spacious feel to your vehicle's
interior and can also increase
ventilation.
It includes a sliding glass
panel and a sliding sunshade. The
control switch will work only when the ignition is
on, or during Retained
Accessory Power, if you have that option. See the
Index under Retained
Accessory Power.
To Open the Sunroof:
Press the control switch rearward and
release it to open the glass panel and
sunshade. If you want to stop the
sunroof
in a partially open position,
lightly press the switch again. Press the
switch rearward again to open fully. The
sunshade can also be opened by hand.
To Close the Sunroof:
Press and hold the control switch
forward to close the glass panel. The
sunshade can only be closed by hand.
The sunroof glass panel cannot be
opened or closed if your vehicle has an
electrical failure.
To Open the Sunroof Rear Vent:
Press the control switch forward when
the sunroof is closed. Open
the
sunshade by hand.
To Close the Sunroof Rear Vent:
Press the switch rearward.
L ProCarManuals.com

Features & Controls

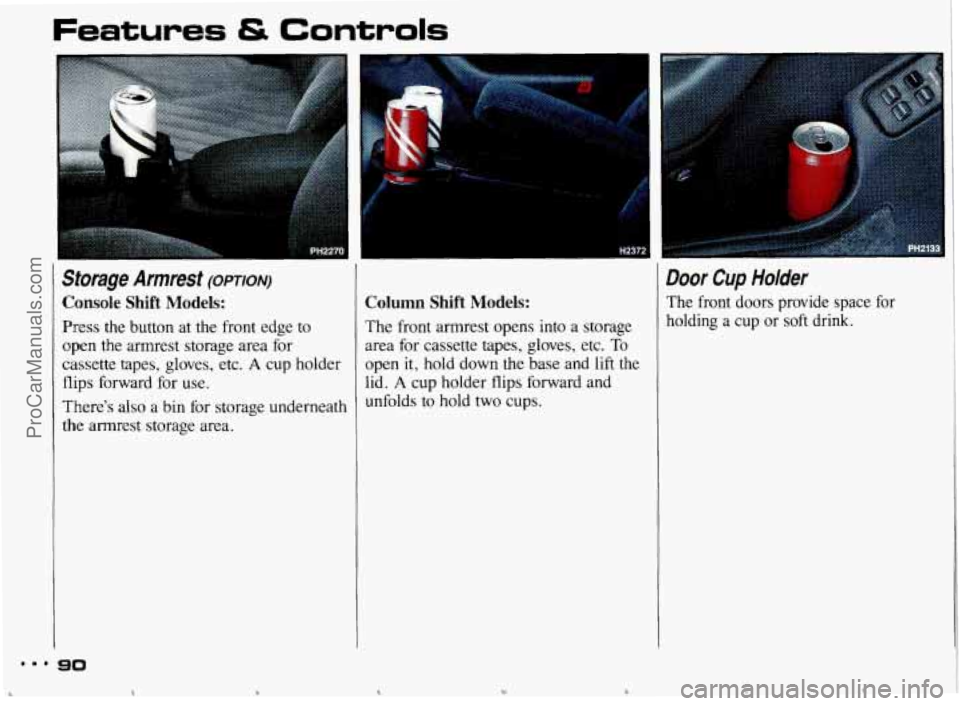

Storage Armrest (OPTION)
Console Shift Models:
Press the button at the front edge to
open the armrest storage area for
cassette tapes, gloves, etc.
A cup holder
flips forward for use.
There’s also a bin for storage underneath
the armrest storage area.
Column Shift Models:
The front armrest opens into a storage
area for cassette tapes, gloves, etc.
To
open it, hold down the base and lift the
lid.
A cup holder flips forward and
unfolds to hold two cups.
I.. so
c Y
Door Cup Holder
The front doors provide space for
holding a
cup or soft drink.
ProCarManuals.com

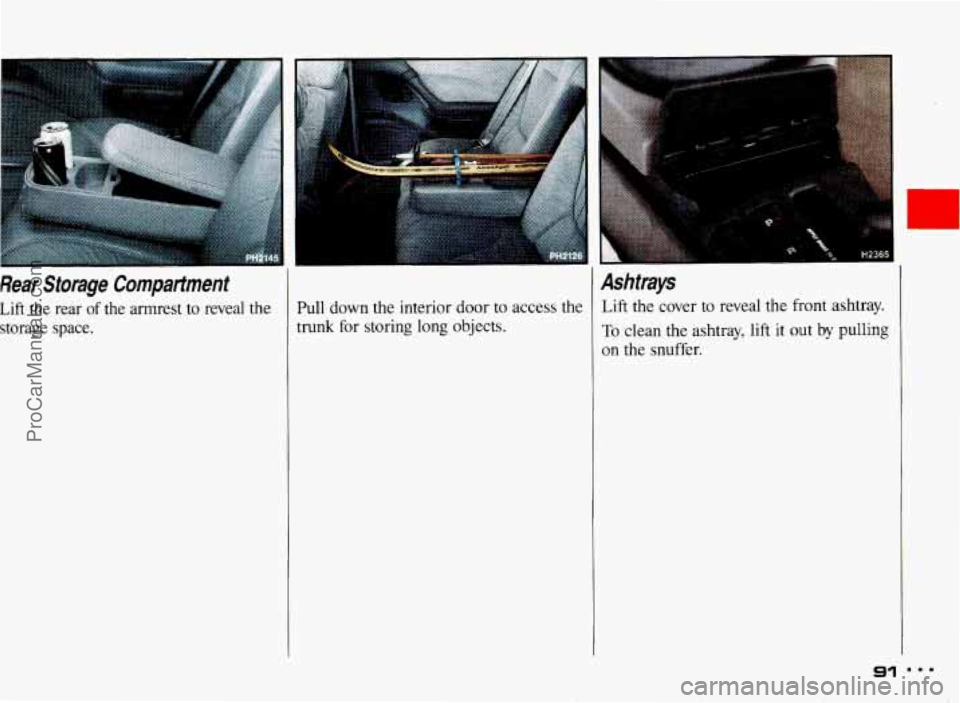

Rear Storage Compartment
Lift the rear of the armrest to reveal the
storage space.
Ashtrays
Pull down the interior door to access the Lift
the cover to reveal the front ashtray.
trunk for storing long objects.
To clean the ashtray, lift it out by pulling
on the snuffer.
91 ...
ProCarManuals.com

Features & Controls
t

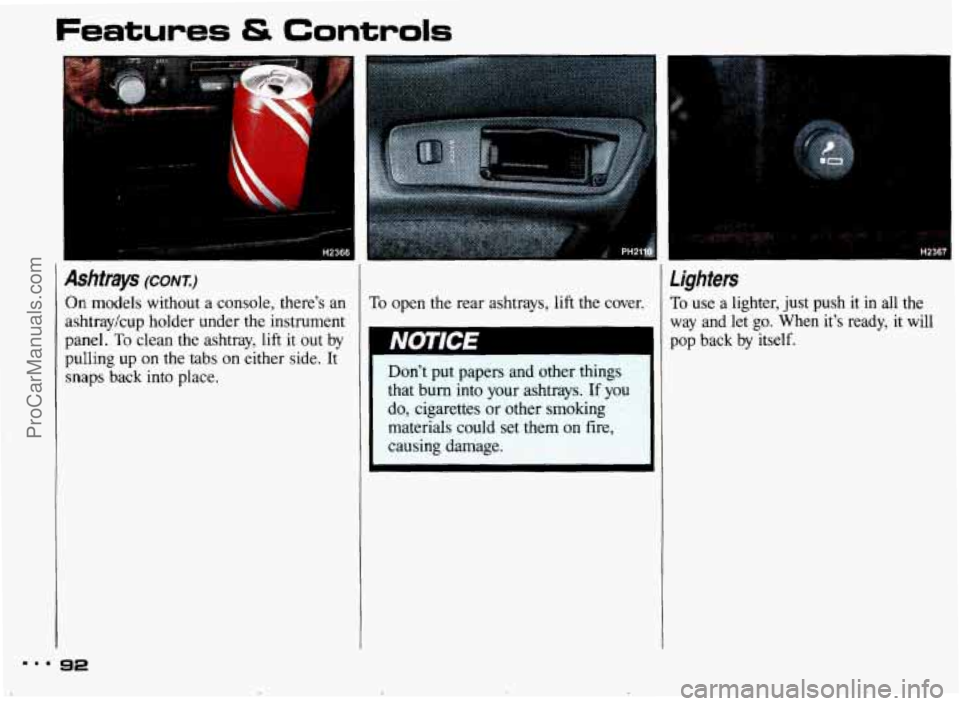

Ashtrays (CONT.:)
On models without a console, there’s
ashtraykup holder under
the instruml
panel.
To clean the ashtray, lift it out
pulling up on the tabs on either side.
snaps back into place. an
ent
It
bY
To open the
rear ashtrays, lift the cover.
NOTICE 1
Don’t put papers and other things
that bum into your ashtrays.
If you
do, cigarettes or other smoking
materials could set them on fire,
causing damage.
I
1
V
.ighters
Yo use a lighter, just push it in all the
vay and let go. When it’s ready, it will
bop back by itself.
ProCarManuals.com

I

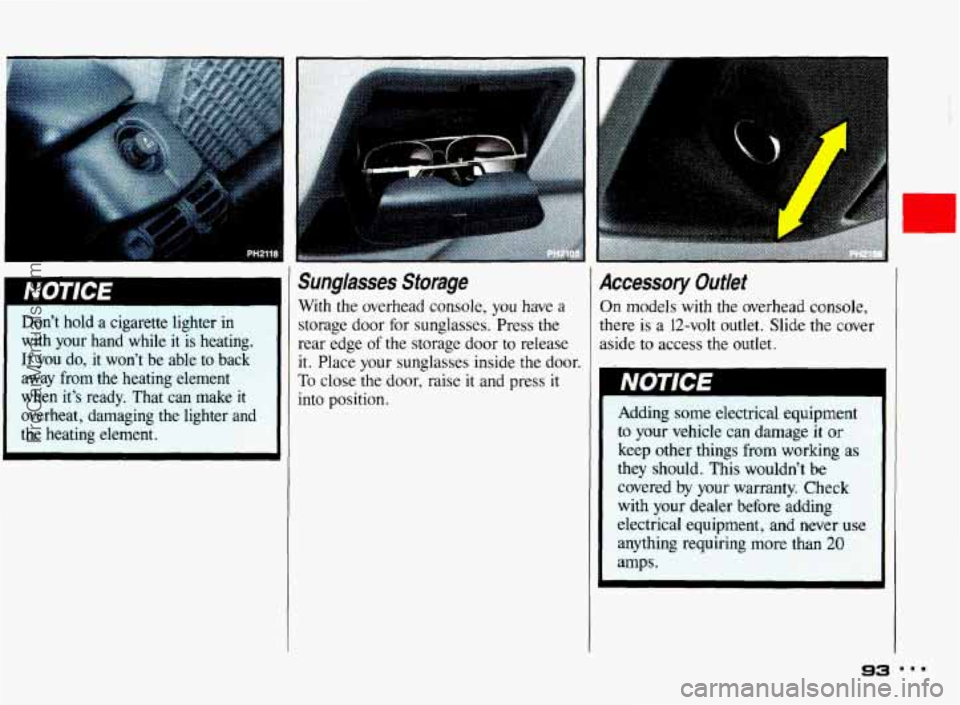

Don’t hold a cigarette lighter in
with your hand while it is heating.
If you do, it won’t be able to back
away from the heating element
when it’s ready. That can make
it
overheat, damaging the lighter and
the heating element.
Sung/asses Storage
With the overhead console, you have a
storage door for sunglasses. Press the
rear edge
of the storage door to release
it. Place your sunglasses inside the door.
To close the door, raise it and press it
into position.
Accessory Outlet
On models with the overhead console,
there is a 12-volt outlet. Slide the cover
aside to access the outlet.
Adding
some electrical equipment
to your vehicle can damage it or
keep other things from working as
they should. This wouldn’t be
covered by
your warranty. Check
with your dealer before adding
electrical equipment, and never use
anything requiring more than
20
amps.
I 93
ProCarManuals.com

Features & Controls
H2379
ProCarManuals.com

r

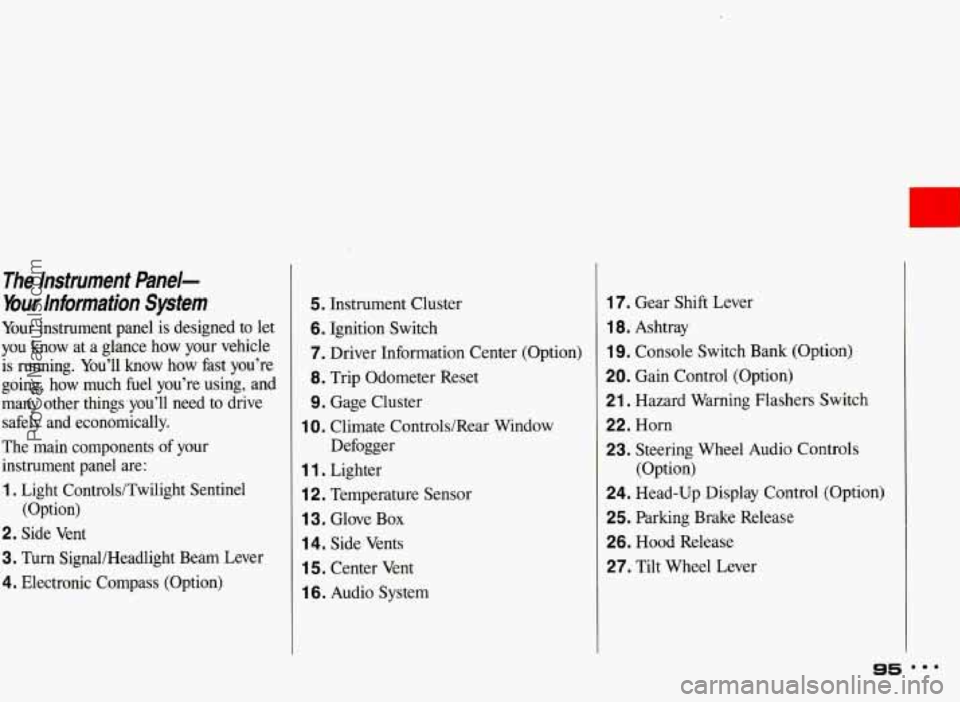

The Instrument &ne/-
bur Information System
Your instrument panel is designed to let
you know at a glance how your vehicle
is running. You’ll know how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically.
The main components of your
instrument panel are:
1. Light Controls/Twilight Sentinel
2. Side Vent
3. Turn SignaUHeadlight Beam Lever
4. Electronic Compass (Option) (Option)
5. Instrument Cluster
6. Ignition Switch
7. Driver Information Center
(Option)
8. Trip Odometer Reset
9. Gage Cluster
Defogger
1 0. Climate Controls/Rear Window
1 1 . Lighter
i 2. Temperature Sensor
1 3. Glove Box
14. Side Vents
1 5. Center Vent
1 6. Audio System
17. Gear Shift Lever
1 8. Ashtray
19. Console Switch Bank (Option)
20. Gain Control (Option)
21. Hazard Warning Flashers Switch
22. Horn
23. Steering Wheel Audio Controls
24. Head-Up Display Control (Option)
25. Parking Brake Release
26. Hood Release
27. Tilt Wheel Lever (Option)
95 mmm
