1993 PONTIAC BONNEVILLE Owners Manual

m..

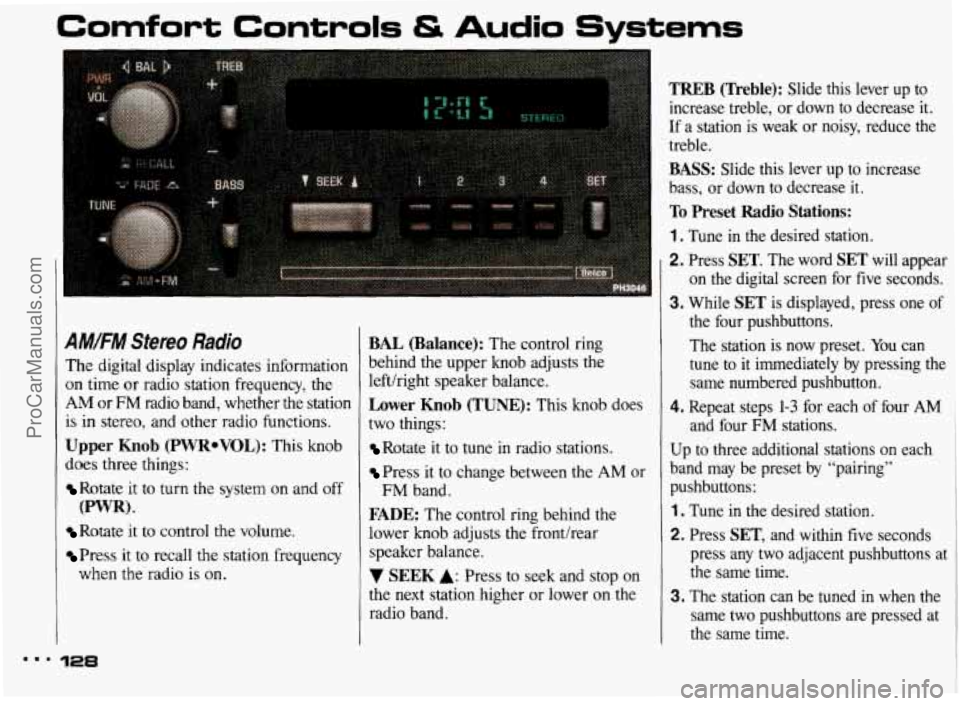

Comfort Controls & Audio Systems
A#.FM Stereo Radio
The digital display indicates information
on time or radio station frequency, the
AM or FM radio band, whether the station
is
in stereo, and other radio functions.
Upper Knob (PWRoVOL): This knob
does three things:
Rotate it to turn the system on and off
Rotate it to control the volume.
Press it to recall the station frequency
(PWR).
when the radio is on.
128
BAL (Balance): The control ring
behind the upper knob adjusts the
lefthight speaker balance.
Lower Knob (TUNE): This knob does
two things:
Rotate it to tune in radio stations.
Press it to change between the AM or
FADE: The control ring behind the
lower knob adjusts the fronthear
speaker balance.
7 SEEK A: Press to seek and stop on
the next station higher or lower
on the
radio band.
FM band.
TREB (Treble): Slide this lever up to
increase treble, or down to decrease it.
If a station is weak or noisy, reduce the
treble.
BASS: Slide this lever up to increase
bass, or down to decrease
it.
To Preset Radio Stations:
1 . Tune in the desired station.
2. Press SET. The word SET will appear
on the digital screen for five seconds.
3. While SET is displayed, press one of
the four pushbuttons.
The station is now preset. You can
tune to
it immediately by pressing the
same numbered pushbutton.
4. Repeat steps 1-3 for each of four AM
and four FM stations.
Up to three additional stations on each
band may be preset by “pairing”
pushbuttons:
1 . Tune in the desired station.
2. Press SET, and within five seconds
press any two adjacent pushbuttons at
the same time.
3. The station can be tuned in when the
same two pushbuttons are pressed at
the same time.
ProCarManuals.com

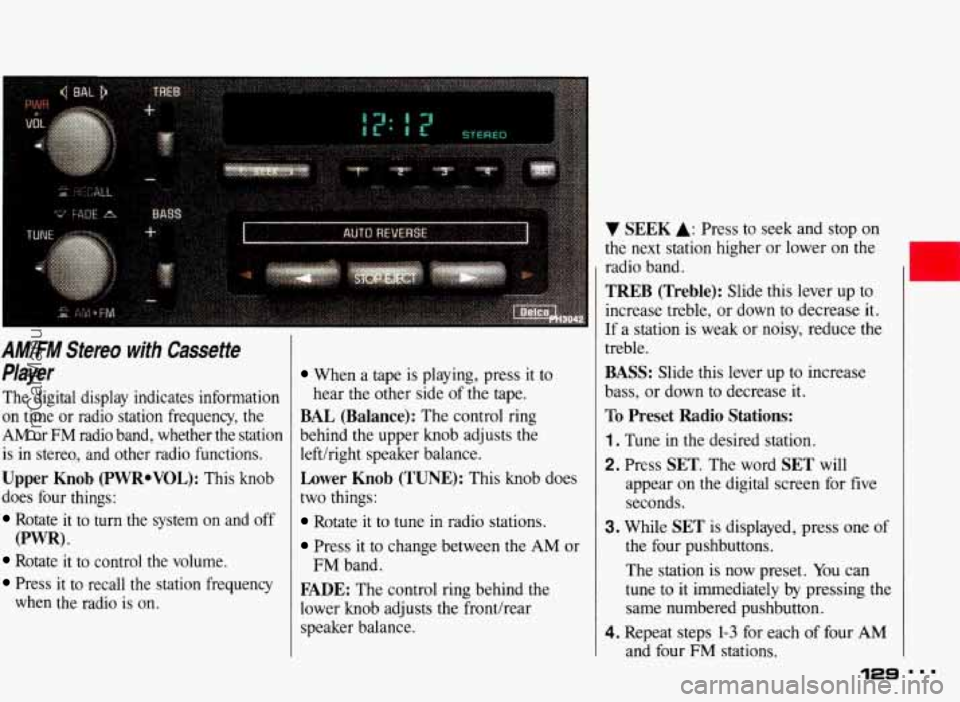

AM/FM Stereo with Cassette
Player
The digital display indicates information
on time or radio station frequency, the
AM or FM radio band, whether the station
is in stereo, and other radio functions.
Upper Knob (PWRoVOL): This knob
does four things:
Rotate it to turn the system on and off
Rotate it to control the volume.
Press it to recall the station frequency
(PWR) *
when the radio is on.
When a tape is playing, press it to
hear the other side
of the tape.
BAL (Balance): The control ring
behind the upper knob adjusts the
lefthight speaker balance.
Lower Knob (TUNE): This knob does
two things:
Rotate it to tune in radio stations.
Press it to change between the AM or
FADE: The control ring behind the
lower knob adjusts the fronthear
speaker balance.
FM band.
V SEEK A: Press to seek and stop on
the next station higher or lower
on the
radio band.
TREB (Treble): Slide this lever up to
increase treble, or down
to decrease it.
If a station is weak or noisy, reduce the
treble.
BASS: Slide this lever up to increase
bass, or down to decrease it.
To Preset Radio Stations:
1. Tune in the desired station.
2. Press SET. The word SET will
appear
on the digital screen for five
seconds.
3. While SET is displayed, press one of
the four pushbuttons.
The station is
now preset. You can
tune
to it immediately by pressing the
same numbered pushbutton.
4. Repeat steps 1-3 for each of four AM
and four FM stations.
129 ...
ProCarManuals.com

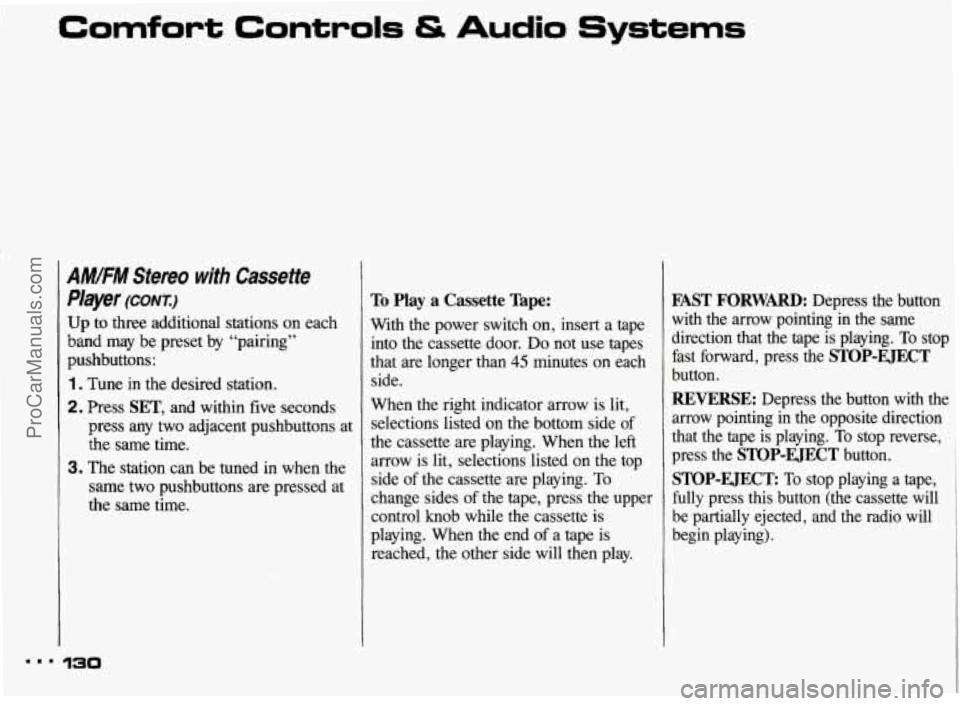

Comfort Controls & Audio Systems
AMIFM Stereo with Cassette
Player
(CONX:)
Up to three additional stations on each
band may be preset by “pairing”
pushbuttons:
1. Tune in the desired station.
2. Press SET, and within five seconds
press any two adjacent pushbuttons at
the same time.
3. The station can be tuned in when the
same two pushbuttons are pressed at
the same time.
To Play a Cassette Tape:
With the power switch on, insert a tape
into the cassette door. Do not use tapes
that are longer than
45 minutes on each
side.
When the right indicator arrow is lit,
selections listed on the bottom side
of
the cassette are playing. When the left
arrow is lit, selections listed on the top
side
of the cassette are playing. To
change sides of the tape, press the upper
control knob while the cassette is
playing. When the end
of a tape is
reached, the other side will then play.
FAST FORWARD: Depress the button
with the arrow pointing
in the same
direction that the tape is playing.
To stop
fast forward, press the
STOP-EJECT
button.
REWRSE: Depress the button with the
arrow pointing in the opposite direction
that the tape is playing.
To stop reverse,
press the
STOP-EJECT button.
STOP-EJECT To stop playing a tape,
fully press this button (the cassette will be partially ejected, and the radio will
begin playing).
ProCarManuals.com

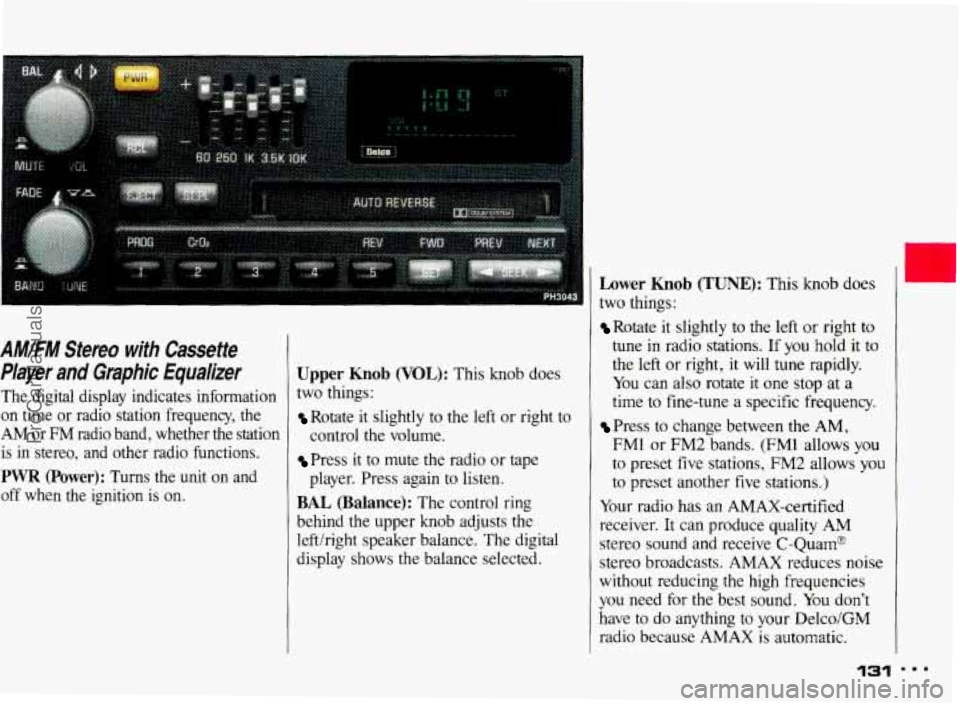

AM/FM Stereo with Cassette
Player and Graphic Equalizer
The digital display indicates information
on time
or radio station frequency, the
AM or FM radio band, whether the station is in stereo, and other radio functions.
PWR (Power): Turns the unit on and
off when the ignition
is on.
Upper Knob (VOL): This knob does
two things:
Rotate it slightly to the left or right to
control the volume.
Press it to mute the radio or tape
BAL (Balance): The control ring
behind the upper knob adjusts the
lefthight speaker balance. The digital
display shows the balance selected. player.
Press again to listen.
Lower Knob (TUNE): This knob does
two things:
Rotate it slightly to the left or right to
tune in radio stations. If you hold it to
the
left or right, it will tune rapidly.
You can also rotate
it one stop at a
time to fine-tune a specific frequency.
Press to change between the AM,
FM1 or FM2 bands. (FM1 allows
you
to preset five stations, FM2 allows you
to preset another five stations.)
Your radio has an AMAX-certified
receiver. It can produce quality AM
stereo sound and receive C-Quam@
stereo broadcasts. AMAX reduces noise
without reducing the high frequencies
you need for the best sound. You don’t
have
to do anything to your Delco/GM
radio because AMAX is automatic.
1,
131
ProCarManuals.com

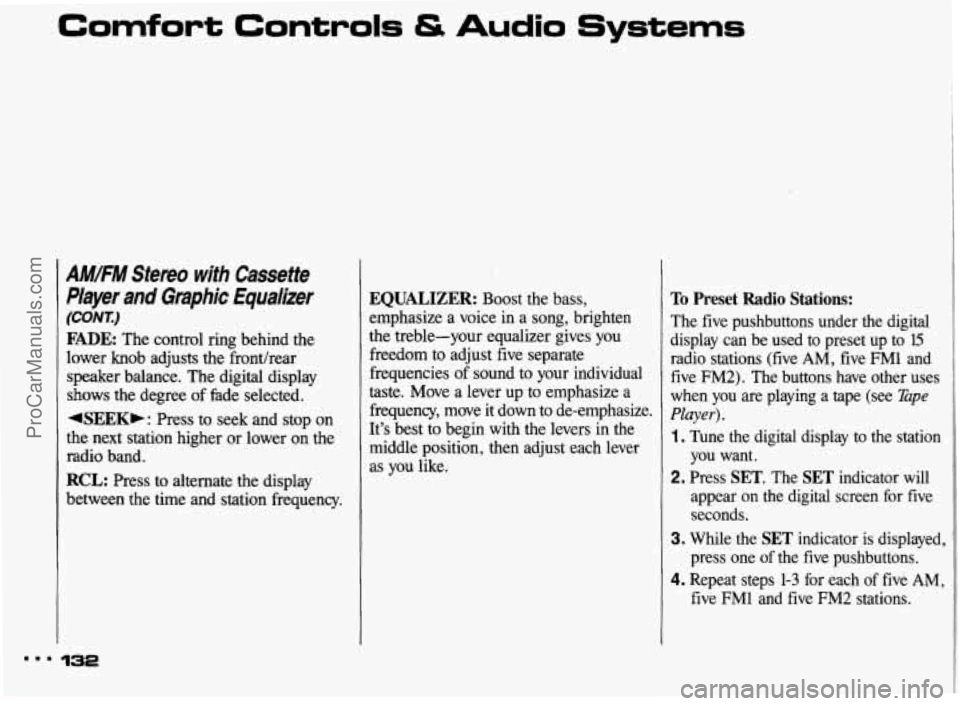

Comfort Controls & Audio Systems
AM/FM Stereo with Cassette
Player and Graphic Equalizer
(CONI)
FADE: The control ring behind the
lower knob adjusts the fronthear
speaker balance. The digital display
shows the degree of fade selected,
4SEEKb: Press to seek and stop on
the next station higher or lower on the
radio band.
RCL: Press to alternate the display
between the time and station frequency.
EQUALIZER: Boost the bass,
emphasize a voice in a song, brighten
the treble-your equalizer gives you
freedom to adjust five separate
frequencies of sound
to your individual
taste. Move a lever up to emphasize a
frequency, move
it down to de-emphasize.
It’s best to begin with the levers in the
middle position, then adjust each lever
as you like.
To Preset Radio Stations:
The five pushbuttons under the digital ~
display can be used to preset UP to 15 I
radio stations (five AM, five FMl and
five FM2). The buttons have other uses
when you are playing a tape (see
Tape
Player).
1. Tune the digital display to the station
you want.
2. Press SET. The SET indicator will
appear
on the digital screen for five
seconds.
3. While the SET indicator is displayed,
press one
of the five pushbuttons.
4. Repeat steps 1-3 for each of five AM,
five FM1 and five FM2 stations.
m.. 132
ProCarManuals.com

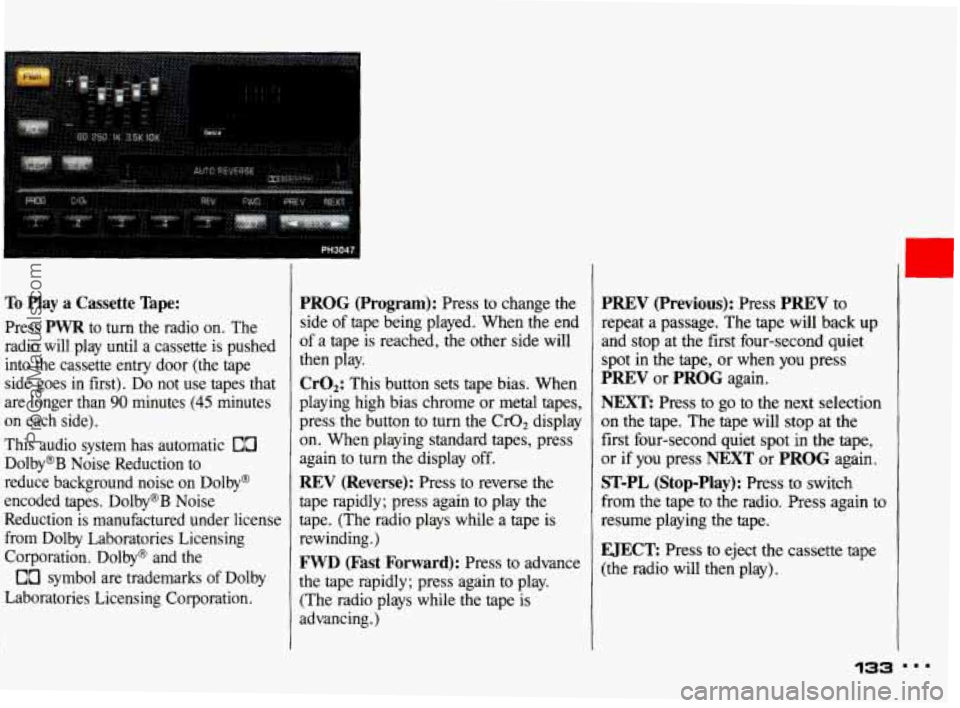

To Play a Cassette Tape:
Press PWR to turn the radio on. The
radio will play until a cassette is pushed
into the cassette entry door (the tape
side goes in first).
Do not use tapes that
are longer than
90 minutes (45 minutes
on each side).
This audio system has automatic
00
Dolby@B Noise Reduction to
reduce background noise on Dolby@
encoded tapes. Dolby@B Noise
Reduction is manufactured under license from Dolby Laboratories Licensing
Corporation. Dolby@ and the
Laboratories Licensing Corporation.
00 symbol are trademarks of Dolby
PROG (Program): Press to change the
side of tape being played. When the end
Df a tape is reached, the other side will
then play.
CrOa: This button sets tape bias. When
playing high bias chrome or metal tapes,
press the button to turn the Cr02 display
on. When playing standard tapes, press
again to turn the display
off.
REV (Reverse): Press to reverse the
tape rapidly; press again to play the
tape. (The radio plays while a tape is
rewinding.)
FWD (Fast Forward): Press to advance
the tape rapidly; press again to play.
(The radio plays while the tape
is
advancing.)
PREV (Previous): Press PREV to
repeat a passage. The tape will back up
and stop at the first four-second quiet
spot in the tape, or when you press
PREV or PROG again.
NEXT Press to go to the next selection
on the tape. The tape will stop at the
first four-second quiet
spot in the tape,
or if
you press NEXT or PROG again.
ST-PL (Stop-Play): Press to switch
from the tape to the radio. Press again to
resume playing the tape.
EJECT Press to eject the cassette tape
(the radio will then play).
ProCarManuals.com

Comfort Controls & Audio Systems

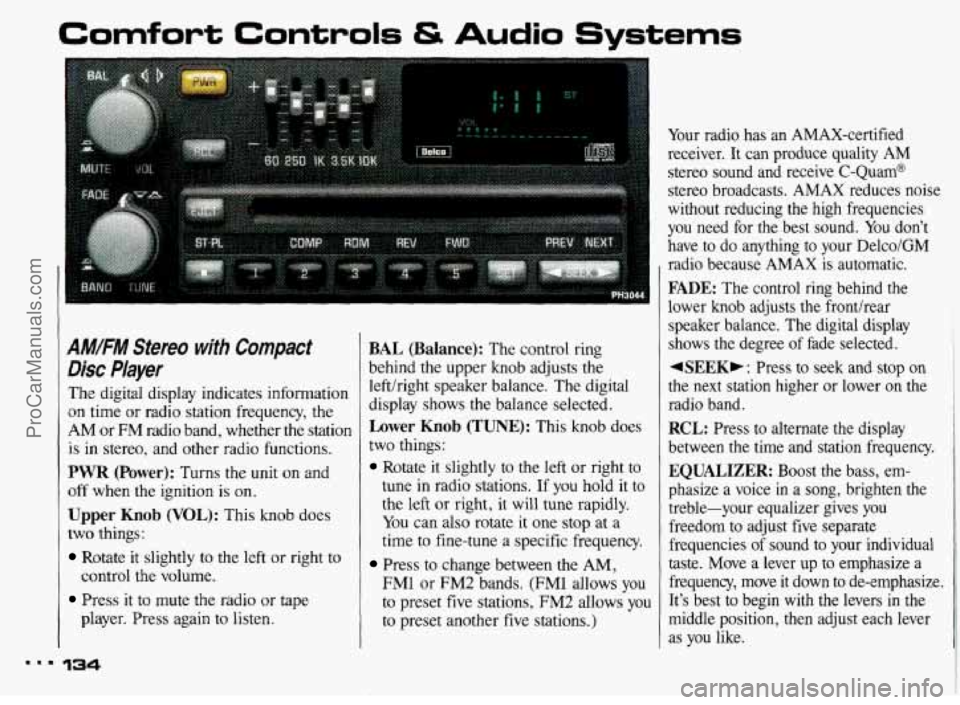

AM/FM Stereo with Compact
Disc Player
The digital display indicates information
on time or radio station frequency, the
AM or FM radio band, whether the station
is in stereo, and other radio functions.
PWR (Power): Turns the unit on and
off when the ignition is on.
Upper Knob (VOL): This knob does
two things:
Rotate it slightly to the left or right to
Press it to mute the radio or tape
control
the volume.
player. Press again to listen.
134
BAL (Balance): The control ring
behind the upper knob adjusts the
lefthight speaker balance. The digital
display shows the balance selected.
Lower Knob (TUNE): This knob does
two things:
Rotate it slightly to the left or right to
tune in radio stations.
If you hold it to
the
left or right, it will tune rapidly.
You can also rotate it one stop at a
time to fine-tune a specific frequency.
Press to change between the AM,
FMl or FM2 bands. (FM1 allows you
to preset five stations, FM2 allows you
to preset another five stations.) Your
radio has
an AMAX-certified
receiver.
It can produce quality AM
stereo sound and receive C-Quam@
stereo broadcasts. AMAX reduces noise
without reducing the high frequencies
you need for the best sound.
You don’t
have to do anything to your Delco/GM
radio because
AMAX is automatic.
FADE: The control ring behind the
lower
knob adjusts the fronthear
speaker balance. The digital display
shows the degree of fade selected.
4SEEKF : Press to seek and stop on
the next station higher or lower
on the
radio band.
RCL: Press to alternate the display
between the time and station frequency.
EQUALIZER: Boost the bass, em-
phasize a voice in a song, brighten the
treble-your equalizer gives you
freedom to adjust five separate frequencies
of sound to your individual
taste. Move a lever up to emphasize a
frequency, move
it down to de-emphasize.
It’s best to begin with the levers in the
middle position, then adjust each lever
as you like.
ProCarManuals.com

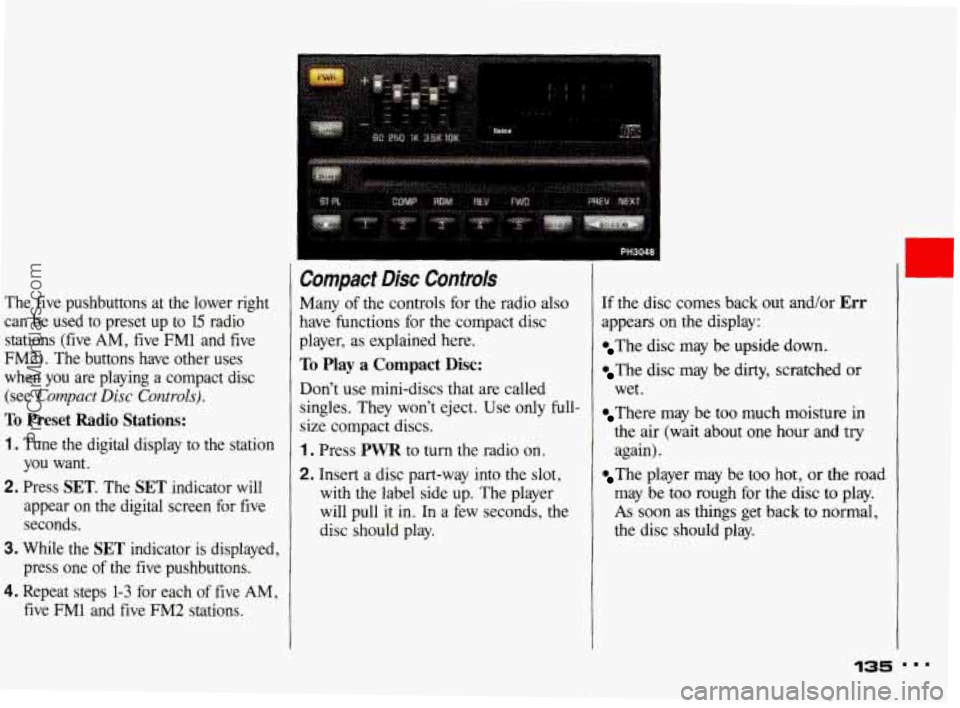

The five pushbuttons at the lower right can be used to preset up to
15 radio
stations (five
AM, five FM1 and five
FM2). The buttons have other uses
when you are playing a compact disc
(see
Compact Disc Controls).
To Preset Radio Stations:
1. Tune the digital display to the station
you want.
2. Press SET. The SET indicator will
appear on the digital screen for five seconds.
3. While the SET indicator is displayed,
press one
of the five pushbuttons.
4. Repeat steps 1-3 for each of five AM,
five FM1 and five FM2 stations.
Compact Disc Controls
Many of the controls for the radio also
have functions for the compact disc
player, as explained here.
To Play a Compact Disc:
Don’t use mini-discs that are called
singles. They won’t eject. Use only full-
size compact discs.
1 . Press PWR to turn the radio on.
2. Insert a disc part-way into the slot,
with the label side up. The player
will pull it in. In a few seconds, the
disc should play.
If the disc comes back out and/or Err
appears on the display:
The disc may be upside down.
The disc may be dirty, scratched or
wet.
There may be too much moisture in
the air (wait about one hour and try
again).
The player may be too hot, or the road
may be too rough for the disc
to play.
As soon as things get back to normal,
the disc should play.
135
c
I..
ProCarManuals.com
