1993 PONTIAC BONNEVILLE Owners Manual

Comfort Controls & Audio Systems

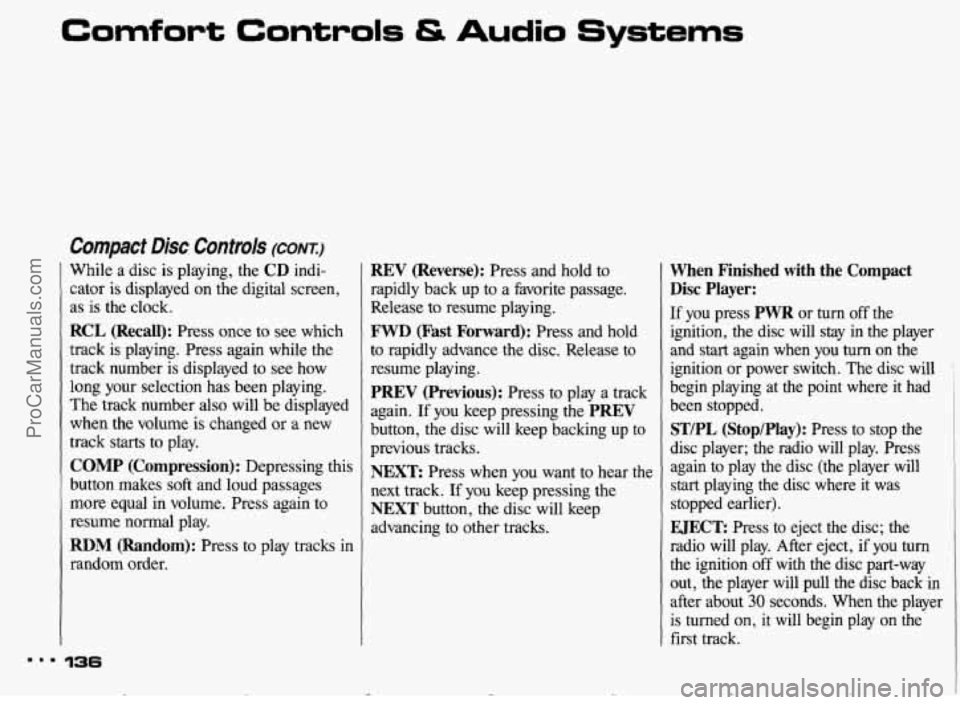

Compact Disc Controk (CONI)
While a disc is playing, the CD indi-
cator is displayed on the digital screen,
as is the clock.
RCL (Recall): Press once to see which
track
is playing. Press again while the
track number
is displayed to see how
long your selection has been playing.
The track number also will be displayed
when the volume is changed
or a new
track starts to play.
COMP (Compression): Depressing this
button makes
soft and loud passages
more equal in volume. Press again to
resume
normal play.
RDM (Random): Press to play
random order.
-
tracks in
REV (Reverse): Press and hold to
rapidly back up to a favorite passage.
Release
to resume playing.
FWD (Fast Forward): Press and hold
to rapidly advance the disc. Release to
resume playing.
PREV (Previous): Press to play a track
again.
If you keep pressing the PREV
button, the disc will keep backing up to
previous tracks.
NEXT Press when you want to hear the
next track. If you keep pressing the
NEXT button, the disc will keep
advancing to other tracks.
When Finished with the Compact
Disc Player:
If you press PWR or turn off the
ignition, the disc will stay in the player
and
start again when you turn on the
ignition or power switch. The disc will
begin playing at
the point where it had
been stopped.
ST/PL (Stop/Play): Press to stop the
disc player; the radio will play. Press
again to play the disc (the player will
start playing the disc where
it was
stopped earlier).
EJECT Press to eject the disc; the
radio will play. After eject, if you turn
the ignition
off with the disc part-way
out, the player will pull the disc back in
after about
30 seconds. When the player
is turned on, it will begin play on the
first track.
4 ProCarManuals.com

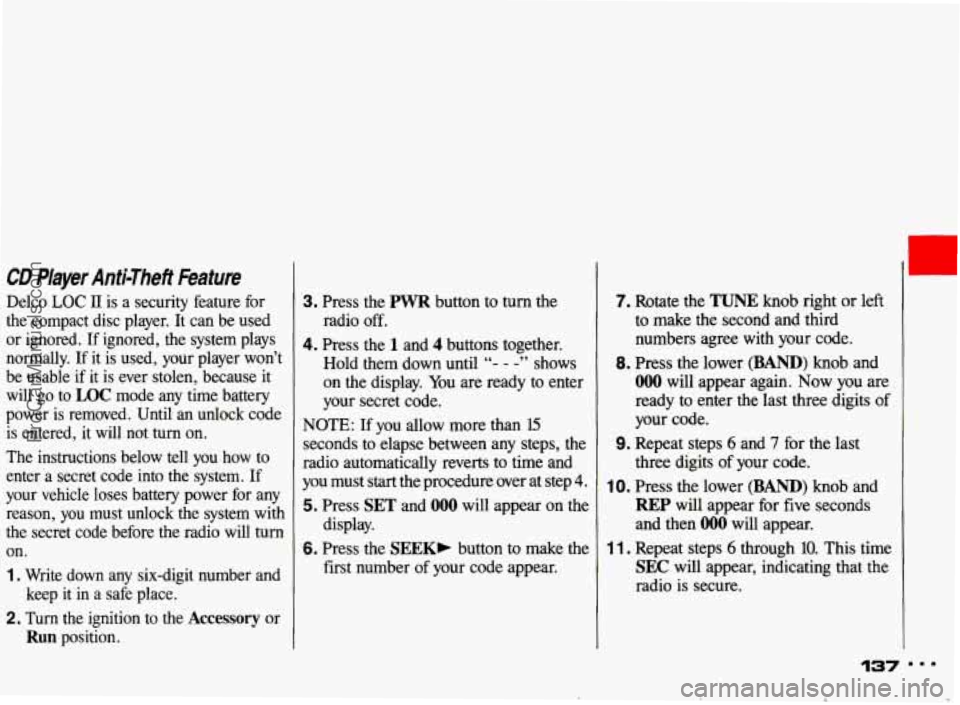

CD Player Anti-Theft Feature
Delco LOC 11 is a security feature for
the compact disc player. It can be used or ignored. If ignored, the system plays
normally. If it is used, your player won’t
be usable
if it is ever stolen, because it
will go to
LOC mode any time battery
power is removed. Until an unlock code
is entered, it will not
turn on.
The instructions below tell you how to
enter a secret code into the system.
If
your vehicle loses battery power for any
reason, you must unlock the system with
the secret code before the radio will
turn
on.
1. Write down any six-digit number and
2. Turn the ignition to the Accessory or
keep it in
a safe place.
Run position.
3. Press the PWR button to turn the
4. Press the 1 and 4 buttons together.
radio off.
Hold them down until
“- - -” shows
on the display. You are ready
to enter
your secret code.
NOTE: If you allow more than 15
seconds to elapse between any steps, the
radio automatically reverts
to time and
you must start the procedure over at step
4.
5. Press SET and 000 will appear on the
display.
6. Press the SEEK, button to make the
first number of your code appear.
7. Rotate the TUNE knob right or left
to
make the second and third
numbers agree with your code.
8. Press the lower (BAND) knob and
000 will appear again. Now you are
ready
to enter the last three digits of
your code.
three digits
of your code.
REP will appear for five seconds
and then
000 will appear.
11. Repeat steps 6 through 10. This time
SEC will appear, indicating that the
radio is secure.
9. Repeat steps 6 and 7 for the last
IO. Press the lower (BAND) knob and
ProCarManuals.com

Comfort Controls & Audio Systems

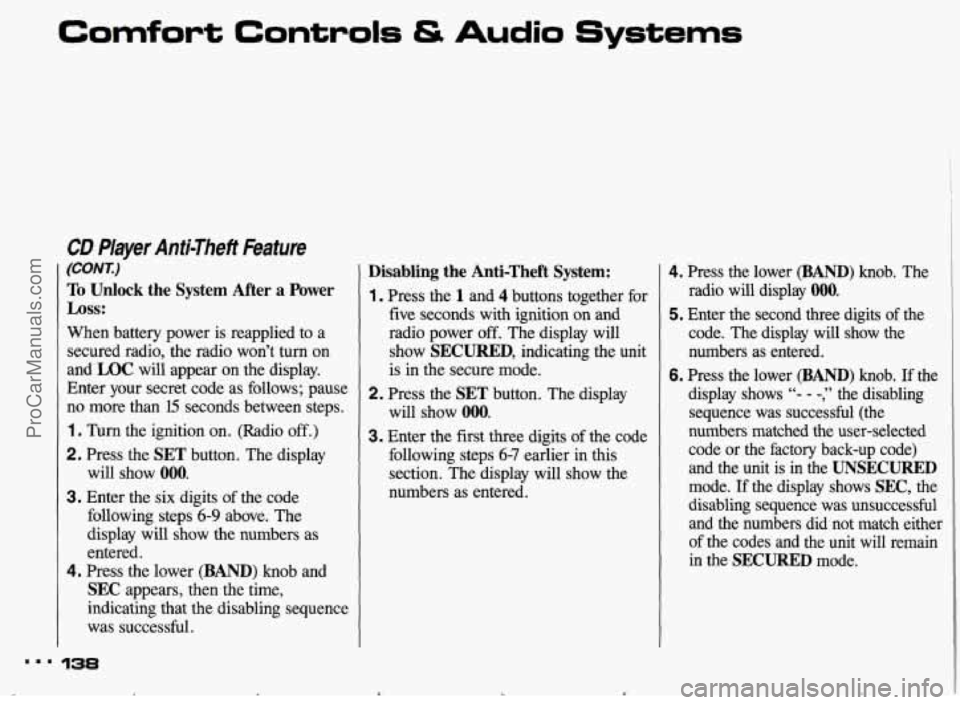

CD Player Anti-Theft kature
(WNX)
To Unlock the System After a Power
Loss:
When battery power is reapplied to a
secured radio, the radio won't turn on
and
LOC will appear on the display.
Enter your secret code as follows; pause
no more than
l5 seconds between steps.
1. Turn the ignition on. (Radio off.)
2. Press the SET button. The display
will show
000.
3. Enter the six digits of the code
following steps
6-9 above. The
display will show the numbers as
entered.
4. Press the lower (BAND) knob and
SEC appears, then the time,
indicating that the disabling sequence
was successful.
Disabling the Anti-Theft System:
1. Press the 1 and 4 buttons together for
five seconds with ignition on and
radio power
off. The display will
show
SECURED, indicating the unit
is in the secure mode.
2. Press the SET button. The display
will show
000.
3. Enter the first three digits of the code
following steps
6-7 earlier in this
section. The display will show the
numbers as entered.
4. Press the lower (BAND) knob. The
radio will display
000.
5. Enter the second three digits of the
code. The display will show the numbers
as entered.
6. Press the lower (BAND) knob. If the
display shows
"- - -," the disabling
sequence was successful (the
numbers matched the user-selected
code or the factory back-up code)
and the unit is in the
UNSECURED
mode. If the display shows SEC, the
disabling sequence
was unsuccessful
and the numbers did not match either
of the codes and the unit will remain
in the
SECURED mode.
I.. 138
c t L ProCarManuals.com

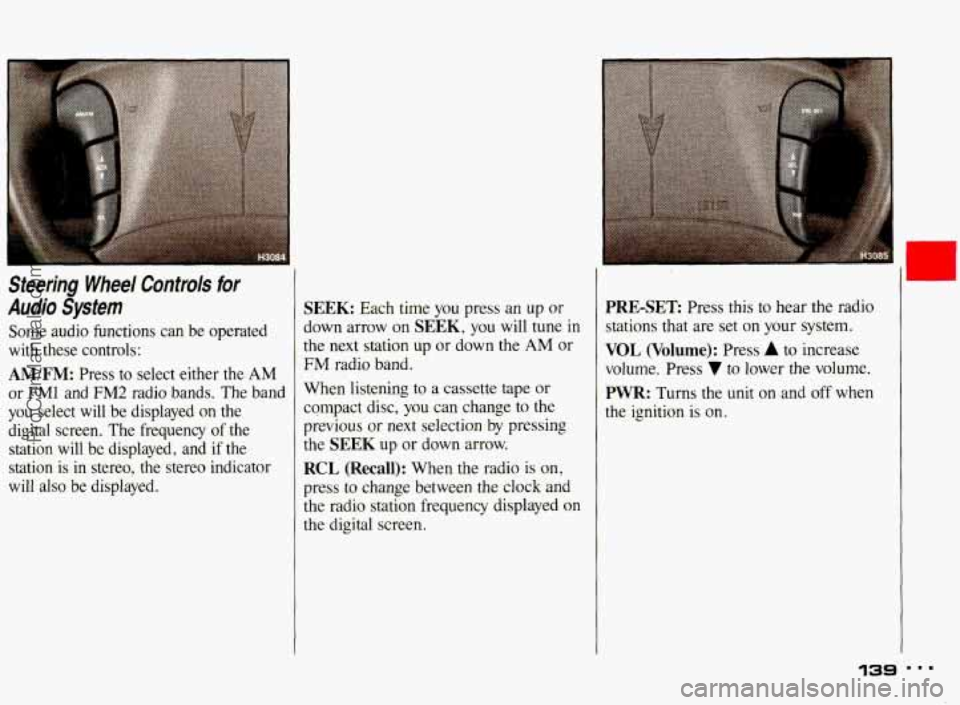

Steering Wheel Controls for
Audio System
Some audio functions can be operated
with these controls:
AM/FM: Press to select either the AM
or FMl and FM2 radio bands. The band
you select will
be displayed on the
digital screen. The frequency of the
station will be displayed, and
if the
station is in stereo, the stereo indicator
will also
be displayed.
SEEK: Each time you press an up or
down arrow on SEEK, you will tune in
the next station up or down the
AM or
FM radio band.
When listening
to a cassette tape or
compact disc, you can change to the
previous
or next selection by pressing
the
SEEK up or down arrow.
RCL (Recall): When the radio is on,
press
to change between the clock and
the radio station frequency displayed on
the digital screen.
I
PRE-SET Press this to hear the radio
stations that are set on your system.
VOL (Volume): Press A to increase
volume. Press
7 to lower the volume.
PWR: Turns the unit on and off when
the ignition is on.
139
t ProCarManuals.com

Comfort Controls & Audio Systems

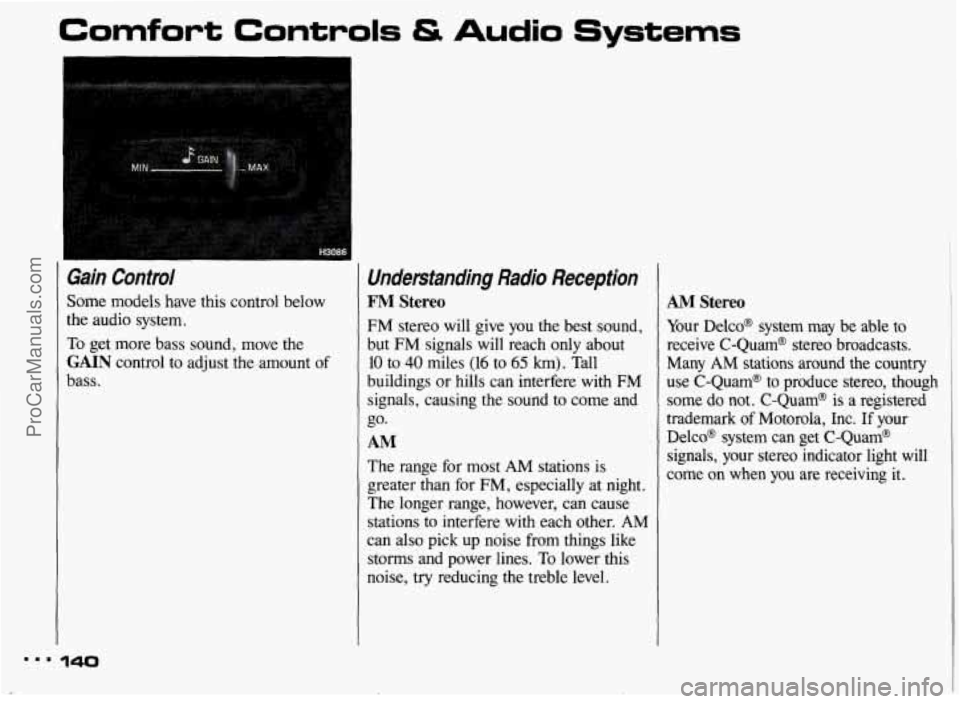

Gain Control
Some models have this control below
the audio system.
To get more bass sound, move the
GAIN control to adjust the amount of
bass.
Understanding Radio Reception
FM Stereo
FM stereo will give you the best sound,
but FM signals will reach only about
10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with
FM
signals, causing the sound to come and
go.
AM
The range for most AM stations is
greater than for FM, especially at night.
The longer range, however, can cause
stations to interfere with each other.
AM
can also pick up noise from things like
storms and power lines. To lower this
noise, try reducing the treble level.
AM Stereo
Your Delco@ system may be able to
receive C-Quam@ stereo broadcasts.
Many
AM stations around the country
use C-Quam@ to produce stereo, though some
do not. C-Quam@ is a registered
trademark of Motorola, Inc. If your
Delco@ system can get C-Quam@
signals, your stereo indicator light will
come on when you are receiving it.
' 140
ProCarManuals.com

I

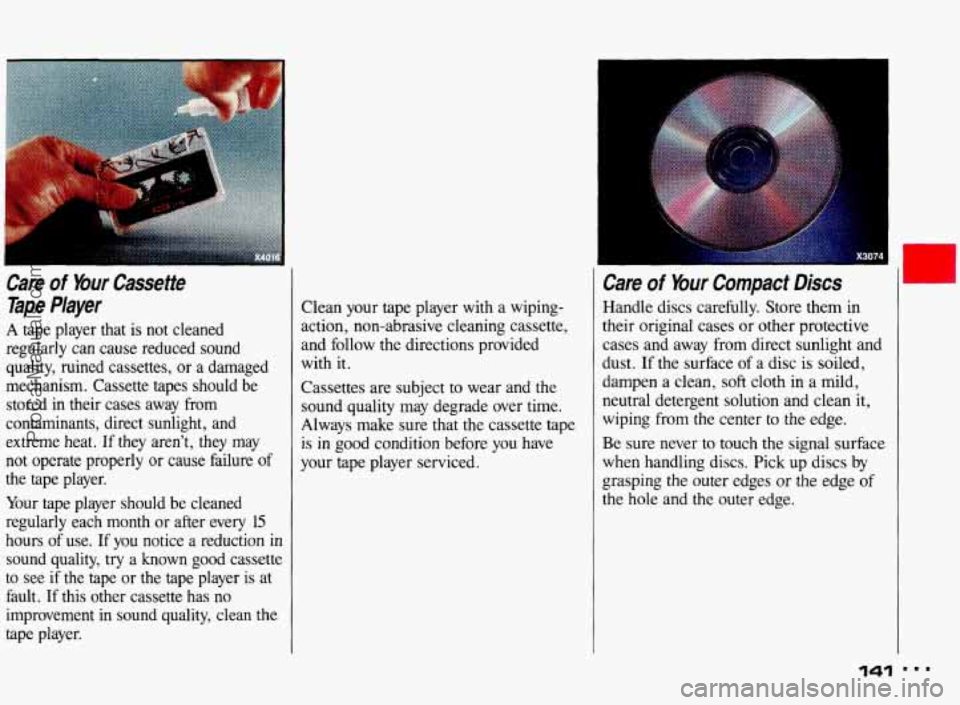

Care of Your Cassette
Tape Player
A tape player that is not cleaned
regularly can cause reduced sound
quality, ruined cassettes, or a damaged
mechanism. Cassette tapes should be
stored in their cases away from
contaminants, direct sunlight, and
extreme heat. If they aren’t, they may
not operate properly or cause failure of
the tape player.
Your tape player should be cleaned
regularly each month or after every
15
hours of use. If you notice a reduction in
sound quality,
try a known good cassette
to see
if the tape or the tape player is at
fault. If this other cassette has no
improvement in sound quality, clean
the
tape player. Clean
your tape player with a wiping-
action, non-abrasive cleaning cassette,
and follow the directions provided
with it.
Cassettes are subject to wear and the sound quality may degrade over time.
Always make sure that the cassette tape
is in good condition before you have
your tape player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in
their original cases or other protective
cases and away from direct sunlight and
dust.
If the surface of a disc is soiled,
dampen a clean,
soft cloth in a mild,
neutral detergent solution and clean it,
wiping from the center
to the edge.
Be sure never to touch the signal surface
when handling discs. Pick up discs by
grasping the outer edges or the
edge of
the hole and the outer edge.
141
U
I..
ProCarManuals.com

..I
Comfort Controls & Audio Systems

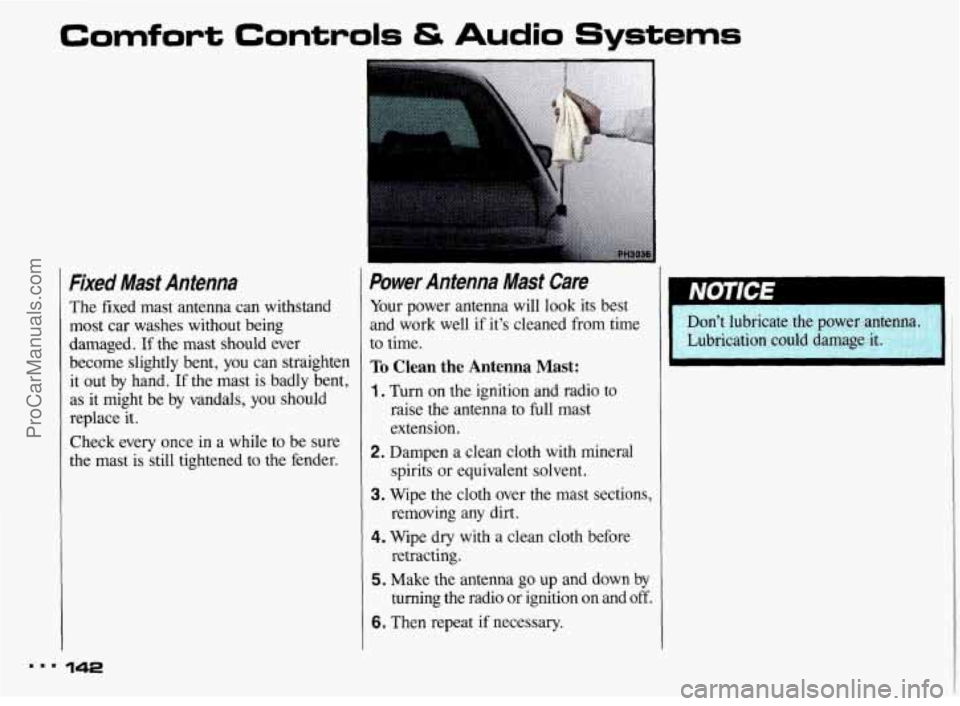

Fixed Mast Antenna
The fixed mast antenna can withstand
most car washes without being
damaged. If the mast should ever
become slightly bent, you can straighten
it out by hand. If the mast is badly bent,
as it might be by vandals, you should
replace it.
Check every once in a while to be sure
the mast is still tightened to the fender.
142
Power Antenna Mast Care
Your power antenna will look its best
and work well if it’s cleaned from time
to time.
To Clean the Antenna Mast:
1. Turn on the ignition and radio to
raise the antenna to
full mast
extension.
2. Dampen a clean cloth with mineral
spirits or equivalent solvent.
3. Wipe the cloth over the mast sections,
removing any dirt.
4. Wipe dry with a clean cloth before
retracting.
5. Make the antenna go up and down by
turning the radio or ignition on and off.
6. Then repeat if necessary. Don’t
lubricate the power antenna.
Lubrication could damage it.
1
ProCarManuals.com

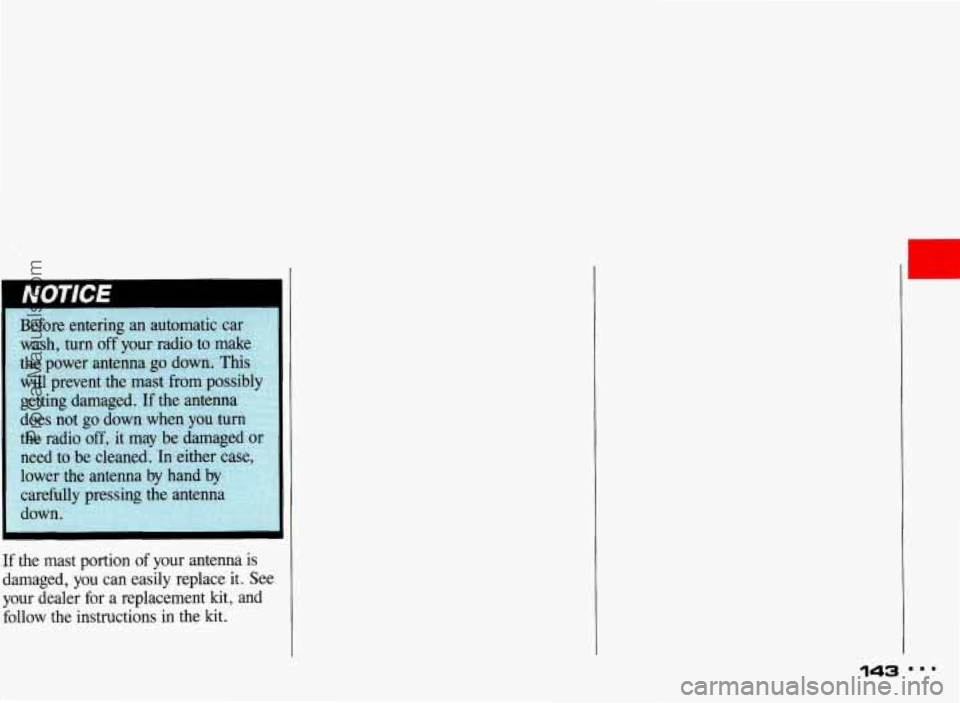

Before entering an automatic car
wash, turn off your radio to make
the power antenna go down. This
will prevent the mast from possibly
getting damaged. If the antenna
does not go down when you turn
the radio off, it may be damaged or
need to be cleaned. In either case,
lower
the antenna by hand by
carefully pressing
the antenna
down.
If the mast portion of your antenna is
damaged, you can easily replace it. See
your dealer for a replacement lut, and
follow the instructions in the
kit.
143 ' '
