Page 129 of 323

AM/FM Stereo with Cassette
Player with Dolby@
The digital display indicates information
on time or radio station frequency, the
AM
or FM radio band, whether the station is
in stereo, and other radio functions.
PWR (Power): Press to turn the unit on
and
off when the ignition is on.
Upper Knob (VOL): This knob does
two things:
Turn it slightly to the left or right to
Press it to mute the radio or tape
control
the volume.
player. Press again to listen.
Balance: Turn the control ring behind
the upper knob slightly to the left or right
to adjust the left/right speaker balance.
Lower Knob (TUNE): This knob does
two things:
Turn it slightly to the left or right to
tune in radio stations. If you hold it to
the left or right, it will tune rapidly.
You can also
turn it one stop at a time
to fine-tune a specific frequency.
Press to change between the AM,
FM1 or FM2 bands. (FM1 allows you
to preset five stations, FM2 allows
you
to preset another five stations.) The
band you select will appear
momentarily on the digital display.
Fade: Turn the control ring behind the
lower knob slightly to the left or right to
adjust the fronthear speaker balance.
+SEEK,: Press to seek and stop on
the next station higher
or lower on the
radio band.
SCAN: When you press SCAN, the
radio will go to the next station and
pause there for a few seconds.
SCAN
will display on the digital screen. Press
SCAN again to stop on a station.
RCL (Recall): When the ignition is off,
press to display the clock. When the
radio is on, press to change between the
clock and the radio station frequency
displayed on the digital screen.
BASS: Adjusts the bass level up or
down. The bottom of the digital screen
will display the level you have selected.
For a normal listening level preset at the
factory, press the center of the switch.
TREB (Treble): Adjusts the treble level
up or down. The
bottom of the digital
screen will display the level you have
selected. For a normal listening level
preset at the factory, press the center of
the switch.
127
ProCarManuals.com
Page 130 of 323

Comfort Controls & Audio Systems
AM/FM Sfereo with Cassette
Player
with Dolby@ (CONZ)
The five pushbuttons under the cassette
entry door can be used to preset up to 15
radio stations
(five AM, five FM1 and five
FM2). The buttons have other uses when
you are playing a tape (see
To Play a
Cassette Tape later in this section).
To Preset Radio Stations:
1. Tune the digital display to the station
you want.
2. Press SET. The SET indicator will
appear
on the digital screen for five
seconds.
3. While the SET indicator is displayed,
press one
of the five pushbuttons.
4. Repeat steps 1-3 for each of five AM
and five FM stations.
5. Press the lower knob until FM2
appears on the digital display. You
can then follow steps
1-3 for five
more
FM stations.
To Play a Cassette Tape:
Press PWR to turn the radio on. The
radio will play until a cassette is pushed
into the cassette entry door (the tape
side goes
in first). Do not use tapes that
are longer than
90 minutes (45 minutes
on each side).
This audio system has automatic
DOLBY
B NR@ to reduce
background noise on Dolby encoded
tapes. Dolby@ Noise Reduction is manufactured under license from Dolby
Laboratories Licensing Corporation.
Dolby@ and the
EO symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
PROG (Program): Press to change the
side
of tape being played. When the end
of a tape is reached, the other side will
then play.
CrO,: This button sets tape bias. When
playing high bias chrome or metal tapes,
press the button
to turn the CrOz display
on. When playing standard tapes, press
again to turn the display off.
REV (Reverse): Press to reverse the
tape rapidly; lightly press again or
lightly press
PROG to play the tape.
(The radio plays while a tape is rewinding.)
FWD (Fast Forward): Press to advance
the tape rapidly; lightly press again or
lightly press
PROG to play the tape. (The
radio plays while a tape is advancing.)
PREV (Previous): Press PREV to
repeat a passage. The tape will back up
and stop at the first four-second quiet spot in the tape, or when
you press
PREV again or PROG.
NEXT
Press to go to the next selection
on the tape. The tape will stop at the
first four-second quiet spot in the tape,
or if you press
NEXT again or PROG.
ST-PL (Stop-Play): Press to switch from
the tape to the radio. Press again to
resume playing the tape.
EJECT: Press to eject the cassette tape
(the radio will then play). Tapes can be
ejected when the ignition
is off.
ProCarManuals.com
Page 131 of 323
![OLDSMOBILE SILHOUETTE 1993 Owners Manual .. .................... .. , ......
~Iz;iiico]
.. .. ............. -----.-...I- ..... ............ ... .~ I
VOL , TUNE PREV NEXT REV FF COMP - _ - -. __ ...... ...... . :. ."/,. I ,=. , .ll?. 7 , - OLDSMOBILE SILHOUETTE 1993 Owners Manual .. .................... .. , ......
~Iz;iiico]
.. .. ............. -----.-...I- ..... ............ ... .~ I
VOL , TUNE PREV NEXT REV FF COMP - _ - -. __ ...... ...... . :. ."/,. I ,=. , .ll?. 7 , -](/manual-img/31/58209/w960_58209-130.png)
.. .................... .. , ......
~Iz;iiico]
.. .. ............. -----.-...I- ..... ............ ... .~ I
VOL , TUNE PREV NEXT REV FF COMP - _ - -. __ ...... ...... . :. ."/,. I ,=. , .ll?. 7 , - -- .. ..
0 0 . ... ............... .. ......... ..
. .,i.
1 EJCT - ST/PL 0 .____I 0 ~ .I ,$. ..... ...... .._.. .. .......... X306 1
AMIFM Stereo wrth Compact
Disc
Player
The digital display indicates information
on time or radio station frequency, the AM
or
FM radio band, whether the station is
in stereo, and other radio functions.
POWER: Turns the unit on and off
when
the ignition is on.
VOL (Volume): Adjusts the volume up
or down, and the bottom
of the digital
screen displays
the setting. For a normal
listening level preset at the factory, press
the center of the switch.
TUNE: Press the top of the switch to
tune in radio stations higher on the AM or
FM band. Press the bottom to tune in
stations lower on
the band.
BASS: Adjusts the bass level up or
down. The bottom
of the digital screen
will display the level you have selected.
For a normal listening level preset at
th
factory, press the center of the switch. e
TREB (Treble): Adjusts the treble level
up or down. The bottom
of the digital
screen will display the level you have
selected. For a normal listening level
preset at the factory, press the center
of
the switch,
BAL (Balance): Adjusts the lefthight
and fronthear speaker balance to your
individual taste. When you change
either adjustment, the bottom
of the
digital screen will display the point of
balance
you have selected. For the
normal setting preset at the factory,
press the left and right or front and rear
buttons at the same time.
129
ProCarManuals.com
Page 132 of 323

Comfort Controls & Audio Systems
AM/FM Stereo with Compact
Disc Player (CONT:)
Radio Controls
AM/FM: Press to select either the AM
or FM radio band. The band you select
will be momentarily displayed on the
digital screen. The frequency of the
station will be displayed, and if the
station is in stereo, the
ST (Stereo)
indicator will also be displayed.
Your radio has an AMAX-certified
receiver. It can produce quality AM
stereo sound and receive C-Quam@
stereo broadcasts. AMAX reduces noise
without reducing the high frequencies
you need for the best sound. You don’t
have to do anything to your Delco/GM
radio because AMAX is automatic.
SEEK: Press SEEK to tune in and stop
on the
next station on the AM or FM
radio band.
SCAN: When you press SCAN, the
radio will go to the next station and
pause there for
a few seconds. SCAN
will display on the digital screen. Press
SCAN again to stop on a station.
RCL (Recall): When the ignition is off,
press to display the clock. When the
radio is on, press to change between the
clock and
the radio station frequency
displayed on the digital screen. The
five pushbuttons in the lower right
corner can be used to preset up
to ten
radio stations (five AM and five FM
stations). These buttons have other uses
when you are playing a compact disc
(see Compact
Disc Controls later in this
section).
To Preset Radio Stations:
1 . Tune the digital display to the station
you want.
2. Press SET. The SET indicator will
appear on the digital screen for five
seconds.
3. While the SET indicator is displayed,
press one of
the five pushbuttons.
4. Repeat steps 1-3 for each of five AM
and five
FM stations.
ProCarManuals.com
Page 133 of 323

If the disc comes back out:
The disc may be upside down.
The disc may be dirty, scratched or
wet.

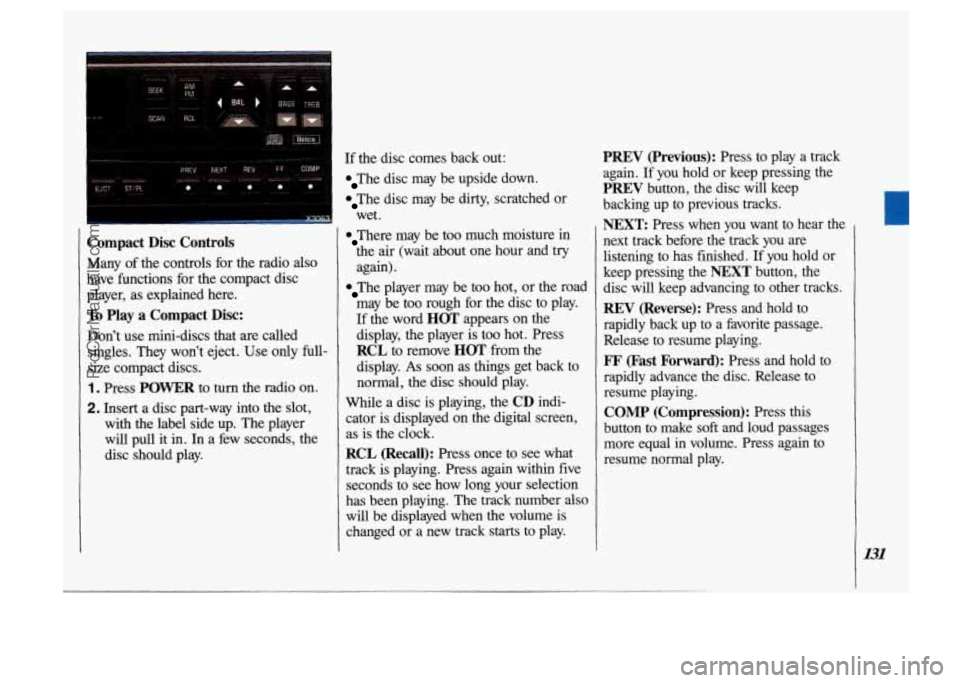

Compact Disc Controls
Many of the controls for the radio also
have functions for the compact disc
player, as explained here.
To Play a Compact Disc:
Don’t use mini-discs that are called
singles. They won’t eject. Use only
full-
size compact discs.
1 . Press POWER to turn the radio on.
2. Insert a disc part-way into the slot,
with the label side up. The player
will pull it in. In a few seconds, the
disc should play.
There may be too much moisture in
the air (wait about one hour and try
again).
The player may be too hot, or the road
may be too rough for the disc to play.
If the word H(YT appears on the
display, the player is too hot. Press
RCL to remove HOT from the
display.
As soon as things get back to
normal, the disc should play.
While a disc is playing, the
CD indi-
cator is displayed on the digital screen,
as is the clock.
RCL (Recall): Press once to see what
track is playing. Press again within five
seconds to see how long your selection
has been playing. The track number also
will be displayed when the volume is
changed or a new track starts
to play.
PREV (Previous): Press to play a track
again. If you hold or keep pressing the
PREV button, the disc will keep
backing up to previous tracks.
NEXT: Press when you want to hear the
next track before the track you are
listening
to has finished. If you hold or
keep pressing the
NEXT button, the
disc will keep advancing to other tracks.
REV (Reverse): Press and hold to
rapidly back up to a favorite passage.
Release to resume playing.
FF (Fast Forward): Press and hold to
rapidly advance the disc. Release to
resume playing.
COMP (Compression): Press this
button to make
soft and loud passages
more equal in volume. Press again to
resume normal play.
131
ProCarManuals.com
Page 134 of 323

Comfort Controls & Audio Systems
AM/FM Stereo with Compact
Disc Player
(CONT.)
When Finished with the Compact
Disc Player:
If you press POWER or turn off the
ignition, the disc will stay in the player
and
start again when you turn on the
ignition or power switch. The disc will
begin playing at the point where it had
been stopped.
ST/PL (Stop/Play): Press to stop the
disc player; the radio will play. Press
again to play the disc (the player will
start playing the disc where it was
stopped earlier).
EJCT (Eject): Press to eject the disc;
the radio will play.
CD Player Anti-Theft Fieature
Delco LOC II@ is a security feature for
the compact disc player. It can be used
or ignored. If ignored, the system plays
normally.
If it is used, your player won’t
be usable if it is ever stolen, because it
will go to
LOC mode any time battery
power is removed. Until an unLOC
code is entered, it will not
turn on.
The instructions below tell you how to
enter a secret code into the system.
If
your vehicle loses battery power for any
reason, you must unlock the system with
the secret code before the radio will turn
on.
To Set the Anti-Theft System:
1. Write down any six-digit number and
keep it in a safe place.
2. Turn the ignition to the Accessory or
Run position.
3. Press the POWER button to turn the
radio
off.
4. Press the PREV and FF buttons
together. Hold them down until
“- - -” shows on the display (at least
five seconds). You are ready to enter
your secret code.
NOTE:
If you allow more than 15
seconds to elapse between any steps, the
radio automatically reverts to time and
you must
start the procedure over at step 4.
ProCarManuals.com
Page 135 of 323

5. Press SET and 000 will appear on
the display.
6. Press and hold SEEK until the first
digit of your code appears.
7. Press and hold SCAN until the
second and third digits of your code
appear.
8. Press AM/FM and 000 will appear
again. Now you are ready to enter
the last three digits of your code.
9. Repeat steps 6 and 7 for the last
three digits of your code.
1 0. Press AM/FM and rEP will appear.
1 1. Repeat steps 6 through 10. This time
SEC will appear, indicating that the
radio is secure.
If “- - -” appears,
the steps were
not successful and
you must repeat the entire
procedure.
To Unlock the System After a Power
Loss:
When battery power is reapplied to a
secured radio, the radio won’t turn
on
and LOC will appear on the display.
Enter your secret code as follows; pause
no more than
15 seconds between steps.
1. Turn the ignition on. (Radio off.)
2. Press the SET button. The display
will show
000.
3. Enter the six digits of the code
following steps
6-9 above. The
display will show the numbers as
entered.
4. Press the AM/FM button and the
time appears, indicating that the
disabling sequence was successful.
If
the display indicates SEC, the
numbers did not match and the unit is
still secured.
Disabling the Anti-Theft System:
1. Press PREV and FF together for five
seconds with the ignition on and
radio power off. The display will
show SEC, indicating the unit is in
the secure mode. (If
“- - -” appears
on the display, the anti-theft system
has already been disabled.)
2. Press the SET button. The display
will show
000.
3. Enter the first three digits of the code
following steps
6 and 7 of the
preceding paragraphs. The display
will show the numbers as entered.
4. Press AM/FM. The radio will
display
000.
5. Repeat steps 6 and 7 to enter the second
three digits
of the code. The display
will show the numbers as entered.
6. Press
AM/FM. If bb- - -” then the
time appears, the disabling sequence
was successful (the numbers matched
the secret code) and the unit is in the
UNSECURED mode. If the display
shows
SEC, the disabling sequence
was unsuccessful (the numbers did
not match) and the
unit will remain
in the SECURED mode.
133
ProCarManuals.com
Page 136 of 323
