1993 OLDSMOBILE SILHOUETTE Owners Manual

Locking Storage Bin
At the base of the center instrument
panel console
is a storage bin. Use the
door key to lock and unlock it. To open
the bin, pinch the latch release.
To remove the bin for cleaning, open
it ' part way, then pull out and slightly up.
1 To clean the inside of the bin, vacuum
or wipe with a slightly damp cloth.
I
To replace the bin, set the hinge pins
(one on each side of the bin, at the
bottom) into the hinge guides (one at
each side
of the console opening, at the
base), then close the
bin. If the hinge
pins
are placed properly in the guides,
the bin
will close easily.
Rear Storage Compartment and
Ashtray
The rear ashtray is located in the rear
storage compartment.
To open the ashtray, press one side and
turn it open.
To remove the ashtray for cleaning,
press the snuffer as you lift up the
bottom
of the ashtray.
95
ProCarManuals.com

Features & Controls
96
Side Ashtrays
To open the ashtray, press one side and
turn it open.
To remove the ashtray for cleaning,
press the snuffer as you
lift up the
bottom of the ashtray. If you have
the optional rear climate
control, your side ashtray will have a
flip-up cover. To remove the ashtray for cleaning, pull
up on the snuffer or
the cover.
Convenience Nef (OPTION)
The optional convenience net is
designed to help keep small loads, like
grocery bags, from falling over during
sharp turns or quick stops and starts.
Install the convenience net at the rear of
your vehicle, just inside the liftgate.
Attach the upper loops to the posts on
either side of the liftgate opening (the
label on the net should be in the upper
righthand corner). Attach the lower
loops to the hooks on the floor.
ProCarManuals.com

The side of the convenience net closest
to the front of the vehicle is higher than
the side closest to the liftgate. Once
you've loaded items into the net, stretch
the higher side of the net up and over
the top of the load
to hold it firmly in
place.
The convenience net has a maximum
capacity of
100 pounds (45 kg). It is not
designed to hold larger, heavier loads.
Store such loads on
the floor of your
vehicle, as far forward as you can.
When not
in use, we recommend that
you take down the convenience
net to
extend its life and retain its elasticity,
and to keep the rear exit clear. Store
the
net in the pouch behind either front seat.
L
-+
Luggage Carrier (OPTION)
If you have the optional luggage carrier,
you can load things on top of your
vehicle. The luggage carrier has slats
and side rails attached to the roof,
sliding crossrails and places to use for
tying things down. These let you load
some things on top of your vehicle, so
long as they are not wider or longer than
the luggage carrier. If you
try to
carry something
on top of your vehicle that is
longer or wider than the luggage
I
carrier-like paneling, plywood, L
mattress, and so forth-the wind can
itch
it as you drive along. This ca
;e you to lose control. Wha
you are carrying could be violent1
torn off, and this could cause you
or other drivers to have a collision.
and of course damage your vehicle.
You may be able to carry something
like this inside. For example, a
4' by 8' sheet will fit inside your
vehicle.
But, never carry something
longer or wider than your luggage
carrier on top
of your vehicle.
I
97
ProCarManuals.com

Features & Controls
98
luggage Carrier (CONT.)
luggage carrier may damage your
vehicle. When
you carry cargo on
the luggage carrier
of a proper size
and weight, put
it on the slats, as
far forward as you can. Then slide
the crossrail up against the rear of
the load, to help keep it from
moving. You can then tie it down.
Don't exceed the maximum vehicle
capacity when loading your Oldsmobile.
For more information on vehicle
capacity and loading, see the
Index
under Loading Your 'Vehicle.
To prevent damage or loss of cargo as
you're driving, check now and then
to
make sure the luggage carrier and cargo
are still securely fastened.
u21
Your luggage carrier has release knobs
set in the ends of each crossrail. Turn
the release knobs counterclockwise,
then slide the crossrails forward or
back, as needed, to accommodate loads
of varying size.
After repositioning the crossrails, be
sure to tighten
the release knobs by
turning them clockwise, locking the
crossrails in place. Use
the adjustable tiedown loops in the
side rails to help secure large loads.
Reposition the tiedowns by turning them
counterclockwise, then slide them along
the side rail.
Turn the tiedowns
clockwise to tighten them
in place.
Tiedowns may be removed and used in
the adjustable tapped plates in the
crossrails. You may also use these
tapped plates to secure bicycle or
ski
racks.
ProCarManuals.com

. ., .
Electronic Level Control
(OWION)
With this option, the rear of the vehicle
automatically adjusts
to changes in load
weight.
(See the Idex under Loading
Your Vehicle.)
You may hear the compressor operating
when you load or unload your vehicle,
and periodically
as the system self-
adjusts.
This is normal.
The compressor should operate for brief
periods
of time. If the sound continues
: for an extended period of time, your
vehicle
needs service. To keep your
battery
ffom being drained, you may
want to remove the 20-amp
ELC fuse in
the fuse control panel until you can get
your vehicle serviced
(see the Index
under Fuses & Circuit Breakers).
c
Sunroof (OPTION)
This feature may not be available on
your vehicle.
The sunroof has a glass panel that opens
for ventilation.
To Open the Sunroof:
Pull down on the latch release handle
and then push
it forward and up until
the glass panel locks into place.
To Close the Sunroof:
Pull the latch release handle forward
and down, then push it back and up.
Press firmly
to lock the latch release
handle into the closed position.
Compact Overhead Console
(OPTION)
If you have the optional sunroof, you
will have this front overhead console.
It
includes two reading lights and a storage
compartment.
To turn on or off either reading light,
press the switch next
to it.
If you have the optional power sliding
door, your overhead console will also
have two-power sliding door switches.
To operate these switches, see the Zrzdex
under Power Sliding Door.
99
ProCarManuals.com

Features & Controls
100
B L U2336
ProCarManuals.com

The Instrument Panel- Your Information System
Your instrument panel is designed to let
you know at a glance how your vehicle
is running. You’ll know how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically.

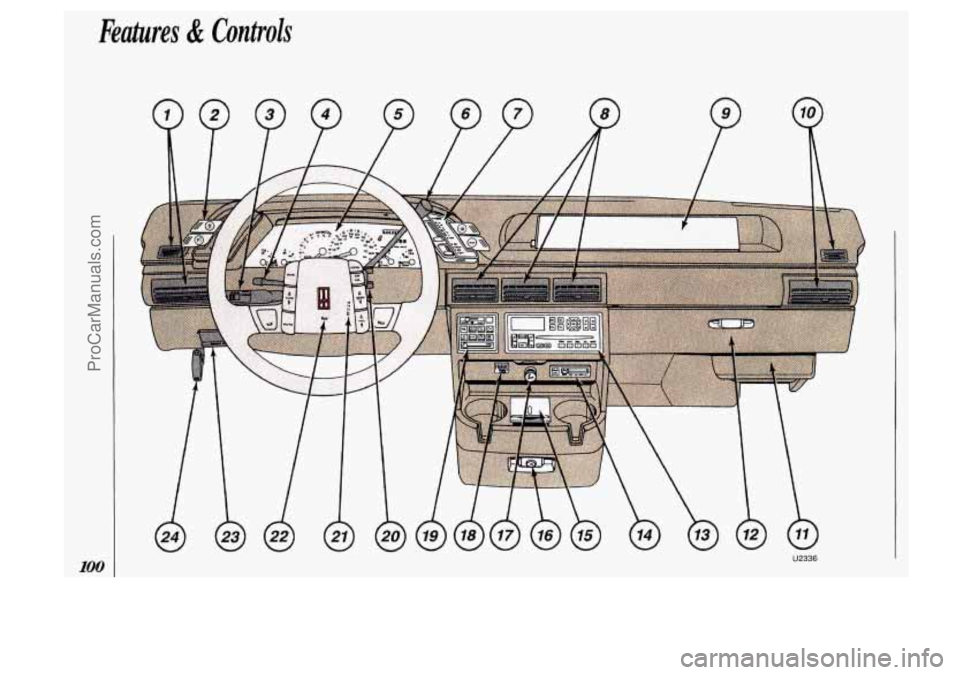

Refer to the accompanying diagram of
your instrument panel
to locate the
components listed below.
1. Side Vents
2. Light Controls
3. Turn SignaVHeadlight Beam Lever
4. Tilt Steering Wheel Lever
5. Instrument Cluster
6. Gearshift Lever
7. WiperIWasher Controls
8. Center Vents
9. Storage Compartment
10. Side Vents
11. Circuit Breaker/Relay Panel
12. Glove Box/Fuse Panel
13. Audio System
14. Rear Fan Controls
15. Cup HolderdAshtray
1 6. Locking Storage Bin
17. Lighter
18. Interior Lights Override Switch
19. Climate Controls
20. Ignition Switch
21. Hazard Warning Flashers Switch
22. Horn
23. Parking Brake Release
24. Hood Release
101
ProCarManuals.com

Features & Controls
4 Znstrument Panel Cluster
Your cluster includes indicator warning lights and gages that are ex\
plained on the
following pages.
102
mm 18
\3
-20'
