Vehicle Identification Number (VIN)
II ID 111111111 1111 111 l~lllll11111111111111111 11111 llllDDlllll I
a SAMPLE4UXPMOM75 ’ h i II
ENGINE f \ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your Buick. It appears on
a plate in the front corner of the instrument p,anel, on the
driver’s side. You can see it if you 1,ook through the
windshield from outside your vehicle,. The
VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title.and registration.
Engine Identification
The eighth character in your VIN is the engine code for
your
GM engine. This code will help you identify your
engine, specifications, and replacement parts in this section.
Service Parts Identification Label
You’ll find this label on the rear compartment storage lid
in the wagon. On the sedan, the label
is located on the
trunk lid. It’s very helpful if you ever need to order
parts. On this label
is:
Your VIN.
Its model designation.
Paint information.
A list of all production options and special
Be sure that this label is not removed from the vehicle.
equipment.
Add-.O.n Electrkal
E,quipment
i
287

Fuses and Circuit Breakers
The wiring circuits in your car are protected from short
circuits by a combination of fuses, circuit breakers, and
fusible thermal links in the wiring itself. This greatly
reduces the chance.
of fires caused by electrical
problems.
Be sure to use the correct fuse if you need to replace
one.
If you ever have a problem on the road and don’t
have a spare fuse, you can ‘‘borrow” one of the correct
value. Just pick some feature
of your car that you can
get along without
- like the radio or cigarette lighter -
and use its fuse, if it is of the value you need. Replace it
as soon as you can.
The cover will pull right
off. To put the cover ,hack
on make sure the tabs are
inserted in the front first.

I1
1. 15
2. 15.
3. 10
4. 25
5:
7.5
6; '20
7. 30
8. 15
9.
. 10
10. ,-.. 25
11. 7.5
12. 10
13. IO
14. 15
15. 30
16. 7,s
17. 15
18. . 15
19.
20

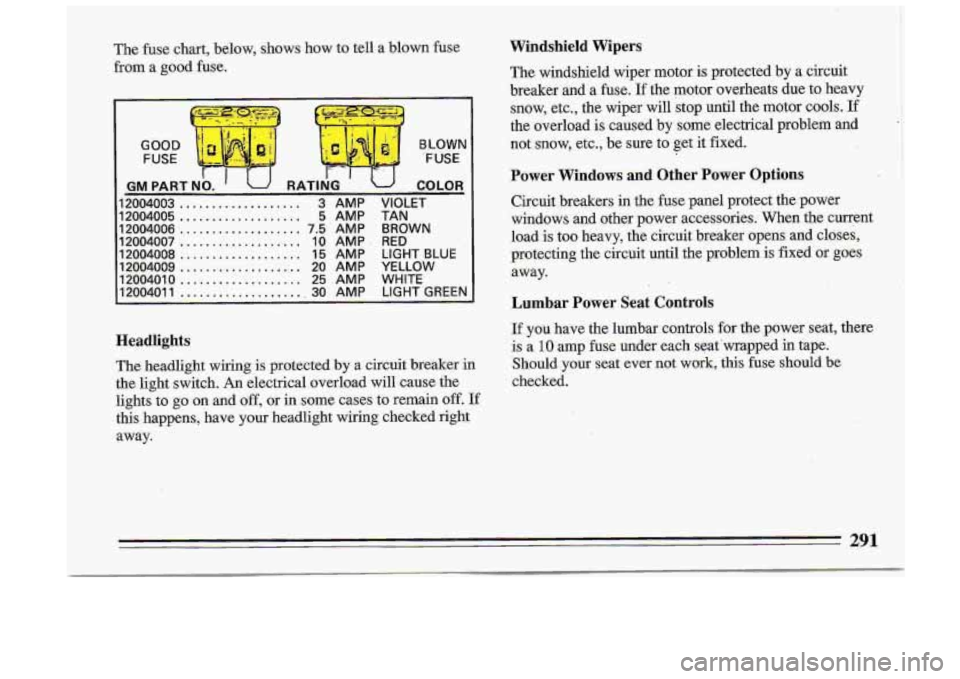

The fuse chart, below, shows how to tell a blown fuse
from a good fuse.
GOOD
FUSE
I
BLOWN
-FUSE
I
GM PARTNO.. ' RATING ' LJ COLOR
12004003 ................... 3 AMP VIOLET
I2004005 ................... 5 AMP TA-N- .
12004006 ................... 7.5 AMP BROWN
12004007 ................... IO AMP . RED
12004008 ................... 15 AMP LIGHT BLUE
12004009 ................... 20 AMP YELLOW
12004010 ................... 25 AMP WHITE
1200401 1 .................... 30 AMP LI'GHT GREEN
Headlights
The headlight wiring is protected by a circuit breaker in
the light switch. An electrical overload will cause the
lights to
go on and off, or in some cases to remain off. If
this happens, have your headlight wiring checked right
away.
Windshield Wipers.
The windsheld wiper motor is protected hy a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the .overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit .breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens. and closes,
protecting the circuit until the problem is fixed or goes
away.
Lumbar Power Seat Controls
If you have the lumbar controls for the power seat, there
is a
10 amp fuse under each seat 'wrapped in tape.
Should your
seat ever not work, this fuse should be
checked.

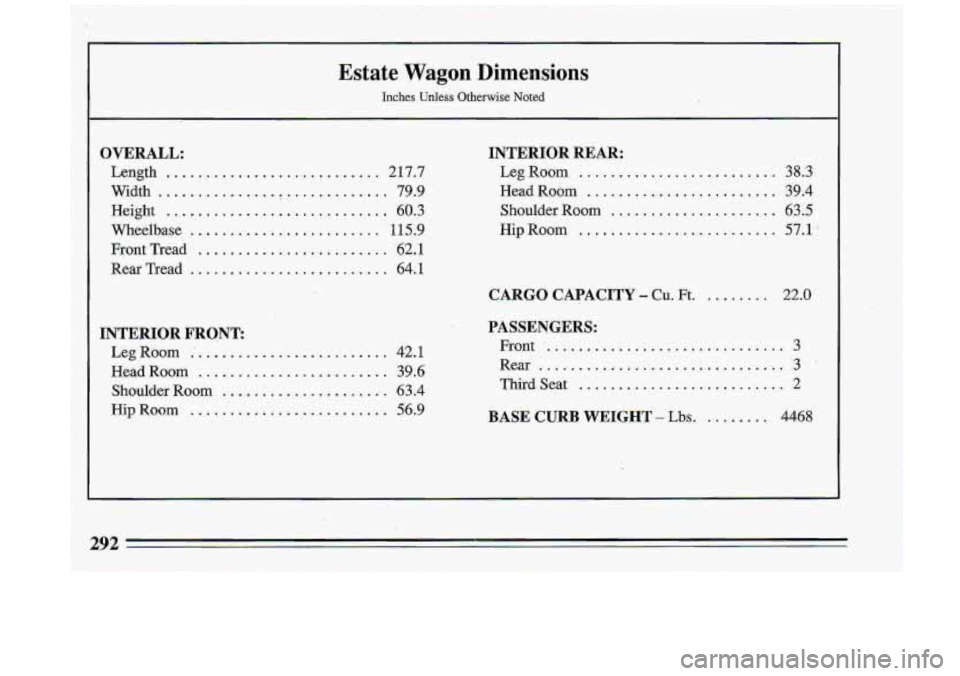

Estate Wagon Dimensions
Inches Unless Otherwise Noted
OVERALL:
Length ............................ 2 17.7
Width
............... ............. 79.9
Height
............................ 60.3
Wheelbase
........................ 11 5.9
Front Tread ........................
Rear Tread .........................
INTERIOR FRONT
Leg Room .........................
Head Room .........................
Shoulder Room ......................
HipRoom .........................
'62.1
64.1
42.1
39.6
63.4
56.9
INTERIOR REAR:
Leg Room .........................
Head Room ........................
Shoulder Room .....................
HipRoom .........................
CARGO CAPACITY . CU . Ft .........
PASSENGERS:
38.3
39.4
63-5
57.1
22.0
Front ..............................
Rear ................................ 3
ThirdSeat
.......................... 2
BASE CURB WEIGHT . Lbs ......... 446.8
292
.

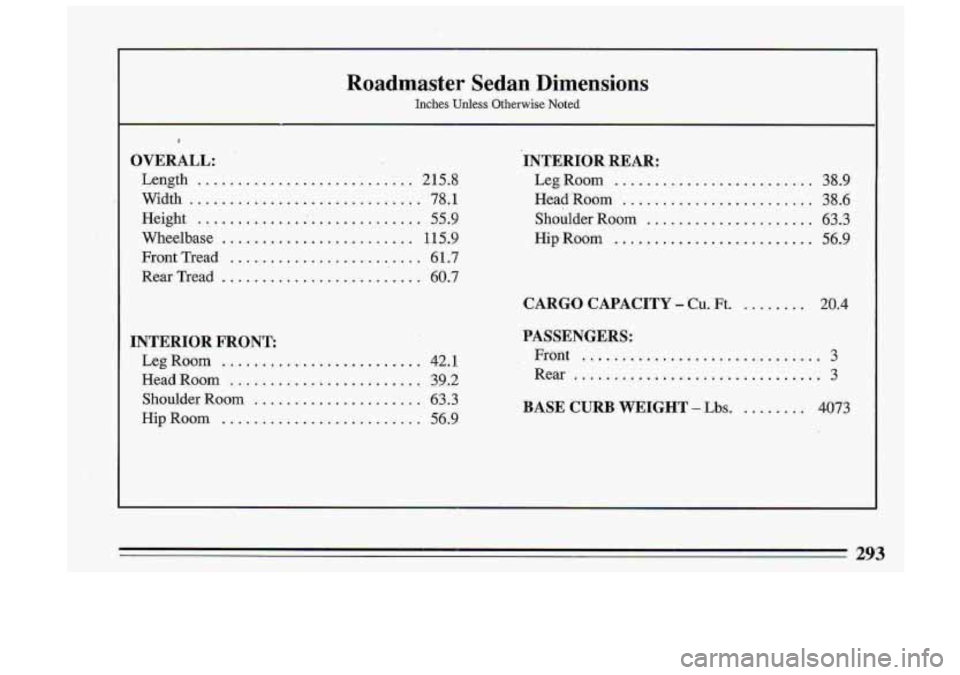

Roadmaster Sedan Dimensions
'Inches Unless Otherwise Noted
... . . - ~ _.
OVERALL:
Length ........................... 215.8
Width ............................. 78.1
Height .............. : .............. 55.9
Wheelbase ........................ 11 5.9
Front Tread ........................ 61.7
Rear Trexd ......................... 60.7
INTERIOR FRONT
LegRoom ......................... 42.1
Head Room ........................ 39.2
Shoulder Room ..................... 63.3
Hip Room ......................... 56.9
INTERIOR.REAR:
LegRoom .........................
Head'.Room ........................
Shoulder Room .....................
HipRoom .........................
CARGO CAPACITY - CU. Ft. ........
PASSENGERS:
38.9
38.6
63.3
56.9
20.4
2 Front ..............................
Rear ............................... 3
BASE CURB WEIGHT - Lbs. ........ 4073

.Replaceable Light Bul-bs
Application Number
EXTERIOR
Cornering ..........................
Headlight ...... .? . ...................
. 2057
. 9004
Park/Turn ....... ...... .. ................ 2057NA
Side Marker ........................... 194
Underhood ............................ 56 1
REAR
Backup ............................. 2057
High Mounted Stop (Sedan) ............. 1141
High Mounted Stop (Wagon) ............. 577
License .................... , ........... 168
Side Marker (Wagon) ................... 194
Tail (Sedan) ............................ 194
Tail/Stop/Turn ........................ 2057
Application Number .1
1N.TERIOR ILLUMINATION
'1 " . i
.Ashtray . ............................
Door Courtesy .........................
Glovebox ..............................
Instrument Panel .......................
Luggage Compartment ..................
Reading ..............................
Rear Body Pillar Assist Handle : ..........
Roof Rail Courtesy .....................
Courtesy ................... * ..........
1~65
168
563
194
168
9.20 192
194 192
Visor Vanity Mirror .............. TS-14VlCP
5.'r 1 .:e 1 .
