1993 BUICK ROADMASTER Owners Manual

!

Replacing Brake System Parts
The braking system on a modem vehicle is complex. Its
many parts have to’ be of top quality and work. well
together if the vehicle is to have really good braking.
Vehicles we design and test have top-quality
GM brake
parts in them, as your: Buick, does when it is new. When
you replace parts
of your braking system - for
example, when.your brake linings wear down and you
have-to have
new ones put in - be sure you get new
genuine
GM replacement parts. If you don’t, your
brakes may no longer work properly. For example,
if
someone puts in brake linings that are wrong for your
vehicle, the balance between
your front and rear brakes
can change, for the worse.
The braking performance
you’ve come to expect can change
in many other ways
if someone puts in the wrong replacement brake parts.
Battery
Every new Buick has a,Delco Freedom@ battery. You
never have.to add water
to one of these. When it’s time
for a new battery, we recommend a Delco Freedom@
battery. Get one that has the catalog number shown
on
the original battery’s label.
Vehicle Storage,
If you’re not going to drive your vehicle for 25 days or
more, take
off the black, negative (-) cable from the
battery. This
will help keep your battery from running
down.
Batteries have acid that can burn you and gat
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” in the lndl
for tips on working around a battery without getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
264 -

I-

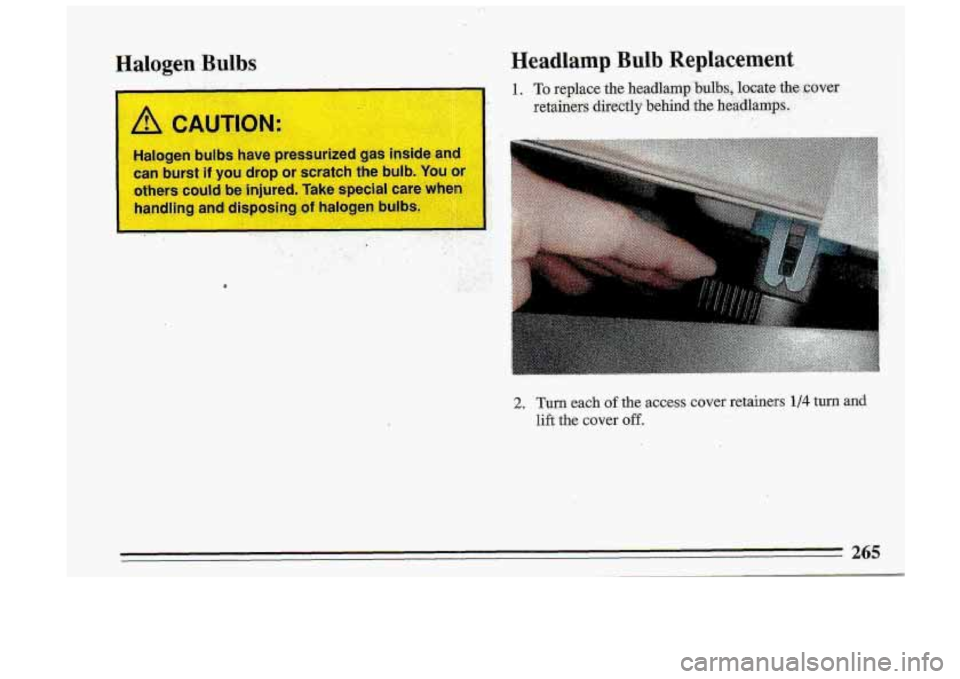

Halagen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or I
others could be injured. Take special care when
handling and
displssina of halogen bulbs. ll
Headlamp Bulb Replacement
2. Turn each of the access cover retainers 1/4 turn and
lift the cover off.

I

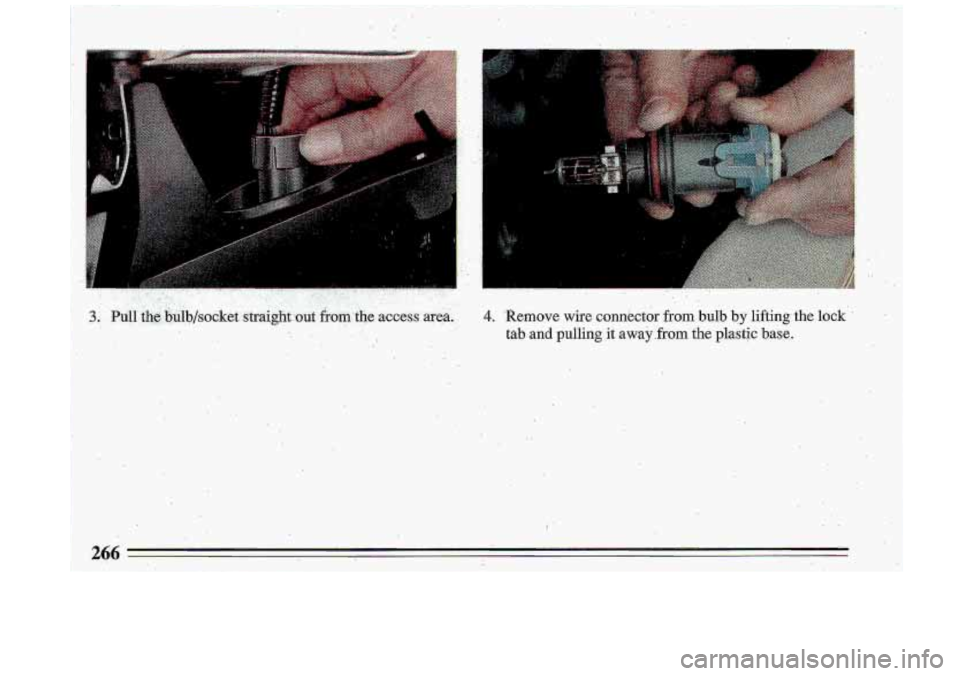

4. .Remove wjre connector from bulb by lifiingthe lock" -
tab and pulling it away .from the plastic base.

5. Bulb
I_ -. _I-
Replacement , . ..
. -.
j.! i I I. !

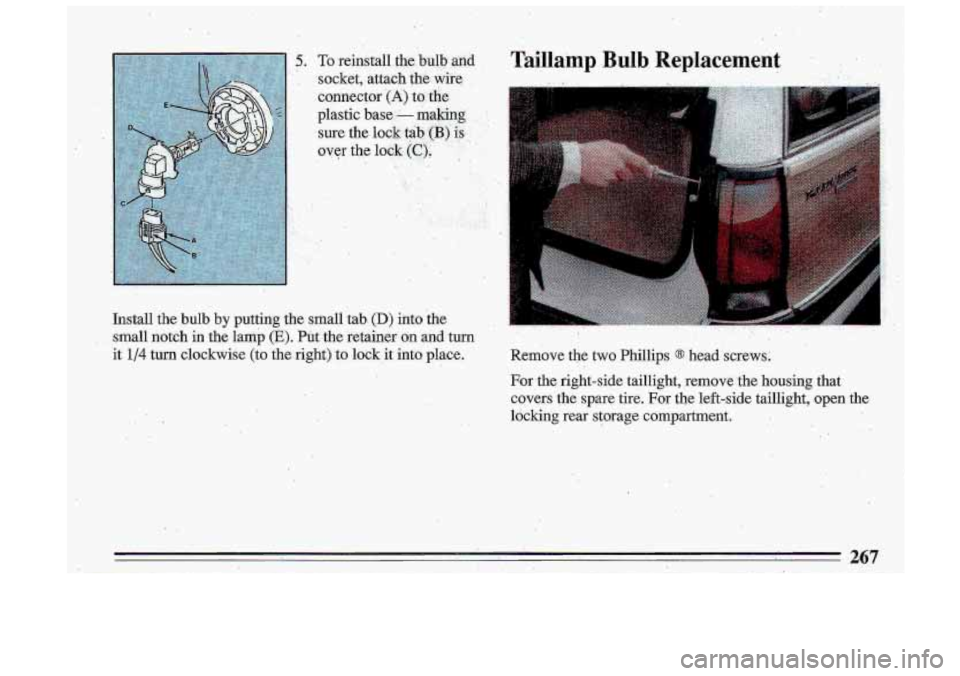

Install the bulb by putting the sriJall tab- (D) hto the J;: ~ I..' '
small notch in the lamb (E). PGt the 'retainer: on and. turn
. ..
it 1/4 tun clockwise (to the.right).'to lock it into place. Remove-the two Phillips @ head screws;
For .the right-side taillight, remove The housing that
covers the spare tire'. For the left-side taillight, open the
ldcking rear storage compartment.
267

. ,. , .. ., , ...

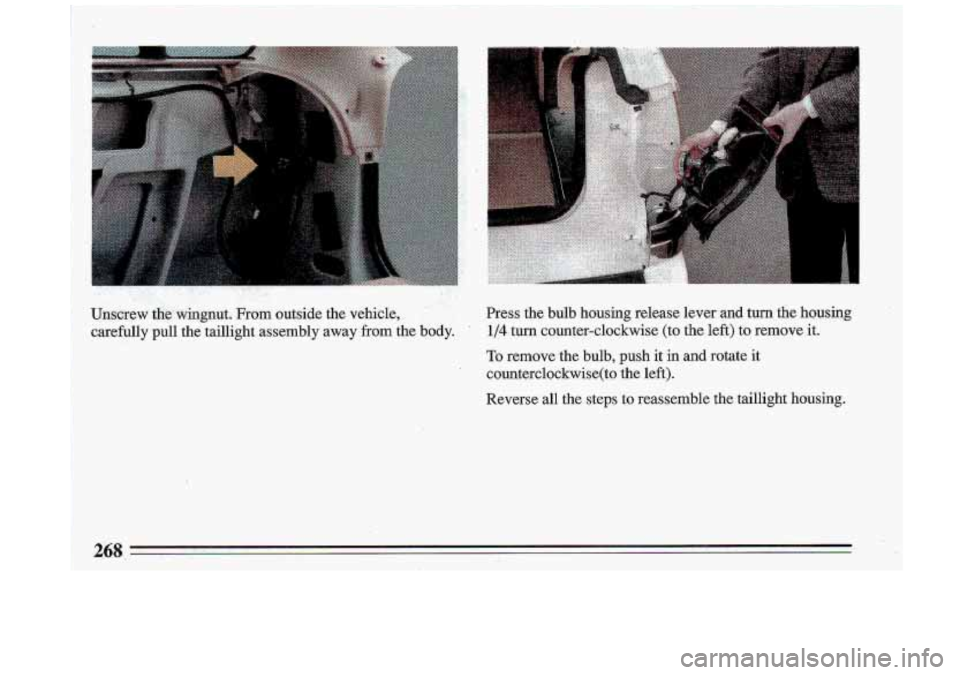

Unskrew .tht$wingnut. From outside the vehicle,,
carefully
pull the taillight assembly away from the body. Press the
bulb housing release lever and turn the housing
1/4.turn counter-clockwise (to the left) to remove it..
To remove the bulb, push it in and rotate it
counterclockwise(to the left).
Reverse
all the steps to reassemble the taillight housing.

Center High Mounted Stop Light
Replacement
Lift up the tailgate window. Unscrew the two screws. Bring down the bulb assembly. Pull a bulb out of.its
retainer and replace. Reverse the,steps to reassemble.
Loading Your Vehi.cIe
proper size, speed rating and recommended inflation
pressures for the tires
on your vehicle. It also gives you
important information about the number
of people that
can be in your vehicle and the total weight that you can
carry.
This weight is called the Vehicle Capacity Weight
and includes the weight of
all occupants, cargo, and all
nonfactory-installed options.
@I OCCUPAN'TS TIRE-LOADING
INF0,RMATlON
.
V:EHICLE CAP, WT.
FRT.. CTR. RR. TOTAL LBS. KG
1
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY
WEIGHT XXX COLD TIRE
TIRE SIZE
SPEED PRESSURE
.RTG PSI/KPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PSI/28KPa
SEE OWNER'S 'MANUAL FOR ADDITIONAL
INF0,RMATlON
ll]mp ,$$$#/:::
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found -on- the rear edge of the driver's door tells you the
Y
MFD BY GENER-At MOTORS CORP
DATE GVWR GAWR FRT GAWR
RR
THIS VEHICLE CONFORMS TO 'ALL APPLI- CABLE US. FE,DE.RAL MOT0.R'
VEH'ICLE
SAFETY, BU.MPER,-AND THiEFT PREVENTI0.N
STANDARD,S IN EFFECT ON THE DATE
OF
MANUFACTURE SHOWN ABOVE.
~i~,l\i$;~!~~!~
The other label is the Certification 'label, found on the'
rear edge of the driver's do,ar. It tells you the gross
weight capacity
of your vehicle, called the GVWR
(Gross Vehicle' Weight Rating). The GVWX includes the.
weight of the vehicle, all occupants, fuel and cargo.
269

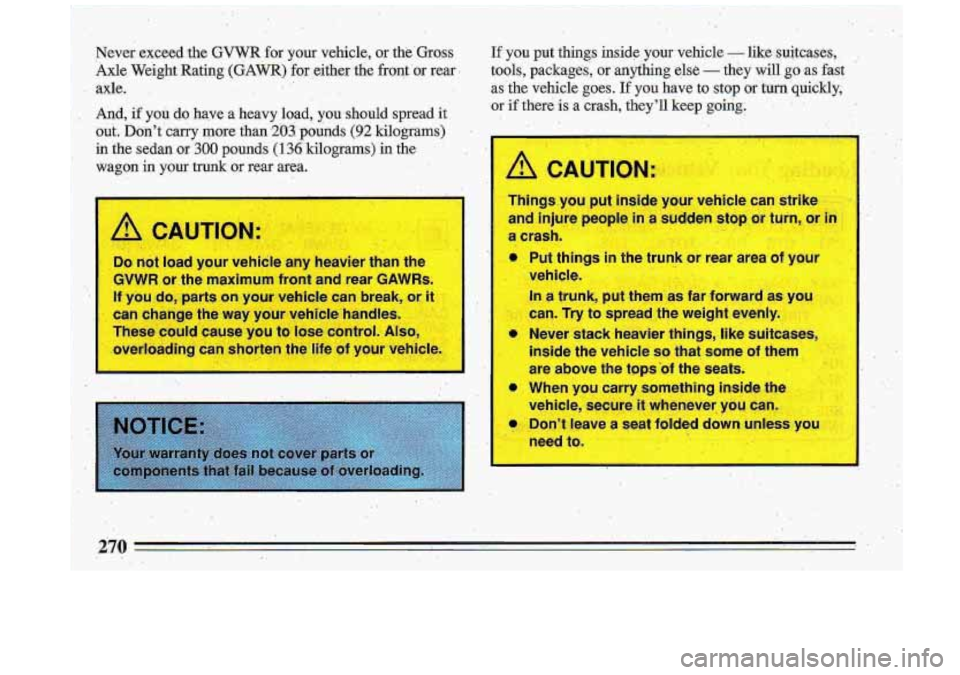

Never exceed the GVWR for.your vehicle, or the"Gross If you put things inside your vehicle - like.suitcases, .,
Axle Weight Rating (GAWR) for ,either the front 'or rear. tools, packages, or anything else - they will go ,as fast '
I -. axle.. as 'the
vehicle goes. If you have to stop or turn quickly,
, And, if you do have a heavy load, you-should spread it
1 . out. Don't 'carry more than.2'03 pounds (92 kilograms)
. wagon in your trunk or rear area. '8
or if.there is a crash, they'll keep goirig. I.
.. .
in the sedan or 300 pounds (136 kilograms-) in the m - .1
: II
A CAUTION:
i I)
Do not load your vehicle any heavier than the
GVWR or the maximum front and rear GAWRs. I
If you do, parts on your vehicle can break, or it
can change the way your vehicle handles.
These could'cause you to lose control.
Also,
.overloadina can shorten the li of vow vehic
(!a CAUTIO1
Things.y Jt inside your vehicle can 'ikt
and injure people in a sudden stop or tuln lr i~
a crash.
the trunk or rear area of your
0 Put things
vehicle.
In a trunk, put.thern'as far forward as vou
can. Try to spread the weight evenly,
* Never stack heavier things, like suitcas,,
inside the vehicle
so that some sf them
are above the tops'of the seats.
When you carry somet,hing inside
thd
vehicle, secure it whenever. you can.
9 Don't lei-? a seat folded down unless yo1
need to.
I
