1993 BUICK RIVIERA Owners Manual

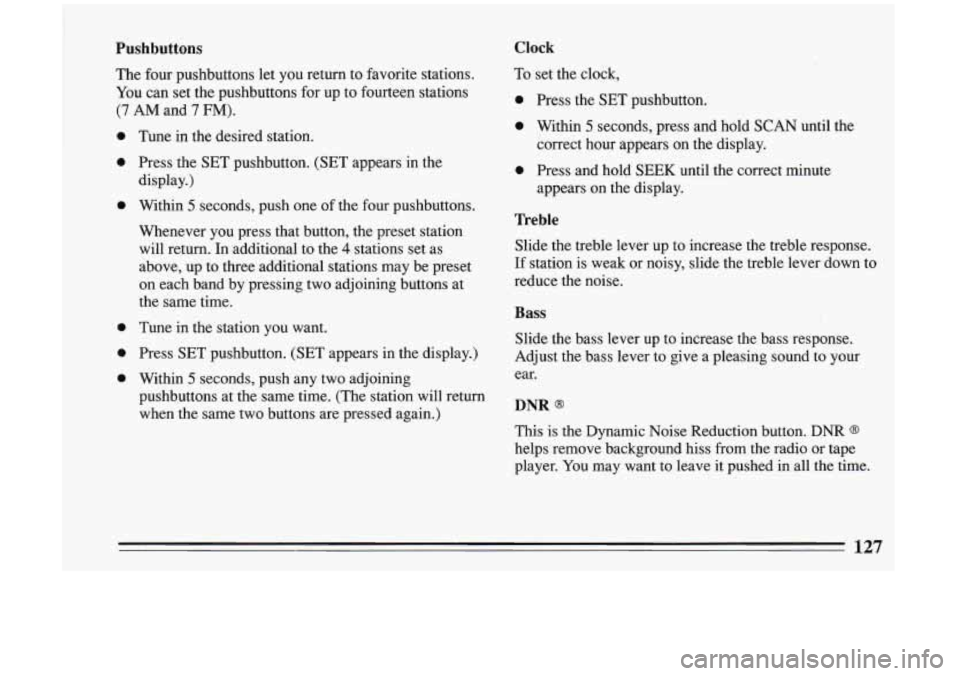

Pushbuttons
The four pushbuttons let you return to favorite stations.
You can set the pushbuttons for up to fourteen stations
(7 AM and 7 FM).
0
0
0
0
0
0
Tune in the desired station.
Press the SET pushbutton. (SET appears in the
display.)
Within
5 seconds, push one of the four pushbuttons.
Whenever you press that button, the preset station
will return. In additional to the
4 stations set as
above, up to three additional stations may be preset
on each band by pressing two adjoining buttons at
the same time.
Tune in the station you want.
Press SET pushbutton. (SET appears in the display.)
Within
5 seconds, push any two adjoining
pushbuttons at the same time. (The station will return
when the same two buttons are pressed again.)
Clock
To set the clock,
0 Press the SET pushbutton.
0 Within 5 seconds, press and hold SCAN until the
0 Press and hold SEEK until the correct minute correct hour appears on
the display.
appears on the display.
Treble
Slide the treble lever up to increase the treble response.
If station is weak or noisy, slide the treble lever down to
reduce the noise.
Bass
Slide the bass lever up to increase the bass response.
Adjust the bass lever to give a pleasing sound to your
ear.
DNR Q
This is the Dynamic Noise Reduction button. DNR Q
helps remove background hiss from the radio or tape
player. You may want to leave
it pushed in all the time.
127

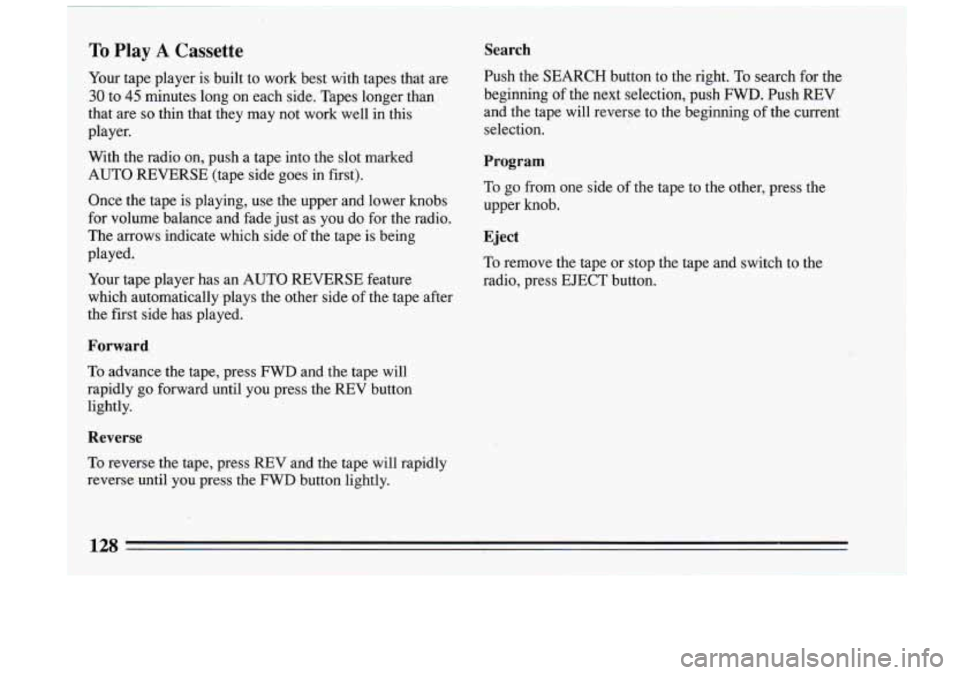

To Play A Cassette Search
Your tape player is built to work best with tapes that are Push the
~J3mcH button to the right. TO search for the
30 to 45 minutes long on each side. Tapes longer than beginning
of the next selection, push FWD. Push REV
that are
so thin that they may not work well in this and
the tape will reverse to the beginning of the current
player. selection.
With the radio on, push a tape into the slot marked
AUTO REVERSE (tape side goes
in first).
Once the tape is playing, use the upper and lower knobs
for volume balance and fade just as you
do for the radio.
The arrows indicate which side
of the tape is being
Program
To go from one side of the tape to the other, press the
upper knob.
Eject
played.
Your tape player has an AUTO REVERSE feature radio, press EJECT but\
ton.,
which automatically plays the other side of the tape after
the first side has played. To
remove the tape or stop the tape and switch to the
Forward
To advance the tape, press FWD and the tape will
rapidly
go forward until you press the REV button
lightly.
..
Reverse
To reverse the tape, press REV and the tape will rapidly
reverse until you press the
FWD button lightly.
128

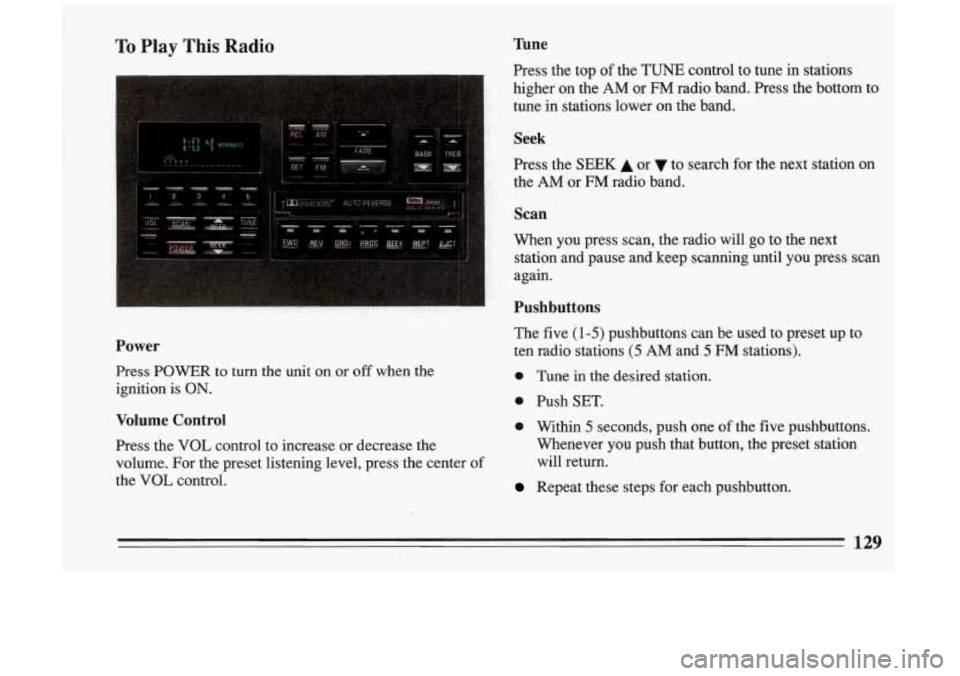

To Play This Radio
Power
Press POWER to turn the unit on or off when the
ignition is
ON.
Volume Control
Press the VOL control to increase or decrease the
volume. For the preset listening level, press the center of
the
VOL control.
Tune
Press the top of the TUNE control to tune in stations
higher
on the AM or FM radio band. Press the bottom to
tune in stations lower
on the band.
Seek
Press the SEEK A or to search forthe next station on
the AM,or FM radio band.
Scan
When you press scan, the radio will go to the next
station and pause and keep scanning until you press scan
again.
Pushbuttons
The five (1-5) pushbuttons can be used to preset up to
ten radio stations
(5 AM and 5 FM stations).
0 Tune in the desired station.
0 Push SET.
0 Within 5 seconds, push one of the five pushbuttons.
Whenever you push that button, the preset station
will return.
Repeat these steps for each pushbutton.
129

Setting The Clock
To set the clock:
Push SET (with the ignition on and the radio off').
Within 5 seconds, push and hold SEEK A or until
Press and hold SCAN until the correct minute the correct hour appears.
appears.
Recall
1 Press RCL to change the display between the clock and
the radio station frequency, when the radio is on. To
display the time with the ignition
off, press RCL.
AM-FM
Press the AM or FM buttons to select either the AM or
FM radio band. If the station is in stereo, a STEREO
indicator will also be displayed.
Fade
Press the top or the bottom of the FADE control to
adjust the balance between front and rear speakers. Press
the center
of the control to restore equal speaker sound
balance. Balance between the left and right speakers is
preset and is not adjustable.
Bass
Press the.BASS A or v to increase or decrease bass
tones. For the
BASS preset setting, press the center of
the control.
Treble
Press the TREB A or v to increase or decrease treble
tones. Press the center
of the TREB control for the
preset level.
To Play A Cassette
Tape equalization is automatically sensed and set.
Insertion
of a ta e also automatically disables DNR@
and activates &-Dolby
@ noise reduction. Note the
tape travel arrow. The tape will be traveling in that
direction until it reaches the end and automatically
changes direction, or until you press the PROG button.
Press POWER to turn the unit
on. The radio will play
until a cassette is pushed into the cassette entry door (the
tape side goes
in first). Do not use tapes that are longer
than
92 minutes (46 minutes on each side).
Fwd (Forward)
Press FWD to advance the tape rapidly. Press FWD or
PROG again to play the tape. (The radio plays while a
tape is advancing.)
130

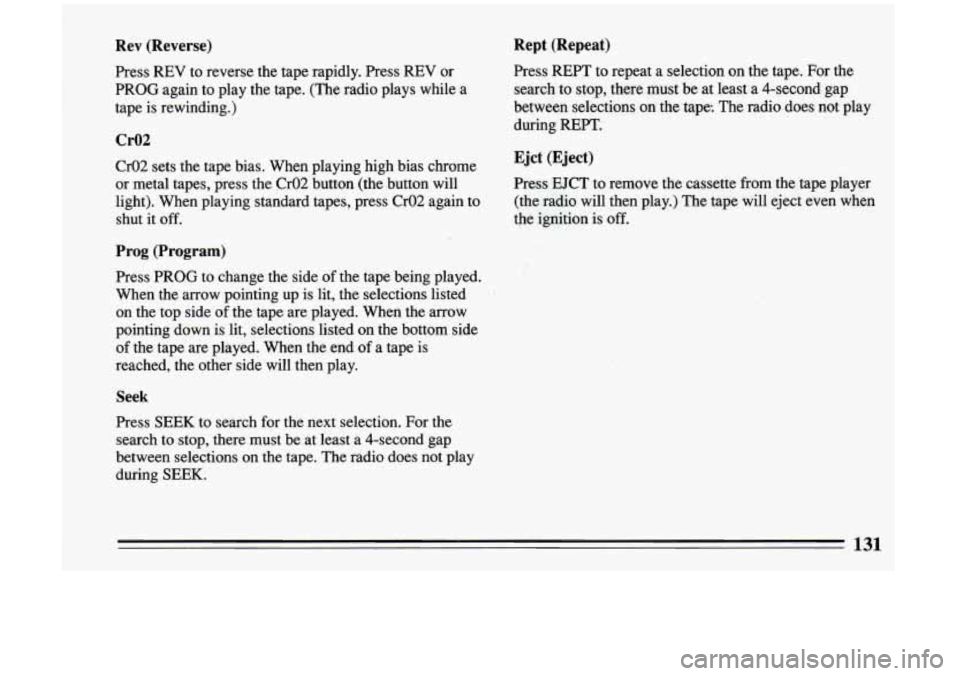

Rev (Reverse)
Press REV to reverse the tape rapidly. Press REV or
PROG again to play the tape. (The radio plays while a
tape is rewinding.)
Cr02
Cr02 sets the tape bias. When playing high bias chrome
or metal tapes, press the Cr02 button (the button will
light). When playing standard tapes, press Cr02 again .to
shut it off.
Prog (Program)
Press PROG to change the side of the tape being played.
When the arrow pointing up is lit, the selections listed
on the top side of the tape are played. When the arrow
pointing down is lit, selections listed on the bottom side
of the tape are played. When the end of a tape is
reached, the other side will then play.
Seek
Press SEEK to search for the next selection. For the
search to stop, there must be at least a 4-second gap
between selections on the tape. The radio does not play
during SEEK.
Rept (Repeat)
Press REPT to repeat a selection on the tape. For the
search to stop, there must be at least a 4-second gap
between selections
on the tape. The radio does not play
during REPT.
Ejet (Eject)
Press EJCT to remove the cassette from the tape player
(the radio will then play.) The tape will eject even when
the ignition is
off.
131

To Play This Radio Tune
Press the top of the TUNE control to tune in stations
higher
on the AM or FM radio band. Press the bottom to
tune in stations lower on the band.
Seek
Press the SEEK A or to search for the next station on
the
AM or FM radio band.
Scan
When SCAN is pressed, the radio will go to the next
station and pause and keep scanning until
you press scan
again.
Pushbuttons
The five (1-5) pushbuttons can be used to preset up to
e Tune in the desired station.
Push SET.
Within 5 seconds, push one of the five pushbuttons.
Power ten radio stations (5 AM and 5 FM stations).
Press POWER to turn the unit on or
off when the
ignition
is ON.
Volume Control
Press the VOL control to increase or decrease the Whenever you push that button, the preset station
volume. For the preset listening level, press the center of will return.
the VOL control.
Repeat these steps for each pushbutton.
132

Setting The Clock
To set the clock:
0
0
0
Push SET (with the ignition on and the radio off).
Within 5 seconds, push and hold SEEK A or until
the correct hour appears.
Press and hold
SCAN until the correct minute
appears.
Recall
Press RCL to change the display between the clock and
the radio station frequency, when the radio is on.
To
display the time with the ignition off, press RCL.
AM-FM
Press the AM or FM buttons to select either the AM or
FM radio band. If the station is in stereo, a STEREO
indicator will also be displayed.
Balance
Press the left, right, front or rear speaker controls to
adjust speaker balance. Press the center of the control to
restore equal speaker sound balance.
Equalizer
Your equalizer enables you to adjust five separate sound
frequencies. Slide an equalizer control up to emphasize
a frequency, down to de-emphasize it. It's best to begin
with all the controls in the middle position, then adjust
each control as you like.
To Play A Cassette
Tape equalization is automatically sensed and set.
Insertion of a ta e also automatically disables
DNR@
and activates &-Dolby B@ noise reduction. Note the
tape travel arrow. The tape will be traveling in that
direction until it reaches the end and automatically
changes direction, or until
you press the PROG button.
Press POWER
to turn the 'unit on. The radio will play
until a cassette is pushed into the cassette entry door (the
tape side goes in first). Do not use tapes that are longer
than
92 minutes (46 minutes on each side).
Fwd (Forward)
Press FWD to advance the tape rapidly. Press FWD or
PROG again to play the tape. (The radio plays while a
tape is advancing.)
133

I

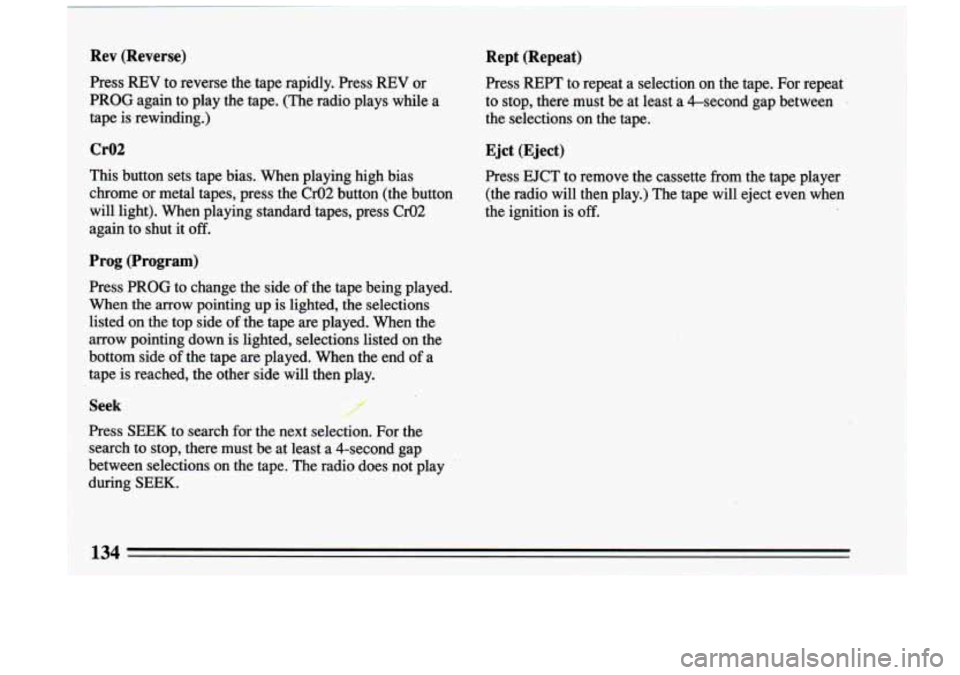

Rev (Reverse)
Press REV to reverse the tape rapidly. Press REV or
PROG again to play the tape. (The radio plays while
a
tape is rewinding.)
Cr02
This button sets tape bias. When playing high bias
chrome or metal tapes, press the
02 button (the button
will light).
When playing standard "tapes, press 02
again to shut it off.
Prog (Program)
Press PROG to change the side of the tape being played.
When the arrow pointing up is lighted, the selections
listed on the top side
of the tape are played. When the
arrow pointing down is lighted, selections listed on the
bottom side
of the tape are played. When the end of a
tape is reached, the other side
will then play.
Seek r""
Press SEEK to search for the next selection. For the
search to stop, there must be at leasf a.4-second gap
between selections on the tape. The radio does not play
during
SEEK.
Rept (Repeat)
Press REFT to repeat a selection on the tape. For repeat ".
to stop, there must be at least a &second gap between
the selections on the tape.
Ejct (Eject)
Press EJCT to remove the cassette from the tape player
(the radio will then play.)
The tape will eject even when
the ignition is
off.
