1993 BUICK PARK AVENUE Owners Manual

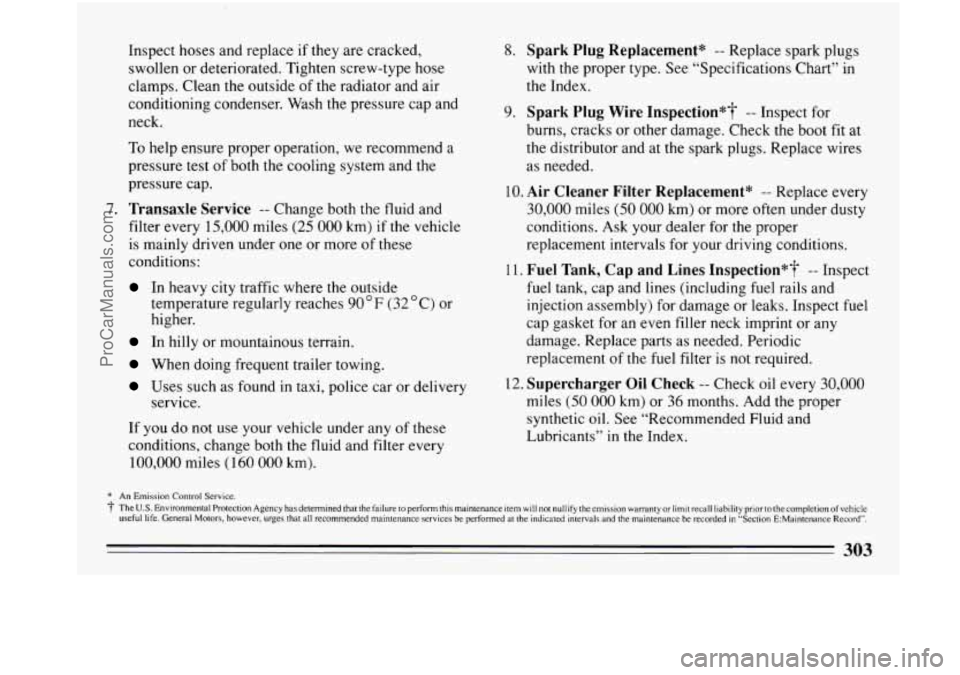

Inspect hoses and replace if they are cracked,
swollen or deteriorated. Tighten screw-type hose
clamps. Clean the outside of the radiator and air
conditioning condenser. Wash the pressure cap and
neck.
To help ensure proper operation, we recommend a
pressure test of both the cooling system and the
pressure cap.
7. Transaxle Service -- Change both the fluid and
filter every 15,000 miles (25
000 km) if the vehicle
is mainly driven under
one or more of these
conditions:
In heavy city traffic where the outside
temperature regularly reaches
90 OF (32 “C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police car or delivery
If you do
not use your vehicle under any of these
conditions, change both the fluid and filter every
100,000 miles
( 160 000 km).
service.
8. Spark
Plug Replacement* -- Replace spark plugs
with the proper type. See “Specifications Chart” in
the Index.
9. Spark Plug Wire Inspection*? -- Inspect for
burns, cracks or other damage. Check the boot fit at
the distributor and at the spark plugs. Replace wires
as needed.
10.
Air Cleaner Filter Replacement* -- Replace every
30,000 miles (50 000 km) or more often under dusty
conditions. Ask your dealer for the proper
replacement intervals for your driving conditions.
11.
Fuel Tank, Cap and Lines Inspection*? -- Inspect
fuel tank, cap and lines (including
fuel rails and
injection assembly) for damage or leaks. Inspect fuel
cap gasket for an even filler neck imprint or any
damage. Replace parts as needed. Periodic
replacement of the fuel filter
is not required.
12.
Supercharger Oil Check -- Check oil every 30,000
miles (50 000 km) or 36 months. Add the proper
synthetic
oil. S.ee “Recommended Fluid and
Lubricants’’ in the Index.
* An Emission Control Service.
? The U.S. Environmental Protection Agency has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of vehicle
useful life. General Motors, however, urges that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded in ‘‘Section E:Maintenance Record’‘.
303
ProCarManuals.com

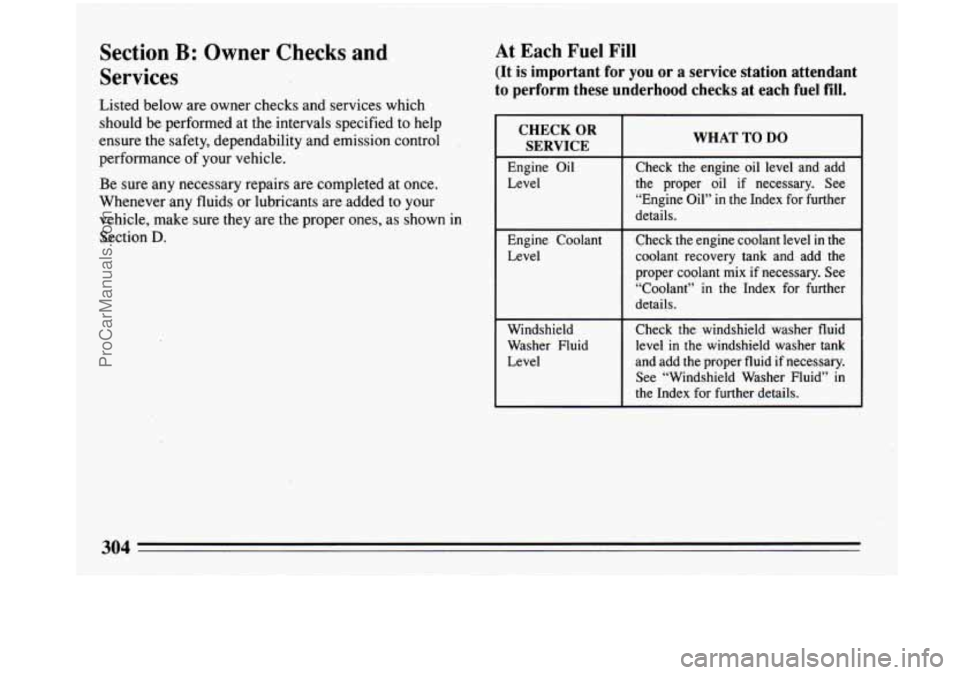

Section B: Owner Checks and
Services
Listed below are owner checks and services which
should be performed
at the intervals specified to help
ensure the safety, dependability and emission control
.
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Section D.
At Each Fuel Fill
(It is important for you or a service station attendant
to perform these underhood checks at each fuel
fill.
CHECK OR
SERVICE
Engine Oil
Level
Engine Coolant
Level
Windshield
Washer Fluid Level
WHAT TO DO
Check the engine oil level and add
the proper oil if necessary. See
“Engine Oil”
in the Index for further
details.
Check the engine coolant level
in the
coolant recovery tank and add the
proper coolant mix
if necessary. See
“Coolant” in the Index
for further
details.
Check the windshield washer fluid
level in the windshield washer tank
and add the proper fluid
if necessary.
See “Windshield Washer Fluid” in
the Index for further details.
304
ProCarManuals.com

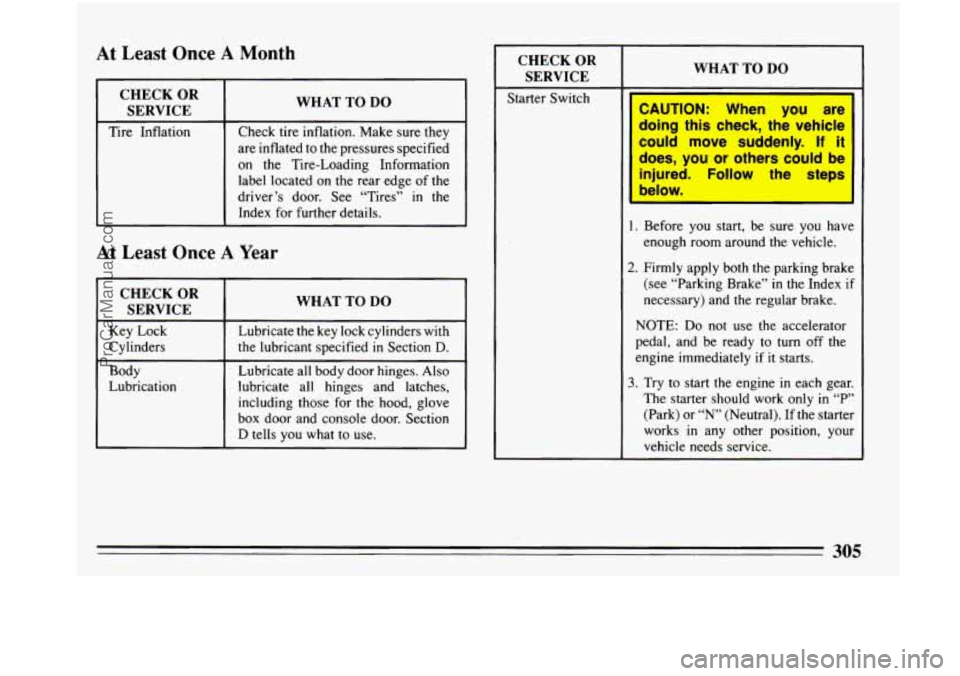

At Least Once A Month
WHAT TO DO
Tire Inflation Check
tire inflation. Make sure they
are inflated to
the pressures specified
on the Tire-Loading Information
label located
on the rear edge of the
driver’s door. See “Tires” in the
Index for further details.
At Least Once A Year
CHECK OR
SERVICE
I WHAT TO DO
Key Lock Lubricate the key lock cylinders with
Cylinders the lubricant specified in Section D.
Body Lubricate all body door hinges. Also
Lubrication lubricate all hinges and latches,
including those’ for the hood, glove
box door and console door. Section
D tells you what to use.
CHECK OR
SERVICE I WHAT TO DO
Starter Switch
I
1. Before you start, be sure you have
enough room around the vehicle.
2. Firmly apply both the parking brake
(see “Parking Brake”
in the Index if
necessary) and the regular brake.
NOTE:
Do not use the accelerator
pedal, and be ready to turn
off the
engine immediately
if it starts.
3. Try to start the engine in each gear.
The starter should work only
in “P”
(Park) or “N” (Neutral). If the starter
works in any other position, your
vehicle needs service.
ProCarManuals.com

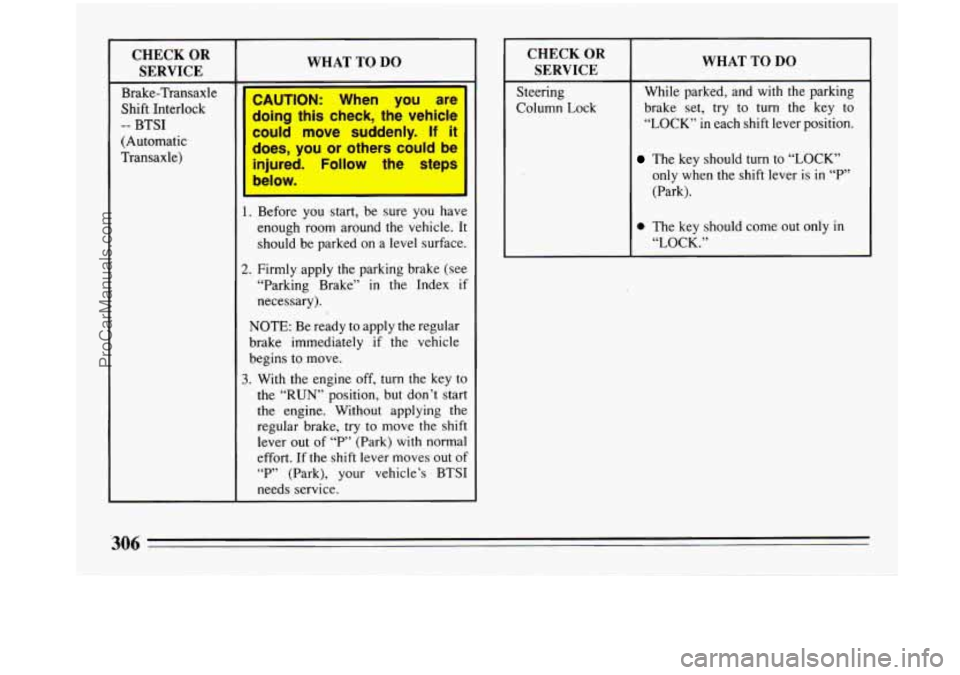

CHECK OR SERVICE
Brake-Transaxle
Shift Interlock
(Automatic
Transaxle)
-- BTSI
WHAT TO DO
I‘
injured. Follow the steps
below.
1. Before you start, be sure you have
enough room around the vehicle. It
should be parked on
a level surface.
2. Firmly apply the parking brake (see
“Parking Brake”
in the Index if
necessary).
NOTE: Be ready to apply the regular
brake immediately
if the vehicle
begins to move.
3. With the engine off, turn the key to
the
“RUN” position, but don’t start
the engine. Without applying the
regular brake,
try to move the shift
lever out of
“P’ (Park) with normal
effort. If the shift lever moves out
of
“P” (Park), your vehicle’s BTSI
needs service.
CHECK OR
SERVICE
Steering
Column Lock
WHAT TO DO
~ ~~
While parked, and with the parking
brake set, try to
turn the key to
“LOCK”
in each shift lever position.
The key should turn to “LOCK”
only when the shift lever
is in “P”
(Park).
0 The key should come out only in
“LOCK.”
ProCarManuals.com

CHECK OR
SERVICE
Parking Brake
and Automatic
Transaxle
“P”
(Park)
Mechanism
Check
WHAT TO DO
CAUTION: When you are doing
this check, your vehicle could
begin to mowe. You or others
could be injured and property
could
be damaged. Make sure
there is room
in front of your
vehicle in case it begins to roll.
Be ready to apply the regular
brake at once should the
vehicle begin to move.
Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on
the regular brake, set the
parking brake.
0 To check the parking brake: With
the engine running and transaxle
in“N” (Neutral), slowly remove
foot pressure from the regular
brake pedal.
Do this until the
vehicle is held by the parking brake
only.
To check the “P” (Park)
mechanism’s holding ability: Shift
to “P” (Park). Then release all
brakes.
CHECK OR
SERVICE
I WHAT TO DO
Underbody At least every spring, use plain water
Flushing to flush any corrosive materials from
the underbody. Take care to clean
thoroughly any areas where mud and
other debris can collect.
ProCarManuals.com

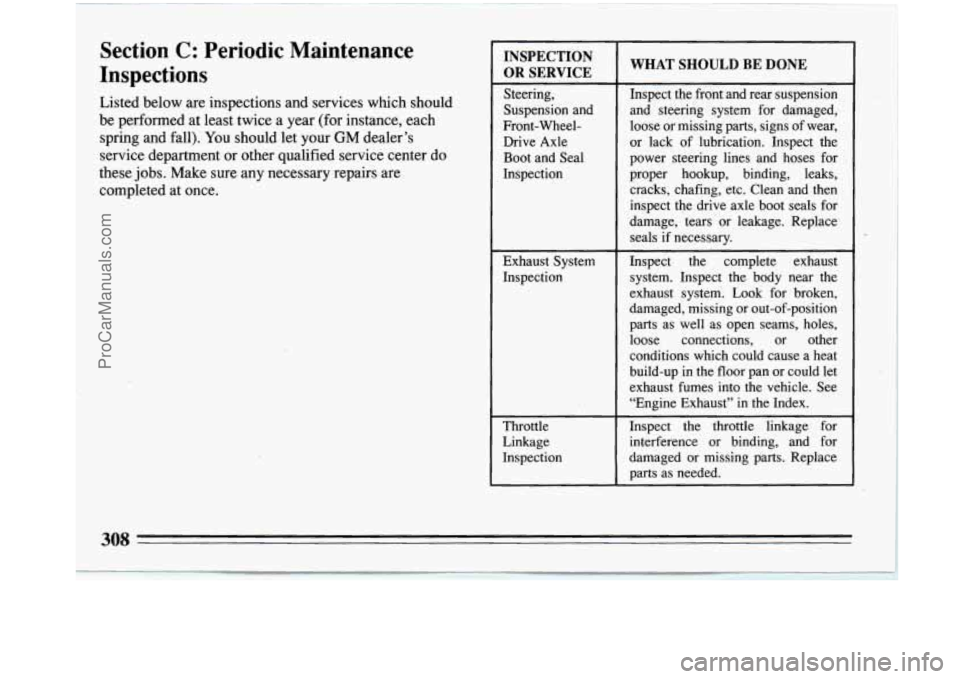

Section C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your
GM dealer’s
service department or other qualified service center do
these
jobs. Make sure any necessary repairs are
completed at once.
INSPECTION
OR SERVICE
Steering,
Suspension and
Front-Wheel-
Drive Axle
Boot and Seal
Inspection
Exhaust System
Inspection
Throttle Linkage
Inspection
WHAT SHOULD BE DONE
Inspect the front and rear suspension
and steering system for damaged,
loose or missing parts, signs of wear,
or lack of lubrication. Inspect the
power steering lines and hoses for
proper hookup, binding, leaks,
cracks, chafing, etc. Clean and then
inspect the drive axle boot seals for
damage, tears or leakage. Replace-
seals if necessary.
Inspect the complete exhaust
system. Inspect the body near the
exhaust system. Look for broken,
damaged, missing or out-of-position
parts as well as open seams, holes,
loose connections, or other
conditions which could cause a heat
build-up in the floor pan or could let
exhaust fumes into the vehicle. See
“Engine Exhaust” in the Index.
Inspect the throttle linkage for
interference
or binding, and for
damaged
or missing parts. Replace
parts as needed.
308
ProCarManuals.com

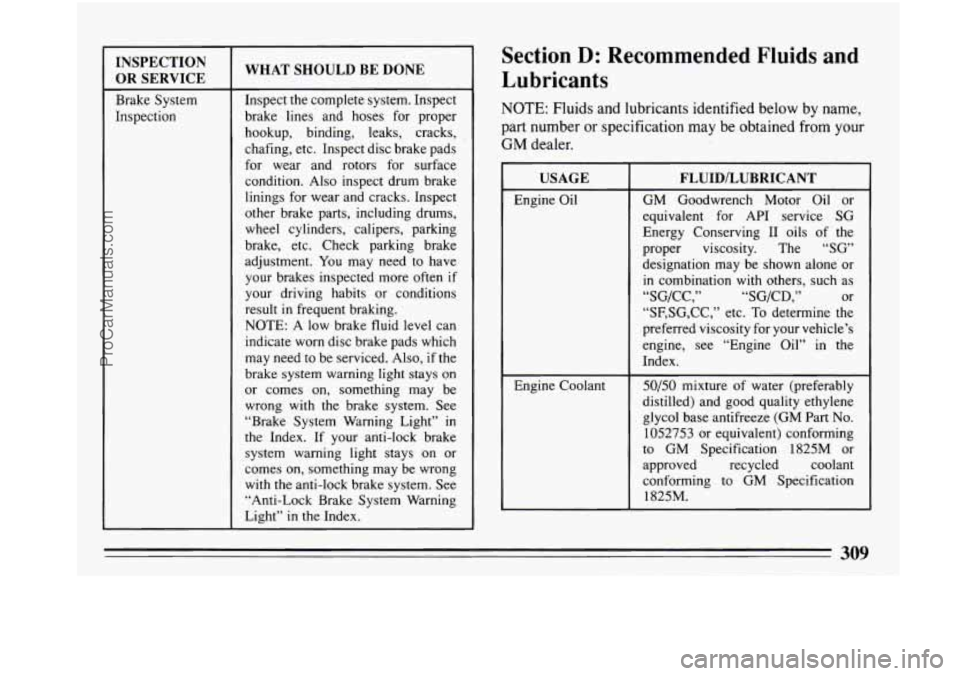

INSPECTION
OR SERVICE
Brake System
Inspection
WHAT SHOULD BE DONE
Inspect the complete system. Inspect
brake lines and hoses for proper
hookup, binding, leaks, cracks, chafing, etc. Inspect disc brake pads
for wear and rotors for surface
condition. Also inspect drum brake
linings for wear and cracks. Inspect
other brake parts, including drums,
wheel cylinders, calipers, parking
brake, etc. Check parking brake
adjustment.
You may need to have
your brakes inspected more often
if
your driving habits or conditions
result
in frequent braking.
NOTE: A low brake fluid level can
indicate worn disc brake pads which
may need
to be serviced. Also, if the
brake system warning light stays on
or comes
on, something may be
wrong with
the brake system. See
“Brake System Warning Light”
in
the Index. If your anti-lock brake
system warning light stays on or
comes on, something may be wrong
with
the anti-lock brake system. See
“Anti-Lock Brake System Warning
Light”
in the Index.
Section D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
FLUID/LUBRICANT
GM Goodwrench Motor Oil or
equivalent for API service SG
Energy Conserving I1 oils of the
proper viscosity. The
“SG”
designation may be shown alone or
in combination with others, such as
“SG/CC,” “SG/CD,”
or
“SF,SG,CC,” etc. To determine the
preferred viscosity for your vehicle’s
engine, see “Engine Oil” in the
Index.
50/50 mixture of water (preferably
distilled) and good quality ethylene
glycol base antifreeze (GM
Part No.
1052753 or equivalent) conforming
to GM Specification 1825M or
approved recycled coolant
conforming to GM Specification
1825M.
ProCarManuals.com

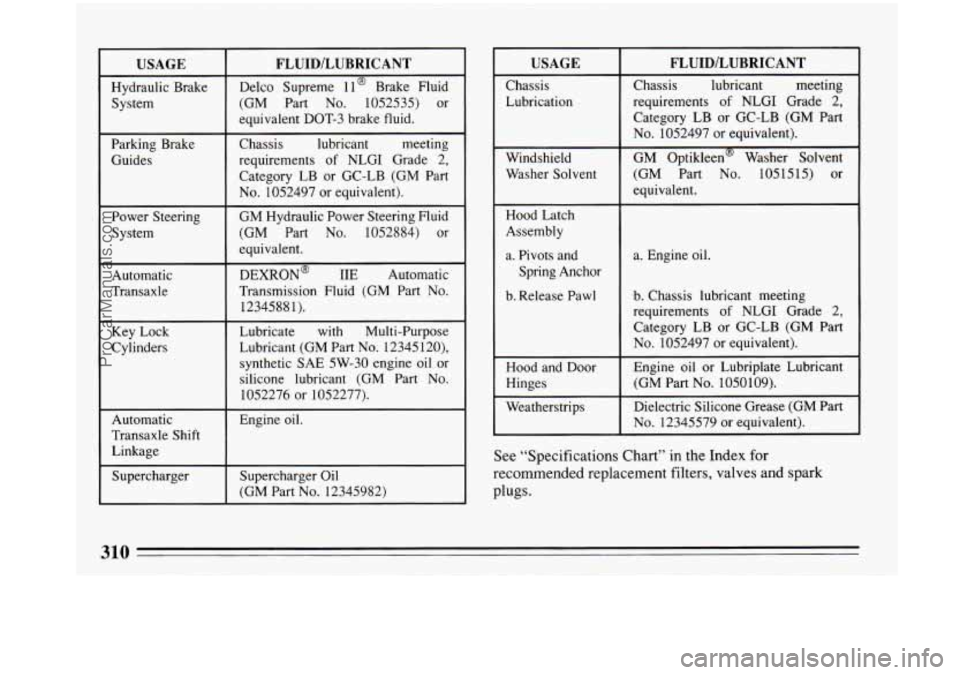

USAGE FLUID/LUBRICANT
Hydraulic Brake
System Delco
Supreme 1 l@ Brake Fluid
(GM Part
No. 1052535) or
equivalent DOT-3 brake fluid.
Parking Brake
Category LB or GC-LB (GM Part requirements
of NLGI Grade 2,
Guides Chassis
lubricant meeting
No. 1052497 or equivalent).
Power Steering GM
Hydraulic Power Steering Fluid
System (GM Part
No. 1052884) or
Automatic DEXRON@ IIE
Automatic
Transaxle Transmission Fluid (GM Part
No.
equivalent.
1234588 1).
Key Lock Lubricate with Multi-Purpose
Cylinders Lubricant
(GM Part
No. 12345120),
synthetic
SAE 5W-30 engine oil or
silicone lubricant (GM Part
No.
1052276 or 1052277).
Automatic
Transaxle Shift Engine
oil.
Linkage Supercharger Supercharger
Oil
(GM
Part No. 12345982)
USAGE
Chassis
Lubrication
Windshield Washer Solvent
Hood Latch
Assembly
a. Pivots and Spring Anchor
b. Release Pawl
Hood and Door
Hinges
Weatherstrips
FLUIDlLUBRICANT
Chassis lubricant meeting
requirements
of NLGI Grade 2,
Category LB or GC-LB (GM Part
No. 1052497 or equivalent).
GM Optikleen@ Washer Solvent
(GM Part No. 1051515) or
equivalent.
a. Engine oil.
b. Chassis lubricant meeting
requirements
of NLGI Grade 2,
Category LB or GC-LB (GM Part
No. 1052497 or equivalent).
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Dielectric Silicone Grease (GM Part
No. 12345579 or equivalent).
See “Specifications Chart” in the Index for
recommended replacement filters, valves and spark
plugs.
ProCarManuals.com
