1993 BUICK PARK AVENUE Owners Manual

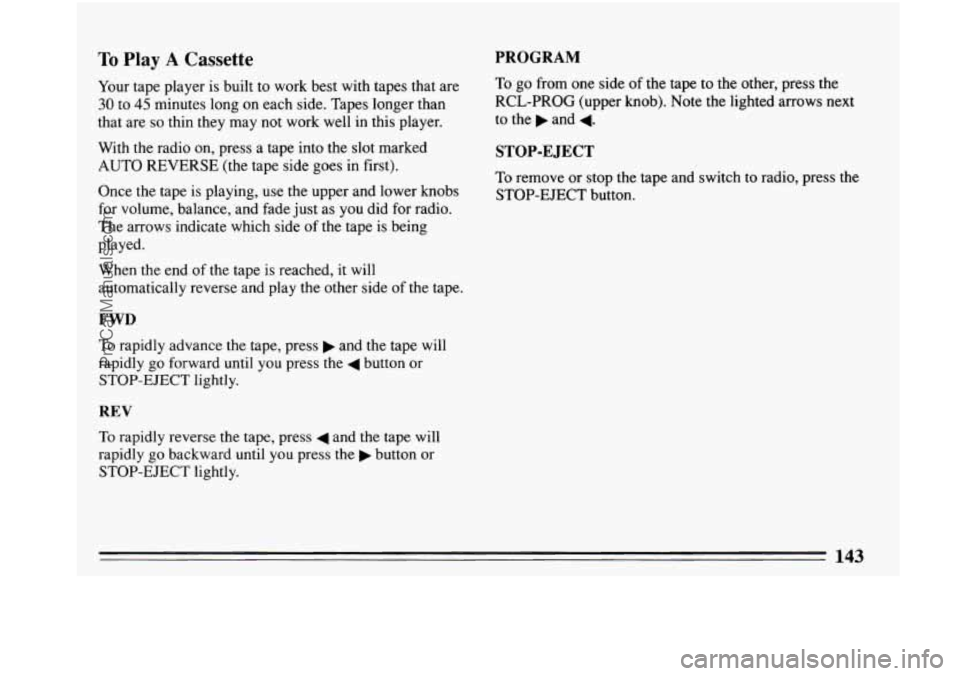

To Play A Cassette PROGRAM
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
With
the radio on, press a tape into the slot marked
AUTO REVERSE (the tape side goes in first).
Once the tape is playing, use the upper and lower knobs
for volume, balance, and fade just as you did for radio.
The arrows indicate which side
of the tape is being
played.
When the end of the tape is reached, it will
automatically reverse and play the other side of the tape.
FWD
To rapidly advance the tape, press b and the tape will
rapidly go forward until you press the 4 button or
STOP-EJECT lightly.
REV
To rapidly reverse the tape, press 4 and the tape will
rapidly go backward until you press the b button or
STOP-EJECT lightly.
To go from one side of the tape to the other, press the
RCL-PROG (upper knob). Note the lighted
arrows next
to the and
4.
STOP-E JECT
To remove or stop the tape and switch to radio, press the
STOP-EJECT button.
143
ProCarManuals.com

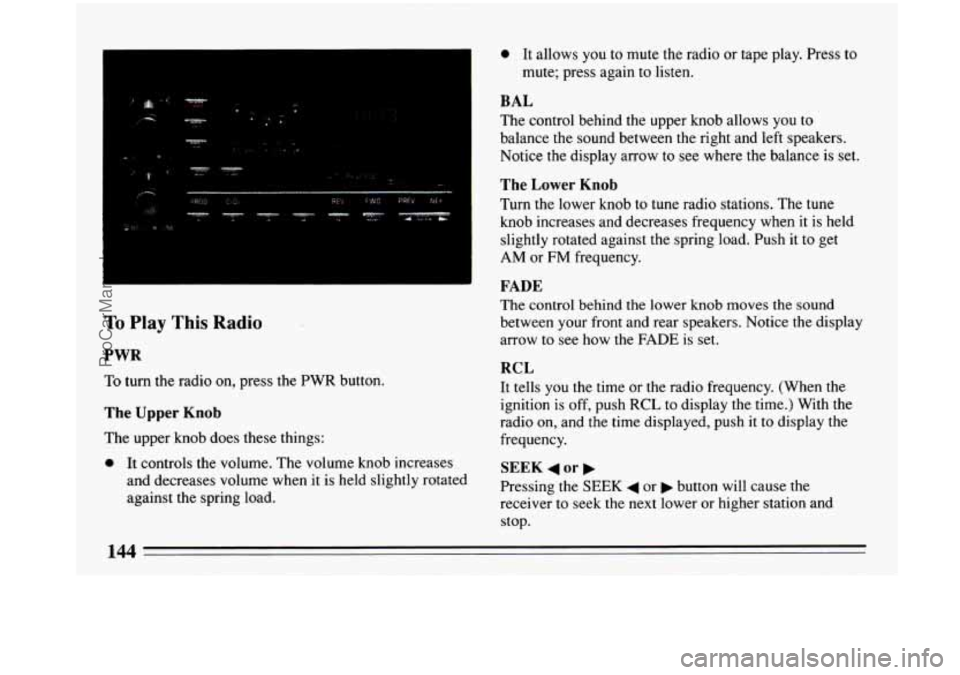

To Play This Radio
PWR
To turn the radio on, press the PWR button.
The Upper Knob
0 It allows you to mute the radio or tape play. Press to
mute; press again to listen.
BAL
The control behind the upper knob allows you to
balance the sound between the right and left speakers.
Notice the display arrow to
see where the balance is set.
The Lower Knob
Turn the lower knob to tune radio stations. The tune
knob increases and decreases frequency when it is held
slightly rotated against the spring load. Push it to get
AM or FM frequency.
FADE
The control behind the lower knob moves the sound
between your front and rear speakers. Notice the display
arrow to see how the
FADE is set.
RCL
It tells you the time or the radio frequency. (When the
ignition is off, push RCL to display the time.) With the
radio on, and the time displayed, push it to display the
frequency.
SEEK 4 or b
Pressing the SEEK 4 or b button will cause the
receiver to seek the next lower or higher station and
stop.
The
upper knob does these things:
0 It controls the volume. The volume knob increases
and decreases volume when it is held slightly rotated
against the spring load.
144
ProCarManuals.com

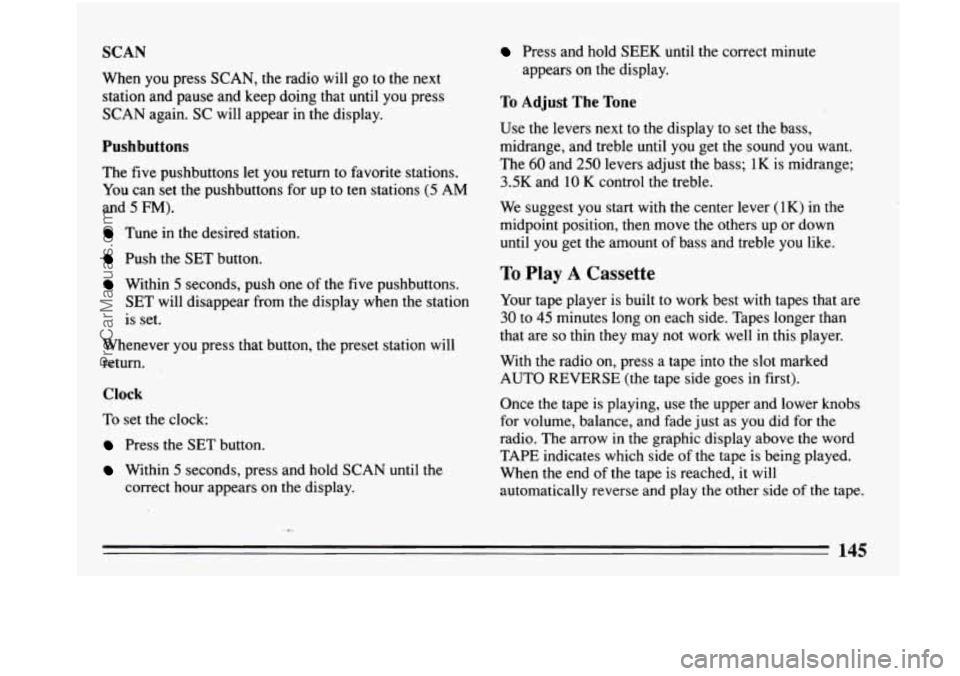

SCAN
When you press SCAN, the radio will go to the next
station and pause and keep doing that until
you press
SCAN again. SC will appear in the display.
Pushbuttons
The five pushbuttons let you return to favorite stations.
You can set the pushbuttons for up to ten stations (5 AM
and 5 FM).
Tune in the desired station.
Push the SET button.
Within 5 seconds, push one of the five pushbuttons.
SET will disappear from the display when the station
is set.
Whenever you press that button, the preset station will
return.
Clock
To set the clock:
Press the SET button.
Within 5 seconds, press and hold SCAN until the
correct hour appears on the display.
Press and hold SEEK until the correct minute
appears
on the display.
To Adjust The Tone
Use the levers next to the display to set the bass,
midrange, and treble until
you get the sound you want.
The
60 and 250 levers adjust the bass; 1K is midrange;
3.5K and 10 K control the treble.
We suggest you start with the center lever
(1K) in the
midpoint position, then move the others up or down
until you get the amount of bass and treble you like.
To Play A Cassette
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
With the radio on, press a tape into the slot marked
AUTO REVERSE (the tape side goes in first).
Once the tape is playing, use the upper and lower knobs
for volume, balance, and fade just as you did for the
radio. The arrow
in the graphic display above the word
TAPE indicates which side
of the tape is being played.
When the end of the tape is reached, it
will
automatically reverse and play the other side of the tape.
. -,
145
ProCarManuals.com

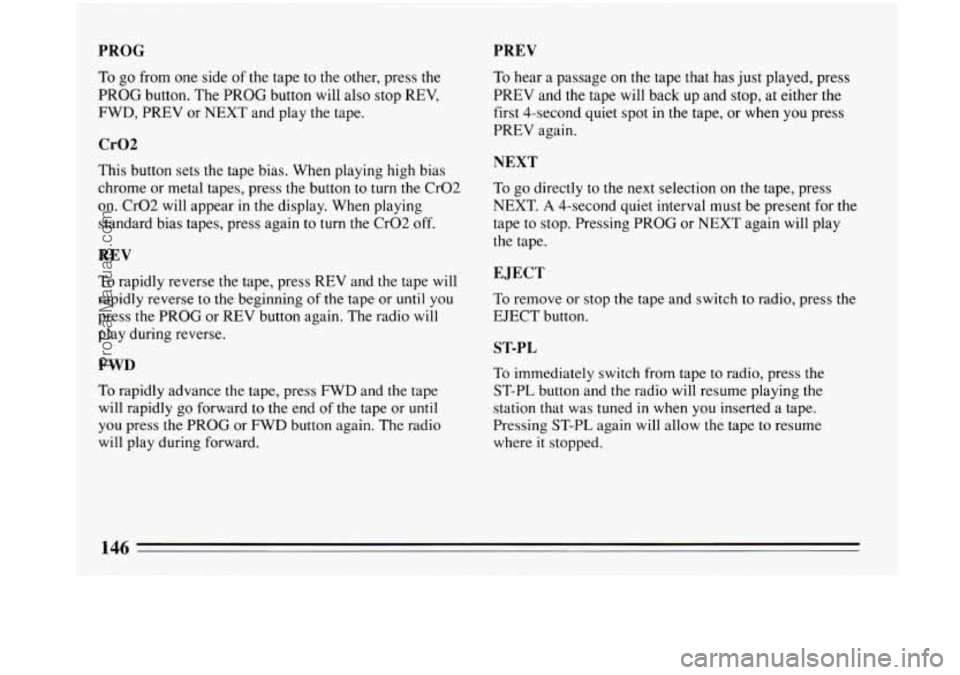

PROG PREV
To go from one
side of the tape to the other, press the
PROG button. The PROG button will also stop REV,
FWD, PREV or NEXT and play the tape.
Cr02
This button sets the tape bias. When playing high bias
chrome or metal tapes, press the button to turn the Cr02.
on. Cr02 will appear in the display. When playing
standard bias tapes, press again to turn the Cr02 off.
REV
To rapidly reverse the tape, press REV and the tape will
rapidly reverse to the beginning
of the tape or until you
press the PROG or REV button again. The radio will
play during reverse.
FWD
To rapidly advance the tape, press FWD and the tape
will rapidly go forward to the end
of the tape or until
you press the PROG or FWD button again. The radio
will play during forward,
To hear a passage on the tape that has just played, press
PREV and the tape will back up and stop, at either the
first 4-second quiet spot
in the tape, or when you press
PREV again.
NEXT
To go directly to the next selection on the tape, press
NEXT.
A 4-second quiet interval must be present for the
tape to stop. Pressing PROG or NEXT again will play
the tape.
EJECT
To remove or stop the tape and switch to radio, press the
EJECT button.
ST-PL
To immediately switch from tape to radio, press the
ST-PL button and the radio will resume playing the
station that was tuned in when you inserted a tape.
Pressing ST-PL again will allow the tape to resume
where
it stopped.
ProCarManuals.com

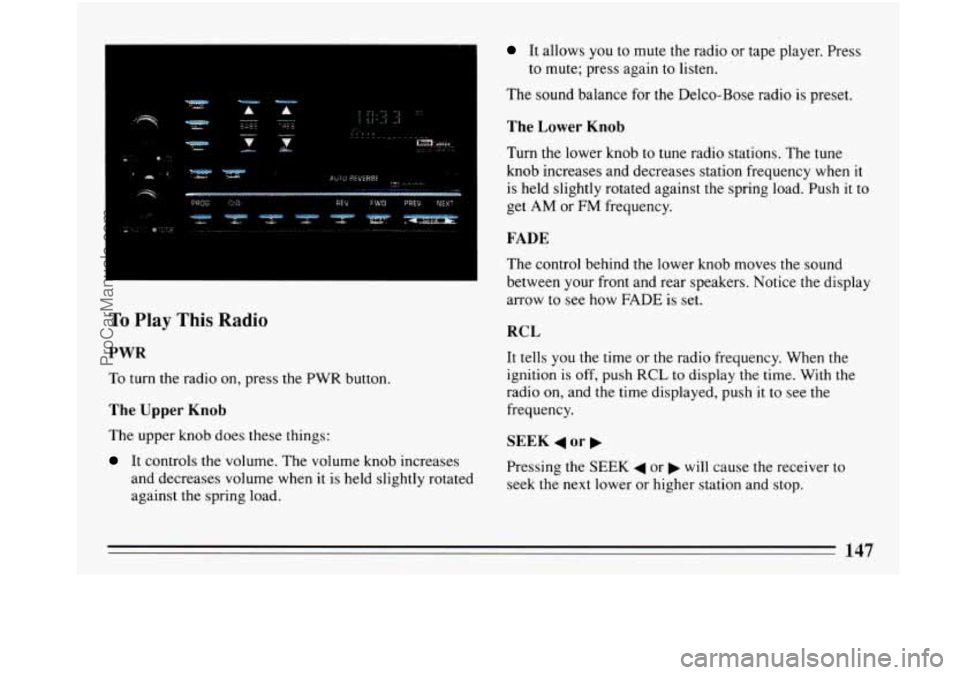

To Play This Radio
PWR
To turn the radio on, press the PWR button.
The Upper Knob
The upper knob does these things:
It controls the volume. The volume knob increases
and decreases volume when it is held slightly rotated
against the spring load.
It allows you to mute the radio or tape player. Press
The sound balance for the Delco-Bose radio is preset.
to
mute; press again to listen.
The Lower Knob
Turn the lower knob to tune radio stations. The tune
knob increases and decreases station frequency when it
is held slightly rotated against the spring load. Push
it to
get AM or
FM frequency.
FADE
The control behind the lower knob moves the sound
between your front and rear speakers. Notice the display
arrow to see how FADE is set.
RCL
It tells you the time or the radio frequency. When the
ignition is
off, push RCL to display the time. With the
radio on, and the time displayed, push it to see the
frequency.
SEEK 4 or b
Pressing the SEEK 4 or b will cause the receiver to
seek the next lower or higher station and stop.
ProCarManuals.com

SCAN Clock
When you press SCAN, the radio will go to the next
station and pause and keep doing that until
you press
SCAN again. SC will appear in the display.
Pushbuttons
The five pushbuttons let you return to favorite stations.
You can set the pushbuttons for up to ten stations
(5 AM
and
5 FM).
0 Tune in the desired station.
0 Press the SET pushbutton. (Note: The display will
shQw SET for about
5 seconds.)
0 Within 5 seconds, push one of the five pushbuttons.
SET will disappear from the display when the station
is set.
Whenever you press that pushbutton again, the preset
station will return. To
set the clock:
0 Press the SET pushbutton.
Within 5 seconds, press and hold SCAN until the
correct hour appears on the display.
0 Press and hold SEEK 4 or until the correct minute
appears on the display.
To Adjust The Tone
BASS adjusts the bass response up or down. TREB
adjusts the treble response up or down. If the station is
weak or noisy, adjust the TREBLE.down to reduce the
noise. Pressing either button in the center will set the
bass or treble
level to a factory preset level.
To Play A Cassette
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
With the radio on, press a tape into the
slot marked
AUTO REVERSE (the tape side goes in first).
ProCarManuals.com

Once the tape is playing, use the upper and lower knobs
for volume, and fade just
as you did for radio. The arrow
in the graphic.display above the word TAPE indicates
which side of the tape is being played. When the end
of
the tape is reached, it will automatically reverse and
play the other side of the tape.
PROG
To go from one side of the tape to the other, press the
PROG button. The PROG button will also stop REV,
FWD, PREV or NEXT and play the tape,
Cr02
This button sets the tape bias. When playing high bias
chrome or metal tapes, press the button to turn the Cr02
on. Cr02 will appear
in the display. When playing
standard bias tapes, press again to turn the Cr02 off.
REV
To reverse the tape, press REV and the tape will rapidly
reverse
to the beginning of the tape or until you press
the PROG or REV button again. The radio will play
during reverse.
FWD
To advance the tape, press FWD and the tape will
rapidly
go forward to the end of the tape, or until you
press the PROG or FWD button again. The radio will
play during forward.
PREV
To hear a passage on the tape that has just played, press
PREV and the tape will back up and stop, at either the
first 4-second quiet spot in the tape, or when you press
PROG or PREV again.
NEXT
To go directly to the next selection on the tape, press
NEXT.
A 4-second quiet interval must be present for the
tape to stop. Pressing PROG or NEXT again will play
the tape.
EJECT
To remove or stop the tape and switch to radio, press the
EJECT button.
ST-PL
To immediately switch from tape to radio, press the
ST-PL button and the radio will resume playing the
station that was tuned in when you inserted a tape.
Pressing
ST-PL again will resume playing the tape
where it was stopped.
ProCarManuals.com

4 'W .r.

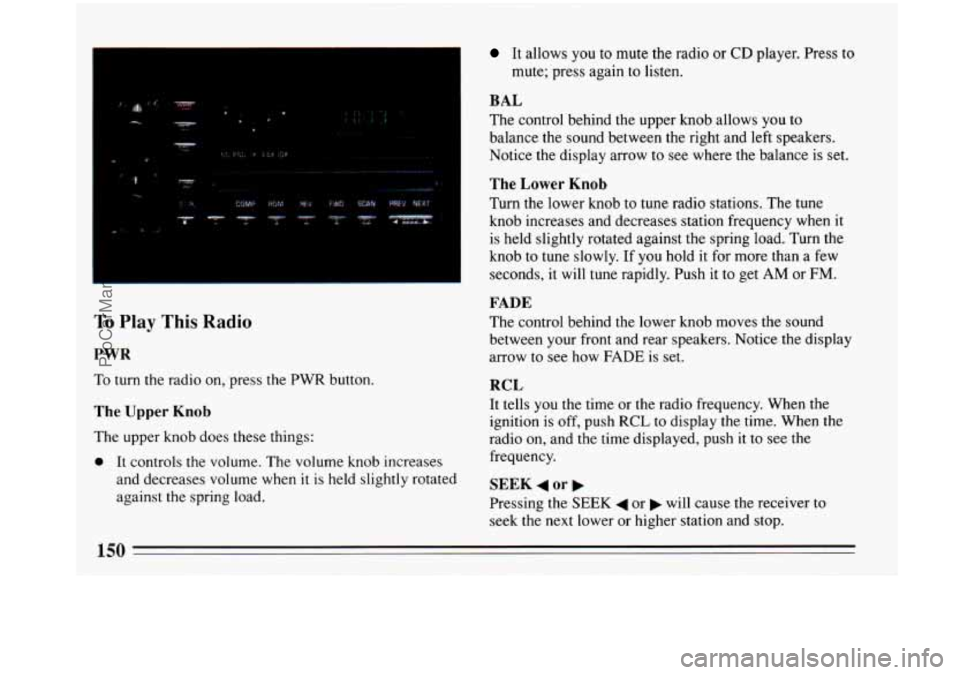

To Play This Radio
PWR
To turn the radio on, press the PWR button.
The Upper Knob
The upper knob does these things:
0 It controls the volume. The volume knob increases
and decreases volume when it is held slightly rotated
against the spring load.
It allows you to mute the radio or CD player. Press to
mute; press again to listen.
BAL
The control behind the upper knob allows you to
balance the sound between the right and left speakers.
Notice
the display arrow to see where the balance is set.
The Lower Knob
Turn the lower knob to tune radio stations. The tune
knob increases and decreases station frequency when it
is held slightly rotated against the spring load. Turn the
knob to tune slowly. If you hold it for more than a few
seconds, it will tune rapidly. Push it to get
AM or FM.
FADE
The control behind the lower knob moves the sound
between your front and rear speakers. Notice the display
arrow to see how FADE is set.
RCL
It tells you the time or the radio frequency. When the
ignition is
off, push RCL to display the time. When the
radio on, and the time displayed, push it to see the
frequency.
SEEK 4 or
Pressing the SEEK 4 or will cause the receiver to
seek the next lower or higher station and stop.
ProCarManuals.com
