1990 MAZDA 232 Workshop Manual Suplement

F2 TROUBLESHOOTING GUIDE
20 POOR ACCELERATION [BP TURBO]
IESCRIP- . Performance poor while accelerating
rm
l Idle condition normal
[TROUBLESHOOTING HINTS]
3 Wastegate always open or opens early @ Low intake air amount
3 Turbocharger damage
l Throttle valve not open fully
3 Factors other than engine malfunction *Clogged intake air system l
Ciutch slIpping @ Air/Fuel mixture Iean l Brake draggrng l fuel line pressure decreases
l low tire pressure l Fuel Injection malfunction
l Incorrect tire size @ Poor Ignition
. Overloaded vehicle @ Low engine compression
@ Atcohol blended fuel used
TEP INSPECTION ACTION
-l Install pressure gauge
in intake air pipe and I Yes
1 Go to Step 3
check boost pressure at engine speed of 4,000
rpm
w page F2-45
Boost pressure:
More than 2.0 kPa (0.02 kglcm2, 0.3 psi)
No Check for air leakage and exhaust gas
leakage
4 If OK, go to next step
4 If not OK, repair
2 Check wastegate w page F2-45
Yes Remove Intake air pipe from turbo-
charger and check if compressor wheel
rotates smoothly w page F2-46
c3 If OK, check air cleaner element
and throttle valve
4 If not ok, replace turbocharger
3 Check factors
other than engine
Yes Go to next step l Clutch stipprng l 5rake dragging l Low tire pressure
No l Incorrect ttre size Repair or adjust
FZ-36

TROUBLESHOOTING GUIDE F2
;TEP / t NSPECTION ACTION
4 i Check if throttle valve fully opens when depress- Yes Go to next step
rng accelerator fully
No Check if accelerator cabte is correctly
Installed *
-a If OK, check throttle body*
c=> If not OK, install accelerator cable
correctly*
5 Check if “00” fs dlsptayed on Self-Diagnosis
Yes Go to next step
Checker with ignition switch ON*
NO Malfunction Code No. displayed
SYSTEM SELECT: 1 Check for cause (Refer to specified
check sequence) *
“88” flashes
Check ECU terminal 1 F voltage
Voltage: Approx. f 2V
(Ignition switch ON) CT- page F2-60
i~sT SW: SELF TEST e If OK, replace ECU’
c3 ff not OK, check wiring between
ELECT SW: A ECU and Self-Diagnosis Checker
6 Check if continuity between throttle sensor termi- Yes Go to next step
nals IDt and E ts as shown’
7
Connect System Selector to diagnosis connector Yes Check if ignition timing advances when
and set Test Switch to “SELF TEST” and check accelerating
for correct ignition timing at idle after warm-up’
e If advances, go to next step
Ignitian timing: BTDC 10 f 1 D
=S If no advance, check ECU terminal
voltages
No Adjust
8
Check of ECU terminal voltages are OK Yes Go to next step
CT page F2-60
No Check for cause
9
Check for correct intake manrfold vacuum at idle Yes Go to next step
intake manifoId vacuum:
! More than 450 mmHg (17.7 inHg)
NO Check ior air leakage 07 intake air sys-
tem components
* Refer to 323 Workshop Manual [1203-IO-89F (Europe) or 1204-IO-89F (Australia)].
F2-37

F2 TROUBLESHUOTtNG GUIDE
check fuel pump maxi-
fuel line and filter for
pump and pressure
High pressure
Check if fuel line is clogged
II. Measure resistance
r--- ---_--es-,
DAMAGE AND
DETERIORATION
* Refer to 323 Workshop Manual f1203-1 O-89F (Europe) 12041U-89F (Australia)].
F2-38

TROUBLESl-lOOTING GUIDE F2
;TEP 1 INSPECT1ON
ACTION
13 Check if resistance of ignition coil 1s OK*
Yes Go to next step
Resistance (at 20°C iSS*FJ):
Primary coil winding . . . . . . . .
0.81~-0.99Q
Secondary coil winding,,.. 1 O--16 kR
PRIMARY COIL
WINDING SECONDARY COIL
WlNDlNG
NO Replace
14 Check for correct engine compression”
Yes Gc to next step
1 Engine compression (Minimum):
785 kPa (8.0 kg/cm , It4 psi)-300 ipm
NO Check engine condition” l Worn piston, piston rings or cylinder
wall
l Defective cylinder head gasket l Distorted cylinder head l Improper valve seating
*Valve sthing in guide
15 Change fuel and check if acceleration improves
Yes Change fuel to another brand
NO
Go to next step
16 Check if NC cut-off control system is OK’
Yes Go to next step
No Repair or replace
17
I Try known good ECU and check if condition
improves
* Refer to 323 Workshop Manual [1203-IO-89F (Europe) or i204-IO-89F (Australia)].
93GOF2-747
F2-39

F2 TROUBLESHOUTING GUIDE
I 22 KNOCKtNG [8P TURBO] I
IESCW-
l Abnormal combustron accompanied by audible “pinging” noise rim
TROUBLESHOOTING HtNTS]
3 incorrect ignition timing (Too advanced) @ Low octan fuel used
2
Knock control system malfunction @ Air/Fuel mixture lean
3 Carbon deposits in cylinder l Fuel injection amount not correct
3 Overheating l Fuel line pressure decreases while accelerating
TEP INSPECTION ACTlON
1
Connect System Selector to diagnosis connector Yes Go to next step
and set Test Switch to “SELF TEST” and check
for correct ignition timing at idle after warm-up’
ignition timing: BTDC 10 f lo
No Adjust
2 Check if “00” is displayed on Self-Diagnosis Yes Go to next step
Checker with igmtlon switch UN*
No Matf unction Code No. displayed
Check for cause (Refer to specified
check sequence) *
“88” flashes
Check ECU terminal 1 F voltage
Vottage: Approx. 12V
(Ignition switch ON) 0 page FZ-60
4 If OK, replace ECU
W: SELF TEST
4 If not OK, check wiring between
ECU and Self-Diagnosis Checker
3 Check for correct fuel line pressure at idle* Yes Check if fuel Iine pressure decreases
when accelerating quickly
Fuel line pressure:
265-314 kPa (2.7-3.2 kg/cm2, 38-46 psi)
(vacuum hose to pressure regulator dis-
connected) 4 If decreases, check for clogging
between fuel pump and pressure
regulator
e If no decrease, go to next step
No tow pressure Check
fuel line pressure while pinching
fuel return hose
3 If fuel line pressure quickly in-
creases, check pressure
regulator*
4 If fuel line pressure gradually in-
creases, check for clogging be-
tween fuel pump and
pressure
regutator
If not clogged, check fuel pump
maximum pressure*
- -
.-
Refer to 323 Workshop Manual [1203-IO-89f (Europe} or t204-IO-89f (Australia)]. F2-40

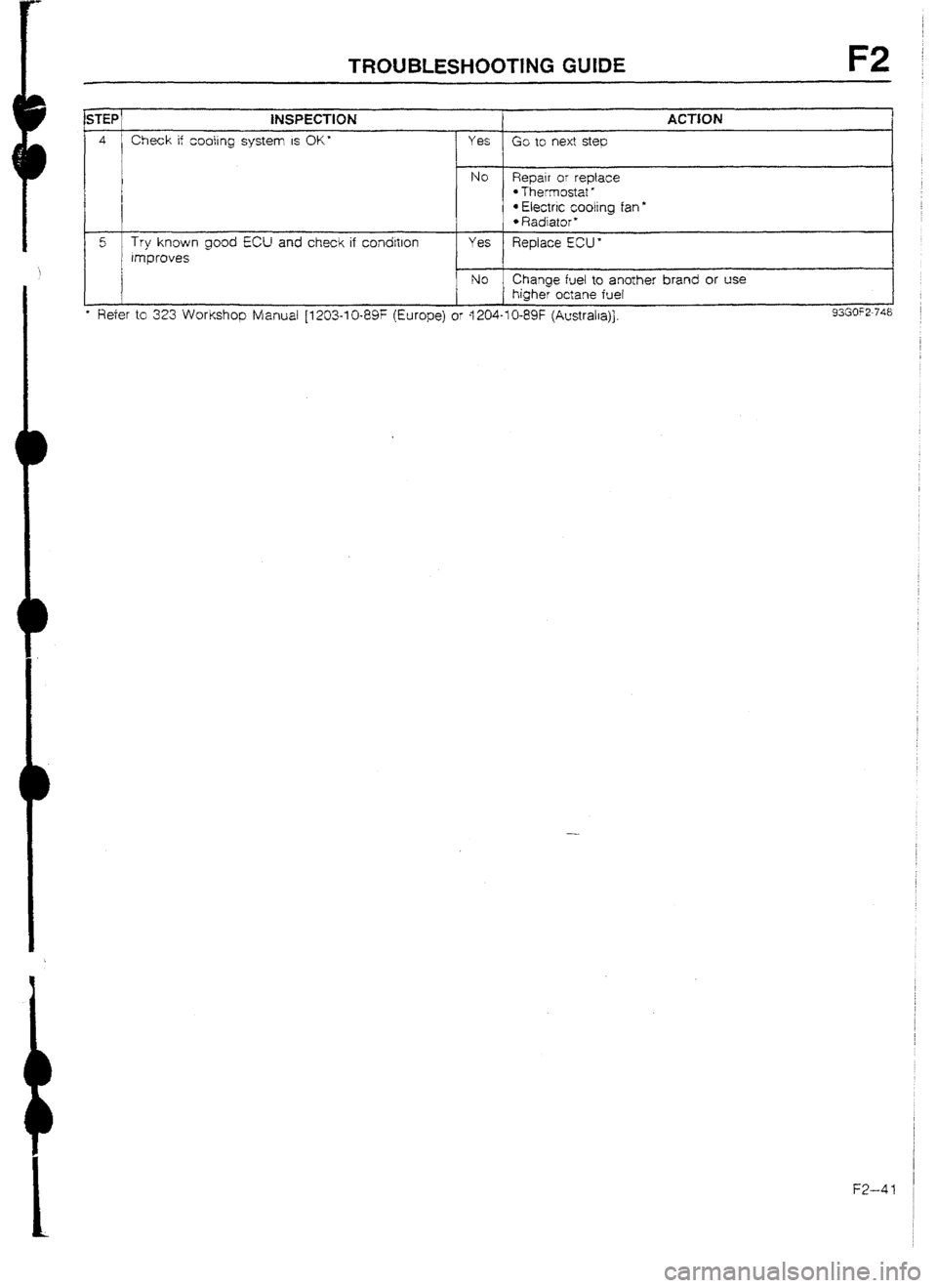

I
F2
fNSPECTlON ACTION
I Check if cootrng system IS OK’
YES Go to next step
No Repair or reptace
l Thermostat l
l Electric cooling fan * l Radiator*
5 Try known good ECU and check if condltlon Yes Replace ECU * rnproves
NO Change fuel to another brand or use
higher octane fuel
l Refer to 323 Workshop Manual [1203-l O-89F (Europe) or It 204-I O-89F (Australia)]. %%‘3OF2-748 -
F2-4 I

F2 TROUBLESHOOT1NG GUIDE
25 HIGH OIL CONSUMPTION [BP TURBO]
DESCRIP- 1
l Oil consumption excessive
TION l Exhaust gas white
TROUBLESHOOTING HINTS1
a PCV system malfunctton *
@ Englne malfunction (Oil
working up, working down, or leakage)
3 Oil leakage from turbocharger
ZEP [ INSPECTION Repair or
replace 1 Check if PCV hose, ventilation hose or their at-
taching nipples are separated, damaged,
ciogged, or restricted 2
Check insrde of air hose, air pipe, and intercool-
er for excesstve oil
3 1 Check white exhaust gas visible when ventilation
1 hose or PCV hose removed
1
4 Remove turbocharger and check at oil seals of
compressor and turbine shafi for oil leakage Yes
NO Yes
NO Yes
No Check hoses for clogged
Yes Replace turbocharger
NO
ACTION
Go to next step
Possibly oil working up
Check PCV valve and PCV hose for
clogged
+ If OK, go to next step
e If not UK, repalr or replace
Go to next step
Go to next step
Engine malfunction (Oil working up,
working down, or leakage)
Check foltowing
. Worn piston or cyiinder
l Worn piston ring groove’ l Stuck piston rings* l Worn vatve seal* l Worn valve stem * l Worn vatve guide’
* Refer to 323 Workshop Manual [1203-IO-89F (Europe) or 1204-IO-89F (Australra)].
93GOF2-74:
FZ-42

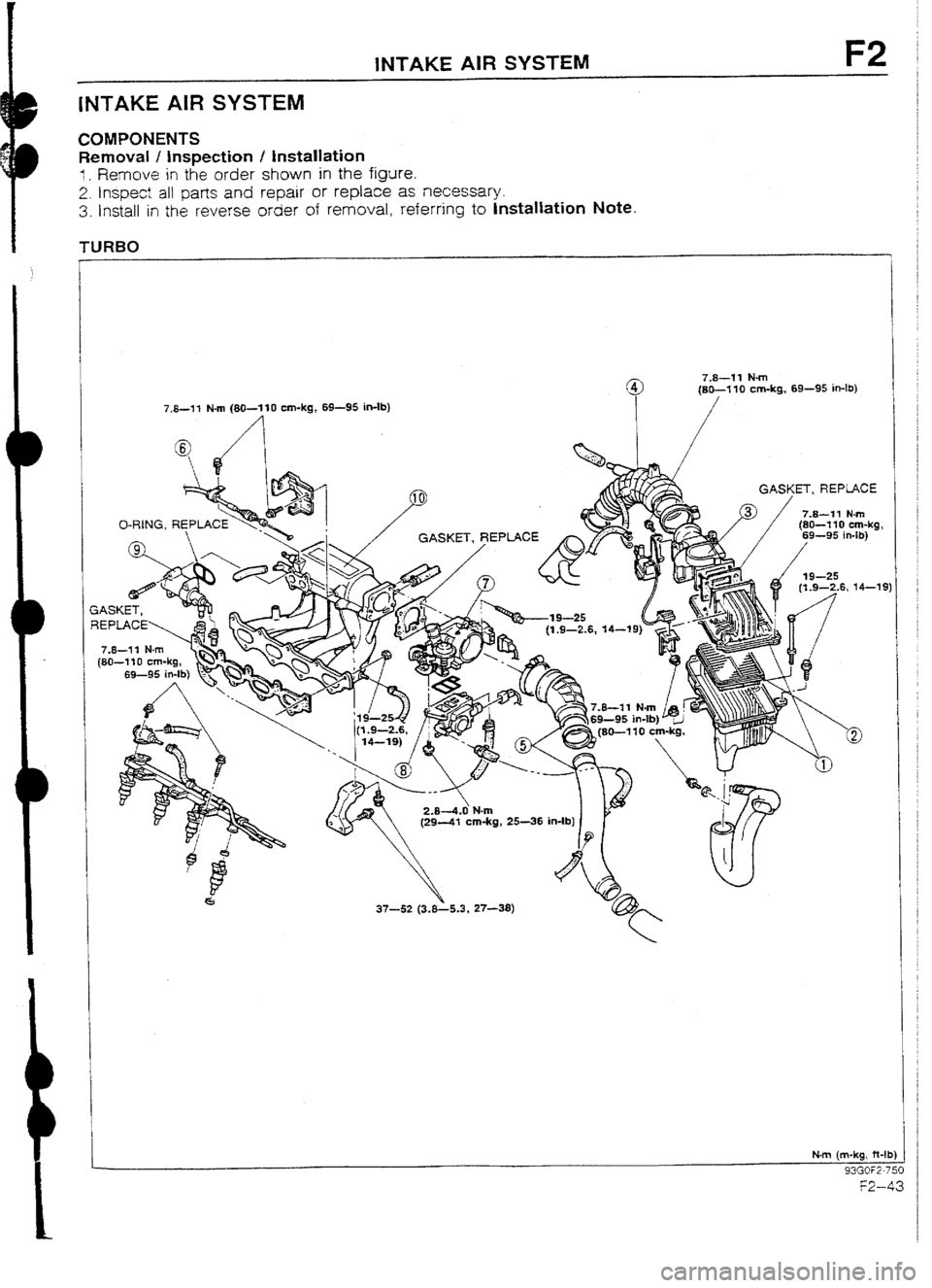

1NTAKE AIR SYSTEM F2
INTAKE AIR SYSTEM
COMPONENTS
Removaf / Inspection / installation
1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal, referring to Installation Note.
TURBO
I
@
7.8--11 N-m
(80-I 1 Cl cm-kg, 69-95 in-ltr)
7.8--f l N-m (SO-1 IO cm-kg, 69-95 in-lb)
/
N-m {m-kg. ft-
93GOF2-750
F2-43
