1990 MAZDA 232 Workshop Manual Suplement

E OUTLINE
ELECTRIC COCUNG FAN SYSTEM (BP DOHC TURBO)
System Circuit
I I
WITH A/C
r----‘-- -___- ---------.--------;
ADDITIONAL
FAN
MOTOR
I
II 1 A/C RELAY
RAD1ATdTHERMOSWITCH
ABOVE 105% I221 OF-): ON +IIAGNOSlS
CONNECTOR
WATER
THERMOSWlTCH
ABOVE 97% (207OF): ON
Operation 1. When the coolant temperature exceeds 97OC (207*F), the water thermoswitch turns ON to close the No.7
relay, and connects the + I and -1 terminals of the fan motor
connector. The fan motor turns at low
speed (about 1,660 rpm).
2. When the coolant temperature exceeds 105OC (221 OF), the radiator thermoswitch turns ON, to close the
No.2 and No.3 relays, and connects
the +2 and -2 terminals of the fan motor connector. The fan mo-
tor turns at high speed (about 2,200 rpm).
3. if the vehicle is equipped with air conditioning, the cooling fan motor operates whenever the
NC switch
and the blower switch are on, regardless of
the coolant temperature. Also, when the A/C switch and the blower switch are on, the A/C retay closes
to operate the additional fan
motur.
Note
l The water thermoswitch and the cooling fan reIay are normally-open switches.
Checking cooling fan operation 1. Jump across the TFA and the GND terminals
of the diagnosis connector with a jumper wire.
2. Turn the ignition switch to ON and verify that the cooling fan operates smoothly.
Note
l When the water thermoswitch connector is disconnected, the cooling fan wiif not operate.
E-8

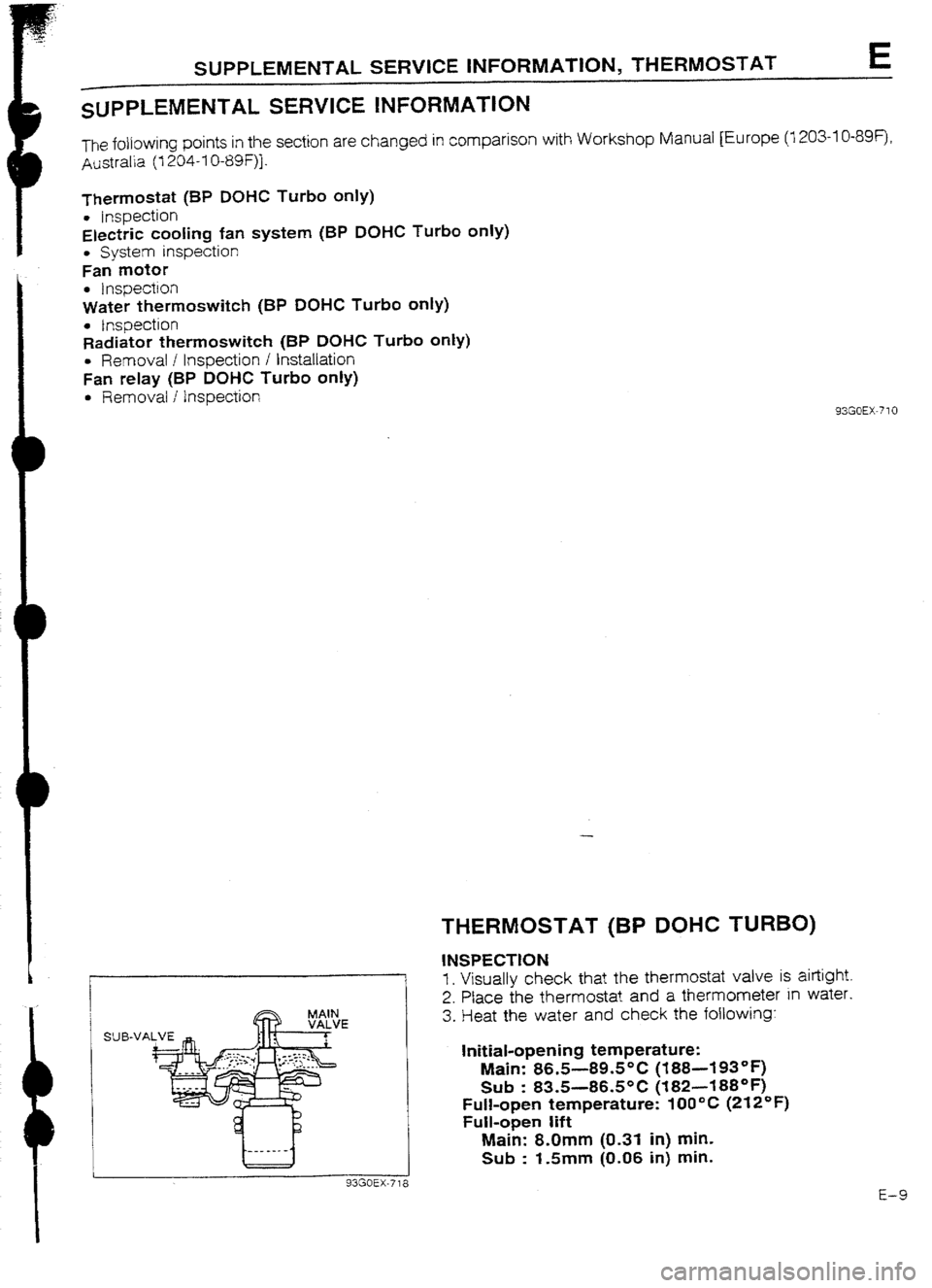

SUPPLEMENTAL SERVICE INFORMAT1ON, THERMOSTAT E
SUPPLEMENTAL SERVICE INFURMATtON
The following points in the section are changed in comparison with Workshop Manual [Europe (1203-l 0-89F),
Australia (I 204-I 0-89f)].
Thermostat (BP DUHC Turbo only)
l Inspection
Electric cooling fan system (BP DOHC Turbo only)
l System inspection
Fan motor
l 1 nspection
Water thermoswitch (BP DOHC Turbo only)
l tnspection
Radiator thermoswitch (BP DOHC Turbo only)
l Removal I Inspection I Installation
Fan relay (BP DOHC Turbo only)
l Removal ! Inspection 93GOEX-710
-
THERMOSTAT (BP DOHC TURBO)
SUB-V E
‘A
/ INSPECTKM
1. Visually check that the thermostat valve is airtight.
2. Place the thermostat and a thermometer in water.
3. Heat the water and check the following:
Initial-opening temperature:
Main: 86.5-89.5% (188--t93°F)
Sub : 83.5-86.5OC (f82--f88QF)
Full-open temperature: 100°C (212°F)
Full-open lift
Main: 8.Umm CU.31 in) min.
Sub : f.5mm (0.06 in) min.
E-9

E ELECTRIC COOLING FAN SYSTEM
ELECTRIC COOLING FAN SYSTEM (BP
DUHC TURBO)
SYSTEM ClRCUIT
r
WITH A/C
r-- _______ ------
I ADDITIONAL
1 FAN
I PRESSL
SWITCH
I WATER
THERMOSWfTCtl
ABOVE 87OC (207OF): ON
RADlATOjl THERMOSWITCH
ABOVE 105*C (221 “I=): ON
8 93GOEX-719
-
%
J--- QY- -THERMOME?ERsi-=i
--
--------L-
93GOEX-7 i 2
E-10 SYSTEM INSPECTION
1. Jump across the test fan (TFA) terminal and the ground
(GN D) terminal of the diagnosis connector.
2. Turn the ignition switch ON and verify that the fan operates.
If the fan does not operate, inspect the cooling fan system
components and wiring harness.
3. Remove the radiator cap and place a thermometer in the
radiator filler neck.
4. Start the engine.
5. Verify that the fan operates when the coolant temperature
reaches approx. 97*C (207°F).
If it does, check the water thermoswitch.
(Refer to page
E--i I.)

FAN MOTOR, WATER THERMOSWITCH E
93GOEX-71:
93GOEX-714
93GOEX-720
tNSPECTlON
Single-speed Type (For BP SOW MTX)
I. Verify
that the battery is fully charged.
2. Disconnect the fan motor connector.
3. Connect the battery and an ammeter to the fan motor
con-
nector.
4. Verify that current is as specified.
Current (A): 6.6 k 1
5. If current is not within specification and/or the fan does not
turn smoothly, replace the fan motor.
Two-speed Type (Except BP SUHC MTX)
I. Verify that the battery is fully charged.
2. Disconnect the fan motor connector.
3. Connect the battery and an ammeter to the fan motor con-
nectors for low-speed inspection.
4. Verify that the fan motor operates smoothly at the standard
cu vent.
Current (A): 8.8 + 10% max.
5. Connect the battery, an ammeter, and switch to the fan mo-
tor connectors for high-speed inspection.
6. Verify that the fan motor operates smoothly
at the standard
current or less with the switch ON.
Current (A): 13.3 + 10% max.
7. If not as specified, replace the fan motor.
WATER THERMOSWITCH
(BP DOHC TURBO)
INSPECTlUN
I . Place the switch and a thermometer in water.
2. Heat the water gradually and check continuity of the switch
with an ohmmeter.
Coolant temperature OC (OF) 1 Contrdy
I
More than 97 (207) Yes
Less than 90 (194)
NO
3. If not as specified, replace the water thermoswitch.
93GOEX.715

E RADIATOR THERMUSWlTCki
RADIATOR THERMOSWITCH (BP DUHC TURBO)
REMOVAL I INSPECTION I INSTALLATION
I. Disconnect the negative battery cable.
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal, referring to InstaHation Note.
7.8-13 H-m
(80-l 10 cm-kg, 69-95 h-lb)
(80-110 cm-kg,
69-95In4b)
REPLACE 1. Resonance chamber
2. Radiator cowling mounting bolts
3. Radiator thermoswitch connector
03WEX-027 4. Radiator thermoswitch
Inspection . . . . . . . . * . . . . . . . . . . . . . ..-. -.*,.a..- . . . . . . .I. below
Installation Note _.,............................._. below
1NSPECTlON 1. Place the switch and a thermometer in engine oil.
Warning
l Do not heat the engine oil above 12O*C (248OF) 2. Heat the engine oil gradually and check continuity of the
switch with
an ohmmeter.
Engine oil temperature “C (*F) Continuity
More than 105 (221) Yes I
t Less than 96 (205) No
1
3. If not as specified, replace the radiator thermoswitch.
Installation Note
Radiator thermoswitch
Caution
l Do not use an impact wrench for installation. 1. Install the radiator thermoswitch along with a new gasket.
Tightening torque: 5.9-12
Nom (60-120 cm-kg, 52-104 in-lb) 93GOEX.721 E-12

FAN RELAY E
FAN RELAY(BP DOHCTURBO)
REMOVAL / INSPECTION
1. Disconnect the negative battery cable.
2. Remove the fan relay.
No.2 FAN REUY
w. . . . . . .TYPE 1
@AND @ . . . TYPE 2
INSPECTDN
f . Check continuity as shown with an ohmmeter.
I
Terminal COMlLJlty
A-C No
B-D
Yes 2. Apply 12V between terminals B and D.
Check for continuity between terminals A and C.
3. If not as specified, replace the fan relay.
E-13
