1986 TOYOTA CAMRY V20 boot

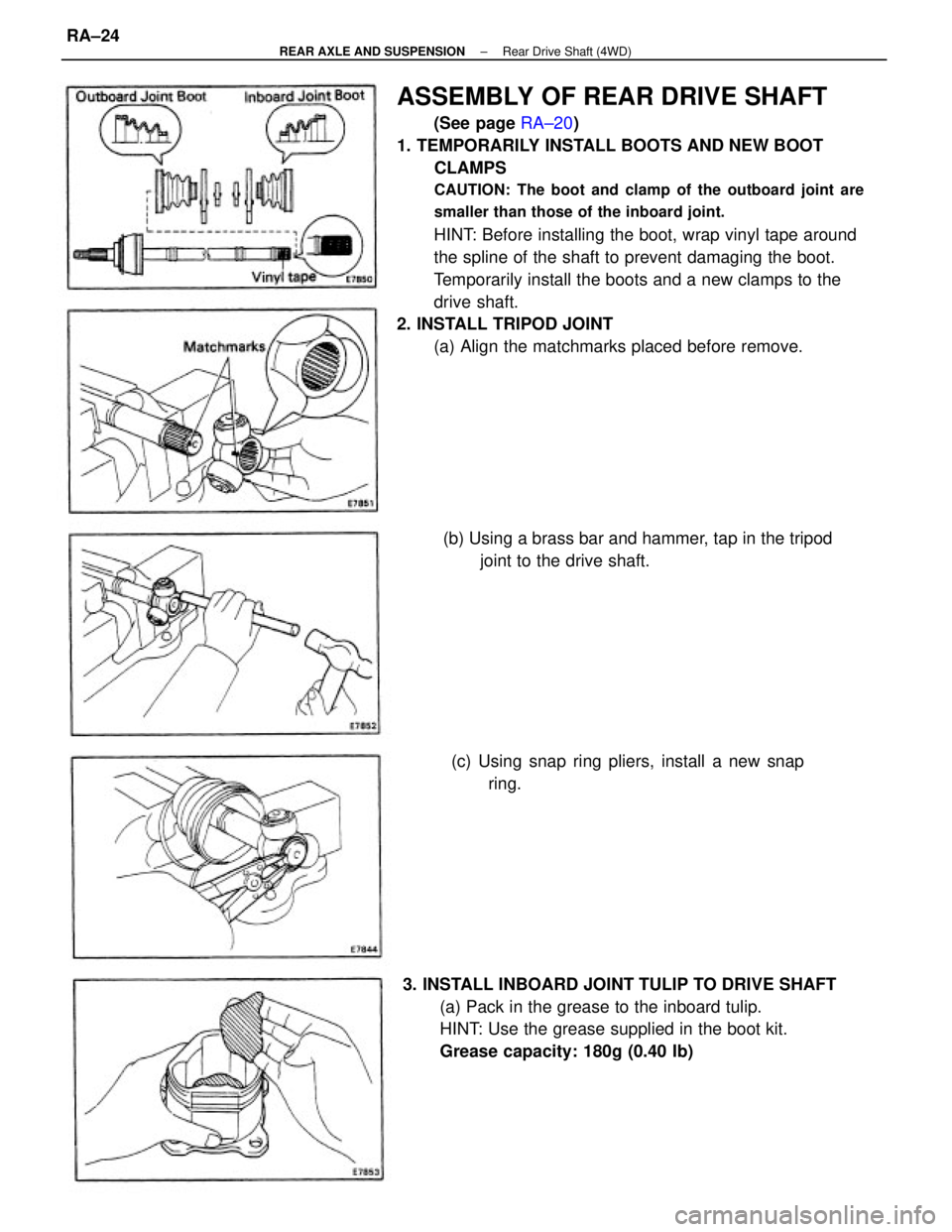

ASSEMBLY OF REAR DRIVE SHAFT
(See page RA±20)
1. TEMPORARILY INSTALL BOOTS AND NEW BOOT
CLAMPS
CAUTION: The boot and clamp of the outboard joint are
smaller than those of the inboard joint.
HINT: Before installing the boot, wrap vinyl tape around
the spline of the shaft to prevent damaging the boot.
Temporarily install the boots and a new clamps to the
drive shaft.
2. INSTALL TRIPOD JOINT
(a) Align the matchmarks placed before remove.
3. INSTALL INBOARD JOINT TULIP TO DRIVE SHAFT
(a) Pack in the grease to the inboard tulip.
HINT: Use the grease supplied in the boot kit.
Grease capacity: 180g (0.40 Ib)(b) Using a brass bar and hammer, tap in the tripod
joint to the drive shaft.
(c) Using snap ring pliers, install a new snap
ring.
± REAR AXLE AND SUSPENSIONRear Drive Shaft (4WD)RA±24

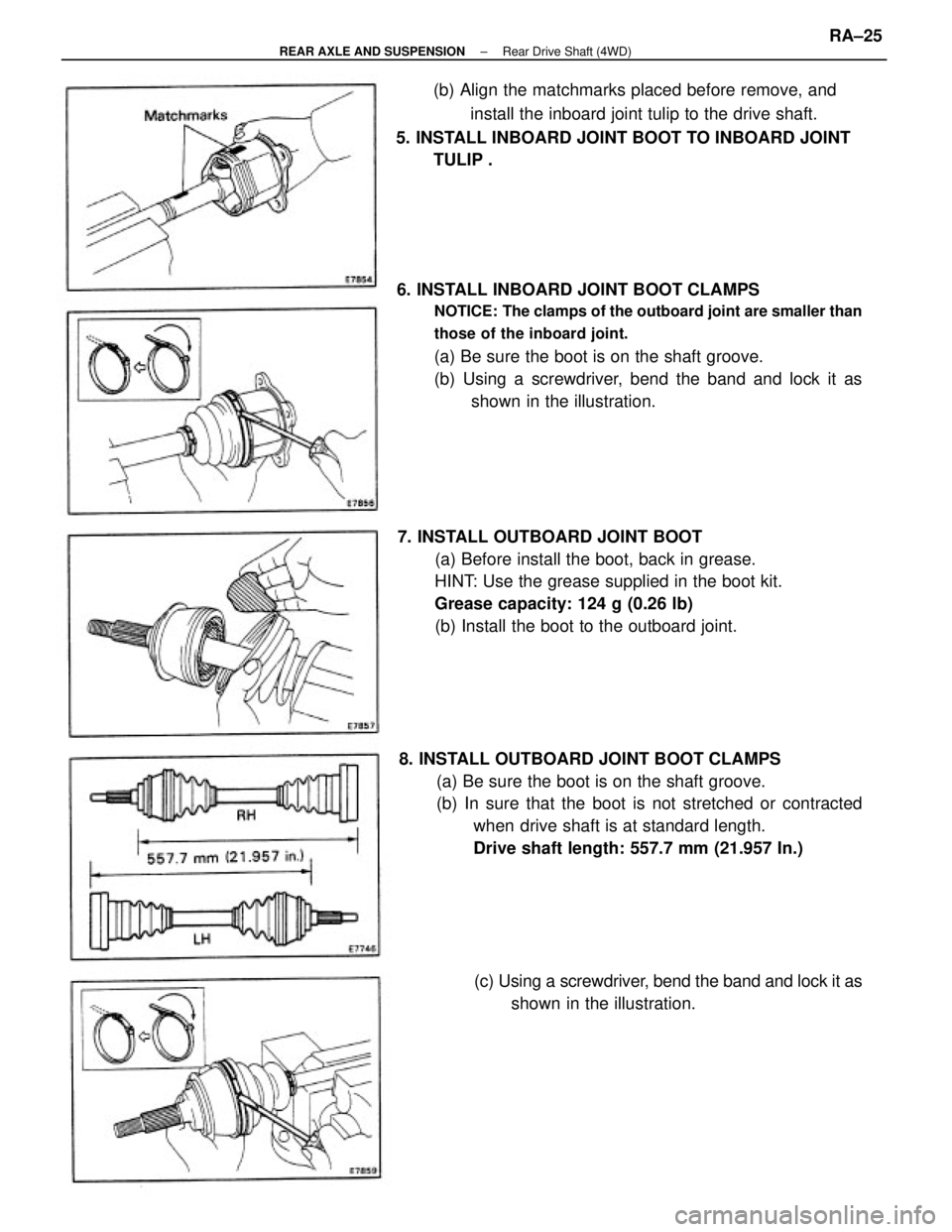

6. INSTALL INBOARD JOINT BOOT CLAMPS
NOTICE: The clamps of the outboard joint are smaller than
those of the inboard joint.
(a) Be sure the boot is on the shaft groove.
(b) Using a screwdriver, bend the band and lock it as
shown in the illustration.
8. INSTALL OUTBOARD JOINT BOOT CLAMPS
(a) Be sure the boot is on the shaft groove.
(b) In sure that the boot is not stretched or contracted
when drive shaft is at standard length.
Drive shaft length: 557.7 mm (21.957 In.) 7. INSTALL OUTBOARD JOINT BOOT
(a) Before install the boot, back in grease.
HINT: Use the grease supplied in the boot kit.
Grease capacity: 124 g (0.26 lb)
(b) Install the boot to the outboard joint. (b) Align the matchmarks placed before remove, and
install the inboard joint tulip to the drive shaft.
5. INSTALL INBOARD JOINT BOOT TO INBOARD JOINT
TULIP .
(c) Using a screwdriver, bend the band and lock it as
shown in the illustration.
± REAR AXLE AND SUSPENSIONRear Drive Shaft (4WD)RA±25

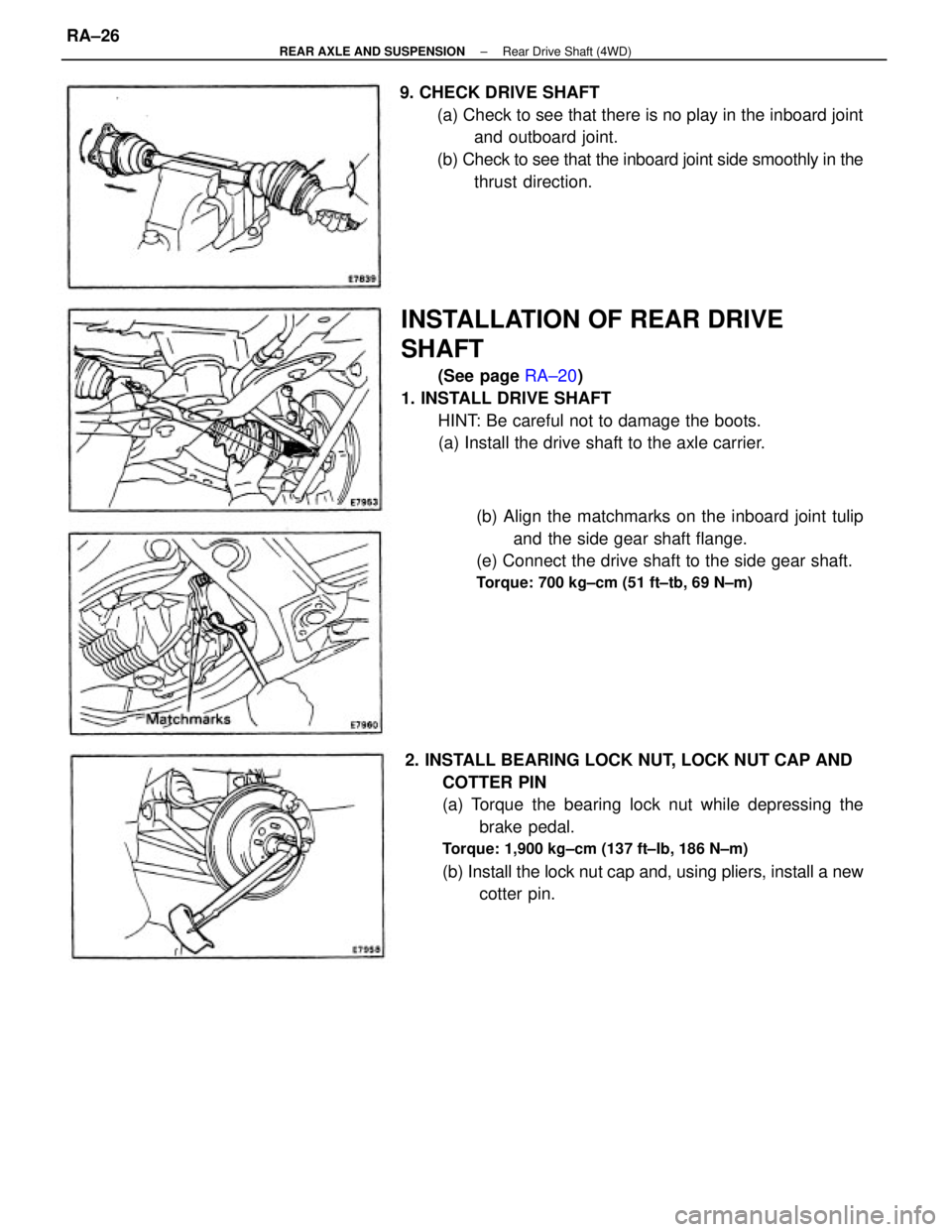

2. INSTALL BEARING LOCK NUT, LOCK NUT CAP AND
COTTER PIN
(a) Torque the bearing lock nut while depressing the
brake pedal.
Torque: 1,900 kg±cm (137 ft±Ib, 186 N±m)
(b) Install the lock nut cap and, using pliers, install a new
cotter pin.
INSTALLATION OF REAR DRIVE
SHAFT
(See page RA±20)
1. INSTALL DRIVE SHAFT
HINT: Be careful not to damage the boots.
(a) Install the drive shaft to the axle carrier. 9. CHECK DRIVE SHAFT
(a) Check to see that there is no play in the inboard joint
and outboard joint.
(b) Check to see that the inboard joint side smoothly in the
thrust direction.
(b) Align the matchmarks on the inboard joint tulip
and the side gear shaft flange.
(e) Connect the drive shaft to the side gear shaft.
Torque: 700 kg±cm (51 ft±tb, 69 N±m)
± REAR AXLE AND SUSPENSIONRear Drive Shaft (4WD)RA±26

Line pressure (wheel locked)
Engine idling
At stall
Engine stall revolution
Time lag N range ±
N range ±
Engine idle speed (A/C OFF)
Throttle cable adjustment (Throttle valve fully opened)
Body clearance
Tip clearance
Side clearance
Pump body bushing inside diameter
Stator shaft bushing inside diameter
Front side
Rear side
AUTOMATIC TRANSAXLE (A540E)
Specifications
Between boot end face and inner cable stopper
Throttle valve fully open [Fu lly closed]
Piston stroke
Piston rod lengthThrottle valve opening 5%
Second
coast brake
* O/D switch OFF Shift
schedule
Lock±up
pointkm/h (mph)
Lock±up OFFkm/h (mph)
Lock±up ON NORM
PWR
NORM
PWR
Oil pumpD range
D range2 range
L rangeNORM
NORM
PW RPWR
± SERVICE SPECIFICATIONSAutomatic Transaxle (A540E)A±22

ON±VEHICLE INSPECTION
1. CHECK THAT STEERING WHEEL FREEPLAY IS
CORRECT
With the vehicle stopped and tires pointed straight ahead,
rock the steering wheel gently back and forth with light fin-
ger pressure.
Freeplay should not exceed the maximum limit.
Maximum freeplay: 30 mm (1.18 in.)
If incorrect, repair.
2. CHECK STEERING LINKAGE AND GEAR HOUSING
(a) Check the steering linkage for looseness or dam-
age.
Check that:
wTie rod ends do not have excessive play.
wBoots are not damaged.
wBoot clamps are not loose.
(b) Check gear housing for grease leakage or oozing.
± STEERINGOn±Vehicle InspectionSR±3

3. REMOVE TIE ROD ENDS
(a) Loosen the lock nuts and place rnatchmarks on the
tie rod ends and rack ends.
(b) Remove the tie rod ends and lock nuts.
4. REMOVE RACK BOOTS
(a) Remove the clips and clamps.
(b) Remove the rack boots.
7. REMOVE RACK GUIDE SPRING CAP
Using SST, remove the rack guide spring cap.
SST 09612±24014 (49612±10022)
8. REMOVE RACK GUIDE SPRING, RACK GUIDE AND
SEAT(b) Using SST, remove the rack ends.
SST 09612±10093 (09628±10020)
09612±24014 (09617±24011)
(c) Mark the left and right rack ends accordingly.
(d) Remove the claw washer.
6. REMOVE RACK GUIDE SPRING CAP LOCK NUT
Using SST, remove the rack guide spring cap lock nut.
SST 09612±24014 (09617±24020) 5. REMOVE RACK ENDS AND CLAW WASHERS
(a) Unstake the claw washer.
NOTICE: Avoid any impact to the rack.
± STEERINGPower Steering (Gear HousingSR±52

13. INSTALL RACK GUIDE SPRING CAP LOCK NUT
(a) Apply sealant to 2 or 3 threads of the lock nut.
Sealant: Part No. 08833±00080, THREE BOND 1344,
LOCTITE 242 or equivalent
(b) Using SST, install and torque the lock nut.
SST 09612±24014 (09612±10022,09617±24020)
Torque: 570 kg±cm (41 ft±Ib, 56 N±m)
HINT: Use a torque wrench with a fulcrum length of 340
mm (13.39 in.).
(c) Recheck the total preload.
14. INSTALL DUST COVER
15. INSTALL CLAW WASHERS AND RACK ENDS
(a) Install a new claw washer.
(b) Using SST, install and torque the rack ends.
SST 09612±10093 (09628±10020)
09612±24014 (09617±24011)
Torque: 730 kg±cm (53 ft±11b, 72 N±m)
HINT: Use a torque wrench with a fulcrum length of 340
mm (13.39 in.).
(c) Using a brass bar and hammer, stake the claw washer.
16. INSTALL RACK BOOTS, CLAMPS AND CLIPS
(a) Insure that the tube hole is not clogged with grease.
HINT: If the tube hole is clogged, the pressure inside the
boot will change after it is assembled and the steering
wheel turned.
(b) Install the boots.
HINT: be careful not to damage or twist the boots.
(e) Install the clamps.
(d) Install the clips with the ends facing outward.
± STEERINGPower Steering (Gear Housing)SR±62
