1663-1. Instrument cluster
3-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
■With 7-inch display
The display of the speedometer can be selected from two types,
analog or digital. ( P.191)
When analog speedometer is displayed
The units used on the meters and some indicators may differ dep ending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver
of the status of the vehicle’s various systems.
Instrument cluster

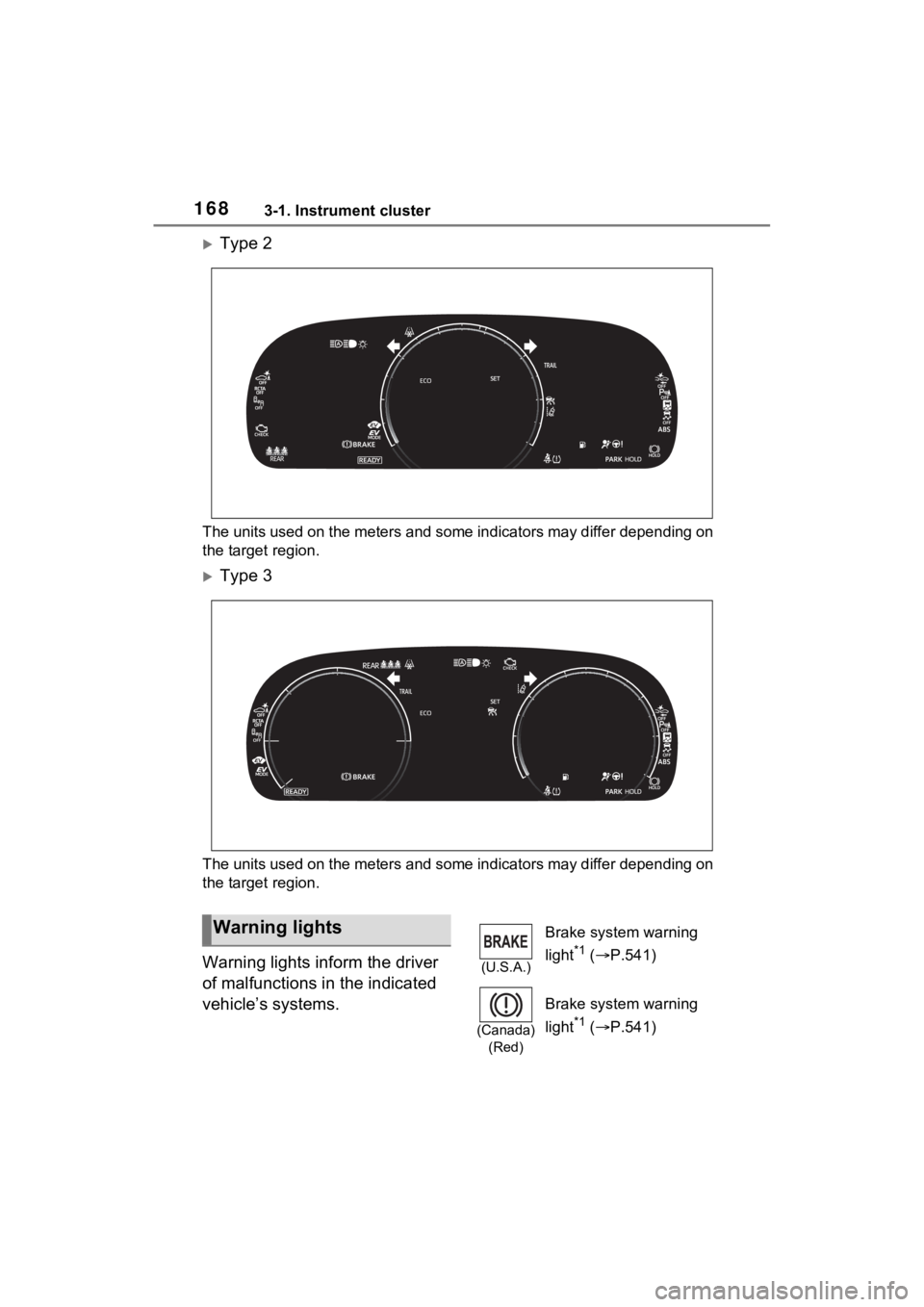

1683-1. Instrument cluster
Type 2
The units used on the meters and some indicators may differ depending on
the target region.
Type 3
The units used on the meters and some indicators may differ dep ending on
the target region.
Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.
Warning lights
(U.S.A.)
Brake system warning
light
*1 (  P.541)
(Canada)
(Red)
Brake system warning
light
*1 ( P.541)

1693-1. Instrument cluster
3
Vehicle status information and indicators
*1: These lights turn on when the
power switch is turned to ON to
(Yellow)
Brake system warning
light
*1 (  P.541)
Charging system warn-
ing light
*1 (  P.541)
High coolant tempera-
ture warning light
*2
(  P.542)
Hybrid system overheat
warning light
*2 (  P.542)
Low engine oil pressure
warning light
*2 (  P.542)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.542)
(Canada)
Malfunction indicator
lamp
*1 ( P.542)
SRS warning light
*1
(  P.543)
(U.S.A.)
ABS warning light*1
(  P.543)
(Canada)
ABS warning light*1
(  P.543)
(Red)
Electric power steering
system warning light
*1
(  P.543)
(Yellow)
Electric power steering
system warning light
*1
(  P.543)
(Flashes
or illumi- nates)
PCS warning light*1
(  P.544)
(Orange)
LTA indicator ( P.544)
Intuitive parking assist
OFF indicator
*3 (if
equipped) ( P.544)
PKSB OFF indicator
*1 (if
equipped) ( P.545)
BSM OFF indicator
*1
(  P.545)
RCTA OFF indicator
*1
(  P.545)
Slip indicator light
*1
(  P.546)
Inappropriate pedal oper-
ation warning light
*2
(  P.546)
(Flashes)
Brake hold operated indi-
cator
*1 ( P.546)
(U.S.A.)
(Flashes)
Parking brake indicator
(  P.547)
(Canada)
(Flashes)
Parking brake indicator
( P.547)
Tire pressure warning
light
*1 (if equipped)
(  P.547)
Low fuel level warning
light ( P.547)
Driver’s and front passen-
ger’s seat belt reminder
light ( P.548)
Rear passengers’ seat
belt reminder lights
*4
(  P.548)
Rear passengers’
seat belt reminder
lights ( P.548)

1703-1. Instrument cluster
indicate that a system check is
being performed. They will turn
off after the hybr id system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-informatio n display with a
message.
*3: Intuitive parking assist OFF indi- cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*4: Vehicles with 12.3-inch display
The indicators inform the driver
of the operating state of the
vehicle’s various systems.
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SR S warning light
not come on when you start the
hybrid system, this could mean
that these systems are not avail-
able to help protect you in an acci-
dent, which could result in death
or serious injury. Have the vehicle
inspected by your Toyota dealer
immediately if this occurs.
Indicators
Turn signal indicator
(  P.313)
(U.S.A.)
Headlight indicator
( P.321)
(Canada)
Tail light indicator
( P.321)
Headlight high beam indi-
cator ( P.323)
Automatic High Beam
indicator ( P.324)
Smart key system indica-
tor
*1 (  P.304)
Cruise control indicator
(  P.366)
Dynamic radar cruise
control indicator
(  P.366)
Cruise control “SET” indi-
cator ( P.366)
(White)
LTA indicator*2 ( P.357)
(Green)
LTA indicator*2 ( P.357)
(Orange)
(Flashes)LTA indicator*2 (  P.357)
Intuitive parking assist
OFF indicator
*3, 4 (if
equipped) ( P.389)

1713-1. Instrument cluster
3
Vehicle status information and indicators
*1: This light illuminates on the multi-information display with a
message.
*2: Depending on the operating con-dition, the color and illuminat-
ing/flashing stat e of the light
change.
*3: The light comes on when the system is turned off.
*4: Intuitive parking assist OFF indi-cator turns on wh en the power
switch is turned t o ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*5: These lights tu rn on when the
power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.
PKSB OFF indicator
*3, 5
(if equipped) ( P.397)
(Flashes)
Slip indicator light*5
(  P.408)
VSC OFF indicator
*3, 5
(  P.408)
PCS warning light
*3, 5
(  P.343)
BSM outside rear view
mirror indicators
*5, 6
(  P.379)
BSM OFF indicator
*3, 5
(  P.379)
RCTA OFF indicator
*3, 5
(  P.379)
Brake hold standby indi-
cator
*5 (  P.318)
Brake hold operated indi-
cator
*5 (  P.318)
Security indicator
*9
(  P.70, 71)
“READY” indicator
(  P.304)
Low outside temperature
indicator
*7 (  P.176)
EV indicator ( P.80)
(U.S.A.)
Parking brake indicator
( P.314)
(Canada)
Parking brake indicator
( P.314)
EV drive mode indicator
*8
(  P.76)
AUTO EV/HV mode indi-
cator
*8 ( P.76)
HV drive mode indicator
*8
(  P.76)
Hybrid battery charge
mode indicator
*8 (  P.77)
Eco drive mode indicator
(  P.404)
Sport mode indicator
(  P.404)
Trail Mode indicator
(  P.405)
“AIR BAG ON/OFF”
indicator
*5, 9
(  P.43)

1773-1. Instrument cluster
3
Vehicle status information and indicators
●Displays the outside temperature
within the range of -40°F (-40°C)
to 122°F (50°C).
●When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator will flash
for approximately 10 seconds,
then stay on.
■Liquid crystal display
 P.185
■Customization
Settings (e. g. meter display) can be
changed on the screen of the
multi-informat ion display. (P.191)
Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.
The brightness of the instrument
panel lights can be adjusted by
turning the dial.
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before u sing the liquid
crystal informat ion display. At
extremely low temperatures, the
display monitor may respond
slowly, and display changes may
be delayed.
For example, there is a lag
between the driver’s shifting and
the new shift range appearing on
the display. This lag could cause
the driver to downshift again,
causing rapid and excessive
engine braking and possibly an
accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
The engine may be overheating if
“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” is shown on the multi-
information displa y. In this case,
immediately stop the vehicle in a
safe place, and c heck the engine
after it has cooled completely.
(  P.574)
Using the “ODO TRIP”
switch
Instrument panel light
control

1863-1. Instrument cluster
Following information is dis-
played on the multi-information
display.Driving support system infor-
mation
Displays recognized signs while the
RSA system (if equipped) is operat-
ing. ( P.363)
Displays an image when the follow-
ing systems are operating and a
menu icon other than is
selected:
• LTA (Lane Tracing Assist) ( P.351)
• Dynamic radar cruise control with full-speed range (
P.366)
Information display area
A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.
Menu icons ( P.186)
■The multi-information display is
displayed when
The power switch is in ON.
■When changing driving mode
Background color of the multi-infor-
mation display is changed following
the selected driving mode or when
Trail Mode is turned on. (P.404,
405)
■Liquid crystal display
Small spots or light spots may
appear on the display. This phe-
nomenon is characteristic of liquid
crystal displays, and there is no
problem continuing to use the dis-
play.
The multi-information display is
operated using the meter control
switches.
Scroll the screen
*/switch the
display
*/move the cursor
Multi-information dis-
play (with 7-inch dis-
play)
The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.
Display contents
A
&KDQJLQJWKH\
GLVSOD\
B
C
A

1983-1. Instrument cluster
mation is displayed on the content
display area, the system operating
state will not be displayed in this
area.
RSA (Road Sign Assist) dis-
play area (if equipped)
( P.363)
■Content display area (cen-
ter)
 Driving support system infor-
mation display ( P.202)
 Settings display ( P.203)
 Warning message display
■Content display area
(left/right)
 Power Consumption/Fuel
Economy ( P.199)
 ECO Accelerator Guid-
ance/“Eco Score” ( P.200)
 EV Ratio/EV Driving Ratio
( P.201)
 Driving support system infor-
mation display ( P.202)
 Audio system-linked display
( P.202)
 Drive information ( P.202)
 Energy monitor ( P.212)
 AWD system display
( P.203)
■The multi-information display is
displayed when
The power swit ch is in ON.
■Liquid crystal display
Small spots or light spots may
appear on the display. This phe-
nomenon is character istic of liquid crystal displays, and there is no
problem continuing to use the dis-
play.
■When changing driving mode
Background color of the multi-infor-
mation display is changed following
the selected driving mode.
(  P.404)
/ : Change the screen
and move the cursor
/ : Change displayed
content and scroll up/down
the screen
Press: Enter/Set
Press and hold: Reset/Dis-
E
WARNING
■Caution for use while driving
●When operating the multi-infor-
mation display while driving,
pay extra attention to the safety
of the area around the vehicle.
●Do not look continuously at the
multi-informatio n display while
driving as you may fail to see
pedestrians, objects on the
road, etc. ahead of the vehicle.
■The information display at
low temperatures
 P.176
Meter control switches
A
B
