2023 MERCEDES-BENZ EQS SUV Owners Manual

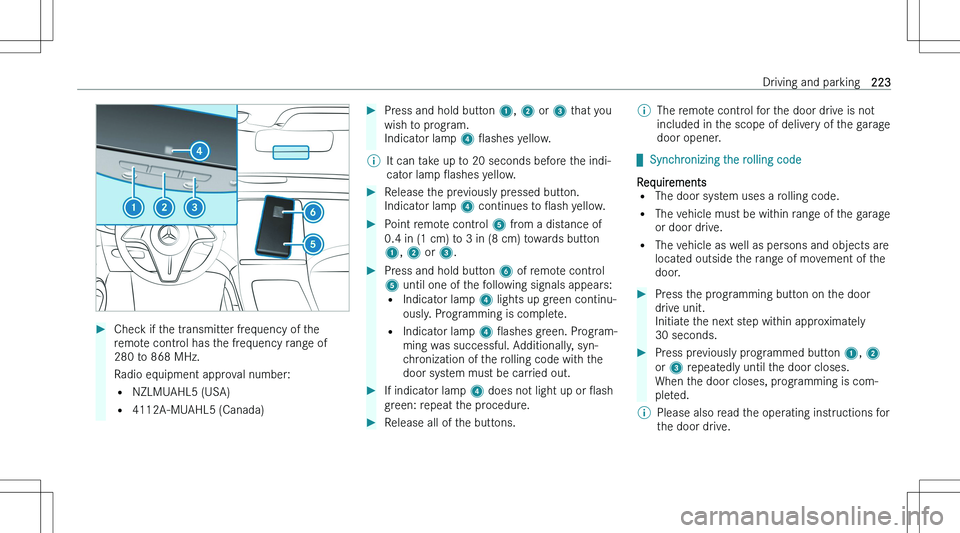

Check if the transmitter frequency of the
remote control has the frequency range of
280 to 868 MHz.
Radio equipment approval number: = NZLMUAHL5 (USA)
= 4112A-MUAHL5 (Canada)Press and hold button 1, 2 or 3 that you
wish to program.
Indicator lamp 4 Oashes yellow.\bIt can take up to 20 seconds before the indi-
cator lamp Oashes yellow.Release the previously pressed button.
Indicator lamp 4 continues to Oash yellow.Point remote control 5 from a distance of
0.4 in (1 cm) to 3 in (8 cm) towards button
1 , 2 or 3.Press and hold button 6 of remote control
5 until one of the following signals appears:
= Indicator lamp 4 lights up green continu-
ously. Programming is complete.
= Indicator lamp 4 Oashes green. Program-
ming was successful. Additionally, syn-
chronization of the rolling code with the
door system must be carried out.If indicator lamp 4 does not light up or Oash
green: repeat the procedure.Release all of the buttons.\bThe remote control for the door drive is not
included in the scope of delivery of the garage
door opener.

q Synchronizing the rolling code
Requirements
= The door system uses a rolling code.
= The vehicle must be within range of the garage
or door drive.
= The vehicle as well as persons and objects are
located outside the range of movement of the door.
Press the programming button on the door
drive unit.
Initiate the next step within approximately
30 seconds.Press previously programmed button 1, 2
or 3 repeatedly until the door closes.
When the door closes, programming is com-
pleted.\bPlease also read the operating instructions for
the door drive.Driving and parking223

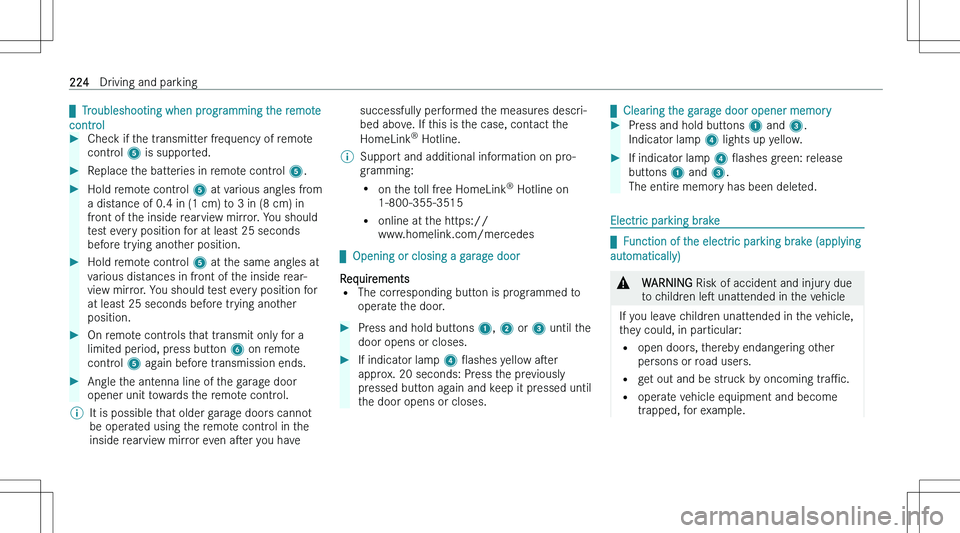

qTroubleshooting when programming the remote
controlCheck if the transmitter frequency of remote
control 5 is supported.Replace the batteries in remote control 5.Hold remote control 5 at various angles from
a distance of 0.4 in (1 cm) to 3 in (8 cm) in
front of the inside rearview mirror. You should
test every position for at least 25 seconds
before trying another position.Hold remote control 5 at the same angles at
various distances in front of the inside rear-
view mirror. You should test every position for
at least 25 seconds before trying another
position.On remote controls that transmit only for a
limited period, press button 6 on remote
control 5 again before transmission ends.Angle the antenna line of the garage door
opener unit towards the remote control.\bIt is possible that older garage doors cannot
be operated using the remote control in the inside rearview mirror even aser you havesuccessfully performed the measures descri-
bed above. If this is the case, contact the
HomeLink n
Hotline.\bSupport and additional information on pro-
gramming:
= on the toll free HomeLink n
Hotline on
1-800-355-3515
= online at the https://
www.homelink.com/mercedes

q Opening or closing a garage door
Requirements
= The corresponding button is programmed to
operate the door.
Press and hold buttons 1, 2 or 3 until the
door opens or closes.If indicator lamp 4 Oashes yellow aser
approx. 20 seconds: Press the previously
pressed button again and keep it pressed until
the door opens or closes.
q Clearing the garage door opener memoryPress and hold buttons 1 and 3.
Indicator lamp 4 lights up yellow.If indicator lamp 4 Oashes green: release
buttons 1 and 3.
The entire memory has been deleted.
Electric parking brake

q Function of the electric parking brake (applying
automatically)
&WARNING Risk of accident and injury due
to children les unattended in the vehicle
If you leave children unattended in the vehicle,
they could, in particular:
= open doors, thereby endangering other
persons or road users.
= get out and be struck by oncoming traPc.
= operate vehicle equipment and become
trapped, for example.
224Driving and parking

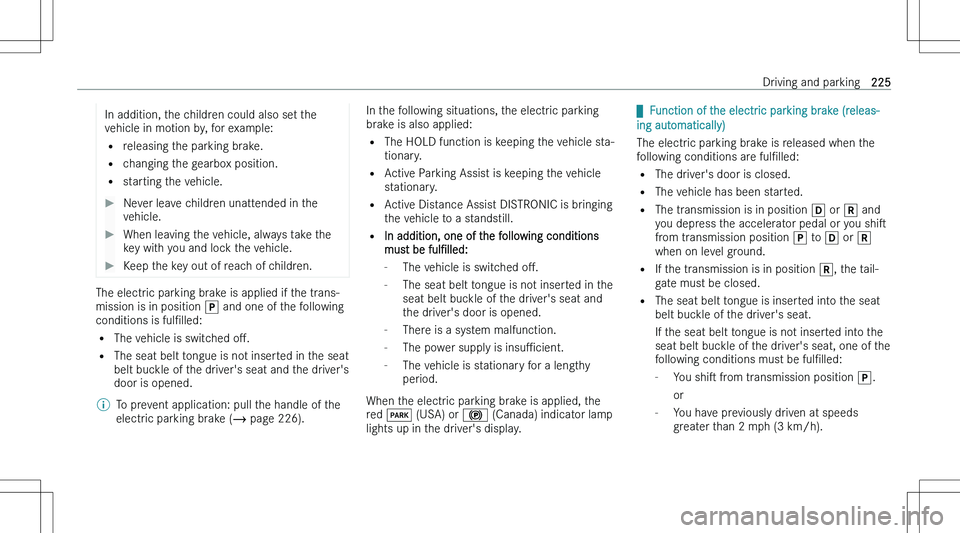

In addition, the children could also set thevehicle in motion by, for example:
= releasing the parking brake.
= changing the gearbox position.
= starting the vehicle.Never leave children unattended in the
vehicle.When leaving the vehicle, always take the key with you and lock the vehicle.Keep the key out of reach of children.
The electric parking brake is applied if the trans-mission is in position ] and one of the following
conditions is fulNlled:
= The vehicle is switched oM.
= The seat belt tongue is not inserted in the seat
belt buckle of the driver\bs seat and the driver\bs
door is opened.
\bTo prevent application: pull the handle of the
electric parking brake (  page 226).In the following situations, the electric parking
brake is also applied:
= The HOLD function is keeping the vehicle sta-
tionary.
= Active Parking Assist is keeping the vehicle
stationary.
= Active Distance Assist DISTRONIC is bringing
the vehicle to a standstill.
= In addition, one of the following conditions
must be fulNlled:
- The vehicle is switched oM.
- The seat belt tongue is not inserted in the
seat belt buckle of the driver\bs seat and
the driver\bs door is opened.
- There is a system malfunction.
- The power supply is insuPcient.
- The vehicle is stationary for a lengthy
period.

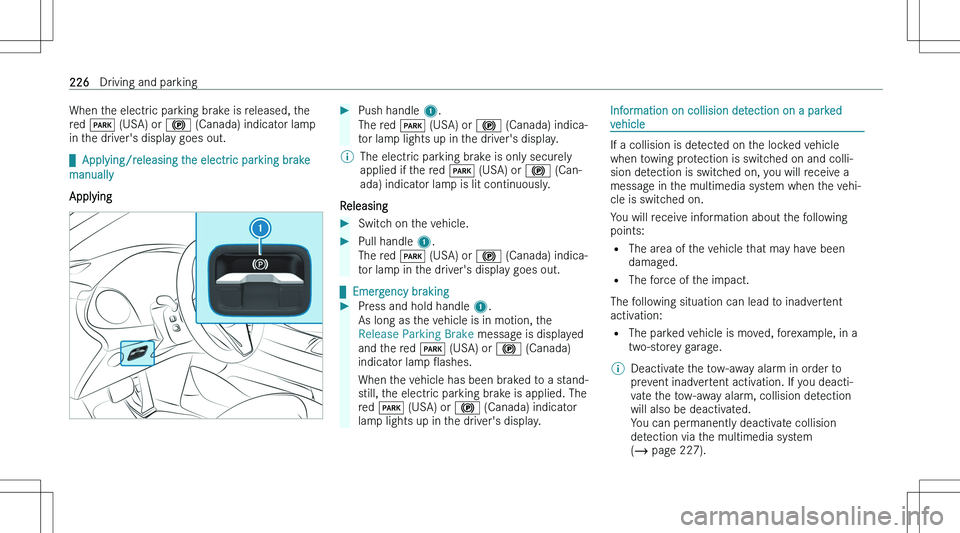

When the electric parking brake is applied, the red M (USA) or

When the electric parking brake is released, thered M (USA) or

\bIf the battery is severely discharged, the func-
tion for detecting a collision on a parked vehi-
cle is automatically deactivated to facilitate
the next engine start.
System limits
Detection may be restricted in the following situa- tions:
= the vehicle is damaged without impact,
forexample, if an outside mirror is torn oM or
the paint is damaged by a key
= an impact occurs at low speed
= the electric parking brake is not applied
\bYou are responsible for your vehicle. Convince
yourself that your vehicle is free of damage
and roadworthy.Setting collision detection on a parked vehicle
Multimedia system:
4 © 5
Settings 5
Vehicle
5 Open/Close 5
Vehicle Protection
Activate or deactivate the function via Colli-
sion Notification .\bA maximum of three incidents can be regis-
tered. Up to 15 photos are taken for every incident. In the event of another incident, the
photos of the Nrst incident will be overwritten
if they have not been deleted already.
Activating or deactivating the collision photos
function
Note possible legal restrictions in some countries
regarding automatic recording of the vehicle sur- roundings.
Activate or deactivate Collision Photos.
Transferring the collision photos with the
Mercedes me app
Select Upload Collision Photos .Select Upload Automatically .Scan the generated QR code on the central
display with the Mercedes me app.
The encrypted collision photos will then be
uploaded to Mercedes me.\bAny device that can scan QR codes can be
used to view the collision photos in the
Mercedes me app.
Copying the collision photos to a USB Oash drive
Connect a USB Oash drive .Select Manage Collision Photos .Select Copy (USByf .
All collision photos are copied to the USB
Oash drive.\bTo ensure secure operation, only use with
FAT32 or exFAT formatted USB storage devi-
ces.
Deleting collision photos
Select Manage Collision Photos .Select Delete.
All collision photos will be deleted.Driving and parking227

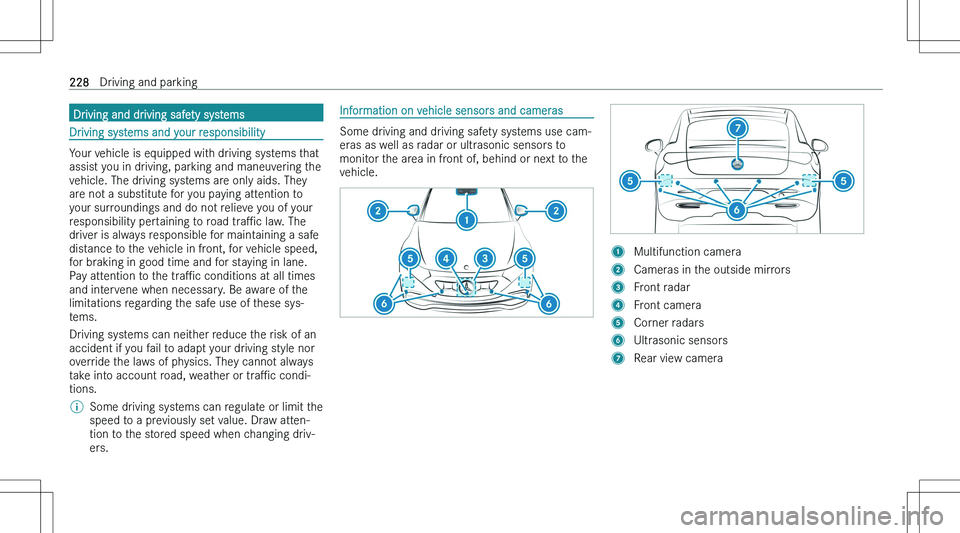

Driving and driving safety systems
Driving systems and your responsibility
Your vehicle is equipped with driving systems thatassist you in driving, parking and maneuvering thevehicle. The driving systems are only aids. Theyare not a substitute for you paying attention to
your surroundings and do not relieve you of your
responsibility pertaining to road traPc law. The
driver is always responsible for maintaining a safe
distance to the vehicle in front, for vehicle speed, for braking in good time and for staying in lane.Pay attention to the traPc conditions at all times
and intervene when necessary. Be aware of the limitations regarding the safe use of these sys-tems.
Driving systems can neither reduce the risk of an
accident if you fail to adapt your driving style nor
override the laws of physics. They cannot always take into account road, weather or traPc condi-
tions.
\bSome driving systems can regulate or limit the speed to a previously set value. Draw atten-tion to the stored speed when changing driv-
ers.Information on vehicle sensors and cameras
Some driving and driving safety systems use cam- eras as well as radar or ultrasonic sensors to
monitor the area in front of, behind or next to the vehicle.
1Multifunction camera2Cameras in the outside mirrors3Front radar4Front camera5Corner radars6Ultrasonic sensors7Rear view camera228Driving and parking

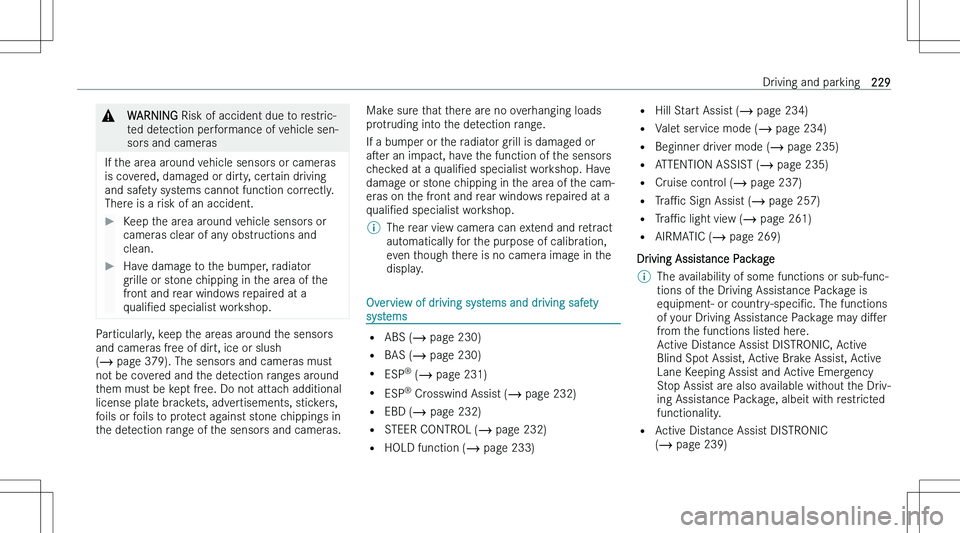

&WARNING Risk of accident due to restric-
ted detection performance of vehicle sen- sors and cameras
If the area around vehicle sensors or cameras
is covered, damaged or dirty, certain driving
and safety systems cannot function correctly.
There is a risk of an accident.
Keep the area around vehicle sensors or
cameras clear of any obstructions and
clean.Have damage to the bumper, radiator
grille or stone chipping in the area of the
front and rear windows repaired at a
qualiNed specialist workshop.
Particularly, keep the areas around the sensors
and cameras free of dirt, ice or slush
(  page 379). The sensors and cameras must
not be covered and the detection ranges around them must be kept free. Do not attach additional
license plate brackets, advertisements, stickers, foils or foils to protect against stone chippings in
the detection range of the sensors and cameras.
Make sure that there are no overhanging loads
protruding into the detection range.
If a bumper or the radiator grill is damaged or
aser an impact, have the function of the sensors
checked at a qualiNed specialist workshop. Have
damage or stone chipping in the area of the cam-
eras on the front and rear windows repaired at a
qualiNed specialist workshop.\bThe rear view camera can extend and retract
automatically for the purpose of calibration,
even though there is no camera image in the
display.
Overview of driving systems and driving safety
systems
= ABS (  page 230)
= BAS (  page 230)
= ESP n
( page 231)
= ESP n
Crosswind Assist (  page 232)
= EBD (  page 232)
= STEER CONTROL (  page 232)
= HOLD function (  page 233)
=
Hill Start Assist (  page 234)
= Valet service mode (  page 234)
= Beginner driver mode (  page 235)
= ATTENTION ASSIST (  page 235)
= Cruise control (  page 237)
= TraPc Sign Assist (  page 257)
= TraPc light view (  page 261)
= AIRMATIC (  page 269)
Driving Assistance Package\bThe availability of some functions or sub-func- tions of the Driving Assistance Package is
equipment- or country-speciNc. The functions
of your Driving Assistance Package may diMer
from the functions listed here. Active Distance Assist DISTRONIC, Active
Blind Spot Assist, Active Brake Assist, Active Lane Keeping Assist and Active Emergency
Stop Assist are also available without the Driv-
ing Assistance Package, albeit with restricted
functionality.
= Active Distance Assist DISTRONIC
(  page 239)
Driving and parking229

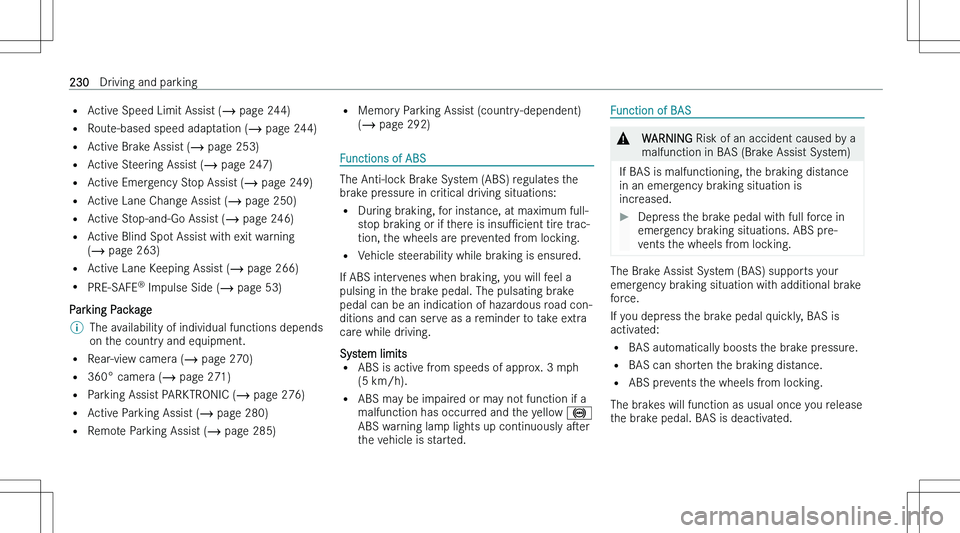

=Active Speed Limit Assist (  page 244)
= Route-based speed adaptation (  page 244)
= Active Brake Assist (  page 253)
= Active Steering Assist (  page 247)
= Active Emergency Stop Assist (  page 249)
= Active Lane Change Assist (  page 250)
= Active Stop-and-Go Assist (  page 246)
= Active Blind Spot Assist with exit warning
(  page 263)
= Active Lane Keeping Assist (  page 266)
= PRE-SAFE n
Impulse Side (  page 53)
Parking Package\bThe availability of individual functions depends
on the country and equipment.
= Rear-view camera (  page 270)
= 360° camera (  page 271)
= Parking Assist PARKTRONIC (  page 276)
= Active Parking Assist (  page 280)
= Remote Parking Assist (  page 285)
=
Memory Parking Assist (country-dependent)
(  page 292)
Functions of ABS
The Anti-lock Brake System (ABS) regulates the
brake pressure in critical driving situations:
= During braking, for instance, at maximum full-
stop braking or if there is insuPcient tire trac-
tion, the wheels are prevented from locking.
= Vehicle steerability while braking is ensured.
If ABS intervenes when braking, you will feel a pulsing in the brake pedal. The pulsating brake
pedal can be an indication of hazardous road con-
ditions and can serve as a reminder to take extra care while driving.
System limits = ABS is active from speeds of approx. 3 mph
(5 km/h).
= ABS may be impaired or may not function if a
malfunction has occurred and the yellow %
ABS warning lamp lights up continuously aser
the vehicle is started.
Function of BAS&WARNING Risk of an accident caused by a
malfunction in BAS (Brake Assist System)
If BAS is malfunctioning, the braking distance
in an emergency braking situation is
increased.
Depress the brake pedal with full force in
emergency braking situations. ABS pre-
vents the wheels from locking.
The Brake Assist System (BAS) supports your emergency braking situation with additional brake
force.
If you depress the brake pedal quickly, BAS is
activated:
= BAS automatically boosts the brake pressure.
= BAS can shorten the braking distance.
= ABS prevents the wheels from locking.
The brakes will function as usual once you release the brake pedal. BAS is deactivated.
230Driving and parking
