Page 49 of 458

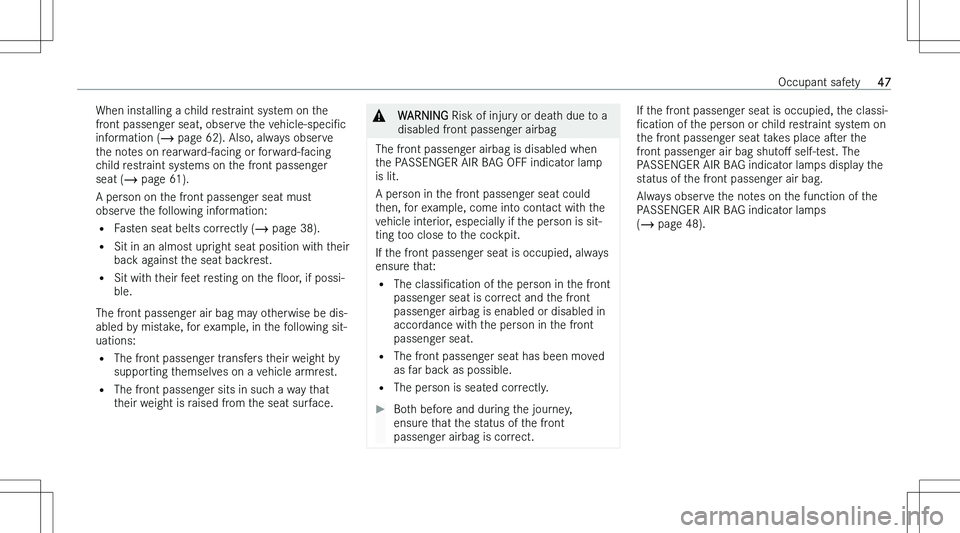

MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual �W�h�e�n� �i�n�s�t�a�l�l�i�n�g� �a� �c�h�i�l�d� �r�e�s�t�r�a�i�n�t� �s�y�s�t�e�m� �o�n� �t�h�e�f�r�o�n�t� �p�a�s�s�e�n�g�e�r� �s�e�a�t�,� �o�b�s�e�r�v�e� �t�h�e� �v�e�h�i�c�l�e�-�s�p�e�c�iN�c
�i�n�f

When installing a child restraint system on thefront passenger seat, observe the vehicle-speciNc
information ( page 62). Also, always observe
the notes on rearward-facing or forward-facing
child restraint systems on the front passenger seat ( page 61).
A person on the front passenger seat must
observe the following information:
= Fasten seat belts correctly ( page 38).
= Sit in an almost upright seat position with their
back against the seat backrest.
= Sit with their feet resting on the Ooor, if possi-
ble.
The front passenger air bag may otherwise be dis-
abled by mistake, for example, in the following sit- uations:
= The front passenger transfers their weight by
supporting themselves on a vehicle armrest.
= The front passenger sits in such a way that
their weight is raised from the seat surface.&WARNING Risk of injury or death due to a
disabled front passenger airbag
The front passenger airbag is disabled when
the PASSENGER AIR BAG OFF indicator lamp
is lit.
A person in the front passenger seat could then, for example, come into contact with the
vehicle interior, especially if the person is sit-
ting too close to the cockpit.
If the front passenger seat is occupied, always ensure that:
= The classiNcation of the person in the front
passenger seat is correct and the front passenger airbag is enabled or disabled in
accordance with the person in the front
passenger seat.
= The front passenger seat has been moved
as far back as possible.
= The person is seated correctly.
Both before and during the journey,
ensure that the status of the front
passenger airbag is correct.If the front passenger seat is occupied, the classi-
Ncation of the person or child restraint system on
the front passenger seat takes place aser the
front passenger air bag shutoM self-test. The
PASSENGER AIR BAG indicator lamps display the status of the front passenger air bag.
Always observe the notes on the function of the PASSENGER AIR BAG indicator lamps
( page 48).Occupant safety47

Page 50 of 458

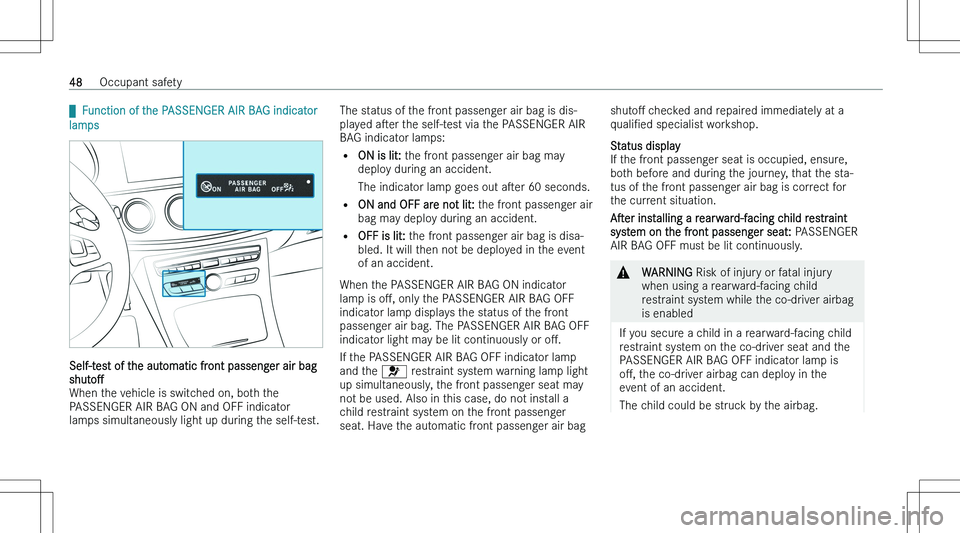

MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual q�F�u�n�c�t�i�o�n� �o�f� �t�h�e� �P�A�S�S�E�N�G�E�R� �A�I�R� �B�A�G� �i�n�d�i�c�a�t�o�r
�l�a�m�p�s
�S�e�l�f�-�t�e�s�t� �o�f� �t�h�e� �a�u�t�o�m�a�t�i�c� �f�r�o�n�t� �p�a�s�s�e�n�g�e�r� �a�i�r� �b�a�g

Page 51 of 458

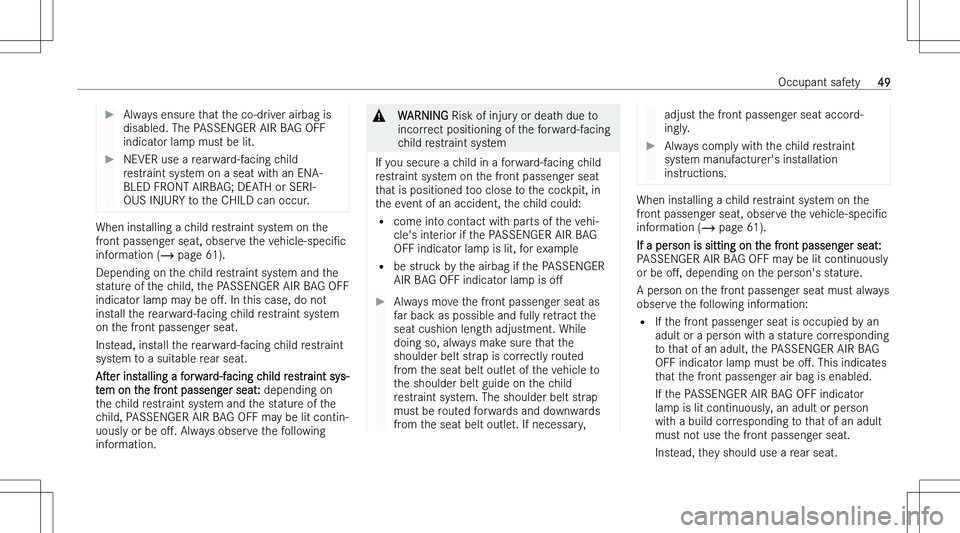

MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual ��A�l�w�a�y�s� �e�n�s�u�r�e� �t�h�a�t� �t�h�e� �c�o�-�d�r�i�v�e�r� �a�i�r�b�a�g� �i�s
�d�i�s�a�b�l�e�d�.� �T�h�e� �P�A�S�S�E�N�G�E�R� �A�I�R� �B�A�G� �O�F�F
�i�n�d�i�c�a�t�o�r� �l�a�m�p� �m�u�s�t� �b

Always ensure that the co-driver airbag is
disabled. The PASSENGER AIR BAG OFF
indicator lamp must be lit.NEVER use a rearward-facing child restraint system on a seat with an ENA-
BLED FRONT AIRBAG; DEATH or SERI-
OUS INJURY to the CHILD can occur.
When installing a child restraint system on the front passenger seat, observe the vehicle-speciNc
information ( page 61).
Depending on the child restraint system and the
stature of the child, the PASSENGER AIR BAG OFF
indicator lamp may be oM. In this case, do not
install the rearward-facing child restraint system on the front passenger seat.
Instead, install the rearward-facing child restraint system to a suitable rear seat.
Aser installing a forward-facing child restraint sys-
tem on the front passenger seat: depending on
the child restraint system and the stature of the
child, PASSENGER AIR BAG OFF may be lit contin-
uously or be oM. Always observe the following
information.
&WARNING Risk of injury or death due to
incorrect positioning of the forward-facing
child restraint system
If you secure a child in a forward-facing child
restraint system on the front passenger seat
that is positioned too close to the cockpit, in
the event of an accident, the child could:
= come into contact with parts of the vehi-
cle\bs interior if the PASSENGER AIR BAG
OFF indicator lamp is lit, for example
= be struck by the airbag if the PASSENGER
AIR BAG OFF indicator lamp is oM
Always move the front passenger seat as
far back as possible and fully retract the
seat cushion length adjustment. While
doing so, always make sure that the
shoulder belt strap is correctly routed
from the seat belt outlet of the vehicle to
the shoulder belt guide on the child
restraint system. The shoulder belt strap
must be routed forwards and downwards
from the seat belt outlet. If necessary,adjust the front passenger seat accord-
ingly.Always comply with the child restraint
system manufacturer\bs installation
instructions.
When installing a child restraint system on the front passenger seat, observe the vehicle-speciNc
information ( page 61).
If a person is sitting on the front passenger seat:
PASSENGER AIR BAG OFF may be lit continuously
or be oM, depending on the person\bs stature.
A person on the front passenger seat must always observe the following information:
= If the front passenger seat is occupied by an
adult or a person with a stature corresponding
to that of an adult, the PASSENGER AIR BAG
OFF indicator lamp must be oM. This indicates
that the front passenger air bag is enabled.
If the PASSENGER AIR BAG OFF indicator
lamp is lit continuously, an adult or person
with a build corresponding to that of an adult must not use the front passenger seat.
Instead, they should use a rear seat.
Occupant safety49

Page 52 of 458

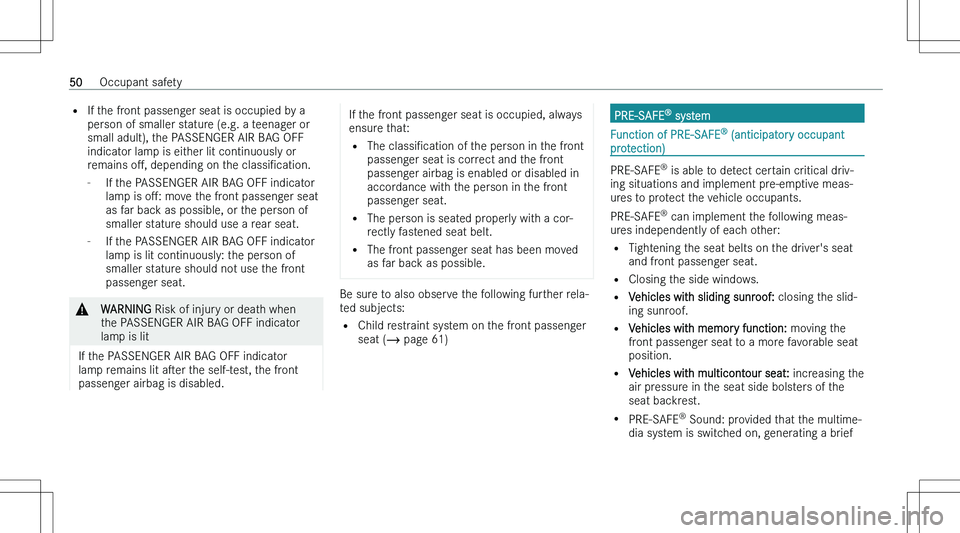

MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual �=�I�f� �t�h�e� �f�r�o�n�t� �p�a�s�s�e�n�g�e�r� �s�e�a�t� �i�s� �o�c�c�u�p�i�e�d� �b�y� �a
�p�e�r�s�o�n� �o�f� �s�m�a�l�l�e�r� �s�t�a�t�u�r�e� �(�e�.�g�.� �a� �t�e�e�n�a�g�e�r� �o�r
�s�m�a�l�l� �a�d�u

=If the front passenger seat is occupied by a
person of smaller stature (e.g. a teenager or
small adult), the PASSENGER AIR BAG OFF indicator lamp is either lit continuously or
remains oM, depending on the classiNcation.
- If the PASSENGER AIR BAG OFF indicator
lamp is oM: move the front passenger seat
as far back as possible, or the person of
smaller stature should use a rear seat.
- If the PASSENGER AIR BAG OFF indicator
lamp is lit continuously: the person of
smaller stature should not use the front
passenger seat.&WARNING Risk of injury or death when
the PASSENGER AIR BAG OFF indicator
lamp is lit
If the PASSENGER AIR BAG OFF indicator lamp remains lit aser the self-test, the front
passenger airbag is disabled.
If the front passenger seat is occupied, always
ensure that:
= The classiNcation of the person in the front
passenger seat is correct and the front passenger airbag is enabled or disabled in
accordance with the person in the front
passenger seat.
= The person is seated properly with a cor-
rectly fastened seat belt.
= The front passenger seat has been moved
as far back as possible.
Be sure to also observe the following further rela-
ted subjects:
= Child restraint system on the front passenger
seat ( page 61)
PRE-SAFE n
system
Function of PRE-SAFE n
(anticipatory occupant
protection)
PRE-SAFE n
is able to detect certain critical driv-
ing situations and implement pre-emptive meas-
ures to protect the vehicle occupants.
PRE-SAFE n
can implement the following meas-
ures independently of each other:
= Tightening the seat belts on the driver\bs seat
and front passenger seat.
= Closing the side windows.
= Vehicles with sliding sunroof: closing the slid-
ing sunroof.
= Vehicles with memory function: moving the
front passenger seat to a more favorable seat
position.
= Vehicles with multicontour seat: increasing the
air pressure in the seat side bolsters of the seat backrest.
= PRE-SAFE n
Sound: provided that the multime-
dia system is switched on, generating a brief
50Occupant safety

Page 53 of 458

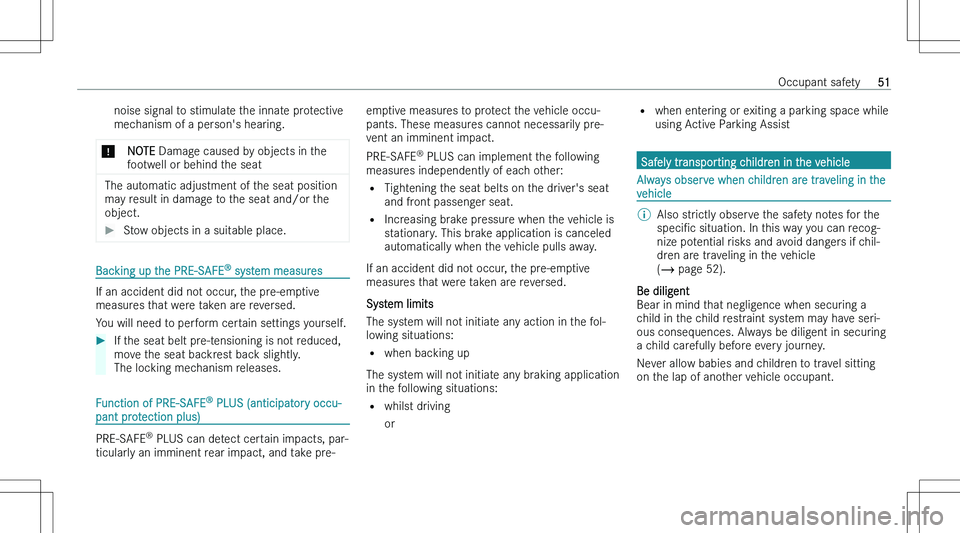

$MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual �n�o�i�s�e� �s�i�g�n�a�l� �t�o� �s�t�i�m�u�l�a�t�e� �t�h�e� �i�n�n�a�t�e� �p�r�o�t�e�c�t�i�v�e �m�e�c�h�a�n�i�s�m� �o�f� �a� �p�e�r�s�o�n�\b�s� �h�e�a�r�i�n�g�.�*�N�O�T�E � �D�a�m�a�g�e� �c�a�u�s�e�d�$

noise signal to stimulate the innate protective
mechanism of a person\bs hearing.*NOTE Damage caused by objects in the
footwell or behind the seat
The automatic adjustment of the seat position
may result in damage to the seat and/or the object.
Stow objects in a suitable place.
Backing up the PRE-SAFE n
system measures
If an accident did not occur, the pre-emptive
measures that were taken are reversed.
You will need to perform certain settings yourself.
If the seat belt pre-tensioning is not reduced,
move the seat backrest back slightly.
The locking mechanism releases.
Function of PRE-SAFE n
PLUS (anticipatory occu-
pant protection plus)
PRE-SAFE n
PLUS can detect certain impacts, par-
ticularly an imminent rear impact, and take pre-
emptive measures to protect the vehicle occu-
pants. These measures cannot necessarily pre-
vent an imminent impact.
PRE-SAFE n
PLUS can implement the following
measures independently of each other:
= Tightening the seat belts on the driver\bs seat
and front passenger seat.
= Increasing brake pressure when the vehicle is
stationary. This brake application is canceled
automatically when the vehicle pulls away.
If an accident did not occur, the pre-emptive
measures that were taken are reversed.
System limits
The system will not initiate any action in the fol- lowing situations:
= when backing up
The system will not initiate any braking application
in the following situations:
= whilst driving
or= when entering or exiting a parking space while
using Active Parking Assist
Safely transporting children in the vehicle
Always observe when children are traveling in the vehicle
\bAlso strictly observe the safety notes for the
speciNc situation. In this way you can recog-
nize potential risks and avoid dangers if chil- dren are traveling in the vehicle
( page 52).
Be diligent
Bear in mind that negligence when securing a
child in the child restraint system may have seri-
ous consequences. Always be diligent in securing
a child carefully before every journey.
Never allow babies and children to travel sitting
on the lap of another vehicle occupant.
Occupant safety51

Page 54 of 458

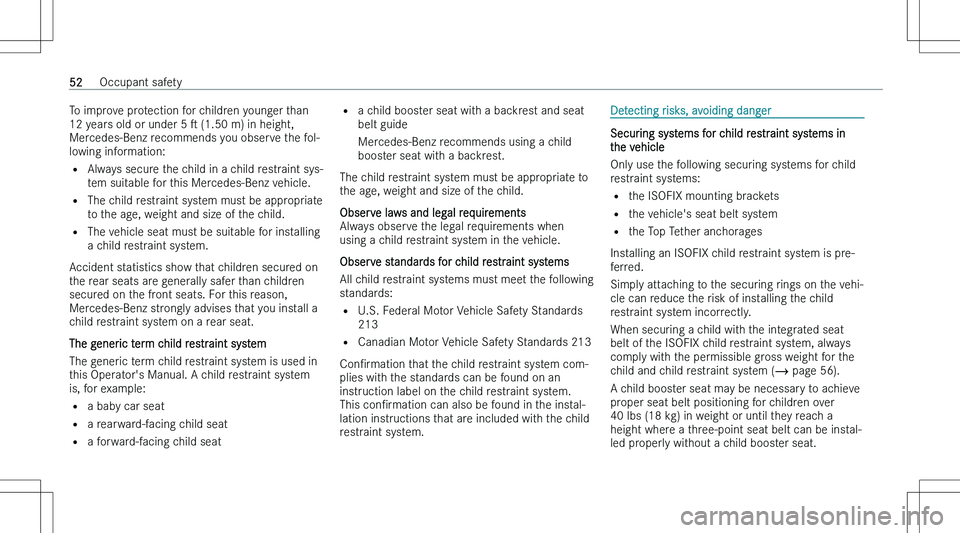

MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual �T�o� �i�m�p�r�o�v�e� �p�r�o�t�e�c�t�i�o�n� �f�o�r� �c�h�i�l�d�r�e�n� �y�o�u�n�g�e�r� �t�h�a�n�1�2� �y�e�a�r�s� �o�l�d� �o�r� �u�n�d�e�r� �5� s� �(�1�.�5�0� �m�)� �i�n� �h�e�i�g�h�t�,
�M�e�r�c�e�d�e

To improve protection for children younger than12 years old or under 5 s (1.50 m) in height,
Mercedes-Benz recommends you observe the fol- lowing information:
= Always secure the child in a child restraint sys-
tem suitable for this Mercedes-Benz vehicle.
= The child restraint system must be appropriate
to the age, weight and size of the child.
= The vehicle seat must be suitable for installing
a child restraint system.
Accident statistics show that children secured on
the rear seats are generally safer than children secured on the front seats. For this reason,
Mercedes-Benz strongly advises that you install a
child restraint system on a rear seat.
The generic term child restraint system The generic term child restraint system is used in this Operator\bs Manual. A child restraint systemis, for example:
= a baby car seat
= a rearward-facing child seat
= a forward-facing child seat=a child booster seat with a backrest and seat
belt guide
Mercedes-Benz recommends using a child
booster seat with a backrest.
The child restraint system must be appropriate to
the age, weight and size of the child.
Observe laws and legal requirements
Always observe the legal requirements when
using a child restraint system in the vehicle.
Observe standards for child restraint systems All child restraint systems must meet the followingstandards:
= U.S. Federal Motor Vehicle Safety Standards
213
= Canadian Motor Vehicle Safety Standards 213
ConNrmation that the child restraint system com-
plies with the standards can be found on an instruction label on the child restraint system.This conNrmation can also be found in the instal-
lation instructions that are included with the child restraint system.Detecting risks, avoiding danger
Securing systems for child restraint systems in the vehicle
Only use the following securing systems for child
restraint systems:
= the ISOFIX mounting brackets
= the vehicle\bs seat belt system
= the Top Tether anchorages
Installing an ISOFIX child restraint system is pre-
ferred.
Simply attaching to the securing rings on the vehi- cle can reduce the risk of installing the childrestraint system incorrectly.
When securing a child with the integrated seat belt of the ISOFIX child restraint system, always comply with the permissible gross weight for thechild and child restraint system ( page 56).
A child booster seat may be necessary to achieve proper seat belt positioning for children over
40 lbs (18 kg) in weight or until they reach a
height where a three-point seat belt can be instal-
led properly without a child booster seat.
52Occupant safety

Page 55 of 458

MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual �M�e�r�c�e�d�e�s�-�B�e�n�z� �r�e�c�o�m�m�e�n�d�s� �a� �s�u�i�t�a�b�l�e� �c�h�i�l�d
�b�o�o�s�t�e�r� �s�e�a�t� �w�i�t�h� �a� �b�a�c�k�r�e�s�t� �a�n�d� �s�e�a�t� �b�e�l�t� �g�u�i�d�e�.
�A�d�v�a�n�t�a�g�e

Mercedes-Benz recommends a suitable child
booster seat with a backrest and seat belt guide.
Advantage of a rearward-facing child restraint sys-
tem
It is preferable to transport a baby or a small child
in a suitable rearward-facing child restraint sys- tem. In this case, the child sits in the oppositedirection to the direction of travel and faces back-wards.
Babies and small children have comparatively
weak neck muscles in relation to the size and weight of their head. The risk of injury to the cer-vical spine during an accident can be reduced in a
rearward-facing child restraint system.
Always secure a child restraint system correctly&WARNING Risk of injury or death due to
incorrect installation of the child restraint
system
The child can then not be protected or restrained as intended.
Be sure to comply with the manufactur-
er\bs installation instructions for the child
restraint system and its correct use.Make sure that the entire base of the child restraint system always rests on
the sitting surface of the seat.Never place objects (e.g. cushions)
under or behind the child restraint sys- tem.Use child restraint systems only with the
original cover designed for them.Always replace damaged covers with
genuine covers.&WARNING Risk of injury or death due to
unsecured child restraint systems in the
vehicle
If the child restraint system is incorrectly
mounted or unsecured, it may come loose.
The child can then not be protected or
restrained as intended.
Unused child restraint systems could be Oung
around and hit vehicle occupants.
Always comply with the manufacturer\bs
installation instructions for the child
restraint system and its correct use.Always Nt child restraint systems cor-
rectly, even if they are transported in the vehicle unused.
= Always observe the child restraint system
manufacturer\bs installation and operating
instructions as well as the vehicle-speciNc
information:
- Installing the ISOFIX child restraint system
on the right and les rear seats
( page 56).
- Securing the child restraint system with
the seat belt on the rear seat
( page 60).
- Securing the child restraint system with
the seat belt on the front passenger seat
( page 62). Observe the speciNc
instructions for the rearward-facing and forward-facing child restraint systems( page 61).
Occupant safety53

Page 56 of 458

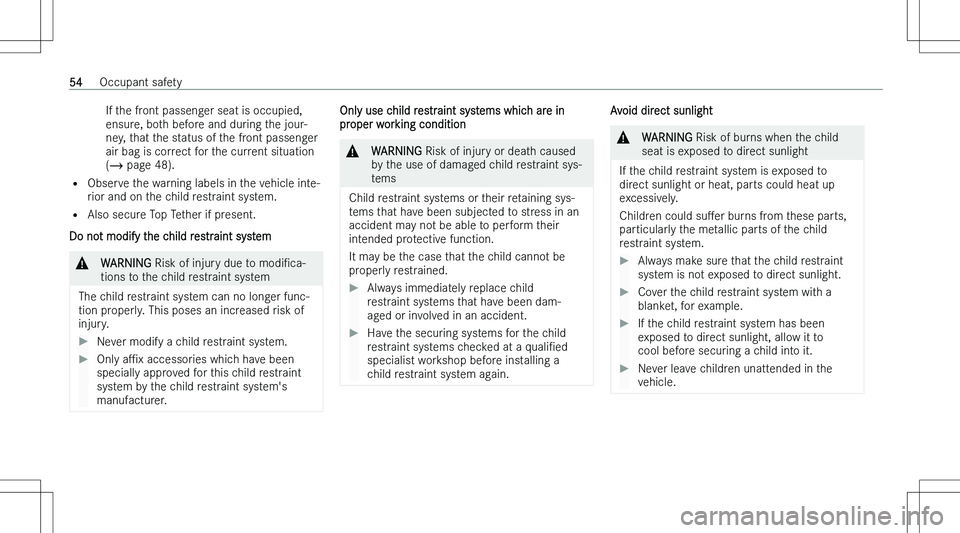

MERCEDES-BENZ E CLASS COUPE 2023 Owners Manual �I�f� �t�h�e� �f�r�o�n�t� �p�a�s�s�e�n�g�e�r� �s�e�a�t� �i�s� �o�c�c�u�p�i�e�d�,�e�n�s�u�r�e�,� �b�o�t�h� �b�e�f�o�r�e� �a�n�d� �d�u�r�i�n�g� �t�h�e� �j�o�u�r�- �n�e�y�,� �t�h�a�t� �t�h�e� �s�t�a�t�u�

Load next 8 pages

Page: < prev 1-10 ... 17-24 25-32 33-40 41-48 49-56 57-64 65-72 73-80 81-88 ... 464 next >

auxiliary battery location heater android auto oil steering ignition
