2023 MERCEDES-BENZ E CLASS COUPE Owners Manual

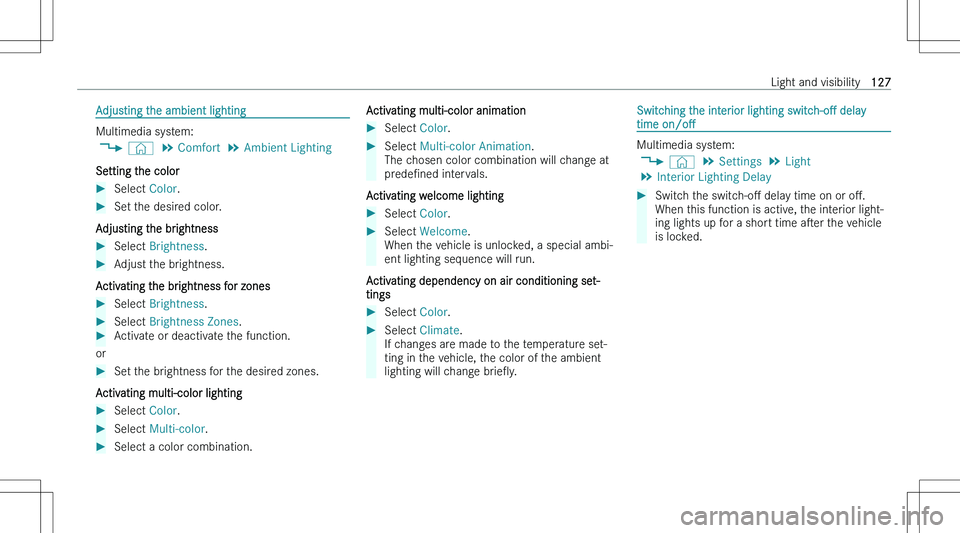

Adjusting the ambient lighting
Multimedia system:4 © 5
Comfort 5
Ambient Lighting
Setting the color
Select Color.Set the desired color.
Adjusting the brightness
Select Brightness .Adjust the brightness.
Activating the brightness for zones
Select Brightness .Select Brightness Zones .Activate or deactivate the function.
or
Set the brightness for the desired zones.
Activating multi-color lighting
Select Color.Select Multi-color .Select a color combination.Activating multi-color animationSelect Color.Select Multi-color Animation .
The chosen color combination will change at
predeNned intervals.
Activating welcome lighting
Select Color.Select Welcome .
When the vehicle is unlocked, a special ambi-
ent lighting sequence will run.
Activating dependency on air conditioning set-
tings
Select Color.Select Climate .
If changes are made to the temperature set-
ting in the vehicle, the color of the ambient
lighting will change brieOy.Switching the interior lighting switch-oM delay
time on/oM
Multimedia system:
4 © 5
Settings 5
Light
5 Interior Lighting Delay
Switch the switch-oM delay time on or oM.
When this function is active, the interior light-
ing lights up for a short time aser the vehicle
is locked.Light and visibility127

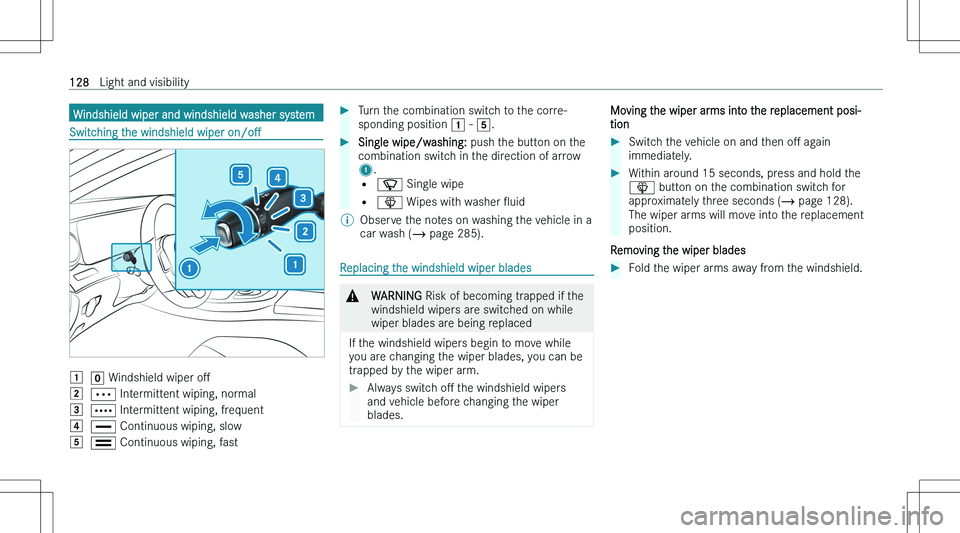

Windshield wiper and windshield washer system
Switching the windshield wiper on/oM
GZ Windshield wiper oMHb Intermittent wiping, normalIc Intermittent wiping, frequentJ

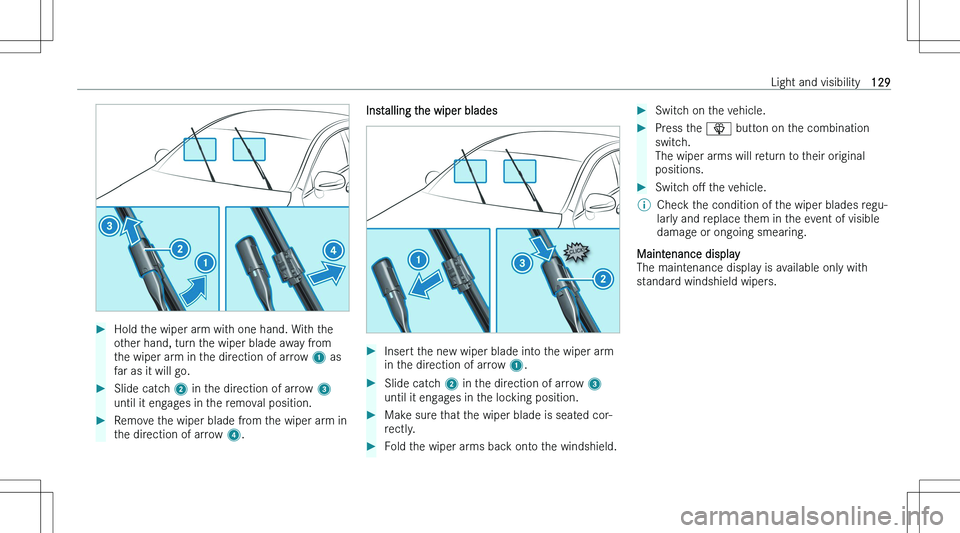

Hold the wiper arm with one hand. With the
other hand, turn the wiper blade away from
the wiper arm in the direction of arrow 1 as
far as it will go.Slide catch 2 in the direction of arrow 3
until it engages in the removal position.Remove the wiper blade from the wiper arm in
the direction of arrow 4.Installing the wiper bladesInsert the new wiper blade into the wiper arm
in the direction of arrow 1.Slide catch 2 in the direction of arrow 3
until it engages in the locking position.Make sure that the wiper blade is seated cor-
rectly.Fold the wiper arms back onto the windshield.Switch on the vehicle.Press the

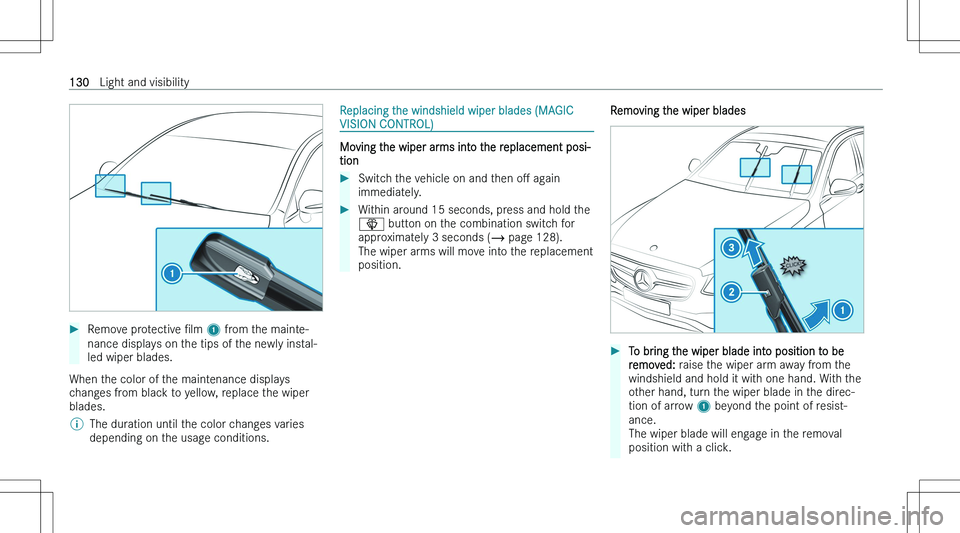

Remove protective Nlm 1 from the mainte-
nance displays on the tips of the newly instal-
led wiper blades.
When the color of the maintenance displays
changes from black to yellow, replace the wiper blades.
\bThe duration until the color changes varies
depending on the usage conditions.Replacing the windshield wiper blades (MAGIC
VISION CONTROL)
Moving the wiper arms into the replacement posi-
tion
Switch the vehicle on and then oM again
immediately.Within around 15 seconds, press and hold the

To remove the wiper blade: press release knob
2 , pull the wiper blade in the direction of
arrow 3 and remove.
Installing the wiper blades
Push the new wiper blade onto the wiper arm
in the direction of arrow 1 until release knob
2 engages.Press the wiper blade beyond the point of
resistance in the direction of arrow 3 on the
wiper arm.
The wiper blade will engage with a noticeable
click and move freely again.Fold the wiper arm back onto the windshield.Switch on the vehicle.Press button

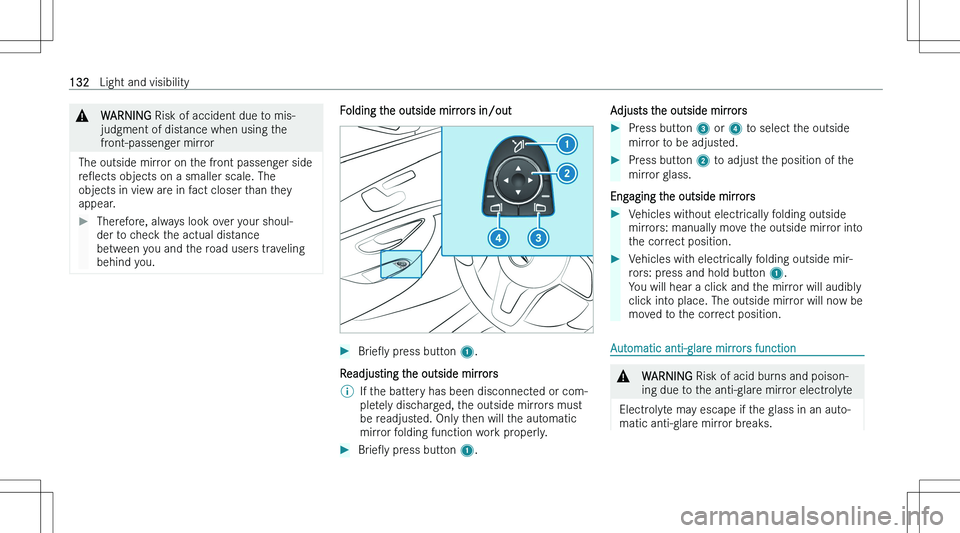

&WARNING Risk of accident due to mis-
judgment of distance when using the
front-passenger mirror
The outside mirror on the front passenger side
reOects objects on a smaller scale. The
objects in view are in fact closer than they appear.
Therefore, always look over your shoul-
der to check the actual distance between you and the road users traveling
behind you.Folding the outside mirrors in/outBrieOy press button 1.
Readjusting the outside mirrors
\bIf the battery has been disconnected or com-
pletely discharged, the outside mirrors must be readjusted. Only then will the automatic
mirror folding function work properly.BrieOy press button 1.Adjusts the outside mirrorsPress button 3 or 4 to select the outside
mirror to be adjusted.Press button 2 to adjust the position of the
mirror glass.
Engaging the outside mirrors
Vehicles without electrically folding outside
mirrors: manually move the outside mirror into
the correct position.Vehicles with electrically folding outside mir-
rors: press and hold button 1.
You will hear a click and the mirror will audibly click into place. The outside mirror will now be
moved to the correct position.
Automatic anti-glare mirrors function
&WARNING Risk of acid burns and poison-
ing due to the anti-glare mirror electrolyte
Electrolyte may escape if the glass in an auto-
matic anti-glare mirror breaks.
132Light and visibility

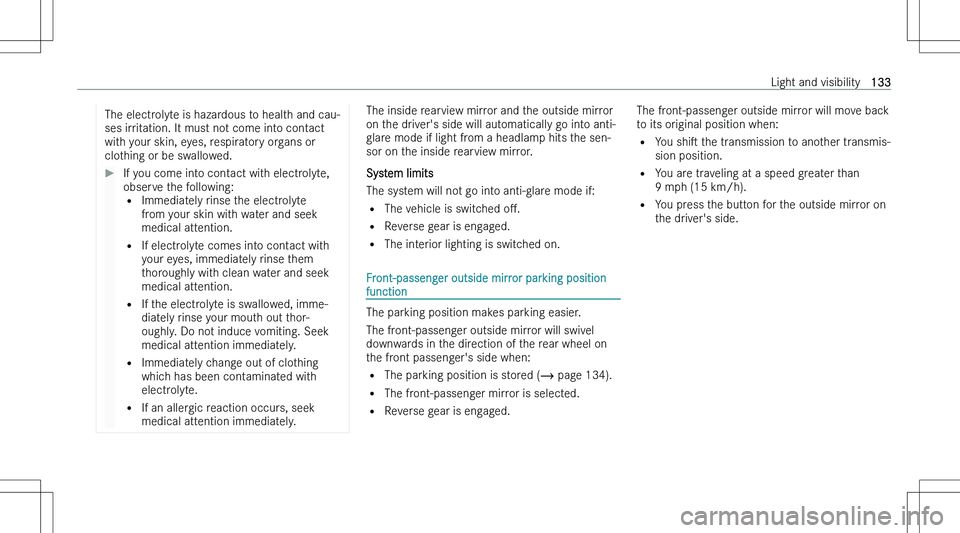

The electrolyte is hazardous to health and cau-
ses irritation. It must not come into contact
with your skin, eyes, respiratory organs or
clothing or be swallowed.If you come into contact with electrolyte, observe the following:
= Immediately rinse the electrolyte
from your skin with water and seek
medical attention.
= If electrolyte comes into contact with
your eyes, immediately rinse them
thoroughly with clean water and seek
medical attention.
= If the electrolyte is swallowed, imme-
diately rinse your mouth out thor-
oughly. Do not induce vomiting. Seek
medical attention immediately.
= Immediately change out of clothing
which has been contaminated with
electrolyte.
= If an allergic reaction occurs, seek
medical attention immediately.The inside rearview mirror and the outside mirroron the driver\bs side will automatically go into anti-
glare mode if light from a headlamp hits the sen- sor on the inside rearview mirror.
System limits
The system will not go into anti-glare mode if:
= The vehicle is switched oM.
= Reverse gear is engaged.
= The interior lighting is switched on.
Front-passenger outside mirror parking position
function
The parking position makes parking easier.
The front-passenger outside mirror will swivel downwards in the direction of the rear wheel on
the front passenger\bs side when:
= The parking position is stored (  page 134).
= The front-passenger mirror is selected.
= Reverse gear is engaged.
The front-passenger outside mirror will move back
to its original position when:
= You shis the transmission to another transmis-
sion position.
= You are traveling at a speed greater than
9 mph (15 km/h).
= You press the button for the outside mirror on
the driver\bs side.Light and visibility133

Storing the parking position of the front-
passenger outside mirror using reverse gear
Storing
Select the front-passenger outside mirror using button 2.Engage reverse gear.Move the front-passenger outside mirror into
the desired parking position using button 1.Calling upSelect the front-passenger outside mirror
using button 2.Engage reverse gear.
The front-passenger outside mirror will move to the stored parking position.
Activating/deactivating the automatic mirror fold-
ing function
Multimedia system:
4 © 5
Settings 5
Vehicle
Activate or deactivate Automatic Folding.134Light and visibility
