2023 MERCEDES-BENZ E CLASS COUPE Owners Manual

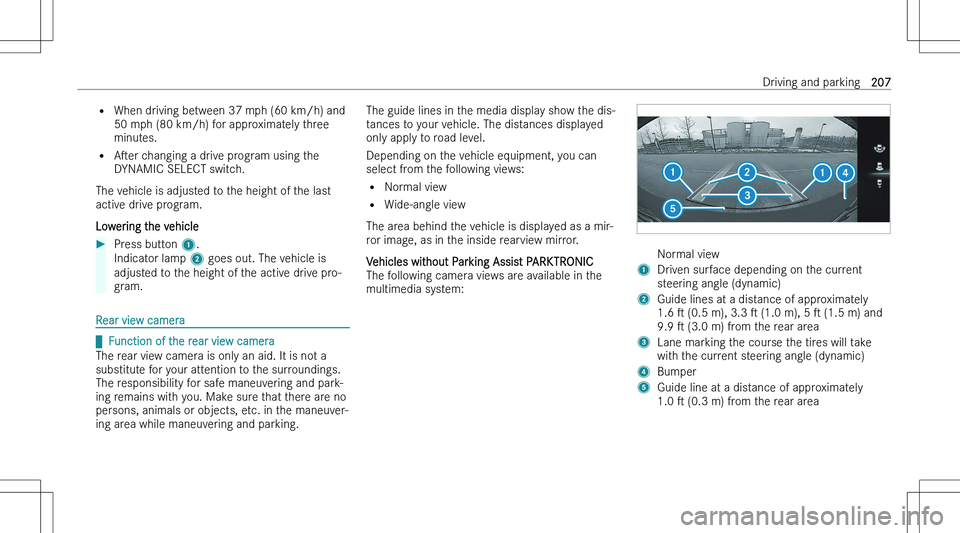

=When driving between 37 mph (60 km/h) and
50 mph (80 km/h) for approximately three
minutes.
= Aser changing a drive program using the
DYNAMIC SELECT switch.
The vehicle is adjusted to the height of the last active drive program.
Lowering the vehiclePress button 1.
Indicator lamp 2 goes out. The vehicle is
adjusted to the height of the active drive pro- gram.
Rear view camera

q Function of the rear view camera
The rear view camera is only an aid. It is not a
substitute for your attention to the surroundings. The responsibility for safe maneuvering and park-
ing remains with you. Make sure that there are no persons, animals or objects, etc. in the maneuver-ing area while maneuvering and parking.
The guide lines in the media display show the dis-
tances to your vehicle. The distances displayed
only apply to road level.
Depending on the vehicle equipment, you can
select from the following views:
= Normal view
= Wide-angle view
The area behind the vehicle is displayed as a mir- ror image, as in the inside rearview mirror.
Vehicles without Parking Assist PARKTRONICThe following camera views are available in the
multimedia system:Normal view1Driven surface depending on the current
steering angle (dynamic)2Guide lines at a distance of approximately 1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area3Lane marking the course the tires will take
with the current steering angle (dynamic)4Bumper5Guide line at a distance of approximately
1.0 s (0.3 m) from the rear areaDriving and parking207

Wide-angle view
Vehicles with Parking Assist PARKTRONICThe following camera views are available in the
multimedia system:
Normal view1Yellow warning display: obstacles at a dis-
tance between approximately 2.3 s (0.7 m)
and 3.3 s (1.0 m)2Orange warning display: obstacles at a dis-
tance between approximately 1.3 s (0.4 m)
and 2.3 s (0.7 m)3Guide lines at a distance of approximately
1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area4Yellow lanes marking the course the tires will
take with the current steering angle (dynamic)5Driven surface depending on the current
steering angle (dynamic)6Guide line at a distance of approximately
1.0 s (0.3 m) from the rear area
The color of warning display 1/2 changes
dynamically and is based on the distance to the detected obstacle:
= Blue: no obstacles detected at a distance less
than 3.3 s (1.0 m) detected.
= Yellow: obstacles at a distance between
approximately 2.3 s (0.7 m) and 3.3 s (1.0 m)
= Orange: obstacles at a distance between
approximately 1.3 s (0.4 m) and 2.3 s (0.7 m)
= Red: obstacles at a very short distance of
approximately 1.3 s (0.4 m) or less
\bVehicles with Active Parking Assist: when
Active Parking Assist is active, lane markings
4 are displayed in green.208Driving and parking

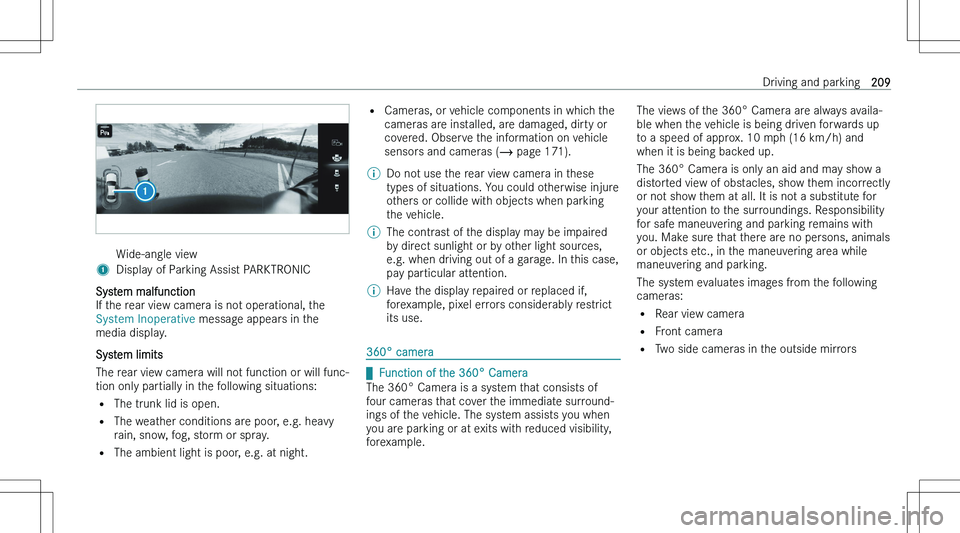

Wide-angle view1Display of Parking Assist PARKTRONIC
System malfunction
If the rear view camera is not operational, the
System Inoperative message appears in the
media display.
System limits
The rear view camera will not function or will func-
tion only partially in the following situations:
= The trunk lid is open.
= The weather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The ambient light is poor, e.g. at night.
=Cameras, or vehicle components in which the
cameras are installed, are damaged, dirty or
covered. Observe the information on vehicle
sensors and cameras (  page 171).\bDo not use the rear view camera in these
types of situations. You could otherwise injure
others or collide with objects when parking
the vehicle.\bThe contrast of the display may be impaired
by direct sunlight or by other light sources, e.g. when driving out of a garage. In this case,
pay particular attention.\bHave the display repaired or replaced if, forexample, pixel errors considerably restrict
its use.
360° camera

q Function of the 360° Camera
The 360° Camera is a system that consists of
four cameras that cover the immediate surround- ings of the vehicle. The system assists you whenyou are parking or at exits with reduced visibility,forexample.
The views of the 360° Camera are always availa-ble when the vehicle is being driven forwards up
to a speed of approx. 10 mph (16 km/h) and when it is being backed up.
The 360° Camera is only an aid and may show a
distorted view of obstacles, show them incorrectly
or not show them at all. It is not a substitute for
your attention to the surroundings. Responsibility
for safe maneuvering and parking remains with you. Make sure that there are no persons, animals
or objects etc., in the maneuvering area while
maneuvering and parking.
The system evaluates images from the following
cameras:
= Rear view camera
= Front camera
= Two side cameras in the outside mirrorsDriving and parking209

Views of the 360° Camera1Wide-angle view, front2Top view with image from the front camera3Top view with images from the side cameras
in the outside mirrors4Wide-angle view, rear5Top view with image from the rear view cam- era6Top view with trailer view (vehicles with a
trailer hitch)
Function of the guide lines
Guide lines are also displayed in the camera
images of the top views. These are based on the
current steering angle and show the distance to
objects and other vehicles.1Guide lines at a distance of approximately 1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area2Yellow lanes marking the course that the tires
will take with the current steering angle
(dynamic)3Driven surface depending on the current
steering angle (dynamic)4Guide line at a distance of approximately
1.0 s (0.3 m) from the rear area\bWhen Active Parking Assist is active, paths
2 are displayed in green.
The guide lines show the distances to your
vehicle. The distances apply to road level.
In all views, the Parking Assist PARKTRONIC warn-
ing display is also shown (  page 212).
The color of warning display changes dynamically and is based on the distance to the detected
obstacle:
= Blue: no obstacles detected at a distance less
than 3.3 s (1.0 m)
= Yellow: obstacles at a distance between
approximately 2.3 s (0.7 m) and 3.3 s (1.0 m)
= Orange: obstacles at a distance between
approximately 1.3 s (0.4 m) and 2.3 s (0.7 m)
= Red: obstacles at a very short distance of
approximately 1.3 s (0.4 m) or less
\bWhen Parking Assist PARKTRONIC is opera-
tional and no object is detected, the warning display is shown here in blue.210Driving and parking

Wide-angle view, front1Warning display of Parking Assist
PARKTRONICTop view with image from the front camera1Warning display of Parking Assist
PARKTRONIC (  page 212)2Your vehicle from above3Lane indicating the route that the vehicle will
take at the current steering angle
Top view with images from the side cameras in
the outside mirrors
The front and rear sides of the vehicle can be
seen in this view.
System limits
If the system is not ready for operation, the Sys-
tem Inoperative message appears in the media
display.
The 360° Camera will not function or will function
only partially in the following situations:
= You are driving forwards at a speed greater
than approximately 10 mph (16 km/h).
= The doors are open.
= An outside mirror is not completely folded out.
= The trunk lid is open.
= The weather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
Driving and parking211

=The ambient light is poor, e.g. at night.
= The camera lens is obstructed, dirty or fogged
up.
= If cameras or vehicle components in which the
cameras are installed are damaged. In this event, have the cameras, their positions andtheir setting checked at a qualiNed specialist
workshop.\bDo not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the vehicle.
For technical reasons, the standard height of thevehicle may be altered if the vehicle is carrying a
heavy load and can result in inaccuracies in the
guide lines and in the display of the generated
images.
The Neld of vision and other functions of the cam-
era system may be restricted due to additional attachments on the vehicle (e.g. license plate
bracket, bicycle rack).
\bThe contrast of the display may be impaired
by abrupt, direct sunlight or by other lightsources, e.g. when you are driving out of a
garage. In this case, pay particular attention.\bHave the display repaired or replaced if, forexample, pixel errors considerably restrict
its use.
See the notes on cleaning the 360° Camera
(  page 288).

q Calling up the view of the 360° Camera using
reverse gear
Engage reverse gear.Select the desired view in the multimedia sys- tem (  page 209).If the image from the rear view camera is not
shown aser reverse gear is engaged: switch
oM the vehicle, press and hold the E but-
ton, switch on the vehicle and engage reverse gear again.
q Opening the camera cover of the rear view
camera
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & ParkingSelect Open Camera Cover .\bThe camera cover closes automatically aser a
while or aser an ignition cycle.
Parking Assist PARKTRONIC

qFunction of Parking Assist PARKTRONIC
Parking Assist PARKTRONIC is an electronic park-
ing assistance system that monitors the area sur-
rounding your vehicle and shows you the distance
between the vehicle and a detected obstacle visu-
ally and audibly.
Parking Assist PARKTRONIC is only an aid. It is
not a substitute for your attention to the surround- ings. The responsibility for safe maneuvering andparking remains with you. Make sure that there
are no persons, animals or objects in the maneu- vering area while maneuvering and parking.
212Driving and parking

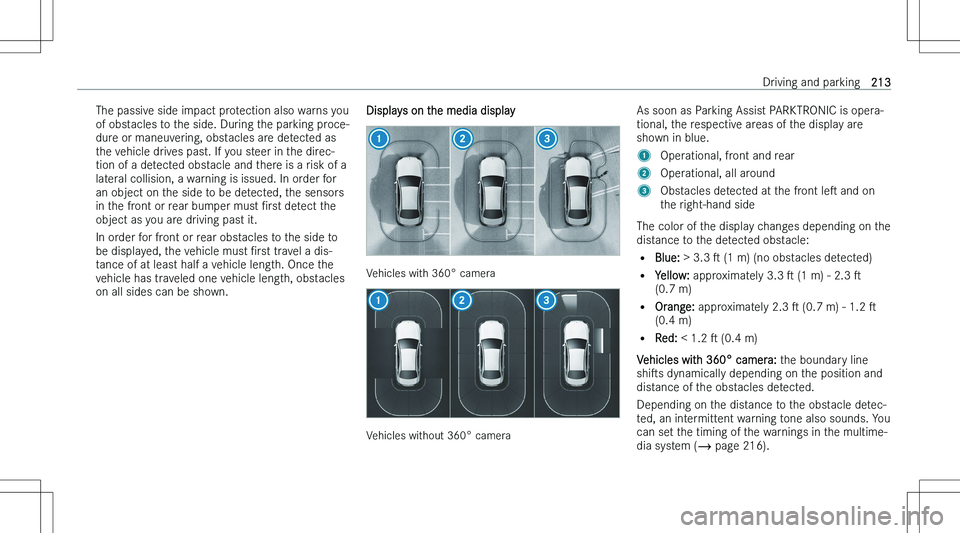

The passive side impact protection also warns you
of obstacles to the side. During the parking proce- dure or maneuvering, obstacles are detected as
the vehicle drives past. If you steer in the direc- tion of a detected obstacle and there is a risk of a
lateral collision, a warning is issued. In order for an object on the side to be detected, the sensorsin the front or rear bumper must Nrst detect the
object as you are driving past it.
In order for front or rear obstacles to the side to be displayed, the vehicle must Nrst travel a dis-
tance of at least half a vehicle length. Once the vehicle has traveled one vehicle length, obstacles
on all sides can be shown.Displays on the media display
Vehicles with 360° camera
Vehicles without 360° camera
As soon as Parking Assist PARKTRONIC is opera-
tional, the respective areas of the display are shown in blue.1Operational, front and rear2Operational, all around3Obstacles detected at the front les and on
the right-hand side
The color of the display changes depending on the distance to the detected obstacle:
= Blue: > 3.3 s (1 m) (no obstacles detected)
= Yellow: approximately 3.3 s (1 m) - 2.3 s
(0.7 m)
= Orange: approximately 2.3 s (0.7 m) - 1.2 s
(0.4 m)
= Red: < 1.2 s (0.4 m)
Vehicles with 360° camera: the boundary line
shiss dynamically depending on the position and
distance of the obstacles detected.
Depending on the distance to the obstacle detec-
ted, an intermittent warning tone also sounds. You
can set the timing of the warnings in the multime-
dia system (  page 216).
Driving and parking213

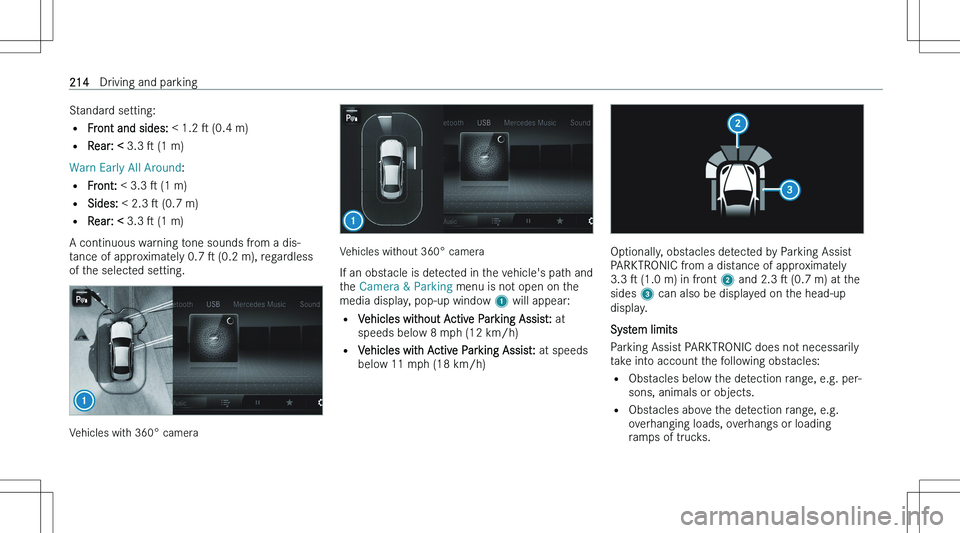

Standard setting:= Front and sides: < 1.2 s (0.4 m)
= Rear: < 3.3 s (1 m)
Warn Early All Around :
= Front: < 3.3 s (1 m)
= Sides: < 2.3 s (0.7 m)
= Rear: < 3.3 s (1 m)
A continuous warning tone sounds from a dis-
tance of approximately 0.7 s (0.2 m), regardless
of the selected setting.
Vehicles with 360° camera
Vehicles without 360° camera
If an obstacle is detected in the vehicle\bs path andthe Camera & Parking menu is not open on the
media display, pop-up window 1 will appear:
= Vehicles without Active Parking Assist: at
speeds below 8 mph (12 km/h)
= Vehicles with Active Parking Assist: at speeds
below 11 mph (18 km/h)Optionally, obstacles detected by Parking Assist
PARKTRONIC from a distance of approximately 3.3 s (1.0 m) in front 2 and 2.3 s (0.7 m) at the
sides 3 can also be displayed on the head-up
display.
System limits
Parking Assist PARKTRONIC does not necessarily
take into account the following obstacles:
= Obstacles below the detection range, e.g. per-
sons, animals or objects.
= Obstacles above the detection range, e.g.
overhanging loads, overhangs or loading
ramps of trucks.
