2023 MERCEDES-BENZ E CLASS COUPE Owners Manual

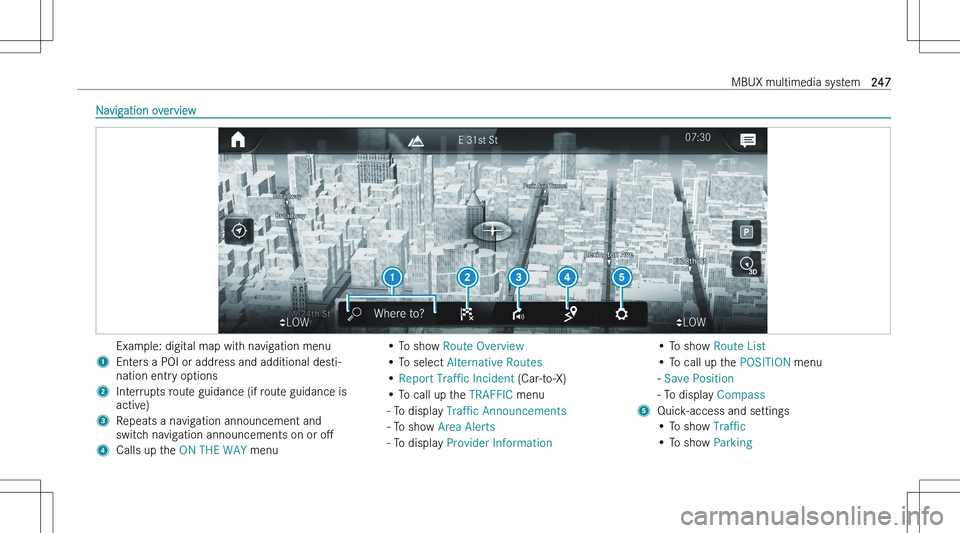

Navigation overviewExample: digital map with navigation menu1Enters a POI or address and additional desti-nation entry options2Interrupts route guidance (if route guidance is
active)3Repeats a navigation announcement and
switch navigation announcements on or oM4Calls up the ON THE WAY menu!

!

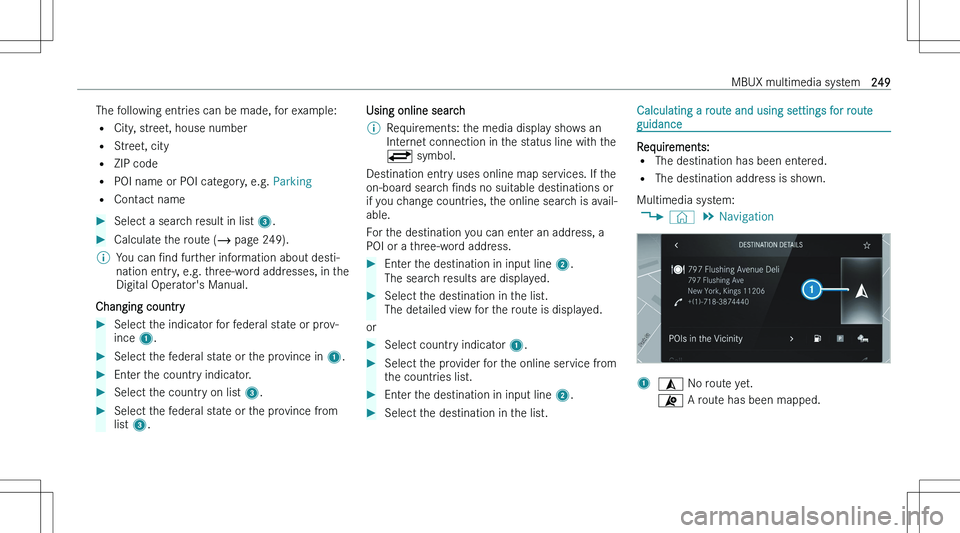

The following entries can be made, for example:
= City, street, house number
= Street, city
= ZIP code
= POI name or POI category, e.g. Parking
= Contact nameSelect a search result in list 3.Calculate the route (  page 249).\bYou can Nnd further information about desti-
nation entry, e.g. three-word addresses, in the Digital Operator\bs Manual.
Changing country
Select the indicator for federal state or prov-
ince 1.Select the federal state or the province in 1.Enter the country indicator.Select the country on list 3.Select the federal state or the province from
list 3.Using online search\bRequirements: the media display shows an
Internet connection in the status line with the Q symbol.
Destination entry uses online map services. If the
on-board search Nnds no suitable destinations or
if you change countries, the online search is avail- able.
For the destination you can enter an address, a POI or a three-word address.
Enter the destination in input line 2.
The search results are displayed.Select the destination in the list.
The detailed view for the route is displayed.
or
Select country indicator 1.Select the provider for the online service from
the countries list.Enter the destination in input line 2.Select the destination in the list.Calculating a route and using settings for route
guidance
Requirements: = The destination has been entered.
= The destination address is shown.
Multimedia system: 4 © 5
Navigation
1¥ No route yet.¦ A route has been mapped.MBUX multimedia system249

Select ¥.
The route to the destination is calculated.
Route guidance begins.
or
Select ¦.Select Set as Waypoint .
The destination address is set as the next
intermediate destination.
or
Select Start New Route Guidance .
The destination address is set as the new des-
tination. The previous destination and the intermediate destinations are deleted. Route
guidance to the new destination begins.
Selecting route settings
Select =.Select Advanced .Select Route.Select the route type.Take traPc information into consideration with
Dynamic Route Guidance H .Select route options with Avoid Options.Activate Suggest Alternative Route .
Alternative routes are calculated for every
route.Activate Activate Commuter Route .
If the requirements are met, the multimedia
system automatically detects that the vehicle
is on a commuter route. Route guidance
begins without voice output.
Activating route guidance with augmented reality
During route guidance, tap on the camera
symbol on the media display. The camera image will be shown instead of
the navigation map before a turning maneuver and will show additional information.To return to the navigation map: tap on the
camera symbol again.
Displaying additional information in the camera
Select =.Select Advanced .Select Augmented Reality .Activate Street Names and House Numbers .
During route guidance, street names and house numbers are shown in the camera
image.
Using map functions
Multimedia system:
4 © 5
Navigation
Setting the map scale
To zoom in: tap twice quickly with one Nnger
on the media display.To zoom out: tap with two Nngers on the
media display.
Moving the map
Move one Nnger in any direction on the
touchscreen.To reset the map to the current vehicle posi- tion: press = brieOy.250MBUX multimedia system

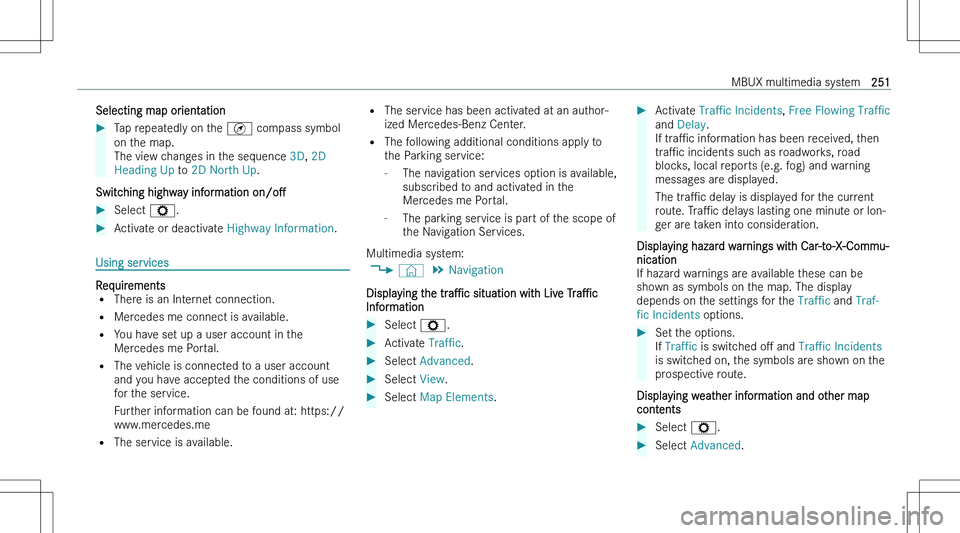

Selecting map orientationTap repeatedly on the

Select View.Select Map Elements .Scroll up and show the ONLINE MAP CON-
TENT category.Switch on a service, e.g. Weather.
Current weather information is displayed on
the navigation map, e.g. temperature or cloud
cover.
Parking service
*NOTE Damage to the vehicle due to not
observing the maximum permitted head-
room clearance
If the vehicle height is greater than the maxi- mum permitted headroom clearance, the roof
and other parts of the vehicle may be dam-
aged.
Observe the signposted headroom clear- ance.If the vehicle height is greater than the permitted headroom clearance, do not
enter.Observe the changed vehicle height with add-on roof equipment.*NOTE Vehicle damage due to failure to
observe local information and parking
conditions
The data is based on the information provided
by the respective service providers.
Mercedes-Benz does not guarantee the accu-
racy of the information provided in relation to
the car park or parking area.
Always observe the local information and
conditions.\bThis service is not available in all countries.Select = and activate Parking.Tap on ] in the map.Select a parking option.
The map shows the parking options in the
vicinity.The following information is displayed (if avail- able):
= Destination address, distance from current
vehicle position and arrival time
= Information on the parking garage/parking
lot, e.g.
- Opening times
- Parking charges
- Current occupancy
- Maximum parking time
- Maximum access height
The maximum access height shown by the parking service does not replace
the need for observation of the actual
circumstances.
= Available payment options (Mercedes pay,
coins, bank notes, cards)
= Details on parking tariMs
= Number of available parking spaces
= Payment method (e.g. at parking meters)
= Services/facilities at the parking option252MBUX multimedia system

=Telephone numberCalculate the route (  page 249).
Notes on the dashcam
*NOTE Observe legal regulations and data
protection provisions
You are legally responsible for operation and
use of the dashcam functions.
The legal requirements relating to operation
and use of the dashcam can vary depending
on the country in which the dashcam is oper-
ated.
This function is not permitted in all countries.
Before using the dashcam, inform your- self about the content of the legal regu-
lations, in particular the data protection
regulations in the respective country of
use.Observe the legal regulations, in particu-
lar the data protection regulations.Selecting a USB device for a video recording with the dashcam
Requirements: = At least one USB device is connected with the
multimedia system .
Multimedia system: 4 © 5
Mercedes me & Apps
5 Dashcam
Select the USB device.\bWhen USB devices contain multiple partitions,
recorded video Nles are not always displayed
in the recording list. Mercedes-Benz recommends that you use
USB devices with one partition.
Starting or stopping video recording with the dashcam
Requirements: = A USB device is connected with the multime-
dia system .
= The vehicle is switched on.
Multimedia system:
4 © 5
Mercedes me & Apps
5 DashcamIf several USB devices are connected with the
multimedia system, select a USB device
(  page 253).Select the Individual Recording or Loop
Recording recording mode.
If Individual Recording is selected and the
memory is full the recording stops.
If Loop Recording has been selected, several
short video Nles are recorded. When the mem-
ory limit is reached, the oldest video Nle is
deleted and recording is continued automati-
cally.To start: select Start Recording .
The length of the recording is shown. The Please do not remove the storage medium.
message appears. The video Nle is stored on
the USB device.To end: select End Recording .MBUX multimedia system253

A report may appear in the following cases:= For the Individual Recording recording mode:
the memory is full or there are only a few
minutes recording time available. The video
recording stops or will be stopped imminently.
Change the USB device or delete a video Nle.
= If a video recording has started and a national
border is detected, the National Border
Crossed. Please observe the country-spe-
cific regulations on video recording. message
appears.
This function is not available in all countries.
= The camera is not functional, the Camera
Unavailable message appears.
Have the camera checked in an authorized
Mercedes-Benz Center.Telephone
Telephony

q Notes on telephony
&WARNING Risk of distraction from operat-
ing integrated communication equipment
while the vehicle is in motion
If you operate communication equipment inte-
grated in the vehicle when driving, you could
be distracted from the traPc situation. This
could also cause you to lose control of the
vehicle.
Only operate this equipment when the
traPc situation permits.If you cannot be sure of this, stop the
vehicle whilst paying attention to road
and traPc conditions and operate the
equipment with the vehicle stationary.&WARNING Risk of accident from operating
mobile communication equipment while
the vehicle is in motion
Mobile communication devices distract the
driver from the traPc situation. This can also
cause the driver to lose control of the vehicle.
As a driver, only operate mobile commu-
nication devices when the vehicle is sta-
tionary.As a vehicle occupant, use mobile com-
munication devices only in the designa-
ted area, e.g. in the rear passenger com-
partment.You must observe the legal requirements for the
country in which you are currently driving when
operating mobile communication equipment in
the vehicle.&WARNING Risk of injury due to objects
being stowed incorrectly
If objects in the vehicle interior are stowed
incorrectly, they can slide or be thrown around
254MBUX multimedia system
