2023 HYUNDAI TUCSON HYBRID stop start

03
3-59
Do not install a Child Restraint
System on the front passenger seat
OHI039193N
Even though your vehicle is equipped
with the OCS, never install a child
restraint in the front passenger’s seat.
An inflating air bag can forcefully strike a
child or child restraint resulting in serious
or fatal injury.
WARNING
NEVER use a rearward facing Child
Restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur.
Why didn’t my air bag go off in a
collision?
There are certain types of accidents in
which the air bag would not be expected
to provide additional protection. These
include rear impacts, second or third
collisions in multiple impact accidents,
as well as low speed impacts. Damage to
the vehicle indicates a collision energy
absorption, and is not an indicator of
whether or not an air bag should have
inflated.
Air bag collision sensors
WARNING
To reduce the risk of an air bag
deploying unexpectedly and causing
serious injury or death:

[Do not hit or allow any objects to
impact the locations where air bags
or sensors are installed.

[ Do not perform maintenance on or
around the air bag sensors. If the
location or angle of the sensors is
altered, the air bags may deploy
when they should not or may not
deploy when they should.

[ Installing bumper guards with non-
genuine Hyundai or non-equivalent
parts may adversely affect the
collision and airbag deployment
performance.

[ Press the Engine Start/Stop button to
the OFF or ACC position and wait for
3 minutes when the vehicle is being
towed to prevent inadvertent air bag
deployment.

[ Have all air bag repairs performed by
an authorized HYUNDAI dealer.

Seats & Safety System3-64
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the Engine Start/Stop button is in the
ON position, or continuously remains on,
have your vehicle immediately inspected
by an authorized HYUNDAI dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails must be performed by an authorized
HYUNDAI dealer. Improper handling of
the SRS system may result in serious
personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:

[ Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.

[ Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.

[ Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.

[ Always have inflated air bags
replaced by an authorized HYUNDAI
dealer.

[ If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.

03
3-65

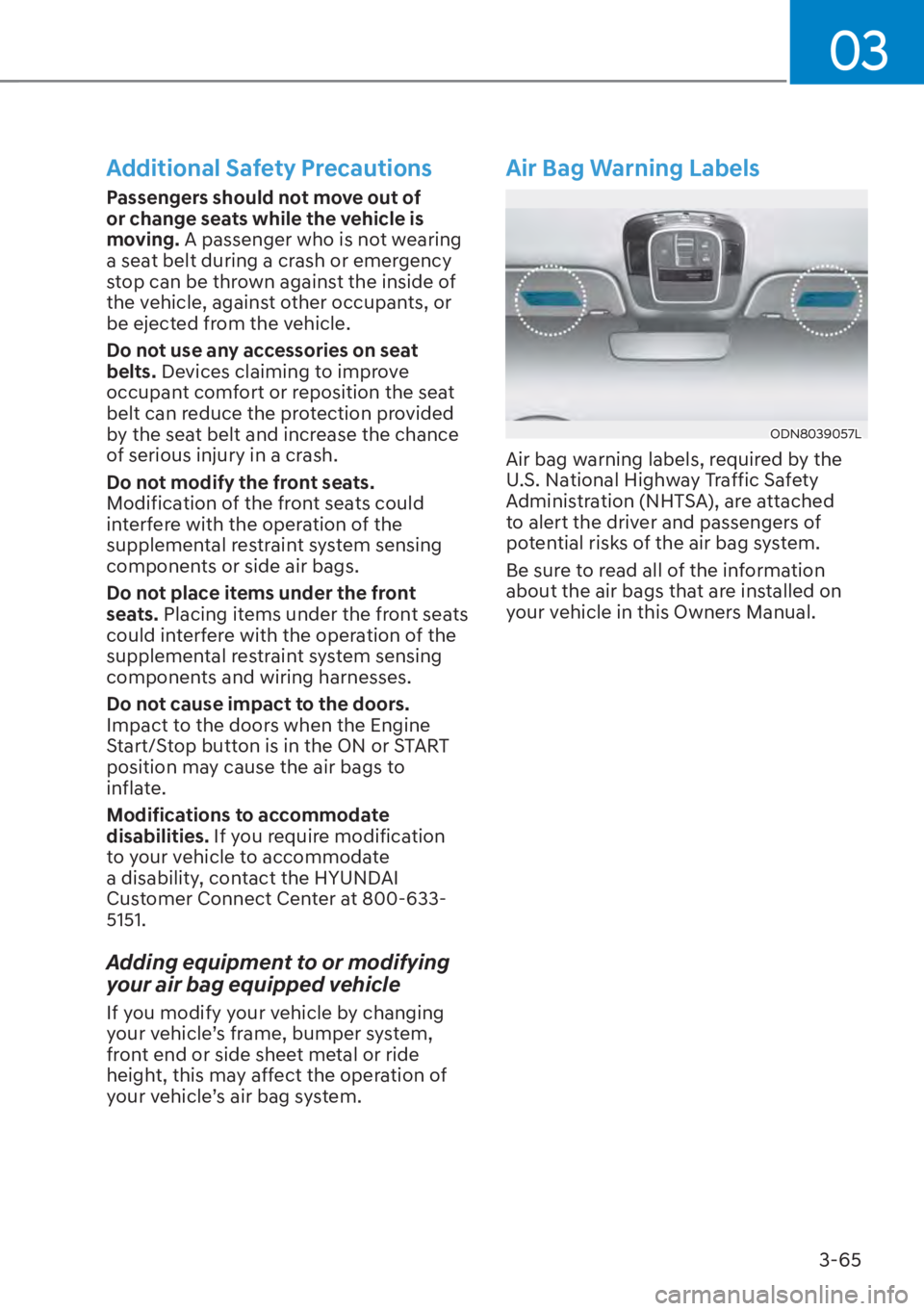

Additional Safety Precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air Bag Warning Labels
ODN8039057L
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system.
Be sure to read all of the information
about the air bags that are installed on
your vehicle in this Owners Manual.

4
Electronic Stability Control (ESC) OFF indicator light ...........................................4-20
Immobilizer Indicator Light (without smart key) ...................................................4-20
Immobilizer indicator light (with smart key) ...........................................................4-21
Downhill Brake Control (DBC) indicator light .........................................................4-21
Turn signal indicator light ........................................................................\
................ 4-22
High beam indicator light ........................................................................\
............... 4-22
Low beam indicator light ........................................................................\
................ 4-22
Light ON indicator light ........................................................................\
................... 4-22
High Beam Assist indicator light ........................................................................\
..... 4-22
Cruise indicator light ........................................................................\
....................... 4-22
SPORT Mode indicator light ........................................................................\
............ 4-23
SMART Mode indicator light ........................................................................\
........... 4-23
LCD Display Messages ........................................................................\
....................... 4-23 Shift to P ........................................................................\
........................................... 4-23
Low key battery ........................................................................\
................................ 4-23
Press START button while turning wheel ............................................................... 4-23
Check steering wheel lock system ........................................................................\
. 4-23
Press brake pedal to start engine ........................................................................\
... 4-24
Key not in vehicle ........................................................................\
............................. 4-24
Key not detected ........................................................................\
.............................. 4-24
Press START button again ........................................................................\
............... 4-24
Press START button with key ........................................................................\
........... 4-24
Check BRAKE SWITCH fuse ........................................................................\
............ 4-24
Shift to P to start engine ........................................................................\
.................. 4-24
12V battery discharging due to additional electrical devices ............................... 4-24
Door, Hood, Liftgate open indicator ....................................................................... 4-25
Sunroof open indicator ........................................................................\
.................... 4-25
Low pressure ........................................................................\
.................................... 4-25
Wiper/Lights display ........................................................................\
........................4-26
Low washer fluid ........................................................................\
..............................4-26
Low fuel ........................................................................\
............................................4-26
Engine has overheated ........................................................................\
....................4-26
Low engine oil ........................................................................\
..................................4-26
Check headlight ........................................................................\
...............................4-26
Check turn signal ........................................................................\
............................. 4-27
Check brake light ........................................................................\
............................. 4-27
Check headlight LED ........................................................................\
....................... 4-27
Ready to start driving ........................................................................\
...................... 4-27
Check regenerative brakes......................................................................\
................ 4-27
Stop vehicle and check brakes ........................................................................\
....... 4-27
Check Hybrid system ........................................................................\
....................... 4-27
Stop safely and check Hybrid system .................................................................... 4-27

4
4. Instrument Cluster
Check Hybrid system. Do not start engine ............................................................ 4-27
Stop safely and check power supply ......................................................................4-28
Check virtual engine sound system........................................................................\
4-28
Refill inverter coolant ........................................................................\
......................4-28
Park with engine On to charge battery ..................................................................4-28
Start engine to avoid battery discharge .................................................................4-28
Check regenerative brakes......................................................................\
................4-29
Check virtual engine sound system........................................................................\
4-29
Unplug vehicle to start (Plug-in hybrid vehicle) ....................................................4-29
Remaining time (Plug-in hybrid vehicle) ................................................................4-29
Wait until fuel door unlocks (Plug-in hybrid vehicle) ........................................... 4-30
Check fuel door (Plug-in hybrid vehicle) ............................................................... 4-30
Fuel door open (Plug-in hybrid vehicle) ................................................................. 4-31
Shift to P to charge (Plug-in hybrid vehicle) .......................................................... 4-31
Switching to Hybrid mode to allow heating or air conditioning
(Plug-in hybrid vehicle) ........................................................................\
................... 4-31
Maintaining Hybrid mode to allow heating or air conditioning
(Plug-in hybrid vehicle) ........................................................................\
................... 4-32
Low/High System Temp. Maintaining Hybrid mode (Plug-in hybrid vehicle) ..... 4-32
Low/High System Temp. Switching to Hybrid mode (Plug-in hybrid vehicle) .... 4-32
Switching to Hybrid mode to lubricate engine (Plug-in hybrid vehicle) ..............4-33
Maintaining Hybrid mode to protect engine (Plug-in hybrid vehicle) .................4-33
Exit SPORT mode to switch to EV (Plug-in hybrid vehicle) ...................................4-33
LCD Display ........................................................................\
............................. 4-34LCD Display Control ........................................................................\
...........................4-34
View Modes ........................................................................\
........................................ 4-35Trip computer mode ........................................................................\

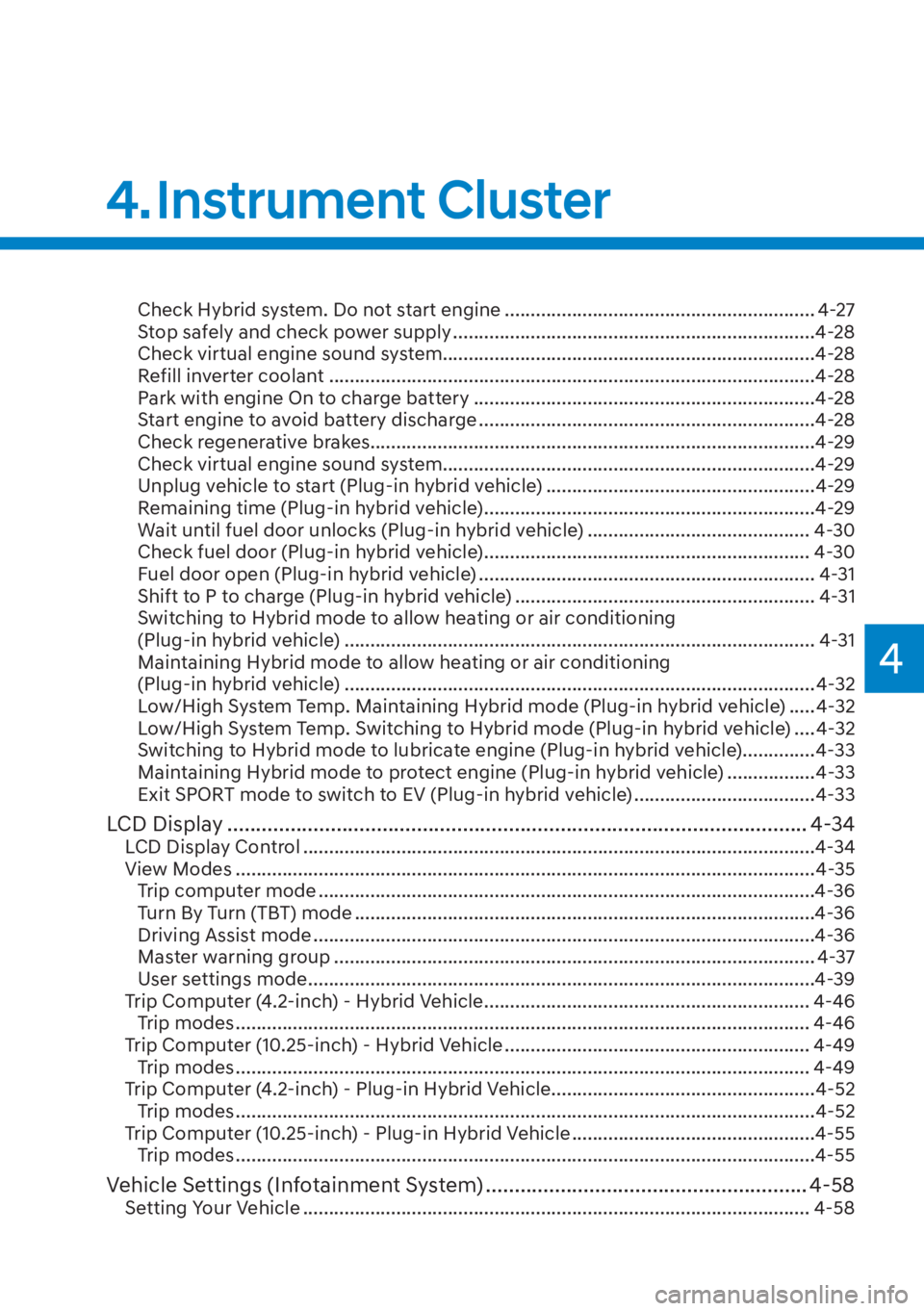

........................4-36
Turn By Turn (TBT) mode ........................................................................\
.................4-36
Driving Assist mode ........................................................................\
.........................4-36
Master warning group ........................................................................\
..................... 4-37
User settings mode ........................................................................\
..........................4-39
Trip Computer (4.2-inch) - Hybrid Vehicle ............................................................... 4-46 Trip modes ........................................................................\
....................................... 4-46
Trip Computer (10.25-inch) - Hybrid Vehicle ........................................................... 4-49 Trip modes ........................................................................\
....................................... 4-49
Trip Computer (4.2-inch) - Plug-in Hybrid Vehicle ...................................................4-52 Trip modes ........................................................................\
........................................4-52
Trip Computer (10.25-inch) - Plug-in Hybrid Vehicle ...............................................4-55 Trip modes ........................................................................\
........................................4-55
Vehicle Settings (Infotainment System) ........................................................ 4-58Setting Your Vehicle ........................................................................\
.......................... 4-58

Instrument Cluster4-10
Transmission Shift Indicator (if
equipped)
Automatic transmission shift
indicator
„4.2-Inch
OTM040016
„10.25-inch
OCN7040013N
The Transmission Shift Indicator is shown
in the upper corner of the LCD display to
indicate the current gear or Park(P).
Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
For more details, refer to “Seat Belts”
section in chapter 3.
Air bag warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The air bag warning light illuminates for about 3 ~ 6 seconds and then
turns off when all checks have been
performed.

[ The air bag warning light will remain
illuminated if there is a malfunction
with the Safety Restraint System (SRS)
air bag operation.
If the Air Bag warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.

04
4-11
Parking brake warning light
This warning light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The parking brake light illuminates
for about 3 seconds and will then
turn off once the parking brake is
released.

[ Whenever the parking brake is
applied.

[ Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.

[ Whenever the regenerative brake
does not operate.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or
if the warning light remains on, or if
the brakes do not operate properly, do
not drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer. Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal br

aking system. This means you
still have braking on two wheels even if
one of the dual systems should fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure is required to
stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If you experience a malfunction with
the brake system while driving, attempt
to slow your vehicle by coasting or
by using engine braking. You may be
able to reduce your vehicle speed by
manually downshifting to a lower gear.
Use Manual Shift Mode using either the
gear shift button or the paddle shifters (if
equipped) to shift to a lower gear.
WARNING
Parking Brake & Brake Fluid Warning
Light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake
warning light illuminates with the
parking brake released, it indicates that
the brake fluid level is low.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.

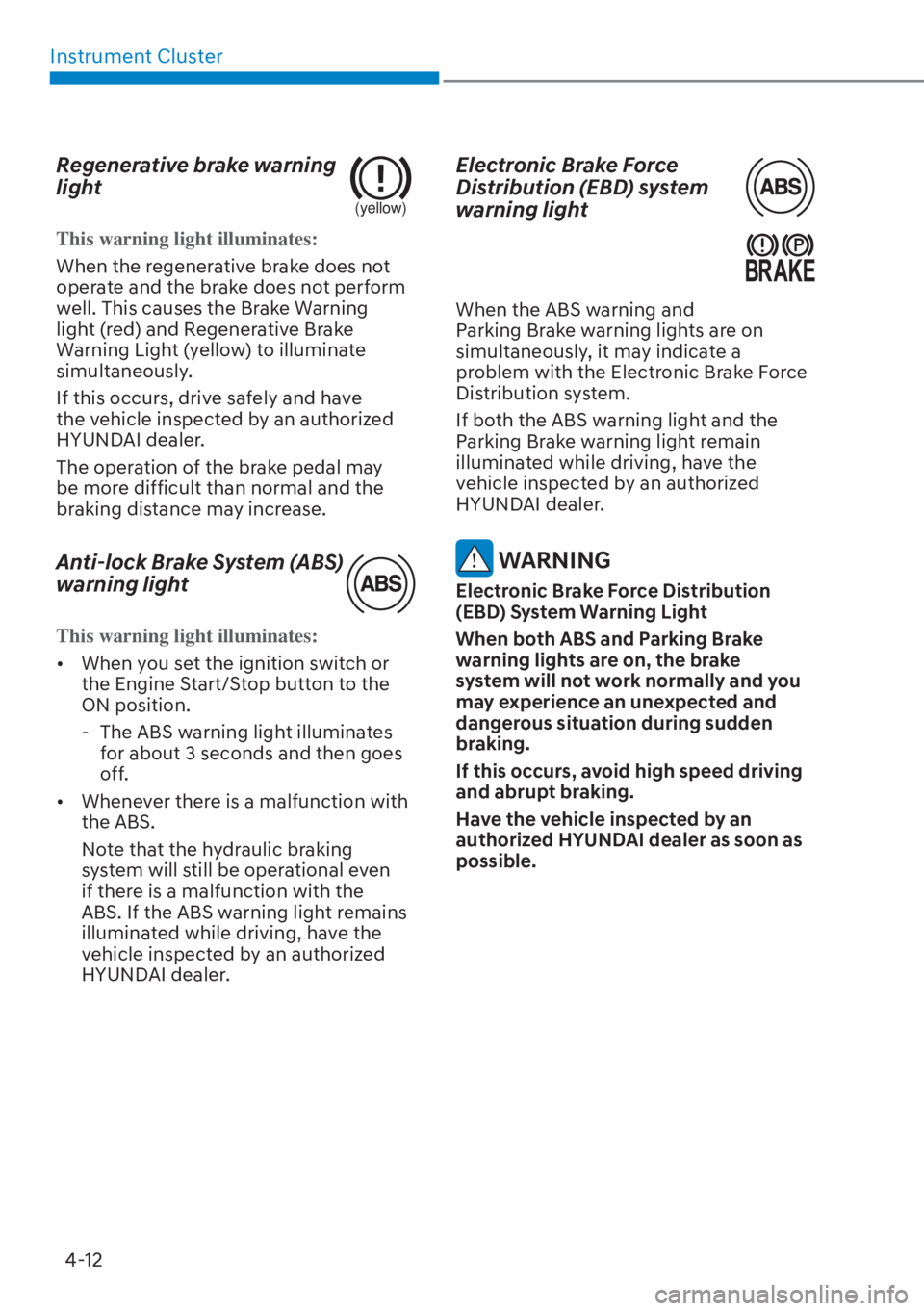

Instrument Cluster4-12
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
the vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may
be more difficult than normal and the
braking distance may increase.
Anti-lock Brake System (ABS)
warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The ABS warning light illuminates for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even
if there is a malfunction with the
ABS. If the ABS warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Electronic Brake Force
Distribution (EBD) system
warning light
When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake Force
Distribution system.
If both the ABS warning light and the
Parking Brake warning light remain
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING
Electronic Brake Force Distribution
(EBD) System Warning Light
When both ABS and Parking Brake
warning lights are on, the brake
system will not work normally and you
may experience an unexpected and
dangerous situation during sudden
braking.
If this occurs, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
