Page 57 of 699
Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-52
Hybrid System Gauge
Power gauge
„ „4.2-Inch4.2-Inch
ONX4H040004ONX4H040004
„ „10.25-inch10.25-inch
OCN7H040002OCN7H040002
The hybrid system gauge indicates
whether the current driving condition is
fuel efficient or not.
• CHARGE: Shows that the energy made by the
vehicle is being converted to electrical
energy. (Regenerated energy)
• ECO: Shows that the vehicle is being driven
in an Eco-friendly manner.
• POWER:
Shows that the vehicle is exceeding
the Eco-friendly range.
According to the hybrid system gauge
area, the “EV” indicator comes on or off. - “EV” indicator ON : Vehicle is driven using the electric motor or the
gasoline engine is stopped.
- “EV” indicator OFF : Vehicle is driven using the gasoline engine.
Hybrid battery SOC (State of Charge)
gauge
„ „4.2-Inch4.2-Inch
ONX4HQ010016NONX4HQ010016N
„ „10.25-inch10.25-inch
OCN7H040003OCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is
near the “L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is
near the “L (Low)” level, have the vehicle
be checked by an authorized HYUNDAI
dealer.

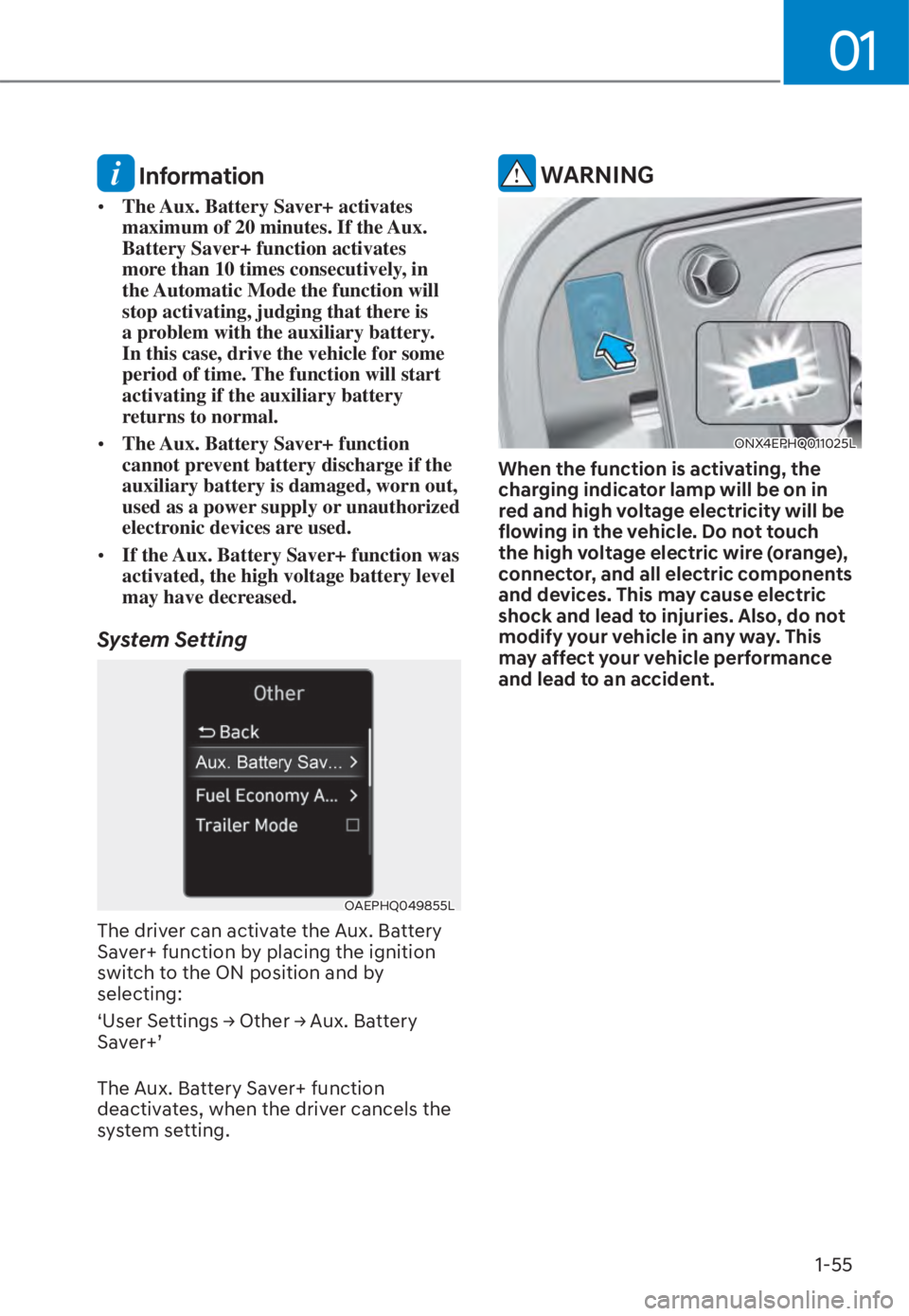

Page 60 of 699
01
1-55
Information
• The Aux. Battery Saver+ activates
maximum of 20 minutes. If the Aux.
Battery Saver+ function activates
more than 10 times consecutively, in
the Automatic Mode the function will
stop activating, judging that there is
a problem with the auxiliary battery.
In this case, drive the vehicle for some
period of time. The function will start
activating if the auxiliary battery
returns to normal.
• The Aux. Battery Saver+ function
cannot prevent battery discharge if the
auxiliary battery is damaged, worn out,
used as a power supply or unauthorized
electronic devices are used.
• If the Aux. Battery Saver+ function was
activated, the high voltage battery level
may have decreased.
System Setting
OAEPHQ049855LOAEPHQ049855L
The driver can activate the Aux. Battery
Saver+ function by placing the ignition
switch to the ON position and by
selecting:
‘User Settings Ÿ Other Ÿ Aux. Battery
Saver+’
The Aux. Battery Saver+ function
deactivates, when the driver cancels the
system setting.
WARNING
ONX4EPHQ011025LONX4EPHQ011025L
When the function is activating, the
charging indicator lamp will be on in
red and high voltage electricity will be
flowing in the vehicle. Do not touch
the high voltage electric wire (orange),
connector, and all electric components
and devices. This may cause electric
shock and lead to injuries. Also, do not
modify your vehicle in any way. This
may affect your vehicle performance
and lead to an accident.
Page 61 of 699
Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-56
Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
When the ready indicator goes OFF,
there is a problem with the system. If this
occurs, have your vehicle inspected by
an authorized HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Charging Cable Connection
Indicator (Plug-in hybrid
vehicle)
This indicator illuminates in red when the
charging cable is connected.
Service warning light
This warning light illuminates:
• When you set the ignition switch or the E
ngine Start/Stop button to the
ON position.
- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.
• When there is a problem with the hybrid vehicle control system or
hardware.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have the vehicle inspected
by an authorized HYUNDAI dealer.
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

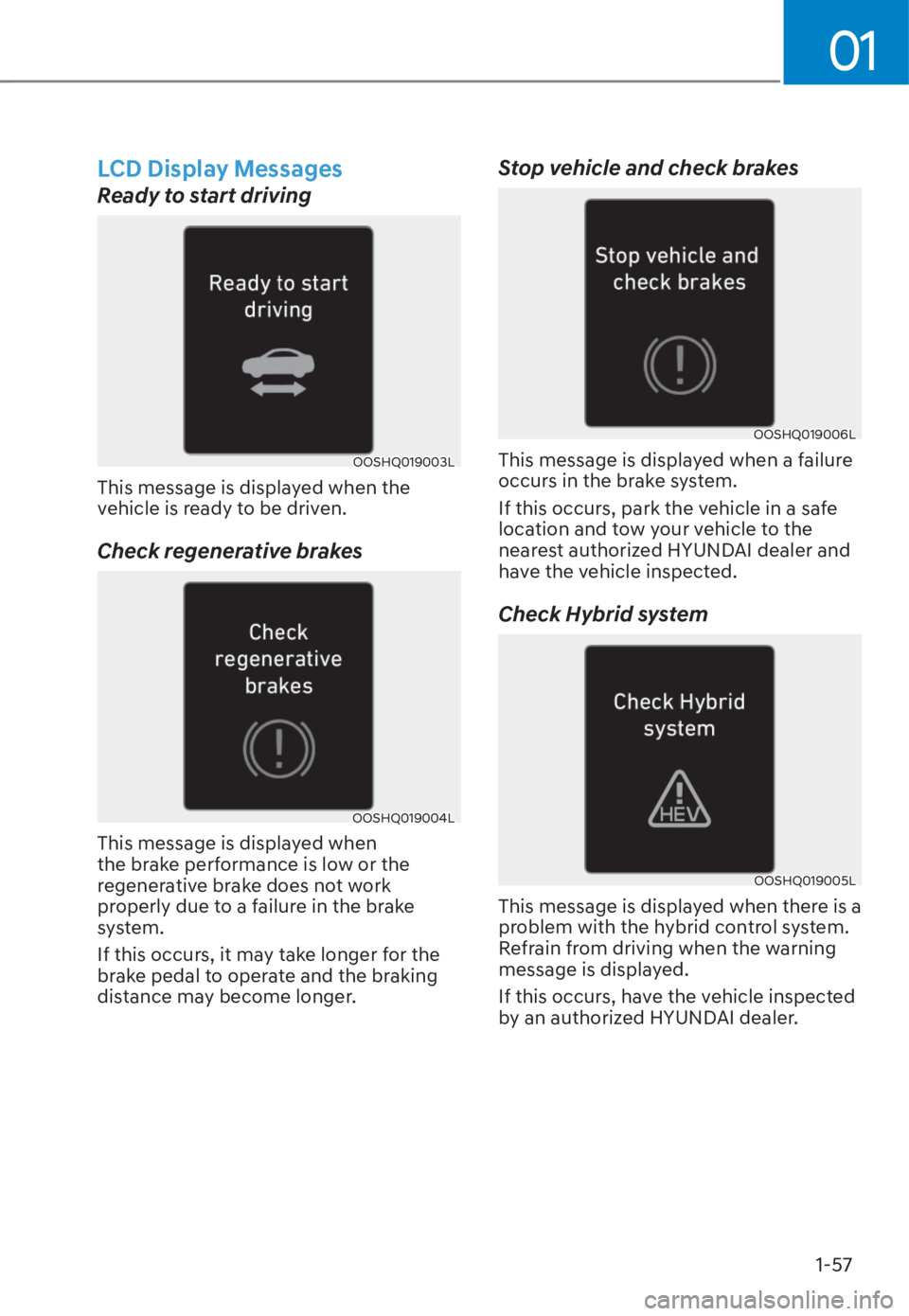

Page 62 of 699
01
1-57
LCD Display Messages
Ready to start driving
OOSHQ019003LOOSHQ019003L
This message is displayed when the
vehicle is ready to be driven.
Check regenerative brakes
OOSHQ019004LOOSHQ019004L
This message is displayed when
the brake performance is low or the
regenerative brake does not work
properly due to a failure in the brake
system.
If this occurs, it may take longer for the
brake pedal to operate and the braking
distance may become longer.
Stop vehicle and check brakes
OOSHQ019006LOOSHQ019006L
This message is displayed when a failure
occurs in the brake system.
If this occurs, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check Hybrid system
OOSHQ019005LOOSHQ019005L
This message is displayed when there is a
problem with the hybrid control system.
Refrain from driving when the warning
message is displayed.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Page 63 of 699
Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-58
Stop safely and check Hybrid system
OOSHQ019007LOOSHQ019007L
This message is displayed when there
is a problem with the hybrid control
system. The “
” indicator will blink
and a warning chime will sound for
approximately 10 seconds until the
problem is solved. Refrain from driving
when the warning message is displayed.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Check Hybrid system. Do not start
engine
OOSHQ019008LOOSHQ019008L
This message is displayed when the
hybrid battery power (SOC) level is low.
A warning chime will sound until the
problem is solved. Refrain from driving
when the warning message is displayed.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Stop safely and check power supply
OOSHQ019009LOOSHQ019009L
This message is displayed when a failure
occurs in the power supply system.
If this occurs, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check virtual engine sound system
OOSHQ019010LOOSHQ019010L
This message is displayed when there is
a problem with the Virtual Engine Sound
System (VESS).
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Page 65 of 699
Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-60
Unplug vehicle to start (Plug-in
hybrid vehicle)
OAEPHQ049829LOAEPHQ049829L
This message is displayed when you
start the engine without unplugging the
charging cable. Unplug the charging
cable, and then start the vehicle.
Charging stopped. Check the AC
charger
OOSEV048131LOOSEV048131L
• This warning message is displayed when charging is stopped for the
reasons below:
- There is a problem with the external AC charger
- The external AC charger stopped charging
- The charging cable is damaged
In this case, check whether there is
any problem with the external AC and
charging cable.
If the same problem occurs when
charging the vehicle with a normally
operating AC charger or genuine
HYUNDAI portable charger, have your
vehicle inspected by an authorized
HYUNDAI dealer.
Page 71 of 699
Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-66
Engine generation
ONX4EHQ010005ONX4EHQ010005
When the vehicle is stopped, the high-
voltage battery is charged up by the
engine.
(Engine Ÿ Battery)
Regeneration
ONX4EHQ010006ONX4EHQ010006
The high-voltage battery is charged up
by the regenerative brake system.
(Wheel Ÿ Battery)
Engine brake
ONX4EHQ010007ONX4EHQ010007
The engine braking is used to decelerate
the vehicle.
(Wheel Ÿ Engine)
Power reserve
ONX4EHQ010008ONX4EHQ010008
The engine is simultaneously used to
drive the vehicle and to charge up the
high-voltage battery.
(Engine Ÿ Wheel & Battery)

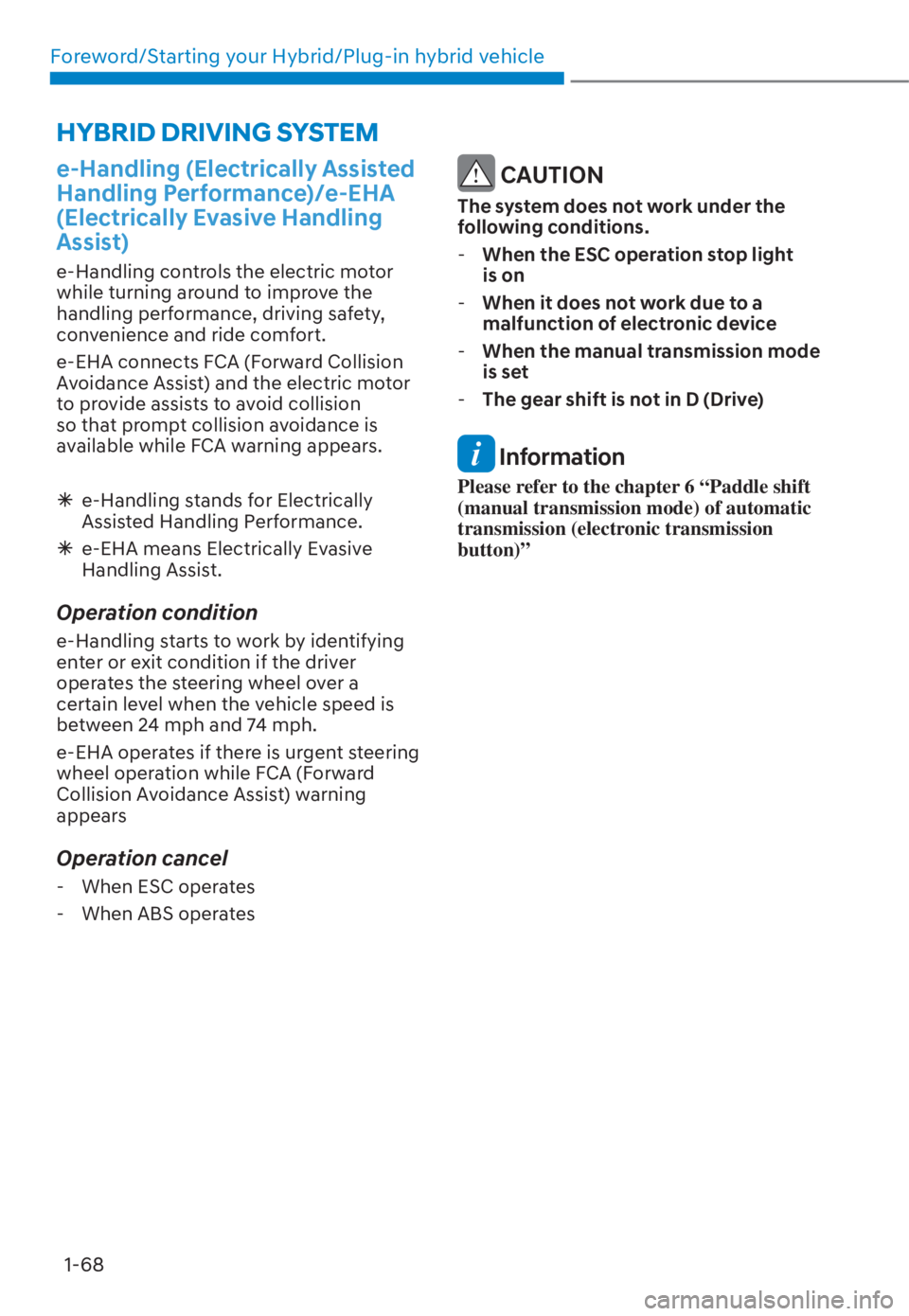

Page 73 of 699
Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-68
e-Handling (Electrically Assisted
Handling Performance)/e-EHA
(Electrically Evasive Handling
Assist)
e-Handling controls the electric motor
while turning around to improve the
handling performance, driving safety,
convenience and ride comfort.
e-EHA connects FCA (Forward Collision
Avoidance Assist) and the electric motor
to provide assists to avoid collision
so that prompt collision avoidance is
available while FCA warning appears.
à e-Handling stands for Electrically
Assisted Handling Performance.
à e-EHA means Electrically Evasive
Handling Assist.
Operation condition
e-Handling starts to work by identifying
enter or exit condition if the driver
operates the steering wheel over a
certain level when the vehicle speed is
between 24 mph and 74 mph.
e-EHA operates if there is urgent steering
wheel operation while FCA (Forward
Collision Avoidance Assist) warning
appears
Operation cancel
- When ESC operates
- When ABS operates
CAUTION
The system does not work under the
following conditions.
- When the ESC operation stop light
is on
- When it does not work due to a
malfunction of electronic device
- When the manual transmission mode
is set
- The gear shift is not in D (Drive)
Information
Please refer to the chapter 6 “Paddle shift
(manual transmission mode) of automatic
transmission (electronic transmission
button)”
HYBRID DRIVING SYSTEM
