2023 HYUNDAI KONA light

06
6-31

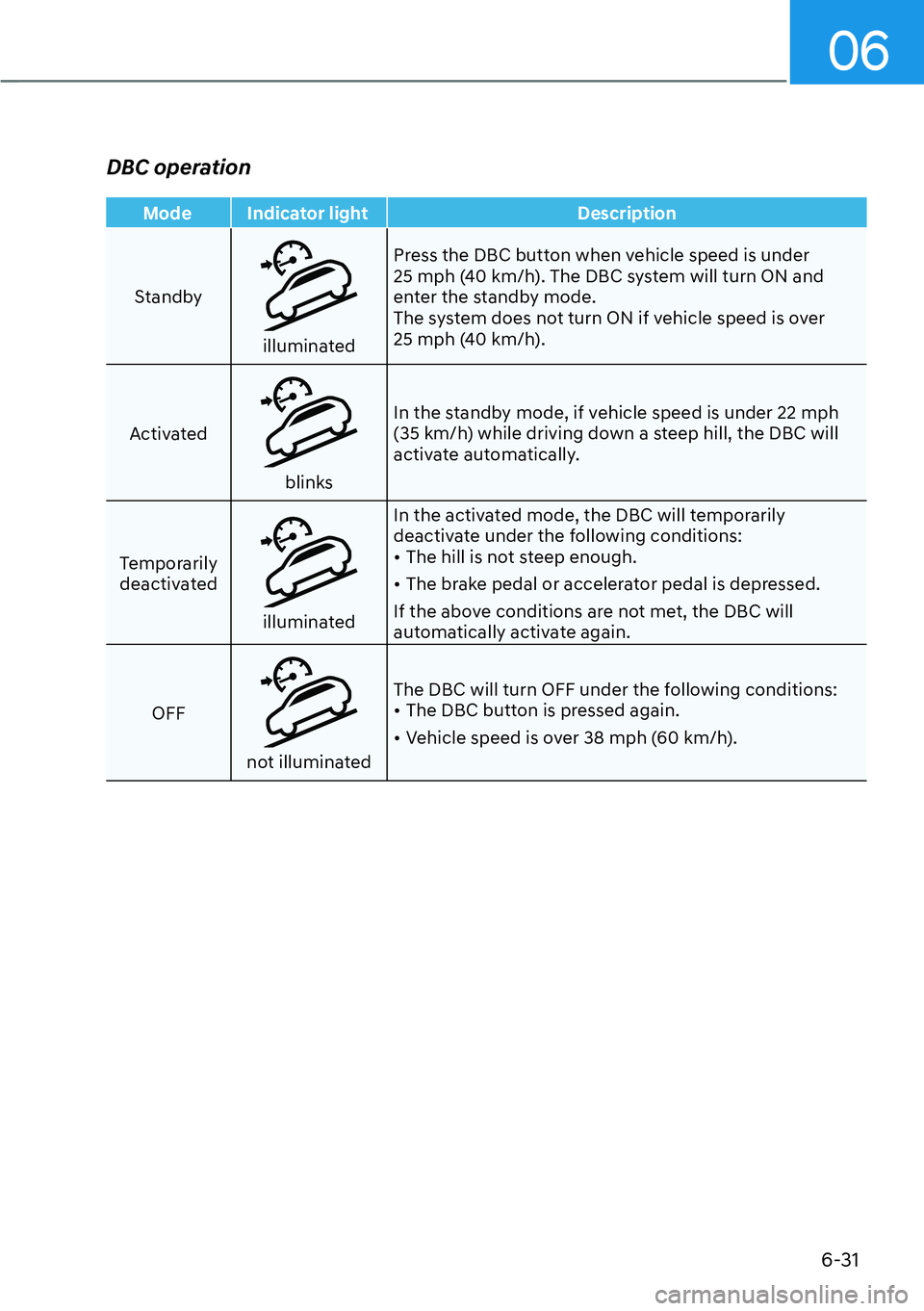

DBC operation
Mode Indicator lightDescription
Standby
illuminated Press the DBC button when vehicle speed is under
25 mph (40 km/h). The DBC system will turn ON and
enter the standby mode.
The system does not turn ON if vehicle speed is over
25 mph (40 km/h).
Activated
blinks In the standby mode, if vehicle speed is under 22 mph
(35 km/h) while driving down a steep hill, the DBC will
activate automatically.
Temporarily deactivated
illuminated In the activated mode, the DBC will temporarily
deactivate under the following conditions:

[
The hill is not steep enough.

[ The brake pedal or accelerator pedal is depressed.
If the above conditions are not met, the DBC will
automatically activate again.
OFF
not illuminated The DBC will turn OFF under the following conditions:

[
The DBC button is pressed again.

[ Vehicle speed is over 38 mph (60 km/h).

Driving your vehicle6-32
OJX1069039L

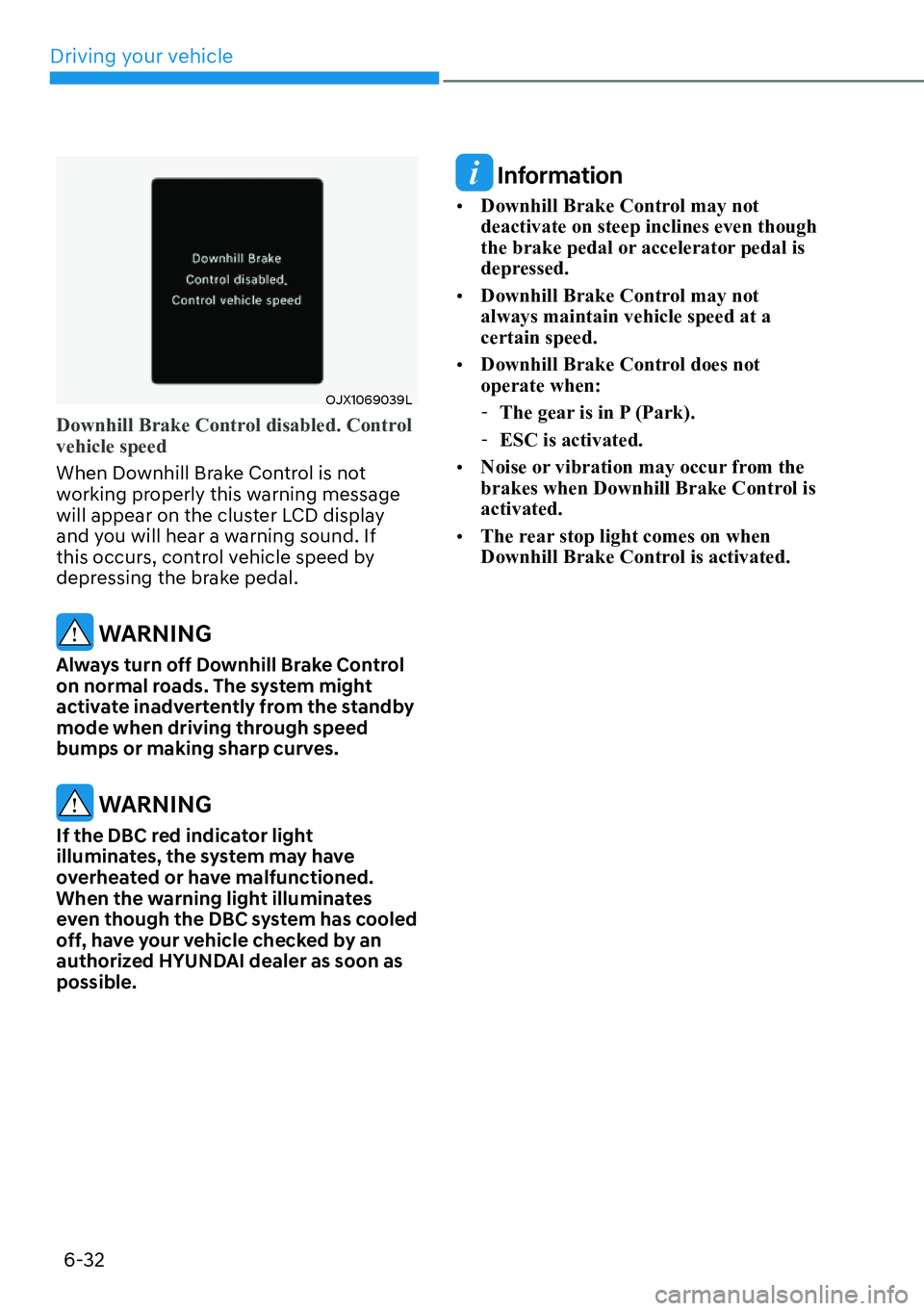

Downhill Brake Control disabled. Control
vehicle speed
When Downhill Brake Control is not
w
orking properly this warning message
will appear on the cluster LCD display
and you will hear a warning sound. If
this occurs, control vehicle speed by
depressing the brake pedal.
WARNING
Always turn off Downhill Brake Control
on normal roads. The system might
activate inadvertently from the standby
mode when driving through speed
bumps or making sharp curves.
WARNING
If the DBC red indicator light
illuminates, the system may have
overheated or have malfunctioned.
When the warning light illuminates
even though the DBC system has cooled
off, have your vehicle checked by an
authorized HYUNDAI dealer as soon as
possible.
Information

[ Downhill Brake Control may not
deactivate on steep inclines even though
the brake pedal or accelerator pedal is
depressed.

[ Downhill Brake Control may not
always maintain vehicle speed at a
certain speed.

[ Downhill Brake Control does not
operate when:
- The gear is in P (Park).
- ESC is activated.

[ Noise or vibration may occur from the
brakes when Downhill Brake Control is
activated.

[ The rear stop light comes on when
Downhill Brake Control is activated.

06
6-33
Good Braking Practices
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Shift the gear to the P (Park)
position, then apply the parking brake,
and press the Engine Start/Stop button
to the OFF position.
Vehicles parked with the parking brake
not applied or not fully engaged may
roll inadvertently and may cause injury
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle.Wet brakes can be dangerous! The
brakes may get wet if the vehicle is
driven through standing water or if it
is washed. Your vehicle will not stop as
quickly if the brakes are wet. Wet brakes
may cause the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns to
normal. If the braking action does not
return to normal, stop as soon as it is safe
to do so and call an authorized HYUNDAI
dealer for assistance.
DO NOT drive with your foot resting on
the brake pedal. Even light, but constant
pedal pressure can result in the brakes
overheating, brake wear, and possibly
even brake failure.
If a tire goes flat while you are driving,
apply the brakes gently and keep the
vehicle pointed straight ahead while you
slow down. When you are moving slowly
enough for it to be safe to do so, pull off
the road and stop in a safe location.
Keep your foot firmly on the brake pedal
when the vehicle is stopped to prevent
the vehicle from rolling forward.
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Move the shift lever into the P
(Park) position, then apply the parking
brake, and set the Engine Start/Stop
button in the OFF position.
Vehicles parked with the parking brake
not applied or not fully engaged may
roll inadvertently and may cause injury
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle.

06
6-39

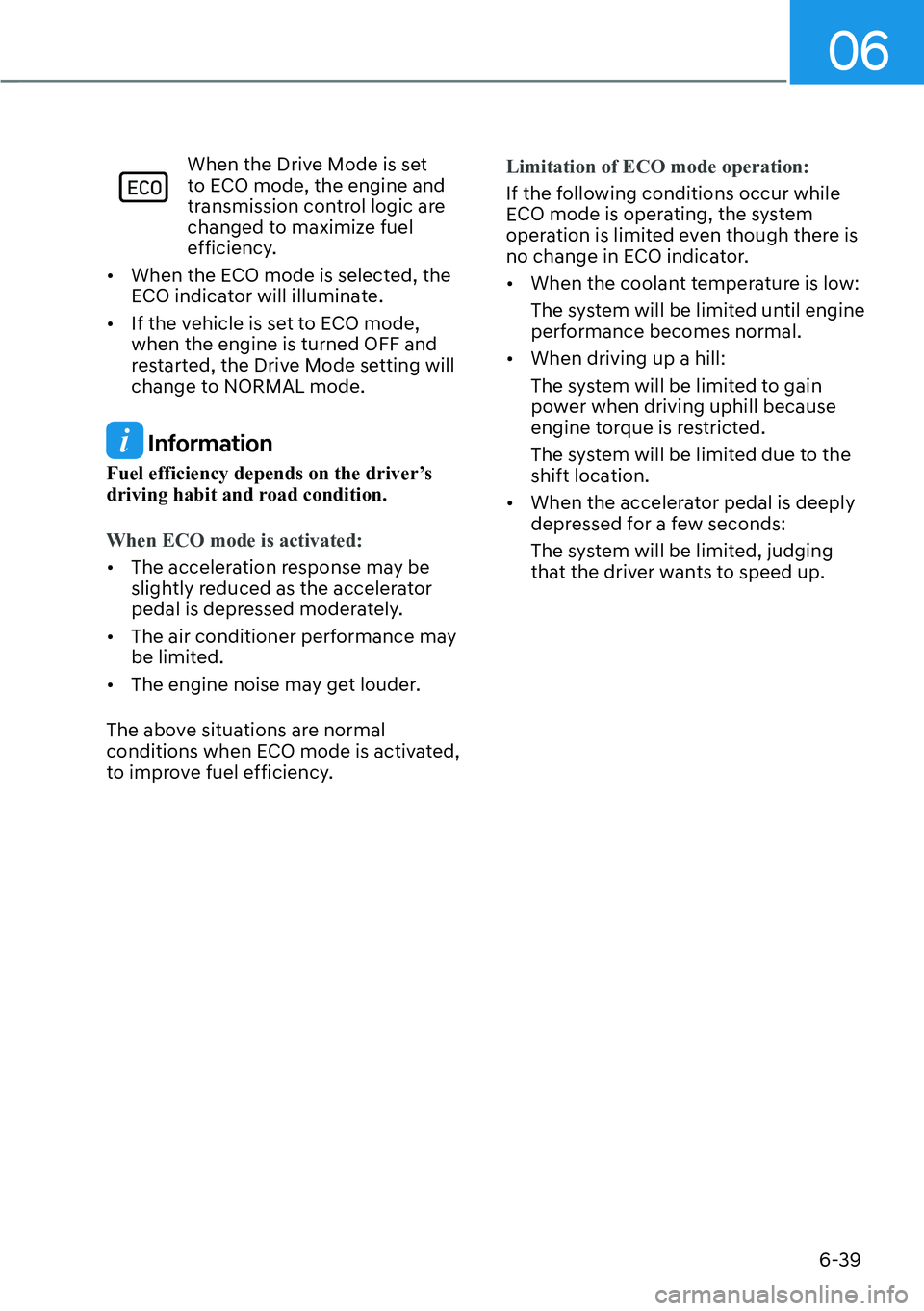

When the Drive Mode is set
to ECO mode, the engine and
transmission control logic are
changed to maximize fuel
efficiency.

[ When the ECO mode is selected, the
ECO indicator will illuminate.

[ If the vehicle is set to ECO mode,
when the engine is turned OFF and
restarted, the Drive Mode setting will
change to NORMAL mode.
Information
Fuel efficiency depends on the driver’s
driving habit and road condition.
When ECO mode is activated:

[The acceler
ation response may be
slightly reduced as the accelerator
pedal is depressed moderately.

[ The air conditioner performance may
be limited.

[ The engine noise may get louder.
The above situations are normal
conditions when ECO mode is activated,
to improve fuel efficiency. Limitation of ECO mode operation:
If the following conditions occur while
E

CO mode is operating, the system
operation is limited even though there is
no change in ECO indicator.

[ When the coolant temperature is low:
The system will be limited until engine
performance becomes normal.

[ When driving up a hill:
The system will be limited to gain
power when driving uphill because
engine torque is restricted.
The system will be limited due to the
shift location.

[ When the accelerator pedal is deeply
depressed for a few seconds:
The system will be limited, judging
that the driver wants to speed up.

Driving your vehicle6-42

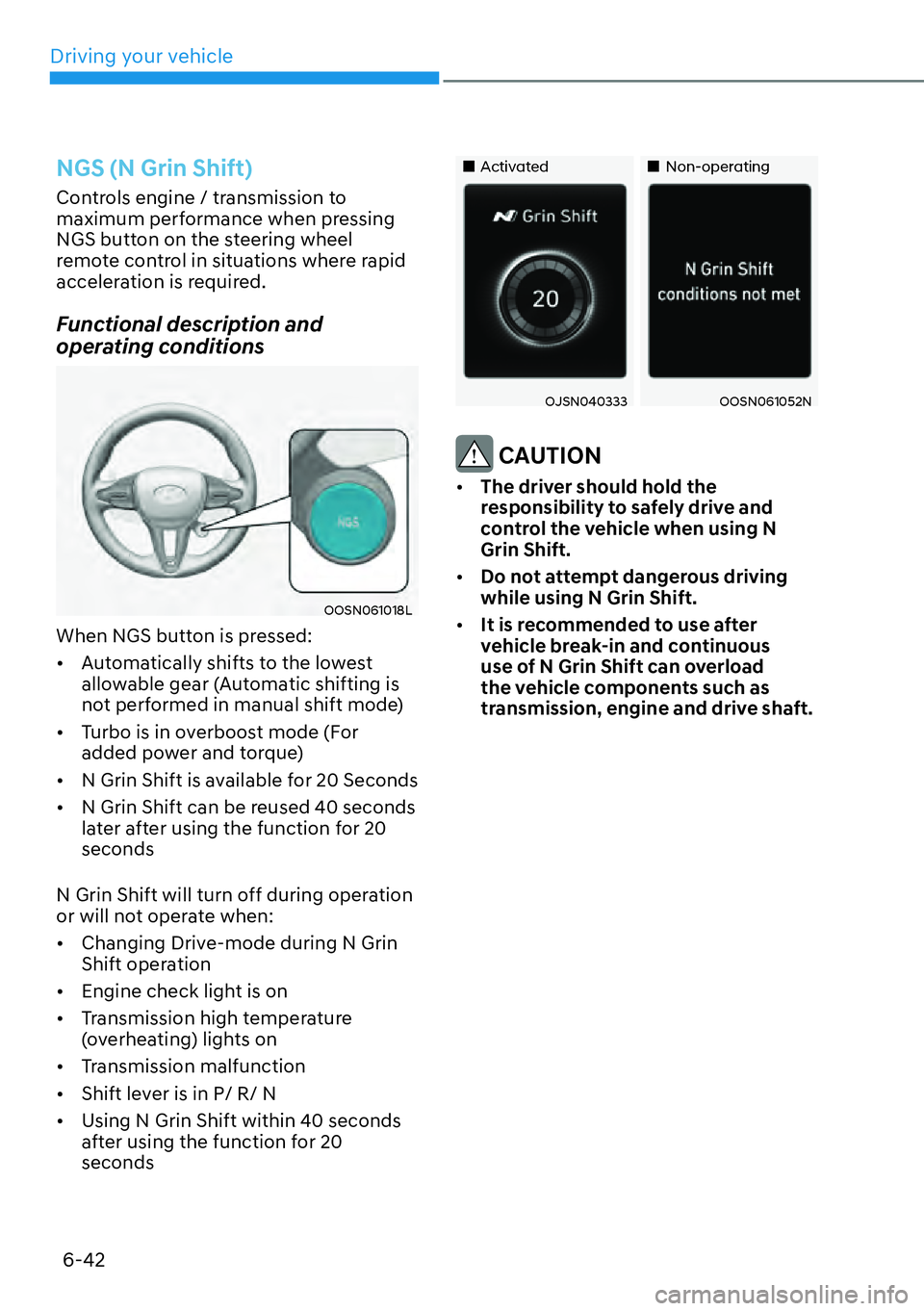

NGS (N Grin Shift)
Controls engine / transmission to
maximum performance when pressing
NGS button on the steering wheel
remote control in situations where rapid
acceleration is required.
Functional description and
operating conditions
OOSN061018L
When NGS button is pressed:

[ Automatically shifts to the lowest
allowable gear (Automatic shifting is
not performed in manual shift mode)

[ Turbo is in overboost mode (For
added power and torque)

[ N Grin Shift is available for 20 Seconds

[ N Grin Shift can be reused 40 seconds
later after using the function for 20
seconds
N Grin Shift will turn off during operation
or will not operate when:

[ Changing Drive-mode during N Grin
Shift operation

[ Engine check light is on

[ Transmission high temperature
(overheating) lights on

[ Transmission malfunction

[ Shift lever is in P/ R/ N

[ Using N Grin Shift within 40 seconds
after using the function for 20
seconds
„Activated „Non-operating
OJSN040333OOSN061052N
CAUTION

[The driver should hold the
responsibility to safely drive and
control the vehicle when using N
Grin Shift.

[ Do not attempt dangerous driving
while using N Grin Shift.

[ It is recommended to use after
vehicle break-in and continuous
use of N Grin Shift can overload
the vehicle components such as
transmission, engine and drive shaft.

Driving your vehicle6-46

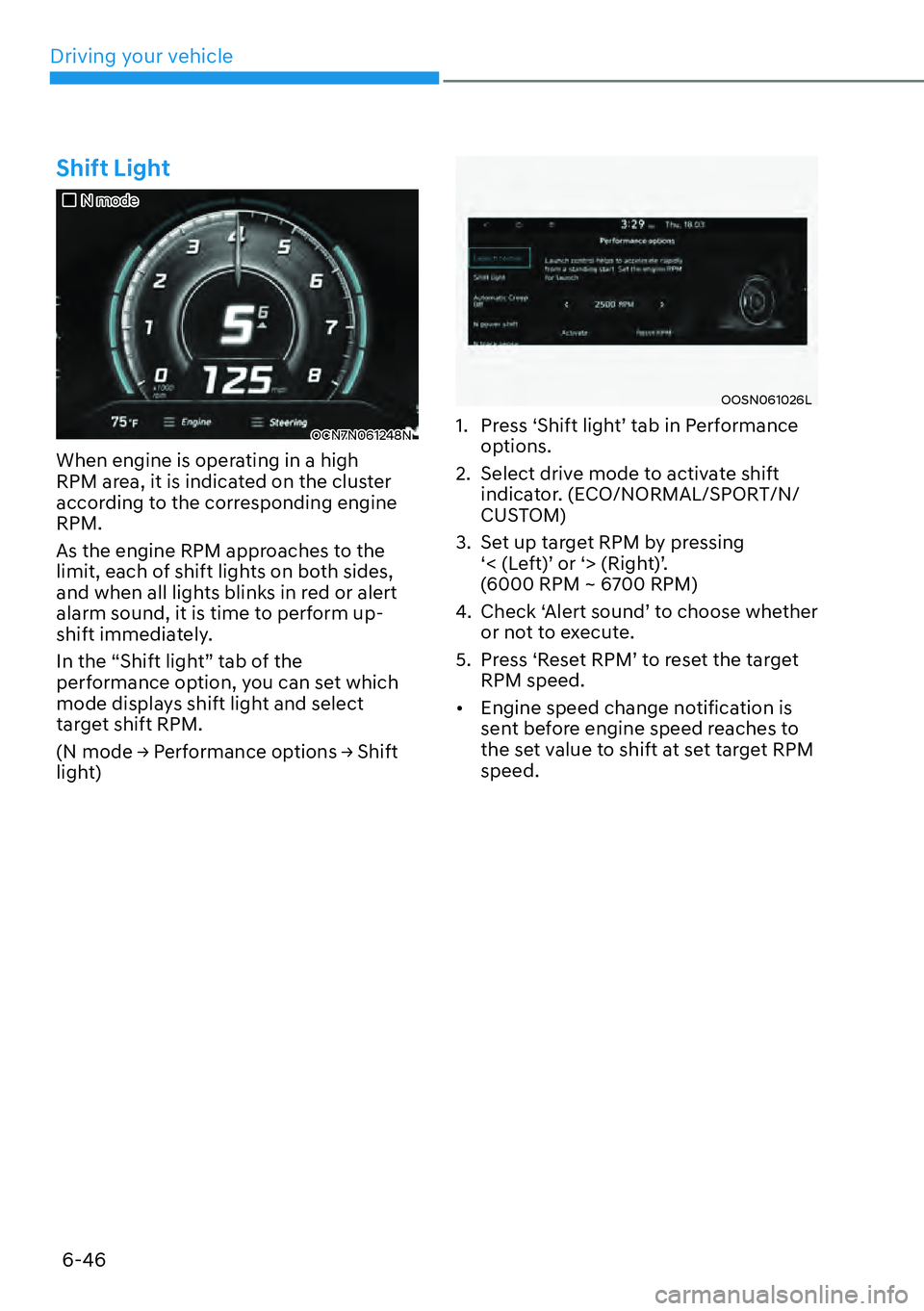

Shift Light
„N mode
OCN7N061248N
When engine is operating in a high
RPM area, it is indicated on the cluster
according to the corresponding engine
RPM.
As the engine RPM approaches to the
limit, each of shift lights on both sides,
and when all lights blinks in red or alert
alarm sound, it is time to perform up-
shift immediately.
In the “Shift light” tab of the
performance option, you can set which
mode displays shift light and select
target shift RPM.
1PRGH

Driving your vehicle6-52

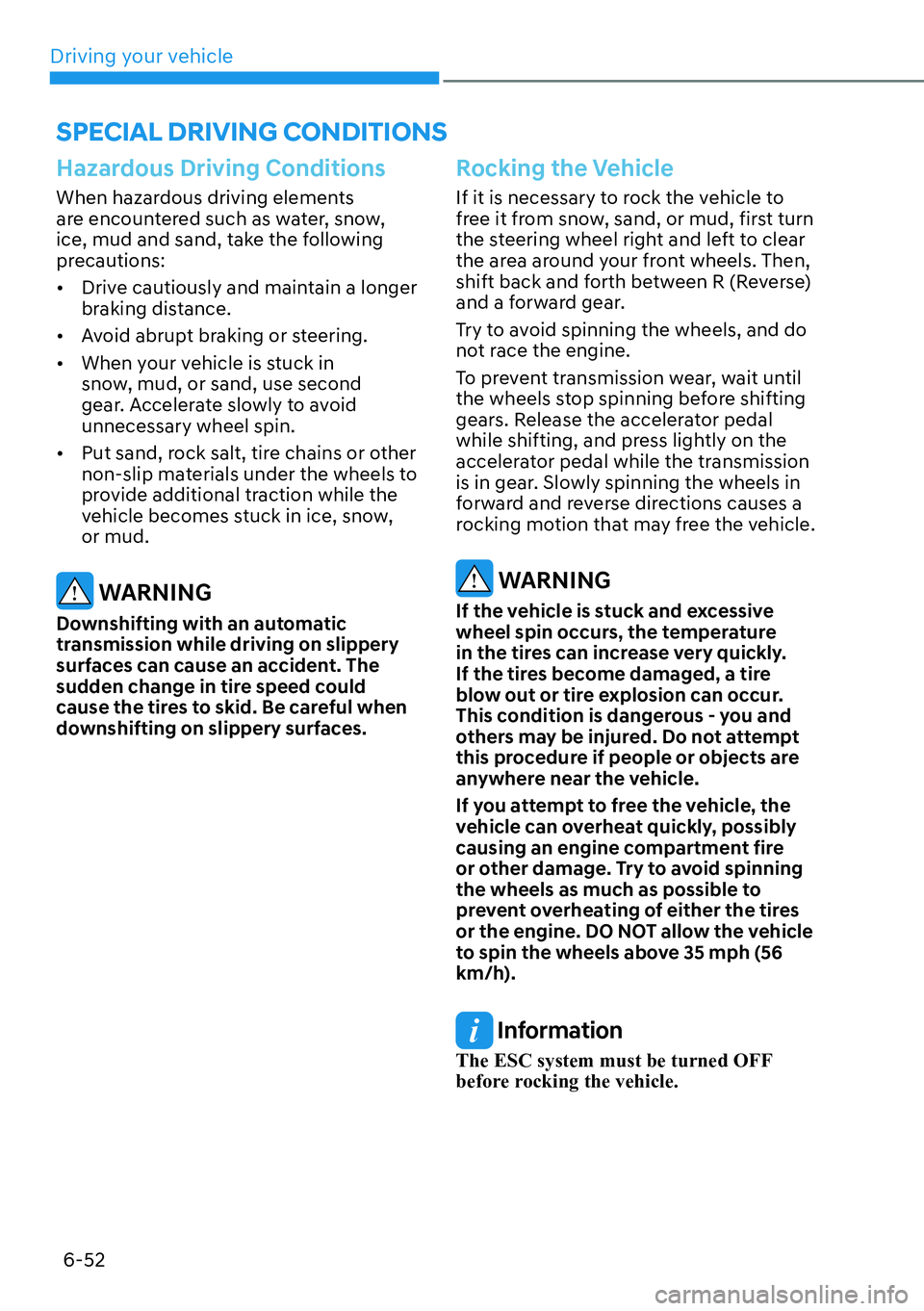

SPECIAL DRIVING CONDITIONS
Hazardous Driving Conditions
When hazardous driving elements
are encountered such as water, snow,
ice, mud and sand, take the following
precautions:

[ Drive cautiously and maintain a longer
braking distance.

[ Avoid abrupt braking or steering.

[ When your vehicle is stuck in
snow, mud, or sand, use second
gear. Accelerate slowly to avoid
unnecessary wheel spin.

[ Put sand, rock salt, tire chains or other
non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow,
or mud.
WARNING
Downshifting with an automatic
transmission while driving on slippery
surfaces can cause an accident. The
sudden change in tire speed could
cause the tires to skid. Be careful when
downshifting on slippery surfaces.
Rocking the Vehicle
If it is necessary to rock the vehicle to
free it from snow, sand, or mud, first turn
the steering wheel right and left to clear
the area around your front wheels. Then,
shift back and forth between R (Reverse)
and a forward gear.
Try to avoid spinning the wheels, and do
not race the engine.
To prevent transmission wear, wait until
the wheels stop spinning before shifting
gears. Release the accelerator pedal
while shifting, and press lightly on the
accelerator pedal while the transmission
is in gear. Slowly spinning the wheels in
forward and reverse directions causes a
rocking motion that may free the vehicle.
WARNING
If the vehicle is stuck and excessive
wheel spin occurs, the temperature
in the tires can increase very quickly.
If the tires become damaged, a tire
blow out or tire explosion can occur.
This condition is dangerous - you and
others may be injured. Do not attempt
this procedure if people or objects are
anywhere near the vehicle.
If you attempt to free the vehicle, the
vehicle can overheat quickly, possibly
causing an engine compartment fire
or other damage. Try to avoid spinning
the wheels as much as possible to
prevent overheating of either the tires
or the engine. DO NOT allow the vehicle
to spin the wheels above 35 mph (56
km/h).
Information
The ESC system must be turned OFF
before rocking the vehicle.

06
6-53

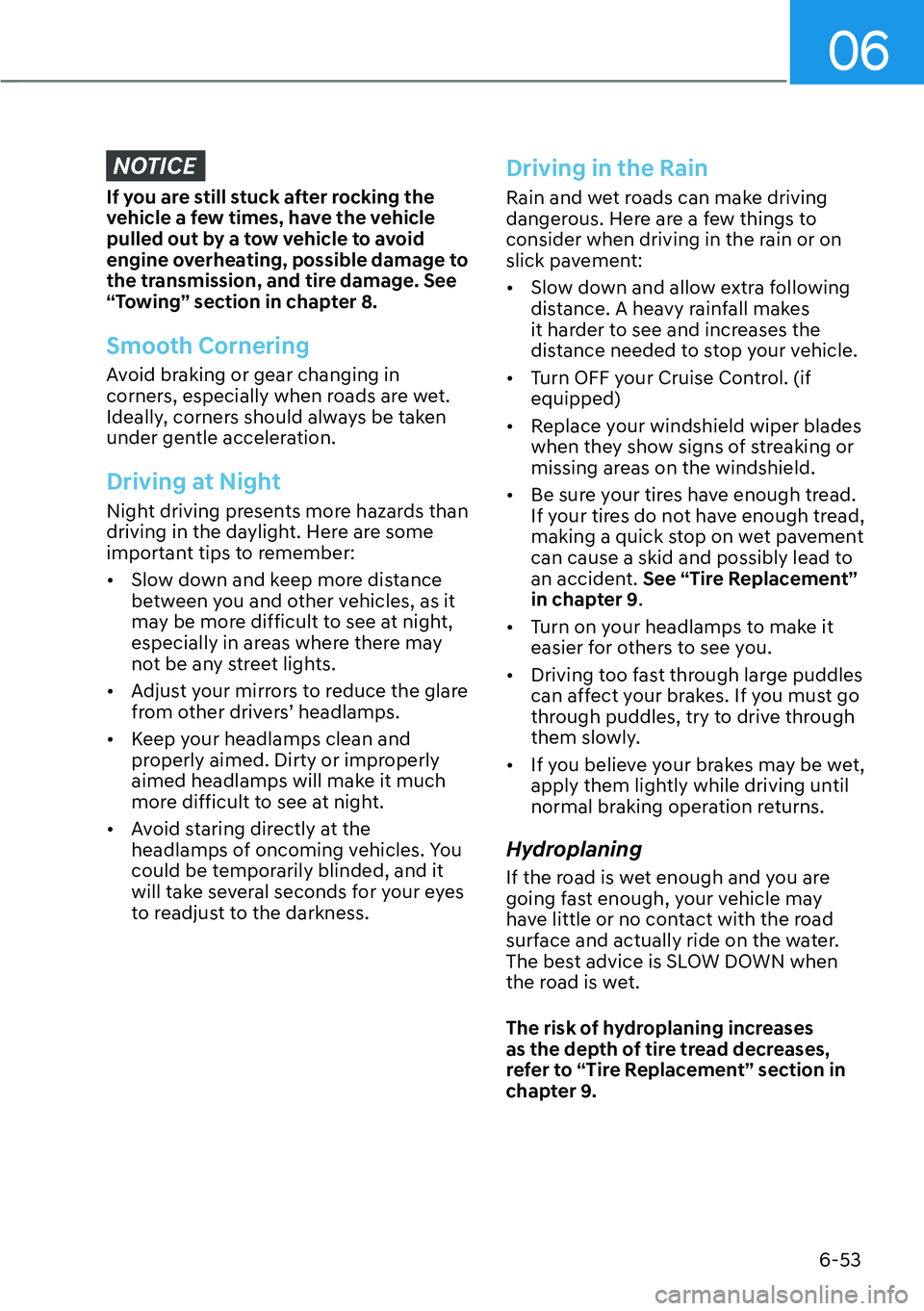

NOTICE
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid
engine overheating, possible damage to
the transmission, and tire damage. See
“Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, corners should always be taken
under gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:

[Slow down and keep more distance
between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may
not be any street lights.

[ Adjust your mirrors to reduce the glare
from other drivers’ headlamps.

[ Keep your headlamps clean and
properly aimed. Dirty or improperly
aimed headlamps will make it much
more difficult to see at night.

[ Avoid staring directly at the
headlamps of oncoming vehicles. You
could be temporarily blinded, and it
will take several seconds for your eyes
to readjust to the darkness.
Driving in the Rain
Rain and wet roads can make driving
dangerous. Here are a few things to
consider when driving in the rain or on
slick pavement:

[Slow down and allow extra following
distance. A heavy rainfall makes
it harder to see and increases the
distance needed to stop your vehicle.

[ Turn OFF your Cruise Control. (if
equipped)

[ Replace your windshield wiper blades
when they show signs of streaking or
missing areas on the windshield.

[ Be sure your tires have enough tread.
If your tires do not have enough tread,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. See “Tire Replacement”
in chapter 9.

[ Turn on your headlamps to make it
easier for others to see you.

[ Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.

[ If you believe your brakes may be wet,
apply them lightly while driving until
normal braking operation returns.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases
as the depth of tire tread decreases,
refer to “Tire Replacement” section in
chapter 9.
