2023 HYUNDAI KONA light

05
5-55

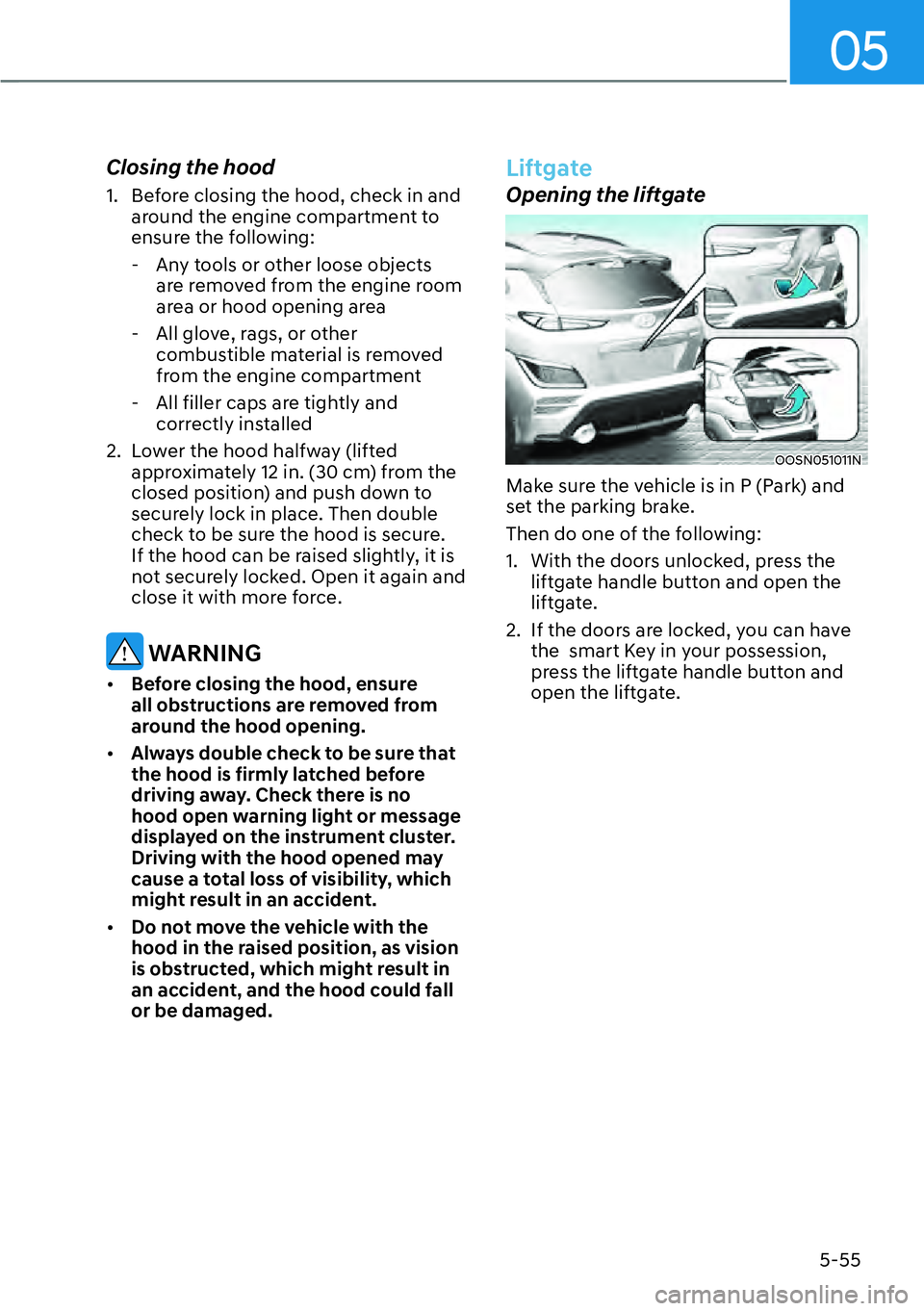

Closing the hood
1. Before closing the hood, check in and around the engine compartment to
ensure the following:
- Any tools or other loose objects are removed from the engine room
area or hood opening area
- All glove, rags, or other combustible material is removed
from the engine compartment
- All filler caps are tightly and correctly installed
2. Lower the hood halfway (lifted approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[ Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[ Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
Liftgate
Opening the liftgate
OOSN051011N
Make sure the vehicle is in P (Park) and
set the parking brake.
Then do one of the following:
1. With the doors unlocked, press the
liftgate handle button and open the
liftgate.
2. If the doors are locked, you can have the smart Key in your possession,
press the liftgate handle button and
open the liftgate.

Convenient Features5-58
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved de-icer fluid (do not use
radiator anti-freeze) or move the vehicle to
a warm place and allow the ice to melt.
Closing the fuel filler door
1. To install the fuel tank cap, turn it clockwise until it “clicks” one time.
2. Close the fuel filler door until it is latched securely.
WARNING
Gasoline is highly flammable and
explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:

[Read and follow all warnings posted
at the gas station.

[ Before refueling, note the location
of the Emergency Fuel Shut-Off, if
available, at the gas station.

[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[ Do not use cellular phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.
[
Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other fuel source, with your bare
hand.

[ When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[ Use only approved portable plastic
fuel containers designed to carry and
store fuel.

[ When refueling, always shift the
gear to the P (Park) position, set
the parking brake, and press the
Engine Start/Stop button to the
OFF position. Sparks produced by
electrical components related to the
engine can ignite fuel vapors causing
a fire.

[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.

Convenient Features5-60
Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OOS047404N
1. OFF position
2. AUTO headlamp position
3. Position lamp position
4. Headlamp position
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
mak
e it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when :

[ The headlamps are ON.

[ The parking brake is applied.

[ The vehicle is turned off.
OOS047050N
AUTO headlamp position
The position lamp and headlamp will
be turned ON or OFF aut

omatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving in a fog, driving in the rain, or
when you enter dark areas, such as
tunnels and parking facilities.
NOTICE

[ Do not cover or spill anything on the
sensor (1) located at the upper end of
the windshield glass.

[ Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[ If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
LIGHTING

05
5-61
OOS047405N
Position lamp position ()
The position lamp, license plate lamp
and ins
trument panel lamp are turned
ON.
OOS047406N
Headlamp position ()
The headlamp, position lamp, license
pla
te lamp and instrument panel lamp
are turned ON.
Information
The Engine Start/Stop Button must be in
the ON position to turn on the headlamp.
High beam operation
OOS047407N
To turn on the high beam headlamp,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlamp high beams are switched
on.
To turn off the high beam headlamp, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.
For more information, refer to the “High
Beam Assist (HBA) ” section in this
chapter.

05
5-63
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
position lamp when the driver turns the
vehicle off and opens the driver-side
door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is opened
if the headlamp switch is turned to the
position lamp or AUTO (if equipped)
position after the engine is turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlamp switch on
the steering column after the engine is
turned off.
Headlamp delay function
(if equipped)
If the Engine Start/Stop button is in the
ACC position or the OFF position with
the headlamps ON, the headlamps (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the engine off if the driver’s door is
opened and closed, the headlamps (and/
or parking lamps) are turned off after 15
seconds.
The headlamps (and/or parking lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlamp switch to the OFF or AUTO
position.
You can activate or deactivate the
Headlamp Delay function from the User
Settings Mode in the LCD display.
For more information, refer to the “LCD
Display” section in this chapter.
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlamp
delay function does not turn OFF
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
turn OFF the headlamps manually from
the headlamp switch before exiting the
vehicle.

Convenient Features5-64
Interior Lights
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior lamp AUTO cut
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front lamps
OOS047052
Front map lamp (1)
Press the map lamp. lens (1) to turn ON
the map lamp. R
e-press the map lamp
lens to turn OFF the map lamp.
Front Door Lamp (
) (2) :
The room lamp for the front/rear
sea
ts is automatically turned ON for
approximately 30 seconds, when a door
is opened.
The room lamp for the front/rear
seats is automatically turned ON for
approximately 15 seconds, when the
smart key unlocks the doors. The room
lamp fades out, when the Engine Start/
Stop button is placed to the ON position
in 15 seconds. The room lamp remains
ON up to 20 minutes, when a door is
opened with the Engine Start/Stop
button in the either the ACC or OFF
position.
Front room lamp

[
(3) :
Press the button to turn ON the room
lamp for the front/rear seats.

[
(4) :
Press the button to turn OFF the room
lamp for the front/rear seats.

05
5-65

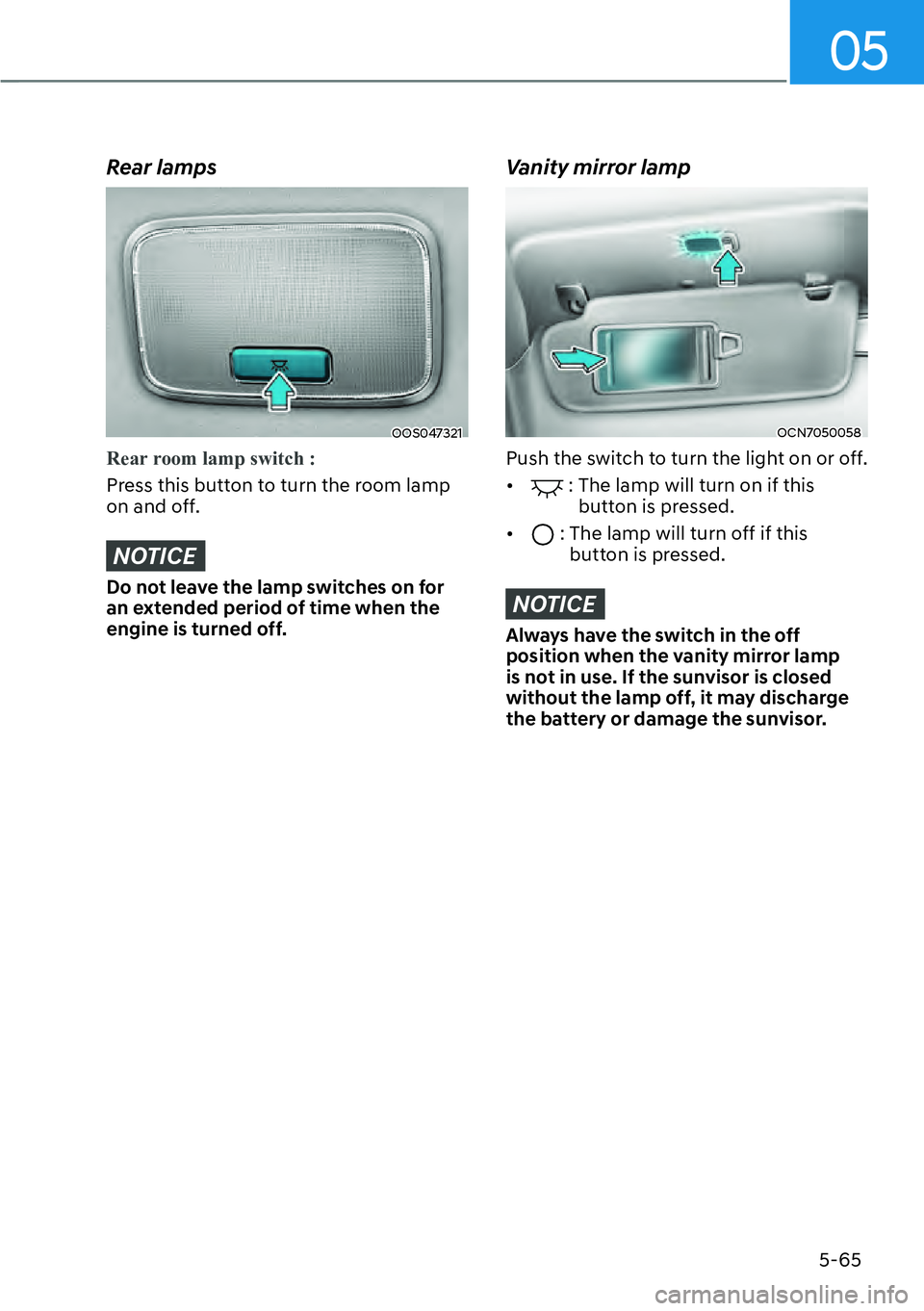

Rear lamps
OOS047321
Rear room lamp switch :
Press this button to turn the room lamp
on and o
ff.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
Vanity mirror lamp
OCN7050058
Push the switch to turn the light on or off.

[
: The lamp will turn on if this button is pressed.

[
: The lamp will turn off if this button is pressed.
NOTICE
Always have the switch in the off
position when the vanity mirror lamp
is not in use. If the sunvisor is closed
without the lamp off, it may discharge
the battery or damage the sunvisor.

Convenient Features5-66

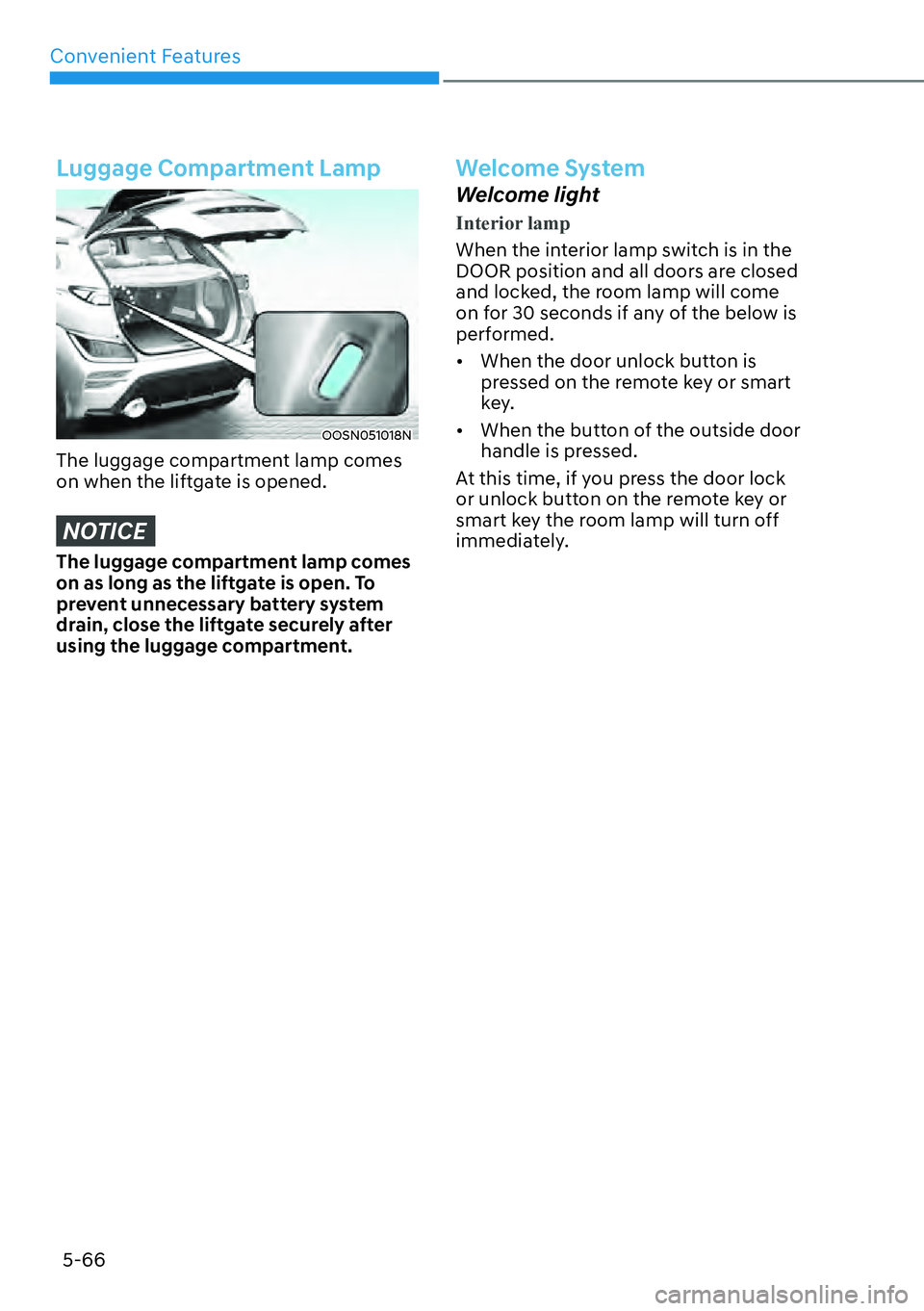

Luggage Compartment Lamp
OOSN051018N
The luggage compartment lamp comes
on when the liftgate is opened.
NOTICE
The luggage compartment lamp comes
on as long as the liftgate is open. To
prevent unnecessary battery system
drain, close the liftgate securely after
using the luggage compartment.
Welcome System
Welcome light
Interior lamp
When the interior lamp switch is in the
DOOR position and all door
s are closed
and locked, the room lamp will come
on for 30 seconds if any of the below is
performed.

[ When the door unlock button is
pressed on the remote key or smart
key.

[ When the button of the outside door
handle is pressed.
At this time, if you press the door lock
or unlock button on the remote key or
smart key the room lamp will turn off
immediately.
