2023 HYUNDAI KONA light

Instrument Cluster4-26
Engine overheated / Engine has
overheated (if equipped)
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check headlight (if equipped)
This warning message is displayed if the
headlamps are not operating properly.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlamp LED (if equipped)
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
Check Forward Safety system
(if equipped)
This warning message is displayed
if there is a problem with Forward
Collision-Avoidance Assist. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)” in
chapter 7.
Check Lane Keeping Assist (LKA)
system
This warning message is displayed if
there is a problem with Lane Keeping
Assist. Have the vehicle inspected by an
authorized HYUNDAI dealer.
For more details, refer to “Lane Keeping
Assist (LKA)” in chapter 7.
Check Blind-Spot Safety system
This warning message is displayed
if there is a problem with Blind-Spot
Collision-Avoidance Assist. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “Blind-Spot
Collision -Avoidance Assist (BCA)” in
chapter 7.

04
4-33

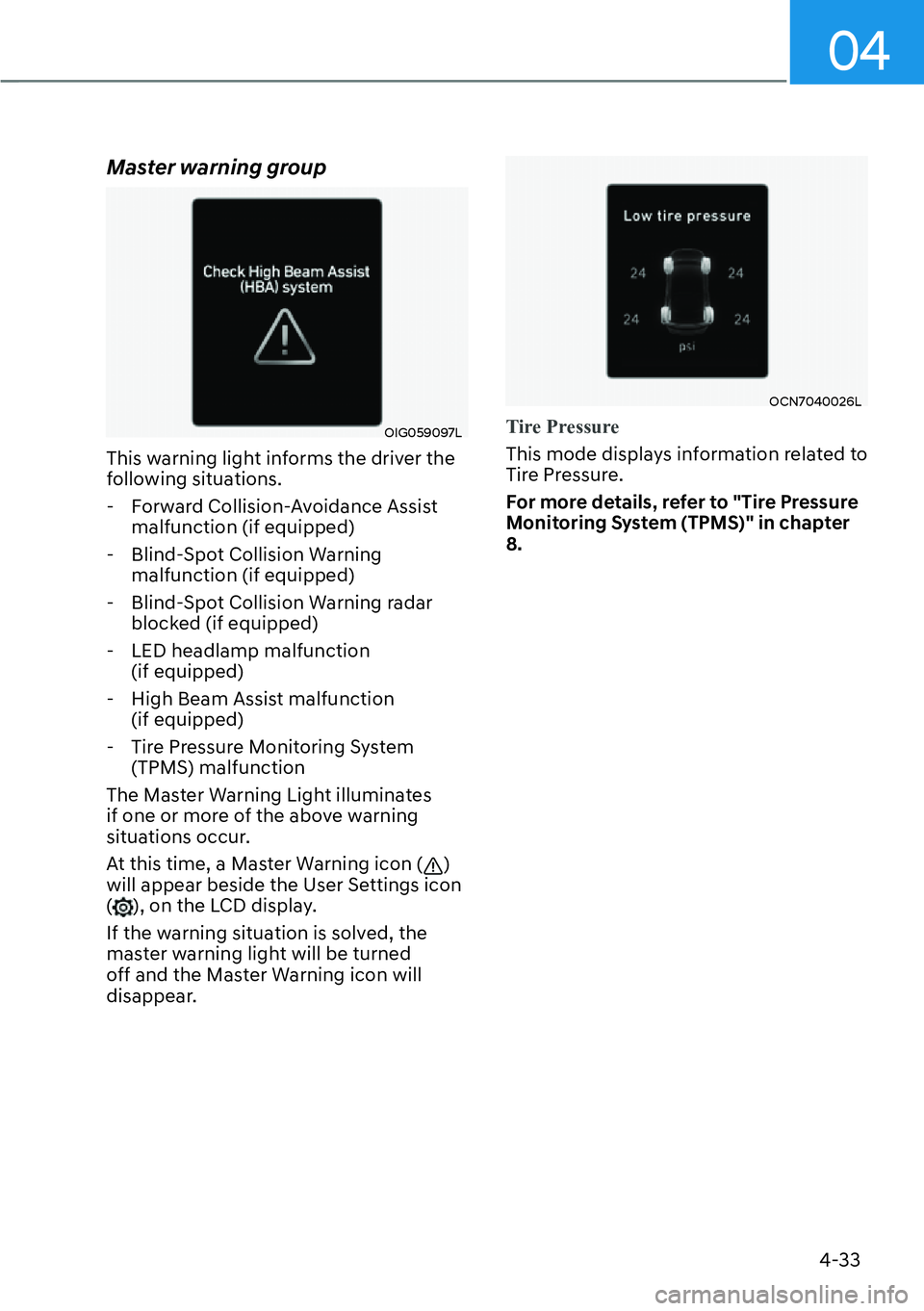

Master warning group
OIG059097L
This warning light informs the driver the
following situations. - Forward Collision-Avoidance Assist malfunction (if equipped)
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- LED headlamp malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
OCN7040026L
Tire Pressure
This mode displays information related to
Tir
e Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter
8.

5
Accessing Your Vehicle ........................................................................\
............. 5-4Smart Key ........................................................................\
..............................................5-4
Immobilizer System ........................................................................\
........................... 5-10
Hyundai Digital Key ........................................................................\
............................ 5-11
Door Locks ........................................................................\
............................... 5-28Operating Door Locks From Outside the Vehicle .................................................... 5-28
Operating Door Locks From Inside the Vehicle........................................................ 5-29
Auto Door Lock/Unlock Features ........................................................................\
......5-30
Child-Protector Rear Door Locks ........................................................................\
.......5-31
Rear Occupant Alert (ROA) ........................................................................\
................5-31
Theft-alarm System ........................................................................\
................ 5-32
Steering wheel ........................................................................\
........................ 5-33
Electric Power Steering (EPS) ........................................................................\
............ 5-33
Tilt / Telescopic Steering ........................................................................\
................... 5-34
Horn........................................................................\
..................................................... 5-35
Mirrors ......................................................................\
....................................... 5-36
Inside Rearview Mirror ........................................................................\
.......................5-36
Side View Mirrors ........................................................................\
.............................. 5-48
Windows ......................................................................\
.................................... 5-50
Power Windows ........................................................................\
.................................. 5-51
Exterior features ........................................................................\
...................... 5-54Hood ....................................................................\
........................................................5-54
Liftgate ......................................................................\
.................................................. 5-55
Fuel Filler Door ........................................................................\
................................... 5-57
Lighting ...............................................................\
............................................. 5-60Exterior Lights ........................................................................\
................................... 5-60
Interior Lights ........................................................................\
.................................... 5-64
Luggage Compartment Lamp ........................................................................\
.......... 5-66
Welcome System ........................................................................\
............................... 5-66
High Beam Assist (HBA) ........................................................................\
........ 5-67High Beam Assist Setting ........................................................................\
.................. 5-67
High Beam Assist Operation ........................................................................\
............. 5-68
High Beam Assist Malfunction and Limitations ..................................................... 5-69
5. Convenient Features

Convenient Features5-4
Smart Key
OOS050026N
Your HYUNDAI uses a smart key, which
you can use to lock or unlock a door (and
liftgate) and even start the engine even
just carrying the key.
1. Door lock
2. Door unlock
3. Panic
4. Remote start
Locking your vehicle (Touch sensor
type)
OOS050021K
1. Close all of the doors, the hood and the liftgate.
2. Make sure you have the smart key in your possession and touch either the
touch sensor on the door handle (the
engraved part) or press the Door Lock
button (1) on the smart key within 1
second.
3. The doors, hood and trunk are locked.
The chime will sound once and the
hazard warning lights will blink.

[ The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.

[ Make sure the doors are locked by
pulling the door handle.

[ If you locked the door with the touch
sensor on the door handle, the doors
cannot be unlocked with the sensor
within 3 seconds.
ACCESSING YOUR VEHICLE

05
5-5
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for three
seconds if any of the following occur:

[The Smart Key is in the vehicle.

[ The Engine Start/Stop button is in
ACC or ON position.

[ Any door except the liftgate is open.
CAUTION
When you leave your vehicle with
the smart key, make sure to press the
button on the front door handle or
touch the touch sensor on the front
door handle to lock the doors after
close all of the doors, the hood and the
liftgate. If you do not press the button
or touch the touch sensor firmly, the
doors might not be locked so please use
caution.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle (Touch
sensor type, When the Two Press
Unlock feature is off)
OOS050021K
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Put your hand in the door handle or press the Door Unlock button (2) on
the smart key. All doors will unlock
and the hazard warning lights will
blink two times.
3. After unlocking the doors, the doors will automatically re-lock after 30
seconds unless a door is opened.

Convenient Features5-6

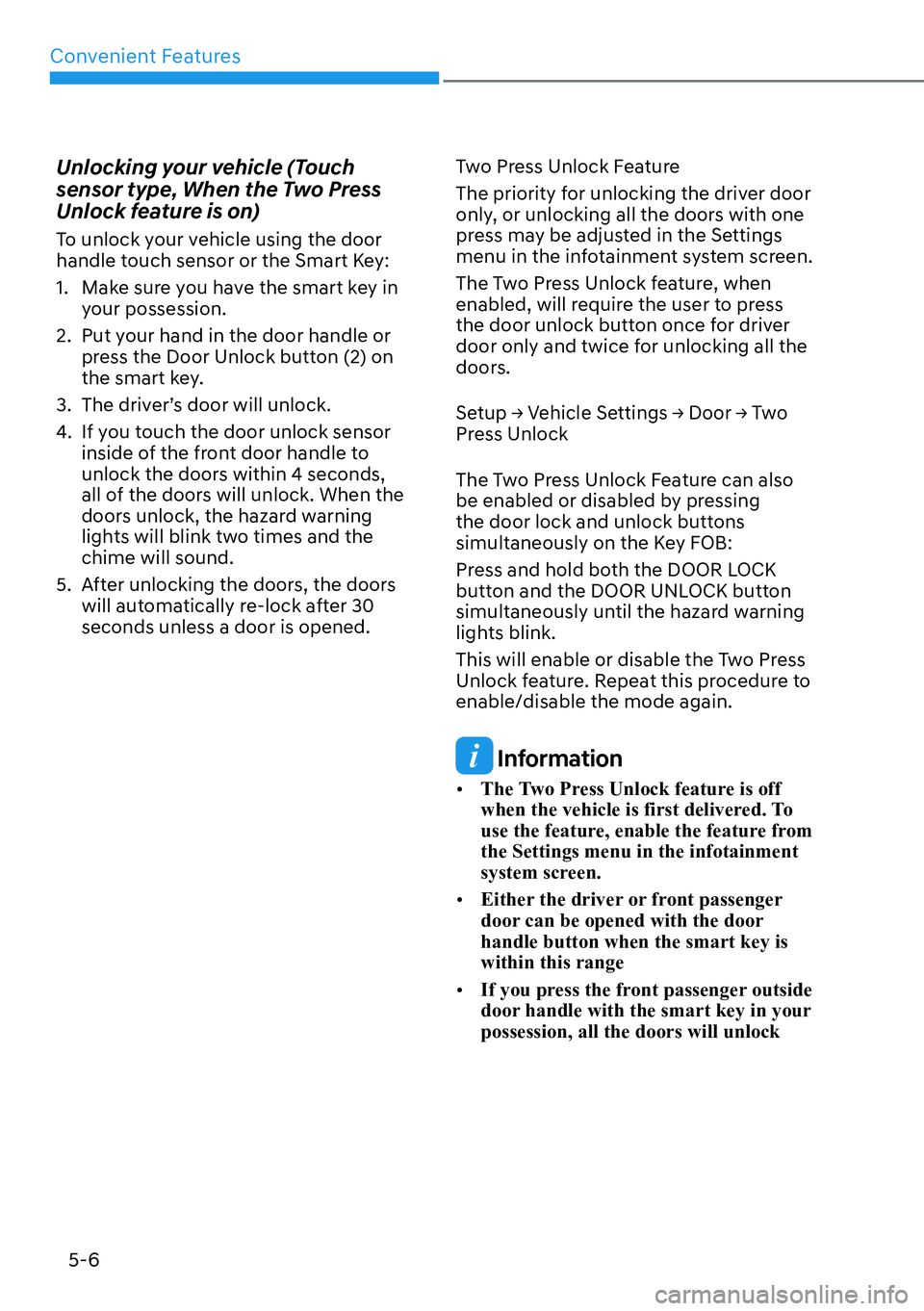

Unlocking your vehicle (Touch
sensor type, When the Two Press
Unlock feature is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in your possession.
2. Put your hand in the door handle or press the Door Unlock button (2) on
the smart key.
3. The driver’s door will unlock.
4. If you touch the door unlock sensor inside of the front door handle to
unlock the doors within 4 seconds,
all of the doors will unlock. When the
doors unlock, the hazard warning
lights will blink two times and the
chime will sound.
5. After unlocking the doors, the doors will automatically re-lock after 30
seconds unless a door is opened. Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with one
press may be adjusted in the Settings
menu in the infotainment system screen.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
6HWXS

05
5-7
Remotely starting vehicle
You can start the vehicle using the
Remote Start button on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the smart key within 32 feet (10 m) from
the vehicle.
2. Press the Remote Start button for more than 2 seconds within 4 seconds
after pressing the door lock button.
3. The hazard warning lights will blink and the engine will start.
4. To turn off the remote start function, press the Remote Start button once.
Information

[The vehicle must be in P (Park) for the
remote start function to start.

[ The engine turns off if you get on the
vehicle without a registered smart key.

[ The engine turns off if you do not get
on the vehicle within 10 minutes after
remotely starting the vehicle.

[ The Remote Start button may not
operate if the smart key is not within 32
feet (10 m).

[ The vehicle will not remotely start if the
engine hood or liftgate is opened.

[ Do not idle the engine for a long period.
Panic button
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights blink for about
30 seconds. To cancel the panic mode,
press any button on the Smart Key.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.

05
5-13

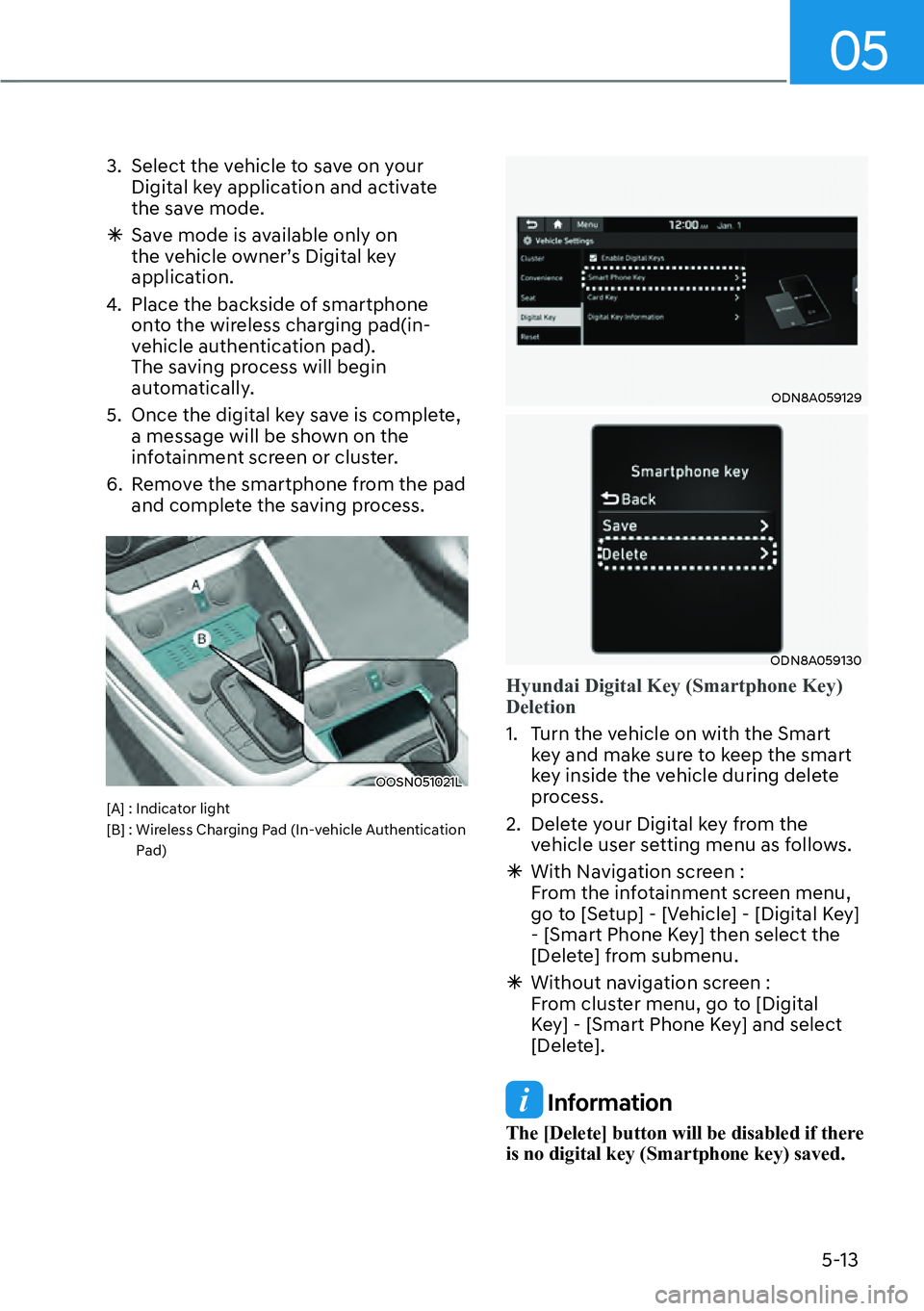

3. Select the vehicle to save on your Digital key application and activate
the save mode.

à Save mode is available only on
the vehicle owner’s Digital key
application.
4. Place the backside of smartphone onto the wireless charging pad(in-
vehicle authentication pad).
The saving process will begin
automatically.
5. Once the digital key save is complete, a message will be shown on the
infotainment screen or cluster.
6. Remove the smartphone from the pad and complete the saving process.
OOSN051021L
[A] : Indicator light
[B] : Wireless Charging Pad (In-vehicle Authentication
Pad)
ODN8A059129
ODN8A059130
Hyundai Digital Key (Smartphone Key)
Deletion
1. Turn the vehicle on with the Smart k
ey and make sure to keep the smart
key inside the vehicle during delete
process.
2. Delete your Digital key from the vehicle user setting menu as follows.

à With Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Smart Phone Key] then select the
[Delete] from submenu.

à Without navigation screen :
From cluster menu, go to [Digital
Key] - [Smart Phone Key] and select
[Delete].
Information
The [Delete] button will be disabled if there
is no digital key (Smartphone key) saved.
