2023 HYUNDAI KONA light

06
6-55
WINTER DRIVING
The severe weather conditions of winter
quickly wear out tires and cause other
problems. To minimize winter driving
problems, you should take the following
suggestions:
Snow or Icy Conditions
You need to keep sufficient distance
between your vehicle and the vehicle in
front of you.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are potentially
very hazardous practices. During
deceleration, use engine braking to the
fullest extent. Sudden brake applications
on snowy or icy roads may cause the
vehicle to skid.
To drive your vehicle in deep snow, it
may be necessary to use snow tires or to
install tire chains on your tires.
Always carry emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains,
a flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,
etc.
Snow tires
WARNING
Snow tires should be equivalent in size
and type to the vehicle’s standard tires.
Otherwise, the safety and handling of
your vehicle may be adversely affected.
We recommend you use snow tires when
road temperature is below 7°C (45°F).
Refer to the below chart, and mount the
recommended snow tire for your vehicle.
Standard tire
Tire size wheel size / offset
235/40R19 8.0Jx19/55
If you mount snow tires on your vehicle,
make sure to use the same Inflation
pressure as the original tires. Mount
snow tires on all four wheels to balance
your vehicle’s handling in all weather
conditions. The traction provided by
snow tires on dry roads may not be as
high as your vehicle’s original equipment
tires. Check with the tire dealer for
maximum speed recommendations.
Information
Do not install studded tires without
first checking local, state and municipal
regulations for possible restrictions against
their use.

06
6-59

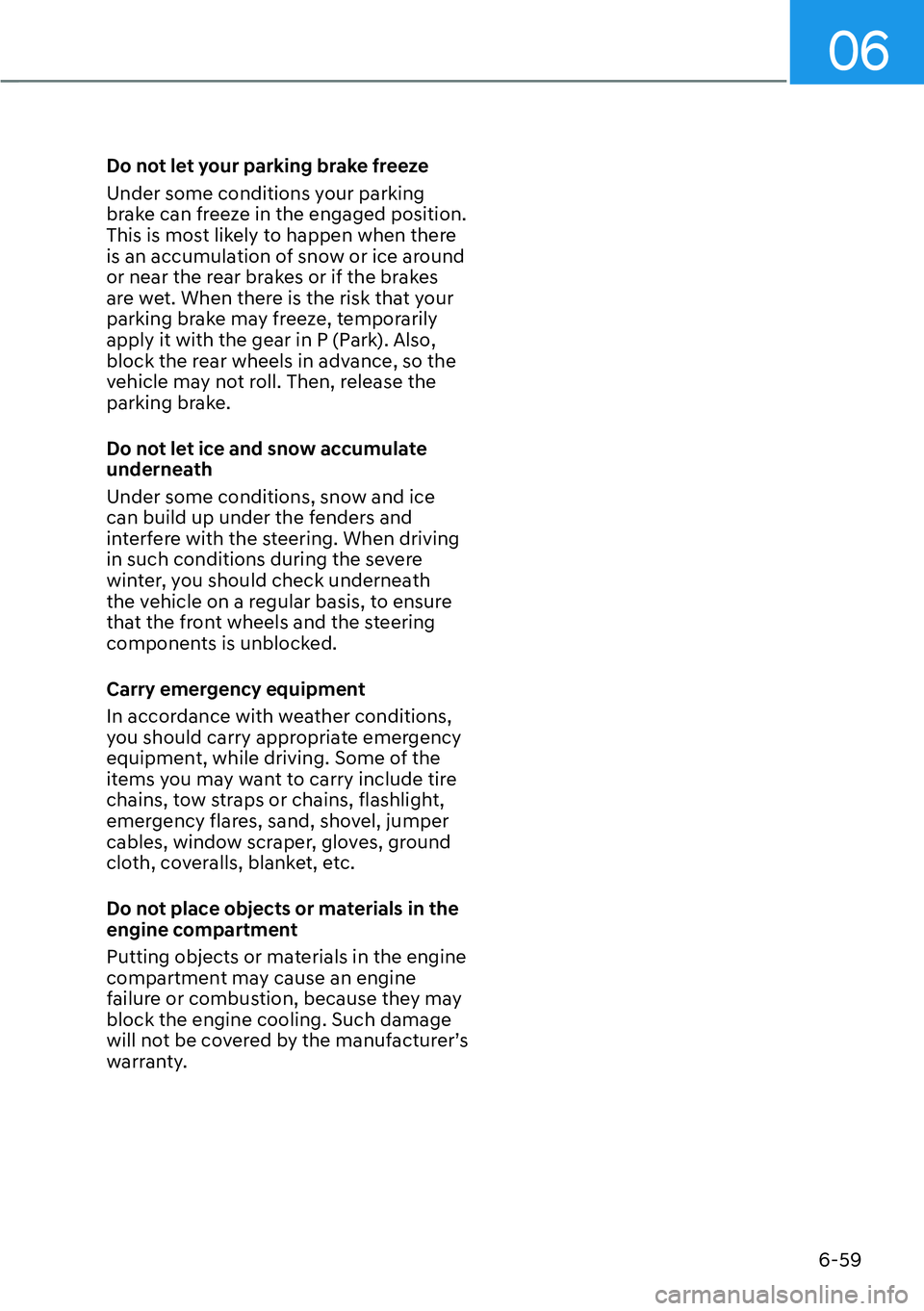

Do not let your parking brake freeze
Under some conditions your parking
brake can freeze in the engaged position.
This is most likely to happen when there
is an accumulation of snow or ice around
or near the rear brakes or if the brakes
are wet. When there is the risk that your
parking brake may freeze, temporarily
apply it with the gear in P (Park). Also,
block the rear wheels in advance, so the
vehicle may not roll. Then, release the
parking brake.
Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, you should check underneath
the vehicle on a regular basis, to ensure
that the front wheels and the steering
components is unblocked.
Carry emergency equipment
In accordance with weather conditions,
you should carry appropriate emergency
equipment, while driving. Some of the
items you may want to carry include tire
chains, tow straps or chains, flashlight,
emergency flares, sand, shovel, jumper
cables, window scraper, gloves, ground
cloth, coveralls, blanket, etc.
Do not place objects or materials in the
engine compartment
Putting objects or materials in the engine
compartment may cause an engine
failure or combustion, because they may
block the engine cooling. Such damage
will not be covered by the manufacturer’s
warranty.

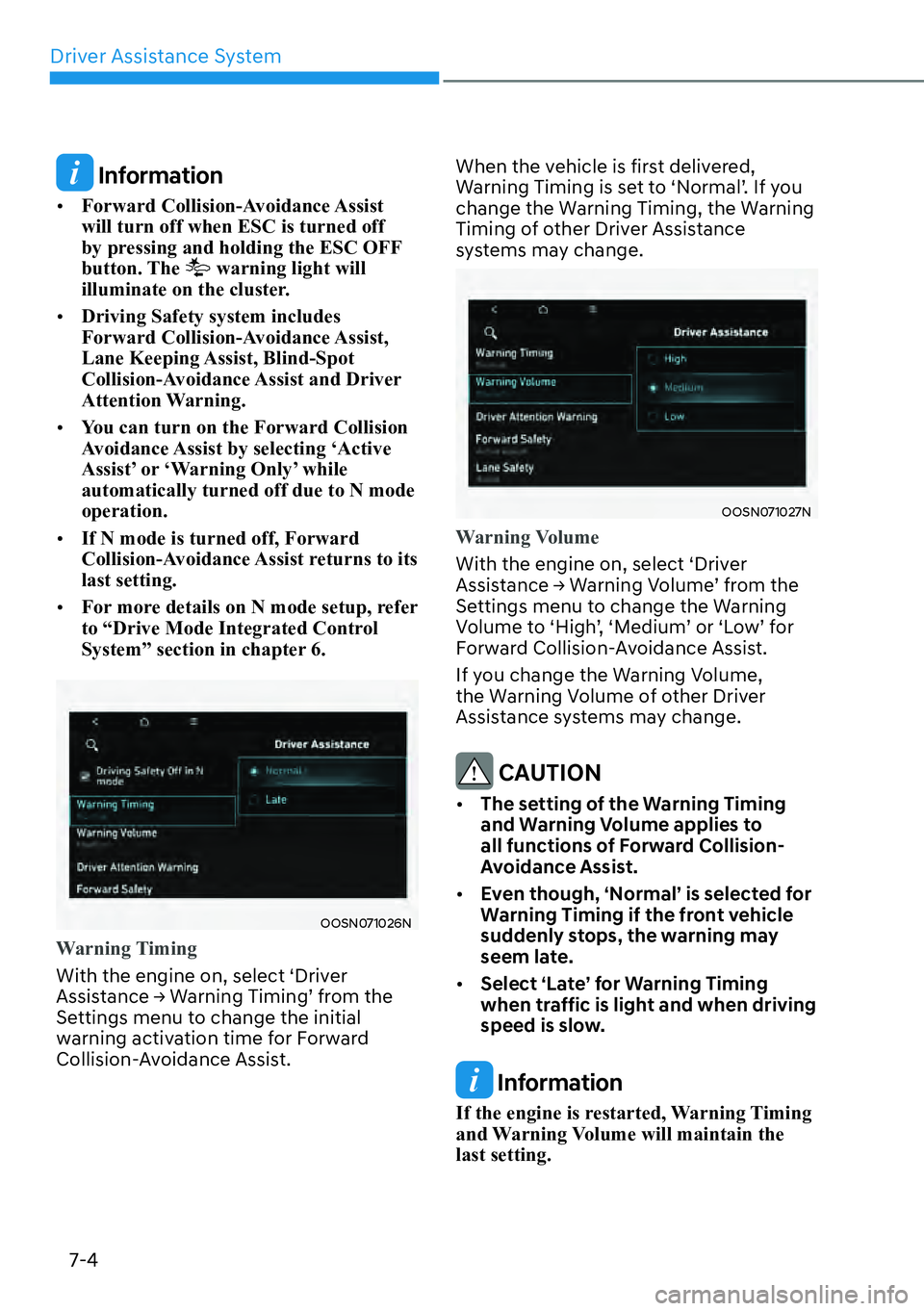

Driver Assistance System7-4
Information

[ Forward Collision-Avoidance Assist
will turn off when ESC is turned off
by pressing and holding the ESC OFF
button. The
warning light will
illuminate on the cluster.

[ Driving Safety system includes
Forward Collision-Avoidance Assist,
Lane Keeping Assist, Blind-Spot
Collision-Avoidance Assist and Driver
Attention Warning.

[ You can turn on the Forward Collision
Avoidance Assist by selecting ‘Active
Assist’ or ‘Warning Only’ while
automatically turned off due to N mode
operation.

[ If N mode is turned off, Forward
Collision-Avoidance Assist returns to its
last setting.

[ For more details on N mode setup, refer
to “Drive Mode Integrated Control
System” section in chapter 6.
OOSN071026N
Warning Timing
With the engine on, select ‘Driver
$VVLV

WDQFH

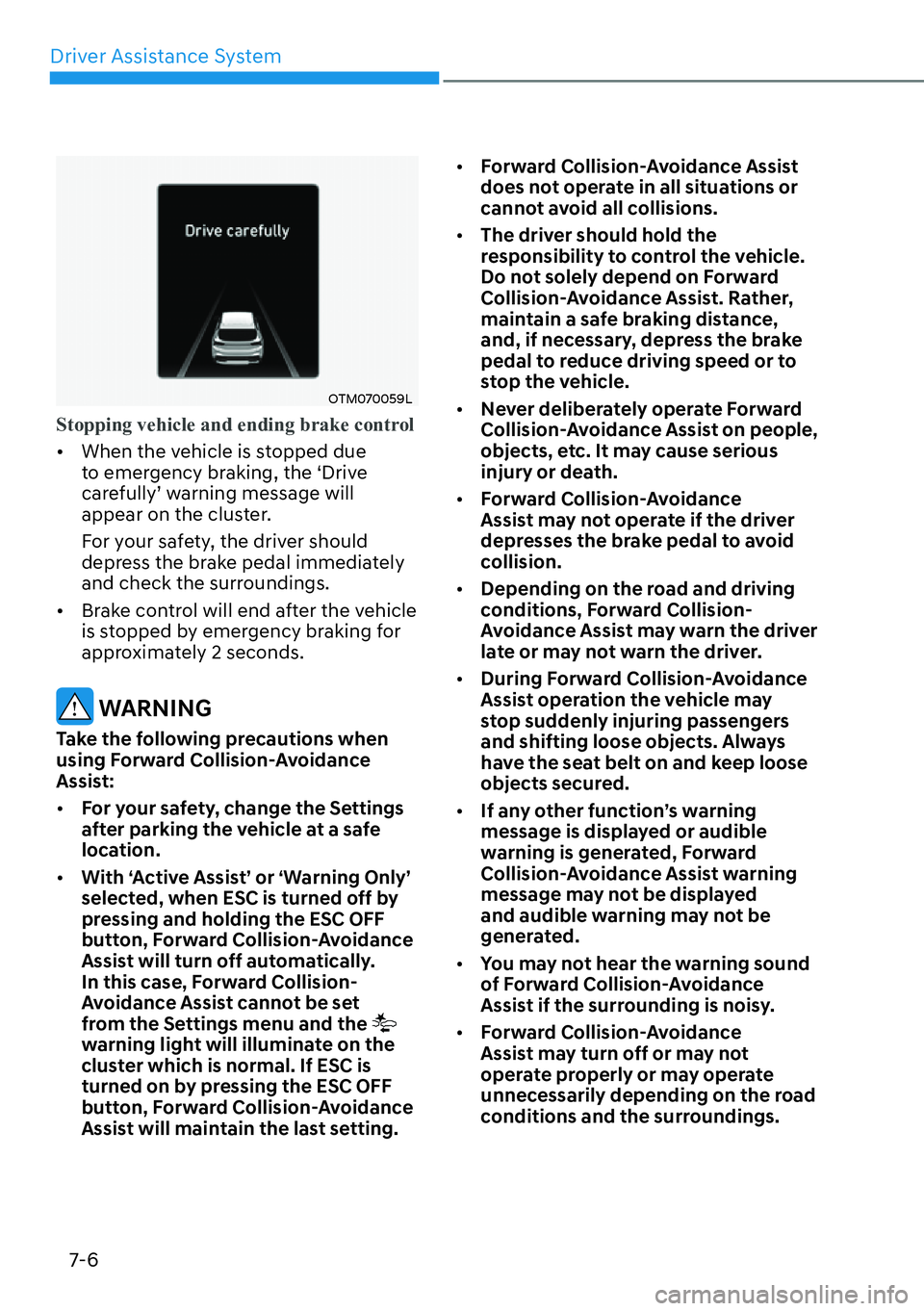

Driver Assistance System7-6
OTM070059L
Stopping vehicle and ending brake control

[ When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[ With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button, Forward Collision-Avoidance
Assist will turn off automatically.
In this case, Forward Collision-
Avoidance Assist cannot be set
from the Settings menu and the

warning light will illuminate on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.
[
Forward Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.

[ The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Forward
Collision-Avoidance Assist. Rather,
maintain a safe braking distance,
and, if necessary, depress the brake
pedal to reduce driving speed or to
stop the vehicle.

[ Never deliberately operate Forward
Collision-Avoidance Assist on people,
objects, etc. It may cause serious
injury or death.

[ Forward Collision-Avoidance
Assist may not operate if the driver
depresses the brake pedal to avoid
collision.

[ Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.

[ During Forward Collision-Avoidance
Assist operation the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[ If any other function’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[ Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.

07
7-7

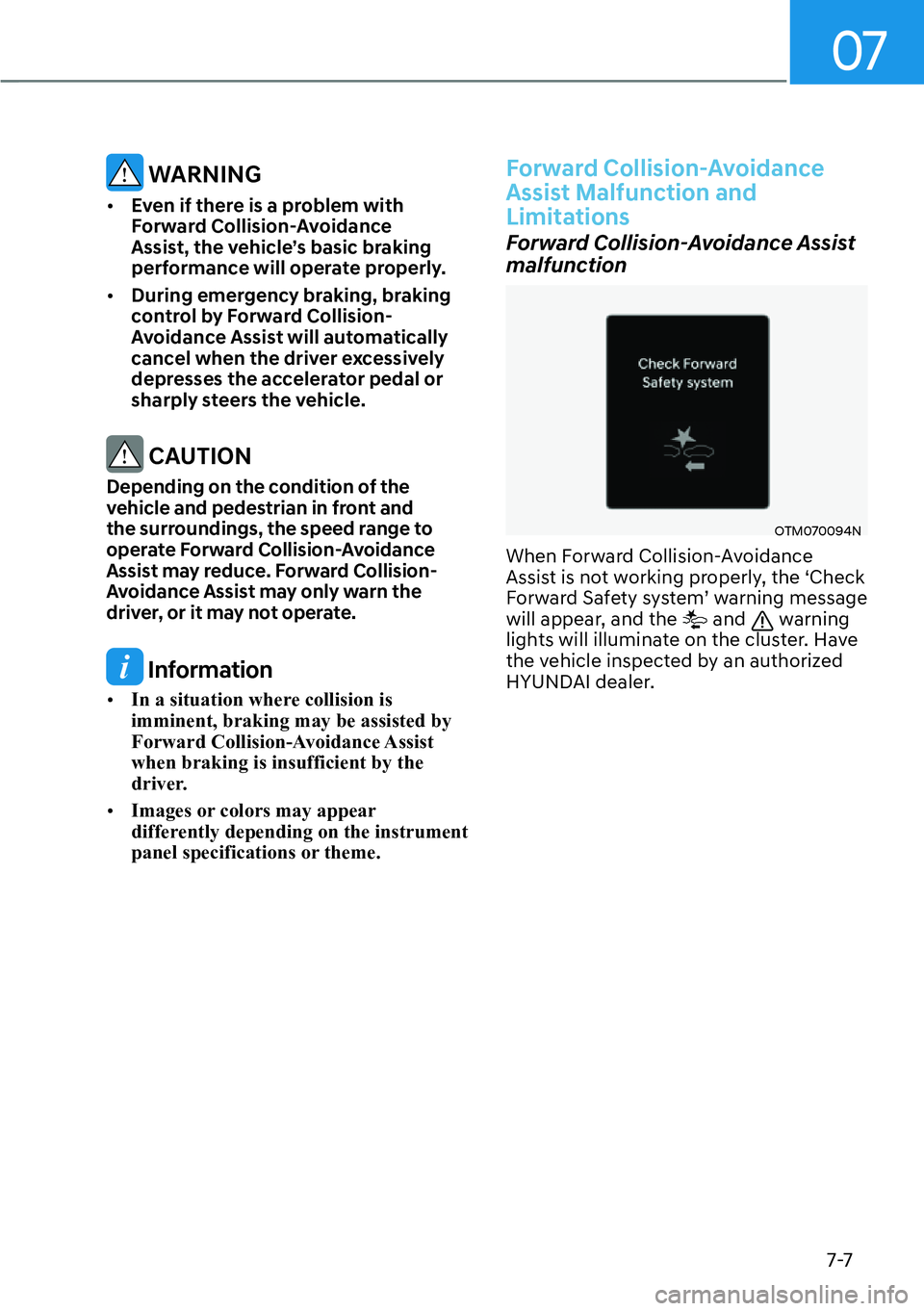

WARNING

[Even if there is a problem with
Forward Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate properly.

[ During emergency braking, braking
control by Forward Collision-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.
CAUTION
Depending on the condition of the
vehicle and pedestrian in front and
the surroundings, the speed range to
operate Forward Collision-Avoidance
Assist may reduce. Forward Collision-
Avoidance Assist may only warn the
driver, or it may not operate.
Information

[In a situation where collision is
imminent, braking may be assisted by
Forward Collision-Avoidance Assist
when braking is insufficient by the
driver.

[ Images or colors may appear
differently depending on the instrument
panel specifications or theme.
Forward Collision-Avoidance
Assist Malfunction and
Limitations
Forward Collision-Avoidance Assist
malfunction
OTM070094N
When Forward Collision-Avoidance
Assist is not working properly, the ‘Check
)RUZDUG6DIHW\V\VWHP
TZDUQLQJPHVVDJH
will appear, and the
and warning
lights will illuminate on the cluster. Have
the vehicle inspected by an authorized
HYUNDAI dealer.

Driver Assistance System7-8
Forward Collision-Avoidance Assist
disabled
OTM070093N
When the front windshield where the
front view camera is located or the
sensor is covered with foreign material,
such as snow or rain, it can reduce the
detecting performance and temporarily
limit or disable Forward Collision-
Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG&DPHUDREVFXUHG
TZDUQLQJ
message, and the
and warning
lights will illuminate on the cluster.
Forward Collision-Avoidance Assist will
operate properly when such snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the front
view camera is high or low due to
surrounding environment

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard

[ Your vehicle is being towed

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel

[ The brightness outside is low, and the
headlamps are not on or are not bright

07
7-9

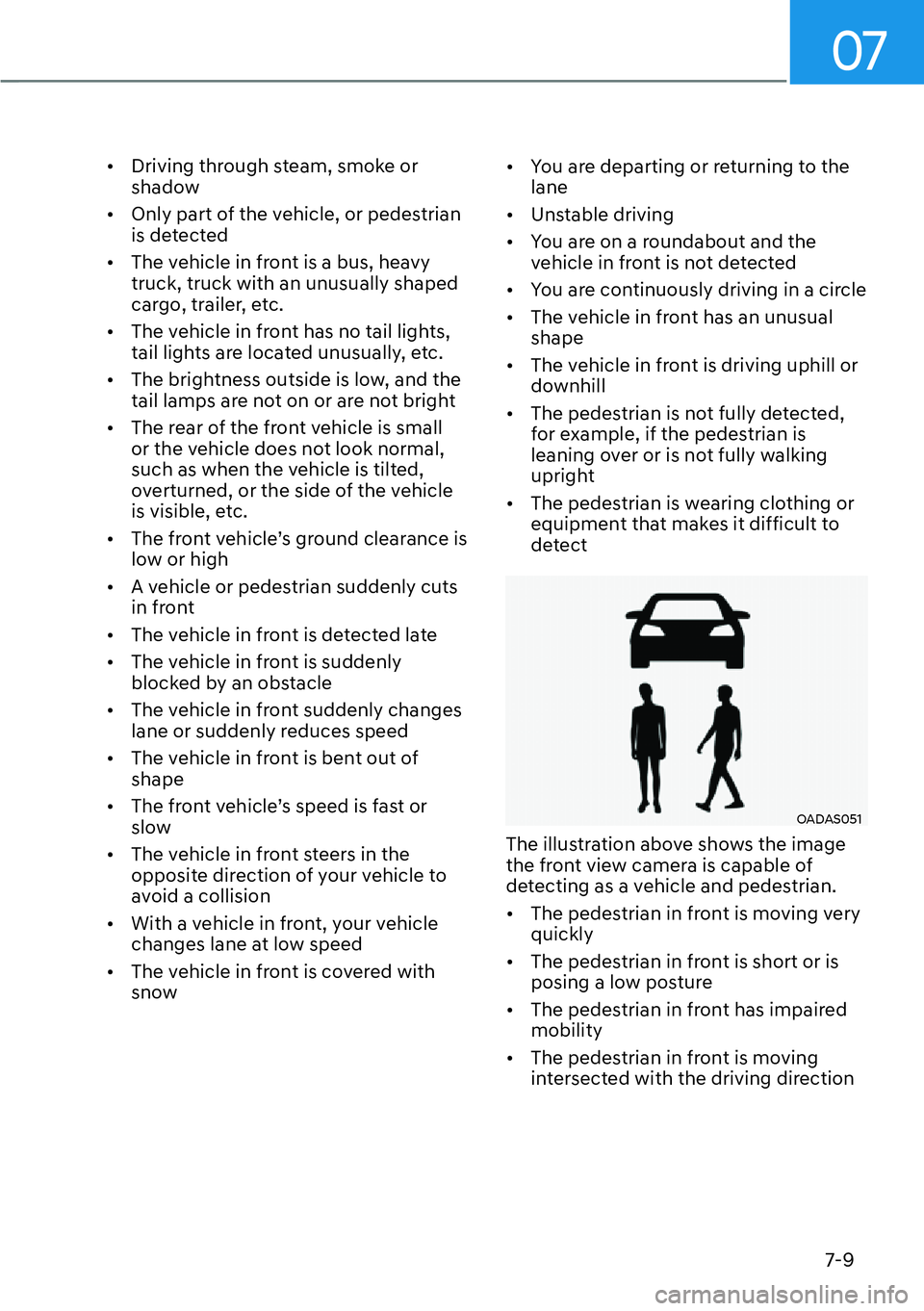

[Driving through steam, smoke or
shadow

[ Only part of the vehicle, or pedestrian
is detected

[ The vehicle in front is a bus, heavy
truck, truck with an unusually shaped
cargo, trailer, etc.

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visible, etc.

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV low or high

[ A vehicle or pedestrian suddenly cuts
in front

[ The vehicle in front is detected late

[ The vehicle in front is suddenly
blocked by an obstacle

[ The vehicle in front suddenly changes
lane or suddenly reduces speed

[ The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU slow

[ The vehicle in front steers in the
opposite direction of your vehicle to
avoid a collision

[ With a vehicle in front, your vehicle
changes lane at low speed

[ The vehicle in front is covered with
snow
[
You are departing or returning to the
lane

[ Unstable driving

[ You are on a roundabout and the
vehicle in front is not detected

[ You are continuously driving in a circle

[ The vehicle in front has an unusual
shape

[ The vehicle in front is driving uphill or
downhill

[ The pedestrian is not fully detected,
for example, if the pedestrian is
leaning over or is not fully walking
upright

[ The pedestrian is wearing clothing or
equipment that makes it difficult to
detect
OADAS051
The illustration above shows the image
the front view camera is capable of
detecting as a vehicle and pedestrian.

[The pedestrian in front is moving very
quickly

[ The pedestrian in front is short or is
posing a low posture

[ The pedestrian in front has impaired
mobility

[ The pedestrian in front is moving
intersected with the driving direction

Driver Assistance System7-10

[ There is a group of pedestrians or a
large crowd in front

[ The pedestrian is wearing clothing
that easily blends into the
background, making it difficult to
detect

[ The pedestrian is difficult to
distinguish from the similarly shaped
structure in the surroundings

[ You are driving by a pedestrian,
traffic sign, structure, etc., near the
intersection

[ Driving in a parking lot

[ Driving through a tollgate,
construction area, unpaved road,
partial paved road, uneven road,
speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while
driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass or overgrown

[ There is interference by
electromagnetic waves such as
driving in an area with strong radio
waves or electrical noise WARNING

[Driving on a curved road
OADAS003OADAS002
Forward Collision-Avoidance Assist
may not detect other vehicles or
pedestrians in front of you when
driving on curved roads adversely
affecting the performance of the
sensors. This may result in no
warning or braking assist when
necessary.
When driving on a curved road,
you must maintain a safe braking
distance, and if necessary, steer the
vehicle and depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
