2023 HYUNDAI KONA light

2-5
02
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-35
3. Driver’s front air bag .............................. 3-41
4. Engine Start/Stop button ....................... 6-5
5. Light control/Turn signals .................... 5-60
6. Wiper/Washer ....................................... 5-70
7. Infotainment system ........................... 5-101
8. Hazard warning flasher switch .............. 8-2
9. Automatic climate control system ....... 5-74
10. Passenger’s front air bag ...................... 3-41
11. Glove box .............................................. 5-88
12. USB Charger ......................................... 5-93
13. USB Port ............................................... 5-101
14. Power outlet .......................................... 5-92
15. Dual clutch transmission shift lever .....6-10 16. Drive mode knob .................................. 6-38
17. Seat warmer ........................................... 3-16
18. ESC off button ...................................... 6-23
19. Parking Safety button ........................... 7-68
20. Parking/ View button ............................7-55
21. Wireless Smart Phone Charging
System .................................................. 5-94
22. Cup holder ............................................. 5-91
23. Steering wheel audio controls/ Bluetooth® wireless technology
hands-free controls ......................5-102/103
24. Driving Assist button/ Lane Driving Assist button .................... 7-15
The actual shape may differ from the illustration.
OOSN011004N
,17(5,2529(59,(:

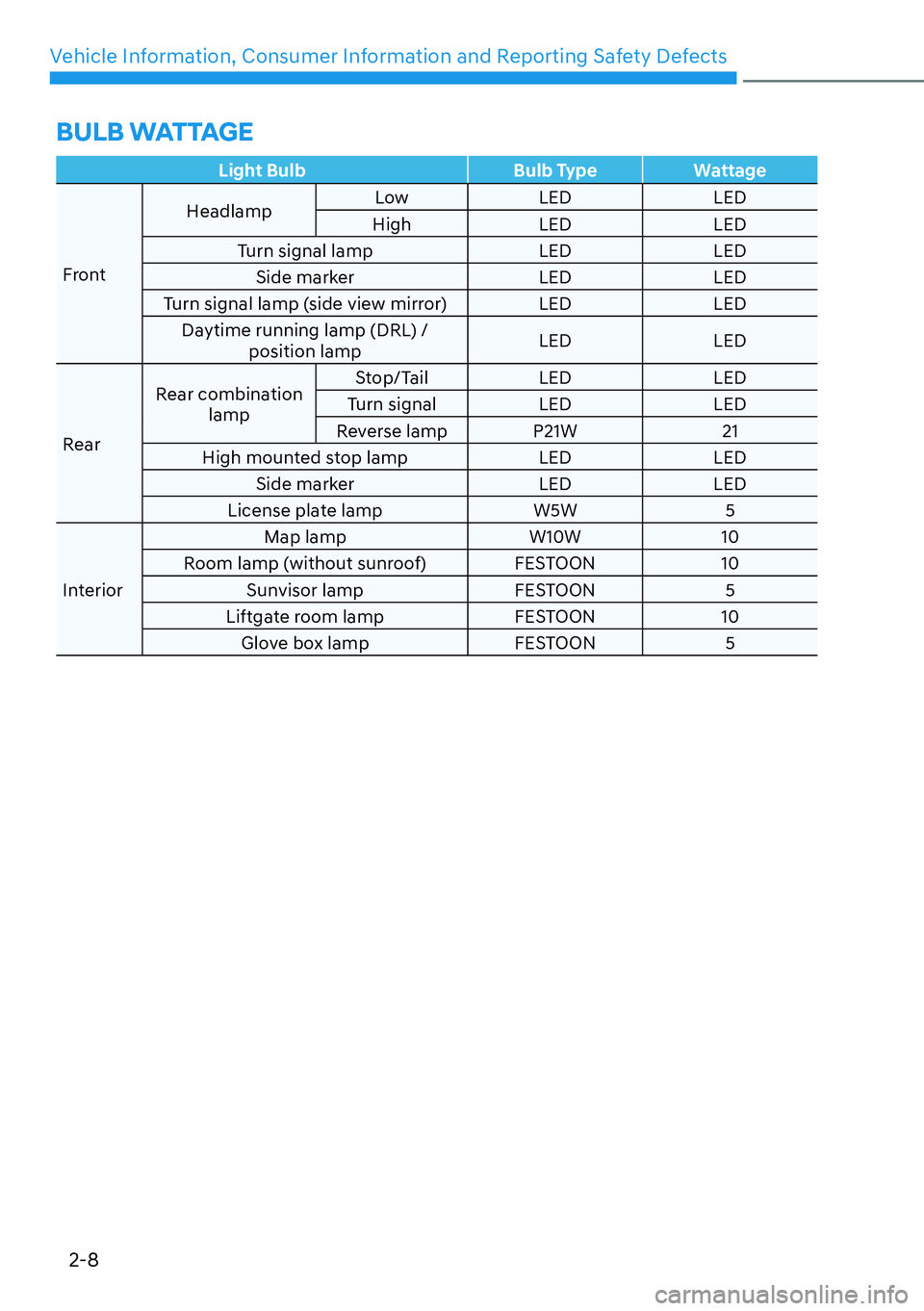

Vehicle Information, Consumer Information and Reporting Safety Defects2-8
Light Bulb Bulb TypeWattage
Front H
eadlamp
Low LED LED
High LED LED
Turn signal lamp LED LED Side marker LED LED
Turn signal lamp (side view mirror) LED LED Daytime running lamp (DRL) / position lamp LED LED
Rear Rear combination
lamp Stop/Tail LED LED
Turn signal LED LED
Reverse lamp P21W 21
High mounted stop lamp LED LED Side marker LED LED
License plate lamp W5W 5
Interior Map lamp
W10W10
Room lamp (without sunroof) FESTOON 10
Sunvisor lamp FESTOON5
Liftgate room lamp FESTOON10
Glove box lamp FESTOON5
BULB WATTAGE

3
3. Seats & Safety System
Important Safety Precautions ........................................................................\
...3-2Always Wear Your Seat Belt ........................................................................\
................. 3-2
Restrain All Children ........................................................................\
............................. 3-2
Air Bag Hazards ........................................................................\
.................................... 3-2
Driver Distraction ........................................................................\
................................. 3-2
Control Your Speed ........................................................................\
.............................. 3-2
Keep Your Vehicle in Safe Condition ........................................................................\
... 3-2
Seats .....................................................................\
............................................. 3-3Safety Precautions ........................................................................\
...............................3-4
Front Seats ........................................................................\
............................................ 3-5
Rear Seats ........................................................................\
.............................................3-8
Head Restraints ........................................................................\
................................... 3-11
Seat Warmers ........................................................................\
.................................... 3-16
Seat Belts ........................................................................\
.................................. 3-18Seat Belt Safety Precautions ........................................................................\
............. 3-18
Seat Belt Warning Light ........................................................................\
..................... 3-19
Seat Belt Restraint System .....................................................................\
...................3-20
Additional Seat Belt Safety Precautions ................................................................... 3-25
Care of Seat Belts ........................................................................\
............................... 3-27
Child Restraint System (CRS) ........................................................................\
. 3-28Children Always in the Rear ........................................................................\
............... 3-28
Selecting a Child Restraint System (CRS) ................................................................. 3-29
Installing a Child Restraint System (CRS) .................................................................3-30
Air Bag - Supplemental Restraint System ..................................................... 3-39Where Are the Air Bags? ........................................................................\
.................... 3-41
How Does the Air Bags System Operate? ................................................................ 3-44
What to Expect After an Air Bag Inflates .................................................................. 3-47
Occupant Classification System (OCS) .................................................................... 3-48
Why Didn’t My Air Bag Go Off in a Collision? ...........................................................3-54
SRS Care ........................................................................\
.............................................3-59
Additional Safety Precautions ........................................................................\
.......... 3-60
Air Bag Warning Labels ........................................................................\
..................... 3-60
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

03
3-5
Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING
Take the following precautions when
adjusting your seat belt:

[NEVER use one seat belt for more
than one occupant.

[ Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.

[ NEVER allow children or small infants
to ride on a passenger’s lap.

[ Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.

[ Do not allow the seat belt to become
caught or jammed.
Front Seats
WARNING
Take the following precautions when
adjusting your seat:

[NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.

[ Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.

[ Do not allow anything to interfere
with the normal position and proper
locking of the seatback.

[ Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.

[ Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.

[ If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

[ Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[ Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.

03
3-19
Seat Belt Warning Light
Seat belt warning
„Instrument cluster
OAM032161L
Driver’s seat belt warning
As a reminder to the driver, the seat
belt w
arning light will illuminate for
approximately 6 seconds each time the
Engine Start/Stop button is in the ON
position regardless of belt fastening. If
the driver’s seat belt is not fastened, the
warning chime will sound for about 6
seconds.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
OOSN031025L
Front passenger’s seat belt warning
As a reminder to the front passenger,
the fr
ont passenger’s seat belt warning
light will illuminate for approximately 6
seconds each time you turn the Engine
Start/Stop button is in the ON position
regardless of belt fastening.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.

Seats & Safety System3-20
WARNING
Riding in an improper position
adversely affects the front passenger’s
seat belt warning system. It is important
for the driver to instruct the passenger
to properly be seated as instructed in
this manual.
Information

[ You can find the front passenger’s seat
belt warning light on the center fascia
panel.

[ Although the front passenger seat is not
occupied, the seat belt warning light
will blink or illuminate for 6 seconds.

[ The front passenger’s seat belt warning
may operate when luggage is placed on
the front passenger seat.
Seat Belt Restraint System
WARNING
OHI038182L
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it
fits snugly. This allows your strong
pelvic bones to absorb the force of
the crash, reducing the chance of
internal injuries.

[ Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[ Always position the shoulder belt
anchor into the locked position at the
appropriate height.

[ Never position the shoulder belt
across your neck or face.

Seats & Safety System3-24
WARNING

[ Always wear your seat belt and sit
properly in your seat.

[ Do not use the seat belt if it is loose
or twisted. A loose or twisted seat
belt will not protect you properly in
an accident.

[ Do not place anything near the
buckle. This may adversely affect
the buckle and cause it to function
improperly.

[ Always replace your pre-tensioners
after activation or an accident.

[ NEVER inspect, service, repair or
replace the pre-tensioners yourself.
Have the pre-tensioners inspected,
serviced, repaired or replaced by an
authorized HYUNDAI dealer.

[ Do not hit the seat belt assemblies.
WARNING
Do not touch the pre-tensioner seat
belt assemblies for several minutes
after they have been activated. When
the pre-tensioner seat belt mechanism
deploys during a collision, the pre-
tensioner can become hot and can burn
you.
CAUTION
Body work on the front area of the
vehicle may damage the pre-tensioner
seat belt system. Therefore, have the
system to be serviced by an authorized
HYUNDAI dealer.
OHI038175L
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown
in the illustration above:
(1) SRS air bag warning light
(2) Retractor pre-tensioner
(3) SRS control module
NOTICE
The sensor that activates the SRS
control module is connected with the
pre–tensioner seat belts. The SRS air
bag warning light on the instrument
cluster will illuminate for approximately
3~6 seconds after the Engine Start/Stop
button is in the ON position, and then it
should turn off.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is
being driven, have the pre-tensioner
seat belts and/or SRS control module
inspected by an authorized HYUNDAI
dealer as soon as possible.

Seats & Safety System3-26
WARNING
ALWAYS properly restrain infants and
small children in a Child Restraint
System appropriate for the child’s
height and weight.
To reduce the risk of serious injury or
death to a child and other passengers,
NEVER hold a child in your lap or arms
when the vehicle is moving. The violent
forces created during an accident will
tear the child from your arms and throw
the child against the interior of the
vehicle.
Small children are best protected from
injury in an accident when properly
restrained in the rear seat by a Child
Restraint System that meets the
requirements of the Safety Standards of
your country. Before buying any Child
Restraint System, make sure that it has
a label certifying that it meets Safety
Standard of your country.
The Child Restraint System must be
appropriate for your child’s height and
weight. Check the label on the Child
Restraint System for this information.
Refer to “Child Restraint Systems”
section in this chapter. Larger children
Children under age 13 and who are
t
oo large for a booster seat should
always occupy the rear seat and use the
available lap/shoulder belts. A seat belt
should lie across the upper thighs and
be snug across the shoulder and chest
to restrain the child safely. Check belt fit
periodically. A child’s squirming could
put the belt out of position. In the event
of an accident, children are afforded the
best safety restrained by a proper Child
Restraint System in the rear seats.
If a larger child over age 13 must be
seated in the front seat, the child must
be securely restrained by the available
lap/shoulder belt and the seat should be
placed in the rearmost position.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the center
of the vehicle. If the shoulder belt still
touches their face or neck, they need to
be returned to an appropriate booster
seat in the rear seat.
WARNING

[ Always make sure larger children’s
seat belts are worn and properly
adjusted.

[ NEVER allow the shoulder belt to
contact the child’s neck or face.

[ Do not allow more than one child to
use a single seat belt.
