05
5-93
CAUTION
To prevent damage to the power
outlets:

[Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.

[ Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[ Close the cover when not in use.

[ Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[ Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
USB Charger
OOSN051035N
OOSN051036N
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the Engine Start/Stop button is in
the ON or START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.

9
9. Maintenance
Engine Compartment ........................................................................\
............... 9-3
Maintenance Services ........................................................................\
.............. 9-4
Owner’s Responsibility ........................................................................\
....................... 9-4
Owner Maintenance Precautions ........................................................................\
....... 9-4
Owner Maintenance ........................................................................\
................. 9-5Owner Maintenance Schedule ........................................................................\
........... 9-6
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule ........................................................................\
.......... 9-9
Maintenance Under Severe Usage Conditions ........................................................ 9-12
Explanation of Scheduled Maintenance Items .............................................. 9-14Fuel Filter (for gasoline engine) ........................................................................\
......... 9-14
Parking Brake ........................................................................\
...................................... 9-15
Propeller Shaft ........................................................................\
.................................... 9-15
Engine Oil ........................................................................\
.................................9-16Checking the Engine Oil Level ........................................................................\
........... 9-16
Checking the Engine Oil and Filter ........................................................................\
....9-17
Engine Coolant ........................................................................\
.........................9-19Checking the Coolant Level......................................................................\
................. 9-19
Changing Coolant ........................................................................\
.............................. 9-21
Brake Fluid ........................................................................\
............................... 9-22Checking the Brake Fluid Level ........................................................................\
......... 9-22
Washer Fluid ........................................................................\
............................ 9-23Checking the Washer Fluid Level ........................................................................\
...... 9-23
Parking Brake ........................................................................\
.......................... 9-23
Checking the Parking Brake ........................................................................\
.............. 9-23
Air Cleaner ........................................................................\
............................... 9-24Filter Replacement ........................................................................\
............................9-24
Climate Control Air Filter ........................................................................\
........ 9-25Filter Inspection........................................................................\
.................................. 9-25
Wiper Blades ........................................................................\
........................... 9-26Blade Inspection ........................................................................\
................................9-26
Blade Replacement ........................................................................\
............................9-26
For Best Battery Service ........................................................................\
.................... 9-31
Battery Capacity Label ........................................................................\
....................... 9-31
Battery Recharging ........................................................................\
............................ 9-32
Reset Items ........................................................................\
.........................................9-33

09

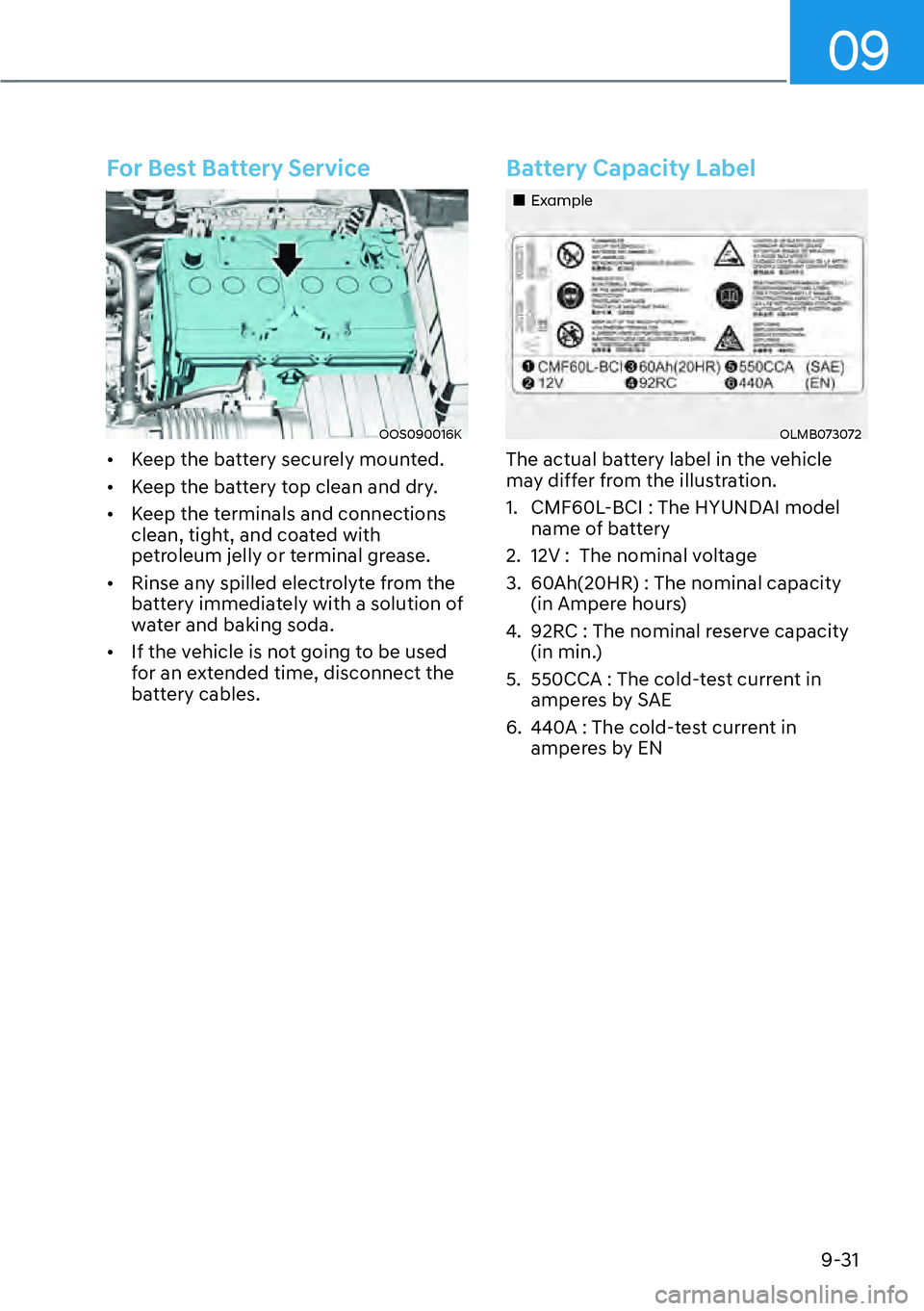

9-31
For Best Battery Service
OOS090016K

[Keep the battery securely mounted.

[ Keep the battery top clean and dry.

[ Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.

[ Rinse any spilled electrolyte from the
battery immediately with a solution of
water and baking soda.

[ If the vehicle is not going to be used
for an extended time, disconnect the
battery cables.
Battery Capacity Label
„Example
OLMB073072
The actual battery label in the vehicle
may differ from the illustration.
1. CMF60L-BCI : The HYUNDAI model
name of battery
2. 12V : The nominal voltage
3. 60Ah(20HR) : The nominal capacity (in Ampere hours)
4. 92RC : The no minal reserve capacity (in min.)
5. 550CCA : The cold-test current in amperes by SAE
6. 440A : The cold-test current in amperes by EN

Maintenance9-44
Pneumatic tire
A mechanical device made of rubber,
chemicals, fabric and steel or other
materials, that, when mounted on an
automotive wheel provides the traction
and contains the gas or fluid that
sustains the load.
Pneumatic options weight
The combined weight of installed regular
production options weighing over 5 lb.
(2.3 kg) in excess of the standard items
which they replace, not previously
considered in curb weight or accessory
weight, including heavy duty breaks, ride
levelers, roof rack, heavy duty battery,
and special trim.
Recommended Inflation Pressure
Vehicle manufacturer’s recommended
tire inflation pressure as shown on the
tire placard.
Radial Ply Tire
A pneumatic tire in which the ply cords
that extend to the beads are laid at 90
degrees to the centerline of the tread.
Rim
A metal support for a tire and upon
which the tire beads are seated.
Sidewall
The portion of a tire between the tread
and the bead.
Speed Rating
An alphanumeric code assigned to a tire
indicating the maximum speed at which
a tire can operate.
Traction
The friction between the tire and
the road surface. The amount of grip
provided.
Tread
The portion of a tire that comes into
contact with the road.
Treadwear Indicators
Narrow bands, sometimes called “wear
bars”, that show across the tread of a tire
when only 1/16 inch of tread remains.
UTQGS
Uniform Tire Quality Grading Standards
is a tire information system that provides
consumers with ratings for a tire’s
traction, temperature and treadwear.
Ratings are determined by tire
manufacturers using government testing
procedures. The ratings are molded into
the sidewall of the tire.
Vehicle Capacity Weight
The number of designated seating
positions multiplied by 150 lbs. (68 kg)
plus the rated cargo and luggage load.
Vehicle Maximum Load on the Tire
Load on an individual tire due to curb
and accessory weight plus maximum
occupant and cargo weight.
Vehicle Normal Load on the Tire
Load on an individual tire that is
determined by distributing to each axle
its share of the curb weight, accessory
weight, and normal occupant weight and
dividing by 2.
Vehicle Placard
A label permanently attached to a vehicle
showing the original equipment tire size
and recommended inflation pressure.

09
9-47
FUSES
OLF074075
A

„Blade type

„Cartridge type

„Multi fuseA
A
B
B
B
B
A
[A] : Normal, [B] : Blown
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved. We
recommend that you immediately
consult an authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[ A higher capacity fuse could cause
damage and possibly cause a fire.

[ Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.

Index
I-12
V
Vehicle break-in process
........................................................................\
................1-7
Vehicle Certification Label
........................................................................\
..........2-13
Vehicle data collection and event data recorders
...................................................1-8
Vehicle Identification Number (Vin)
...................................................................2-13
Vehicle Load Limit
........................................................................\
......................6-60
The Loading Information Label .......................................................................6-61
Vehicle modifications
........................................................................\
....................1-7
Vehicle settings (infotainment system)
................................................................4-36
Setting Your Vehicle ........................................................................\
................4-36
Volume and Weight
........................................................................\
......................2-10
W
Washer Fluid
........................................................................\
................................9-23
Checking the Washer Fluid Level ....................................................................9-23
Windows
........................................................................\
......................................5-50
Power Windows ........................................................................\
........................5-51
Windshield Defrosting and Defogging
................................................................5-83
Auto Defogging System (only for automatic climate control system) .............5-84
Automatic Climate Control System .................................................................5-83
Defroster ........................................................................\
...................................5-86
Winter Driving
........................................................................\
.............................6-55
Snow or Icy Conditions ........................................................................\
............6-55
Winter Precautions ........................................................................\
...................6-58
Wiper Blades
........................................................................\
................................9-26
Battery Capacity Label ........................................................................\
.............9-31
Battery Rechar ging ........................................................................\
...................9-32
Blade Inspection ........................................................................\
.......................9-26
Blade Replacement ........................................................................\
...................9-26
For Best Battery Service ........................................................................\
..........9-31
Reset Items ........................................................................\
...............................9-33
Wipers and Washers
........................................................................\
.....................5-70
Front Windshield Washers ........................................................................\
........5-72
Rear Window Wiper and Washer .....................................................................5-73
Windshield Wipers ........................................................................\
...................5-70
