2023 HYUNDAI KONA engine oil

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
„Gasoline 2.0 T-GDI
The actual shape may differ from the illustration.
OOSN091011L
1. Engine coolant reservoir ....................... 9-19
Engine coolant cap ............................... 9-20
2. Fuse box ................................................ 9-48
3. Battery ................................................... 9-30
4. Brake fluid reservoir ............................. 9-22 5. Air cleaner ............................................. 9-24
6. Engine oil dipstick ................................. 9-16
7. Engine oil filler cap ................................ 9-17
8. Windshield washer fluid reservoir ....... 9-23
ENGINE COMPARTMENT

02
2-11
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 *2 *3
(drain and refill)
Recommends
5.49 US qt.
b SAE 0W-30 API SN PLUS/SP or
ILSAC GF-6 *4
Dual clutch
transmission fluid Gear oil
3.4 US qt.

b GS WDCTF HD G (GS CALTEX)
Control oil 2.58 US qt.

b GS WDCTF HD H (GS CALTEX)
Coolant 7.3 US qt.

b Mixture of antifreeze and distilled
water (Ethylene-glycol with
phosphate based coolant for
aluminum radiator)
Brake fluid 0.74 ~ 0.85 US qt
a
b DOT4
Fuel 13.21 US gal.
(50
b) Refer to “Fuel Requirements” in the
Introduction chapter.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : For the best performance of braking and ABS/ESC functions, you should use genuine
brake fluid that conform to standards. (Standards: SAE J1704 DOT-4 LV, ISO4925 CLASS-6
and FMVSS116 DOT-4)
*3 : An engine oil displaying this American Petroleum Institute(API) Certification
Mark conforms to the International Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.
*4 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.

Vehicle Information, Consumer Information and Reporting Safety Defects2-12
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil
0W-30

4
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
............................. 4-6 Speedometer .....................................................................\
....................................... 4-6
Tachometer .....................................................................\
........................................... 4-7
Engine coolant temperature gauge ........................................................................\
.. 4-7
Fuel gauge ........................................................................\
......................................... 4-8
Outside temperature gauge ........................................................................\
............. 4-9
Odometer .....................................................................\
............................................. 4-9
Distance to empty ........................................................................\
........................... 4-10
CUSTOM mode settings ........................................................................\
................. 4-10
Transmission Shift Indicator ........................................................................\
............... 4-11
Warning and Indicator Lights ........................................................................\
............ 4-12 Seat belt warning light ........................................................................\
.................... 4-12
Air bag warning light ........................................................................\
....................... 4-12
Parking brake & Brake fluid warning light .............................................................. 4-12
Anti-lock Brake System (ABS) warning light .......................................................... 4-13
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-13
Electric Power Steering (EPS) warning light .......................................................... 4-14
Charging system warning light ........................................................................\
....... 4-14
Engine oil pressure warning light ........................................................................\
... 4-15
Engine Oil Level Warning Light ........................................................................\
..... 4-15
Low fuel level warning light ........................................................................\
............ 4-16
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-16
Low tire pressure warning light ......................................................................\
........ 4-16
Forward Safety warning light ........................................................................\
...........4-17
Lane Safety indicator light ........................................................................\
...............4-17
LED headlight warning light ........................................................................\
.............4-17
Electronic Stability Control (ESC) indicator light ................................................... 4-18
Electronic Stability Control (ESC) OFF indicator light .......................................... 4-18
Immobilizer Indicator Light (with smart key) ........................................................ 4-18
Downhill Brake Control (DBC) indicator light ....................................................... 4-19
Turn signal indicator light ........................................................................\
................ 4-19
High beam indicator light ........................................................................\
............... 4-19
Low Beam Indicator Light ........................................................................\
...............4-20
Light ON Indicator Light ........................................................................\
..................4-20
High Beam Assist indicator light ........................................................................\
.....4-20
Cruise Indicator Light ........................................................................\
.....................4-20
SPORT Mode Indicator Light ........................................................................\
...........4-20
4. Instrument Cluster

4
ECO Mode Indicator Light ........................................................................\
...............4-20
Master warning light ........................................................................\
.........................4-21
N Mode Indicator Light ...............................................................\
.............................4-21
CUSTOM Mode Indicator Light ........................................................................\
........4-21
LCD Display Messages ........................................................................\
....................... 4-22 Shift to P ........................................................................\
........................................... 4-22
Low key battery ........................................................................\
................................ 4-22
Press START button while turning wheel ............................................................... 4-22
Steering wheel not locked ........................................................................\
............... 4-22
Check Steering Wheel Lock System ....................................................................... 4-22
Press brake pedal to start engine ........................................................................\
.. 4-22
Key not in vehicle ........................................................................\
............................. 4-22
Key not detected ........................................................................\
.............................. 4-22
Press START button again ..............................................................\
........................ 4-22
Press START button with key ........................................................................\
.......... 4-23
Check BRAKE SWITCH fuse ........................................................................\
........... 4-23
Shift to P or N to start engine ........................................................................\
......... 4-23
Battery discharging due to external electrical devices ......................................... 4-23
Door, Hood, Liftgate open indicator ....................................................................... 4-24
Low tire pressure ........................................................................\
............................. 4-24
Turn on FUSE SWITCH ........................................................................\
..................... 4-24
Lights .................................................................\
....................................................... 4-25
Wiper ..................................................................\
...................................................... 4 -25
Heated Steering Wheel turned off ........................................................................\
.. 4-25
Low washer fluid ........................................................................\
.............................. 4-25
Low fuel ........................................................................\
............................................ 4-25
Low engine oil ........................................................................\
................................. 4-25
Engine overheated / Engine has overheated .........................................................4-26
Check headlight ........................................................................\
...............................4-26
Check turn signal ........................................................................\
.............................4-26
Check headlamp LED ........................................................................\
......................4-26
Check Forward Safety system ........................................................................\
.........4-26
Check Lane Keeping Assist (LKA) system ..............................................................4-26
Check Blind-Spot Safety system ........................................................................\
....4-26
Check Driver Attention Warning system ................................................................ 4-27
Check High Beam Assist (HBA) system .................................................................. 4-27

04
4-15
Engine oil pressure warning
light
This warning light illuminates:
When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the engine oil level (For more details,
refer to “Engine Oil” section in
chapter 9). If the level is low, add oil
as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Continued driving with the warning
light on may cause engine failure.
NOTICE

[If the engine does not stop
immediately after the Engine Oil
Pressure warning light is illuminated,
severe damage could result.

[ If the warning light stays on while the
engine is running, it indicates that
there may be serious engine damage
or malfunction. In this case:
1. Stop the vehicle as soon as it is
safe to do so.
2. Turn off the engine and check the
oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the
warning light stays on after the
engine is started, turn the engine
off immediately. If this occurs,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Engine oil level warning light
The engine oil level warning light
illuminates when the engine oil level
should be checked.
If the warning light comes on, check the
engine oil level as soon as possible and
add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel. (Oil refill capacity :
DSSUR[LPDWHO\a
b
Use only the specified engine oil. (Refer
to “Recommended lubricants and
capacities” in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information

[If you travel approximately 30 ~ 60
miles (50 km ~100 km) after the engine
warms up, after adding the engine oil,
the warning light will go off.

[ Cycle the ignition from OFF to ON 3
times within 10 seconds, the warning
light will go off immediately. However,
when you turn off the warning light
without adding the engine oil, the light
will come on again after traveling
approximately 30 ~ 60 miles (50 ~ 100
km) after the engine warms up.
NOTICE
If the light comes on continuously after
adding the engine oil and travelling
approximately 30 ~ 60 miles (50~100
km) after the engine warms up, we
recommend that the system be checked
by an authorized HYUNDAI dealer.
Even if this light doesn’t come on after
the engine has started, the engine oil
level should be periodically checked
and topped up if required.

04
4-25
Lights
OIK047145L
This indicator displays which exterior
light is selected using the lighting
control.
Wiper
OJX1049008L
This indicator displays which wiper speed
is selected using the wiper control.
Heated Steering Wheel turned off
(if equipped)
This message is displayed if you turn off
the heated steering wheel.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low washer fluid (if equipped)
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to “Recommended Lubricants and
Capacities” section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.

04
4-29

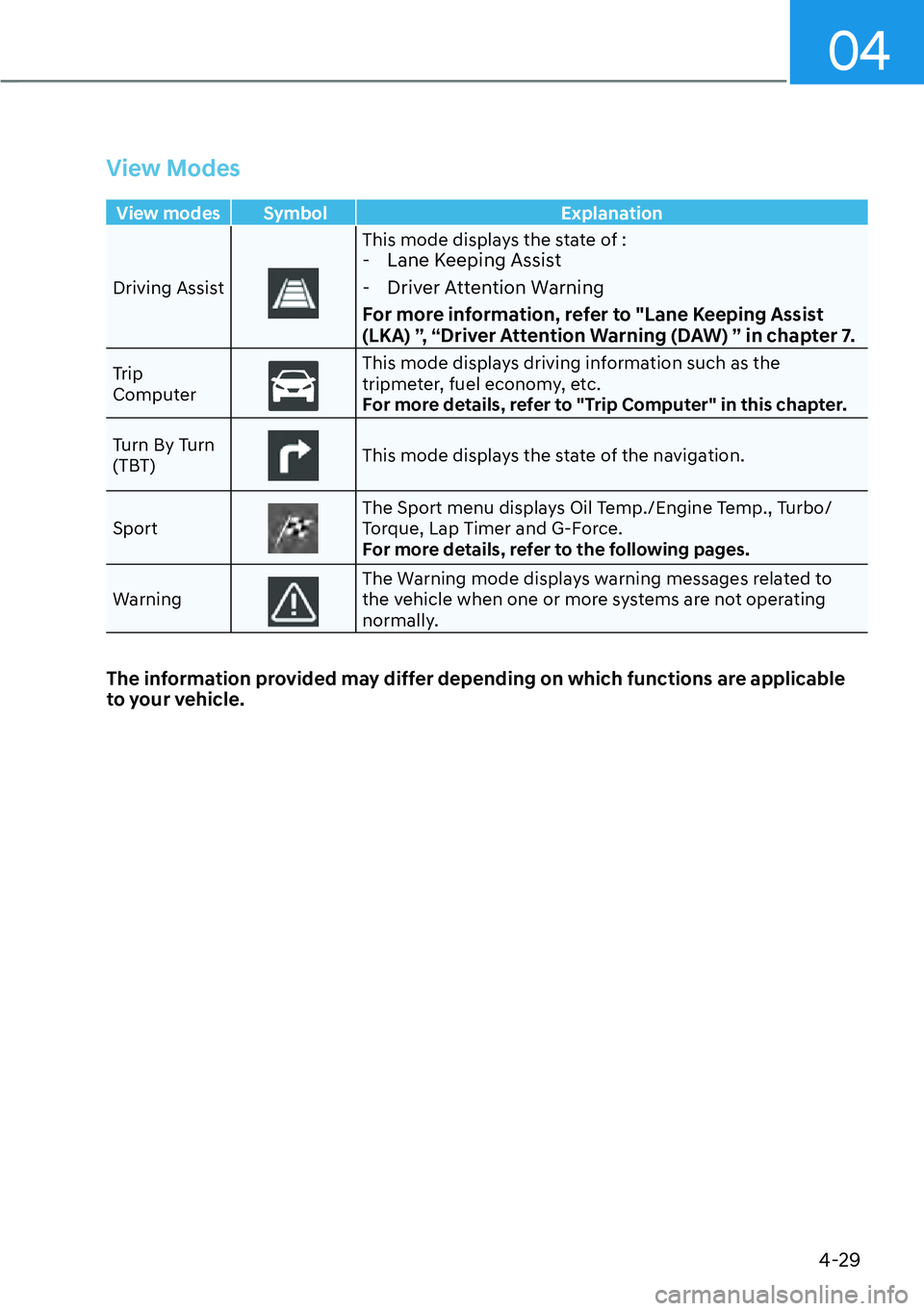

View Modes
View modes Symbol Explanation
Driving Assist
This mode displays the state of : - Lane Keeping Assist
- Driver Attention Warning
For more information, refer to "Lane Keeping Assist
(LKA) ”, “Driver Attention Warning (DAW) ” in chapter 7.
Trip
ComputerThis mode displays driving information such as the
tripmeter, fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
Sport
The Sport menu displays Oil Temp./Engine Temp., Turbo/
Torque, Lap Timer and G-Force.
For more details, refer to the following pages.
Warning
The Warning mode displays warning messages related to
the vehicle when one or more systems are not operating
normally.
The information provided may differ depending on which functions are applicable
to your vehicle.
