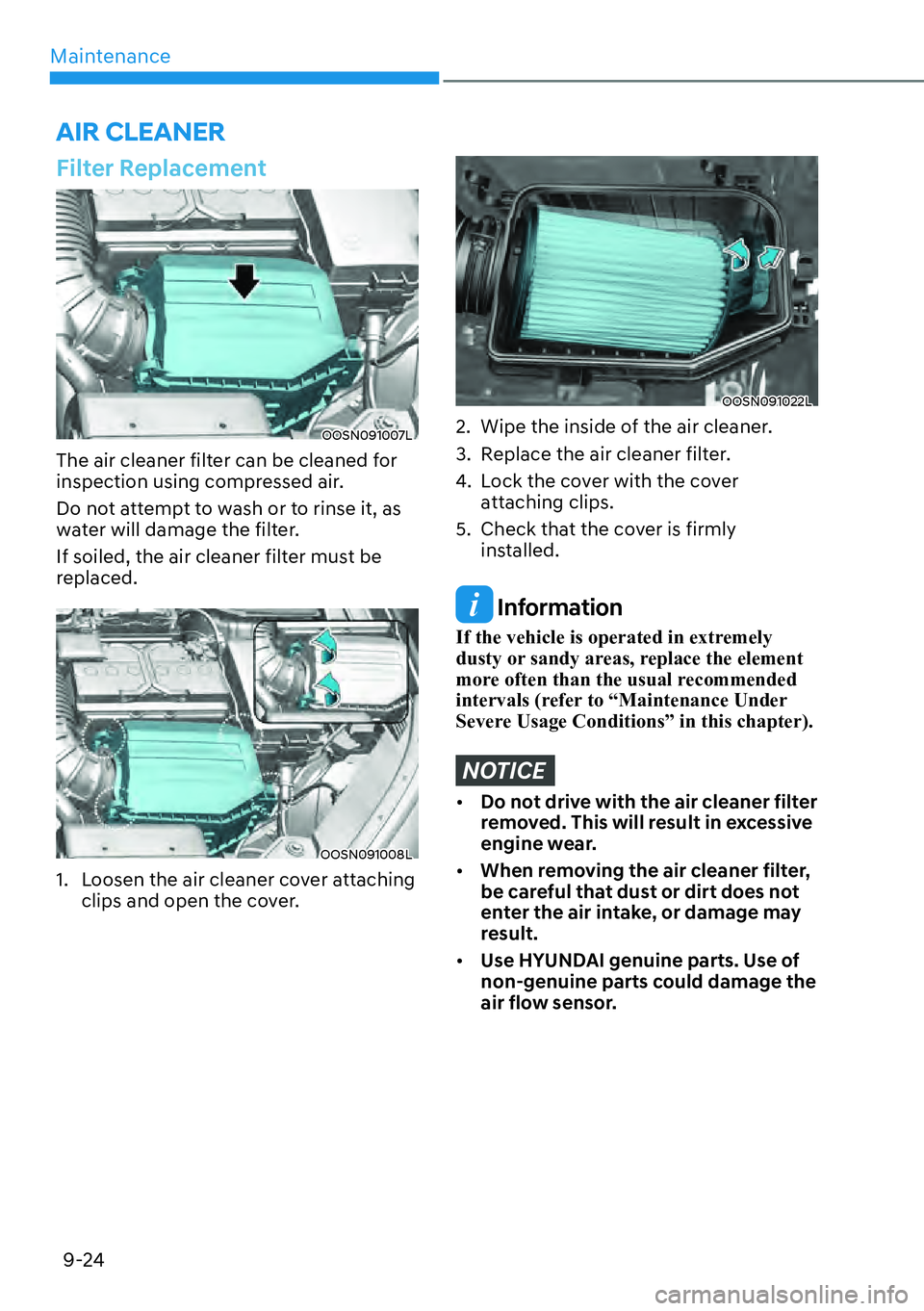

Maintenance9-24
Filter Replacement
OOSN091007L
The air cleaner filter can be cleaned for
inspection using compressed air.
Do not attempt to wash or to rinse it, as
water will damage the filter.
If soiled, the air cleaner filter must be
replaced.
OOSN091008L
1. Loosen the air cleaner cover attaching clips and open the cover.
OOSN091022L
2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover attaching clips.
5. Check that the cover is firmly installed.
Information
If the vehicle is operated in extremely
dusty or sandy areas, replace the element
more often than the usual recommended
intervals (refer to “Maintenance Under
Severe Usage Conditions” in this chapter).
NOTICE

[Do not drive with the air cleaner filter
removed. This will result in excessive
engine wear.

[ When removing the air cleaner filter,
be careful that dust or dirt does not
enter the air intake, or damage may
result.

[ Use HYUNDAI genuine parts. Use of
non-genuine parts could damage the
air flow sensor.
AIR CLEANER

09
9-47
FUSES
OLF074075
A

„Blade type

„Cartridge type

„Multi fuseA
A
B
B
B
B
A
[A] : Normal, [B] : Blown
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved. We
recommend that you immediately
consult an authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[ A higher capacity fuse could cause
damage and possibly cause a fire.

[ Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.

09
9-57
Engine compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MULTI FUSE-1 AL
TERNATOR
180AE/R Junction Block (Fuse - F19, F20, F21,
F22, F23, F24, F25), Alternator
MDPS 100A MDPS Unit
MULTI FUSE-2 B+5
60APCB Block (Fuse - F1, F2, F3, Engine
Control Relay)
B+2 60A IGPM (Fuse - F30, IPS0, IPS1, IPS2)
B+3 60A IGPM (IPS3, IPS4, IPS5, IPS6, IPS7)
B+4 50AIGPM (Fuse - F3, F4, F5, F7, F8, F9, F15,
F17, F18)
EOP 60A Electronic Oil Pump
DCT1 60A TCM
BLOWER 40A E/R Junction Block (RLY.10)
IG1 40A E/R Junction Block (RLY.3, RLY.8)
IG2 40A E/R Junction Block (RLY.6)

09
9-59
Engine compartment fuse panel (PCB Block)
Fuse NameFuse Rating Circuit Protected
A/C 10
A PCB Block (A/C Comp Relay)
HORN 15A PCB Block (Horn Relay)
ECU3 15A ECM
SPARE 10A Not Used
IGN COIL 20A Ignition Coil #1/#2/#3/#4
SPARE 15A Not Used
SENSOR1 15A Oxygen Sensor (Up/Down)
SENSOR3 10A E/R Junction Block (RLY. 7)
SPARE 15A Not Used
DCT2 15A TCM
ECU1 20A ECM
ABS3 10A Multipurpose Check Connector, ESP Control Module
EWP 10A Electric Water Pump
SENSOR4 15A Electronic Vacuum Pump
SENSOR2 10APurge Control Solenoid Valve, Recirculation Control
Solenoid Valve, Active Exhaust Valve, Oil Control Valve,
Cooling Fan Controller,
PCB Block (A/C Comp Relay)
ECU2 10A ECM

09
9-67
High-pressure washing

[When using high-pr
essure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.

[ Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.

[ Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
NOTICE

[Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.

[ Be careful when washing the side
windows of your vehicle.

[ Especially, with high-pressure water,
water may leak through the windows
and wet the interior.

[ To prevent damage to the plastic
parts, do not clean with chemical
solvents or strong detergents.
NOTICE
OOSN091019N

[Water washing in the engine
compartment including high
pressure water washing may cause
the failure of electrical circuits
located in the engine compartment.

[ Never allow water or other liquids
to come in contact with electrical/
electronic components inside the
vehicle as this may damage them.
NOTICE
Matte paint finish vehicle (if equipped)
Automatic car wash which uses rotating
brushes should not be used as this can
damage the surface of your vehicle. A
steam cleaner which washes the vehicle
surface at high temperature may result
the oil to adhere and leave stains that is
difficult to remove.
Use a soft cloth (for example, microfiber
towel or sponge) when washing your
vehicle and dry with a microfiber towel.
When you hand wash your vehicle, you
should not use a cleaner that finishes
with wax. If the vehicle surface is too
dirty (sand, dirt, dust, contaminant,
etc.), clean the surface with water
before washing the car.

Index
I-4
Drive Mode Integrated Control System ..............................................................6-38
Drive Mode ........................................................................\
..............................6-38
N mode ........................................................................\
.....................................6-40
NGS (N Grin Shift) ........................................................................\
..................6-42
Vehicle Characteristic ........................................................................\
...............6-43
Driver Attention Warning (DAW)
......................................................................7-39
Driver Attention Warning Malfunction and Limitations ..................................7-43
Driver Attention Warning Operation ................................................................7-41
Driver Attention Warning Settings ..................................................................7-39
Dual Clutch Transmission
........................................................................\
..........6-10
Dual Clutch Transmission Operation ...............................................................6-10
Good Driving Practices ........................................................................\
...........6-18
Parking ........................................................................\
.....................................6-17
E
Electronic Control Suspension (ECS)
.................................................................6-34
Electronic Limited Slip Differential
....................................................................6-35
Warning Messages ........................................................................\
....................6-36
Emission Control System
........................................................................\
............9-75
Gasoline Particulate Filter (GPF) ....................................................................9-77
Engine
........................................................................\
............................................2-7
Engine Compartment
........................................................................\
.....................2-6
Engine Compartment
........................................................................\
.....................9-3
Engine Coolant
........................................................................\
............................9-19
Changing Coolant ........................................................................\
.....................9-21
Checking the Coolant Level ........................................................................\
.....9-19
Engine Number
........................................................................\
............................2-14
Engine Oil
........................................................................\
....................................9-16
Checking the Engine Oil and Filter ..................................................................9-17
Checking the Engine Oil Level ........................................................................\
9-16
Engine Start/Stop button
........................................................................\
................6-5
Engine Start/Stop Button Positions ....................................................................6-6
Remote Start ........................................................................\
...............................6-9
Starting the Engine ........................................................................\
.....................6-7
Turning Off the Engine ........................................................................\
..............6-8
Explanation of Scheduled Maintenance Items
....................................................9-14
Fuel Filter (for gasoline engine) .......................................................................9-14
Parking Brake ........................................................................\
...........................9-15
Propeller Shaft ........................................................................\
..........................9-15
