2023 HYUNDAI KONA engine oil

04
4-31
Sport view
OOSN041026N
Oil Temp./Engine Temp.
This mode displays information related
t
o your engine such as oil temperature (1)
and engine temperature (2).
OBC3N040025
Tu r b o / To r q u e
This mode displays information related to
y
our engine such as turbo (3) and torque
(4).
OBC3N040026
OBC3N040027
Lap timer
(1) Best lap
(2) Curr

ent lap
To start (A)
Press the OK button shortly on the
s
teering wheel. The lap timer will start
counting the current lap (2).
To stop (B)
Press and hold the OK button for more
than 1 second on the s
teering wheel
while the lap timer is counting the
current lap (2).

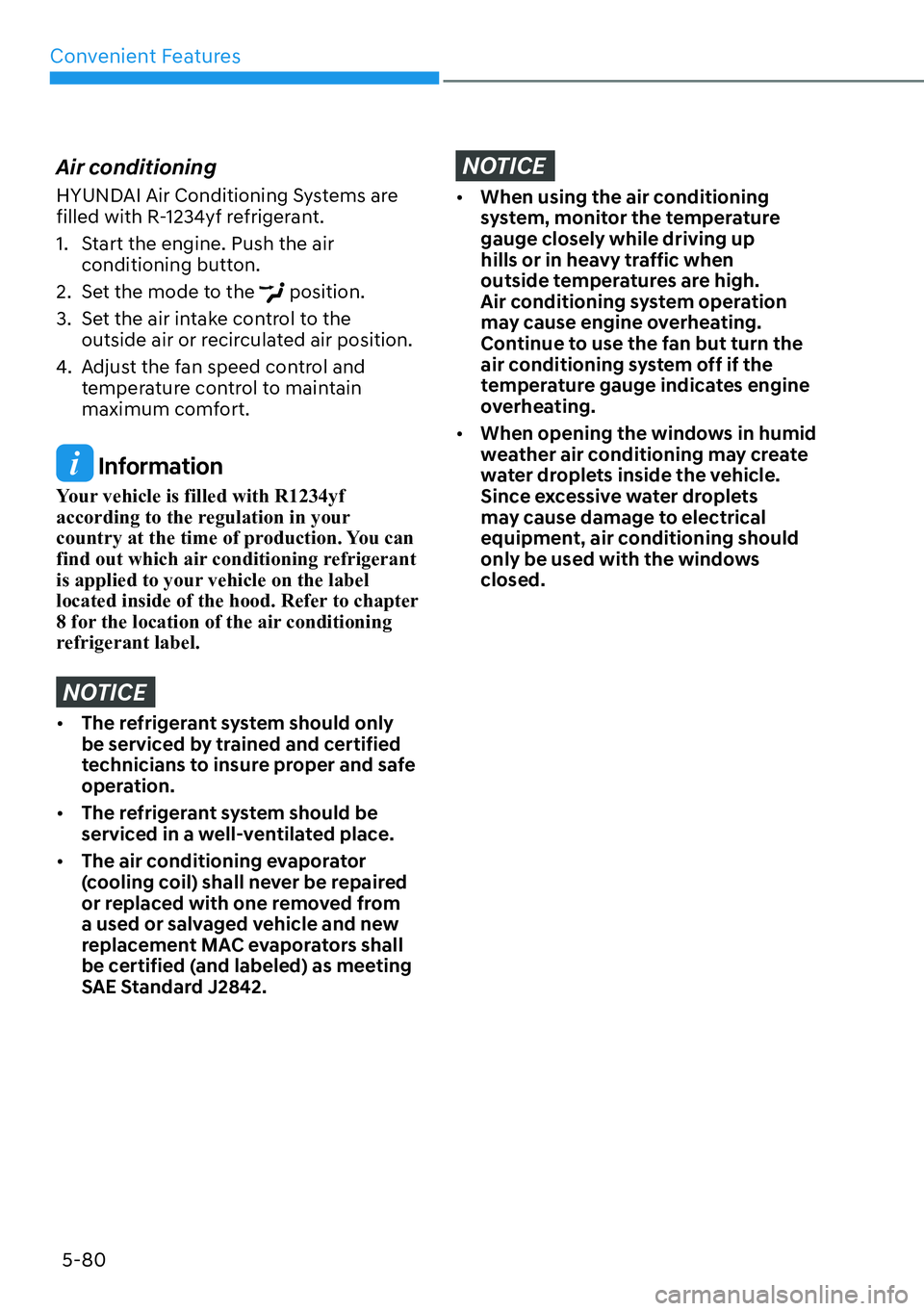

Convenient Features5-80
Air conditioning
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
1. Start the engine. Push the air conditioning button.
2. Set the mode to the
position.
3. Set the air intake control to the outside air or recirculated air position.
4. Adjust the fan speed control and temperature control to maintain
maximum comfort.
Information
Your vehicle is filled with R1234yf
according to the regulation in your
country at the time of production. You can
find out which air conditioning refrigerant
is applied to your vehicle on the label
located inside of the hood. Refer to chapter
8 for the location of the air conditioning
refrigerant label.
NOTICE

[ The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.

[ The refrigerant system should be
serviced in a well-ventilated place.

[ The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
NOTICE

[When using the air conditioning
system, monitor the temperature
gauge closely while driving up
hills or in heavy traffic when
outside temperatures are high.
Air conditioning system operation
may cause engine overheating.
Continue to use the fan but turn the
air conditioning system off if the
temperature gauge indicates engine
overheating.

[ When opening the windows in humid
weather air conditioning may create
water droplets inside the vehicle.
Since excessive water droplets
may cause damage to electrical
equipment, air conditioning should
only be used with the windows
closed.

06
6-3
WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, have the exhaust
system be checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at “Fresh” and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
If you must drive with the liftgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at “Fresh”, the air flow control at “Floor” or “Face”, and the fan
control set to high.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and a wide variety of automobile components including
components found in the interior furnishings in a vehicle, contain or emit harmful
chemicals known to the State of California to cause cancer and birth defects and
reproductive harm. In addition, certain fluids contained in vehicles and certain
products of components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.

Driving your vehicle6-54
Driving In Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel hub.
Drive through any water slowly. Allow
adequate stopping distance because
brake performance may be reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation, as specified.
Under-inflation may overheat or damage
the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail the
braking operation.
Information
Never over-inflate your tires above the
maximum inflation pressure, as specified
on your tires.
Fuel, engine coolant and engine oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine coolant
level and the engine oil before driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.
Reducing the Risk of a Rollover
Your multi-purpose passenger vehicle is
defined as a Sports Utility Vehicle (SUV).
SUV’s have higher ground clearance
and a narrower track to make them
capable of performing in a wide variety
of off-road applications. The specific
design characteristics give them a higher
center of gravity than ordinary vehicles
making them more likely to roll over if
you make abrupt turns. Utility vehicles
have a significantly higher rollover rate
than other types of vehicles. Due to this
risk, driver and passengers are strongly
recommended to buckle their seat belts.
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt.
There are steps that a driver can make
to reduce the risk of a rollover. If at all
possible, avoid sharp turns or abrupt
maneuvers, do not load your vehicle
with heavy cargo on the roof, and never
modify your vehicle in any way.
WARNING
Utility vehicles have a significantly
higher rollover rate than other types of
vehicles. To prevent rollovers or loss of
control:

[ Take corners at slower speeds than
you would with a passenger vehicle.

[ Avoid sharp turns and abrupt
maneuvers.

[ Do not modify your vehicle in any
way that you would raise the center
of gravity.

[ Keep tires properly inflated.

[ Do not carry heavy cargo on the roof.
WARNING
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt. Make sure
all passengers are wearing their seat
belts.

9
9. Maintenance
Engine Compartment ........................................................................\
............... 9-3
Maintenance Services ........................................................................\
.............. 9-4
Owner’s Responsibility ........................................................................\
....................... 9-4
Owner Maintenance Precautions ........................................................................\
....... 9-4
Owner Maintenance ........................................................................\
................. 9-5Owner Maintenance Schedule ........................................................................\
........... 9-6
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule ........................................................................\
.......... 9-9
Maintenance Under Severe Usage Conditions ........................................................ 9-12
Explanation of Scheduled Maintenance Items .............................................. 9-14Fuel Filter (for gasoline engine) ........................................................................\
......... 9-14
Parking Brake ........................................................................\
...................................... 9-15
Propeller Shaft ........................................................................\
.................................... 9-15
Engine Oil ........................................................................\
.................................9-16Checking the Engine Oil Level ........................................................................\
........... 9-16
Checking the Engine Oil and Filter ........................................................................\
....9-17
Engine Coolant ........................................................................\
.........................9-19Checking the Coolant Level......................................................................\
................. 9-19
Changing Coolant ........................................................................\
.............................. 9-21
Brake Fluid ........................................................................\
............................... 9-22Checking the Brake Fluid Level ........................................................................\
......... 9-22
Washer Fluid ........................................................................\
............................ 9-23Checking the Washer Fluid Level ........................................................................\
...... 9-23
Parking Brake ........................................................................\
.......................... 9-23
Checking the Parking Brake ........................................................................\
.............. 9-23
Air Cleaner ........................................................................\
............................... 9-24Filter Replacement ........................................................................\
............................9-24
Climate Control Air Filter ........................................................................\
........ 9-25Filter Inspection........................................................................\
.................................. 9-25
Wiper Blades ........................................................................\
........................... 9-26Blade Inspection ........................................................................\
................................9-26
Blade Replacement ........................................................................\
............................9-26
For Best Battery Service ........................................................................\
.................... 9-31
Battery Capacity Label ........................................................................\
....................... 9-31
Battery Recharging ........................................................................\
............................ 9-32
Reset Items ........................................................................\
.........................................9-33

9-3
09
„Gasoline 2.0 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OOSN091011L
1. Engine coolant reservoir / Engine coolant cap
2. Fuse box
3. Battery
4. Brake fluid reservoir 5. Air cleaner
6. Engine oil dipstick
7. Engine oil filler cap
8. Windshield washer fluid reservoir
ENGINE COMPARTMENT

09
9-7
Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.

[Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature

[ Extensive engine idling or low speed driving for long distances

[ Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

[ Driving in areas using salt or other corrosive materials or in very cold weather

[ Driving in heavy dust conditions

[ Driving in heavy traffic area

[ Driving on uphill, downhill, or mountain road repeatedly

[ Towing a trailer or using a camper, or driving with loads on the roof

[ Driving as a patrol car, taxi, other commercial use of vehicle towing

[ Frequently driving under high speed or rapid acceleration/deceleration.

[ Frequently driving in stop-and-go condition

[ Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated in any of the prior listed conditions, you should inspect,
replace or refill more frequently, using the severe usage maintenance schedule instead
of the normal usage maintenance schedule.
NOTICE
After 10 years or 100,000 miles, we recommend to use severe maintenance
schedule.
SCHEDULED MAINTENANCE SERVICES

Maintenance9-8
Information

[ As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[ The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification. If the recommended engine oil specification
is not used, then replace the engine oil according to the maintenance schedule under
severe operating conditions.

[ The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
severity, the remaining oil life alert appears on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
So, if recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage condition. Also, check the amount of
engine oil regularly as this system assumes that the engine oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Oil Life Management System, select ‘RESET’ from
the infotainment system screen. Then, select ‘Yes’ when the message “Has the engine
oil been changed? Press [Yes] to reset the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.
