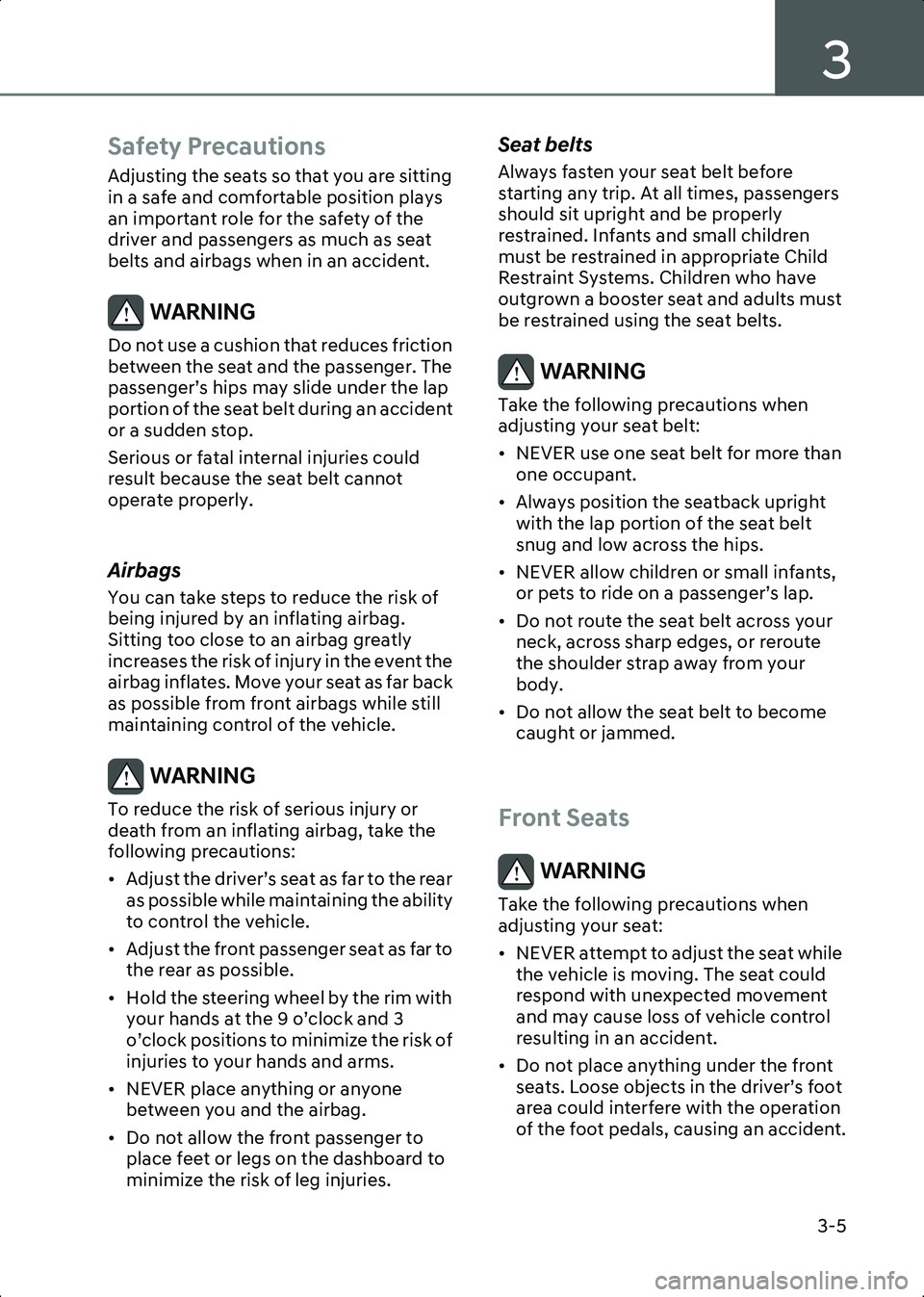

Safety Precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers as much as seat
belts and airbags when in an accident.
WARNING Do not use a cushion that reduces friction
between the seat and the passenger. The
passenger’s hips may slide under the lap
portion of the seat belt during an accident
or a sudden stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.

Airbags
You can take steps to reduce the risk of
being injured by an inflating airbag.
Sitting too close to an airbag greatly
increases the risk of injury in the event the
airbag inflates. Move your seat as far back
as possible from front airbags while still
maintaining control of the vehicle.
WARNING To reduce the risk of serious injury or
death from an inflating airbag, take the
following precautions:
• Adjust the driver’s seat as far to the rear as possible while maintaining the ability
to control the vehicle.
• Adjust the front passenger seat as far to the rear as possible.
• Hold the steering wheel by the rim with your hands at the 9 o’clock and 3
o’clock positions to minimize the risk of
injuries to your hands and arms.
• NEVER place anything or anyone between you and the airbag.
• Do not allow the front passenger to place feet or legs on the dashboard to
minimize the risk of leg injuries.

Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING Take the following precautions when
adjusting your seat belt:
• NEVER use one seat belt for more than one occupant.
• Always position the seatback upright with the lap portion of the seat belt
snug and low across the hips.
• NEVER allow children or small infants, or pets to ride on a passenger’s lap.
• Do not route the seat belt across your neck, across sharp edges, or reroute
the shoulder strap away from your
body.
• Do not allow the seat belt to become caught or jammed.

Front Seats
WARNING Take the following precautions when
adjusting your seat:
• NEVER attempt to adjust the seat while the vehicle is moving. The seat could
respond with unexpected movement
and may cause loss of vehicle control
resulting in an accident.
• Do not place anything under the front seats. Loose objects in the driver’s foot
area could interfere with the operation
of the foot pedals, causing an accident.
Hyundai_CE_en_US.book Page 5

Seats & Safety System
3-16
ONE1031080L

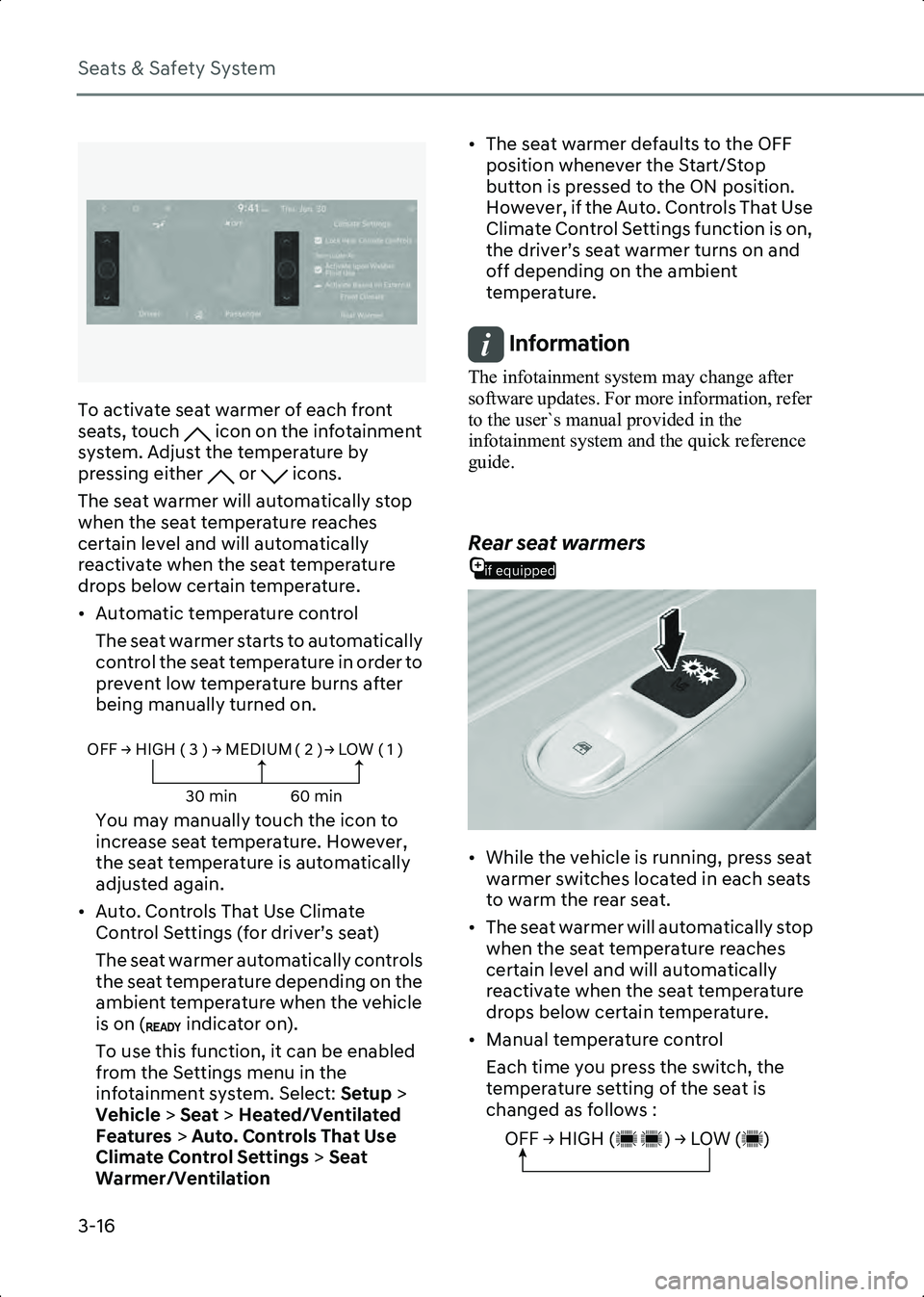

To activate seat warmer of each front
seats, touch icon on the infotainment
system. Adjust the temperature by
pressing either or icons.
The seat warmer will automatically stop
when the seat temperature reaches
certain level and will automatically
reactivate when the seat temperature
drops below certain temperature.
• Automatic temperature controlThe seat warmer starts to automatically
control the seat temperature in order to
prevent low temperature burns after
being manually turned on.
You may manually touch the icon to
increase seat temperature. However,
the seat temperature is automatically
adjusted again.
• Auto. Controls That Use Climate Control Settings (for driver’s seat)
The seat warmer automatically controls
the seat temperature depending on the
ambient temperature when the vehicle
is on ( indicator on).
To use this function, it can be enabled
from the Settings menu in the
infotainment system. Select: Setup >
Vehicle > Seat > Heated/Ventilated
Features > Auto. Controls That Use
Climate Control Settings > Seat
Warmer/Ventilation • The seat warmer defaults to the OFF
position whenever the Start/Stop
button is pressed to the ON position.
However, if the Auto. Controls That Use
Climate Control Settings function is on,
the driver’s seat warmer turns on and
off depending on the ambient
temperature.
Information The infotainment system may change after
software updates. For more information, refer
to the user`s manual provided in the
infotainment system and the quick reference
guide.

if equipped
Rear seat warmers
B3000604
• While the vehicle is running, press seat warmer switches located in each seats
to warm the rear seat.
• The seat warmer will automatically stop when the seat temperature reaches
certain level and will automatically
reactivate when the seat temperature
drops below certain temperature.
• Manual temperature control Each time you press the switch, the
temperature setting of the seat is
changed as follows :
OFF → HIGH ( 3 ) → MEDIUM ( 2 ) → LOW ( 1 )
30 min 60 min
OFF → HIGH ( ) → LOW ( )
Hyundai_CE_en_US.book Page 16

3
3-17

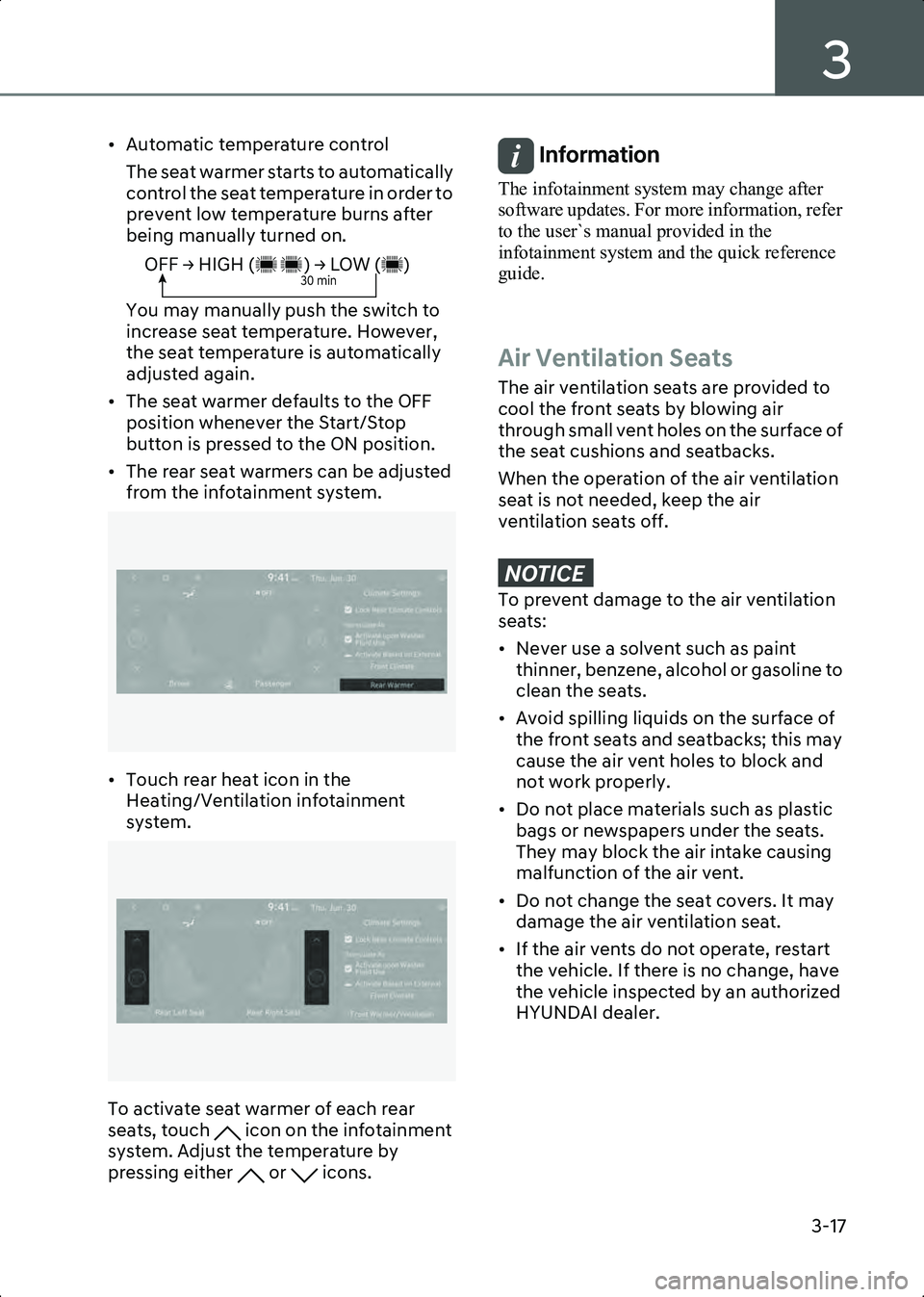

• Automatic temperature controlThe seat warmer starts to automatically
control the seat temperature in order to
prevent low temperature burns after
being manually turned on.
You may manually push the switch to
increase seat temperature. However,
the seat temperature is automatically
adjusted again.
• The seat warmer defaults to the OFF position whenever the Start/Stop
button is pressed to the ON position.
• The rear seat warmers can be adjusted from the infotainment system.
ONE1031082L
• Touch rear heat icon in the Heating/Ventilation infotainment
system.
ONE1031078L
To activate seat warmer of each rear
seats, touch icon on the infotainment
system. Adjust the temperature by
pressing either or icons.
Information The infotainment system may change after
software updates. For more information, refer
to the user`s manual provided in the
infotainment system and the quick reference
guide.

Air Ventilation Seats
The air ventilation seats are provided to
cool the front seats by blowing air
through small vent holes on the surface of
the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats off.
NOTICE7RSUHYHQWGDPDJHWRWKHDLUYHQWLODWLRQ
VHDWV

[ 1HYHUXVHDVROYHQWVXFKDVSDLQWWKLQQHUEHQ]HQHDOFRKRORUJDVROLQHWR
FOHDQWKHVHDWV

[ $YRLGVSLOOLQJOLTXLGVRQWKHVXUIDFHRI WKHIURQWVHDWVDQGVHDWEDFNVWKLVPD\
FDXVHWKHDLUYHQWKROHVWREORFNDQG
QRWZRUNSURSHUO\

[ 'RQRWSODFHPDWHULDOVVXFKDVSODVWLF EDJVRUQHZVSDSHUVXQGHUWKHVHDWV
7KH\PD\EORFNWKHDLULQWDNHFDXVLQJ
PDOIXQFWLRQRIWKHDLUYHQW

[ 'RQRWFKDQJHWKHVHDWFRYHUV,WPD\ GDPDJHWKHDLUYHQWLODWLRQVHDW

[ ,IWKHDLUYHQWVGRQRWRSHUDWHUHVWDUW WKHYHKLFOH,IWKHUHLVQRFKDQJHKDYH
WKHYHKLFOHLQVSHFWHGE\DQDXWKRUL]HG
+<81'$,GHDOHU

OFF → HIGH ( ) → LOW ( )
NJO
Hyundai_CE_en_US.book Page 17

Seats & Safety System
3-18
if equipped

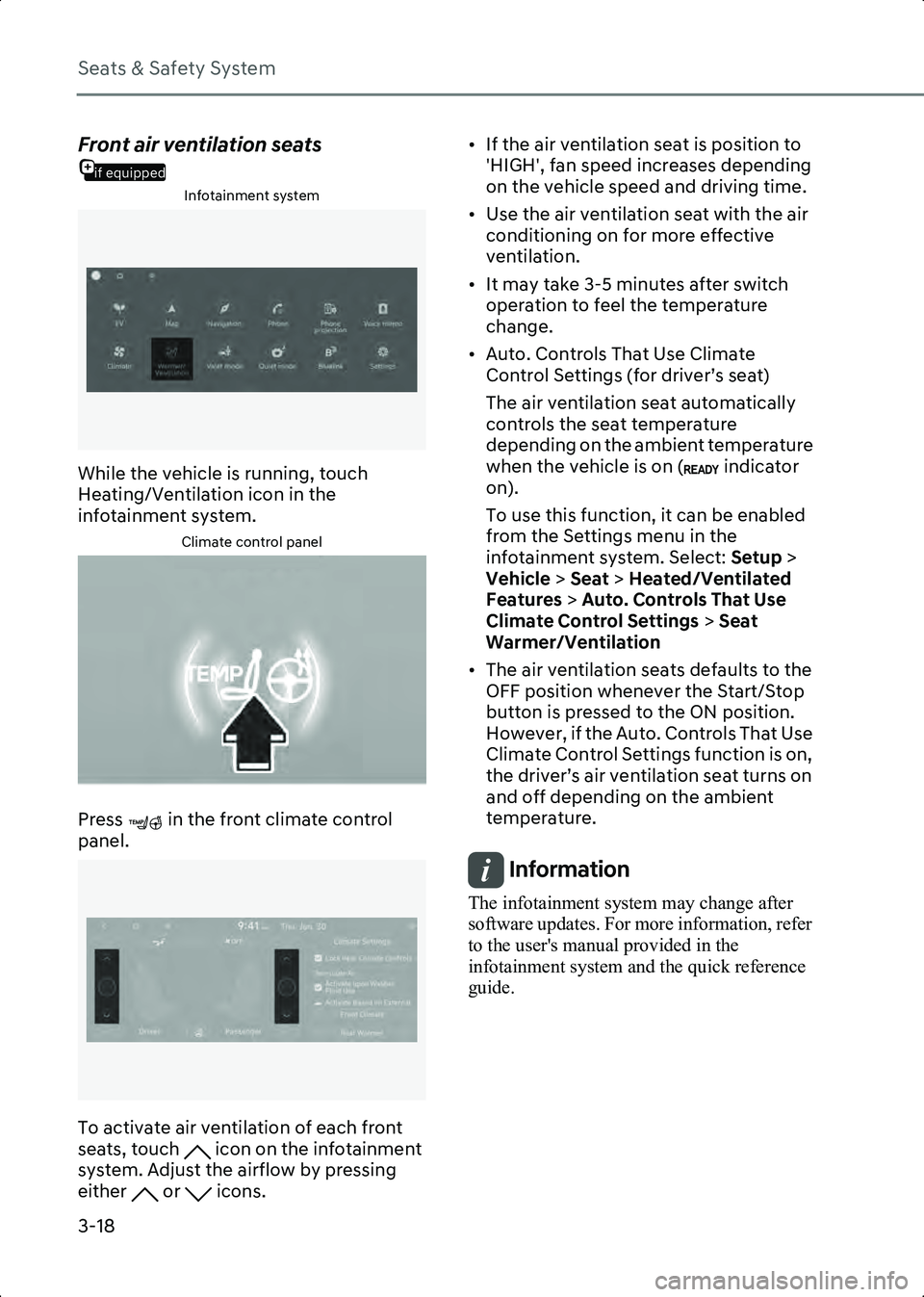

Front air ventilation seats
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B3000602
Press in the front climate control
panel.
ONE1031080L
To activate air ventilation of each front
seats, touch icon on the infotainment
system. Adjust the airflow by pressing
either or icons.• If the air ventilation seat is position to
'HIGH', fan speed increases depending
on the vehicle speed and driving time.
• Use the air ventilation seat with the air conditioning on for more effective
ventilation.
• It may take 3-5 minutes after switch operation to feel the temperature
change.
• Auto. Controls That Use Climate Control Settings (for driver’s seat)
The air ventilation seat automatically
controls the seat temperature
depending on the ambient temperature
when the vehicle is on ( indicator
on).
To use this function, it can be enabled
from the Settings menu in the
infotainment system. Select: Setup >
Vehicle > Seat > Heated/Ventilated
Features > Auto. Controls That Use
Climate Control Settings > Seat
Warmer/Ventilation
• The air ventilation seats defaults to the OFF position whenever the Start/Stop
button is pressed to the ON position.
However, if the Auto. Controls That Use
Climate Control Settings function is on,
the driver’s air ventilation seat turns on
and off depending on the ambient
temperature.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Hyundai_CE_en_US.book Page 18

3
3-19

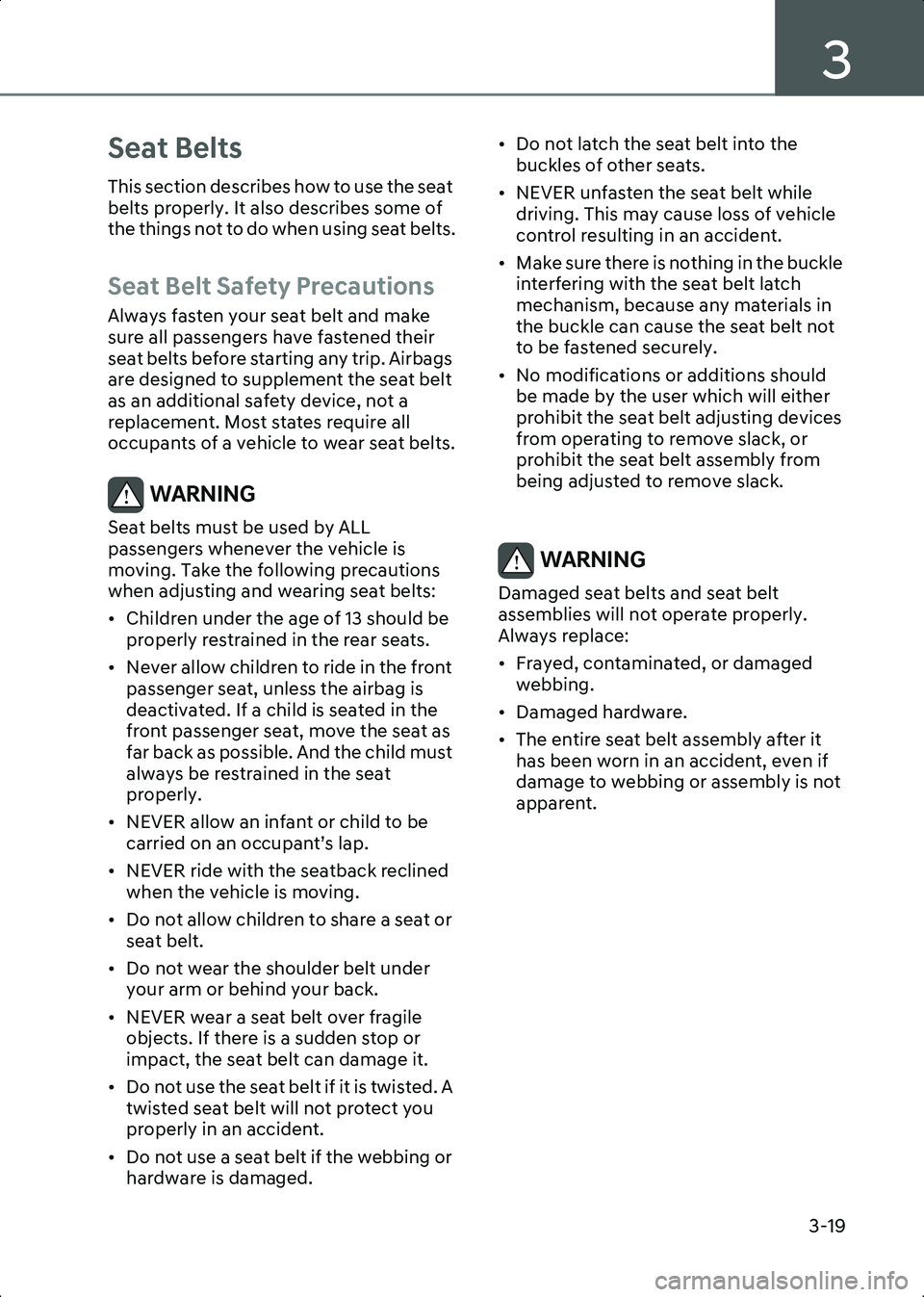

Seat Belts
This section describes how to use the seat
belts properly. It also describes some of
the things not to do when using seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Airbags
are designed to supplement the seat belt
as an additional safety device, not a
replacement. Most states require all
occupants of a vehicle to wear seat belts.
WARNING Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:
• Children under the age of 13 should be properly restrained in the rear seats.
• Never allow children to ride in the front passenger seat, unless the airbag is
deactivated. If a child is seated in the
front passenger seat, move the seat as
far back as possible. And the child must
always be restrained in the seat
properly.
• NEVER allow an infant or child to be carried on an occupant’s lap.
• NEVER ride with the seatback reclined when the vehicle is moving.
• Do not allow children to share a seat or seat belt.
• Do not wear the shoulder belt under your arm or behind your back.
• NEVER wear a seat belt over fragile objects. If there is a sudden stop or
impact, the seat belt can damage it.
• Do not use the seat belt if it is twisted. A twisted seat belt will not protect you
properly in an accident.
• Do not use a seat belt if the webbing or hardware is damaged. • Do not latch the seat belt into the
buckles of other seats.
• NEVER unfasten the seat belt while driving. This may cause loss of vehicle
control resulting in an accident.
• Make sure there is nothing in the buckle interfering with the seat belt latch
mechanism, because any materials in
the buckle can cause the seat belt not
to be fastened securely.
• No modifications or additions should be made by the user which will either
prohibit the seat belt adjusting devices
from operating to remove slack, or
prohibit the seat belt assembly from
being adjusted to remove slack.

WARNING Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:
• Frayed, contaminated, or damaged webbing.
• Damaged hardware.
• The entire seat belt assembly after it has been worn in an accident, even if
damage to webbing or assembly is not
apparent.

Hyundai_CE_en_US.book Page 19

Seats & Safety System
3-20

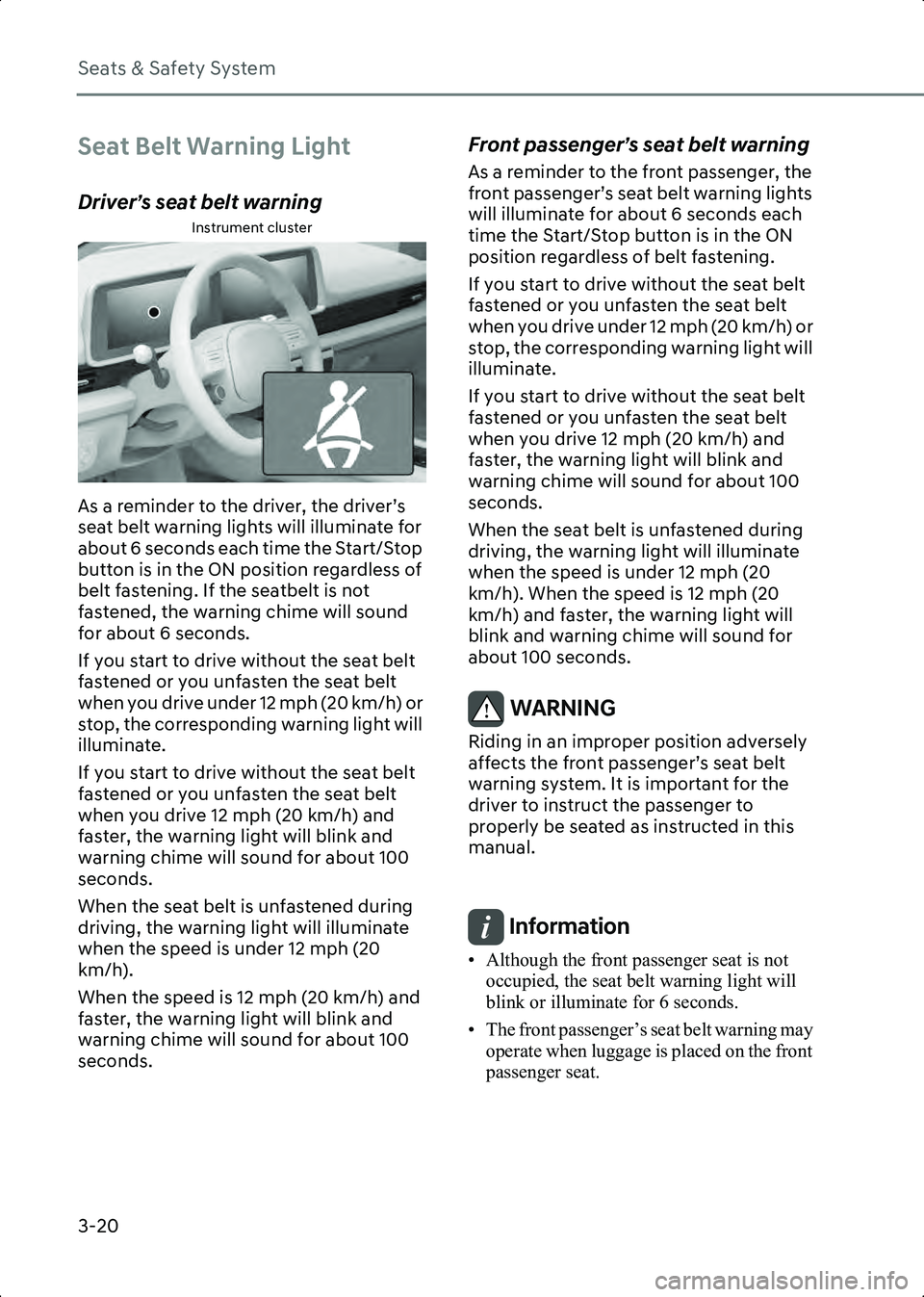

Seat Belt Warning Light
Driver’s seat belt warning
Instrument cluster
B3001502
As a reminder to the driver, the driver’s
seat belt warning lights will illuminate for
about 6 seconds each time the Start/Stop
button is in the ON position regardless of
belt fastening. If the seatbelt is not
fastened, the warning chime will sound
for about 6 seconds.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12 mph (20 km/h) or
stop, the corresponding warning light will
illuminate.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive 12 mph (20 km/h) and
faster, the warning light will blink and
warning chime will sound for about 100
seconds.
When the seat belt is unfastened during
driving, the warning light will illuminate
when the speed is under 12 mph (20
km/h).
When the speed is 12 mph (20 km/h) and
faster, the warning light will blink and
warning chime will sound for about 100
seconds.
Front passenger’s seat belt warning
As a reminder to the front passenger, the
front passenger’s seat belt warning lights
will illuminate for about 6 seconds each
time the Start/Stop button is in the ON
position regardless of belt fastening.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12 mph (20 km/h) or
stop, the corresponding warning light will
illuminate.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive 12 mph (20 km/h) and
faster, the warning light will blink and
warning chime will sound for about 100
seconds.
When the seat belt is unfastened during
driving, the warning light will illuminate
when the speed is under 12 mph (20
km/h). When the speed is 12 mph (20
km/h) and faster, the warning light will
blink and warning chime will sound for
about 100 seconds.
WARNING Riding in an improper position adversely
affects the front passenger’s seat belt
warning system. It is important for the
driver to instruct the passenger to
properly be seated as instructed in this
manual.

Information • Although the front passenger seat is not occupied, the seat belt warning light will
blink or illuminate for 6 seconds.
• The front passenger’s seat belt warning may operate when luggage is placed on the front
passenger seat.

Hyundai_CE_en_US.book Page 20

3
3-21

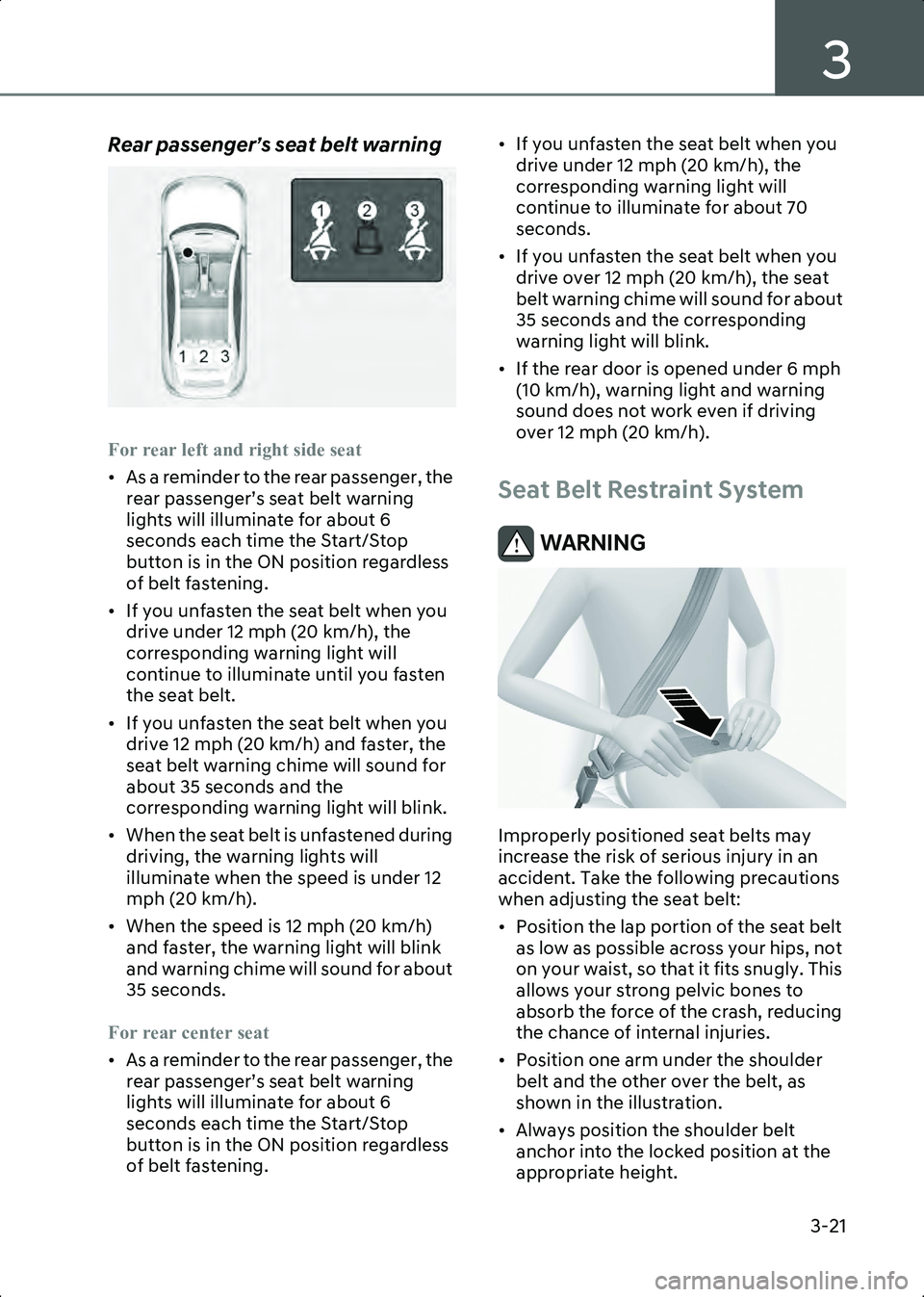

Rear passenger’s seat belt warning
B3001503
For rear left and right side seat
• As a reminder to the rear passenger, the rear passenger’s seat belt warning
lights will illuminate for about 6
seconds each time the Start/Stop
button is in the ON position regardless
of belt fastening.
• If you unfasten the seat belt when you drive under 12 mph (20 km/h), the
corresponding warning light will
continue to illuminate until you fasten
the seat belt.
• If you unfasten the seat belt when you drive 12 mph (20 km/h) and faster, the
seat belt warning chime will sound for
about 35 seconds and the
corresponding warning light will blink.
• When the seat belt is unfastened during driving, the warning lights will
illuminate when the speed is under 12
mph (20 km/h).
• When the speed is 12 mph (20 km/h) and faster, the warning light will blink
and warning chime will sound for about
35 seconds.
For rear center seat
• As a reminder to the rear passenger, the rear passenger’s seat belt warning
lights will illuminate for about 6
seconds each time the Start/Stop
button is in the ON position regardless
of belt fastening. • If you unfasten the seat belt when you
drive under 12 mph (20 km/h), the
corresponding warning light will
continue to illuminate for about 70
seconds.
• If you unfasten the seat belt when you drive over 12 mph (20 km/h), the seat
belt warning chime will sound for about
35 seconds and the corresponding
warning light will blink.
• If the rear door is opened under 6 mph (10 km/h), warning light and warning
sound does not work even if driving
over 12 mph (20 km/h).
Seat Belt Restraint System
WARNING
B3001505
Improperly positioned seat belts may
increase the risk of serious injury in an
accident. Take the following precautions
when adjusting the seat belt:
• Position the lap portion of the seat belt as low as possible across your hips, not
on your waist, so that it fits snugly. This
allows your strong pelvic bones to
absorb the force of the crash, reducing
the chance of internal injuries.
• Position one arm under the shoulder belt and the other over the belt, as
shown in the illustration.
• Always position the shoulder belt anchor into the locked position at the
appropriate height.
Hyundai_CE_en_US.book Page 21

3
3-39

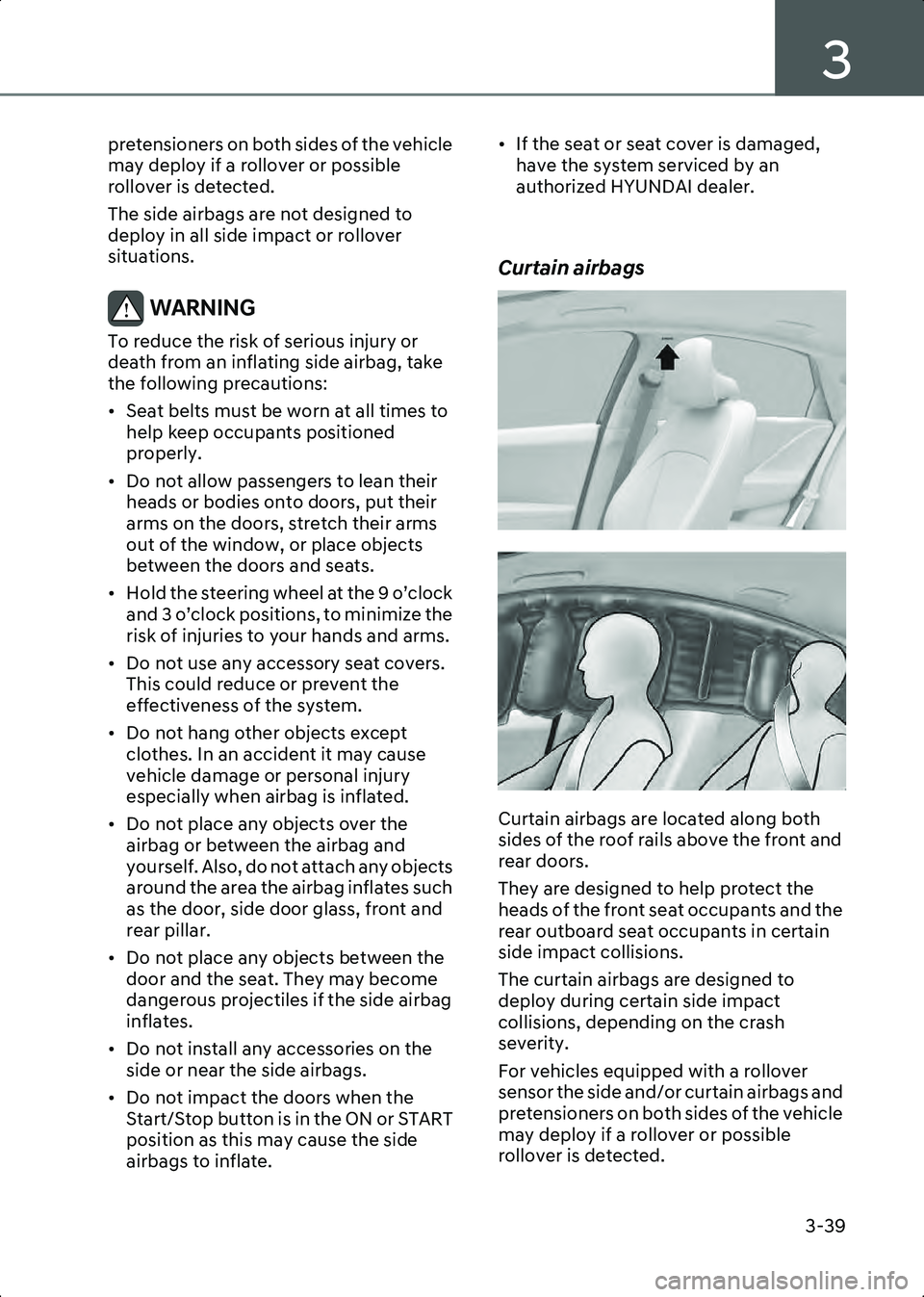

pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
The side airbags are not designed to
deploy in all side impact or rollover
situations.
WARNING To reduce the risk of serious injury or
death from an inflating side airbag, take
the following precautions:
• Seat belts must be worn at all times to help keep occupants positioned
properly.
• Do not allow passengers to lean their heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
• Hold the steering wheel at the 9 o’clock and 3 o’clock positions, to minimize the
risk of injuries to your hands and arms.
• Do not use any accessory seat covers. This could reduce or prevent the
effectiveness of the system.
• Do not hang other objects except clothes. In an accident it may cause
vehicle damage or personal injury
especially when airbag is inflated.
• Do not place any objects over the airbag or between the airbag and
yourself. Also, do not attach any objects
around the area the airbag inflates such
as the door, side door glass, front and
rear pillar.
• Do not place any objects between the door and the seat. They may become
dangerous projectiles if the side airbag
inflates.
• Do not install any accessories on the side or near the side airbags.
• Do not impact the doors when the Start/Stop button is in the ON or START
position as this may cause the side
airbags to inflate. • If the seat or seat cover is damaged,
have the system serviced by an
authorized HYUNDAI dealer.

Curtain airbags
B3003301
B3003302
Curtain airbags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and the
rear outboard seat occupants in certain
side impact collisions.
The curtain airbags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.
For vehicles equipped with a rollover
sensor the side and/or curtain airbags and
pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
Hyundai_CE_en_US.book Page 39
