2023 HYUNDAI IONIQ 6 stop start

Introduction/Getting Started with Your Electric Vehicle
1-50
B0002502

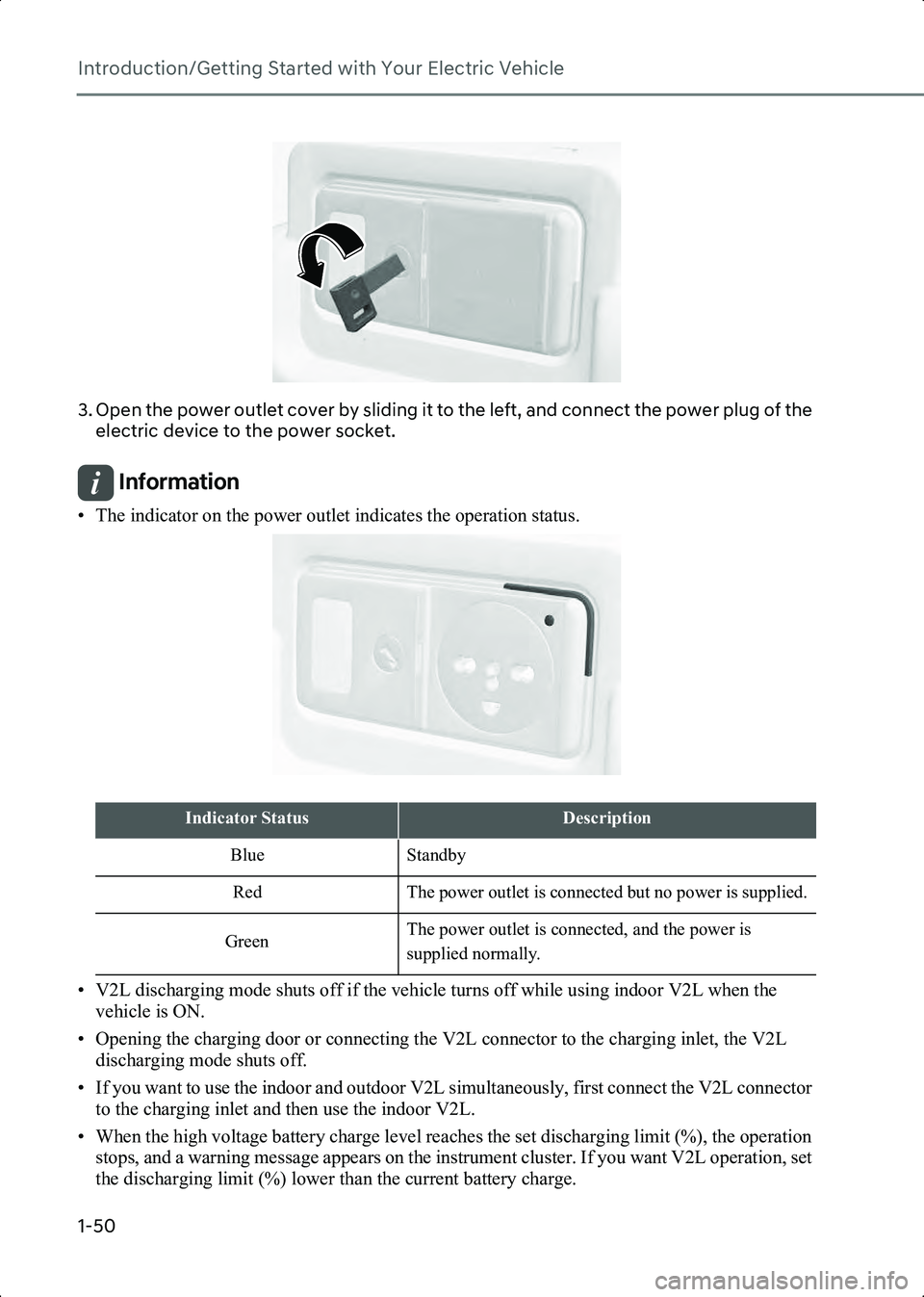

3. Open the power outlet cover by sliding it to the left, and connect the power plug of the electric device to the power socket.
Information • The indicator on the power outlet indicates the operation status.
B0002503
• V2L discharging mode shuts off if the vehicle turns off while using indoor V2L when the vehicle is ON.
• Opening the charging door or connecting the V2L connector to the charging inlet, the V2L discharging mode shuts off.
• If you want to use the indoor and outdoor V2L simultaneously, first connect the V2L connector to the charging inlet and then use the indoor V2L.
• When the high voltage battery charge level reaches the set discharging limit (%), the operation stops, and a warning message appears on the instrument cluster. If you want V2L operation, set
the discharging limit (%) lower than the current battery charge.
Indicator StatusDescription
Blue Standby
Red The power outlet is connected but no power is supplied.
Green The power outlet is connected, and the power is
supplied normally.
Hyundai_CE_en_US.book Page 50

Introduction/Getting Started with Your Electric Vehicle
1-52

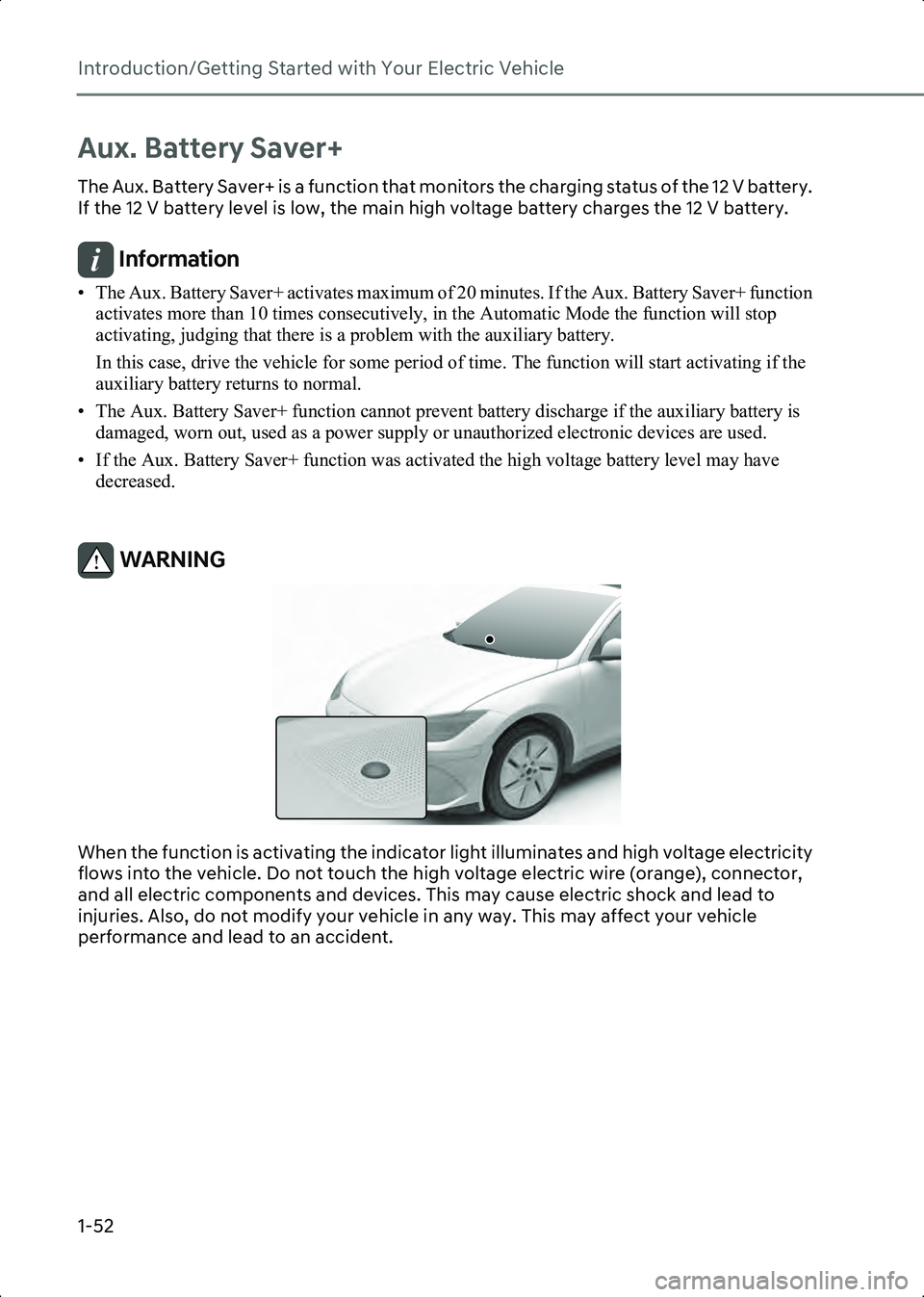

Aux. Battery Saver+
The Aux. Battery Saver+ is a function that monitors the charging status of the 12 V battery.
If the 12 V battery level is low, the main high voltage battery charges the 12 V battery.
Information • The Aux. Battery Saver+ activates maximum of 20 minutes. If the Aux. Battery Saver+ function activates more than 10 times consecutively, in the Automatic Mode the function will stop
activating, judging that there is a problem with the auxiliary battery.
In this case, drive the vehicle for some period of time. The function will start activating if the
auxiliary battery returns to normal.
• The Aux. Battery Saver+ function cannot prevent battery discharge if the auxiliary battery is damaged, worn out, used as a power supply or unauthorized electronic devices are used.
• If the Aux. Battery Saver+ function was activated the high voltage battery level may have decreased.

WARNING
B5019903_1
When the function is activating the indicator light illuminates and high voltage electricity
flows into the vehicle. Do not touch the high voltage electric wire (orange), connector,
and all electric components and devices. This may cause electric shock and lead to
injuries. Also, do not modify your vehicle in any way. This may affect your vehicle
performance and lead to an accident.

Hyundai_CE_en_US.book Page 52

1
1-53
Driving Your Electric Vehicle
Check how to use the devices inside the vehicle that you must know for driving, such as
starting, braking, and shifting the electric vehicle.
Starting and Stopping the Vehicle
Follow the instructions below to start or stop the vehicle.
CAUTION • Always fasten the seat belt before starting the vehicle for safety.
• Check if the EBP is applied before starting the vehicle.

Starting the vehicle
1. Holding the smart key, sit in the driver’s seat.
2. Press the Start/Stop button while pressing the brake pedal.• On the instrument cluster, (ready indicator) is displayed.
Information While the (ready indicator) is displayed, press the brake pedal, shift to D (Drive) or R
(Reverse), and release the EBP and the brake pedal to start moving the vehicle forward or
backward. You can start driving by pressing the accelerator pedal slowly and decelerate or stop by
pressing the brake pedal.

Stopping the vehicle
1. Stop the vehicle completely by pressing the brake pedal.
2. Apply the EPB while pressing the brake pedal, and press the gear’s P button to shift to P (Park).
3. Press the Start/Stop button. • The (ready indicator) on the instrument cluster turns off.
Information There are other Start/Stop button positions besides the ON/OFF. Use it appropriately paying
attention to the discharging of the 12 V battery.
•ACC : The 12 V battery power is turned on, allowing some devices, such as infotainment system
and air conditioning system to operate. Press the Start/Stop button when it is in the OFF position
to turn on ACC.
• ON : The 12 V battery power is turned on, allowing to check the instrument cluster and use all
the electric devices inside the vehicle. Press the Start/Stop button when it is in the ACC position
to turn it ON.

Hyundai_CE_en_US.book Page 53

1
1-59
Checking the warning lights
Check the cause of the warning lights referring to the table below and take appropriate
measures.
Warning LightCauseMeasure
Service warning light This warning light illuminates:
• When there is a problem with
related parts of the electric
vehicle control system, such
as sensors, etc.
• When an actuator, electric compressor for air
conditioning, etc.
malfunctions. In a normal condition, it
illuminates for about 3 seconds
when the Start/Stop button is in
the ON position and then goes
off.
• When the warning light
illuminates while driving, or
does not go off after starting
the vehicle, have your vehicle
inspected by an authorized
HYUNDAI dealer.
Power down indicator light This warning light illuminates:
• When the high voltage
battery level is too low or
voltage is decreasing.
(Output limit occurs when the
charge level is insufficient.)
• When the temperature of the high voltage battery is too
high or too low.
• When the driving system temperature is overheated
and requires protection. If it illuminates alone, it is not
failure.
• If both Power down indicator
light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• When the indicator is illuminating, immediately
charge the vehicle. The
driving speed may be limited
and the vehicle may not
properly drive uphill.
High voltage battery level warning light This warning light illuminates
when the high voltage battery
level is low. Immediately charge the
vehicle. The vehicle can drive
an additional 18-31 mi. (30-50
km).
• The actual distance to empty
depends on the driving
conditions.
Regenerative brake warning light This warning light illuminates
when the regenerative brake
does not operate and the brake
does not perform well due to
the malfunction of the brake
system. Drive safely and have your
vehicle inspected by an
authorized HYUNDAI dealer.
• The operation of the brake
pedal may feel deeper than
normal or the braking
distance may increase.
Hyundai_CE_en_US.book Page 59

Introduction/Getting Started with Your Electric Vehicle
1-62
Power limitedThis warning message is
displayed when the power of
the vehicle is limited to ensure
the safety of high-powered
components for the reasons
below:
• The high voltage battery level
is too low or voltage is
decreasing.
• The temperature of the high voltage battery is too high or
too low.
• When the driving system is overheated and requires
protection. If it illuminates alone, it did not
fail.
• Charge the vehicle is the
charge level is low.
• If both Power down indicator light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• Do not accelerate or start the vehicle suddenly when the
warning message is
displayed.
• Be careful when the Power down indicator light is
displayed. The vehicle may
not properly drive uphill and
roll back on a slope.
Low EV battery
temperature. Power
limited If you start or turn off the
vehicle when the outside
temperature is low, both
warning messages appear to
protect electric vehicle system.
• If the high voltage battery
charge level is low and parked
outside for a long time,
vehicle power could be
limited due to the low battery
temperature. • Charging the battery before
driving helps increase power.
• If these warning messages are still displayed even after the
ambient temperature has
increased, have the vehicle
inspected and repaired by an
authorized HYUNDAI dealer.
EV Battery
Overheated! Stop
vehicle The high voltage battery
temperature is too high. • Stop the vehicle in a safe place
and turn off the Start/Stop
button and wait until the
battery temperature
decreases.
• If these warning messages are still displayed even after
turning off the engine and
waiting for a sufficient time,
immediately have the vehicle
inspected by an authorized
HYUNDAI dealer.
Warning MessageCauseMeasure
1PXFS
MJNJUFE
-PX
CBUUFSZ

UFNQFSBUVSF
1PXFS
MJNJUFE
#BUUFSZ
PWFSIFBUFE 4UPQ
TBGFMZ
Hyundai_CE_en_US.book Page 62

1
1-63
Stop vehicle and
check power supplyA failure occurs in the power
supply system. Immediately stop the vehicle in
a safe place. Have the vehicle
towed to an authorized
HYUNDAI dealer for inspection
and maintenance.
Unplug vehicle to
start You have started the vehicle
with the charging connector
plugged in. Unplug the charging cable and
start the vehicle.
Charging Door Open You have started the vehicle
with the charging door opened. Check if the charging door is
completely closed after
charging the vehicle.
Charging Stopped.
Check the AC charger These warning messages are
displayed when charging is
stopped for the reasons below:
• There is a problem with the
external AC charger or DC
charger.
• The external AC charger stopped the charging.
• The charging cable is damaged. • Check whether there is any
problem with the external AC
or DC charger and charging
cable.
• Charge the vehicle with an AC charger that has been
approved for proper operation
or a genuine HYUNDAI
portable charger.
• If the same problem occurs, have the vehicle inspected by
an authorized HYUNDAI
dealer.
Warning MessageCauseMeasure
4UPQ
TBGFMZ
BOE
DIFDL
QPXFS TVQQMZ
6OQMVH
WFIJDMF UP
TUBSU
$IBSHJOH
EPPS PQFO
$IBSHJOH
TUPQQFE1MFBTF
DIFDL
UIF
"$
DIBSHFS
Hyundai_CE_en_US.book Page 63

Introduction/Getting Started with Your Electric Vehicle
1-64

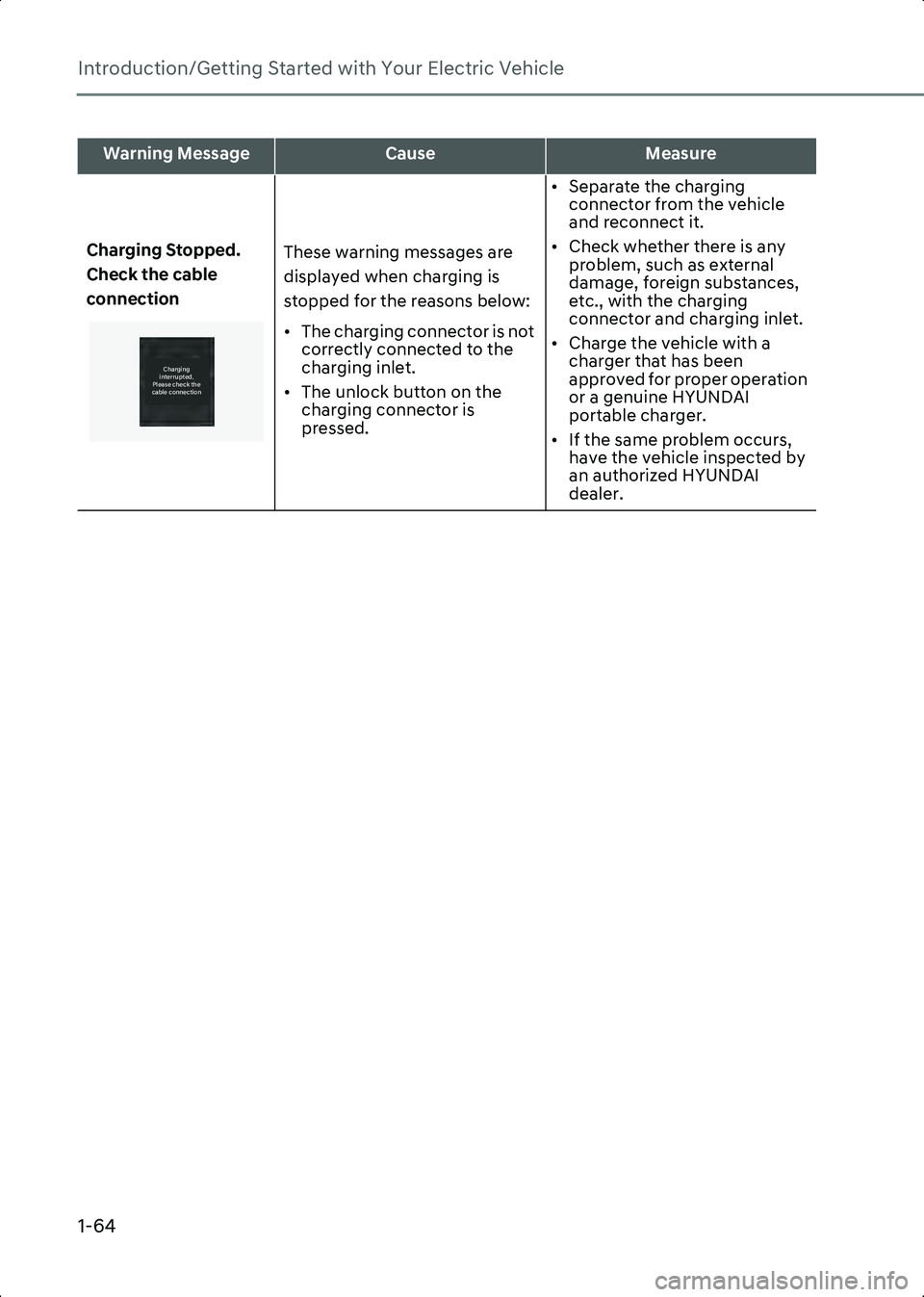

Charging Stopped.
Check the cable
connectionThese warning messages are
displayed when charging is
stopped for the reasons below:
• The charging connector is not
correctly connected to the
charging inlet.
• The unlock button on the charging connector is
pressed. • Separate the charging
connector from the vehicle
and reconnect it.
• Check whether there is any problem, such as external
damage, foreign substances,
etc., with the charging
connector and charging inlet.
• Charge the vehicle with a charger that has been
approved for proper operation
or a genuine HYUNDAI
portable charger.
• If the same problem occurs, have the vehicle inspected by
an authorized HYUNDAI
dealer.
Warning MessageCauseMeasure
$IBSHJOH
JOUFSSVQUFE
1MFBTF
DIFDL
UIF
DBCMF
DPOOFDUJPO
Hyundai_CE_en_US.book Page 64

2
2-5

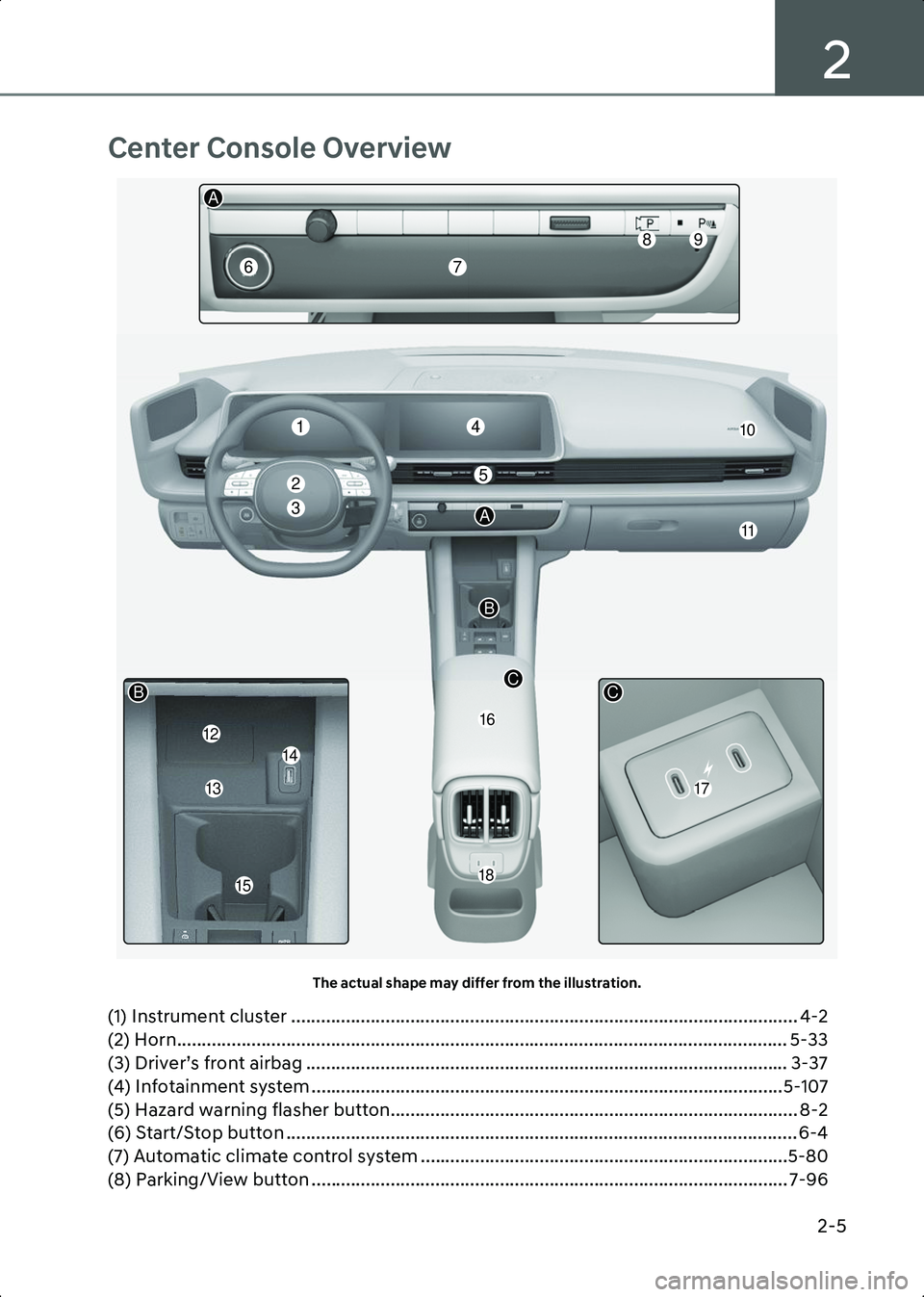

Center Console Overview
A1000601The actual shape may differ from the illustration.
(1) Instrument cluster ...................................................................................................... 4-2
(2) Horn........................................................................................................................... 5-33
(3) Driver’s front airbag ................................................................................................. 3-37
(4) Infotainment system ...............................................................................................5-107
(5) Hazard warning flasher button.................................................................................. 8-2
(6) Start/Stop button ....................................................................................................... 6-4
(7) Automatic climate control system ..........................................................................5-80
(8) Parking/View button ................................................................................................ 7-96
14
5
67
12
13
14
1815
10
11
16
2
3
A
A
B
B
CC
17
89
