2023 HYUNDAI IONIQ 6 fuse

9
9-39

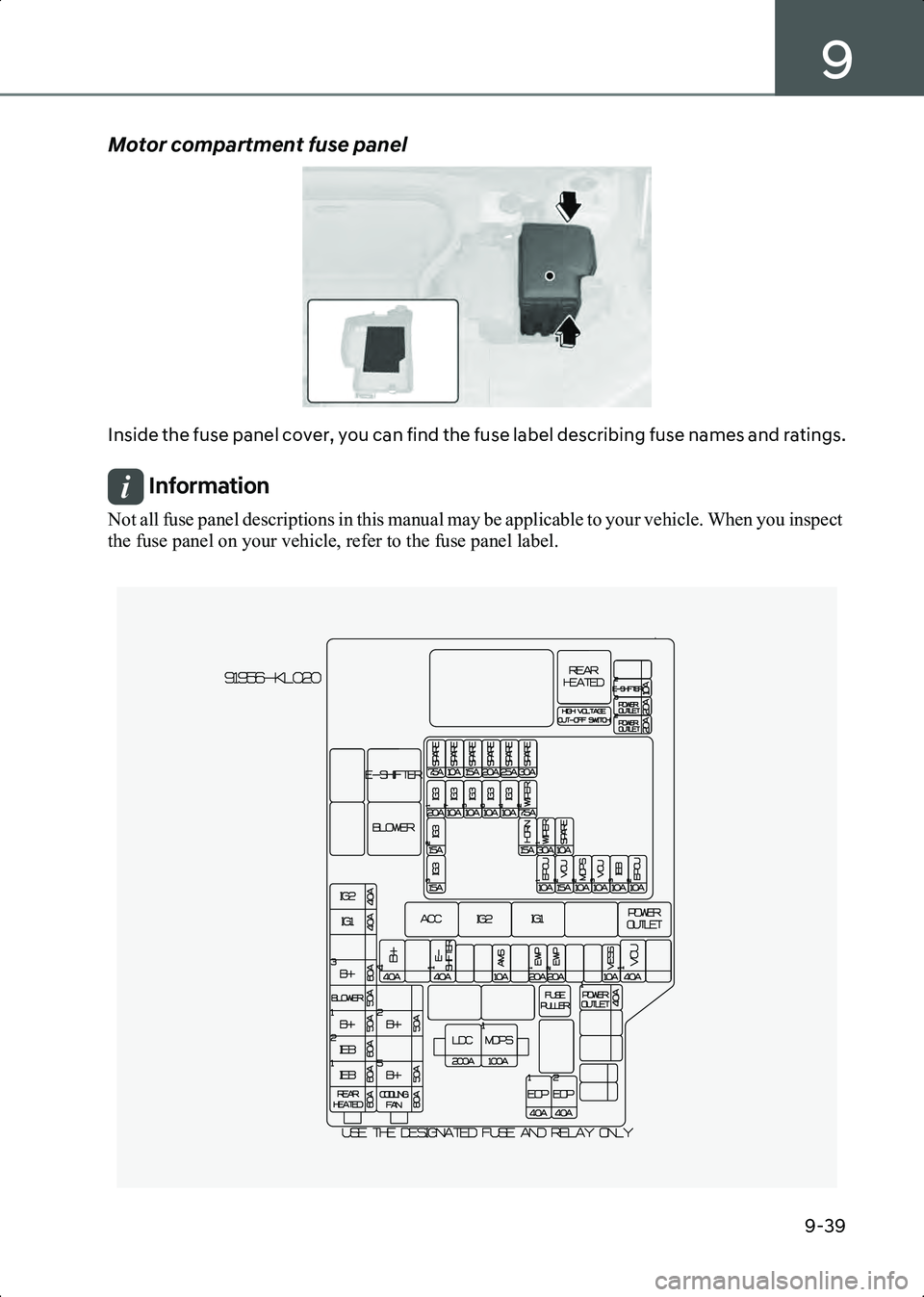

Motor compartment fuse panel
B9006003
Inside the fuse panel cover, you can find the fuse label describing fuse names and ratings.
Information Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect
the fuse panel on your vehicle, refer to the fuse panel label.

ONE1091047N
Hyundai_CE_en_US.book Page 39

Maintenance
9-40
Motor compartment fuse panel
TypeFuse NameFuse RatingCircuit Protected
MULTI
FUSE-1 LDC1 200 A
ICCU (LDC), P/R Junction Block
(Fuse : POWER OUTLET1, EOP1, EOP2, LDC2)
MDPS1 100 A MDPS Unit
MULTI
FUSE-2 COOLING
FAN 80 A
Cooling Fan Motor
B+5 50 A PCB Block (Main Relay,
Fuse : VCU2, EPCU1, WIPER1, B/A HORN, HORN)
B+2 50 A ICU Junction Block (Fuse : IPS5, IPS7, IPS8,
IPS9)
MULTI
FUSE-3 RR HTD 60 A
P/R Junction Block (RLY. 10)
IEB1 60 A IEB Unit
IEB2 50 A IEB Unit
B+1 50 A ICU Junction Block (Fuse : IPS1, IPS2, IPS3,
IPS4, IPS6)
BLOWER 50 A P/R Junction Block (RLY. 9)
B+3 60 A ICU Junction Block (Fuse : F1, F2, F12, F13, F23,
F24, F34, F35, F43, F44, F49, F50, F55)
IG1 40 A P/R Junction Block (RLY. 1, RLY. 3)
IG2 40 A P/R Junction Block (RLY. 2)
Hyundai_CE_en_US.book Page 40

9
9-41
FUSEB+4 40 A
ICU Junction Block
(Long Term Load Latch Relay,
Fuse : F10, F11, F21, F22, F33, F41, F42, F47, F48, F52, F53)
E-SHIFTER1 40 A P/R Junction Block (RLY. 8, Fuse : F13) AMS 10 A 12 V Battery
EWP1 20 A Electronic Water Pump #1 (HV Battery)
EWP2 20 A Electronic Water Pump #2 (HV Battery) VESS 10 A VESS Unit
VCU1 40 A VCU
POWER
OUTLET1 40 A
P/R Junction Block (RLY. 5)
EOP1 40 A Rear Electronic Oil Pump
EOP2 40 A Front Electronic Oil Pump
E-SHIFTER2 10 A SCU, Electronic Shift Switch, P/R Junction
Block (RLY. 8)
POWER
OUTLET3 20 A
Rear Power Outlet
POWER
OUTLET2 20 A
Front Power Outlet
TypeFuse NameFuse RatingCircuit Protected
Hyundai_CE_en_US.book Page 41

Maintenance
9-42
Fuse NameFuse RatingCircuit Protected
IG3 1 20 A ICU Junction Block (Fuse: F7, F18, F19, F30)
IG3 2 15 A Front Inverter (AWD)
IG3 3 15 A Electronic Water Pump
IG3 4 10 A VCU
IG3 5 10 A A/C Coolant Valve, Electronic Water Pump Batt #1, #2
IG3 6 10 A BMS Coolant 3Way Valve
IG3 7 10 A Cooling Fan Motor, Front Electronic Oil Pump (AWD)
EPCU1 10 A Front Inverter (AWD)
EPCU2 10 A Front Inverter (AWD)
VCU2 10 A VCU
VCU3 10 A VCU
WIPER1 30 A PCB Block (Wiper Main Relay)
WIPER2 7.5 A IBU
HORN 10 A PCB Block (Horn Relay)
IEB3 10 A IEB Unit
MDPS2 10 A MDPS Unit
Hyundai_CE_en_US.book Page 42
